hp brio ba400
models and accessories
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media1
Modem/
LAN
OS2Soft-
ware3
Models with Intel Celeron Processor PPGA4package (socket 370) and
66MHz System Bus Speed
400MHz / 128k (CPL: 10/99 )
D9713A 4.3 GB
IDE
Integrated
Direct AGP
64 MB no no
W98 no
D9727A 32 MB 32X CD-
ROM
56K PCI
Modem
433MHz / 128k (CPL: 10/99 )
D8932T
4.3 GB
IDE
Integrated
Direct AGP
32 MB 48X CD-
ROM
no
W98 no
D8934A 32 MB
no
D8934A
#G01
64 MB
D8934T 32 MB
D8935A
32 MBD8935B
D8935T
D8937T 64 MB
48X CD-
ROM
D8938A
32 MB 10/100
Base-T
LAN
D8939A 8.4 GB 64 MB
48X CD-
ROM &
speakers
56K USB
Modem
D9714B
4.3 GB
IDE
32 MB
no no
D9715B 48X CD-
ROM
56K USB
D9717A
64 MB
no
no
D9718A 48X CD-
ROM

hp brio ba400
5-2 hp brio ba400 Microtower Brios
5
466MHz / 128k (CPL: 10/99 )
D8933T 4.3 GB
IDE
Integrated
Direct AGP
64 MB 48X CD-
ROM
56K USB
Modem W98 no
D8936A 8.4 GB
IDE NT4 MS Office
2000 SBE
D8936T
noD8940A
4.3 GB
IDE 32 MB no
W98
noD8940B
D8941A
48X CD-
ROM
56K USB
Modem
D8942A
8.4 GB
IDE
64 MB
Lotus
SSM
D8943A
no
no
D8943A
#G01 128 MB NT4
D8943B 64 MB W98
D8943T
D8943T
#131 128 MB 10/100
Base-T
LAN
NT4
D8943T
#132
D8944A
64 MB
W98
D8944B
D8945A
no
MS Office
2000 SBE
D8945T
D8946A
4.3 GB
IDE
32 MB
no
D8946T
D8946A
#G01 64 MB
D9716A
32 MB 10/100
Base-T
LAN
D9720A
64 MB
no no
D9720T
D9722T
#131
48X CD-
ROM
USB
Modem
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media1
Modem/
LAN
OS2Soft-
ware3

hp brio ba400
Microtower Brios hp brio ba400 5-3
5
500MHz / 128k (CPL: 10/99 )
D9721A
10 GB
IDE
Integrated
Direct AGP
64 MB
48X CD-
ROM
56K USB
Modem W98
no
D9721T
D9723T 10/100
Base-T
LAN
W2K
D9726A 4X/2X/
CD-RW
56K USB
Modem
W98
D8767A no
no
D8767T
D8768A
48X CD-
ROM
D8768T
D8769A 56K USB
Modem
D8947A
8.4 GB
IDE
4X/2X/
CD-RW noD8947T
D8948A
48X CD-
ROM
10/100
Base-T
LAN
D8948A
#805
NT4
D8948B
W98
D8949T 13 GB
IDE
56K USB
Modem
MS Office
2000 SBE
D8958A
4.3 GB
IDE
no no
no
D8958B
32 MB
D8959B 48X CD-
ROM
56K USB
Modem
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media1
Modem/
LAN
OS2Soft-
ware3

hp brio ba400
5-4 hp brio ba400 Microtower Brios
5
533MHz / 128k (CPL: 10/99 )
D8762A
10 GB
IDE
Integrated
Direct AGP
64 MB
48X CD-
ROM
no
W98
no
D8763A MS Office
2000 SBE
D8763T
D8765A
4.3 GB
IDE 32 MB
10/100
Base-T
LAN
no
D8765B
D8766A
no
D8952A
10 GB
IDE 64 MB
D8952T
D8953A 8X DVD
ROM
D8953T 56K USB
Modem
D8954A
48X CD-
ROM
D8954B
D9722A no
D9722B 10/100
Base-T
LAN
D9722T
noD9724A no
D9724T
566MHz / 128k (CPL: 04/00 )
D8760A
10 GB
IDE
Integrated
Direct AGP
64 MB
48X CD-
ROM
56K PCI
Modem
W98
no
D8760T
D8761A no no
D8761T
P2242A
48X CD-
ROM
10/100
Base-T
LAN
P2242B
P2244T no MS Office
2000 SBE
P2245B 4.3 GB
IDE 32 MB
no
no no
P2246B 48X CD-
ROM
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media1
Modem/
LAN
OS2Soft-
ware3

hp brio ba400
Microtower Brios hp brio ba400 5-5
5
600MHz / 128k (CPL: 04/00 )
D8764A
10 GB
IDE
Integrated
Direct AGP 64 MB
48X CD-
ROM
no
W98 no
D8764T
D8759A 10/100
Base-T
LAN
D8759T
D2247C 56K PCI
Modem
P2239T no
1. All models have an integrated full-duplex PCI audio controller.
2. Operating system preloaded on these models, as indicated in the table.
3. In addition to the HP Brio pre-loaded software, either Microsoft Office 2000 Small Business
Edition or Lotus SmartSuite Millenium Edition as indicated.
4. PPGA=Plastic Pin Grid Array.
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media1
Modem/
LAN
OS2Soft-
ware3
Models1with User Defined Processor, Main Memory, and Hard Disk
(CPL: 04/00 )
1. Channel Assembly Program (CAP) models
Product
Number
Hard
Drive
Video
Controller
Std.
RAM
Multi-
media2
2. All models have an integrated full-duplex PCI audio controller.
Modem/
LAN
OS3
3. Operating system preloaded on these models, as indicated in the table.
Soft-
ware4
4. In addition to the HP Brio pre-loaded software, either Microsoft Office 2000 Small Business
Edition or Lotus SmartSuite Millenium Edition as indicated.
P8961E
User
defined
Integrated
Direct AGP
User
defined
User
defined
User
defined
User
defined
User
defined

hp brio ba400
5-6 hp brio ba400 Microtower Brios
5
supported accessories
32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T
32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module
(pack of 20)
D6504A/T
64-MB kit 32-bit SDRAM, 133 MHz non-ECC main memory module P1536A
64-MB kit 32-bit SDRAM, 133 MHz non-ECC main memory module
(pack of 20)
P1540A
128-MB, 32-bit SDRAM, 133 MHz non-ECC main memory module P1537A
256-MB, 32-bit SDRAM, 133 MHz non-ECC main memory module P1538A
Input Devices
HP Multimedia Keyboard C4742A/B
HP Windows Keyboard C4735A
HP Standard Two-Button Mouse C3751B
HP Scrolling Mouse C4736A/B
HP Cordless Scrolling Mouse C4740A/B
Monitors
All current HP Monitors (see the HP Monitors Service Handbook)
Mass Storage1
4.3-GB IDE hard disk D8371A
6.4-GB IDE hard disk D8372A
8.4-GB IDE hard disk D8373A
10-GB IDE hard disk D9623A
13.5-GB IDE hard disk D8092A
15-GB IDE hard disk D7517A
HP ZIP Internal 100 Drive D6650A\B
Other
Air Flow Guide2D8961E

hp brio ba400
Microtower Brios hp brio ba400 5-7
5
Multimedia / Audio Accessories
48
 Max IDE CD-ROM drive D9444A
48
 Max IDE CD-ROM drive (pack of 10) D9445A
HP 4X 4X 24X IDE CD-Writer Plus P1546A
HP 8X DVD-ROM drive D7521A\B
HP Amplified Speakers by Labtec — 10WRMS D4545A
HP Amplified Speakers by Labtec — 4WRMS D6861A
HP Amplified Speakers by Labtec — 4WRMS (pack of 4) D6860A
HP Standard headset D8387A
Data Communications and LAN Adapter Boards
HP 10/100 3Com 3C905C-TX, 10/100BT Ethernet card D7522A/B
HP 10/100 3Com 3C905C-TX, 10/100BT Ethernet card (pack of 10) D7523A/B
HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A
HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A
HP 10/100 Base-T PCI Ethernet adapter D7508A/B
HP 10/100 Base-T PCI Network Card (pack of 10) D7509A/B
HP USB Hub Accessory Kit D6804A
HP 56K V90 PCI Internal Modem D7519A
HP 56K V90 USB External Fax Modem D8384A/B
HP Security
HP Protect Tools 2000 Smart Card Kit D8436B/A
N.B. For manuals and documentation refer to the Brio Support web where PDF files are
available for download at http://www.hp.com/briosupport
1. The hard disk drives may be used only as a replacement for the primary hard disk drive.
2. This is for the 466MHz and 500MHz models only

hp brio ba400
5-8 hp brio ba400 Microtower Brios
5
system board, BIOS, and memory
Processor: Celeron PPGA
(Plastic Pin Grid Array)
package with Zero
Insertion Force (ZIF)
socket.
Main Memory:
Two DIMM sockets which support
up to a maximum of 512 MB.
Install 32 MB, 64 MB, 128 MB or 256
MB 100 MHz SDRAM modules.
System Board jumper configurations:
See the diagram on the next page.

hp brio ba400
Microtower Brios hp brio ba400 5-9
5
manually clearing CMOS and passwords on a brio ba400
1Change the position of switch 1 to ON to clear both CMOS and passwords.
If you want to clear passwords only, set switch 2 to ON.
2Replace the co er and reconnect the power cord.
3Switch on the PC.
4Shut down the PC and set switch 1 to OFF. Set switch 2 to OFF if you reset
it earlier instead of 1.
BIOS History
For the latest BIOS and the flasher utility program refer to the HP World Wide
Web site.
http://www.hp.com/go/briosupport/
Switch block
brio ba400
system board

hp brio ba400
5-10 hp brio ba400 Microtower Brios
5

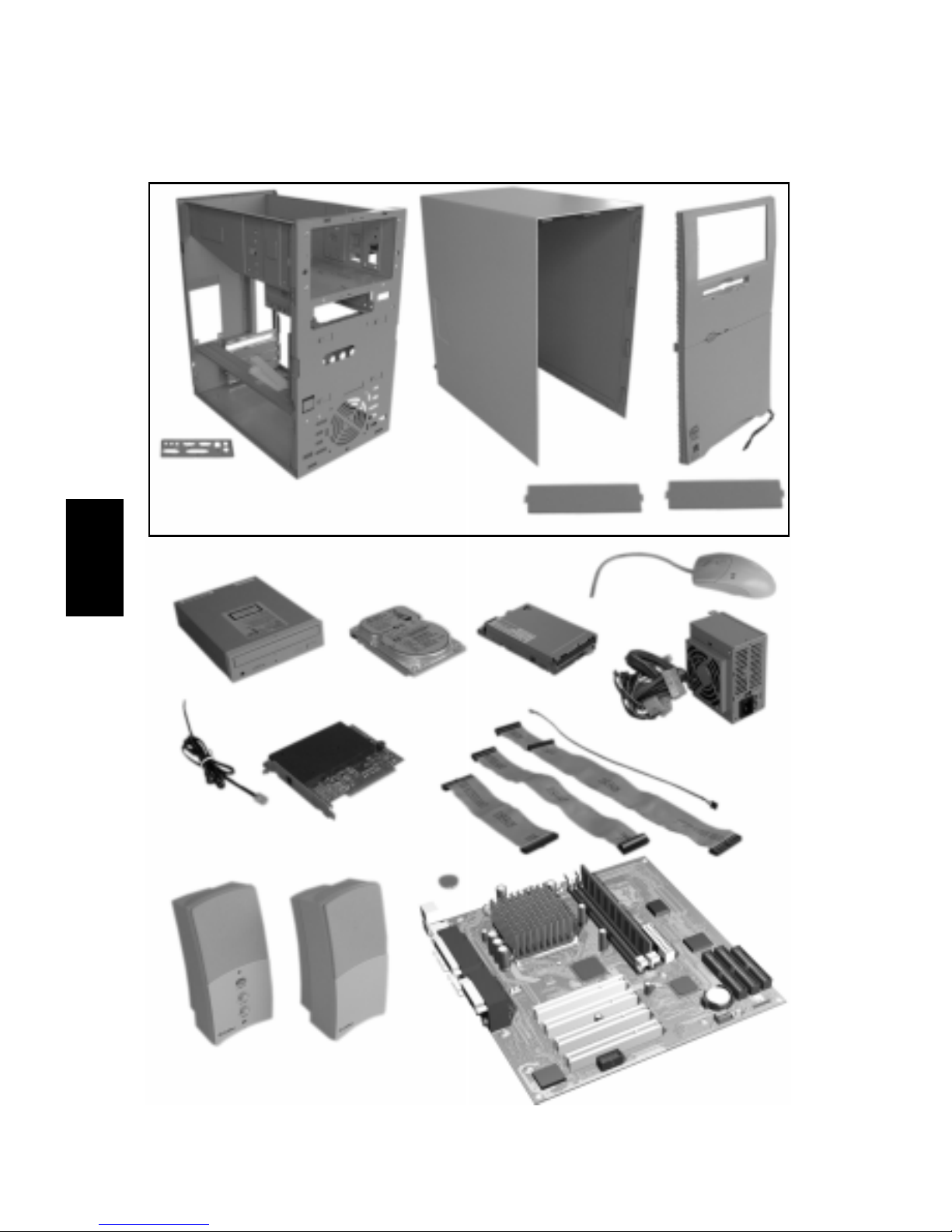

part numbers
1
2
3
4
5
6
7
8
9
10
11
14
15
16
17
12

hp brio ba400
Microtower Brios hp brio ba400 5-11
5
parts list for hp brio ba400 pcs
Item Description Repl.
Part Number
Exchange
Part Number
1 Chassis assembly15064-7483 —
2 Front bezel assembly25064-7482 —
3 Power supply D9095-63010
Power cord See Appendix for
full list
4 HDD cable 5183-9425 —
5 CD-ROM cable 5183-9426 —
6 FDD cable 5183-9427 —
7 Floppy disk drive (bezel-less) D2035-60391 —
8 IDE hard disk drive3
4.3GB
6.4GB
8.4GB
10 GB
13.5GB
15 GB
—
—
—
—
D9066-69001
D9068-69001
D8372-69001
D9067-69001
D9069-69001
D9443-69001
D9805-69001
D8998-69005
D9803-69001
948
 Max IDE CD-ROM drive &
4X Max IDE CD-Writer plus CD-RW
8X DVD-ROM
—
—
D4389-63021
C4465-69001
D4388-69002
10 CD-ROM to audio connector cable 5182-1857 —
11 Scrolling mouse C4736-60101 —
Standard keyboard5C4739-601xx4—
12 Battery type CR2032 1420-0356 —
14 LAN Card -
HP 10/100BT PCI Ethernet adapter
HP 3COM Fast Etherlink XL 3C905-TX PCI
NIC
HP Intel Pro/100+ Management adapter
5065-2523
5064-7429
5065-1210

hp brio ba400
5-12 hp brio ba400 Microtower Brios
5
15 Telephone Cable See Appendix for
full list
16 HP Amplified Speakers — 4WRMS
US D6861-63101 —
UK D6861-63113 —
Japan D6861-63124 —
Europe D6861-63142 —
Australia D6861-63143 —
HP Amplified Speakers — 10WRMS
US D4545-63101 —
UK D4545-63113 —
Europe D4545-63107 —
17 System board See PC’s system board parts list
185USB Modem
US
EUROPE
Australia
5064-9789
5064-9790
5065-1204
195Air Flow Guide 5042-4437
205HP Serial interface device 5064-9776
21 Recovery CD-ROM (Win 98 and Win 95)
Recovery CD-ROM (Windows NT 4.0)
Recovery CD-ROM (Windows NT 2000 -
English only)
5011-6668-xx6
5011-6669-xx6
5970-0220-EN
1. Includes chassis frame, top cover, front bezel with ON/OFF circuitry, FDD & HDD frames, I/
O Plate.
2. Includes front bezel with ON/OFF circuitry, and two 5.25 inch fillers.
3. For optional disk drive information, see the Accessory Service Handbook — 5969-1945.
4. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).
5. Not shown
6. xx in the part number = country suffix e.g. EN for English
parts list for hp brio ba400 pcs
Item Description Repl.
Part Number
Exchange
Part Number

hp brio ba400
Microtower Brios hp brio ba400 5-13
5

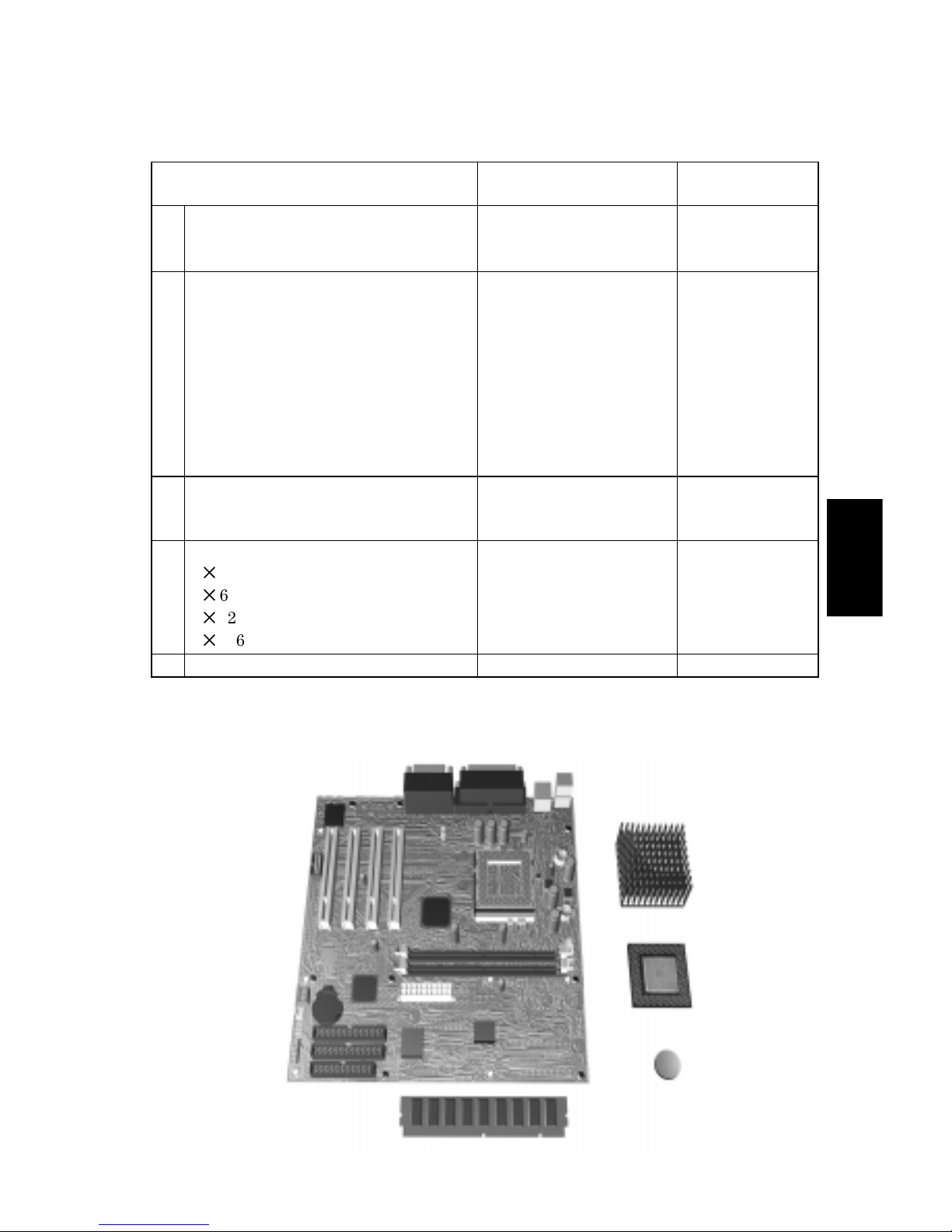

system board parts list for hp brio ba400 pcs
Description Repl.
Part Number
Exchange
Part Number
1 System board:
Brio BA 400 system board D8930- 60001
D8930- 60003
D8930-690011
D8930- 69003
1. This board must not be used with Coppermine processors i.e. processors above 533MHz
2 Processors (socket 370):
Intel Celeron 400/66 128KB L2 cache 5064-9130
Intel Celeron 433/66 128KB L2 cache D8117-63001 —
Intel Celeron 466/66 128KB L2 cache D8118-63001 —
Intel Celeron 500/66 128KB L2 cache 5065-0477 —
Intel Celeron 533/66 128KB L2 cache D8748-63001
Intel Celeron 566/66 128KB L2 cache D9903-63001
Intel Celeron 600/66 128KB L2 cache D9904-63001
Thermal interface material 6040-0939 —
3 Heatsink 1205-1259(Cel 400-500)
5065-1216 (Cel 400-533)
5065-1296
—
4 Main memory modules:
1
 32MB, 100 MHz non-ECC SDRAM D6501-63001 —
1
 64MB, 100 MHz non-ECC SDRAM D6502-63001 D6502-69001
1
 128MB, 100 MHz non-ECC SDRAM D6503-63001 D6503-69001
1
 256MB, 100 MHz non-ECC SDRAM D9525-63001 D9525-69001
5 Battery type CR2032: 1420-0356
1
2
3
45

hp brio ba400
5-14 hp brio ba400 Microtower Brios
5
Notes: ______________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
