HP Model 745 - VME Workstation User manual

Service Handbook
Model 745
HP Part No. A4964-90602
Edition E1199
Special Online Edition
Printed in U.S.A.

ii
Hewlett-Packard Co. 1999
Printing History
First Printing: April 1999
Latest Printing: November 1999
UNIX is a registered trademark of The Open Group.
NOTICE
The information contained in this document is subject to change
without notice.
HEWLETT-PACKARD MAKES NO WARRANTY OF ANY
KIND WITH REGARD TO THIS MATERIAL INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Hewlett-Packard shall not be liable for errors con-
tained herein or for incidental or consequential damages in connec-
tion with the furnishing, performance or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliabil-
ity of its software on equipment that is not furnished by Hewlett-
Packard.
This document contains proprietary information that is protected
by copyright. All rights reserved. No part of this document may be
photocopied, reproduced or translated to another language without
the prior written consent of Hewlett-Packard Company.
RESTRICTED RIGHTS LEGEND. Use, duplication, or disclo-
sure by government is subject to restrictions as set forth in subdivi-
sion (c) (1) (ii) of the Rights in Technical Data and Computer
Software Clause at DFARS 252.227.7013. Hewlett-Packard Co.,
3000 Hanover St., Palo Alto, CA 94304.
10 9 8 7 6 5 4 3 2 1

Safety and Regulatory Statements
iii
Safety and Regulatory Statements
Safety
See the owner’s guide that came with your system for safety infor-
mation.
Regulatory Statements
Emissions Regulations
Federal Communications Commission (FCC) The Federal
Communications Commission of the U.S. government regulates
the radio frequency energy emanated by computing devices
through published regulations. These regulations specify the limits
of radio frequency emission to protect radio and television recep-
tion. All HP nodes and peripherals have been tested and comply
with these limits. The FCC regulations also require that computing
devices used in the U.S. display the agency’s label and that the
related documentation include the following statement:
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
Canadian Department of Communications (CDC) This digi-
tal apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatusas set out in theRadio Interference
Requirements of the Canadian Department of Communications.
Emissions Regulations Compliance Any third-party I/O device
installed in HP system(s) must be in accordance with the require-
ments set forth in the preceding Emissions Regulations statements.

Safety and Regulatory Statements
iv
In the event that a third-party noncompliant I/O device is installed,
the customer assumes all responsibility and liability arising there-
from.
Electrostatic Discharge (ESD) Precautions Electrostatic
charges can damage the integrated circuits on printed circuit
boards. To prevent such damage from occurring, observe the fol-
lowing precautions during board unpacking and installation:
• Stand on a static-free mat.
• Wear a static strap to ensure that any accumulated elec-
trostatic charge is discharged from your body to ground.
• Connect all equipment together, including the static-free
mat, static strap, routing nodes, and peripheral units.
• Keepuninstalledprintedcircuit boardsintheirprotective
antistatic bags.
• Handle printed circuit boards by their edges, once you
have removed them from their protective antistatic bags.

Contents
v
1 Product Information
The Model 745 Industrial Controller 1-3
Features 1-5
Typical External Devices 1-6
Physical Dimensions and Power Requirements 1-7
Board Computer Configurations 1-8
Cables 1-9
Operating System Overview 1-10
Manuals for System Information 1-11
HP-UX 1-11
HP VUE 1-11
HP CDE 1-11
Online Sources of Information 1-12
Audio 1-13
Product Identification 1-14
Support 1-14
Hardware Support 1-14
Field Repair Philosophy 1-14

Contents
vi
2 Environmental/Installation/PM
Overview 2-2
Environmental Specifications 2-3
Regulatory Requirements 2-4
Installation 2-5
Preventive Maintenance 2-6
3 Configuration
Boot Console User Interface Features 3-2
Main Menu 3-3
Configuration Menu 3-4
Information Menu 3-5
Service Menu 3-6
Accessing the Boot Console Interface 3-7
Booting Your Workstation 3-9
Searching for Bootable Media 3-11
Restoring the Factory Default Configuration 3-12
Displaying and Setting Paths 3-13
Displaying and Setting the Monitor Type 3-16
The Monitor Command 3-16

Contents
vii
Displaying the Current Monitor Configuration 3-17
Setting the Monitor Type 3-18
Setting the Monitor Type at Power On 3-20
Using the Emergency Interactive Console Search 3-21
Displaying the Current Memory Configuration 3-23
Memory Information Example 3-23
Displaying the Status of the System I/O 3-25
Setting the Auto Boot and Auto Search and Auto Start
Flags 3-26
Displaying and Setting the Security Mode 3-28
Displaying and Setting the Fastboot Mode 3-29
Displaying the LAN Station Address 3-30
Displaying System Information 3-31
Displaying PIM Information 3-32
Power Budgeting 3-33
4 Troubleshooting
Dealing with a Boot Failure 4-2
Searching for Bootable Media 4-4
Stable Storage 4-4
Boot Command Notations 4-5
ISL Environment 4-6

Contents
viii
Firmware Selftest Failures 4-7
Interpreting the Front Panel LEDs 4-7
Interpreting the Diagnostic Chassis Codes 4-9
Running ODE-Based Diagnostics 4-21
Running System Verification Tests 4-23
Dealing with HPMC
(Uncorrectable Error) 4-25
HPMC Caused by a Data Cache
Parity Error 4-28
HPMC Caused by a Multi-Bit Memory
Parity Error 4-29
Interpreting the Table 4-29
Determining the Faulty Memory Card 4-30
5 Field Replaceable Units
Introduction 5-2
Tools Required 5-2
Safety Precautions 5-2
New Parts 5-3
Exchange Parts 5-3
Local Hewlett-Packard Sales & Service Office 5-3
Replaceable Parts 5-4
Model 744 Board Computer Parts 5-7
Removing and Replacing the Model 744 Board Com-
puter 5-9
Preliminary Requirements 5-9

Contents
ix
Removal 5-10
Replacement 5-10
Removing and Replacing RAM Cards 5-12
Preliminary Requirements 5-12
Removal 5-12
Replacement 5-13
Removing and Replacing the PMC Adapters 5-14
Preliminary Requirements 5-14
Removal and Replacement 5-14
Removing and Replacing the Front Panel 5-21
Preliminary Requirements 5-21
Removal and Replacement 5-22
Firmware ICs 5-23
Description 5-23
Removing and Replacing the Real-Time Clock Battery
5-24
Preliminary Requirements 5-24
Removal 5-24
Replacement 5-24
Removing the Top Cover, Front Bezel, and Mid-Tray 5-
25
Preliminary Requirements 5-25
Replacing Mass Storage Devices 5-29
Procedure 5-29
Selecting Device Address 5-29
Procedure 5-29
CD-ROM 5-30

Contents
x
Floppy Disk Drive 5-31
DDS Tape Drive 5-32
Hard Disk Drive Address Selection 5-33
Device Locations 5-33
Removing a Device from the Mass Storage Carriers 5-34
Installing a Device in a Mass Storage Carrier 5-35
EISA or PCI Backplane Replacement 5-40
Preliminary Requirements 5-40
Procedure 5-40
Power Supply Replacement 5-42
Preliminary Requirements 5-42
Power Supply Removal 5-42
System Backplane Replacement 5-45
Preliminary Requirements 5-45
System Backplane Removal 5-46
Fuse Replacement 5-47
Preliminary Requirements 5-47
Rear Fan Replacement 5-48
Front Fans Replacement 5-50
Preliminary Requirements 5-50
6 Diagrams
Functional Description of Model 745 Chassis 6-2

Contents
xi
7 Reference Documentation
Service Documentation 7-2
System Installation and Getting Started Documentation
7-4
8 Service Notes

Contents
xii
Figures

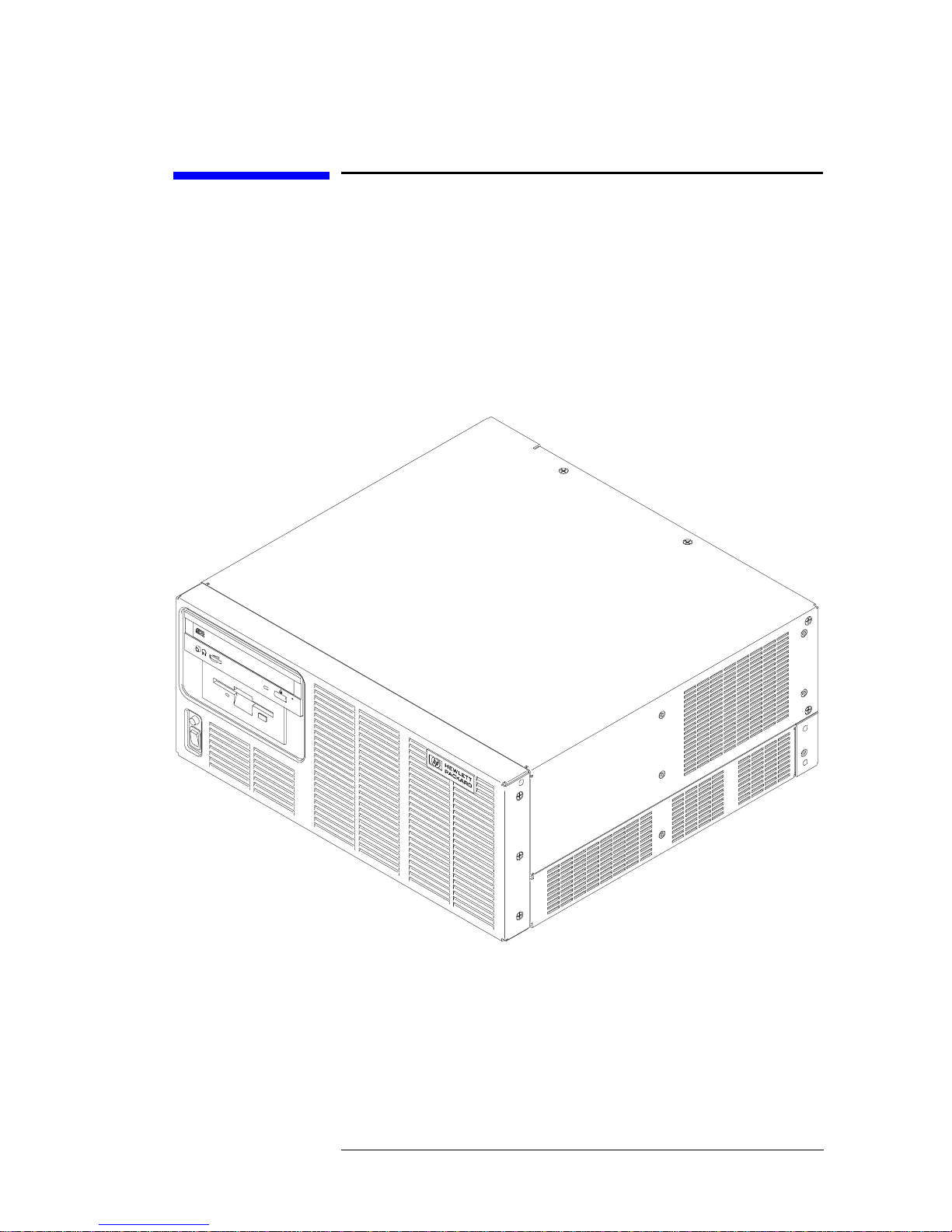

Model 745 Front View 1-3
Model 745 Rear View 1-4
Board Computer Front Panel 1-4
Serial Number Information 1-14
Model 744 LED Location 4-7
Physical Memory Slots 4-31
Example Memory Address Worksheet 4-35
Memory Address Worksheet 4-37
Model 745 Exploded View 5-4
Model 744 Board Computer (Exploded View) 5-7
Locating the LAN ID 5-9
Model 744 Captive Screws 5-10
RAM Card Fasteners 5-12
Removing the Labels and Springs 5-15
Removing the Sleeves 5-16
Removing the PMC Expansion Adapter 5-17
Removing a PMC card from the Expansion Adapter 5-18
Removing the PMC Bridge Adapter 5-19
Removing a PMC card from the Bridge Adapter 5-20
Port Jack Screws 5-22
744 ICs 5-23
Top Cover Removal 5-26
Front Bezel Removal 5-27
Mid-Tray Removal 5-28
CD-ROM Disk Drive 5-30
Floppy Disk Drive 5-31
DDS Tape Drive Address Selection 5-32
Device Locations 5-33
Removing Retainer Bracket 5-34
Device Installation in the Disk Carrier 5-36
Installing the 3.5-inch adapter brackets 5-37
3.5-Inch Hard Disk Installation with Filler Panel 5-37
Replacing Disk Carriers 5-38
Replacing Retainer Bracket 5-39
Backplane Assembly Removal 5-40
EISA or PCI Converter Board and Backplane Removal 5-41
Cherokee Power Supply Removal and Replacement 5-43

Contents
xiii
Astec Power Supply Replacement 5-44
System Backplane Removal 5-46
Fuse Removal 5-47
Rear Fan Removal (Step 1) 5-48
RearFan Removal (Step 2) 5-49
Rear Fan Removal (Step 3) 5-49
Front Fans Removal 5-50
Model 745 Functional Block Diagram 6-2
Model 744 Block Diagram 6-3
Model 745 Power Distribution Diagram 6-4

Contents
xiv
Tables
Cabling 1-9
Environmental Information 2-3
Regulatory Information 2-4
System Paths 3-13
Mnemonic Style Notation 3-14
LED Indicators 4-8
Chassis Code Operating States 4-9
Chassis Codes 4-10
PIM Action Table 4-25
Processor Module Error (Data Cache Parity) 4-28
Multi-Bit Memory Parity Error 4-29
Logical Memory Slots 4-32
Memory Configuration Example 4-33
Memory Address Ranges 4-38
Model 745 Chassis Parts List 5-5
Mass Storage Parts List 5-6
Replaceable Parts 5-8
Default SCSI Addressing 5-29
Related Service Documentation 7-2
Diagnostic Documentation 7-3
System Installation and Getting Started Documentation 7-4

1-1
1
Product Information

Product Information
1-2
This chapter introduces the Model 745 Industrial Controller. Its purpose is to familiarize
you with the system features, controls, and indicators.
The major sections within this chapter are:
• Features
• Model 745 Physical Dimensions and Power Requirements
• Board Computer Configurations
•Cables

Product Information
The Model 745 Industrial Controller
1-3
The Model 745 Industrial Controller
The Model 745 Industrial Contoller provides for a wide variety of PCI or EISA cards. In
combination with the Model 744 board computer as the system controller, the Model 745
is exceptionally flexible and responsive, being based on Hewlett-Packard’s PA-RISC
technology. Figure 1-1, Figure 1-2, and Figure 1-3 show a front view of the Model 745, a
rear view, and the front panel of the board computer.
.
Figure 1-1 Model 745 Front View

Product Information
The Model 745 Industrial Controller
1-4
Figure 1-2 Model 745 Rear View
Figure 1-3 Board Computer Front Panel

Product Information
Features
1-5
Features
The Model 745 has the following general features:
• Single-board computer processor:
132 MHz, or
165 MHZ
• Input/Output:
Onboard graphics, with optional
17-inch 1280x1024 monitor, or
19-inch 1280x1024 monitor
2 RS-232C ports
AUI (LAN) port
HP parallel port
Audio I/O ports
Speaker port
Single-Ended (SE) SCSI for internal and external devices
• PS/2 keyboard and mouse with mini-DIN connectors
• Slots for up to four user installed cards,
PCI or
EISA
• Optional PMC adapters available for 2 or 4 PMC sites added to board computer
Supports up to 4 HP PMC Graphics cards
Third party cards are available
• Mass storage bays for up to five devices, with up to two forward or rear facing remov-
able media devices, including:
4GB single-ended SCSI hard drive
1.4MB floppy drive
Fast CD-ROM drive

Product Information
Features
1-6
DDS-2 tape drive
• One 400 Watt power supply
• Operating system
HP-UX 10.20 (or later)
- Supports SICL libraries
- Supports Rocky Mountain Basic (RMB).
• User interface
CDE or HP VUE graphical user interface.
• Compatibility
Source and binary code compatible with HP 9000 product family.
Typical External Devices
The Model 745 supports the following external devices:
• LAN transceiver
HP A2670A ThinLAN ETHERNET Transceiver
HP A2671A EtherTWIST Transceiver
• Speaker; 8 ohm impedance with 1/8-inch sub-miniature
stereo connector.
Only products with Hewlett-Packard approved parts, accessories, peripherals, operating
systems, and application programs are supported by Hewlett-Packard. Any product with
other than HP approved hardware or software connected or installed must have the non-
HP approved hardware and software removed by the customer before on-site repair is con-
ducted.
