HP Workstation xw4100 User manual

Getting Started Guide
HP Workstations
xw4100
xw4200
xw6200
xw8200
Document Part Number: 361756-001
June 2004
Use this guide as a starting point. It will help you set up your
workstation hardware and factory-provided software. It also includes
basic troubleshooting information should you have problems during the
initial setup process.

© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation.
Intel is a trademark of Intel Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
Energy Star is a US registered mark of the United States Environmental
Protection Agency.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
ÅWARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
ÄCAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
Getting Started Guide
HP Workstations
xw4100
xw4200
xw6200
xw8200
First Edition (June 2004)
Document Part Number: 361756-001

Getting Started Guide www.hp.com iii
Contents
Preface
1 Hardware Setup
Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
xw4100/xw4200 Front Panel Components . . . . . . . . . . . 1–2
xw6200 Front Panel Components . . . . . . . . . . . . . . . . . . 1–3
xw8200 Front Panel Components . . . . . . . . . . . . . . . . . . 1–4
xw4100 Rear Panel Components . . . . . . . . . . . . . . . . . . . 1–5
xw4200 Rear Panel Components . . . . . . . . . . . . . . . . . . . 1–6
xw6200 Rear Panel Components . . . . . . . . . . . . . . . . . . . 1–7
xw8200 Rear Panel Components . . . . . . . . . . . . . . . . . . . 1–8
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Customizing the Easy Access buttons. . . . . . . . . . . 1–10
Using the Windows® Logo Key . . . . . . . . . . . . . . . 1–11
Special Mouse Functions . . . . . . . . . . . . . . . . . . . . . . . . 1–12
Serial Number and COA Label Location. . . . . . . . . . . . 1–13
2 Software Setup
Installing and Customizing the Operating System and
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Windows–preinstalled Workstations. . . . . . . . . . . . . 2–1
Linux–preinstalled Workstations. . . . . . . . . . . . . . . . 2–5
Linux–enabled Workstations. . . . . . . . . . . . . . . . . . . 2–7
Hyper-Threading Technology . . . . . . . . . . . . . . . . . . . . . 2–8
Turning off the Workstation. . . . . . . . . . . . . . . . . . . . . . . 2–9

iv www.hp.com Getting Started Guide
Contents
3 Features and Accessories
Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Chassis Conversion Features . . . . . . . . . . . . . . . . . . . . . . 3–2
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
4Troubleshooting
Self Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
HP Insight Diagnostics . . . . . . . . . . . . . . . . . . . . . . . 4–1
HP Help and Support Center . . . . . . . . . . . . . . . . . . . 4–2
E-Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Basic Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 4–4
Calling Technical Support . . . . . . . . . . . . . . . . . . . . . . . 4–24
Index

Getting Started Guide www.hp.com v
Preface
Finding Information
E-Support
For online access to technical support information and tools, go to
www.hp.com/support. Support resources include web-based
troubleshooting tools, technical knowledge databases, driver and patch
downloads, online communities, and proactive notification services.
The following sites are also available to you.
■www.hp.com—Provides useful product information.
■www.hp.com/support/workstation_manuals—Provides the
latest online documentation.
■http://welcome.hp.com/country/us/eng/wwcontact.html—
Provides a listing of the worldwide technical support phone
numbers.
Additional Documentation
Refer to the Documentation Library CD for additional product
information in PDF format. The CD contains the following:
■Getting Started (available in print and PDF on library CD)
Helps you set up hardware and factory-provided software; also
includes basic troubleshooting information should you encounter
any problems during initial startup.

vi www.hp.com Getting Started Guide
Preface
■Service and Technical Reference Guide (Link to website–English
only) Provides an overview of the product hardware,
troubleshooting, product specs, as well as instructions for the
removal and replacement of components. This guide also includes
information on RTC batteries, memory installation, and power
supply.
■Safety and Comfort Guide (PDF on library CD)
Provides safety and ergonomic information to assist you in setting
up a safe and comfortable workstation environment.
■Safety & Regulatory Information Guide (PDF on library CD)
Provides safety and regulatory information that ensures compliance
with U.S. Canadian, and various international regulations.
Using the Documentation Library CD
To access the contents of the Documentation Library CD, follow the
steps below that are applicable to your workstation.
Windows-based Workstations
Insert the CD into the CD-ROM drive. The CD will Autorun. If there is
no CD-ROM drive activity for two minutes or more, the Autorun feature
may not be enabled on the workstation. To run the CD, follow these
steps:
1. Click Start > Run.
2. Type:
X:\index.htm (where X is the drive letter designator for the
CD-ROM drive)
3. Click OK.
Linux-based Workstations
If the workstation is running a Linux operating system, browse the CD
and click on the index.htm file to launch the CD interface. To view the
documents on the CD, download and install Adobe® Acrobat® Reader
for Linux from www.adobe.com.

Preface
Getting Started Guide www.hp.com vii
Locating Regulatory Information
Refer to the Safety & Regulatory Information Guide on the
Documentation Library CD for product Class information. You can also
refer to the label on the workstation chassis.
Parts and Accessories
For complete and current information on supported accessories and
components, visit:
http://partsurfer.hp.com
Subscriber’s Choice
Subscriber's Choice is an HP program that allows you to sign up to
receive driver and software alerts, proactive change notifications
(PCNs), the HP newsletter, and more. Sign up today at:
www.hp.com/go/subscriberschoice
Product Bulletin
The Product Bulletin contains QuickSpecs for HP workstations.
QuickSpecs provide an overall specification review of your product. It
includes information about its features including the operating system,
power supply, memory, processor, and many other components of the
system.
http://h18000.www1.hp.com/products/quickspecs/
productbulletin.html

viii www.hp.com Getting Started Guide
Preface

Getting Started Guide www.hp.com 1–1
1
Hardware Setup
Quick Setup

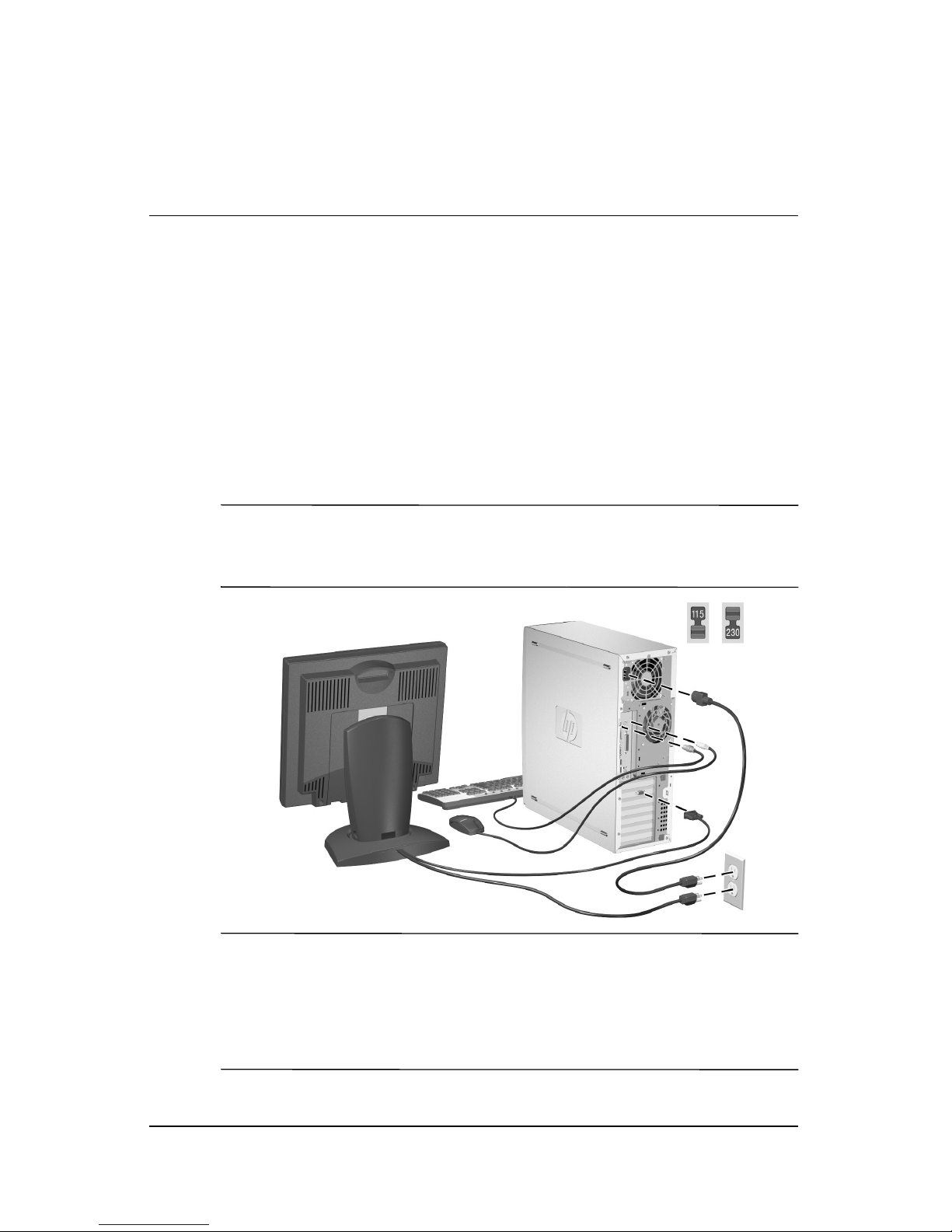

After unpacking your workstation, locate an accessible workspace to set
up the workstation and connect the mouse, keyboard, monitor, and
power cables to your workstation. Connect the power cables from the
monitor and workstation to a power outlet.
WARNING: On the xw4100, it is important that you set the power
voltage select switch, on the back of the unit, to the correct voltage
setting before introducing power to your workstation.
NOTE: Connect other components, such as a printer, according to the
instructions included with the device.
For more information on your workstation, refer to the Documentation
Library CD or visit www.hp.com/go/workstationsupport.
Voltage
Switch

1–2 www.hp.com Getting Started Guide
Hardware Setup
xw4100/xw4200 Front Panel
Components

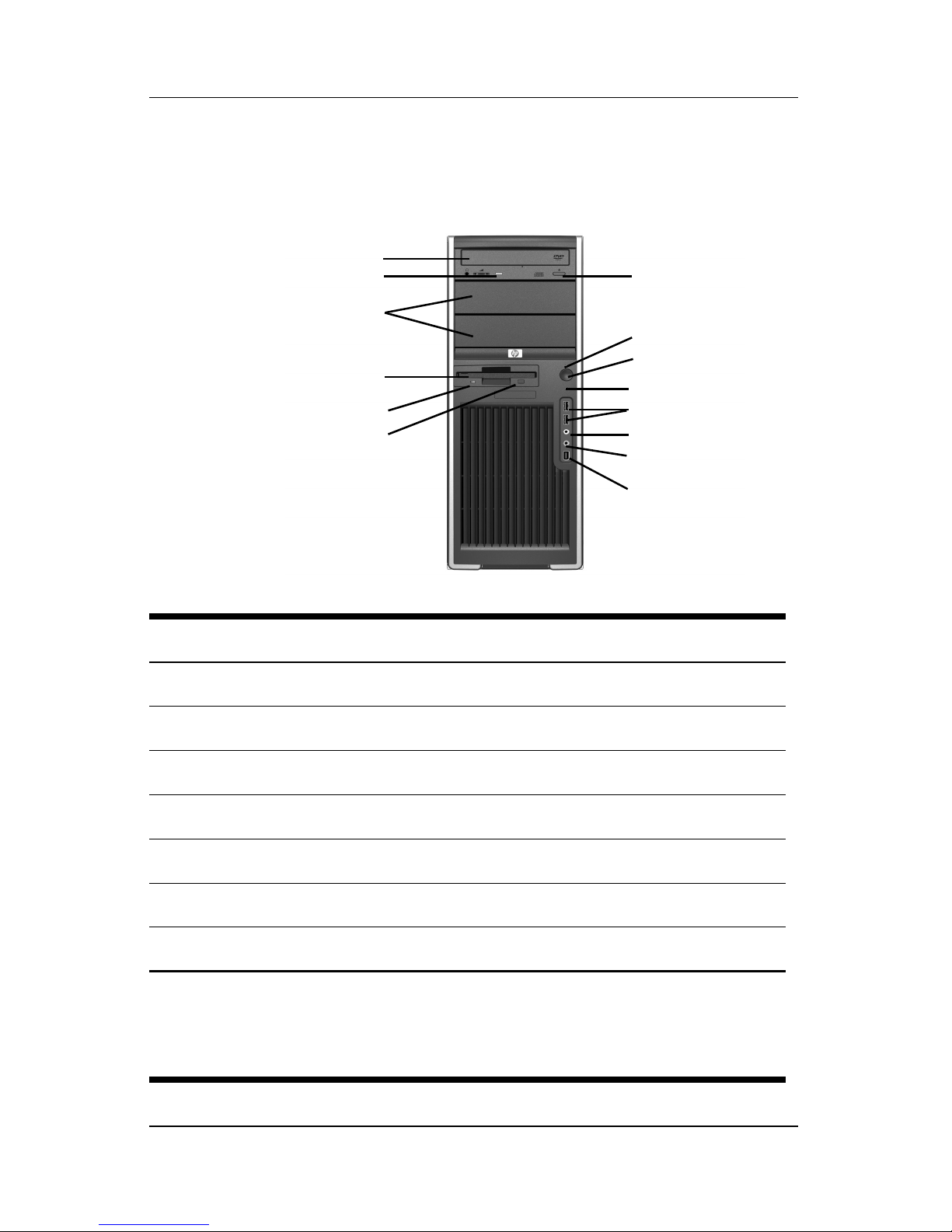

xw4100 Front Panel Components
1
2
3
4
5
6
7
14
8
9
10
11
12
13
Item Description Item Description
1Optical Drive* 8Power On Light
2Optical Drive Activity Lights 9Power Button
35.25 Inch Drive Bays 10 Hard Drive Activity Light
4Diskette Drive (optional) 11 USB (Universal Serial Bus) Ports
5Diskette Drive Activity Light 12 Headphone Connector
6Diskette Eject Button 13 Microphone Connector
7Optical Drive Eject Button 14 IEEE-1394 Connector**
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or
CD-RW/DVD combo drive.
NOTE: ** IEEE-1394 is an optional feature. If the unit was purchased without this option,
then this connector will be covered with a black label.

Hardware Setup
Getting Started Guide www.hp.com 1–3
xw6200 Front Panel Components
xw6200 Front Panel Components
6
1
2
3
4
5
7
8
9
10
11
12
Item Description Item Description
1Optical Drive* 7Power Button
2Optical Drive Activity Lights 8Hard Drive Activity Light
35.25 Inch Drive Bays 9USB Ports (2)
4Diskette Drive (optional) 10 Headphone Connector
5Optical Drive Eject Button 11 Microphone Connector
6Power On Light 12 IEEE-1394 Connector**
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or
CD-RW/DVD combo drive.
NOTE: ** IEEE-1394 is an optional feature. If the unit was purchased without this option,
then this connector will be covered with a removable plug.

1–4 www.hp.com Getting Started Guide
Hardware Setup
xw8200 Front Panel Components

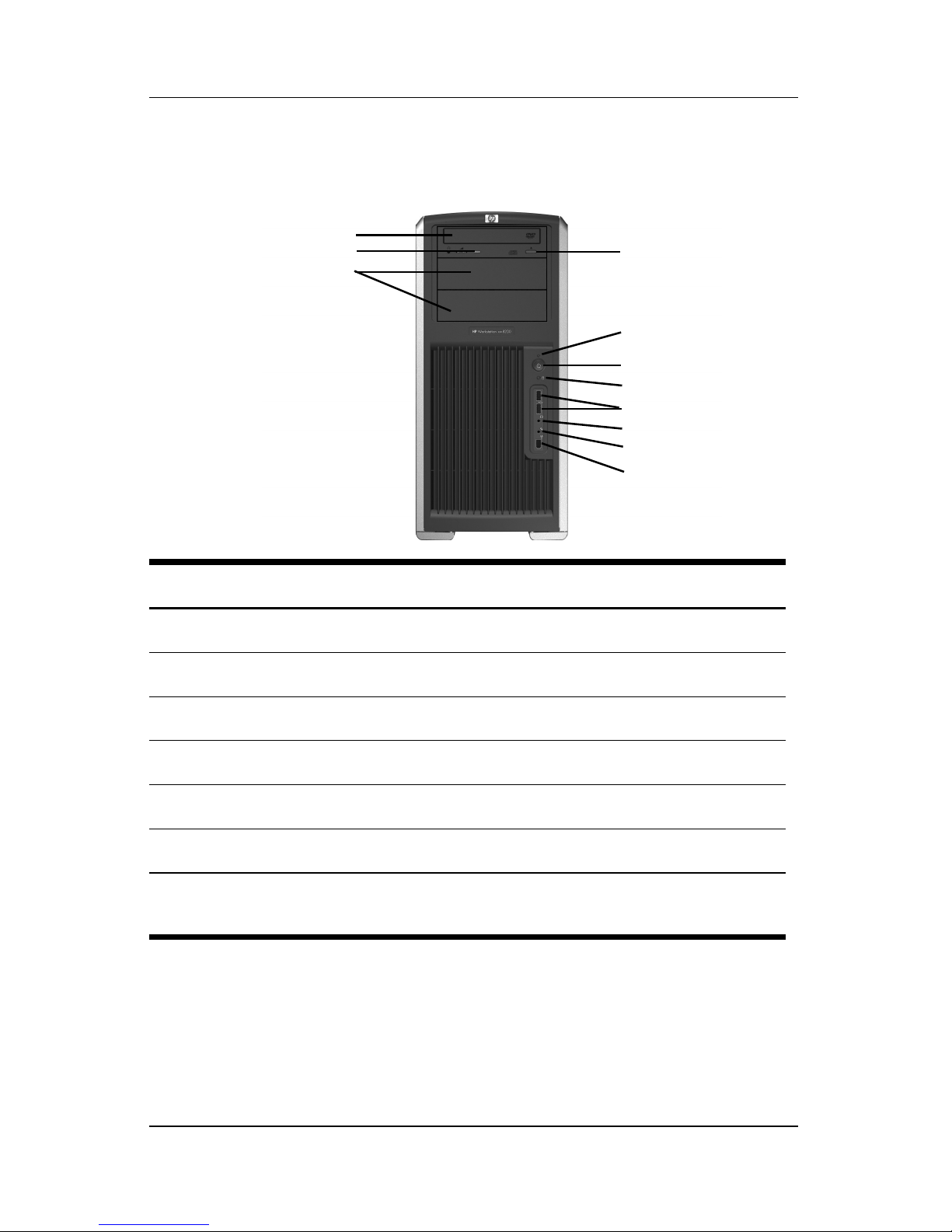

xw8200 Front Panel Components
1
2
34
5
6
7
8
9
10
11
Item Description Item Description
1Optical Drive* 7Hard Drive Activity Light
2Optical Drive Activity Lights 8USB Ports (2)
35.25 Inch Drive Bays 9Headphone Connector
4Optical Drive Eject Button 10 Microphone Connector
5Power On Light 11 IEEE-1394 Connector
6Power Button
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or
CD-RW/DVD combo drive.

Hardware Setup
Getting Started Guide www.hp.com 1–5
xw4100 Rear Panel Components

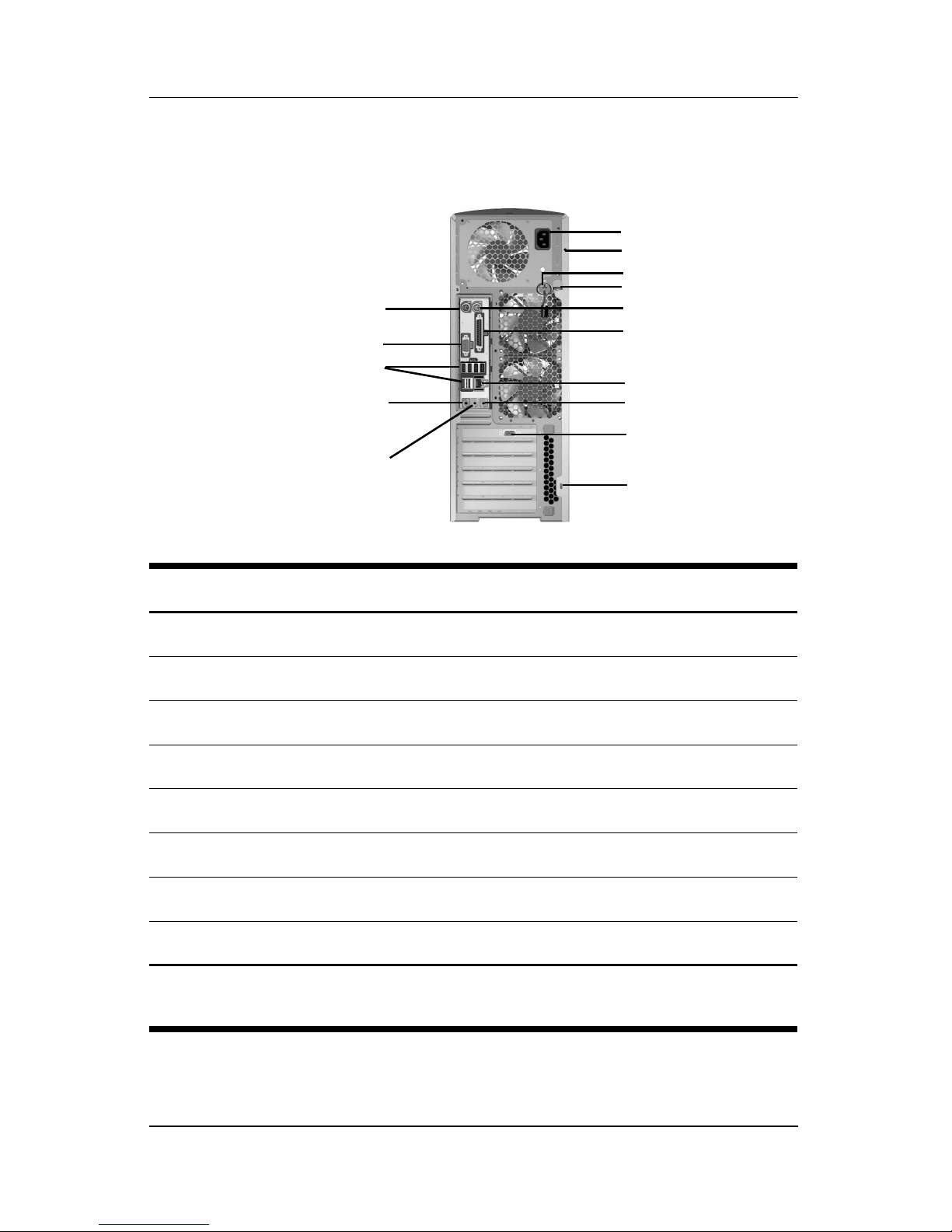

xw4100 Rear Panel Components
1
2
3
4
5
6
7
8
9
11
12
13
14
15
10
Item Component Item Component
1Voltage Select Switch 9Mouse Connector (green)
2Power Cord Connector 10 Parallel Connector (burgundy
3Keyboard Connector (purple) 11 RJ-45 Network Connector
4Serial Connector (teal) 12 Audio Line-In Connector (light blue)
5USB Ports (4) 13 Graphics Adapter (blue)
6Microphone Connector (pink) 14 Padlock Loop
7Audio Line-Out Connector (lime) 15 Cable Lock Slot
8Universal Chassis Clamp Opening
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to
assist you in connecting your peripheral devices.

1–6 www.hp.com Getting Started Guide
Hardware Setup
xw4200 Rear Panel Components
xw4200 Rear Panel Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Item Component Item Component
1Power Cord Connector 8Universal Chassis Clamp Opening
2Keyboard Connector (purple) 9Mouse Connector (green)
3Serial Connector (teal) 10 Parallel Connector (burgundy)
4USB Ports (6) 11 Audio Line-In Connector (light blue)
5Microphone Connector (pink) 12 RJ-45 Network Connector
6Audio Line-Out Connector (lime) 13 Cable Lock Slot
7Graphics Adapter (blue) 14 Padlock Loop
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to
assist you in connecting your peripheral devices.

Hardware Setup
Getting Started Guide www.hp.com 1–7
xw6200 Rear Panel Components
xw6200 Rear Panel Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Item Component Item Component
1Keyboard Connector (purple) 9Padlock Loop
2Serial Connector (teal) 10 Mouse Connector (green)
3USB Ports (6) 11 Parallel Connector (burgundy
4Microphone Connector (pink) 12 RJ-45 Network Connector
5Audio Line-Out Connector (lime) 13 Audio Line-In Connector (light blue)
6Power Cord Connector 14 Graphics Adapter (blue)
7Universal Chassis Clamp Opening 15 Cable Lock Slot
8Access Panel Key
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to
assist you in connecting your peripheral devices.

1–8 www.hp.com Getting Started Guide
Hardware Setup
xw8200 Rear Panel Components
xw8200 Rear Panel Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Item Component Item Component
1Power Cord Connector 9Access Panel Key
2Keyboard Connector 10 Padlock Loop
3Serial Connector (teal) 11 Cable Lock Slot
4USB Ports (6) 12 Mouse Connector (green)
5IEEE 1394 Connector 13 Parallel Connector (burgundy)
6Microphone Connector (pink) 14 RJ-45 Network Connector
7Audio Line-Out Connector (lime) 15 Audio Line-In Connector (light blue)
8Universal Chassis Clamp Opening 16 Graphics Adapter (blue)
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to
assist you in connecting your peripheral devices.

Hardware Setup
Getting Started Guide www.hp.com 1–9

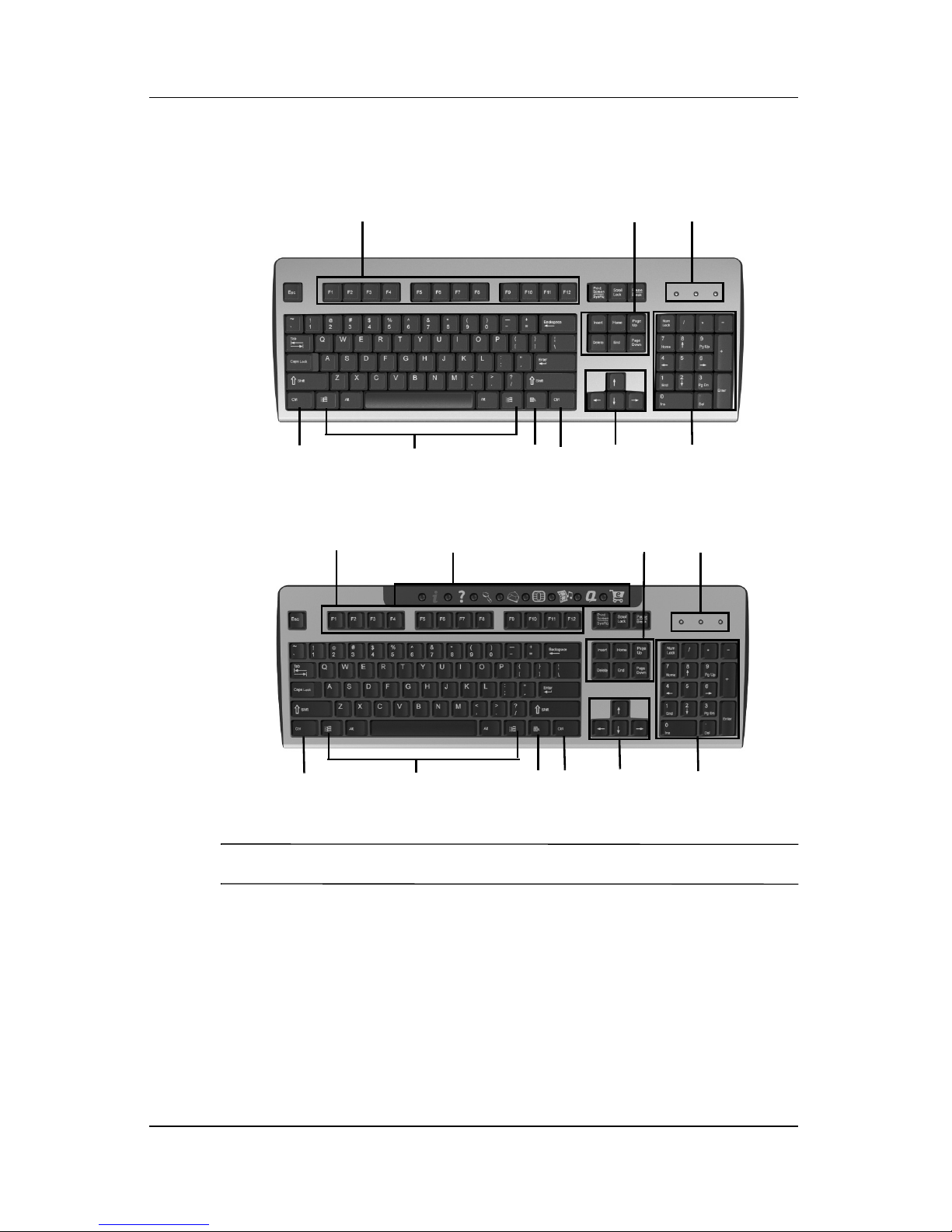

Keyboard
Standard Keyboard
xw4100 Easy Access Keyboard
NOTE: The Easy Access keyboard is only available for the xw4100.
14
3
9
87965
9
87965
1234

1–10 www.hp.com Getting Started Guide
Hardware Setup
Customizing the Easy Access buttons
All Easy Access buttons can be reprogrammed to open any software
application or data file on the hard drive, or any Internet address.
NOTE: The Easy Access buttons do not function on Linux systems.
To reprogram the Easy Access buttons, complete the following steps:
Item Component Description
1Function Keys Perform special functions, depending on the
software application being used.
2Easy Access
Buttons
Provide quick access to specific Internet
destinations. (Available on the xw4100 keyboard
only)
3Editing Keys Includes Insert, Home, Page Up, Delete, End, and
Page Down.
4Status Lights Indicate the status of the workstation and
keyboard settings
(Num Lock, Caps Lock, and Scroll Lock).
5Numeric Keys Use like a calculator keypad.
6Arrow Keys Used to navigate through a document or website.
These keys allow you to move left, right, up, and
down, using the keyboard instead of the mouse.
7Application
Key*
Used (like the right mouse button) to open pop-up
menus in a Microsoft™Office application. May
perform other functions in other software
applications.
8Windows®
Logo Keys*
Used to open the Start menu in Microsoft
Windows. Used in combination with other keys to
perform other functions. (Available only on
systems with Microsoft Windows
pre-installed.)
9Ctrl Key Used in combination with another key; its effect
depends on the application software you are
using.
NOTE: *Keys available in select geographic regions.

Hardware Setup
Getting Started Guide www.hp.com 1–11
1. Double-click the keyboard icon in the notification area (lower
right corner) of the Windows taskbar.
2. Click Help on the Keyboard Properties screen for
instructions.
Using the Windows® Logo Key
Use the Windows Logo key in combination with other keys to perform
certain functions available in the Windows operating system.
NOTE: The Windows logo key does not function on Linux systems.
Windows Logo Key Displays or hides the Start menu
Windows Logo Key + dDisplays the Desktop
Windows Logo Key + mMinimizes all open applications
Shift + Windows Logo Key + m Undoes Minimize All
Windows Logo Key + eLaunches My Computer
Windows Logo Key + fLaunches Find Document
Windows Logo Key + Ctrl + f Launches Find Computer
Windows Logo Key + F1 Launches Windows Help
Windows Logo Key + lLocks the computer if you are connected to
a network domain, or allows you to switch
users if you are not connected to a network
domain
Windows Logo Key + rLaunches the Run dialog box
Windows Logo Key + uLaunches the Utility Manager
Windows Logo Key + Tab Activates the next Taskbar button

1–12 www.hp.com Getting Started Guide
Hardware Setup
Special Mouse Functions
Most software applications support the use of a mouse. The functions
assigned to each mouse button depend on the software applications you
are using.
NOTE: Some mouse software applications may interfere with the
functionality of the keyboard and mouse if the keyboard and mouse are
connected to your workstation through a KVM (keyboard, video,
mouse) switch. If you are experiencing “no-response” from your
keyboard and mouse, you may need to uninstall the mouse software or
connect the keyboard and mouse directly to the keyboard and mouse
connectors on the workstation.
