HP Xw6200 - Workstation - 2 GB RAM User instructions

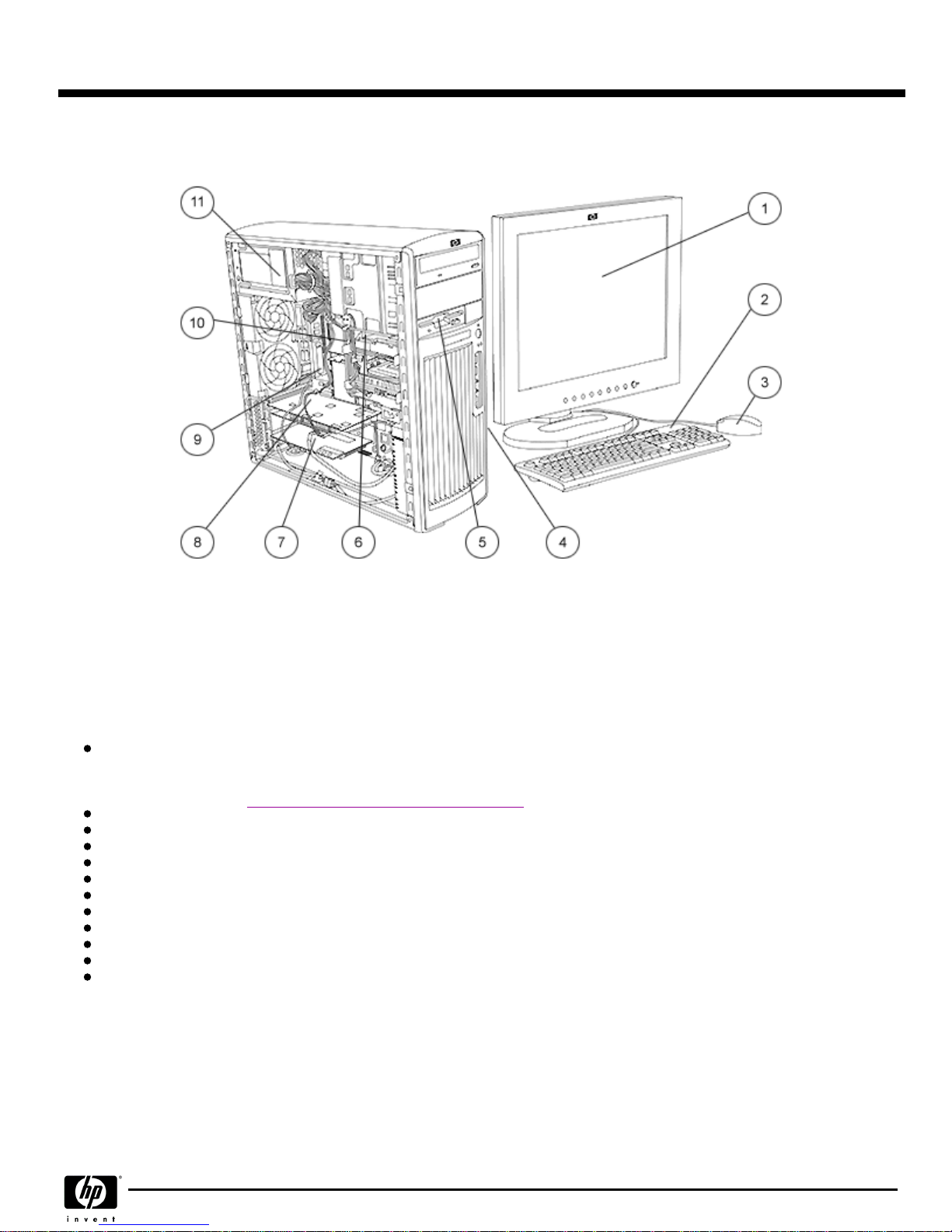

1. Monitor (sold separately) 7. 4 PCI, 1 PCI Express 8x prime slots
2. 2004 Standard Keyboard 8. 1 PCI Express x16 Graphics Bus
3. 2-Button Scroll Mouse 9. 6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1 RJ-45,
audio in/out
4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional PCI card to enable),
headphone and microphone
10. Dual Intel® Xeon™ processors
5. 3.5" external bay for optional diskette drive or other 3.5" device 11. 500 watt power supply
6. 2 internal 3.5" bays, 2 external 5.25" bays
At A Glance
Choice of operating systems:
Microsoft Windows XP Professional
Red Hat Enterprise Linux Workstation 3
HP Linux Installer Kit (see http://www.hp.com/workstations/software/linux/ for details)
Intel® Xeon™ processors with EM64T technology
Up to 8 GB of DDR-2 memory
PCI-Express I/O and graphics
Integrated Broadcom NetXtreme Gigabit ethernet
800 MHz processor front side bus support
Intel Hyper-Threading technology support
SATA and Ultra 320 SCSI drives
Digital AC97 integrated audio with internal speaker
Pre-loaded Manageability tools
Energy Star compliance with energy-saving features
Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and exclusions
apply.
QuickSpecs
HP Workstation xw6200
Overview
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 1

Processor and Speed –
One of the following
Intel Xeon Processor with 800 MHz Front Side Bus, 1 MB L2 cache
2.8 GHz
3.0 GHz – available in Fall 2004
3.2 GHz
3.4 GHz
3.6 GHz
2nd Intel Xeon Processor with 800 MHz Front Side Bus, 1 MB L2 cache
2.8 GHz
3.0 GHz – available in Fall 2004
3.2 GHz
3.4 GHz
3.6 GHz
Operating System –
One of the following
Microsoft Windows XP Professional
Red Hat Enterprise Linux Workstation 3 32-bit version (Update 2 in 32- and 64-bit available as aftermarket option)
HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions)
1st Hard Disk Drive –
One of the following
40 GB 7200 rpm Serial ATA drive (2 MB cache)
80 GB 7200 rpm Serial ATA drive (8 MB cache)
160 GB 7200 rpm Serial ATA drive (8 MB cache)
250 GB 7200 rpm Serial ATA drive (8 MB cache)
400 GB 7200 rpm Serial ATA drive (8 MB cache) – available in Winter 2004
36 GB 10K rpm Serial ATA drive (8 MB cache)
74 GB 10K rpm Serial ATA drive (8 MB cache)
73 GB 10K Ultra320 SCSI drive
300 GB 10K Ultra320 SCSI drive
36 GB 15K Ultra320 SCSI drive
73 GB 15K Ultra320 SCSI drive
146 GB 15K Ultra320 SCSI drive
2nd Hard Disk Drive –
One of the following
2nd hard drive, 40 GB 7200 rpm Serial ATA drive (2 MB cache)
2nd hard drive, 80 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 160 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 250 GB 7200 rpm Serial ATA drive (8 MB cache)
2nd hard drive, 400 GB 7200 rpm Serial ATA drive (8 MB cache) – available in Winter 2004
2nd hard drive, 36 GB 10K rpm Serial ATA drive (8 MB cache)
2nd hard drive, 74 GB 10K rpm Serial ATA drive (8 MB cache)
2nd hard drive, 73 GB 10K Ultra320 SCSI drive
2nd hard drive, 300 GB 10K Ultra320 SCSI drive
2nd hard drive, 36 GB 15K Ultra320 SCSI drive
2nd hard drive, 73 GB 15K Ultra320 SCSI drive
2nd hard drive, 146 GB 15K Ultra320 SCSI drive
QuickSpecs
HP Workstation xw6200
Standard Features - Custom Components
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 2

3rd Hard Disk Drive –
One of the following
3rd hard drive, 73 GB 10K Ultra320 SCSI drive
3rd hard drive, 300 GB 10K Ultra320 SCSI drive
3rd hard drive, 36 GB 15K Ultra320 SCSI drive
3rd hard drive, 73 GB 15K Ultra320 SCSI drive
3rd hard drive, 146 GB 15K Ultra320 SCSI drive
Drive controllers Integrated serial ATA controller
Optional Ultra 320 SCSI controller (required if HDs are SCSI) – basic
Optional Ultra 320 SCSI controller (required if HDs are SCSI) – advanced, with RAID support and external connector
Memory –
One of the following
256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (1 x 256 MB)
512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 256 MB)
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 512 MB)
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB)
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 512 MB)
3 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 1 GB + 2 x 512 MB)
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB)
4 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 1 GB)
6 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (2 x 2 GB + 2 x 1 GB)
8 GB DDR-2 PC2-3200 (400 MHz) ECC Registered (4 x 2 GB)
Removable Storage 1.44-MB Diskette Drive
48X CD-ROM Drive
48X/32X/48X CD-RW Drive
16X/40X DVD-ROM Drive
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
8X DVD+R/RW Drive
2nd Removable Storage 48X/32X/48X CD-RW Drive
16X/40X DVD-ROM Drive
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
8X DVD+R/RW Drive
Keyboard –
One of the following
PS/2 Standard Keyboard
USB Standard Keyboard
Mouse –
One of the following
PS/2 2-Button Scroll Mouse
PS/2 3-Button Mouse
USB 2-Button Optical Scroll Mouse
USB 3-Button Optical Mouse
Audio Integrated Digital AC97 audio with internal speaker
Sound Blaster Audigy 2 ZS PCI
QuickSpecs
HP Workstation xw6200
Standard Features - Custom Components
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 3

NIC Broadcom 5782 10/100/1000 (PCI)
Graphics NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI – up to 2 of these two cards can be integrated in the factory)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
Miscellaneous Solenoid lock and hood sensor
IEEE 1394 PCI Card
Software Symantec Norton AntiVirus 2004 (optional)*
HP Performance Tuning Framework*
Altiris Recovery*
HP Client Manager Software v6.0*
* Not available with Linux Operating System
QuickSpecs
HP Workstation xw6200
Standard Features - Custom Components
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 4

Operating System (choice) Microsoft Windows XP Professional*
OR Red Hat Enterprise Linux Workstation 3 Update 2 (32-bit only)
OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on xw8200, xw6200, xw4200)
Form factor Minitower
Color Carbonite/Alloy metallic
System Board Form Factor Non-standard ATX
Processor Single or dual Intel Xeon processors (Nocona) with EM64T and Hyper-Threading Technology
CPU Bus Speed Supported 800 MHz FSB
Standard L2 Cache 1 MB L2 cache
Chipset Intel E7525
Memory Expansion Slots 4 DIMM's
Memory Type Supported DDR-2 (ECC registered)
Memory Speed Supported DDR-2 Synch DRAM PC2-3200 (400 MHz) Registered ECC
Maximum Memory 8 GB (4 DIMMs slots, 2 GB DIMMs required to meet maximum configurations)
Network controller Integrated Broadcom 5751 10/100/1000 for HP
Audio Integrated AC'97 digital audio with S/PDif 6-channel pass-through, stereo microphone, and Yamaha XG Lite Softsynth
support
PCI slots 4 PCI slots (full-height)
1 PCI Express (x8 mechanically, x4 electrically)
1 PCI Express x16 graphics
AGP slot none
Bays Total Bays = 5
Internal Bays Two 3.5 inch bays with acoustic dampening rail assemblies
External Bays Two 5.25 inch full length 2003 mm maximum device depth (top bay is limited to 198 mm depth when optional
smart cover solenoid lock is installed). Bottom bay can be converted to an internal 3.5 inch 3rd Hard Drive bay
using optional bracket
One 3.5 inch bay for optional floppy drive
Parallel Port 1
Serial Port 1
Front I/O 2 USB 2.0, Headphone, Microphone, optional IEEE 1394
Rear I/O 6 USB 2.0, 1 standard serial port, 1 parallel port, PS/2 keyboard and mouse, 1 RJ-45 to integrated Gigabit LAN, Audio
In, Audio Out, Mic In
USB Keyboard Optional
USB Mouse Optional
PS/2 Keyboard 1
PS/2 Mouse 1
Chassis Dimensions
(H x W x D)
17.3 x 6.5 X 17.3 in (44.1 x 16.5 x 44.0 cm)
System weight Standard config – 35 lb
Shipping weight Varies by region
Temperature Operating 40° to 95° F (5° to 35° C)
Non-operating -40° to 140° F (-40° to 60° C)
Humidity Operating 8% to 85%
Non-operating 8% to 90%
Maximum Altitude
(nonpressurized)
Operating 10,000 ft (3,000 m)
Non-operating 30,000 ft (9,100 m)
Power Supply 500W wide-ranging, active Power Factor Correction
Interfaces Supported 1 SATA interface (2 serial-ATA connectors), 1 EIDE interface (2 EIDE connectors) for optical drives, optional multi-
bay interface
Hard Drive Controller (PCI)
Supported
Ultra160 or Ultra320, or SATA RAID, or Ultra320 RAID
QuickSpecs
HP Workstation xw6200
Standard Features - Specs
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 5

Preinstalled Software
HP Client Manager Software v6.0*
Altiris Local Recovery*
Alert Standard Format specification*
Norton AntiVirus 2004 (optional preinstall)*
CD/DVD software dependent on optical drive choices
* Not available on Linux
QuickSpecs
HP Workstation xw6200
Standard Features - Specs
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 6

xw6200X/XD2.8/B80/
H1.0/280E/dF/s
Processor Intel Xeon processor 2.80 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 80 GB SATA/150 7200 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD2.8/B80/H1.0/280E/dF/s Country Code Key
N. America PD896AW#ABA Switzerland (German/French) PD896AW#AR8
Fr. Canadian PD896AW#ABC Switzerland (Italian/English) PD896AW#ACN
L. America PD896AW#ABM Dutch PD896AW#ABH
Japan (English) PD896AW#ACF Denmark PD896AW#ACE
Japan (Japanese) PD896AW#ABJ Asia/Pacific (English) PD896AW#AB4
UK PD896AW#ABU Korea PD896AW#AB1
Germany PD896AW#ABD China PD896AW#AB2
France PD896AW#ABF Taiwan PD896AW#AB0
Italy PD896AW#ABZ India PD896AW#ACJ
Spain PD896AW#ABE Australia PD896AW#ABG
Europe PD896AW#AK6 Thailand PD896AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 7

xw6200X/XD3.2/C74/
H1.0/280E/dF/s
Processor Intel Xeon processor 3.20 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 74 GB SATA/150 10,000 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.2/C74/H1.0/280E/dF/s Country Code Key
N. America PM199AW#ABA Switzerland (German/French) PM199AW#AR8
Fr. Canadian PM199AW#ABC Switzerland (Italian/English) PM199AW#ACN
L. America PM199AW#ABM Dutch PM199AW#ABH
Japan (English) PM199AW#ACF Denmark PM199AW#ACE
Japan (Japanese) PM199AW#ABJ Asia/Pacific (English) PM199AW#AB4
UK PM199AW#ABU Korea PM199AW#AB1
Germany PM199AW#ABD China PM199AW#AB2
France PM199AW#ABF Taiwan PM199AW#AB0
Italy PM199AW#ABZ India PM199AW#ACJ
Spain PM199AW#ABE Australia PM199AW#ABG
Europe PM199AW#AK6 Thailand PM199AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 8

xw6200X/XD3.2+/B80/
H1.0/280E/dF/s
Processor Dual Intel Xeon processors 3.20 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2 per processor
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 80 GB SATA/150 7200 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.2+/B80/H1.0/280E/dF/s Country Code Key
N. America PD898AW#ABA Switzerland (German/French) PD898AW#AR8
Fr. Canadian PD898AW#ABC Switzerland (Italian/English) PD898AW#ACN
L. America PD898AW#ABM Dutch PD898AW#ABH
Japan (English) PD898AW#ACF Denmark PD898AW#ACE
Japan (Japanese) PD898AW#ABJ Asia/Pacific (English) PD898AW#AB4
UK PD898AW#ABU Korea PD898AW#AB1
Germany PD898AW#ABD China PD898AW#AB2
France PD898AW#ABF Taiwan PD898AW#AB0
Italy PD898AW#ABZ India PD898AW#ACJ
Spain PD898AW#ABE Australia PD898AW#ABG
Europe PD898AW#AK6 Thailand PD898AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 9

xw6200X/XD3.4/C74/
H1.0/280E/dF/s
Processor Intel Xeon processor 3.40 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 74 GB SATA/150 10,000 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4/C74/H1.0/280E/dF/s Country Code Key
N. America PM200AW#ABA Switzerland (German/French) PM200AW#AR8
Fr. Canadian PM200AW#ABC Switzerland (Italian/English) PM200AW#ACN
L. America PM200AW#ABM Dutch PM200AW#ABH
Japan (English) PM200AW#ACF Denmark PM200AW#ACE
Japan (Japanese) PM200AW#ABJ Asia/Pacific (English) PM200AW#AB4
UK PM200AW#ABU Korea PM200AW#AB1
Germany PM200AW#ABD China PM200AW#AB2
France PM200AW#ABF Taiwan PM200AW#AB0
Italy PM200AW#ABZ India PM200AW#ACJ
Spain PM200AW#ABE Australia PM200AW#ABG
Europe PM200AW#AK6 Thailand PM200AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 10

xw6200X/XD3.4+/B80/
H1.0/280E/dF/s
Processor Dual Intel Xeon processors 3.40 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2 per processor
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 80 GB SATA/150 7200 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
N. America PD900AW#ABA Switzerland (German/French) PD900AW#AR8
Fr. Canadian PD900AW#ABC Switzerland (Italian/English) PD900AW#ACN
L. America PD900AW#ABM Dutch PD900AW#ABH
Japan (English) PD900AW#ACF Denmark PD900AW#ACE
Japan (Japanese) PD900AW#ABJ Asia/Pacific (English) PD900AW#AB4
UK PD900AW#ABU Korea PD900AW#AB1
Germany PD900AW#ABD China PD900AW#AB2
France PD900AW#ABF Taiwan PD900AW#AB0
Italy PD900AW#ABZ India PD900AW#ACJ
Spain PD900AW#ABE Australia PD900AW#ABG
Europe PD900AW#AK6 Thailand PD900AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 11

xw6200X/XD3.4+/C74/
H2/280E/dF/s
Processor Dual Intel Xeon processors 3.40 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2 per processor
Memory 2 GB (2x1GB) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 74 GB SATA/150 7200 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.4+/B80/H1.0/280E/dF/s Country Code Key
N. America PR845AW#ABA Switzerland (German/French) PR845AW#AR8
Fr. Canadian PR845AW#ABC Switzerland (Italian/English) PR845AW#ACN
L. America PR845AW#ABM Dutch PR845AW#ABH
Japan (English) PR845AW#ACF Denmark PR845AW#ACE
Japan (Japanese) PR845AW#ABJ Asia/Pacific (English) PR845AW#AB4
UK PR845AW#ABU Korea PR845AW#AB1
Germany PR845AW#ABD China PR845AW#AB2
France PR845AW#ABF Taiwan PR845AW#AB0
Italy PR845AW#ABZ India PR845AW#ACJ
Spain PR845AW#ABE Australia PR845AW#ABG
Europe PR845AW#AK6 Thailand PR845AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 12

xw6200X/XD3.6/C74/
H1.0/280E/dF/s
Processor Intel Xeon processor 3.60 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 74 GB SATA/150 10,000 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6/C74/H1.0/280E/dF/s Country Code Key
N. America PM201AW#ABA Switzerland (German/French) PM201AW#AR8
Fr. Canadian PM201AW#ABC Switzerland (Italian/English) PM201AW#ACN
L. America PM201AW#ABM Dutch PM201AW#ABH
Japan (English) PM201AW#ACF Denmark PM201AW#ACE
Japan (Japanese) PM201AW#ABJ Asia/Pacific (English) PM201AW#AB4
UK PM201AW#ABU Korea PM201AW#AB1
Germany PM201AW#ABD China PM201AW#AB2
France PM201AW#ABF Taiwan PM201AW#AB0
Italy PM201AW#ABZ India PM201AW#ACJ
Spain PM201AW#ABE Australia PM201AW#ABG
Europe PM201AW#AK6 Thailand PM201AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 13

xw6200X/XD3.6+/B80/
H1.0/280E/dF/s
Processor Dual Intel Xeon processors 3.60 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2 per processor
Memory 1 GB (2x512) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 80 GB SATA/150 7200 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6+/B80/H1.0/280E/dF/s Country Code Key
N. America PD902AW#ABA Switzerland (German/French) PD902AW#AR8
Fr. Canadian PD902AW#ABC Switzerland (Italian/English) PD902AW#ACN
L. America PD902AW#ABM Dutch PD902AW#ABH
Japan (English) PD902AW#ACF Denmark PD902AW#ACE
Japan (Japanese) PD902AW#ABJ Asia/Pacific (English) PD902AW#AB4
UK PD902AW#ABU Korea PD902AW#AB1
Germany PD902AW#ABD China PD902AW#AB2
France PD902AW#ABF Taiwan PD902AW#AB0
Italy PD902AW#ABZ India PD902AW#ACJ
Spain PD902AW#ABE Australia PD902AW#ABG
Europe PD902AW#AK6 Thailand PD902AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 14

xw6200X/XD3.6+/C74/
H2/280E+/dF/s
– Trader station
Processor Dual Intel Xeon processors 3.60 GHz 1 MB/800 MHz FSB with EM64T
OS Microsoft Windows XP Professional
Cache Memory 1 MB L2 per processor
Memory 2 GB (2x1) DDR2-400 ECC Registered
Optical Drive 16X DVD-ROM
Hard Drive 74 GB SATA/150 10,000 rpm (1st)
Graphics NVIDIA Quadro NVS 280 PCI Express included in base configuration - Alternative
graphics card options should be ordered separately - they are listed below:
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI, can be added as second card)
NVIDIA Quadro NVS 400 PCI (64 MB, quad head, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB) (available September 2004)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone accessories
section.
Mouse HP scroll mouse (PS/2)
Other Includes Floppy Drive and Standard PS/2 Keyboard
xw6200X/XD3.6+/C74/H2/280E+/dF/s Country Code Key
N. America PM202AW#ABA Switzerland (German/French) PM202AW#AR8
Fr. Canadian PM202AW#ABC Switzerland (Italian/English) PM202AW#ACN
L. America PM202AW#ABM Dutch PM202AW#ABH
Japan (English) PM202AW#ACF Denmark PM202AW#ACE
Japan (Japanese) PM202AW#ABJ Asia/Pacific (English) PM202AW#AB4
UK PM202AW#ABU Korea PM202AW#AB1
Germany PM202AW#ABD China PM202AW#AB2
France PM202AW#ABF Taiwan PM202AW#AB0
Italy PM202AW#ABZ India PM202AW#ACJ
Spain PM202AW#ABE Australia PM202AW#ABG
Europe PM202AW#AK6 Thailand PM202AW#AKL
QuickSpecs
HP Workstation xw6200
Standard Features - Preconfigured Global Models
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 15

Processors 2nd Intel Xeon ™ processor with EM64T extensions and Hyper-Threading
Intel Xeon processor at 2.8 GHz with 800 MHz FSB & 1 MB of L2 cache DY665A
Intel Xeon processor at 3.0 GHz with 800 MHz FSB & 1 MB of L2 cache DY666A
Intel Xeon processor at 3.2 GHz with 800 MHz FSB & 1 MB of L2 cache DY667A
Intel Xeon processor at 3.4 GHz with 800 MHz FSB & 1 MB of L2 cache DY668A
Intel Xeon processor at 3.6 GHz with 800 MHz FSB & 1 MB of L2 cache DY669A
Operating Systems Red Hat Enterprise Linux Workstation 3 Update 2 (32-bit) PD862A
Red Hat Enterprise Linux Workstation 3 Update 2 (64-bit) PD863A
Graphics Multi display solutions PCI PCI-
Express
NVIDIA Quadro NVS 280 (64 MB, VGA & DVI) X AA932A
NVIDIA Quadro NVS 400 (64 MB, quad head, VGA & DVI) X AA605A
Quadro NVS 400 DVI cables NA AA606A
NVIDIA Quadro NVS 280 PCI-E (64 MB, VGA & DVI) X DY650A
DMS-59 to Dual DVI Cable for NVS cards X X DL139A
NVIDIA Quadro FX 330 (64 MB) X PB332A
ATI FireGL V3100 (128 MB) X PE949A
NVIDIA Quadro FX 1300 (128 MB) X PB331A
ATI FireGL V5100 (128 MB) X PB330A
NVIDIA Quadro FX 3400 (256 MB) X PB329A
Hard Drives SATA Hard Drives
40 GB SATA/150 Hard Drive (7200 rpm) PB371A
80 GB SATA/150 Hard Drive (7200 rpm) DE705A
160 GB SATA/150 Hard Drive (7200 rpm) DE706A
250 GB SATA/150 Hard Drive (7200 rpm) DS702A
36 GB SATA/150 Hard Drive (10,000 rpm) DU962A
74 GB SATA/150 Hard Drive (10,000 rpm) DX760A
SATA power cable kit (2 per kit) DN733A
xw6200 SATA data cable DY662A
SCSI Hard Drives
73 GB Ultra320 SCSI Hard Drive (10,000 rpm) AA613A
300 GB Ultra320 SCSI Hard Drive (10,000 rpm) DY672A
36 GB Ultra320 SCSI Hard Drive (15,000 rpm) AA616A
73 GB Ultra320 SCSI Hard Drive (15,000 rpm) AA617A
146 GB Ultra320 SCSI Hard Drive (15,000 rpm) DY671A
Bracket HDD 3.5to5.25 xw6200 DY659A
Cable, 3 port SCSI xw4200/6200 DY661A
QuickSpecs
HP Workstation xw6200
After-Market Options
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 16

Controllers SCSI Controllers PCI PCI-
Express
U320 SCSI Controller RAID 0,1 & external connector X DZ554A
Ultra320 SCSI RAID Adaptec 2120S (Windows only, includes external
connector)
X AA850A
Storage devices 256 MB USB 2.0 Drive Key II (Available Fall 2004) PH657A
1.44 MB Internal Floppy Drive DY670A
Input/Output Devices Keyboards
HP PS/2 Standard Keyboard (Carbonite/Silver) DT527A
HP USB Standard Keyboard (Carbonite/Silver) DT528A
HP USB 2004 Modular Keyboard DT530A
Pointing Devices
HP PS/2 2-Button Scroll Mouse (Carbonite) DD440B
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B
HP PS/2 3-Button Mouse AA778A
HP USB Optical 3-button mouse DY651A
USB Spaceball 5000 DV675A
USB SpaceMouse DZ203A
Networking NICs PCI PCI-
Express
Intel Pro/1000MT X DC193A
HP Gigabit by Broadcom (BCM5782) X DC194A
Memory (DIMMs) 400 MHz DDR-2 PC2-3200 ECC Registered DIMMs
256 MB DDR-2 PC2-3200 (400 MHz) ECC Registered DY656A
512 MB DDR-2 PC2-3200 (400 MHz) ECC Registered DY658A
1 GB DDR-2 PC2-3200 (400 MHz) ECC Registered DY655A
2 GB DDR-2 PC2-3200 (400 MHz) ECC Registered DY657A
Monitors TFTs
HP TFT L2335 (23-inch) P9615W#
HP TFT L2035 (20.1-inch) P9614W#
HP TFT L1925 (19.1-inch) P9626A
CRTs
HP P1230 (22-inch) P9613A
Multimedia PCI PCI-
Express
IEEE1394 Firewire PCI card (Windows only) X PA997A
QuickSpecs
HP Workstation xw6200
After-Market Options
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 17

Optical Drives DVD-ROM Drive
16X/40X DVD-ROM w/ +R read AA620A
CD-ROM Drive
48X Max CD-ROM Drive DC143B
CD-RW Drive
48X/32X/48X CD-RW Drive DE205A
Combo Drive
48X/32X Combo DVD-ROM/CD-RW Drive DE206A
DVD+R/+RW Drive
8X 4.7GB DVD+R/+RW Drive (Windows version) DS703A
8X 4.7GB DVD+R/+RW Drive (Linux version) DT839A
1.44MB Internal Floppy Disk Drive D5710B
Removable Storage 256 MB USB 2.0 II Drive Key PH657A
HP DAT24i Internal DDS3 tape drive C1555D
HP DAT24e External DDS3 tape drive C1556D
HP DAT40i Internal DDS4 tape drive C5686B
HP DAT40e External DDS4 tape drive C5687C
HP DAT72i Internal DAT72 tape drive Q1522A
HP DAT72e External DAT72 tape drive Q1523A
Security Chassis clamp lock, universal, no cable DE817A
Chassis clamp lock, universal, with cable DE818A
Brackets/Stands xw6200 sliding rack kit DY663A
Depth Adjustable Rails (stationary) 332558-B21
Sliding Shelf kit 234672-B21
Fixed shelf kit 253449-B21
Other Devices IDE Cable Kit xw62/82 (2nd) DY660A
Front Card Guide and Fan Kit DY648A
Software HP Remote Graphics V2 LTU for HP WS PE672A
HP Remote Graphics V2 LTU for non-HP PE673A
HP Remote Graphics V2 Rcvr LTU PE674A
HP Remote Graphics V2 software media PE675A
Remote Workstation Sender SW Module DM497A
Remote Workstation Receiver SW Module DM498A
QuickSpecs
HP Workstation xw6200
After-Market Options
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 18

E7525 chipset
DDR-2 SDRAM ECC REGISTERED MEMORY
It is not necessary to add memory in pairs. Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This
chart does not represent all possible memory configurations. The Intel E7525 chipset supports ECC Registered 400 MHz (PC2-3200) DDR-2 memory
only.
If only using one DIMM, install it in socket 1. Additional DIMM slots should be populated consecutively; socket 2, then 3, 4, etc. For best performance
install memory in pairs (a pair would be considered to be the DIMMs in sockets 1 & 2, 3 & 4) and do not mix speeds. It is always best to load the
memory in pairs rather than as single DIMMs (two 512 MB DIMMs will have better performance than a single 1 GB DIMM). For efficient dual-channel
performance, each pair of DIMMs must be same size and same DRAM technology. If mixing single sided and double sided memory, load the double
sided DIMM pairs first. ECC Registered memory must be used.
MAXIMUM MEMORY
Supports up to 8 GB of DDR SDRAM
POSSIBLE MEMORY CONFIGURATIONS
Not all memory configurations possible are represented below.
DIMM Size Slot
1234
256 MB 256 MB
512 MB 512 MB
512 MB 256 MB 256 MB
1 GB 1 GB
1 GB 256 MB 256 MB 256 MB 256 MB
2 GB 1 GB 1 GB
2 GB 512 MB 512 MB 512 MB 512 MB
4 GB 1 GB 1 GB 1 GB 1 GB
8 GB 2 GB 2 GB 2 GB 2 GB
QuickSpecs
HP Workstation xw6200
Memory
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 19

Tower configuration
Quantity Supported Position Supported Controller
Convertible Minitower
Optional Diskette Drive 1 3 Diskette
5.25" Storage Drive Bays (position 1
drive bay is limited to 198 mm depth
when optional smart cover solenoid
lock is installed; position 2 drive bay
can be converted to an internal 3.5"
3rd hard drive bay with optional
bracket)
2 1, 2 IDE
3.5" Storage Drive Bays with
acoustic dampening rail assemblies
2 (3) 4, 5 (and 2, for 3rd drive using
optical bay)
SATA or optional SCSI
QuickSpecs
HP Workstation xw6200
Storage
DA - 11975 Worldwide — Version 10 — November 1, 2004 Page 20
