HP 2133 - Mini-Note - C7-M 1.6 GHz ULV Installation guide

Notebook Tour
User Guide

© Copyright 2008 Hewlett-Packard
Development Company, L.P.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: April 2008
Document Part Number: 486473-001

Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii

iv Safety warning notice

Table of contents
1 Identifying hardware
2 Components
Product notice ...................................................................................................................................... 2
Top components ................................................................................................................................... 3
TouchPad ............................................................................................................................ 3
Light ..................................................................................................................................... 4
Keys ..................................................................................................................................... 5
Front components ................................................................................................................................ 6
Right-side components ......................................................................................................................... 7
Left-side components ........................................................................................................................... 8
Display components (select models only) ............................................................................................ 9
Bottom components ........................................................................................................................... 10
Wireless antennae (select models only) ............................................................................................. 11
Additional hardware components ....................................................................................................... 12
3 Labels
4 Routine care
Cleaning the display ........................................................................................................................... 14
Cleaning the keyboard ....................................................................................................................... 14
Traveling and shipping ....................................................................................................................... 14
Index ................................................................................................................................................................... 16
v

vi

1 Identifying hardware
▲To see a list of hardware installed in the computer, select Computer >Control Center >YaST
>Hardware Information.
1

2 Components
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
2 Chapter 2 Components

Top components
TouchPad
Component Description
(1) TouchPad on/off button Enables/disables the TouchPad.
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) TouchPad Moves the pointer and selects or activates items on the screen.
(4) TouchPad scroll zone Scrolls up or down.
(5) Right TouchPad button Functions like the right button on an external mouse.
Top components 3

Light
Component Description
Caps lock light On: Caps lock is on.
4 Chapter 2 Components

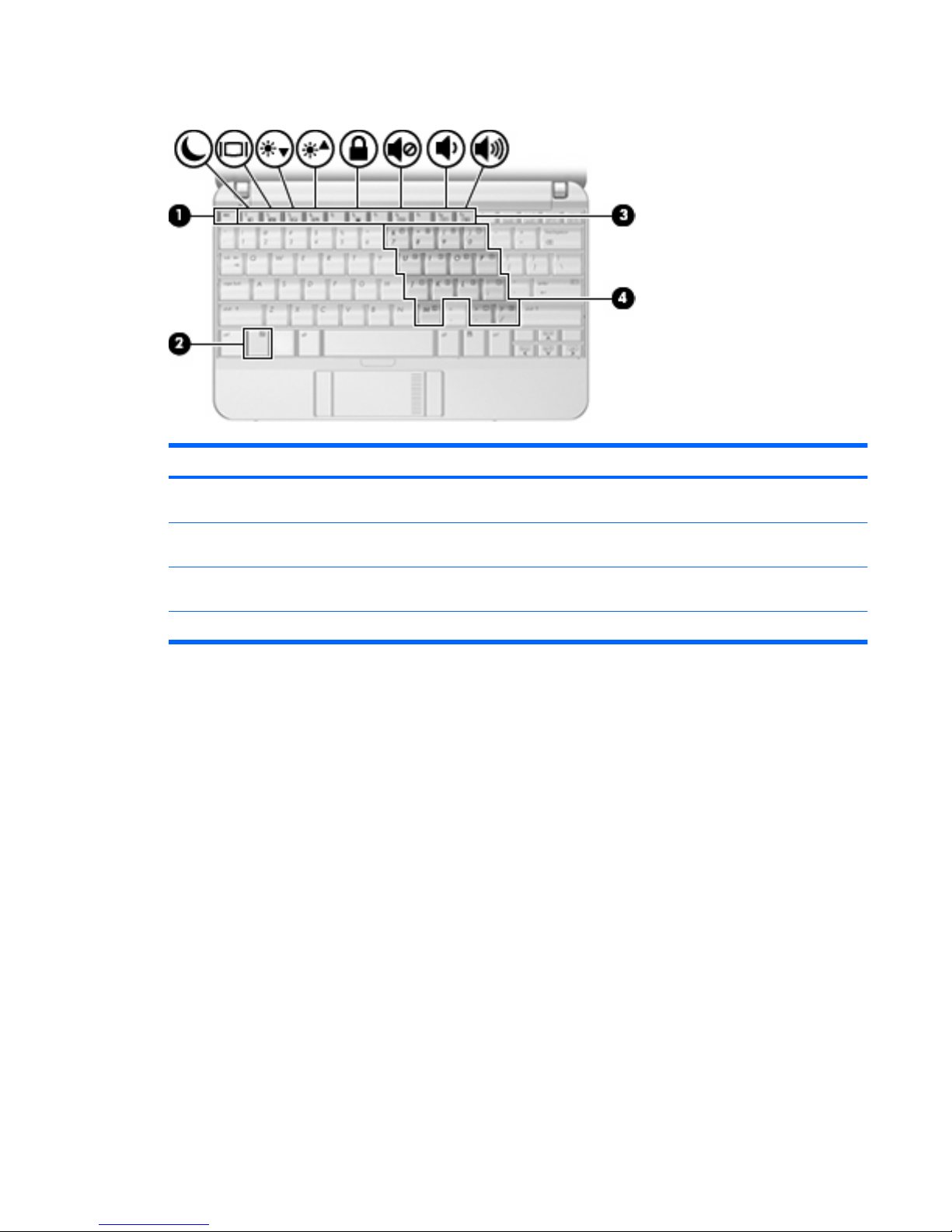

Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
(4) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
Top components 5

Front components
Component Description
(1) Power light ●Blue: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Power switch ●When the computer is off, slide the switch to turn on the
computer.
●When the computer is on, slide the switch briefly to initiate
Hibernation.
●When the computer is in the Sleep state, slide the switch
briefly to exit Sleep.
●When the computer is in Hibernation, slide the switch briefly
to exit Hibernation.
If the computer has stopped responding and operating system
shutdown procedures are ineffective, slide and hold the power
switch for at least 5 seconds to turn off the computer.
(3) Drive light Blinking: The hard drive is being accessed.
(4) Wireless light ●Blue: An integrated wireless device, such as a wireless local
area network (WLAN) device, the HP Broadband Wireless
Module, and/or a Bluetooth® device, is on.
●Amber: All wireless devices are off.
NOTE: The wireless light turns amber when the computer turns
on, but all wireless devices are off.
(5) Wireless switch Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
6 Chapter 2 Components

Right-side components
Component Description
(1) ExpressCard slot Supports optional ExpressCards 54.
(2) SD Card Reader Supports the following optional digital card formats:
●Secure Digital (SD) Memory Card
●MultiMediaCard (MMC)
(3) USB port Connects an optional USB device.
(4) RJ-45 (network) jack Connects a network cable.
(5) Battery light ●Amber: A battery is charging.
●Blue: A battery is close to full charge capacity.
●Blinking amber: A battery that is the only available power
source has reached a low battery level. When the battery
reaches a critical battery level, the battery light begins blinking
rapidly.
●Off: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low
battery level.
(6) Power connector Connects an AC adapter.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
Right-side components 7

Left-side components
Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Powered USB port Provides power to a USB device, such as an optional external
MultiBay or an optional external optical drive, if used with a
powered USB cable.
(4) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(5) Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
8 Chapter 2 Components

Display components (select models only)
Component Description
(1) Speakers (2) Produce sound.
(2) Internal microphones (2) Record sound.
NOTE: If there is a microphone icon next to each microphone
opening, your computer has internal microphones.
(3) Webcam (select models only) Records audio and video, and captures still photographs.
Display components (select models only) 9

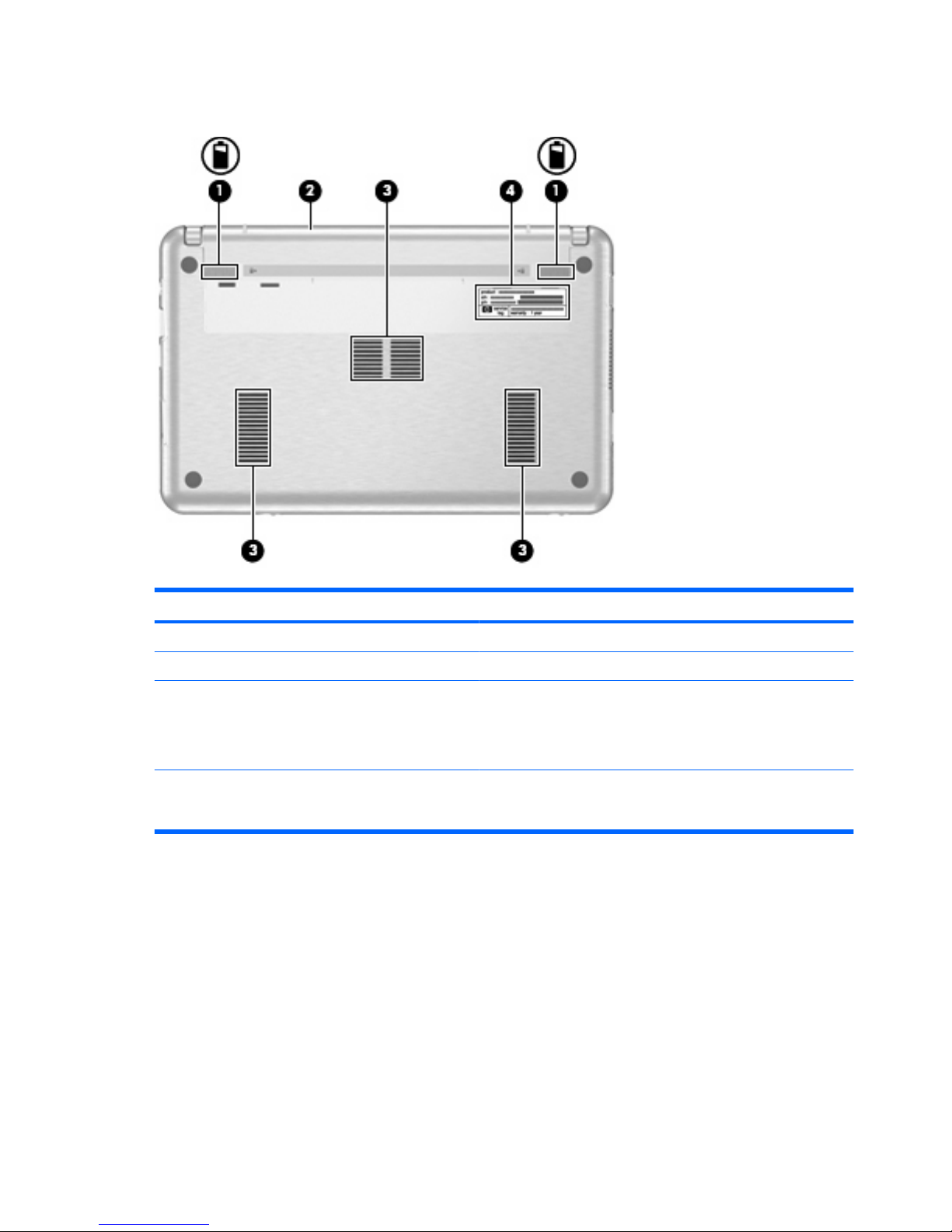

Bottom components
Component Description
(1) Battery release latches (2) Release the battery from the battery bay.
(2) Battery bay Holds the battery.
(3) Vents (3) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(4) Service tag Provides the product brand and series name, serial number (s/n),
and product number (p/n) of your computer. Have this information
available when you contact technical support.
10 Chapter 2 Components

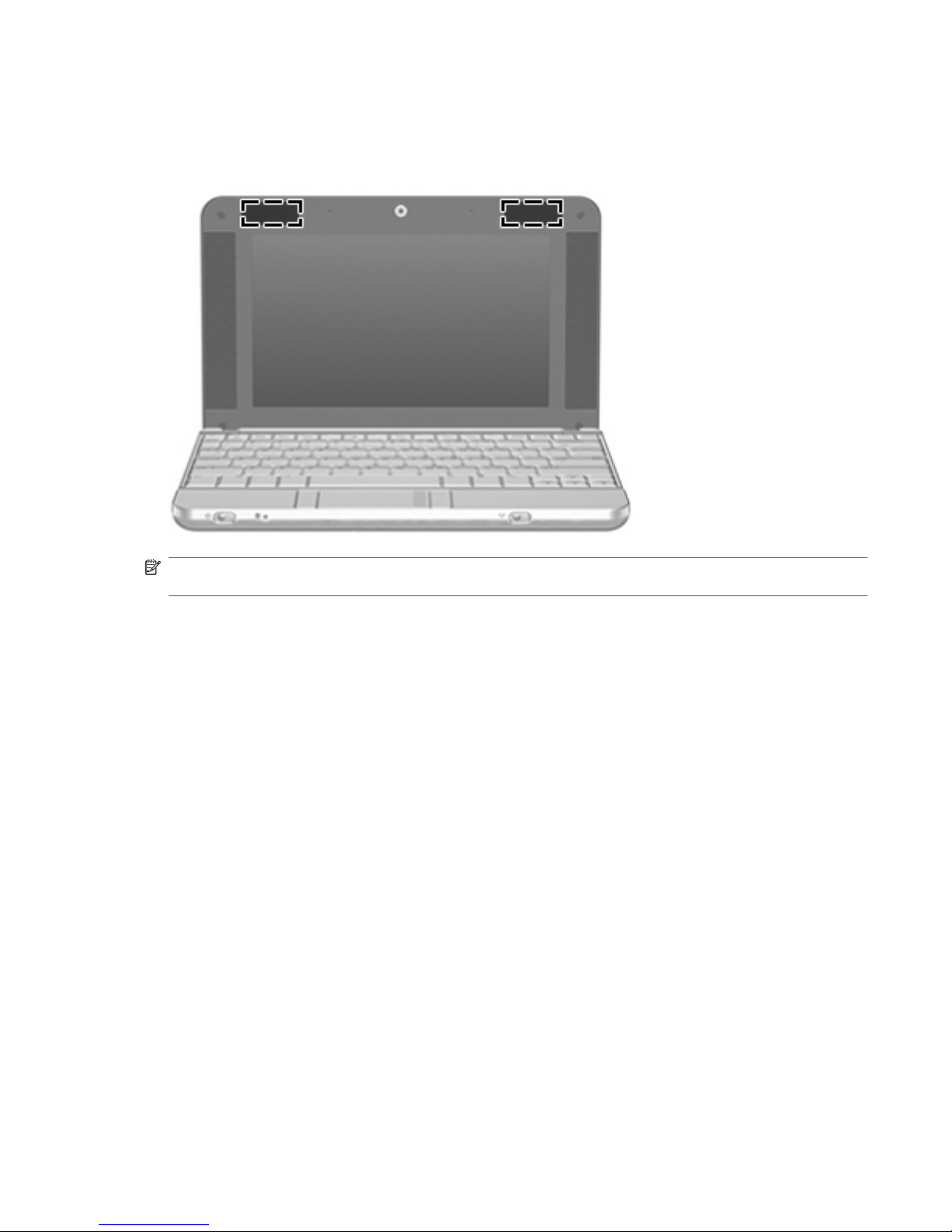

Wireless antennae (select models only)
On select computer models, at least 2 antennae send and receive signals from one or more wireless
devices. These antennae are not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennae free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennae (select models only) 11

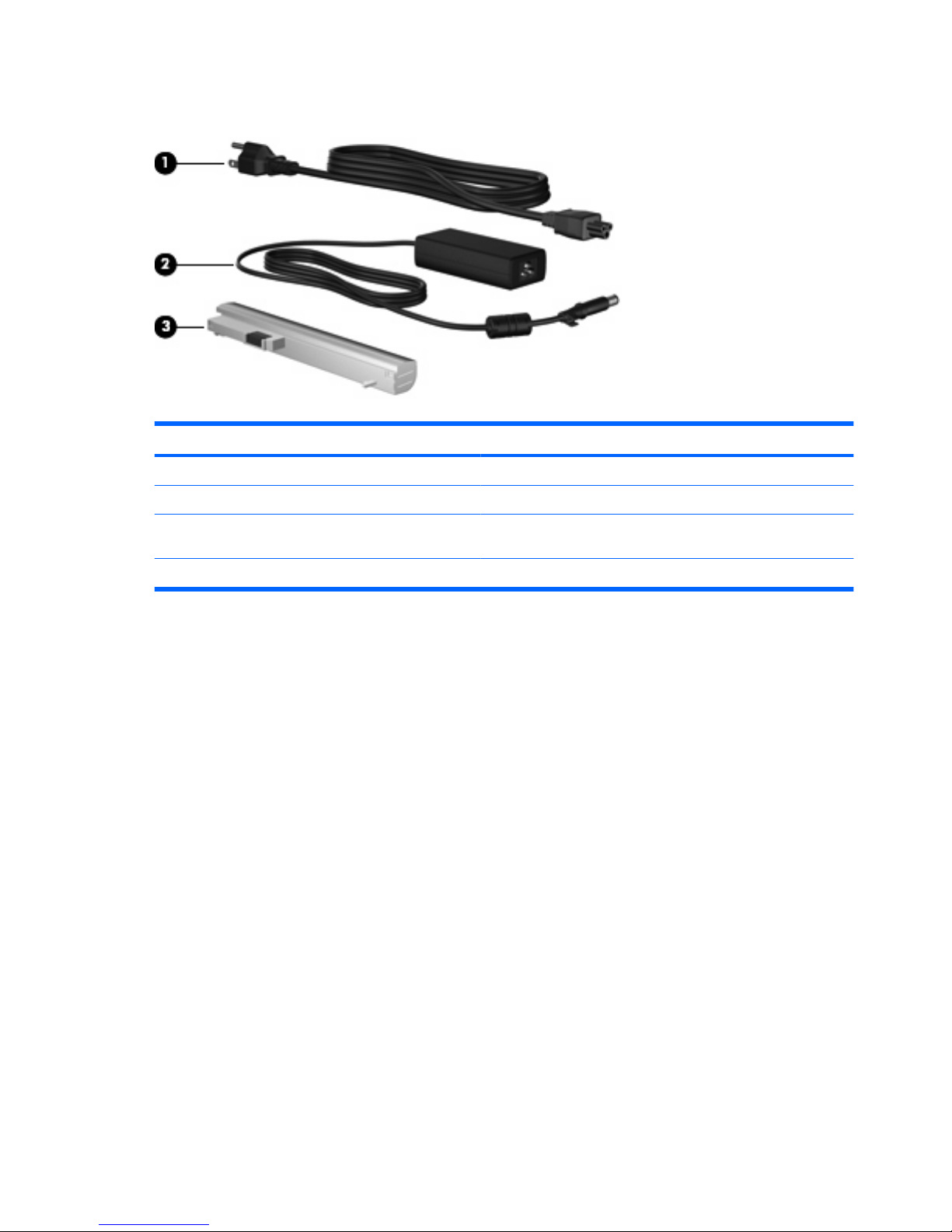

Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into
external power.
*Batteries and power cords vary in appearance by region and country.
12 Chapter 2 Components

3 Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
●Service tag—Provides the product brand and series name, serial number (s/n), and product
number (p/n) of your computer. Have this information available when you contact technical support.
The service tag label is affixed to the bottom of the computer.
●Regulatory label—Provides regulatory information about the computer. The regulatory label is
affixed to the bottom of the computer.
●Wireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries or regions in which the devices have
been approved for use. An optional device may be a wireless local area network (WLAN) device,
an HP Broadband Wireless Module, or an optional Bluetooth® device. If your computer model
includes one or more wireless devices, one or more certification labels are included with your
computer. You may need this information when traveling internationally. Wireless certification
labels are affixed inside the memory module compartment.
13

4 Routine care
Cleaning the display
CAUTION: To prevent permanent damage to the computer, never spray water, cleaning fluids, or
chemicals on the display.
To remove smudges and lint, frequently clean the display with a soft, damp, lint-free cloth. If the screen
requires additional cleaning, use premoistened antistatic wipes or an antistatic screen cleaner.
Cleaning the keyboard
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris on
the keyboard surface.
Clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, and particles that
can become trapped beneath the keys. A can of compressed air with a straw extension can be used to
blow air around and under the keys to loosen and remove debris.
Traveling and shipping
The computer is built to go with you for work and play. For best results, follow the traveling and shipping
tips described here.
●To prepare the computer for traveling and shipping, follow these steps:
1. Back up your information.
2. Remove all optical discs and all external media cards, such as digital cards and ExpressCards.
CAUTION: To reduce the risk of damage to the computer, damage to a drive, or loss of
information, remove discs from a drive before removing the drive from a drive bay, and before
shipping, storing, or traveling with a drive.
3. Turn off and then disconnect all external devices.
4. Shut down the computer.
●Take along a backup of your information. Keep the backup separate from the computer.
●When traveling by air, carry the computer as hand luggage, and do not check it in with the rest of
your bags.
14 Chapter 4 Routine care
