HP EliteBook 8440P User manual

1. Optional 2 MP Webcam 14. Hard drive activity / HP 3D DriveGuard LED indicator
2. Volume mute button with LED indicator 15. Battery charging LED indicator
3. Volume up/down buttons with LED indicators 16. Power/standby LED indicator
4. RJ-11/modem port 17. Wireless on/off LED indicator
5. RJ-45/Ethernet port 18. Power button with LED indicator
6. eSATA/USB 2.0 Combo port 19. HP QuickLook 3 button with LED indicator
7. Upgrade Bay (optical drive, 2nd hard drive, weight saver) 20. HP QuickWeb button with LED indicator
8. Integrated Smart Card Reader 21. Wireless on/off button with LED indicator
QuickSpecs
HP EliteBook 8440p Notebook PC
Overview
DA - 13520 Canada — Version 17 — September 29, 2011 Page 1

9. Optional HP Fingerprint Sensor 22. Touchpad on/off button
10. Pointstick 23. Ambient Light Sensor
11. Pointstick buttons 24. Dual-microphone array
12. Touchpad with scroll zone 25. HP NightLight with on/off button
13. Touchpad buttons 26. WLAN and WWAN antennas

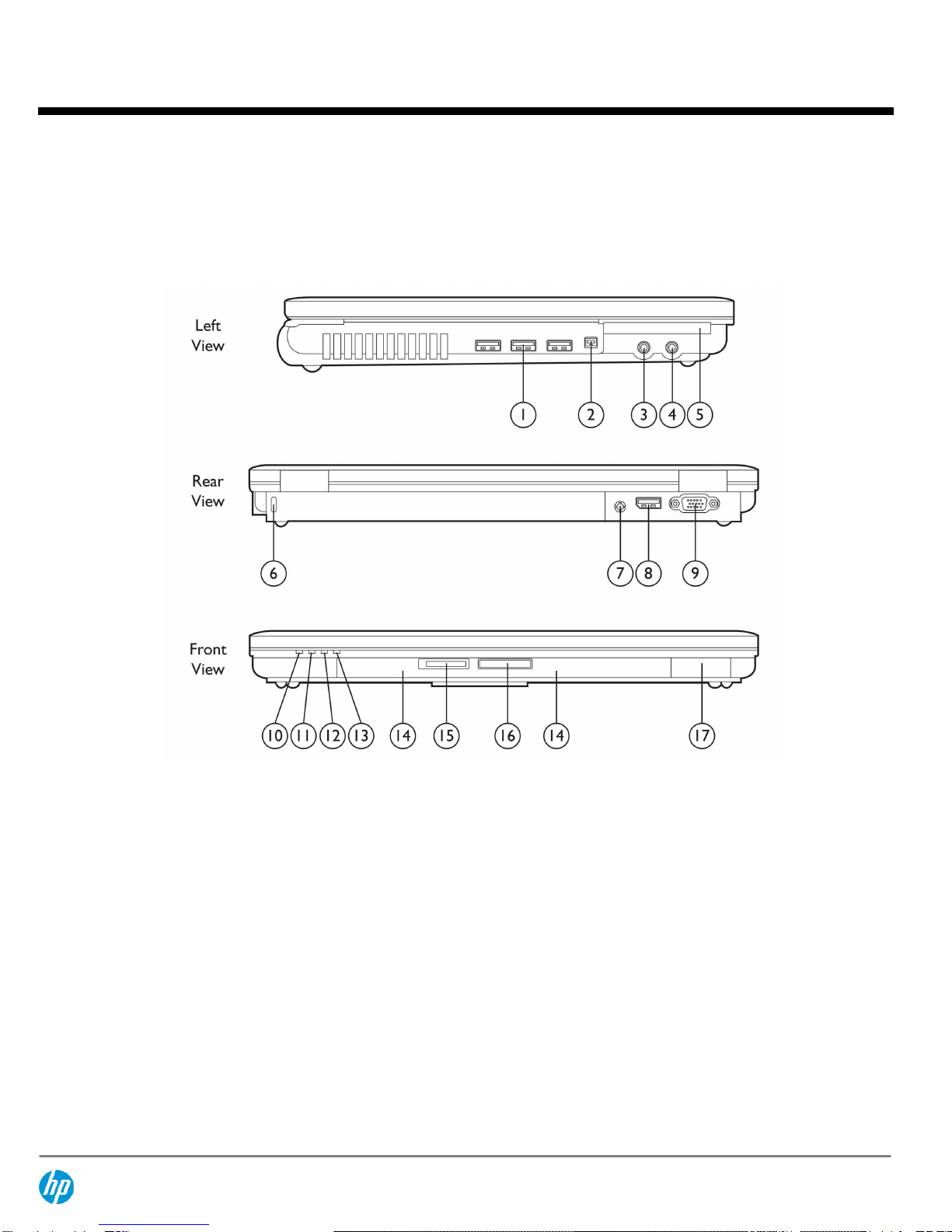

1. (3) USB 2.0 ports 10. Wireless on/off LED indicator
2. 1394a port 11. Power/standby LED indicator
3. Stereo microphone in 12. Battery charging LED indicator
4. Stereo headphone/line out 13. Hard drive activity / HP 3D DriveGuard LED
5. ExpressCard/54 slot 14. Integrated stereo speakers
6. Kensington Lock slot 15. Secure Digital (SD) slot
7. Power connector 16. Display release latch
8. DisplayPort 17. Bluetooth module compartment
9. VGA connector (external monitor/projector)
QuickSpecs
HP EliteBook 8440p Notebook PC
Overview
DA - 13520 Canada — Version 17 — September 29, 2011 Page 2

Bottom View
1. Battery bay 5. Secondary battery connector
2. Battery release latch 6. Hard drive bay
3. SIM slot for WWAN (select models) – inside battery bay 7. Memory module compartment
4. Docking connector 8. WLAN/WWAN module compartment
At A Glance
Genuine Windows 7 versions or FreeDOS
NVIDIA NVS 3100M graphics with 512 MB dedicated memory or Intel Graphics Media Accelerator HD graphics
Intel® Core™ i7 or Core i5 processor with Intel Turbo Boost Technology
DisplayPort for external monitors, and eSATA/USB 2.0 Combo port for external storage
Industrial, business rugged construction features a full magnesium alloy chassis, magnesium/aluminum display enclosure,
metal alloy hinges, brushed aluminum with platinum finish; designed to meet the military standard Mil-Std-810G for vibration,
dust, humidity, altitude, and high and low temperature operation*
Widescreen 14.0-inch diagonal 16:9 LED-backlit HD or HD+ display with Ambient Light Sensor and optional HP Privacy Filter
HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption
Touch-sensitive controls for HP QuickLook 3 (instant access to email, calendar, contacts and tasks), HP QuickWeb, wireless
on/off, mute, volume down, volume up
Choice of 6-cell, 9-cell, or HP Long Life primary battery, plus optional external batteries – HP Ultra-Capacity Battery, HP
Extended Life Battery
Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection,
or 160/256 GB Solid State Drive
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology with
QuickSpecs
HP EliteBook 8440p Notebook PC
Overview
DA - 13520 Canada — Version 17 — September 29, 2011 Page 3

GPS
Integrated Intel Centrino® Ultimate-N / Advanced-N 6000 Series 802.11 a/b/g/n wireless LAN module; or Broadcom b/g
wireless LAN module
Bluetooth® v2.1
Optional 2 MP Webcam, HP Night Light
Enhanced security features including integrated Smart Card Reader, HP ProtectTools, Computrace LoJack Pro ready, HP
SpareKey, HP Disk Sanitizer, TPM 1.2 ;** optional HP Fingerprint Sensor, and optional HP Privacy Filter
Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping
Dual pointing devices (touchpad with scroll zone and pointstick)
ExpressCard/54 slot, Secure Digital (SD) slot
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a guarantee
of future performance under these test conditions.
** TPM module disabled where not permitted by law (for example, Russia and China).
QuickSpecs
HP EliteBook 8440p Notebook PC
Overview
DA - 13520 Canada — Version 17 — September 29, 2011 Page 4

Processors Intel Quad-Core Processor (models with discrete graphics only)
Intel Core i7-740QM Processor (1.73 GHz, 6 MB L3 cache)*
Up to 2.93 GHz with Intel Turbo Boost Technology
Intel Core i7-720QM Processor (1.60 GHz, 6 MB L3 cache) *
Up to 2.8 GHz with Intel Turbo Boost Technology
Intel Dual-Core Processors
Intel Core i7-640M Processor (2.80 GHz, 4 MB L3 cache)*
Up to 3.46 GHz with Intel Turbo Boost Technology
Intel Core i7-620M Processor (2.66 GHz, 4 MB L3 cache) *
Up to 3.33 GHz with Intel Turbo Boost Technology
Intel Core i5-580M Processor (2.66 GHz, 3 MB L3 cache)*
Up to 3.33 GHz with Intel Turbo Boost Technology
Intel Core i5-560M Processor (2.66 GHz, 3 MB L3 cache)*
Up to 3.20 GHz with Intel Turbo Boost Technology
Intel Core i5-540M Processor (2.53 GHz, 3 MB L3 cache) *
Up to 3.06 GHz with Intel Turbo Boost Technology
Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache) *
Up to 2.93 GHz with Intel Turbo Boost Technology
* Intel's numbering is not a measurement of higher performance.
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System Preinstalled Genuine Windows 7 Professional Edition 32 *
Genuine Windows 7 Professional Edition 64 *
FreeDOS
Supported Genuine Windows Vista Enterprise 32 **
Genuine Windows Vista Enterprise 64 **
Genuine Windows Vista Business 64 **
Genuine Windows Vista Business 32 **
Genuine Windows XP Professional 64
Certified SuSE Linux Enterprise Desktop 11
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See:
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To download
the tool, visit: http://www.windowsvista.com/upgradeadvisor .
† Windows XP Professional is preinstalled on this system and includes end user rights and media for
Windows 7 Professional. You may only use one version at a time. You must back up all data (files, photos,
etc.) before uninstalling and installing operating systems to avoid loss of your data.
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 5

Chipset Mobile Intel QM57 Express Chipset
Intel Core i5 with
vPro/Core i7 with vPro
technology capable
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units
configured with an Intel Centrino® Advanced-N 6200 WLAN module and a preinstalled Windows operating
system. It provides advances in remote manageability, security, energy efficient performance, and
wireless connectivity. Intel Active Management Technology 6.0 (iAMT) offers built-in manageability and
proactive security for networked notebook PCs, even when they are powered off* or when the operating
system is inoperable. It can help identify threats before they reach the network, isolate infected systems,
and update PCs regardless of their power state.
*Requires a Windows operating system, network hardware and software, connection with a power source,
and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active
Management technology and Intel Virtualization technology, requires additional 3rd party software in
order to run. Availability of future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with
vPro technology is dependent on 3rd party software providers. Compatibility with future "virtual
appliances" is yet to be determined.
Graphics Models with discrete graphics:
NVIDIA NVS 3100M graphics with 512 MB dedicated gDDR3 video memory
Microsoft DirectX 10.1 (Shader Model 4.1)
Models with integrated graphics:
Intel Graphics Media Accelerator HD
Microsoft DirectX 10 (Shader Model 4.0)
Display Internal 14.0-inch diagonal 16:9 LED-backlit HD anti-glare (1366 x 768 resolution)
14.0-inch diagonal 16:9 LED-backlit HD+ anti-glare (1600 x 900 resolution)
Ambient Light Sensor
Optional HP Privacy Filter
External Up to 32-bit per pixel color depth
DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at 60
Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D (single link) video signal available through DVI port in optional HP
Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution and
color depth settings.
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 6

Memory Standard DDR3 PC3-10600 SDRAM (1333 MHz) *
Two SODIMM slots supporting dual-channel memory
1024 MB, 2048 MB, 3072 MB, or 4096 MB
Maximum Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel Maximized dual-channel performance requires SODIMMs of the same size and
speed in both memory slots.
* With some processors, memory bus runs at a maximum of 1066 MHz.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP
branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or
Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) *
56K V.92 modem **
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is
subject to country regulatory approval.
Wireless Devices Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support
for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and
is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is
also available (factory configurable only) and can be combined with any of the supported wireless LAN and
wireless WAN options.
HP un2420 EV-DO/HSPA
Mobile Broadband Module
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA)
networks. It also provides GPS functionality for various mapping applications
and security applications such as Computrace LoJack Pro Premium for HP
ProtectTools.
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top of
the display panel support current and future WWAN technologies.
All 802.11 integrated
wireless LAN options
Wi-Fi Certified *
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Three antennas integrated in the display enclosure
Intel Centrino Ultimate-N
6300 (3x3)
Integrated support for 802.11a, b, g, and n *
3 transmit, 3 receive antennas
Up to 450 mbps data rate
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 7

Intel Centrino Advanced-
N 6200 (2x2)
Integrated support for 802.11a, b, g, and n *
2 transmit, 2 receive antennas
Up to 300 mbps data rate
Broadcom 4312G
802.11b/g
WiFi Adapter
Integrated support for 802.11 b and g
Up to 54 mbps data rate
Broadcom 43224AGN
802.11a/b/g/n
WiFi Adapter
Integrated support for 802.11 a, b, g and n
2 transmit, 2 receive antennas
Up to 300 mbps data rate
HP Integrated Module
with Bluetooth Wireless
Technology
Bluetooth Specification v2.1 compliant
Works with a wide range of Bluetooth devices
* In countries where 802.11n is not allowed, this capability is not enabled (802.11a/b/g only).
Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain
system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage
to sensitive components underneath. The 101/102-key compatible keyboard features an industry
standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor
control keys, editing keys, both left and right control and alt keys, and 12 function keys. U.S. and
International key layouts are available. Includes an integrated numeric keypad, hotkeys for instant access
to power conservation, brightness, and other features. It has 19.05 x 19.05 mm key pitch (center-to-
center spacing) and 2.5 mm stroke.
Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP QuickWeb,
wireless on/off, volume mute, volume down, volume up, touchpad on/off
Dual Pointing devices Touchpad with scroll zone, two pick buttons
Pointstick with two additional pointstick buttons
Expansion card slots ExpressCard/54 slot Supports ExpressCard/54
Integrated Smart Card
Reader
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Secure Digital slot Supports SD (Secure Digital), MultiMedia Card
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 8

Internal Storage Hard Drives 160/250/320/500 GB 7200 rpm SMART SATA II
320 GB 7200 rpm SMART SATA II Self Encrypting Drive
NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up
to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
(Windows only)
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Solid State Drives 160 GB Solid State Drive
256 GB Solid State Drive
Upgrade Bay Fixed 12.7 mm SATA
optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive
Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
Second hard drive 500 GB 7200 rpm SMART SATA II Hard Drive
Weight saver
Interfaces ExpressCard/54 slot One
External monitor Two - (1) DisplayPort, (1) VGA
Smart Card Reader One
1394a One
Stereo microphone in One
Stereo headphone/line
out
One
Power connector One
RJ-11/modem One
RJ-45/Ethernet One
USB 2.0 Three
eSATA/USB 2.0 Combo
port
One
Docking connector One
Secondary battery
connector
One
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 9

Audio/Visual HD audio (HP Premier Sound)
Integrated stereo speakers
Integrated dual-microphone array
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone/line in
Optional 2 MP webcam
Supports videoconferencing and still image capture
Large image sensor for excellent colour matching and good low light sensitivity
Up to 30 frames/sec
AutoMacro focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true colour (camera sensors output YCrCb format among others)
Software Preinstalled software
with Windows operating
system
HP Recovery Manager (available with Windows 7 or Vista only)
HP Support Assistant (available with Windows 7 or Vista only)
HP ProtectTools Security Manager
HP QuickLaunch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager
HP Wireless Assistant
Microsoft Office 2010 preloaded (purchase of a Product
Key required to activate a full Office 2010 suite)*
McAfee Total Protection **
PDF Complete SE***
Roxio Creator Business 10 (select models)
InterVideo WinDVD (select models)
Synaptics Touchpad Driver
HP Webcam Software
WinZip 14.5
Additional software
available from the web
HP SoftPaq Download Manager
HP Client Manager Software
HP Client Management Solutions
Java Card Security for HP ProtectTools
* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of
Product Key required to activate full Office 2010 suite available at participating resellers/retailers and
http://www.office.com .
** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
*** 60 day trial; purchase license afterwards for full functionality.
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 10

HP Recovery Manager Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager
enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important
system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery
software.
Security Standard Features HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
Setup Password
DriveLock Password
TPM 1.2 Embedded Security Chip *
TPM Enhanced DriveLock *
HP Disk Sanitizer
Kensington Lock slot
Support for Computrace ** LoJack Pro for HP ProtectTools
Optional Features HP Fingerprint Sensor Enhanced sensor scans the fingerprint to uniquely
identify and authenticate a person.
HP Privacy Filter Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor.
Computrace ** LoJack Pro
Premium for HP
ProtectTools with GPS
Tracking
Subscription based security solution providing the
ability to track, initiate physical recovery, conduct
asset management, and perform remote data
delete by utilizing GPS technology. GPS
functionality requires HP un2420 EV-DO/HSPA
Mobile Broadband Module.
* TPM module disabled where use is restricted by law; for example, Russia and China.
** The Computrace agent is shipped turned off, and must be activated by customers when they purchase a
subscription with terms ranging from one to five years.
For more information on HP security solutions refer to: http://www.hp.com/go/security .
HP ProtectTools Security
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. The following modules are available on the hard drive (also
downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 11

Power Supply Models with discrete graphics:
External 90-watt Smart AC adapter
Models with integrated graphics:
External 65-watt Smart AC adapter
Power cord included is 6-foot (1.8 metre).
Total length including external AC adapter is 12 feet (3.66 metre).
HP Fast Charge *
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the HP 9-cell Primary Battery, the HP Ultra-Capacity Battery, or the HP Long Life
Battery.
Battery Primary battery HP 9-cell 100 WHr Li-Ion Primary Battery
HP 6-cell 55 WHr Li-Ion Primary Battery
HP Long Life 6-cell 51 WHr Li-Ion Primary Battery
Optional HP Long Life
Battery *
HP Long Life Battery (3-cell 47 WHr)
Optional secondary
battery
HP Extended Life Battery (8-cell 52 WHr)
HP Ultra-Capacity Battery (12-cell 95 WHr)
* The optional HP Long Life Battery takes the place of the primary battery, which must be removed.
Battery Life 9-cell (100 WHr)
Primary
6-cell (55 WHr)
Primary
HP Long Life
6-cell (51 WHr)
Primary
Primary battery, hard drive Up to 11 hours and 45
minutes
Up to 6 hours and 30
minutes
Up to 6 hours
Primary battery
and optional HP Extended Life
Battery, hard drive
Up to 18 hours and 30
minutes
Up to 12 hours and 15
minutes
*
Primary battery
and optional HP Ultra-Capacity
Battery, hard drive
Up to 23 hours Up to 18 hours *
Primary battery, optional HP
Ultra-Capacity Battery, Solid
State Drive
Up to 24 hours** Up to 20 hours *
NOTE: Battery life will vary depending on the product model, configuration, loaded applications, features,
use, wireless functionality and power management settings. The maximum capacity of the battery will
naturally decrease with time and usage. See MobileMark07 battery benchmark
www.bapco.com/products/mobilemark2007 for additional details.
* This configuration not tested for battery life.
** Up to 24 hours requires HP EliteBook 8440p configured with Intel Graphics Media
Accelerator HD, optional SSD, 9-cell primary battery and separately purchased Ultra
Capacity Battery.
System Standby Time Up to 1 week
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 12

Power Conservation Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance
Mode, or Automatic mode)
Intel Display Power Saving technology (models with integrated graphics)
NVIDIA PowerMizer 7.0 technology (models with NVIDIA graphics)
Hibernation
Standby
ACPI compliance
Docking and Stands HP Docking Station
HP Advanced Docking Station
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual-Monitor Stand
HP Monitor Stand
HP Basic Adjustable Stand
HP Adjustable Notebook Stand
NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please
refer to the individual docking station documentation for specific information about supported features.
Service and Support HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP
Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of
service for your HP product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available
at: http://www.hp.com/hps/carepack .
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp .
QuickSpecs
HP EliteBook 8440p Notebook PC
Standard Features
DA - 13520 Canada — Version 17 — September 29, 2011 Page 13

NOTE: Options/capabilities listed in the QuickSpecs represent those capabilities available through Base Units or Build to Order
configurations. The various product features and capabilities will vary in terms of configurable vs. aftermarket options (AMOs). There
may be options and capabilities available through CTO that are not available as AMOs.
Memory HP 1 GB (DDR3 1333 MHz) SODIMM AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA
Storage HP Notebooks USB Diskette Drive DC361B
HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive AK869AA
HP 250GB Pocket Media Drive FE477AA
HP External USB Drive CD/DVD R/RW FS943AA
HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive AU097AA
HP Primary SATA 500 GB 7200 rpm Hard Drive AU098AA
HP Primary SATA 320 GB 7200 rpm Hard Drive AS282AA
HP Primary SATA 250 GB 5400 rpm Hard Drive AK868AA
Expansion Solutions HP 90W Docking Station VB041AA#ABA
HP 90W Docking Station – Smart Buy VB041UT#ABA
HP 230W Docking Station VB043AA#ABA
HP 120W Advanced Docking Station NZ222AA#ABA
HP 120W Advanced Docking Station – Smart Buy NZ222UT#ABA
HP 230W Advanced Docking Station NZ223AA#ABA
HP USB 2.0 Docking Station FQ834AA
HP Essential USB 2.0 Port Replicator AQ731AA
HP Dual-Monitor Stand AK084AA
HP 2009 Monitor Stand TBD
HP 2009 Adjustable Notebook Stand TBD
HP Basic Adjustable Stand AL549AA
Communications Intel WLAN 802.11a/b/g/n Mini-card Option Kit TBD
HP un2420 EVDO/HSPA Mobile Broadband Module WD301AA
QuickSpecs
HP EliteBook 8440p Notebook PC
Options
DA - 13520 Canada — Version 17 — September 29, 2011 Page 14

Power HP 1-Bay Battery Charging Station RW635AA
HP 5-Bay Battery Charging Station RW636AA
HP Battery Adapter Kit KV829AA
HP Smart 65W Travel AC Adapter AU155AA
HP 90W Smart AC Adapter ED495AA
HP 90W Smart Combo Adapter AJ652AA
HP 6-Cell Li-Ion Primary Battery KU531AA
HP 9-Cell Li-Ion Primary Battery AT908AA
HP Extended Life Battery AJ359AA
HP Ultra-Capacity Battery AT486AA
HP Long Life Battery AU213AA
Carrying Cases HP Basic Carrying Case AJ078AA
HP Value Nylon Case RR314AA
HP Universal Nylon Case RR315AA
HP Executive Leather Case RR316AA
HP Deluxe Nylon Backpack RR317AA
HP Deluxe Roller Case GD405AA
HP Basic Backpack AM863AA
HP Basic Messenger Carrying Case AP355AA
HP Professional Series Carrying Case AT886AA
HP Professional Series Backpack AT887AA
HP Professional Series Messenger AT888AA
HP Professional Series Lady's Case AT889AA
HP Professional Series Slip Case AT890AA
HP Elite Series Lady's Case AT891AA
HP Merlot Slip Case AU095AA
Security HP/Kensington MicroSaver Security Lock PC766A
HP 14.0-inch Display Privacy Filter AU100AA
HP ExpressCard Smart Card Reader AJ451AA
Input/Output Devices HP PS/2 Keyboard & Mouse Bundle RC464AA
HP USB Keyboard & Mouse Bundle RC465AA
HP USB Optical Travel Mouse RH304AA
HP USB/PS2 Optical 2-Button Scroll Mouse DC369A
HP Wireless Mouse AR085AA
HP BT Headset AR084AA
HP Mobile Audio Speakers FS944AA
QuickSpecs
HP EliteBook 8440p Notebook PC
Options
DA - 13520 Canada — Version 17 — September 29, 2011 Page 15

DDR3 PC3-10600 SDRAM (1333 MHz) *
Two SODIMM slots supporting dual-channel memory
SODIMM sizes supported: 1024 MB, 2048 MB, and 4096 MB
Standard Memory 1024 MB (1024 MB x 1)
2048 MB (2048 MB x 1 or 1024 MB x 2)
3072 MB (2048 MB + 1024 MB)
4096 MB (4096 MB x 1 or 2048 MB x 2)
Optional Memory Upgrades Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory kits.
Both memory slots are user-accessible. Please refer to the Hardware and Software Guide for
installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and
speed in both memory slots.
Up to Slot 1 Slot 2
1024 MB 1024 MB Empty
2048 MB 2048 MB Empty
2048 MB 1024 MB 1024 MB
3072 MB 2048 MB 1024 MB
4096 MB 4096 MB Empty
4096 MB 2048 MB 2048 MB
8192 MB 4096 MB 4096 MB
* With some processors, memory bus runs at a maximum of 1066 MHz.
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry
standard nature of some third-party memory modules, we strongly recommend using only HP-
branded memory modules to ensure compatibility. If you mix memory speeds, the system will
perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows
64-bit operating system or Linux. With Windows 32-bit operating systems, the amount of usable
memory is dependent upon your configuration, so that above 3 GB all memory may not be available
due to system resource requirements.
Memory Upgrades HP 1 GB (DDR3 1333 MHz) SODIMM AT911AA
HP 2 GB (DDR3 1333 MHz) SODIMM AT912AA
HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA
QuickSpecs
HP EliteBook 8440p Notebook PC
Memory
DA - 13520 Canada — Version 17 — September 29, 2011 Page 16

Upgrade Bay Drive Support
Quantity Supported Drive Bay
Blu-ray R/RE DVD+/-RW SuperMulti
DL Drive
One Upgrade Bay
Blu-ray ROM DVD+/-RW SuperMulti
DL LightScribe Drive
One Upgrade Bay
DVD+/-RW SuperMulti DL LightScribe
Drive
One Upgrade Bay
DVD-ROM Drive One Upgrade Bay
500 GB 7200 rpm SMART SATA II
Hard Drive
One Upgrade Bay
Weight Saver One Upgrade Bay
Internal Storage Device
Quantity Supported Drive Bay
Hard Drives
500 GB 7200 rpm SMART SATA II
Hard Drive
One Dedicated hard drive bay
320 GB 7200 rpm SMART SATA II
Hard Drive
One Dedicated hard drive bay
320 GB 7200 rpm SMART SATA II Self
Encrypting Drive
One Dedicated hard drive bay
250 GB 7200 rpm SMART SATA II
Hard Drive
One Dedicated hard drive bay
160 GB 7200 rpm SMART SATA II
Hard Drive
One Dedicated hard drive bay
Solid State Drive
256 GB Solid State Drive One Dedicated hard drive bay
160 GB Solid State Drive One Dedicated hard drive bay
QuickSpecs
HP EliteBook 8440p Notebook PC
Storage
DA - 13520 Canada — Version 17 — September 29, 2011 Page 17

System Unit Dimensions (HxWxD) 1.23 in (at front) x 13.21 in x 9.3 in
31.3 mm (at front) x 335.6 mm x 236.2 mm
Weight Starting at 4.7 lb (2.12 kg) with weight saver (no optical drive)
Starting at 5.0 lb (2.27 kg) with DVD-ROM drive
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by
configuration and components. Weight includes 6-cell battery, hard drive, and WLAN.
Stand-Alone Power
Requirements (AC Power)
Nominal Operating Voltage 18.5 V
Average Operating Power Discrete graphics: 22.5 W
Integrated graphics: 14.5 W
Max Operating Power Discrete graphics: < 90 W
Integrated graphics: < 65 W
Temperature Operating 32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating –4° to 140° F (–20° to 60° C)
Relative Humidity Operating 10% to 90%, non-condensing
Non-operating 5% to 95%, 101.6° F (38.7° C) maximum wet bulb
temperature
Shock Operating 125 G, 2 ms, half-sine
Non-operating 200 G, 2 ms, half-sine
Random Vibration Operating 0.75 grms
Non-operating 1.50 grms
Altitude
(unpressurized)
Operating –50 to 10,000 ft (–15.24 to 3,048 m)
Non-operating –50 to 40,000 ft (–15.24 to 12,192 m)
Industry Standard
Certifications
UL Yes
CSA Yes
FCC Compliance Yes
ENERGY STAR® Select models *
EPEAT Registered TBD in United States **
ICES Yes
GS Yes
Australia / NZ A-Tick
Compliance
Yes
CCC Yes
Japan VCCI Compliance Yes
KCC Yes
BSMI Yes
CE Marking Compliance Yes
BNCI or BELUS Yes
CIT Yes
GOST Yes
Saudi Arabian Compliance
(ICCP)
Yes
QuickSpecs
HP EliteBook 8440p Notebook PC
Technical Specifications
DA - 13520 Canada — Version 17 — September 29, 2011 Page 18

SABS Yes
UKRSERTCOMPUTER Yes
* Configurations of the HP EliteBook 8440p that are ENERGY STAR qualified are identified as
HP EliteBook 8440p ENERGY STAR on HP websites and on www.energystar.gov .
** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See www.epeat.net for registration
status by country.
NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility .
HP 120W Smart AC
Adapter
Weight 1.52 lb (0.69 kg) (adapter)
0.29 lb (0.13 kg) (power cord)
Dimensions 6.65 x 2.56 x 1.50 in (16.9 x 6.5 x 3.8 cm)
Input Operating Input Voltage 100 to 240 VAC
Operating Input Current PFC Version:
2.20 A at 90 VAC
1.10 A at 180 VAC
Non-PFC Version:
2.5 A at 110 VAC
1.25 A at 180 VAC
Operating Frequency
Range
47 to 63 Hz AC
Efficiency 83% minimum at 115 VAC
Output Output power 120 W
DC Output Voltage 18.5 V
Environmental Design Operating Temperature 32° to 104° F (0° to 35° C)
Non-operating (storage)
Temperature
-4° to 149° F (-20° to 65° C)
Altitude 0 to 10,000 ft (0 to 3,048 m)
Humidity 20% to 80%
Storage Humidity 10% to 90%
EMI and Safety
Certifications
CE Mark: full compliance with LVD and EMC directives
Worldwide safety standards: IEC60950, EN60950, UL60950, Class2, SELV
Agency approvals: C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,
CISPR22 Class B, CCC, NOM-1 NYCE, S-Mark, Australian Electric Permit, PSB,
eK, BSMI, BNCI, KONCAR, GS, GOST, SASO, SABS, UKRSERTCOMPUTER; MTBF-
over 200,000 hours at 25°C ambient condition.
QuickSpecs
HP EliteBook 8440p Notebook PC
Technical Specifications
DA - 13520 Canada — Version 17 — September 29, 2011 Page 19

HP 90W Smart AC Adapter Dimensions 5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)
Weight 0.82 lb (370 g)
Input 100 to 240 VAC
Input Efficiency 83% min at 115 VAC
Input frequency range 47 to 63 Hz
Input AC current 1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version
Output Output power 90W
DC output 19.0V
Hold-up time 5 msec at 115 VAC input
Output current limit <11A, Over voltage protection- 29V max
automatic shutdown
Connector 3 pin/grounded, mates with interchangeable cords
Environmental Design Operating temperature 32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
–4° to 149° F (–20° to 65° C)
Altitude 0 to 10,000 ft (0 to 3,048 m)
Humidity 20% to 80%
Storage Humidity 10% to 90%
EMI and Safety
Certifications
CE Mark – full compliance with LVD and EMC directives; Worldwide safety
standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals –
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF– over 200,000 hours at 25°C ambient condition.
NOTE: Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures
of these components and not to the environment in which the PC is operating.
Optional HP Ultra-
Capacity Battery
Dimensions (H x W x L) 1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
Weight 1.77 lb (0.803 kg)
Cells/Type 12-cell Lithium-Ion
Energy Watt-hour Capacity 95 Wh
Temperature Operating (Charging) 32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (-10° to 60° C)
Non-operating -4° to 140° F (-20° to 60° C)
Battery Re-Charge Time Smart Adapter 3 to 4 hours
System ON 4 to 5 hours (depending on system power
consumption)
Fuel Gauge When pressed, LEDs light indicating level of charge remaining on battery
QuickSpecs
HP EliteBook 8440p Notebook PC
Technical Specifications
DA - 13520 Canada — Version 17 — September 29, 2011 Page 20
