1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start >Computer >System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Windows Help for more information.
1

2 Components
2 Chapter 2 Components

Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
Product notice 3

Top components
TouchPad
Component Description
(1) TouchPad on/off button Enables/disables the TouchPad.
(2) Left TouchPad button* Functions like the left button on an external mouse.
(3) TouchPad* Moves the pointer and selects or activates items on the screen.
(4) TouchPad scroll zone Scrolls up or down.
(5) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel > Hardware
and Sound > Mouse.
4 Chapter 2 Components

Light
Component Description
Caps lock light On: Caps lock is on.
Top components 5

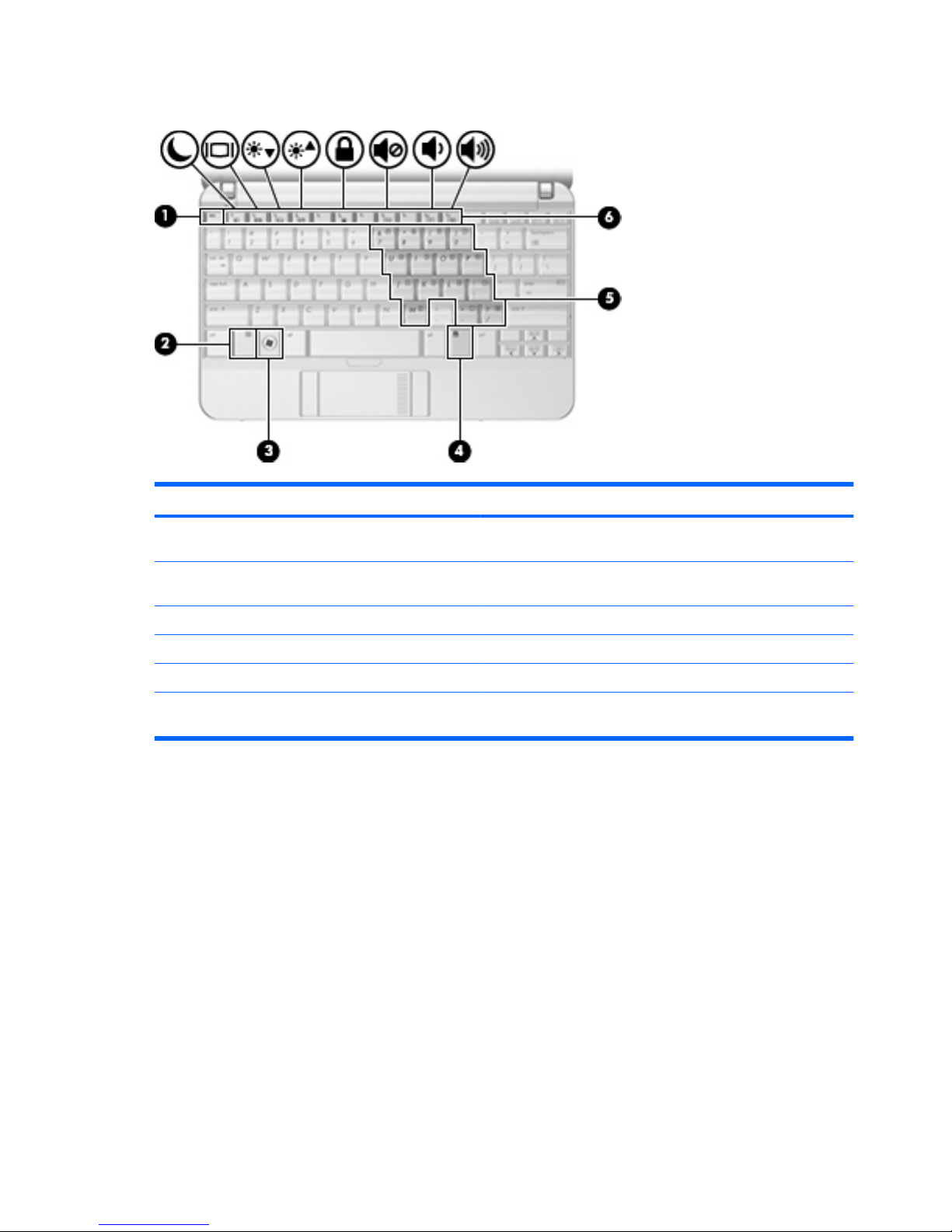

Keys
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
6 Chapter 2 Components

Front components
Component Description
(1) Power light ●Blue: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Power switch ●When the computer is off, slide the switch to turn on the
computer.
●When the computer is on, slide the switch briefly to initiate
Hibernation.
●When the computer is in the Sleep state, slide the switch
briefly to exit Sleep.
●When the computer is in Hibernation, slide the switch briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, slide and hold the power switch for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(3) Drive light Blinking: The hard drive is being accessed.
(4) Wireless light ●Blue: An integrated wireless device, such as a wireless local
area network (WLAN) device, the HP Broadband Wireless
Module, and/or a Bluetooth® device, is on.
●Amber: All wireless devices are off.
NOTE: The wireless light turns amber when the computer turns
on, but all wireless devices are off.
(5) Wireless switch Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE: To establish a wireless connection, a wireless network
must already be set up.
Front components 7

Right-side components
Component Description
(1) ExpressCard slot Supports optional ExpressCards 54.
(2) SD Card Reader Supports the following optional digital card formats:
●Secure Digital (SD) Memory Card
●MultiMediaCard (MMC)
(3) USB port Connects an optional USB device.
(4) RJ-45 (network) jack Connects a network cable.
(5) Battery light ●Amber: A battery is charging.
●Blue: A battery is close to full charge capacity.
●Blinking amber: A battery that is the only available power
source has reached a low battery level. When the battery
reaches a critical battery level, the battery light begins blinking
rapidly.
●Off: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low
battery level.
(6) Power connector Connects an AC adapter.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
8 Chapter 2 Components

Left-side components
Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Powered USB port Provides power to a USB device, such as an optional external
MultiBay or an optional external optical drive, if used with a
powered USB cable.
(4) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(5) Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
Left-side components 9

Display components (select models only)
Component Description
(1) Speakers (2) Produce sound.
(2) Internal microphones (2) Record sound.
NOTE: If there is a microphone icon next to each microphone
opening, your computer has internal microphones.
(3) Webcam ●Records and plays back webcam video.
●Includes streaming video options and special effects for
adding frames, filters, and emoticons to snapshots and video.
●Captures single frame or burst webcam snapshots.
●Connects to e-mail photos and video.
10 Chapter 2 Components

Bottom components
Component Description
(1) Battery release latches (2) Release the battery from the battery bay.
(2) Battery bay Holds the battery.
(3) Vents (3) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(4) Service tag Provides the product brand and series name, serial number (s/n),
and product number (p/n) of your computer. Have this information
available when you contact technical support.
Bottom components 11

Wireless antennae (select models only)
On select computer models, at least 2 antennae send and receive signals from one or more wireless
devices. These antennae are not visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennae free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
12 Chapter 2 Components

Additional hardware components
Component Description
(1) Power cord* Connects an AC adapter to an AC outlet.
(2) AC adapter Converts AC power to DC power.
(3) Battery* Powers the computer when the computer is not plugged into
external power.
*Batteries and power cords vary in appearance by region and country.
Additional hardware components 13

3 Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
●Service tag—Provides the product brand and series name, serial number (s/n), and product
number (p/n) of your computer. Have this information available when you contact technical support.
The service tag label is affixed to the bottom of the computer.
●Microsoft® Certificate of Authenticity—Contains the Windows® Product Key. You may need the
Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom
of the computer.
●Regulatory label—Provides regulatory information about the computer. The regulatory label is
affixed to the bottom of the computer.
●Wireless certification label(s) (select models only)—Provide information about optional wireless
devices and the approval markings of some of the countries in which the devices have been
approved for use. An optional device may be a wireless local area network (WLAN) device, an HP
Broadband Wireless Module, or an optional Bluetooth® device. If your computer model includes
one or more wireless devices, one or more certification labels are included with your computer.
You may need this information when traveling internationally. Wireless certification labels are
affixed to the bottom of the computer.
14 Chapter 3 Labels
