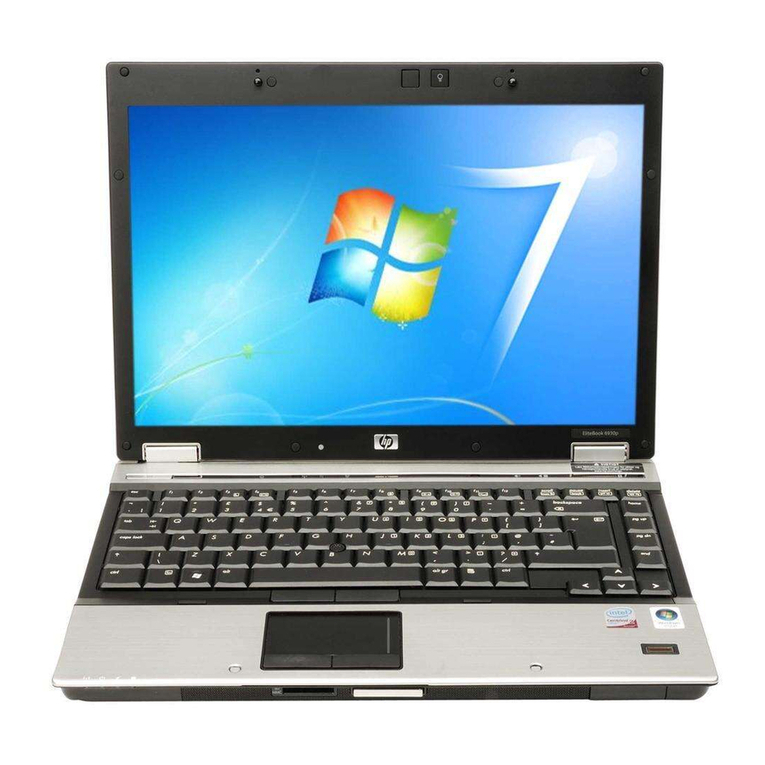

HP 6930p - EliteBook - Core 2 Duo 2.8 GHz User manual

HP recommends Windows Vista
HP recommends Windows VistaHP recommends Windows Vista
HP recommends Windows Vista
®
®®
®
Business
BusinessBusiness
Business
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Overview
DA - 13061 North America — Version 5 — August 14, 2008 Page 1

1. HP NightLight on/off button 14. Touchpad with scroll zone
2. HP NightLight 15. Touchpad buttons
3. Optional 2 MP Webcam 16. Hard drive activity / HP 3D DriveGuard LED indicator
4. Volume mute button with LED indicator 17. Battery charging LED indicator
5. Volume scroll zone with up/down LED indicators 18. Power/standby LED indicator
6. RJ-11/modem port 19 Wireless on/off LED indicator
7. RJ-45/Ethernet port 20. Power button with LED indicator
8. USB 2.0 port 21. HP Info / HP QuickLook 2 button with LED indicator
9. Upgrade Bay (optical drive, second hard drive) 22. Wireless on/off button with LED indicator
10. Integrated Smart Card Reader 23. HP Presentation button with LED indicator
11. HP Fingerprint Sensor 24. Ambient Light Sensor
12. Pointstick 25. Dual-microphone array
13. Pointstick buttons 26. WLAN and WWAN antennas
1. (2) USB 2.0 ports 9. Wireless on/off LED indicator
2. 1394a port 10. Power/standby LED indicator
3. Stereo microphone in 11. Battery charging LED indicator
4. Stereo headphone/line out 12. Hard drive activity / HP 3D DriveGuard LED
5. ExpressCard/54 slot 13. Secure Digital (SD) slot
6. Kensington Lock slot 14. Integrated stereo speakers
7. Power connector 15. Display release latch
8. VGA connector (external monitor/projector) 16. Bluetooth module compartment
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Overview
DA - 13061 North America — Version 5 — August 14, 2008 Page 2

Bottom View
Bottom ViewBottom View
Bottom View
1. Docking connector 5. WWAN module compartment
2. Secondary battery connector 6. Battery release latch
3. Memory module compartment 7. SIM slot for WWAN (select models) – inside battery bay
4. Hard drive bay 8. Battery bay
NOTE:
NOTE:NOTE:
NOTE: WLAN module connector is located under the keyboard (not shown)
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Overview
DA - 13061 North America — Version 5 — August 14, 2008 Page 3

At A Glance
At A GlanceAt A Glance
At A Glance
Genuine Windows Vista Business 32, Genuine Windows Vista Home Basic 32, Genuine Windows Vista Business with
downgrade to Windows XP Professional custom installed, or FreeDOS
Business Rugged – designed to meet the military standard Mil-Std-810F for dust, altitude, and high temperature operation *
ATI Mobility Radeon™ HD 3450 graphics with 128 or 256 MB dedicated memory or Mobile Intel GMA 4500MHD graphics
Flexible wireless connectivity options:
Integrated HP un2400 EV-DO/HSDPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology
Integrated 802.11 a/b/g/n draft 2.0 or a/b/g wireless LAN module
Bluetooth® 2.0
Intel® Centrino® 2 with vPro™ technology capable, with Intel Core™2 Duo processors
Optional HP Illumi-Lite LED 14.1-inch diagonal widescreen display with Ambient Light Sensor and optional HP Privacy Filter
Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping
Enhanced security features including integrated Smart Card Reader, HP ProtectTools, HP SpareKey, HP Fingerprint Sensor,
TPM 1.2 Embedded Security Chip **
2 MP Webcam with Business Card Reader Software, HP Night Light
HP QuickLook 2 for instant access to email, calendar, and contact information
Enhanced reliability with HP DuraCase, HP DuraKeys and HP DuraFinish
Up to 8 GB of 800 MHz DDR2 SDRAM supported, dual channel memory support
Up to 160 GB 7200 rpm or 250 GB 5400 rpm user-removable hard drive with HP 3D DriveGuard protection
Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
ExpressCard/54 slot, Secure Digital (SD) slot
Designed for common image for corporate environments
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a guarantee
of future performance under these test conditions.
** TPM module disabled where not permitted by law (for example, Russia and China).
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Overview
DA - 13061 North America — Version 5 — August 14, 2008 Page 4

Processors
ProcessorsProcessors
Processors Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB) *
Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB) *
Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB) *
Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB) *
* Intel's numbering is not a measurement of higher performance.
NOTE:
NOTE:NOTE:
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in
battery optimization mode.
Operating System
Operating SystemOperating System
Operating System Preinstalled
PreinstalledPreinstalled
Preinstalled Genuine Windows Vista Business 32 *
Genuine Windows Vista Home Basic 32 *
Genuine Windows Vista Business with downgrade to Windows XP
Professional custom installed *
†
FreeDOS
Supported
SupportedSupported
Supported Genuine Windows Vista Business 64 *
Genuine Windows Vista Enterprise *
Certified
CertifiedCertified
Certified SuSE Linux Enterprise Desktop 10
* Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and:
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit: http://www.windowsvista.com/upgradeadvisor .
†
Windows Vista Business disk may be included for future upgrade if desired. To qualify for this
downgrade an end user must be a business (including governmental or educational institutions) and is
expected to order annually at least 25 customer systems with the same custom image.
Chipset
ChipsetChipset
Chipset Mobile Intel PM45 Express Chipset with ICHM9-Enhanced, 1066 MHz front side bus (models with
discrete graphics)
or
Mobile Intel GM45 Express Chipset with ICHM9-Enhanced, 1066 MHz front side bus (models with
integrated graphics)
Intel Centrino 2 with vPro
Intel Centrino 2 with vProIntel Centrino 2 with vPro
Intel Centrino 2 with vPro
technology capable
technology capabletechnology capable
technology capable
Intel Centrino 2 with vPro technology is a selectable feature that is available on units configured with an
Intel WiFi Link 5300 or 5100. It provides advances in remote manageability, security, energy efficient
performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in
manageability and proactive security for networked notebook PCs, even when they are powered off * or
when the operating system is inoperable. It can help identify threats before they reach the operating
system, isolate infected systems, and update PCs regardless of their power state.
NOTE:
NOTE:NOTE:
NOTE: Some functionality of Intel Centrino 2 with vPro technology, such as Intel Active Management
technology and Intel Virtualization technology, requires additional 3rd party software in order to run.
Availability of future "virtual appliances" applications for Intel Centrino 2 with vPro technology is
dependant on 3rd party software providers. Compatibility with future "virtual appliances" is yet to be
determined.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 5

Business Rugged
Business RuggedBusiness Rugged
Business Rugged Meets the military standard Mil-Std-810F* for:
Drop: Method 516.5 Proc. IV (26 drops from 30")
Shock: Method 515.5 Proc. I (Functional)
Vibration: Method 514.5, Proc I, Cat. 20 & 24
High Temperature: Method 501.4, Proc I & II (140°F/60°C operational)
Low Temperature: Method 502.4, Proc I & II (-20°F/-29°C operational)
Sand and Dust: Method 510.4, Proc. I (Blowing Dust)
Humidity: Method 507.4 (95% relative humidity)
Altitude: Method 500.4 Low Pressure, Proc. I & II (15,000 feet operational)
* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use.
Test results are not a guarantee of future performance under these test conditions.
Graphics
GraphicsGraphics
Graphics Models with discrete graphics:
ATI Mobility Radeon HD 3450 with 128 MB or 256 MB dedicated video memory
Microsoft DirectX 10.1 (Shader 4.1) and OpenGL 2.1 capable
Models with integrated graphics:
Mobile Intel Graphics Media Accelerator 4500MHD
Microsoft DirectX 10 (Shader 4.0) and OpenGL 2.0 capable
Display
DisplayDisplay
Display Internal
InternalInternal
Internal 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution)
14.1-inch diagonal Illumi-Lite LED WXGA anti-glare (1280 x 800 resolution)
14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution)
Ambient Light Sensor
Optional HP Privacy Filter
External
ExternalExternal
External Up to 32-bit per pixel color depth
VGA
VGAVGA
VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
DVI-D
DVI-DDVI-D
DVI-D (single link) video signal available through DVI port in optional HP
Docking Station (sold separately); supports resolutions up to
1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at
reduced blanking
Supports 2 external displays (optional HP Docking Station required)
NOTE:
NOTE:NOTE:
NOTE: Resolutions are dependent upon monitor capability, and resolution
and color depth settings.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 6

Memory
MemoryMemory
Memory Standard
StandardStandard
Standard 800 MHz DDR2 SDRAM; two slots supporting dual channel memory
1024 MB, 2048 MB, 4096 MB, or 8192 MB
Maximum
MaximumMaximum
Maximum Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Dual-channelDual-channel
Dual-channel Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
NOTE:
NOTE:NOTE:
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend
HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the
lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or
Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to
system resource requirements.
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC) *
56K V.92 modem **
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
Wireless Devices
Wireless DevicesWireless Devices
Wireless Devices Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Wireless LAN is factory configurable or available as an option
to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP
Professional and is available in select countries as a standard, factory configurable feature or as an
option to be added later. Integrated Bluetooth is also available (factory configurable only) and can be
combined with any of the supported wireless LAN and wireless WAN options.
HP un2400
HP un2400HP un2400
HP un2400
EV-DO/HSPA Mobile
EV-DO/HSPA MobileEV-DO/HSPA Mobile
EV-DO/HSPA Mobile
Broadband Module
Broadband ModuleBroadband Module
Broadband Module
Integrated WWAN module with Gobi global mobile Internet technology that
provides worldwide connection to both CDMA (EVDO) and UMTS (HSPA)
wireless networks.
NOTE:
NOTE:NOTE:
NOTE: Separately purchased mobile network operator service is required.
Two 850/900/1800/1900/2100 MHz antennas integrated in the top of the
display panel support current and future WWAN technologies.
All 802.11 integrated
All 802.11 integratedAll 802.11 integrated
All 802.11 integrated
wireless LAN options
wireless LAN optionswireless LAN options
wireless LAN options
Wi-Fi CERTIFIED *
Cisco Compatible Extensions support
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Three antennas integrated in the display enclosure
Intel WiFi Link 5300
Intel WiFi Link 5300Intel WiFi Link 5300
Intel WiFi Link 5300 Integrated support for 802.11a, b, g, and n draft 2.0 *
Up to 450 mbps data rate
Broadcom 4322AGN
Broadcom 4322AGNBroadcom 4322AGN
Broadcom 4322AGN
802.11a/b/g/draft-n Wi-
802.11a/b/g/draft-n Wi-802.11a/b/g/draft-n Wi-
802.11a/b/g/draft-n Wi-
Fi Adapter
Fi AdapterFi Adapter
Fi Adapter
Integrated support for 802.11a, b, g, and n draft 2.0 *
Up to 300 mbps data rate
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 7

HP Integrated Module
HP Integrated ModuleHP Integrated Module
HP Integrated Module
with Bluetooth Wireless
with Bluetooth Wirelesswith Bluetooth Wireless
with Bluetooth Wireless
Technology
TechnologyTechnology
Technology
Bluetooth Specification v2.0 compliant
Works with a wide range of Bluetooth devices
* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final
specifications differ from the draft specifications, it may affect the ability of the notebook to communicate
with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not
enabled.
Keyboard
KeyboardKeyboard
Keyboard The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop
keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right
control and alt keys, and 12 function keys. US and International key layouts are available. Other
features include an integrated numeric keypad, hotkeys for instant access to power conservation,
brightness, and other features, 19 x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and
comfort-dished keycaps.
HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the
printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics,
and icons from normal wear and tear.
HP Night Light shines directly on the keyboard for low-light conditions.
Touch-sensitive controls
Touch-sensitive controlsTouch-sensitive controls
Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook 2,
wireless on/off, HP Presentation button, external volume up, volume down, and mute
Pointing device
Pointing devicePointing device
Pointing device Enhanced dual pointing devices:
Touchpad with scroll zone, two pick buttons
and
Pointstick, two pick buttons
Expansion card slots
Expansion card slotsExpansion card slots
Expansion card slots
ExpressCard/54 slot
ExpressCard/54 slotExpressCard/54 slot
ExpressCard/54 slot Supports ExpressCard/54 and ExpressCard/34
Integrated Smart Card
Integrated Smart CardIntegrated Smart Card
Integrated Smart Card
Reader
ReaderReader
Reader
Compatible with ISO 7816 compliant Smart Cards
PC/SC interface support
Secure Digital slot
Secure Digital slotSecure Digital slot
Secure Digital slot Supports SD (Secure Digital), MMC (MultiMedia Card)
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 8

Storage
StorageStorage
Storage Internal Storage Device
Internal Storage DeviceInternal Storage Device
Internal Storage Device 120/160/250 GB 5400 rpm SMART SATA Hard Drive
160 GB 7200 rpm SMART SATA Hard Drive
NOTE:
NOTE:NOTE:
NOTE: Hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to
10 GB is reserved for the system recovery software.
HP 3D DriveGuard
HP 3D DriveGuardHP 3D DriveGuard
HP 3D DriveGuard The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock away from the hard drive. Uses three-axis digital
motion detection with intelligent sensitivity to help protect the hard drive
during normal use from shock and vibration. The digital accelerometer
temporarily halts all data transfer and parks the hard drive when abrupt
motion is detected.
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay Fixed 12.7 mm SATA
optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL LightScribe Drive
DVD/CD-RW Combo Drive
DVD-ROM Drive
or
Second hard drive * 250 GB 5400 rpm SMART SATA Hard Drive
160 GB 7200 rpm SMART SATA Hard Drive
* For RAID configurations, both hard drive capacities must be equal.
Interfaces
InterfacesInterfaces
Interfaces ExpressCard/54 slot
ExpressCard/54 slotExpressCard/54 slot
ExpressCard/54 slot One
Smart Card Reader
Smart Card ReaderSmart Card Reader
Smart Card Reader One
External monitor
External monitorExternal monitor
External monitor One (VGA)
1394a
1394a1394a
1394a One
Stereo microphone in
Stereo microphone inStereo microphone in
Stereo microphone in One
Stereo headphone/line
Stereo headphone/lineStereo headphone/line
Stereo headphone/line
out
outout
out
One
Power connector
Power connectorPower connector
Power connector One
RJ-11/modem
RJ-11/modemRJ-11/modem
RJ-11/modem One
RJ-45/Ethernet
RJ-45/EthernetRJ-45/Ethernet
RJ-45/Ethernet One
USB 2.0
USB 2.0USB 2.0
USB 2.0 Three
Docking connector
Docking connectorDocking connector
Docking connector One
Secondary battery
Secondary batterySecondary battery
Secondary battery
connector
connectorconnector
connector
One
LED status indicators
LED status indicatorsLED status indicators
LED status indicators Fifteen
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 9

Audio/Visual
Audio/VisualAudio/Visual
Audio/Visual High Definition Audio support w/24-bit DAC
Integrated stereo speakers
Integrated dual-microphone array
Touch-sensitive controls for volume up, volume down, and mute
Stereo headphone/line out
Stereo microphone in
Optional 2 MP Webcam with Business Card Reader Software
Supports videoconferencing and still image capture
Large image sensor for excellent color matching and good low light sensitivity
Up to 30 frames/sec
AutoMacro focus lens
Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions
16-bit true color (camera sensors output YCrCb format among others)
Software
SoftwareSoftware
Software Preinstalled software with
Preinstalled software withPreinstalled software with
Preinstalled software with
Windows Vista or
Windows Vista orWindows Vista or
Windows Vista or
Windows XP
Windows XPWindows XP
Windows XP
HP Recovery Manager (Vista only)
HP Help and Support Center
HP QuickLook 2
HP Universal Print Driver
HP ProtectTools Security Manager:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
Embedded Security for HP ProtectTools
HP Quick Launch Buttons
HP Wireless Assistant
Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition
(select models)
PDF Complete Special Edition
Intervideo WinDVD – DVD Player
Roxio Creator Business (for optional DVD+/-RW and DVD/CD-RW drives)
McAfee Total Protection*
Synaptics Touchpad Driver
Microsoft Windows Live Messenger (select models)
HP Webcam Software (select models)
Additional software
Additional softwareAdditional software
Additional software
available from the web
available from the webavailable from the web
available from the web
HP SoftPaq Download Manager
HP Client Manager Software
HP Client Management Solutions
Java Card Security for HP ProtectTools
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
HP Recovery Manager
HP Recovery ManagerHP Recovery Manager
HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the
factory preinstalled image if the system becomes corrupted or if important system files are accidentally
deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 10

SMBIOS Version 2.4
SMBIOS Version 2.4SMBIOS Version 2.4
SMBIOS Version 2.4 System Management BIOS, previously known as DMI BIOS, is used to store system management
information.
HP ProtectTools Security
HP ProtectTools SecurityHP ProtectTools Security
HP ProtectTools Security
Manager
ManagerManager
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. Modules currently available are:
BIOS Configuration for HP ProtectTools
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Set-up Wizard for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Java Card Security for HP ProtectTools
Security
SecuritySecurity
Security Standard Features
Standard FeaturesStandard Features
Standard Features HP ProtectTools Security Manager
Enhanced Pre-Boot Security
HP SpareKey
One-Step Logon
HP Fingerprint Sensor
Integrated Smart Card Reader
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
TPM 1.2 Embedded Security Chip*
TPM Enhanced DriveLock*
HP Disk Sanitizer
HP 3D DriveGuard
Kensington Lock Slot
Support for Computrace / LoJack for Laptops (must be purchased
separately)
Optional Features
Optional FeaturesOptional Features
Optional Features HP Privacy Filter
HP Privacy FilterHP Privacy Filter
HP Privacy Filter Narrows viewing area so that screen data is
visible only to persons directly in front of the
monitor
* TPM module disabled where use is restricted by law; for example, Russia and China.
For more information on HP security solutions refer to: http://www.hp.com/go/security .
Power Supply
Power SupplyPower Supply
Power Supply External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-
cell Ultra-Capacity batteries.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 11

Battery
BatteryBattery
Battery Primary battery
Primary batteryPrimary battery
Primary battery 6-cell (55 WHr) Li-Ion battery
Optional HP Extended
Optional HP ExtendedOptional HP Extended
Optional HP Extended
Life Battery
Life BatteryLife Battery
Life Battery
8-cell (52 WHr) high capacity Li-Ion battery
Optional HP Ultra-
Optional HP Ultra-Optional HP Ultra-
Optional HP Ultra-
Capacity Battery
Capacity BatteryCapacity Battery
Capacity Battery
12-cell (95 WHr) high capacity Li-Ion battery
Battery Life
Battery LifeBattery Life
Battery Life 6-cell Primary with integrated
6-cell Primary with integrated6-cell Primary with integrated
6-cell Primary with integrated
graphics and
graphics andgraphics and
graphics and
CCFL display
CCFL displayCCFL display
CCFL display
6-cell Primary with integrated
6-cell Primary with integrated6-cell Primary with integrated
6-cell Primary with integrated
graphics and Illumi-Light LED display
graphics and Illumi-Light LED displaygraphics and Illumi-Light LED display
graphics and Illumi-Light LED display
Primary battery
Primary batteryPrimary battery
Primary battery Up to 6 hours and 15 minutes Up to TBD hours
Primary battery and
Primary battery andPrimary battery and
Primary battery and
optional HP Extended Life
optional HP Extended Lifeoptional HP Extended Life
optional HP Extended Life
Battery
BatteryBattery
Battery
Up to 13 hours Up to TBD hours
Primary battery and
Primary battery andPrimary battery and
Primary battery and
optional HP Ultra-
optional HP Ultra-optional HP Ultra-
optional HP Ultra-
Capacity Battery
Capacity BatteryCapacity Battery
Capacity Battery
Up to 17 hours and 15 minutes Up to TBD hours
NOTE:
NOTE:NOTE:
NOTE: The listed battery life measurements were taken on models running Microsoft Windows XP
Professional. Battery life will vary depending on the product configuration, product model, applications
loaded on the product, power management settings of the product, and the product features used by the
customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
System Standby Time
System Standby TimeSystem Standby Time
System Standby Time Up to 1 week
Power Conservation
Power ConservationPower Conservation
Power Conservation Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo (allows Battery Optimized Mode,
Maximum Performance Mode, or Automatic mode)
Intel Display Power Saving technology (models with integrated graphics)
ATI PowerPlay technology (models with discrete graphics)
Hibernation
Standby
ACPI compliance
Docking and Stands
Docking and StandsDocking and Stands
Docking and Stands HP Advanced Docking Station
HP Docking Station
HP Standard Monitor Stand
HP Adjustable Notebook Stand
HP External MultiBay II
HP's shared docking solutions provide simple and convenient port replication and cable management.
Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, USB
2.0 ports, integrated security mechanism * , integrated MultiBay II and ExpressCard ** slots. These docking
solutions are compatible across multiple Business Notebook platforms enabling a lower total cost of
ownership.
* HP/Kensington Cable Lock required (purchased separately)
** HP Advanced Docking Station only
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 12

Service and Support
Service and SupportService and Support
Service and Support HP Services offers limited 3-year warranty; 1-year limited warranty on primary battery. On-site service
and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the
standard warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services
information by product is available at: http://www.hp.com/hps/carepack .
NOTE:
NOTE:NOTE:
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp .
Select Model(s)
Select Model(s)Select Model(s)
Select Model(s) HP's Global Product Offer includes Global Series Preconfigured (GS-P) and Configurable (GS-C)
products. GPO delivers globally consistent products, services, and solutions with End-of-Life (EOL)
transition management. These products reduce IT complexity, lower management costs, increase
productivity, and simplify product transitions.
6930p
6930p6930p
6930p
FL488AW#ABA
Global
(may vary based on local
regulatory requirements)
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600 (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business (note) w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution)
Graphics
GraphicsGraphics
Graphics Mobile Intel® GMA X4500 HD, with up to 384 MB of shared system
memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 13

6930p
6930p6930p
6930p
FL490AW#ABA
Global
(may vary based on local
regulatory requirements)
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T9400* (2.53 GHz, 1066 MHz FSB, 6 MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business (note) w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 250GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics Mobile Intel® GMA X4500 HD, with up to 384 MB of shared system
memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
FL492AW#ABA
Global
(may vary based on local
regulatory requirements)
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600 (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business (note) w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution)
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 128 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 14

Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
FL494AW#ABA
Global
(may vary based on local
regulatory requirements)
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T9400* (2.53 GHz, 1066 MHz FSB, 6 MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business (note) w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 15

6930p
6930p6930p
6930p
KS081UT#ABA
Smart Buy
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8400* (2.26 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Not Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics Mobile Intel® GMA X4500 HD, with up to 384 MB of shared system
memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
KS082UT#ABA
Smart Buy
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600* (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Not Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 128 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 16

Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
KS083UT#ABA
Smart Buy
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600* (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Not Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 5400rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 128 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0; HP Mobile Broadband (powered by
Gobi)
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 17

6930p
6930p6930p
6930p
KS084UT#ABA
Smart Buy
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600* (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Not Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA anti-glare (1280 x 800 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
KS085UT#ABA
Smart Buy
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600* (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Not Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 4096MB 800MHz DDR2 (2 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 18

Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
KS086UA#ABA
Regional
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T9400* (2.53 GHz, 1066 MHz FSB, 6MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 4096MB 800MHz DDR2 (2 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 19

6930p
6930p6930p
6930p
KS087UA#ABA
Regional
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T9400* (2.53 GHz, 1066 MHz FSB, 6MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 4096MB 800MHz DDR2 (2 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
Integrated Wireless
Integrated WirelessIntegrated Wireless
Integrated Wireless Intel® WiFi Link 5300; Bluetooth 2.0; HP Mobile Broadband (powered by
Gobi)
Integrated Security
Integrated SecurityIntegrated Security
Integrated Security Integrated Smart Card Reader, HP ProtectTools, TPM** 1.2 Embedded
Security Chip, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer,
Enhanced Drive Lock, HP Fingerprint Sensor, Drive Encryption for HP
ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP
ProtectTools
Pointing Device
Pointing DevicePointing Device
Pointing Device Enhanced dual pointing devices (touchpad with scroll zone and pointstick)
Upgrade Bay
Upgrade BayUpgrade Bay
Upgrade Bay DVD+/-RW SuperMulti DL LightScribe Drive
Battery
BatteryBattery
Battery 6-cell (55 WHr) Lithium-Ion battery
Power
PowerPower
Power External 90W adapter
Warranty
WarrantyWarranty
Warranty 3/3/0
* Intel's numbering system is not a measurement of higher performance.
** TPM module disabled where use is restricted by law; for example, Russia and China.
6930p
6930p6930p
6930p
KS008UA#ABA
Regional
Processor
ProcessorProcessor
Processor Intel® Core™2 Duo Processor T8600* (2.4 GHz, 1066 MHz FSB, 3MB L2
cache)
Intel Centrino with vPro
Intel Centrino with vProIntel Centrino with vPro
Intel Centrino with vPro
technology
technologytechnology
technology
Enabled
Operating System
Operating SystemOperating System
Operating System Genuine Windows Vista® Business with downgrade to Windows® XP
Professional custom installed *+ w/MS Office 2007 (Trial)
System Memory
System MemorySystem Memory
System Memory 2048MB 800MHz DDR2 (1 DIMM)
Hard Drive
Hard DriveHard Drive
Hard Drive 160GB 7200rpm SATA Hard Drive
Display
DisplayDisplay
Display 14.1-inch diagonal WXGA+ anti-glare (1440 x 900 resolution); 2 MP
Webcam with Business Card Reader Software
Graphics
GraphicsGraphics
Graphics ATI Mobility Radeon™ HD 3450 with 256 MB of dedicated video memory
Audio
AudioAudio
Audio High Definition Audio, stereo speakers, stereo headphone/line out, stereo
microphone in, integrated dual-microphone array
Communications
CommunicationsCommunications
Communications Integrated Intel Gigabit Network Connection (10/100/1000 NIC)
56K V.92 modem
QuickSpecs
HP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PCHP EliteBook 6930p Notebook PC
HP EliteBook 6930p Notebook PC
Standard Features
DA - 13061 North America — Version 5 — August 14, 2008 Page 20
