Notebook Tour
User Guide

© Copyright 2007 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2007
Document Part Number: 430299-001

Table of contents
1 Components
Top components ................................................................................................................................... 2
TouchPad ............................................................................................................................ 2
Lights ................................................................................................................................... 3
Buttons, switches, and speakers ......................................................................................... 6
Keys ..................................................................................................................................... 8
Hotkey quick reference ........................................................................................................ 9
Front components .............................................................................................................................. 10
Rear components ............................................................................................................................... 11
Right-side components ....................................................................................................................... 12
Left-side components ......................................................................................................................... 13
Bottom components ........................................................................................................................... 15
Display components ........................................................................................................................... 16
Wireless antennae (select models only) ............................................................................................. 17
Additional hardware components ....................................................................................................... 18
Labels ................................................................................................................................................. 19
2 Specifications
Operating environment ....................................................................................................................... 20
Rated input power .............................................................................................................................. 21
Index ................................................................................................................................................................... 22
ENWW iii

iv ENWW

1 Components
This chapter explains the hardware features of the computer.
To see a list of hardware installed in the computer:
1. Select Start >Computer >System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE Components included with the computer may vary by region and by model. The
illustrations in this chapter identify the standard features included in most computer models.
ENWW 1

Top components
TouchPad
Component Description
(1) TouchPad light Blue: TouchPad is enabled.
Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) Right TouchPad button* Functions like the right button on an external mouse.
(5) TouchPad scroll zone* Scrolls up or down.
(6) TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start >Control Panel >
Hardware and Sound >Mouse.
2 Chapter 1 Components ENWW

Lights
NOTE Refer to the illustration that most closely matches your computer.
Component Description
(1) Power lights (2)* On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
(2) Battery light On: A battery is charging.
Blinking: A battery that is the only available power source has
reached a low battery level. When the battery reaches a critical
battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external power source, the
light is turned off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low battery
level.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Blinks once: The media button has been pressed.
(6) DVD button light Blinks once: The DVD button has been pressed.
(7) Previous/rewind light Blinks once: The previous/rewind button has been pressed.
(8) Play/pause light Blinks once: The play/pause button has been pressed.
(9) Next/fast forward light Blinks once: The next/fast forward button has been pressed.
(10) Stop light Blinks once: The stop button has been pressed.
ENWW Top components 3

Component Description
(11) Volume mute light Blue: Computer sound is turned on.
Amber: Computer sound is turned off.
(12) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
(13) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
(14) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
There are 2 power lights. Both display the same information. The light on the power button is visible only when the computer
is open; the other power light is always visible on the front of the computer.
Component Description
(1) Power lights (2)* On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
(2) Battery light On: A battery is charging.
Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
Off: If the computer is plugged into an external power source, the
light is turned off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low battery
level.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
4 Chapter 1 Components ENWW

Component Description
(5) Media button light Blinks once: The media button has been pressed.
(6) Volume mute light Blue: Computer sound is turned on.
Red: Computer sound is turned off.
(7) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
sound.
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker
sound.
(9) Num lock light Blinking: Num lock is on or the embedded numeric keypad is
enabled.
There are 2 power lights. Both display the same information. The light on the power button is visible only when the computer
is open; the other power light is always visible on the front of the computer.
ENWW Top components 5

Buttons, switches, and speakers
NOTE Refer to the illustration that most closely matches your computer.
Component Description
(1) Power button* When the computer is off, press the power button to turn on the
computer.
If the computer has stopped responding and Windows® shutdown
procedures cannot be used, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >Control
Panel >System and Maintenance >Power Options.
(2) Speakers (2) Produce sound.
(3) Media button Launches the QuickPlay program.
NOTE If the computer has been set up to require a logon
password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
(4) DVD button Launches the DVD playback feature of the QuickPlay program.
NOTE If the computer has been set up to require a logon
password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
(5) Previous/rewind button When a disc is playing in the optical drive:
●Press to play the previous track or chapter.
●Press fn+ this button to rewind.
6 Chapter 1 Components ENWW

Component Description
(6) Play/pause button When a disc is in the optical drive and is
●Not playing, press to play the disc.
●Playing, press to pause the disc.
(7) Next/fast forward button When a disc is playing in the optical drive:
●Press once to play the next track or chapter.
●Press fn+ this button to fast forward.
(8) Stop button When a disc is playing in the optical drive, press to stop the current
disc activity.
(9) Volume mute button Mutes and restores speaker sound.
(10) Volume scroll zone Adjusts volume. Slide your finger to the left to decrease volume and
to the right to increase volume. Alternatively, you can tap the left
half of the scroll zone to decrease volume, or you can tap the right
half of the scroll zone to increase volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Component Description
(1) Power button* When the computer is off, press the power button to turn on the
computer.
If the computer has stopped responding and Windows shutdown
procedures cannot be used, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >Control
Panel >System and Maintenance >Power Options.
(2) Speakers (2) Produce system sound.
ENWW Top components 7

Component Description
(3) Media button Launches the QuickPlay program.
NOTE If the computer has been set up to require a logon
password, you may be asked to log on to Windows.
QuickPlay launches after you log on. Refer to the
QuickPlay online Help for more information.
(4) Volume mute button Mutes and restores speaker sound.
(5) Volume scroll zone Adjusts volume. Slide your finger to the left to decrease volume and
to the right to increase volume. Alternatively, you can tap the left
half of the scroll zone to decrease volume, or you can tap the right
half of the scroll zone to increase volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Keys
NOTE Your computer may look slightly different from the illustration in this section.
Component Description
(1) esc key Displays system information when pressed in combination with the
fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
8 Chapter 1 Components ENWW

Component Description
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
Hotkey quick reference
To perform this function Press
Display information. fn+esc
Clear system information. fn+esc or press enter
Open Help and Support. fn+f1
Open the Print Options window. fn+f2
Open a Web browser. fn+f3
Alternate between computer display and external display. fn+f4
Initiate Hibernation. fn+f5
Initiate QuickLock. fn+f6
Decrease screen brightness. fn+f7
Increase screen brightness. fn+f8
Play, pause, or resume an audio CD or a DVD. fn+f9
Stop an audio CD or a DVD. fn+f10
Play the previous track or section on an audio CD or a DVD. fn+f11
Play the next track on an audio CD or a DVD. fn+12
ENWW Top components 9

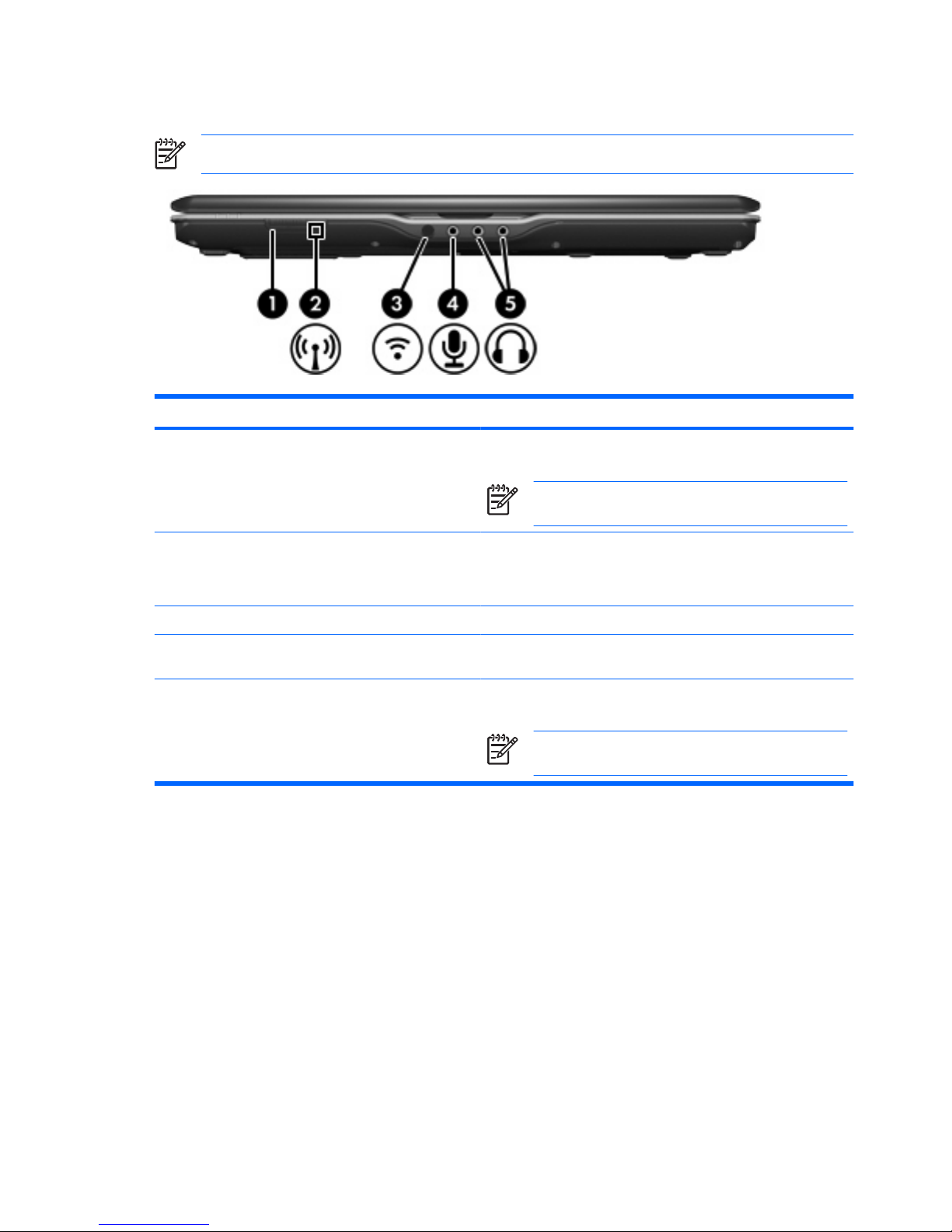

Front components
NOTE Your computer may look slightly different from the illustration in this section.
Component Description
(1) Wireless switch (select models only) Turns the wireless feature on or off, but does not create a wireless
connection.
NOTE To establish a wireless connection, a wireless
network must already be set up.
(2) Wireless light Blue: An integrated wireless device, such as a wireless local area
network (LAN) device and/or a Bluetooth® device, is turned on.
Amber: an integrated wireless device is turned off.
(3) Consumer infrared lens Links the computer to the HP Remote Control.
(4) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(5) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
NOTE Depending on your computer model, the
computer may have 1 or 2 audio-out (headphone) jacks.
10 Chapter 1 Components ENWW

Rear components
Component Description
Vent Enables airflow to cool internal components.
CAUTION To prevent overheating, do not obstruct
vents. Use the computer only on a hard, flat surface. Do
not allow another hard surface, such as an adjoining
optional printer, or a soft surface, such as pillows or thick
rugs or clothing, to block airflow.
NOTE The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
ENWW Rear components 11

Right-side components
Component Description
(1) Optical drive Reads an optical disc.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3) USB ports (2) Connect optional USB devices.
(4) RJ-11 (modem) jack Connects a modem cable.
(5) Power connector Connects an AC adapter.
12 Chapter 1 Components ENWW

Left-side components
NOTE Refer to the illustration that most closely matches your computer.
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE The security cable is designed to act as a
deterrent, but may not prevent the computer from being
mishandled or stolen.
(2) S-Video-out jack Connects an optional S-Video device such as a television, VCR,
camcorder, overhead projector, or video capture card.
(3) External monitor port Connects an external VGA monitor or projector.
(4) Expansion port 3 Connects the computer to an optional expansion product.
NOTE The computer has only one expansion port. The
term expansion port 3 describes the type of expansion
port.
(5) RJ-45 (network) jack Connects a network cable.
(6) USB port Connects an optional USB device.
(7) 1394 port Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8) Digital Media Slot Supports the following optional digital card formats: Secure Digital
(SD) Memory Card, MultiMediaCard (MMC), Secure Digital Input/
Output (SD I/O), Memory Stick (MS), Memory Stick Pro (MSP), xD-
Picture Card (XD), xD-Picture Card (XD) Type M.
(9) Digital Media Slot light On: A digital card is being accessed.
(10) ExpressCard slot Supports optional ExpressCard/54 cards.
ENWW Left-side components 13

Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE The security cable is designed to act as a
deterrent, but may not prevent the computer from being
mishandled or stolen.
(2) S-Video-out jack Connects an optional S-Video device such as a television, VCR,
camcorder, overhead projector, or video capture card.
(3) External monitor port Connects an external VGA monitor or projector.
(4) Expansion port 3 Connects the computer to an optional expansion product.
NOTE The computer has only one expansion port. The
term expansion port 3 describes the type of expansion
port.
(5) RJ-45 (network) jack Connects a network cable.
(6) ExpressCard slot Supports optional ExpressCard/54 cards.
14 Chapter 1 Components ENWW

Bottom components
Component Description
(1) Battery bay Holds the battery.
(2) Battery release latch Releases the battery from the battery bay.
(3) Mini Card compartment Holds a wireless LAN device (select models only).
NOTE To prevent an unresponsive system and the
display of a warning message, replace with only a Mini
Card device authorized for use in the computer by the
governmental agency that regulates wireless devices in
your country. If you replace the device and then receive a
warning message, remove the device to restore computer
functionality. Then contact Customer Care through Help
and Support.
(4) Vents (3) Enable airflow to cool internal components.
CAUTION To prevent overheating, do not obstruct
vents. Use the computer only on a hard, flat surface. Do
not allow another hard surface, such as an adjoining
optional printer, or a soft surface, such as pillows or thick
rugs or clothing, to block airflow.
NOTE The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(5) Memory module compartment Contains the memory module slots.
(6) Hard drive bay Holds the hard drive.
ENWW Bottom components 15

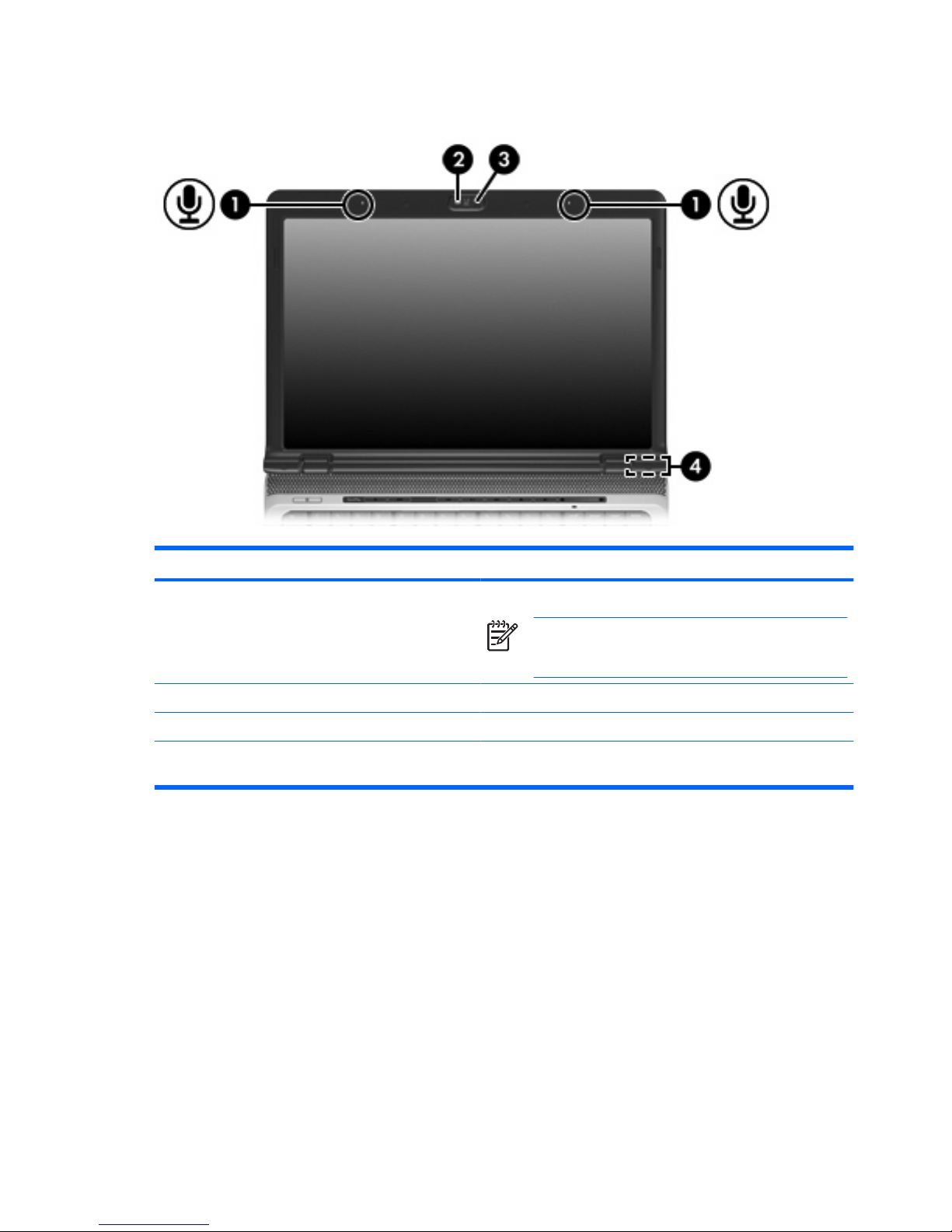

Display components
Component Description
(1) Internal microphones (2) (select models only) Record sound.
NOTE If there is a microphone icon next to each
microphone opening, your computer has internal
microphones.
(2) Integrated camera light (select models only) On: The integrated camera is in use.
(3) Integrated camera (select models only) Records video and captures still photographs.
(4) Internal display switch Turns off the display if the display is closed while the computer is
turned on.
16 Chapter 1 Components ENWW
