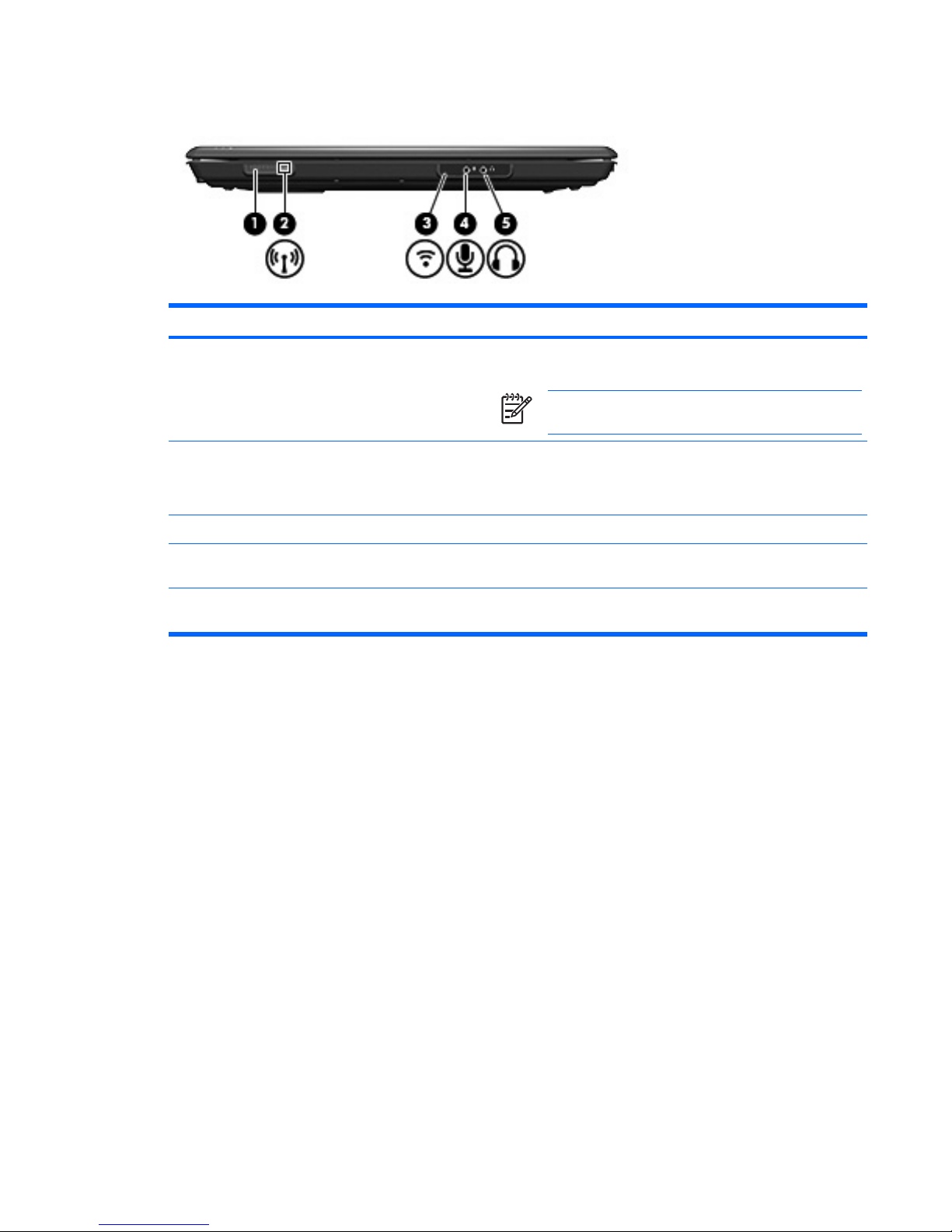

Front components ................................................................................................................................ 7
Rear components ................................................................................................................................. 8

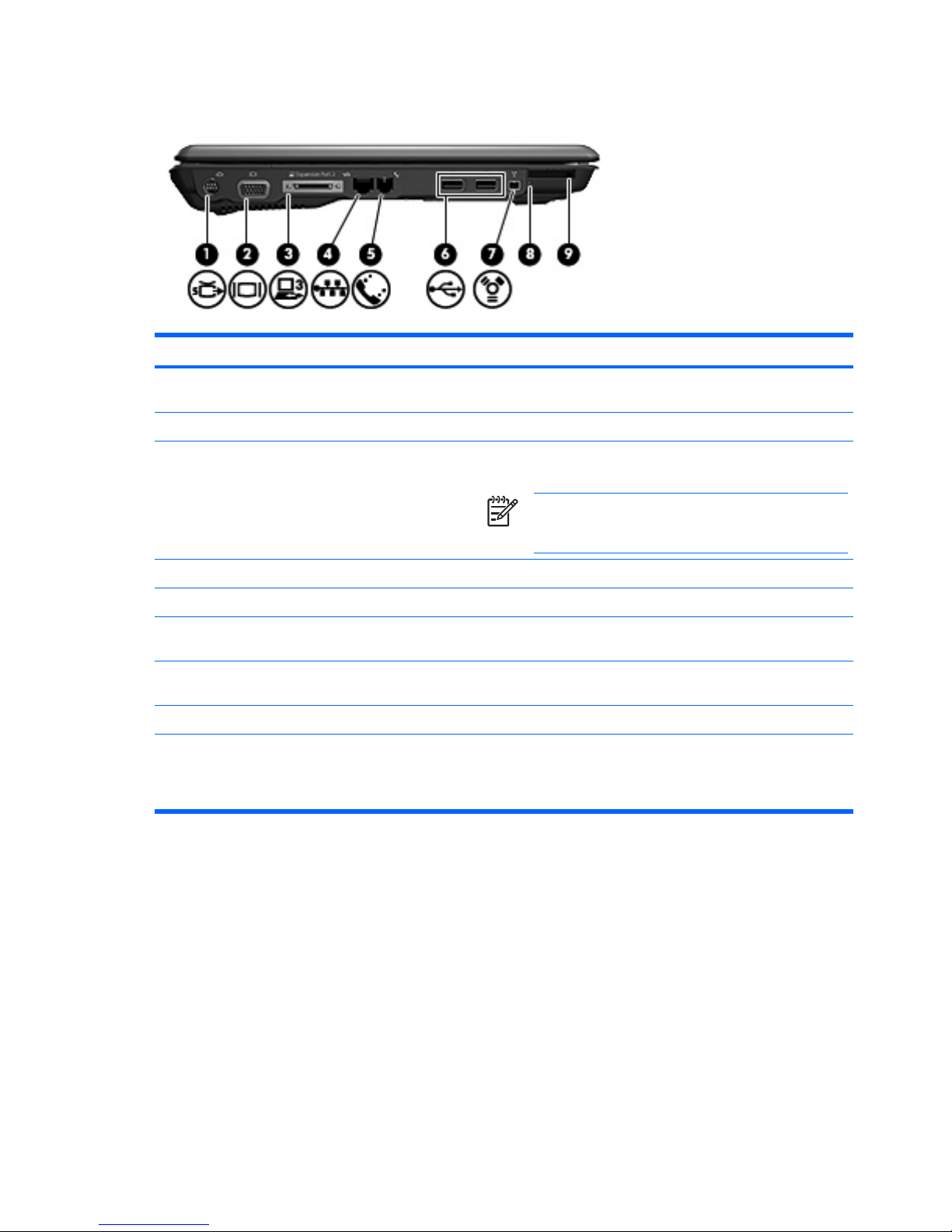

Right-side components ......................................................................................................................... 9
Left-side components ......................................................................................................................... 10
Bottom components ........................................................................................................................... 11
Display components ........................................................................................................................... 12
Wireless antennae (select models only) ............................................................................................. 13

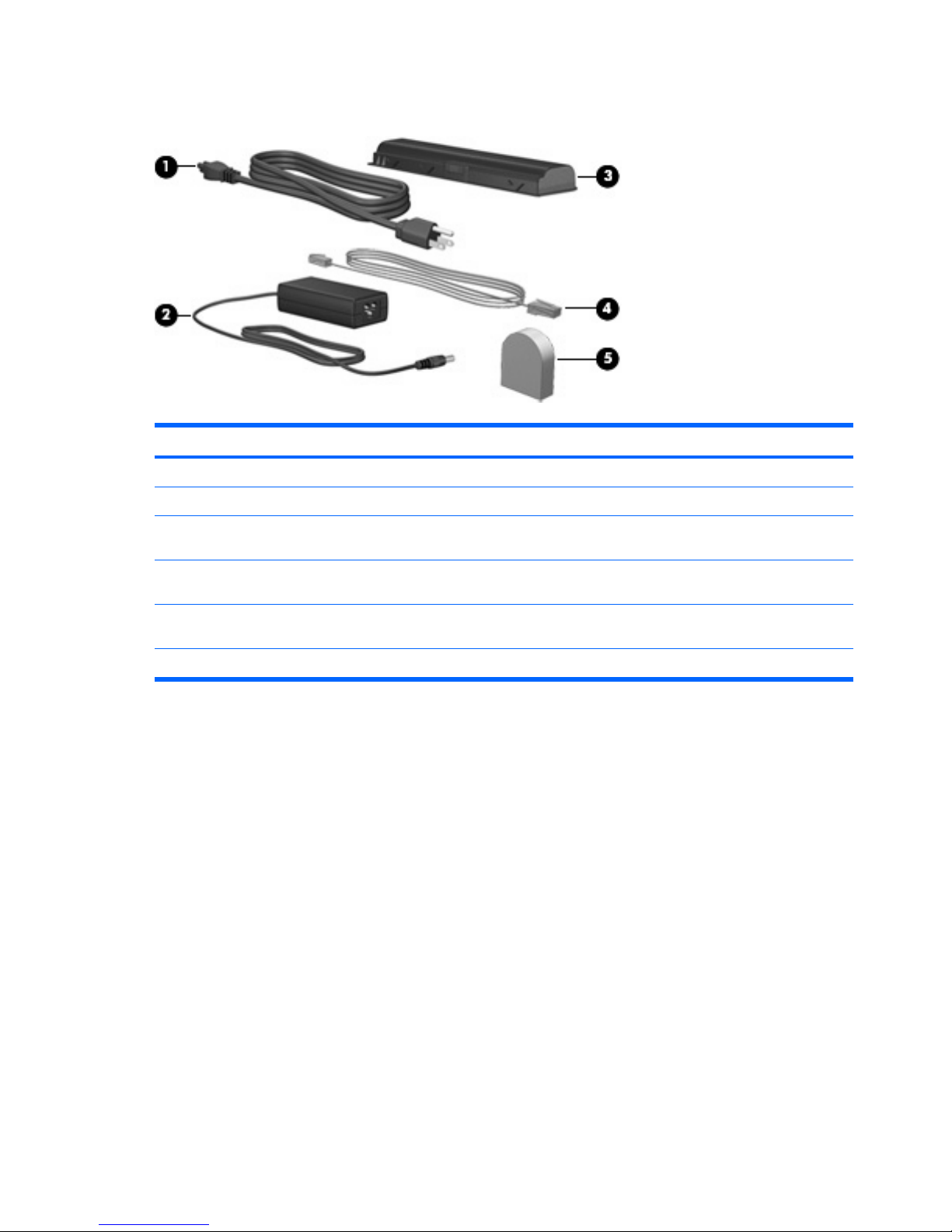

Additional hardware components ....................................................................................................... 14
Labels ................................................................................................................................................. 15
Index ................................................................................................................................................................... 16
ENWW iii

iv ENWW

Components
This chapter explains the hardware features of the computer.
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > My Computer.
2. In the left pane, under System Tasks, click View system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE Components included with the computer may vary by region and by model. The
illustrations in this chapter identify the standard features included in most computer models.
ENWW 1

Top components
TouchPad
Component Description
(1) TouchPad light Blue: TouchPad is enabled.
Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) TouchPad horizontal scroll zone* Scrolls left or right.
(4) Left TouchPad button* Functions like the left button on an external mouse.
(5) Right TouchPad button* Functions like the right button on an external mouse.
(6) TouchPad vertical scroll zone* Scrolls up or down.
(7) TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel > Printers
and Other Hardware > Mouse.
2 Components ENWW

Lights
Component Description
(1) Power lights (2)* On: The computer is on.
Blinking: The computer is in standby.
Off: The computer is off or in hibernation.
(2) Battery light On: A battery is charging.
Blinking: A battery that is the only available power source has
reached a low-battery condition or a critical low-battery condition.
Off: If the computer is plugged into an external power source, the
light turns off when all batteries in the computer are fully charged.
If the computer is not plugged into an external power source, the
light stays off until the battery reaches a low-battery condition.
(3) Drive light Blinks when the hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Blinks once when the media button has been pressed.
(6) Volume mute light Blue: Computer sound is turned on.
Amber: Computer sound is turned off.
(7) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
(8) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
(9) Num lock light On: Num lock is on or the embedded numeric keypad is enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
ENWW Top components 3

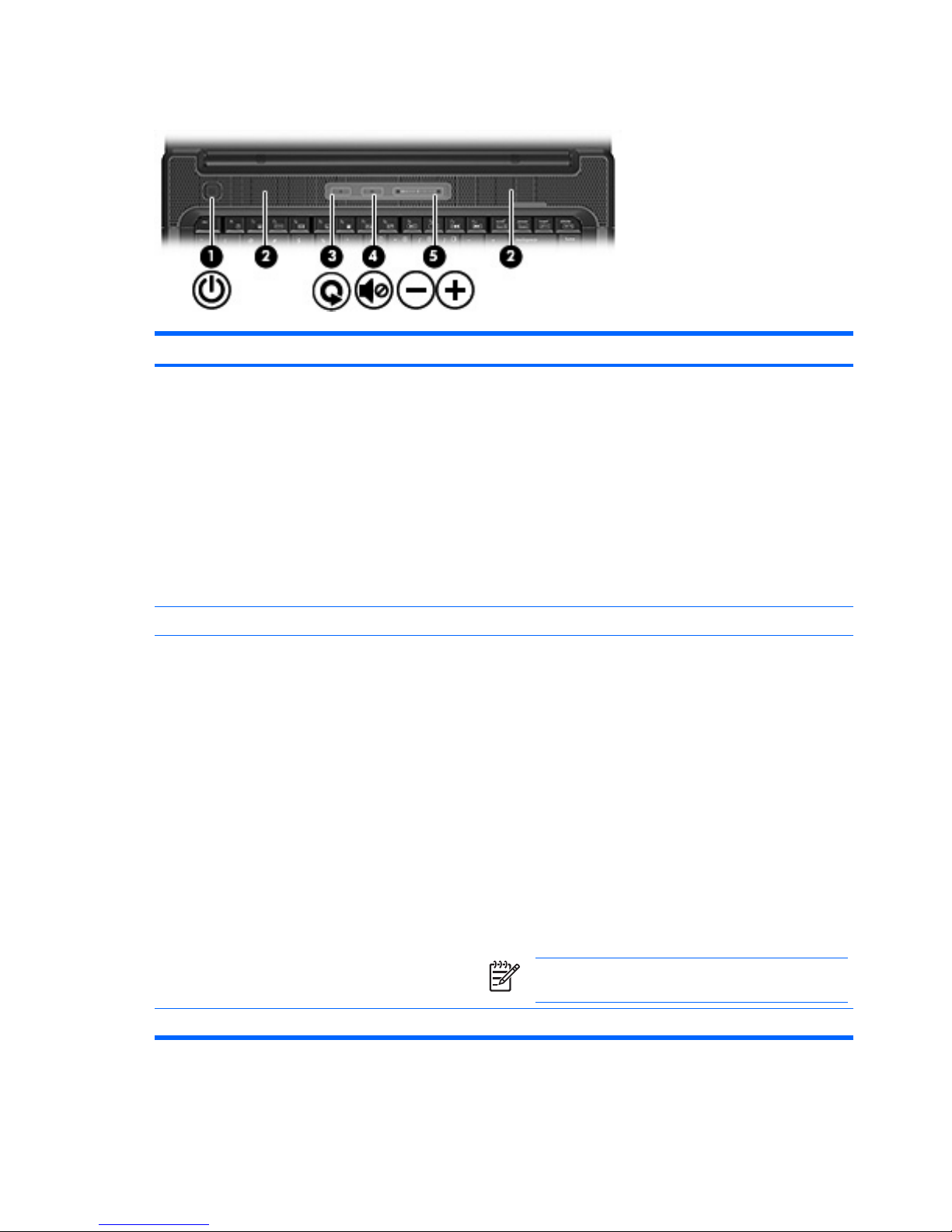

Buttons and speakers
Component Description
(1) Power button* ●When the computer is off, press the button to turn on the
computer.
●When the computer is on, press the button to initiate
hibernation.
●When the computer is in standby, press the button briefly to
exit standby.
●When the computer is in hibernation, press the button briefly
to exit hibernation.
If the computer has stopped responding and Microsoft®
Windows® shutdown procedures cannot be used, press and hold
the power button for at least 5 seconds to turn off the computer.
(2) Speakers (2) Produce sound.
(3) Media button Opens the music or media software. Can be used with or without
QuickPlay.
●When QuickPlay is installed and the computer is on, press
the button to open the music program or the Media menu.
●When QuickPlay is installed and the computer is off, press
the button to open the music program or the Media menu.
●When QuickPlay is installed and the computer is in standby,
press the button to resume from standby.
●When QuickPlay is not installed and the computer is on, press
the button to open the music program or the Media menu.
●When QuickPlay is not installed and the computer is off, the
button does not function.
●When QuickPlay is not installed and the computer is in
standby, press the button to resume from Standby.
NOTE The media button does not affect the procedure
for restoring from hibernation.
(4) Volume mute button Mutes and restores speaker sound.
4 Components ENWW

Component Description
(5) Volume scroll zone Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also tap the
minus sign on the scroll zone to decrease volume, or you can tap
the plus sign on the scroll zone to increase volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in the
Help and Support Center.
Keys
Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3) Windows logo key Displays the Microsoft Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6) Function keys Execute frequently used system functions when pressed in
combination with the fn key.
ENWW Top components 5

Hotkey quick reference
Function Hotkey
Display system information. fn+esc
Clear system information. fn+esc or press enter
Open the Help and Support Center. fn+f1
Open the Print Options window. fn+f2
Open a Web browser. fn+f3
Alternate between computer display and external
display.
fn+f4
Initiate standby. fn+f5
Initiate QuickLock. fn+f6
Decrease screen brightness. fn+f7
Increase screen brightness. fn+f8
Play, pause, or resume an audio CD or a DVD. fn+f9
Stop an audio CD or a DVD. fn+f10
Play the previous track or chapter on an audio CD or
a DVD.
fn+f11
Play the next track or chapter on an audio CD or a
DVD.
fn+f12
6 Components ENWW
