HP ZBook Fury 17 G7 Manual

Maintenance and Service Guide
SUMMARY
This guide provides information about spare parts, removal and replacement of parts, security, backing up, and more.

© Copyright 2020 HP Development Company,
L.P.
AMD and Radeon are trademarks of Advanced
Micro Devices, Inc. Bluetooth is a trademark
owned by its proprietor and used by HP Inc.
under license. Intel, Core, Thunderbolt, vPro,
Xeon, and XMM are trademarks of Intel
Corporation or its subsidiaries in the U.S. and/or
other countries. Linux is the registered
trademark of Linus Torvalds in the U.S. and other
countries. Microsoft and Windows are either
registered trademarks or trademarks of
Microsoft Corporation in the United States
and/or other countries. NVIDIA and Quadro are
trademarks and/or registered trademarks of
NVIDIA Corporation in the U.S. and other
countries. Red Hat is a registered trademark of
Red Hat, Inc. in the United States and other
countries. USB Type-C and USB-C are registered
trademarks of USB Implementers Forum.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: September 2020
Document Part Number: M21105-001
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions or
versions of Windows. Systems may require
upgraded and/or separately purchased
hardware, drivers, software or BIOS update to
take full advantage of Windows functionality.
Windows 10 is automatically updated, which is
always enabled. ISP fees may apply and
additional requirements may apply over time for
updates. Go to http://www.microsoft.com for
details.
To access the latest user guides, go to
http://www.hp.com/support, and follow the
instructions to nd your product. Then select
Manuals.
Software terms
By installing, copying, downloading, or otherwise
using any software product preinstalled on this
computer, you agree to be bound by the terms
of the HP End User License Agreement (EULA). If
you do not accept these license terms, your sole
remedy is to return the entire unused product
(hardware and software) within 14 days for a full
refund subject to the refund policy of your seller.
For any further information or to request a full
refund of the price of the computer, please
contact your seller.

Important notice about Customer Self-Repair parts
Your computer includes Customer Self-Repair parts and parts that should be accessed by only an authorized
service provider.
IMPORTANT: See "Removal and replacement procedures for Customer Self-Repair parts" for details.
Accessing parts described in "Removal and replacement procedures for authorized service provider parts" can
damage the computer or void your warranty.
ENWW iii

iv Important notice about Customer Self-Repair parts ENWW

Safety warning notice
Reduce the possibility of heat-related injuries or of overheating the computer by following the practices
described.
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the
computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, at surface.
Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs
or clothing, to block airow. Also, do not allow the AC adapter to come into contact with the skin or a soft surface,
such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-
accessible surface temperature limits dened by applicable safety standards.
ENWW v

vi Safety warning notice ENWW

Table of contents
1 Product description .................................................................................................................................................................................. 1
2 Components .............................................................................................................................................................................................. 5

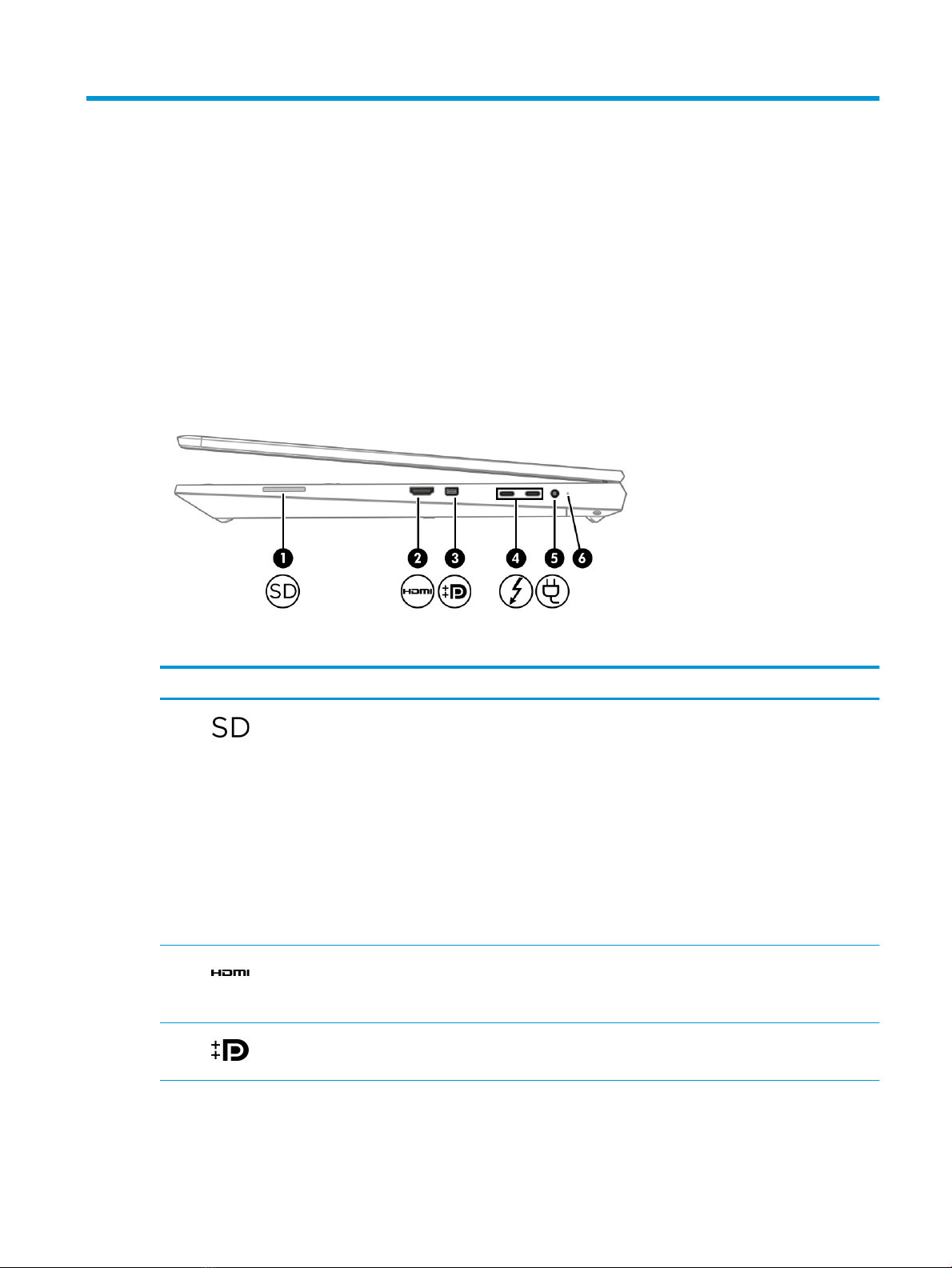

Right ........................................................................................................................................................................................... 5
Left .............................................................................................................................................................................................. 6
Display ........................................................................................................................................................................................ 7
Keyboard area ........................................................................................................................................................................... 9
Touchpad ............................................................................................................................................................ 10
Touchpad settings ........................................................................................................................ 11
Adjusting touchpad settings ................................................................................... 11
Turning on the touchpad ......................................................................................... 11
Touchpad components ................................................................................................................ 11
Bottom ..................................................................................................................................................................................... 12
Top cover ................................................................................................................................................................................. 13
Rear .......................................................................................................................................................................................... 13
Labels ....................................................................................................................................................................................... 14
HP TamperLock ...................................................................................................................................................................... 15
Inserting a SIM card in the service bay ................................................................................................................................ 16
3 Illustrated parts catalog ........................................................................................................................................................................ 19
Computer major components .............................................................................................................................................. 19
Mass storage devices ............................................................................................................................................................ 26
Cables ....................................................................................................................................................................................... 26
Miscellaneous parts ............................................................................................................................................................... 27
4 Removal and replacement procedures preliminary requirements ................................................................................................ 31
Tools required ......................................................................................................................................................................... 31
Service considerations .......................................................................................................................................................... 32
Plastic parts ........................................................................................................................................................ 32
Cables and connectors ..................................................................................................................................... 32
Drive handling .................................................................................................................................................... 32
ENWW vii

Workstation guidelines ..................................................................................................................................... 32
Electrostatic discharge information .................................................................................................................................... 34
Generating static electricity ............................................................................................................................. 34
Preventing electrostatic damage to equipment ........................................................................................... 35
Personal grounding methods and equipment .............................................................................................. 35
Grounding the work area .................................................................................................................................. 35
Recommended materials and equipment ..................................................................................................... 36
Packaging and transporting guidelines .............................................................................................................................. 36
5 Removal and replacement procedures for Customer Self-Repair parts ....................................................................................... 39
Component replacement procedures ................................................................................................................................. 40
Preparation for disassembly ........................................................................................................................... 40
Service cover ...................................................................................................................................................... 40
Battery ................................................................................................................................................................. 41
Solid-state drives 3 and 4 ................................................................................................................................ 42
Hard drive ........................................................................................................................................................... 44
WLAN module .................................................................................................................................................... 46
WWAN module ................................................................................................................................................... 47
Solid-state drive 2 ............................................................................................................................................. 49
Memory modules 2 and 4 ................................................................................................................................ 51
Keyboard ............................................................................................................................................................. 54
Memory modules 1 and 3 ................................................................................................................................ 58
Solid-state drive 1 ............................................................................................................................................. 62
6 Removal and replacement procedures for authorized service provider parts ............................................................................ 65
Component replacement procedures ................................................................................................................................. 66
Preparation for disassembly ........................................................................................................................... 66
Bottom case ....................................................................................................................................................... 66
SD card board cable .......................................................................................................................................... 68
SD card board ..................................................................................................................................................... 69
Fingerprint reader module cable .................................................................................................................... 70
Fingerprint reader module ............................................................................................................................... 71
Hard drive cable ................................................................................................................................................. 72
Touchpad cable .................................................................................................................................................. 73
Touchpad ............................................................................................................................................................ 74
NFC module cable .............................................................................................................................................. 75
NFC module ........................................................................................................................................................ 76
Card reader board ............................................................................................................................................. 78
Fan/heat sink assembly .................................................................................................................................... 79
43.9 cm (17.3 in ) display assembly ............................................................................................................... 83
Beam connector ................................................................................................................................................. 85
viii ENWW

Graphics card ...................................................................................................................................................... 87
System board ..................................................................................................................................................... 89
RTC battery ......................................................................................................................................................... 94
I/O board ............................................................................................................................................................. 95
Speakers ............................................................................................................................................................. 97
7 Troubleshooting guide .......................................................................................................................................................................... 99
Resources ................................................................................................................................................................................ 99
General troubleshooting steps .......................................................................................................................................... 101
Identify the issue ............................................................................................................................................. 102
1. Understand the issue ............................................................................................................ 103
Boot up sequence .................................................................................................. 103
Failure classication .............................................................................................. 104
2. Examine the environment .................................................................................................... 106
3. Perform a visual inspection of hardware ........................................................................... 106
4. Update BIOS and drivers ....................................................................................................... 107
Manually updating BIOS and drivers ................................................................... 107
Remotely deploying the BIOS and drivers ......................................................... 107
Analyze the issue ............................................................................................................................................ 108
5. Remove or uninstall recently added hardware, software ............................................... 108
6. HP Hardware Diagnostics and Tools ................................................................................... 109
HP PC Hardware Diagnostics (UEFI) .................................................................... 109
HP BIOS Conguration Utility (BCU) ..................................................................... 110
HP Image Diagnostic Tool ..................................................................................... 111
HP Thermal Monitor .............................................................................................. 111
Non HP diagnostics tools ...................................................................................... 111
7. Status lights, blinking light codes, troubleshooting lights, and POST error
messages ..................................................................................................................................... 112
Status lights ............................................................................................................ 112
Blinking light codes ................................................................................................ 112
POST error messages ............................................................................................ 113
Resolve the issue ............................................................................................................................................ 115
8. Hard reset ................................................................................................................................ 115
9. Soft reset (Default Settings) ................................................................................................. 116
10. Reseat cables and connections ......................................................................................... 116
11. Test with minimum conguration ..................................................................................... 118
Essential hardware conguration ....................................................................... 118
Safe mode ............................................................................................................... 119
12. Test with veried working conguration (hardware or operating system) ................ 119
13. Replace the system board ................................................................................................. 119
Verify solution .................................................................................................................................................. 120
ENWW ix

Helpful Hints ......................................................................................................................................................................... 121
At startup .......................................................................................................................................................... 121
During operation ............................................................................................................................................. 121
Consulting with HP Service ............................................................................................................................ 122
Common issues and possible solutions ........................................................................................................................... 123
Power-on issues .............................................................................................................................................. 124
No power ..................................................................................................................................... 124
Intermittent power-on, shutdown, reboot ............................................................................. 126
AC adapter issue ......................................................................................................................... 127
Battery not recognized, not charging ..................................................................................... 128
Battery discharges too fast ....................................................................................................... 130
Burnt smell .................................................................................................................................. 130
POST .................................................................................................................................................................. 132
No video (with power) ................................................................................................................ 132
Blinking lights .............................................................................................................................. 133
Diagnostic error messages ....................................................................................................... 133
BIOS password ............................................................................................................................ 134
Performance (OS) ............................................................................................................................................ 135
Intermittent shutdown .............................................................................................................. 135
Blue screen .................................................................................................................................. 136
Freeze at Windows Logo (hang or lockup) ............................................................................. 136
Electromagnetic Interference (EMI) ......................................................................................... 137
No wake up .................................................................................................................................. 138
Unresponsive .............................................................................................................................. 139
Slow performance ...................................................................................................................... 140
HP Smart Adapter warning message ...................................................................................... 140
Incorrect time and date ............................................................................................................. 141
Display .............................................................................................................................................................. 142
Display anomalies ...................................................................................................................... 143
Symptom ................................................................................................................. 143
Quick check ............................................................................................................. 144
HP PC Hardware Diagnostics (UEFI) for video test ........................................... 144
Display assembly diagram ................................................................................... 144
Dead pixel .................................................................................................................................... 145
No video (internal) ...................................................................................................................... 145
No video (external) ..................................................................................................................... 145
DisplayPort/VGA ......................................................................................................................... 146
HDMI ............................................................................................................................................. 146
No or bad external video via docking ...................................................................................... 147
Incorrect or missing color/distorted image ............................................................................ 147
Touch screen ............................................................................................................................... 148
x ENWW

I/O devices ........................................................................................................................................................ 150
Keyboard ...................................................................................................................................... 150
Keyboard pointing stick ............................................................................................................. 151
Keyboard backlight .................................................................................................................... 151
Touchpad ..................................................................................................................................... 152
Network connectivity (RJ-45 jack) ........................................................................................... 152
Network connectivity wireless (WLAN) ................................................................................... 153
WWAN ........................................................................................................................................... 153
USB ............................................................................................................................................... 154
Smart card reader ...................................................................................................................... 155
Speaker, headphone - audio issues ........................................................................................ 156
Thunderbolt (TB) ......................................................................................................................... 157
Storage ............................................................................................................................................................. 159
Hard drive or solid-state drive not recognized ...................................................................... 159
No boot to operating system (no read-write error) .............................................................. 160
Read-write error ......................................................................................................................... 161
Slow performance ...................................................................................................................... 162
Blue screen (BSOD) error ........................................................................................................... 162
Noisy hard drive .......................................................................................................................... 162
Mechanical ........................................................................................................................................................ 164
Noise (sound) .............................................................................................................................. 164
Fan runs constantly .................................................................................................................... 164
Thermal shutdown (hot) ........................................................................................................... 166
Additional information ........................................................................................................................................................ 168
Acronyms .......................................................................................................................................................... 168
Blinking lights and boot error codes ............................................................................................................ 169
Processor not executing code .................................................................................................. 169
BIOS recovery code unable to nd valid BIOS recovery image ............................................ 169
Memory module error ................................................................................................................ 169
Graphics Controller Error (No Controller) ................................................................................ 170
Failure System Board Error ....................................................................................................... 170
Intel Trusted Execution Technology (TXT) Error ................................................................... 170
Sure Start unable to nd valid BIOS Boot Block image ......................................................... 170
Sure Start has identied a problem (Manual Recovery Policy Set) .................................... 171
POST error messages and user actions ...................................................................................................... 171
Routine maintenance for performance improvement .............................................................................. 173
Common blue screen error messages ........................................................................................................ 174
Error message list ...................................................................................................................... 174
Bug check symbolic names ...................................................................................................... 174
Microsoft general troubleshooting of Windows bug check codes ...................................... 174
Use Windows Debugging Tool ...................................................................................................................... 176
ENWW xi

Windows Software Development Kit (SDK) ............................................................................ 176
Display issue: pixel anomalies ...................................................................................................................... 179
Cable management ........................................................................................................................................ 180
Connector types .............................................................................................................................................. 182
Flex cable ..................................................................................................................................... 182
Horizontal cable insertion ......................................................................................................... 182
Multiple-pin horizontal connector (LVDS cable to display panel) ....................................... 183
Multiple-pin vertical connector (LVDS cable to system board) ........................................... 183
8 Using Setup Utility (BIOS) .................................................................................................................................................................... 185
Starting Setup Utility (BIOS) ............................................................................................................................................... 185
Updating Setup Utility (BIOS) ............................................................................................................................................. 186
Determining the BIOS version ....................................................................................................................... 186
Preparing for a BIOS update .......................................................................................................................... 187
Downloading a BIOS update ..................................................................................................... 187
Installing a BIOS update ............................................................................................................ 187
9 Backing up, restoring, and recovering .............................................................................................................................................. 189
Backing up information and creating recovery media ................................................................................................... 190
Using Windows tools for backing up ............................................................................................................ 190
Using the HP Cloud Recovery Download Tool to create recovery media (select products only) ........ 190
Restoring and recovering your system ............................................................................................................................ 191
Creating a system restore ............................................................................................................................. 191
Restoring and recovery methods ................................................................................................................. 191
Recovering using HP Recovery media ......................................................................................................... 191
Changing the computer boot order ............................................................................................................. 192
Using HP Sure Recover (select products only) ........................................................................................... 192
10 Using HP PC Hardware Diagnostics ................................................................................................................................................ 193
Downloading the HP PC Hardware Diagnostics Windows from the Microsoft Store ................................................ 193
Customizing Remote HP PC Hardware Diagnostics UEFI settings ............................................................................... 193
11 Specications ..................................................................................................................................................................................... 195
Computer specications ..................................................................................................................................................... 195
43.9 cm (17.3 in) display specications ........................................................................................................................... 197
Hard drive specications ..................................................................................................................................................... 197
Solid-state drive specications ......................................................................................................................................... 198
Solid-state drive specications (SATA-3) ......................................................................................................................... 198
xii ENWW

12 Statement of memory volatility ...................................................................................................................................................... 201
Current BIOS steps ............................................................................................................................................................... 201
Nonvolatile memory usage ................................................................................................................................................ 203
Questions and answers ...................................................................................................................................................... 205
Using HP Sure Start (select products only) ..................................................................................................................... 207
13 Power cord set requirements .......................................................................................................................................................... 209
Requirements for all countries .......................................................................................................................................... 209
Requirements for specic countries and regions ........................................................................................................... 209
14 Recycling ............................................................................................................................................................................................. 213
Index ........................................................................................................................................................................................................... 215
ENWW xiii

xiv ENWW

1 Product description
This table provides detailed product information.
Table 1-1 Product components and their descriptions
Category Description
Product Name HP ZBook Fury 17 G7 Mobile Workstation
Processors Intel® Xeon™ W-10885M 2.3 GHz (5.1 GHz max turbo frequency) processor (8 cores, 16 MB L3 cache, 45 W)
Intel Core™ i7-10850H 2.7 GHz (5.1 GHz max turbo frequency) processor (6 cores, 12 MB L3 cache, 45 W)
Intel Core i7-10750H 2.6 GHz (5.0 GHz max turbo frequency) processor (6 cores, 12 MB L3 cache, 45 W)
Intel Core i5-10400H 2.6 GHz (4.6 GHz max turbo frequency) processor (4 cores, 8 MB L3 cache, 45 W)
Intel Core i5-10300H 2.5 GHz (4.5 GHz max turbo frequency) processor (4 cores, 8 MB L3 cache, 45 W)
Graphics controller AMD® Radeon™ F19M-E85-70 graphics controller
AMD Radeon R19M-E85-70 graphics controller
NVIDIA® Quadro® T1000 N19P-Q1 graphics controller
NVIDIA Quadro T2000 N19P-Q3 graphics controller
NVIDIA Quadro N19E-Q3 graphics controller
NVIDIA Quadro N19E-Q5 graphics controller
NVIDIA Quadro N19E-Q1-KD-A1 graphics controller
Graphics card AMD Radeon Professional W5500M graphics card with 4 GB memory
AMD Radeon RX 5500M graphics card with 4 GB memory
NVIDIA Quadro RTX 3000 graphics card with 6 GB memory
NVIDIA Quadro RTX 4000 graphics card with 8 GB memory
NVIDIA Quadro RTX 5000 graphics card with 16 GB memory
NVIDIA Quadro T1000 graphics card with 4 GB memory
NVIDIA Quadro T2000 graphics card with 4 GB memory
Display 43.9 cm (17.3 in), liquid crystal display (LCD), white light-emitting diode (WLED), UWVA, at bezel
Ultra high-denition (UHD) (3840×2160), BrightView, HDR-400, DCI-P3 100, eDP 1.4 + PSR 2, touchscreen
display panel, equipped with full high-denition (FHD) webcam + infrared and ambient light sensor; typical
brightness: 550 nits
UHD (3840×2160), BrightView, HDR-400, DCI-P3 100, eDP 1.4 + PSR 2, touchscreen display panel, equipped
with ambient light sensor; typical brightness: 550 nits
ENWW 1

Table 1-1 Product components and their descriptions (continued)
Category Description
UHD (3840×2160), antiglare, HDR-400, DCI-P3 100, eDP 1.4 + PSR 2, Dream Color display panel, equipped with
FHD webcam + infrared and ambient light sensor; typical brightness: 550 nits
UHD (3840×2160), antiglare, HDR-400, DCI-P3 100, eDP 1.4 + PSR 2, Dream Color display panel, equipped with
FHD webcam and ambient light sensor; typical brightness: 550 nits
UHD (3840×2160), antiglare, HDR-400, DCI-P3 100, eDP 1.4 + PSR 2, Dream Color display panel, equipped with
ambient light sensor; typical brightness: 550 nits
UHD (3840×2160), antiglare, DCI-P3 100, eDP 1.4 + PSR 2 display panel, equipped with FHD webcam + infrared
and ambient light sensor; typical brightness: 550 nits
UHD (3840×2160), antiglare, DCI-P3 100, eDP 1.4 + PSR 2 display panel, equipped with FHD webcam and
ambient light sensor; typical brightness: 550 nits
UHD (3840×2160), antiglare, DCI-P3 100, eDP 1.4 + PSR 2 display panel, equipped with ambient light sensor;
typical brightness: 550 nits
FHD (1920×1080), antiglare, sRGB 100, eDP 1.2 display panel, equipped with FHD webcam + infrared and
ambient light sensor; typical brightness: 300 nits
FHD (1920×1080), antiglare, sRGB 100, eDP 1.2 display panel, equipped with FHD webcam and ambient light
sensor; typical brightness: 300 nits
FHD (1920×1080), antiglare, sRGB 100, eDP 1.2 display panel, equipped with ambient light sensor; typical
brightness: 300 nits
Memory Four customer-accessible memory module slots supporting up to 128 GB of RAM
DDR4-2666 dual-channel support
NOTE: Non-ECC memory performance 2666 MHz provided same part number of memory modules, otherwise
performance might drop to 2133 MHz. ECC memory performance 2666 MHz provided same part number of
memory modules, otherwise performance might drop to 2400 MHz.
Supports the following congurations:
●128 GB (32 × 4 @ DDR4-2666 1.2 V SODIMM)
●64 GB (32 × 2 or 16 × 4 @ DDR4-2666 1.2 V SODIMM)
●64 GB (16 × 4 @ DDR4-2666 1.2 V SODIMM ECC)
●32 GB (32 × 1 or 16 × 2 or 8 × 4 @ DDR4-2666 1.2 V SODIMM)
●32 GB (32 × 1 or 16 × 2 @ DDR4-2666 1.2 V SODIMM ECC)
●16 GB (16 × 1 or 8 × 2 @ DDR4-2666 1.2 V SODIMM)
●16 GB (16 × 1 or 8 × 2 @ DDR4-2666 1.2 V SODIMM ECC)
●8 GB (8 × 1 @ DDR4-2666 1.2 V SODIMM)
●8 GB (8 × 1 @ DDR4-2666 1.2 V SODIMM ECC)
Primary storage M.2 solid-state drive:
●512 GB, M.2 2280, Peripheral Component Interconnect Express (PCIe)-3×4, Non-Volatile Memory Express
(NVMe), Secure Seal (SS) solid-state drive with three-layer cell (TLC)
●512 GB, M.2 2280, PCIe, NVMe, self-encrypted (SED) solid-state drive with TLC OPAL2
●256 GB, M.2 2280, PCIe-3×4, NVMe, SS solid-state drive with TLC
●256 GB, M.2 2280, PCIe, NVMe, SED solid-state drive with TLC OPAL2
2 Chapter 1 Product description ENWW

Table 1-1 Product components and their descriptions (continued)
Category Description
Solid-state drive:
●2 TB, 2280, PCIe-3×4, NVMe, SS solid-state drive with TLC
●1 TB, 2280, PCIe-3×4, NVMe, SS solid-state drive with TLC
●512 GB, 2280, PCIe-3×4, NVMe, SED solid-state drive with TLC OPAL2
Hard drives, SATA, 6.35 cm (2.5 in), 7.0 mm (0.28 in):
●2 TB, 5400 RPM
●1 TB, 7200 RPM
●500 GB, 7200 RPM
●500 GB, 7200 RPM, Federal Information Processing Standard (FIPS), (SED), OPAL2
Audio and video Integrated FHD Camera: (on select models)
Infrared (on select models)
Dual-array, world-facing, digital microphone
Wireless Wireless Local Area Network (WLAN)
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth® 5.0 MU-MIMO M.2 2230 non-vPro® MIPI + BRI WW with 2 antennas
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth 5.0 MU-MIMO M.2 2230 vProfessional 160 MHz MIPI + BRI WW with 2
antennas
Intel XMM™ 7360 LTE-Advanced (Cat 9) Wireless Wide Area Network (WWAN)
Near eld
communication (NFC)
NFC Mirage WNC XRAV-1
Keyboard/pointing
devices
Dual-point keyboard with clickpad, backlit, spill-resistant, premium notebook keyboard
Power requirements Battery: 8 cell, 94 WHr long life, PL Fast Charge
HP Smart AC adapters:
200 watt AC adapter HP Smart (PFC, ultraslim barrel, 4.5 mm, straight-to-right angle)
150 watt AC adapter HP Smart (PFC, slim barrel, 4.5 mm)
120 watt AC Adapter HP Smart (PFC, slim barrel, 4.5 mm, right angle)
Power cords:
C13 premium, 1.0 m, with tag
C5 premium, 1.0 m, with tag
Security Integrated ngerprint reader
Operating system Windows 10 Enterprise 64
Windows 10 Enterprise 64 LTSC 1809 (RS5)
Windows 10 Home 64
Windows 10 Home 64 Advanced
Windows 10 Home 64 Advanced Single Language
ENWW 3

Table 1-1 Product components and their descriptions (continued)
Category Description
Windows 10 Home 64 Chinese Market CPPP
Windows 10 Home 64 High-End Chinese Market CPPP
Windows 10 Home 64 Plus
Windows 10 Home 64 Plus Single Language
Windows 10 Home 64 Single Language
Windows 10 Professional 64
Windows 10 Professional 64 CBB 1903
Windows 10 Professional 64 CBB 1909
Windows 10 Professional 64 Chinese Market
Windows 10 Professional 64 for Workstations Plus
Windows 10 Professional 64 for Workstations Plus Chinese Market
Windows 10 Professional 64 High End
Windows 10 Professional 64 High End Chinese Market
FreeDOS
Red Hat® Enterprise Linux® 8 Workstation
Serviceability End user replaceable parts:
AC adapter
Service cover
Battery
Solid-state drive
Hard drive
WLAN module
WWAN module
Memory module
Keyboard
4 Chapter 1 Product description ENWW

2 Components
Right
Use the illustration and table to identify the components on the right side of the computer.
Table 2-1 Right-side components and their descriptions
Component Description
(1) Memory card reader Reads optional memory cards that store, manage, share, or
access information.
To insert a card:
1. Hold the card label-side up, with the connectors facing the
computer.
2. Insert the card into the memory card reader, and then press
in on the card until it is rmly seated.
To remove a card:
▲Press in on the card, and then remove it from the memory
card reader.
(2) HDMI port Connects an optional video or audio device, such as a high-
denition television, any compatible digital or audio component,
or a high-speed High Denition Multimedia Interface (HDMI)
device.
(3) Dual-Mode DisplayPort™ connector Connects an optional digital display device, such as a high-
performance monitor or projector.
ENWW Right 5

Table 2-1 Right-side components and their descriptions (continued)
Component Description
(4) USB Type-C® Thunderbolt™ ports with HP Sleep
and Charge (2)
Connect USB devices, provide high-speed data transfer, and
charge small devices, even when the computer is o.
– and –
Connect display devices that have a USB Type-C connector,
providing DisplayPort output.
NOTE: Your computer might also support a Thunderbolt docking
station.
NOTE: Cables, adapters, or both (purchased separately) might
be required.
(5) Power connector Connects an AC adapter.
(6) Battery light When AC power is connected:
●White: The battery charge is greater than 90 %.
●Amber: The battery charge is from 0 to 90 %.
●O: The battery is not charging.
When AC power is disconnected (battery not charging):
●Blinking amber: The battery has reached a low battery level.
When the battery has reached a critical battery level, the
battery light begins blinking rapidly.
●O: The battery is not charging.
Left
Use the illustration and table to identify the components on the left side of the computer.
NOTE: Your computer might look slightly dierent from the following illustration.
6 Chapter 2 Components ENWW
