HP Compaq LE1851wl Installation instructions

EL-MF877-00 Page 1
Template Revision A
Product End-of-Life Disassembly Instructions
Product Category: Monitors and Displays
Marketing Name / Model
[List multiple models if applicable.]
HP Compaq LE1851wl LCD Display
Name / Model #2
Name / Model #3
Name / Model #4
Name / Model #5
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Notes
Quantity
of items
included
in product
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
With a surface greater than 10 sq cm
4
Batteries
All types including standard alkaline and lithium coin
or button style batteries
0
Mercury-containing components
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
0
Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm
Includes background illuminated displays with gas
discharge lamps
1
Cathode Ray Tubes (CRT)
0
Capacitors / condensers (Containing PCB/PCT)
0
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
1
External electrical cables and cords
2
Gas Discharge Lamps
0
Plastics containing Brominated Flame Retardants
0
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
0
Components and waste containing asbestos
0
Components, parts and materials containing
refractory ceramic fibers
0
Components, parts and materials containing
radioactive substances
0

EL-MF877-00 Page 2
Template Revision A
2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description
Tool Size (if
applicable)
Description #1 SCREW DRIVER(PHILLIPS HEAD)
#2
Description #2
Description #3
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Take off the screws of stand，and remove the stand
2. Take off the screws of rear cover，remove the rear cover
3. Pull out the pin of lamp
4. Pull out the pin of KEPC cable
5. Remove Bezel
6. Pull out the PIN of LVDS cabel
7. Take off the Power board screws
8. Take off the VGA screws
9. Tear off the adhesive tape;pull out the connector PIN which connect PWPC and Main board
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

1
HP LE1851wl
disassembly SOP
By AOC
Agu.-02-2010

2
1.Take off the screws of stand , remove the stand

3
2.Take off the screws of rear cover , remove the rear cover

4
3.Pull out the PIN of lamp

5
4.Pull out the PIN of KEPC cable

6
5.Remove BEZEL

7
6.Pull out the PIN of LVDS

8
7.Take off the power board screws

9

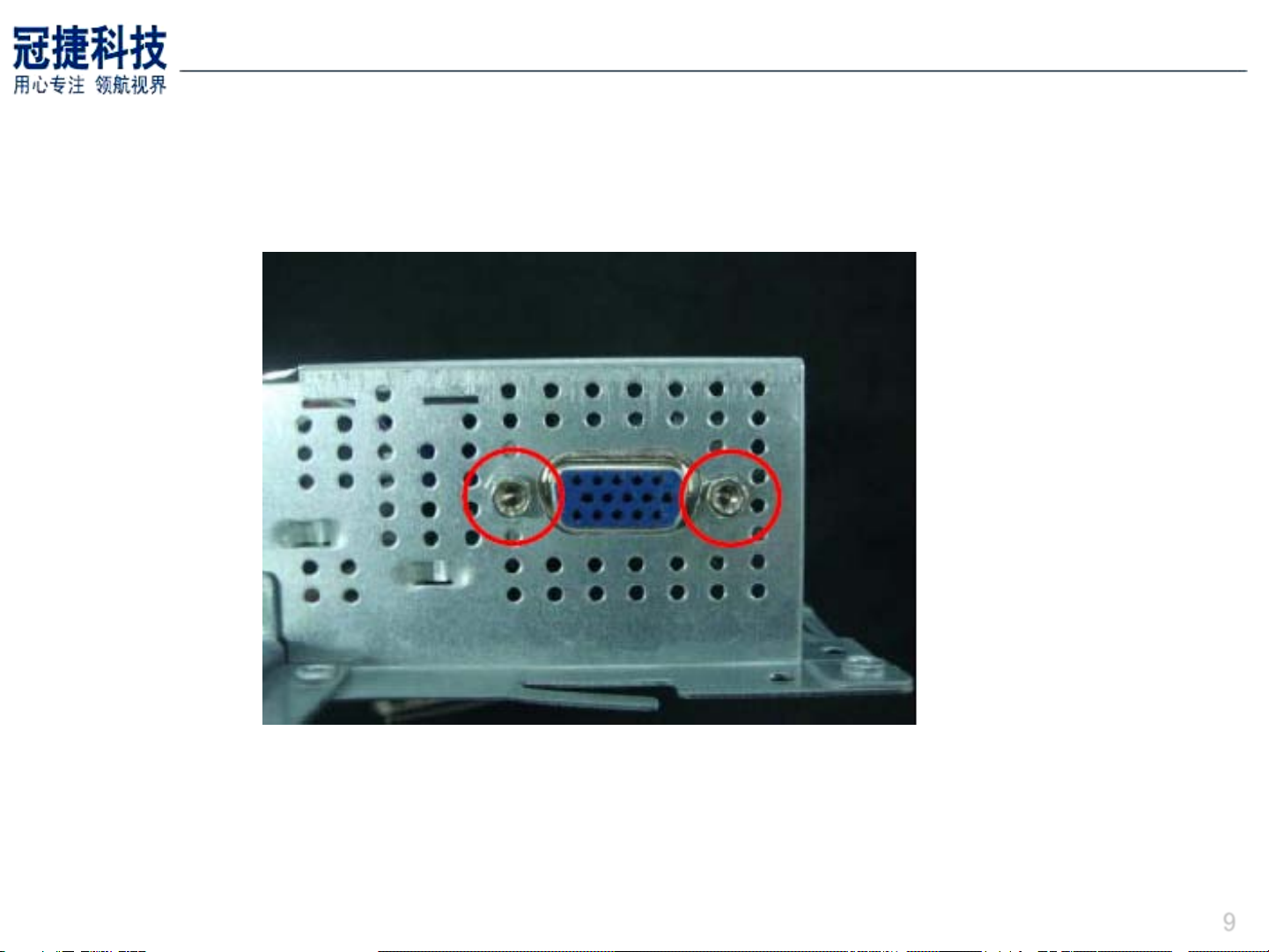

8.Take off the VGAscrews

10
9.First : tear off the adhesive tape
Second : pull out the connector PIN which connect PWPC
and main board
Third : take off both boards

11
