HP Pavilion vf51 User manual

hp pavilion vf51
15-inch
LCD Monitor
(15-inch Viewable Image)
User’s Guide
Select Language

The information in this document is subject to change without notice.
Hewlett-Packard® Company (hereafter HP Company) makes no warranty of any kind with regard
to this material, including, but not limited to, the implied warranties of merchantability and fitness
for a particular purpose.
HP shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
HP assumes no responsibility for the use or reliability of its software on equipment that is not
furnishing by HP.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of HP.
Hewlett-Packard Company
Business Desktop Division
5, avenue Raymond Chanas – Eybens
38053 Grenoble Cedex 9
France
Printed in Taiwan
©Copyright Hewlett-Packard Company, 2002. All right reserved.
Hewlett-Packard is a registered trademark of Hewlett-Packard Company in the United State of
America and other countries.
Windows is a registered trademark of Microsoft, Inc.
Other brand or product names are trademarks of their respective holders.
ii
MAIN PAGE

Contents
Introduction ……………………………..………… 1
Features ……………………………………………………… 1
For Your Safety ……………………………………………… 2
Working in Comfort …………………………………………… 2
Installation ………………………………………… 3
Unpacking the Monitor ………………………………………. 3
Locations and Functions of Controls ……………………… 3
Connecting Your Monitor …………………………………… 4
How to Install the Drivers ……………………… 6
Windows 2000 Users ……..……............…...……………… 6
Windows Me Users ……..……............……...……………… 6
Windows XP Users ……..……............……...……………… 7
Using Your Monitor ……………………………… 8
Turning the Monitor Onand Off ……..……...……………… 8
Tilting the Monitor …………………………………………… 9
Setting the Video Mode …………………………………… 9
Setting the Refresh Rate …………………………………… 9
Minimizing Power Consumption ……………………………. 10
Caring for and Cleaning the Monitor……………………… 10
Adjusting Your Monitor …………….…………… 12
Summary of Control Buttons ……………………………… 12
Displaying the OSD MainMenu …………………………… 12
Selecting Items in the OSD Menu………………………… 14
Making Adjustments in the OSD Menu …………………… 14
Using the Direct Keys ……………………………………… 20
Troubleshooting ……………………………… 22
LCD Monitor Quality and Pixel Policy for vf51
Monitor ………………………………………… 23
Technical Information ………………………….24
Monitor Information …………………….………………… 24
Video Modes ………………………………………………. 25
Unknown Video Modes.…………………………………… 26
iii
Select Language

Declaration of Conformity …………………………………… 27
FCC Statement ……………………………………………….. 28
Declaration of VCCI Class B Compliance …………………. 28
Noticefor Korea (Class B) ………………………………… 28
DOC Statement (Canada Only) …………………………….. 29
Environmental Information ………………………………… 29
ENERGYSTAR Compliance ……………………………… 29
iv
MAIN PAGE
TCO 99 Compliance ………………………………………… 30

Introduction
This latest LCD monitor has a 15-inch active matrix TFT (thin film transistor) liquid crystal display
module. It is designed for use with any Windows®-based PC. The monitor’s compact design
provides great space savings on your computer desk.
Features
Important features include:
Automatic configuration to the PC video settings with maximum XGA (1024 x 768) resolution.
Three control buttons, plus OSD (on-screen display) for easy monitor settings adjustment and
configuration with instant feedback.
Support analog video input for direct and immediate replacement of CRT displays.
 Tilt feature to optimize viewing position.
 Compliant with VESA Mounting standard for easy mounting on wall or mechanical arms.
Anti-glare coating on the panel to reduce the reflection of ambient light.
Flicker-free performance across all recommended video modes.
Support for high refresh rates up to 75 Hz.
VESA DDC2B Plug-and-Display compliant.
A Power-saving feature that is compatible with Microsoft®Windows
This monitor is compliant with ISO 13406-2 guidelines for reduced electromagnetic
emissions.
Compliant with TCO99. (European Union Only)
Note:The lighting flash with the arrowhead symbol inside an equilateral triangle is intended to
alert the user to the presence of uninsulated, dangerous voltage which may be of sufficient
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying
the appliance.
1
MAIN PAGE

For Your Safety
Warning
To completely disconnect power from your display, you must remove the powe
r
cord from the wall outlet and then remove the power cable from the display.
Only usewith the poweradapter supplied with the product.To avoid electrical
shock,do not open the power adapter. There areno user-serviceable parts
inside.Refer servicing toqualified servicepersonnel.
For your safety and the protection of your monitor, follow these precautions:
Use only the factory-supplied power cord that shipped with your monitor.
To prevent electrical shock, do not disassemble the display. The cover should be removed only
by qualified service personnel.
Do not cover the air vents.
 To avoid the risk of damage to the display and electrical shock to yourself, do not expose the
display to rain or moisture.
 Make sure the computer is turned off before connecting or disconnecting a display peripheral.
 If you are in any doubt that you can lift the equipment safely, do not try to move it without help.
If any of the following conditions occur, unplug the display and contact qualified service personnel:
The power cord or plug is frayed or damaged.
You have spilled liquid into the display.
The display has been exposed to rain or water.
The display does not operate correctly when the operating instructions are followed.
The display has been dropped or the cabinet has been damaged.
Working in Comfort
To optimize your comfort and productivity, it’s important that you set up your work area correctly
and use your HP equipment properly. With that in mind, we have developed some setup and use
recommendations for you to follow based on established ergonomic principles.
You can consult the online version of Working in Comfort preloaded on the hard disk of HP
computers, or visit HP’s Working in Comfort Web site at:
http://www.hp.com/ergo
2
MAIN PAGE

Installation
Please follow the instructions in this chapter to install your LCD monitor.
Note:Before connecting your monitor, first read through the instructions in this chapter and the
safety precautions in the previous chapter.
Unpacking the Monitor
When you are unpacking the monitor, make sure that you have the following items:
The LCD monitor
AC power adapter with attached DC power cable
A power cord
Analog video signal cable
CD with User's Guide and Driver
Quick Start Guide
Warranty Booklet
Note:Place the monitor on a flat, sturdy surface. Choose an area free from excessive heat,
moisture, and sunlight.
Locations and Functions of Controls
There are three control buttons and one power button on the front panel of the monitor, as well as
an LED for power status indication.
3
MAIN PAGE

Use the power button located at the lower middle of the front panel of your monitor to turn on and
off the monitor.
Three control buttons are also located at the lower middle of the front panel of your monitor. Their
functions are described below:
Button Function Description
Select (1) Opens the OSD Main Menu.
(2) Selects item for user adjustment.
Up (▲) (1) Moves upward through items in the OSD Main
Menu, or increases user-adjustable values.
(2) Opens Brightness Menu (Direct-key function).
Down (▼) (1) Moves downward through items in the OSD Main
Menu, or decreases user-adjustable values.
(2) Auto Configuration (Direct-key function).
Connecting Your Monitor
Before connecting any cables, make sure that the computer and monitor are turned off.
To connect the power and video signal cables:
1. Locate the AC power adapter with attached DC power cable.
2. Connect the DC power cable to the power jack on the back of the monitor (as shown below).
3. Plug the power cord into the AC adapter and then into the main power source.
4
MAIN PAGE

4. Plug theanalog video signal cable into the Analog Video Input port on the back of the monitor
(as shown above).
5. Connect the other end of the video cable into your computer’s video port. (Please check your
computer’s documentation for port location.)
Note: For best monitor performance, it is strongly recommended thatyou use Auto Configuration
to automatically configure your monitor’s settings.
5
MAIN PAGE

How to Install the Drivers
The HP monitor comes with driver software that allows you to take advantage of the Plug and Play
feature of the Windows® Me, Windows 2000, or Windows XP operating system. This software
enables the computer to communicate with the monitor and use all the monitor features. Without
this software, the monitor settings and display images will not be correct.
NOTE: HP computers may ship with the Plug and Play drivers preinstalled. If you have an older
computer, these drivers may not be preinstalled and you may need to install the drivers
from the CD-ROM disc that came with the monitor.
You can also download the latest version of a driver from the HP Monitor Support Web site at:
http://www.hp.com/go/monitorsupport/
Windows 2000 Users
NOTE: The procedure for installing the driver for your operating system may vary.
To install the driver for your monitor:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Click Start, select Settings, and then click Control Panel.
Double-click Display.
Click the Settings tab.
Click Advanced Properties or Advanced, and select the Monitor tab.
Click Properties.
Click the Driver tab.
Click Update Driver and click Next.
Select the recommended option and then click Next.
Select the Specify a Location box.
Find and open the vf51.inf file on the CD-ROM disc in the Drivers directory, and click OK.
Click Next to install the selected monitor.
Windows Me Users
NOTE: The procedure for installing the driver for your operating system may vary.
To install the driver for your monitor:
1. Click Start, select Settings, and then click Control Panel
2. Click Display.
6
MAIN PAGE

3. Select the Settings tab.
4. Click Advanced button.
5. Select the Monitor tab.
6. Click the Change button.
7. Select the Specify a Location box.
8. Find and open the vf51.inf file on the CD-ROM disc in the Drivers directory, and click OK.
9. Click Next to install the selected monitor.
Windows XP Users
NOTE: The procedure for installing the driver for your operating system may vary.
To install the driver for your monitor:
1. Click Start.
2. Click Control Panel.
3. Click Appearance and Themes.
4. Clicks Display.
5. Select the Settings tab.
6. Click the Advanced button.
7. Select the Monitor tab.
8. Click Properties.
9. Select the Driver tab.
10.Click Update Driver and click Next.
11.Select the recommended option and then click Next.
12.Select the Specify a Location box.
13.Find and open the vf51.inf file on the CD-ROM disc in the Drivers directory, and click OK.
14.Click Next to install the selected monitor.
7
MAIN PAGE

Using Your Monitor
This chapter contains information about using your LCD monitor.
Turning the Monitor On and Off
Use the power button located at the lower middle of the front panel of the monitor to turn the
monitor on and off. When the monitor is on, the light (LED) near the Power button is illuminated.
The light is green when both the monitor and PC are active, and amber when the monitor is in a
reduced power mode.
If your PC sends power saving signals to the monitor, the monitor’s power management features
reduce power consumption to low levels when your PC goes into its power-saving mode. See the
“Minimizing Power Consumption” section for more information.
If your PC doesn’t use industry standard power-save signaling techniques, you can reduce power
consumption by turning off the monitor when it won’t be used for an extended period. You can turn
the monitor off even if you leave your PC running.
Note:
Because of the technology used in LCD panels, screen savers will not prolong the life of
your monitor. So if the monitor will not be used for an extended period, be sure to turn it off.
Warning
To completely disconnect power from your display, you must
remove the power cord from the wall outlet and then remove
the power cable from the display.
8
MAIN PAGE

Tilting the Monitor
The monitor has a tilt feature that allows you to tilt the monitor back and forth to find the most
comfortable viewing position. To tilt the monitor, grasp the sides and push the monitor back or pull
it toward you until it is in the desired position. The monitor can be tilted 20º backward and 5º
forward.
Note:Do not tilt the monitor by grasping the top edge.
Setting the Video Mode
Since the inherent format of this monitor is 1024 pixels by 768 lines, the monitor will perform best
whenyourPCissettoascreen resolutionof1024x 768. If you usea lowerresolution(suchas 640
x 480), the image is expanded to fill the screen but with a slightly degraded image quality.
Your monitor supports many common video modes, as shown in the “Video Modes” section.
Check the documentation supplied with your PC and video adapter card to find out which modes
they support.
To view the video mode in Microsoft Windows, check the Windows settings in your PC.
Setting the Refresh Rate
The image refresh rate is the number of times per second that the image is refreshed; it is also
known as the vertical frequency.
Although your LCD monitor supports up to 75 Hz for analog video input, we recommend that you
9
MAIN PAGE

use 60 Hz refresh rate for best performance. The table in the “Video Mode” section shows the
image refresh rates supported by the monitor at different screen resolutions.
To set the refresh rate with a standard Windows installation, consult yourWindows or graphics card
documentation.
Minimizing Power Consumption
Many PCs support industry standard power-save signaling techniques. Power management
features reduce the monitor’s power consumption after a period of keyboard and mouse inactivity.
When the monitor is in a power-saving mode, the screen is blank and the power indicator turns
amber. Pressing a key on the keyboard or moving the mouse restores theimage in several seconds.
Consult your PC documentation for information about setting the power-saving modes.
The monitor accepts the signals for the three standard power-saving modes – Standby, Suspend,
and Sleep – from your PC. For any of these conditions, the monitor will go into Sleep mode.
Caring for and Cleaning the Monitor
To maximize screen life and prevent damage to the LCD panel, we recommend that you:
Use the monitor power management system (if available on your PC).
If you don’t use a power management system, turn off the monitor when you won’t be using it
for an extended period.
Don’t press, rub, or poke the monitor with your finger or other object.
Handle your monitor with care.
Your LCD module is a high-quality optical device that requires special care when cleaning.
Warning
Don’t use liquid, aerosol, or abrasive cleaning solutions to
clean the screen.
To clean the screen:
1. Shut down the PC.
2. Turn off and unplug the monitor.
3. Gently dust the screen with a dry, soft, lint-free cloth.
10
MAIN PAGE

Note:If the screen is still dirty, you can dampen the cloth with several drops of distilled water.
Make sure the LCD panel is completely dry before you turn the monitor back on.
4. Plug in the monitor.
5. Turn on your PC and monitor.
11
MAIN PAGE

Adjusting Your Monitor
This chapter contains information about how to change display settings for your LCD Monitor. It is
designed with an On-Screen Display (OSD) menu to help you easily adjust to its optimum
performance.
Note:You must perform Auto Configuration before making any adjustment.
Summary of Control Buttons
There are three control buttons located at the lower middle part of the front panel of your monitor:
Select: Displays the OSD Main Menu and selects items for user adjustment.
Up (▲): Moves upward through the choice in the OSD Main Menu. If an adjustment bar is
displayed, this button increases the setting value.
Note: This key is also used as a direct key. When the OSD Main Menu is inactive, press this key
to open the OSD Brightness Menu.
Down (▼): Moves downward through the choice in the OSD Main Menu. If an adjustment bar
is displayed, this button decreases the setting value.
Note:This key is also used as a direct key. When the OSD Main Menu is inactive, press this key to
perform the Auto Configuration function.
Displaying the OSD Main Menu
You can use the OSD features to change the screen settings of your monitor. To display the OSD
Main Menu, press the Select button.
12
MAIN PAGE

The following table briefly describes each of the items in the OSD Main Menu.
Item Description
H POSITION Adjusts the horizontal (H) position of the displayed image. The default
setting of H position is in the middle.
V POSITION Adjusts the vertical (V) position of the displayed image. The default setting
of V position is in the middle.
CLOCK Adjusts the timing clock setting of the display. The default setting of the
timing clock is in the middle (50).
PHASE Adjusts the phase setting of the display. The optimum phase setting will be
different for different PCs.
AUTO Performs image auto adjustment function.
COLOR Opens the COLOR submenu where you can select BLUISH, WHITE,
REDDISH, or USER RGB SAVE options.
CONTRAST Adjusts the level of difference between light and dark areas of the image.
BRIGHTNESS Controls the brightness of the display by adjusting the light output of the
backlight.
OSD
MANAGER
Opens the OSD MANAGER submenu where you can select OSD
TIMEOUT, INFORM ON-OFF, H POSITION, or V POSITION options for
further adjusting.
MODE RECALL Recalls the manufacturing factory settings for current mode.
BACKLIGHT
INFO Displays the elapsed turn-on time of the backlight.
SERIAL NUMBER Displays the serial number of your monitor.
MODE INFO Displays the associated information of current mode used by your display.
Also, it contains the supported modes of this monitor.
LANGUAGE Opens the LANGUAGE submenu where you can select ENGLISH,
DEUTSCH, FRANÇAIS, ITALIANO or ESPANOL options.
EXIT Exits the Main Menu.
13
MAIN PAGE

Selecting Items in the OSD Menu
To select a specific item in the OSD Main Menu, or a specific item in the OSD submenu, use the
Up (▲)and Down (▼) buttons to move to that item, and then select it by pressing the Select
button.
Making Adjustments in the OSD Menu
Adjusting the Positions of the Displayed Images
To adjust the horizontal (or vertical) positions of the displayed images, follow the steps below:

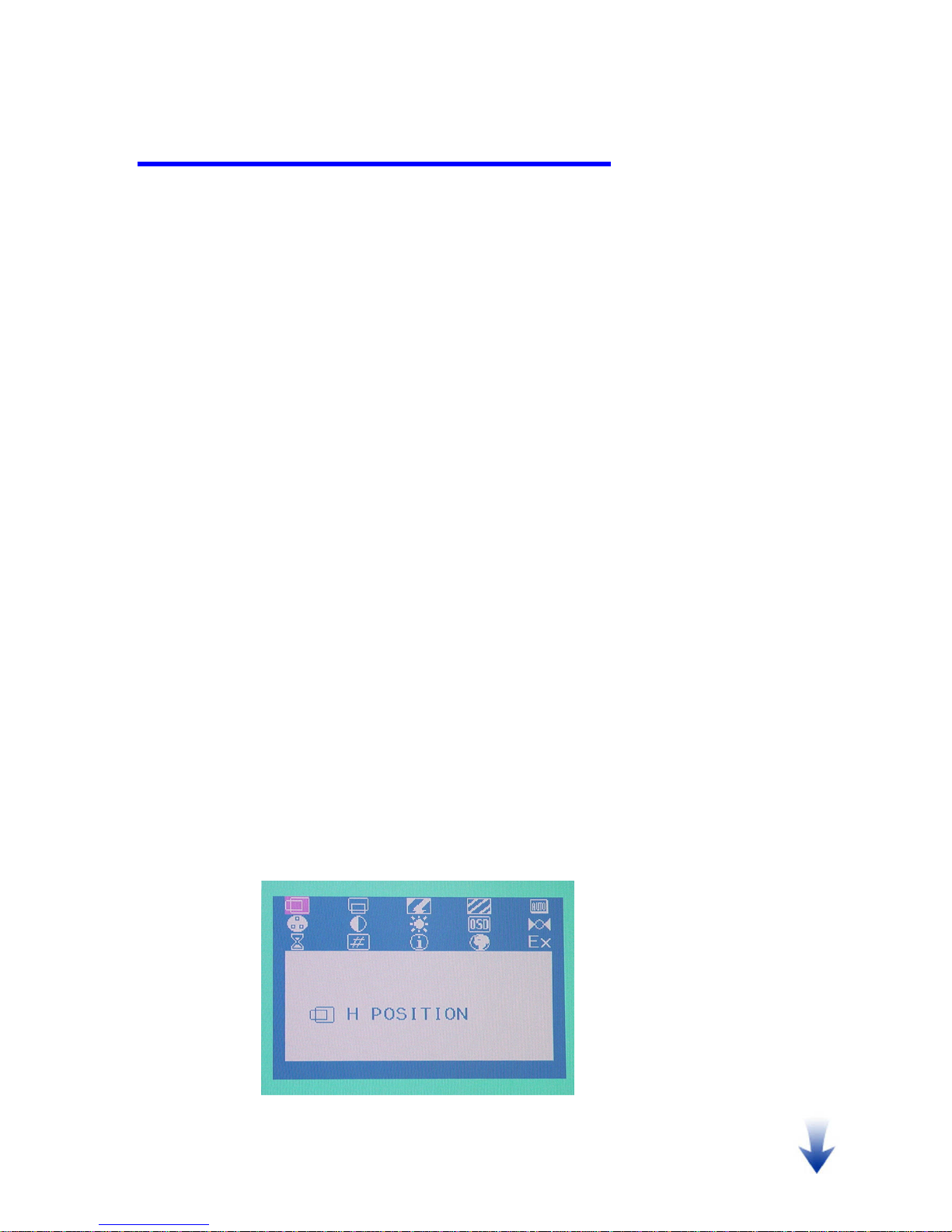

1. Open the OSD Main Menu by pressing the Select button.
2. Press the Up (▲)or Down (▼)buttons to move forward or backward to the H POSITION (or
V POSITION) icon and highlight it.
3. Press the Select button to select it. This will open the H POSITION (or V POSITION) bar with the
associated numeric value for your adjustment onscreen.
4. Press the Up (▲)or Down (▼)buttons to adjust its value. The range for adjustment is from 0
to 100. The Up (▲)button will increase the numeric value of the setting and the Down (▼)
button will decrease it.
Adjusting the Clock and Phase Settings
To adjust the clock (or phase) setting, follow the steps below:
14
MAIN PAGE

1. Open the OSD Main Menu by pressing the Select button.
2. Press the Up (▲)or Down (▼)buttons to move forward or backward to the CLOCK (or PHASE)
icon and highlight it.

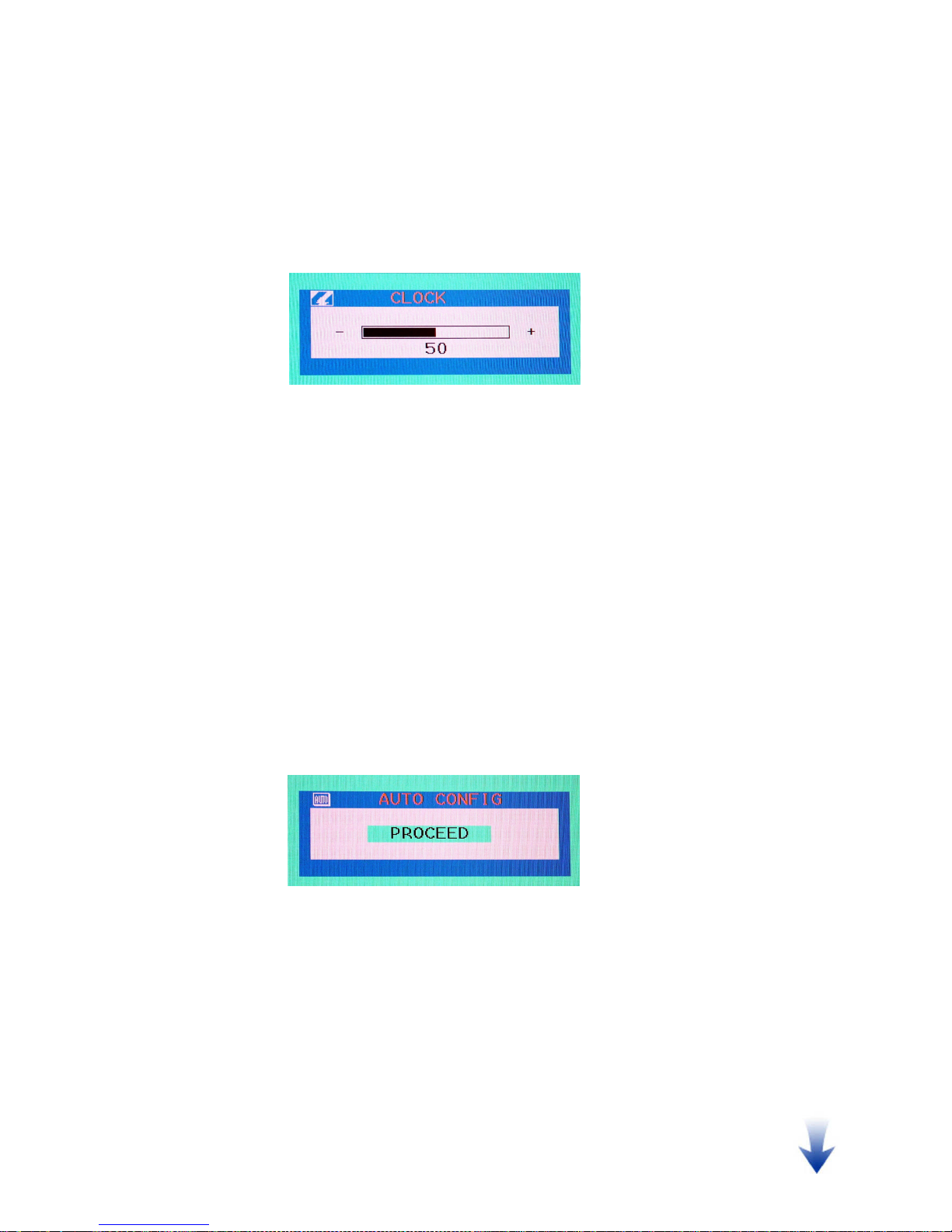

3. Press the Select button to select it. This will open the CLOCK (or PHASE) bar with the associated
numeric value for your adjustment onscreen.
4. Press the Up (▲)or Down (▼)buttons to adjust its value. The range for adjustment is from 0
to 100. The Up (▲)button will increase the numeric value of the setting and the Down (▼)
button will decrease it.
Tip: If Auto Configuration does not produce a clear image, try adjusting the PHASE setting.
Performing Auto Configuration in the OSD Menu
To perform auto adjustment in the OSD menu, follow the steps below:
1. Open the OSD Main Menu by pressing the Select button.
2. Press the Up (▲)or Down (▼)buttons to move forward or backward to the AUTO icon and
highlight it.
3. Press the Select button to select it. This will open the AUTO CONFIG submenu and start the
auto adjustment function.
After the auto adjustment is complete, the OSD will close.
Configuring Colors
To configure the color settings for your preference, follows the steps below:
1. Open the OSD Main Menu by pressing the Select button.
2. Press the Up (▲)or Down (▼)buttons to move forward or backward to the COLOR icon and
15
MAIN PAGE

highlight it.
3. Press the Select button to select it. This will open the COLOR submenu with four options in it:
BLUISH, WHITE, REDDISH, and USER RGB SAVE.
4. Press the Up (▲)or Down (▼)buttons to select the setting.
As you choose an item, the color setting of your display immediately updates to reflect this
setting.
You may also set your own color definitions. To do this, move to the USER RGB SAVE option,
and then press the Select button. This will open the USER RGB SAVE submenu.
Press the Up (▲)or Down (▼)buttons to chooseand move to oneof the five options (R, G, B,
EXIT AND SAVE, and EXIT WITHOUT SAVE) and then press the Select button to select it.
If the R, G or B options are selected, the foreground color Yellow will be changed to White (the
color of background is Pink). Then you may adjust its setting by pressing the Up (▲)or Down
(▼)buttons. This control may be helpful in achieving a more natural appearance in graphic
images and closer color matching between the printer and the monitor.
After you are finished adjusting the settings, save the new settings by choosing the EXIT AND
SAVE option. Or you may cancel the settings by choosing the EXIT WITHOUT SAVE option.
16
MAIN PAGE
