HP Sa3110 - VPN Server Appliance Operation and maintenance manual

hewlett-packard
vpn server appliance sa3110
regulatory information,
hardware installation,
and safety notices
Hewlett-Packard Company
HP: 5971-0869
P/N: A52445-001
March 2001

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
i
Disclaimer
Information in this document is provided in connection
with Hewlett-Packard Company products. No license,
express or implied, by estoppel or otherwise, to any
intellectual property rights is granted by this document.
Except as provided in Hewlett-Packard Company’s Terms
and Conditions of Sale for such products, Hewlett-Packard
Company assumes no liability whatsoever, and Hewlett-
Packard Company disclaims any express or implied
warranty, relating to sale and/or use of Hewlett-Packard
Company products including liability or warranties relating
to fitness for a particular purpose, merchantability, or
infringement of any patent, copyright or other intellectual
property right. Hewlett-Packard Company products are not
intended for use in medical, life saving, or life sustaining
applications.
Hewlett-Packard Company may make changes to
specifications and product descriptions at any time,
without notice.
This Hewlett-Packard VPN Server Appliance SA3110
Regulatory Information, Hardware Installation, and
Safety Notices document, as well as the software described
in it, is furnished under license and may only be used or
copied in accordance with the terms of the license. The
information in this manual is furnished for informational
use only, is subject to change without notice, and should
not be construed as a commitment by Hewlett-Packard
Company. Hewlett-Packard Company assumes no
responsibility or liability for any errors or inaccuracies that
may appear in this document or any software that may be
provided in association with this document.

ii Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Except as permitted by such license, no part of this
document may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means without the
express written consent of Hewlett-Packard Company.
Copyright © Hewlett-Packard Company 2001.

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
iii
Contents
INTRODUCTION..........................................................................................................1
SPECIFICATIONS.......................................................................................................................1
HARDWARE INSTALLATION........................................................................................................1
REGULATORY AND SAFETY........................................................................................................1
PHYSICAL SPECIFICATIONS....................................................................................2
ENVIRONMENTAL SPECIFICATIONS......................................................................3
ELECTRONIC AND ELECTRICAL SPECIFICATIONS AND STATEMENTS..........4
VAC ELECTRICAL AND CONNECTOR SPECIFICATIONS................................................................4
LITHIUM BATTERY USAGE STATEMENT......................................................................................4
COOLING REQUIREMENTS.......................................................................................5
HARDWARE INSTALLATION.....................................................................................6
MOUNTING OPTIONS ................................................................................................................6
CABLING REQUIREMENTS.........................................................................................................7
CONNECTING THE CABLES........................................................................................................8
REGULATORY STATEMENTS FOR THE HP VPN SERVER APPLIANCE SA311010
FEDERAL COMMUNICATIONS COMMISSION STATEMENTS, WARNINGS, AND
SERVICE REQUIREMENTS......................................................................................11
FCC PART 15 STATEMENT AND WARNING ..............................................................................11
SERVICE REQUIREMENTS........................................................................................................12
CANADIAN REGULATIONS .....................................................................................13
CANADIAN EQUIPMENT IDENTIFICATION REQUIREMENTS ........................................................13
EUROPEAN REGULATIONS.....................................................................................14
EUROPEAN COMMUNITY (CE) MARK OF CONFORMITY STATEMENT..........................................14
EUROPEAN POWER NOTICES ..................................................................................................15
EUROPEAN REGULATORY INFORMATION .................................................................................16
NOTICE TO UNITED KINGDOM USERS......................................................................................16

iv Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
GERMAN REGULATIONS.........................................................................................17
WARNUNGEN.........................................................................................................................17
ELEKTROSTATISCHE ENTLADUNG ...........................................................................................17
UMGANG MIT KABELN ............................................................................................................18
INTERAKTION MIT ANDEREN GERÄTEN....................................................................................18
VENTILATION IM INSTALLATIONSUMFELD.................................................................................18
JAPANESE REGULATIONS......................................................................................19
JAPANESE VOLUNTARY CONTROL COUNCIL FOR INTERFERENCE (VCCI) STATEMENT...............19
SAFETY NOTICES.....................................................................................................20

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
1
Introduction
This guide contains safety and regulatory information for
the HP VPN Server Appliance SA3110 as well as hardware
installation instructions. Read through this information
before installing the HP VPN Server Appliance SA3110.
Specifications
This guide contains the following specifications:
•Physical Specifications
•Environmental Specifications
•Electronic and Electrical Specifications
•Cooling Requirements
Hardware Installation
This guide contains the following hardware installation
instructions:
•Mounting Options
•Cabling Requirements
•Connecting the Cables
Regulatory and Safety
This guide contains the following regulatory and safety
information:
•Regulatory Statements
•Safety Notices

2Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Physical Specifications
The following table contains the physical specifications for
the HP VPN Server Appliance SA3110.
Feature Measurement
U.S. or Imperial
Units Metric Units
Width 17.0 in. 43.2 cm
Depth 10.0 in. 25.4 cm
Height 1.7 in.
(EIA standard 1U) 4.3 cm
Weight
(maximum
configuration)
7.8 lb. 3.5 kg

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
3
Environmental Specifications
The following table contains the environmental
specifications for the HP VPN Server Appliance SA3110.
Feature Measurement
U.S. or Imperial
Units Metric Units
Altitude Up to 15,000 ft. Up to 4,572 m
External operating
temperature 5°to 104°F 10 °to 40°C
Relative humidity 20% to 80%,
noncondensing 20% to 80%, noncondensing
Storage
temperature 32°to 122°F 0°C to 50°C

4Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Electronic and Electrical
Specifications and Statements
VAC Electrical and Connector Specifications
The following table contains the VAC electrical and
connector specifications for the HP VPN Server Appliance
SA3110.
Feature Specification
Power
requirements 100 – 240 Vac
4 - 2 A, 50/60 Hz, 75W
CAUTION: When installing multiple units
in a rack, do not overload the power circuit
to the rack.
Connectors One power cord connector
Two 10BaseT or 100BaseTX RJ-45 Ethernet
connectors
One S0 interface for a V.35 serial connection
One RS232 DB-9 male connector for a serial
cable to a terminal (console)
One asynchronous (Comm) module RS232
DB-9 male connector for modems with rates
up to 115.2 Kbps
Lithium Battery Usage Statement
There is danger of explosion if the battery is incorrectly
replaced. Replace only with the same or equivalent type
battery, as recommended by the manufacturer. Discard
used batteries according to the manufacturer's
instructions.

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
5

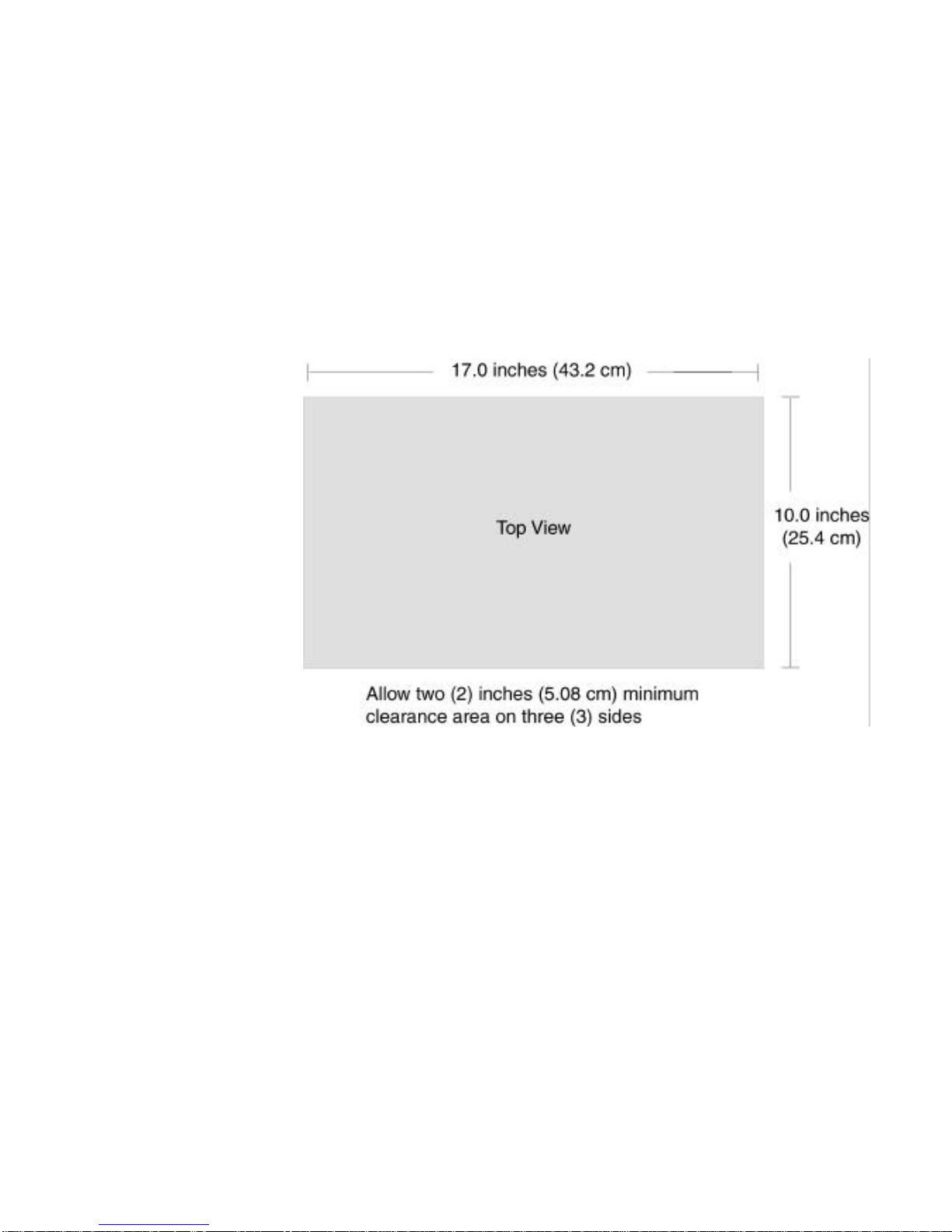

Cooling Requirements
To provide proper cooling, the HP VPN Server Appliance
SA3110 has air vents on the side panels, and a cooling fan
located inside the back panel. Plan to leave a minimum
clearance area of 2 inches (5 centimeters) around the side
and back panels. When you route cables from this HP VPN
device, be sure to avoid blocking the air vents and fan.

6Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Hardware Installation
Mounting Options
The HP VPN Server Appliance SA3110 has the following
mounting options:
•Standalone device
•Stationary rack
Standalone Device
You can place the HP VPN Server Appliance SA3110 on a
secure surface as a standalone device.
Stationary Rack
The HP VPN Server Appliance SA3110 ships with rack
mounting ears. Install the ears in the appropriate position
for your communications rack and mount the unit.
WARNING: The rack must be bolted to the floor, or anti-
tipping legs must be put in place before you install the
rack.
The HP VPN Server Appliance SA3110 is 1U in height. If
the unit is mounted in an enclosed communications rack,
the recommended maximum rack ambient temperature
should be no greater than 40 degrees Celsius.
Installation of the equipment in the rack should be such
that the amount of airflow required for safe operation for
the equipment is not compromised.
Mounting of the equipment in the rack should be such that
a hazardous condition is not achieved due to uneven
mechanical load.

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
7
Reliable earthing (grounding) of the unit should be
maintained. Particular attention should be given to supply
connections other than direct connections to the branch
circuit (such as power strips).
CAUTION: Ensure that a reliable earth ground is provided
for the rack.
Cabling Requirements
The HP VPN Server Appliance SA3110 is shipped with a
power cable and an RS232 DB-9 Admin cable. The power
cable is 6.5 feet (198 centimeters) in length, and the DB-9
Admin cable is 65 inches in length (160 centimeters). Use
the following information to plan for the additional cables
that you need.
The HP VPN Server Appliance SA3110 also comes with two
ferrite bead cables that attach to your 10BaseT/100BaseTX
Ethernet connection.
Management Console Cable Requirements
The HP VPN Server Appliance SA3110 back panel has two
standard RS232 DB-9 male connectors for a serial cross-
over cable (a null modem cable) to a management console,
or a serial straight-through cable to a modem. The cables
are not supplied.
Ethernet Cable Requirements
The HP VPN Server Appliance SA3110 supports twisted-
pair 10BaseT/100BaseTX Ethernet connections.
V.35 Serial Cable Requirements
The HP VPN Server Appliance SA3110 supports V.35 serial
connections, with the HP VPN Server Appliance SA3110
acting as a DTE device.

8Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Connecting the Cables
The following procedures describe how to connect the
cables on your HP VPN Server Appliance SA3110.
Note: After you complete the following cable
connections, refer to the Hardware Installation Map for
more information on configuring the HP VPN Server
Appliance SA3110 hardware.
Power Cable Connection
1. Remove the power cable from its packaging.
2. Ensure that the power switch on the back panel of the
HP VPN Server Appliance SA3110 is in the OFF (0)
position.
3. Connect the power cable to the cord socket connector
on the back panel of the chassis.
4. Connect the power cable to a power source.
10BaseT or 100BaseTX Ethernet
Connections
To connect your 10BaseT or 100BaseTX (Category 5 or
better, twisted pair cable) Ethernet connections:
1. Plug the RJ-45 Ethernet cable supplied with your
system to the sockets on the HP VPN Server Appliance
SA3110.
2. Plug your Ethernet cable into the end of the short
ferrite beaded cable supplied.

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
9
V.35 Serial Connections
If your HP VPN Server Appliance SA3110 is configured
with a V.35 serial interface, connect the serial cable (DTE)
to the interface designated S0.
Asynchronous Connections
HP VPN Server Appliance SA3110 devices use RS232 cable
with DB-9 male connectors for the Console and
Communication Asynchronous connections.

10 Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Regulatory Statements for the HP
VPN Server Appliance SA3110
The following sections describe safety and regulatory
information for the HP VPN Server Appliance SA3100.
Read through this information before installing the HP
VPN device in your network.
•FCC Warnings and Service Requirements
•Canadian Regulations
•European Regulations
•German Regulations
•German Regulations
•Japanese VCCI Statement
•Safety Notices

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
11
Federal Communications
Commission Statements, Warnings,
and Service Requirements
FCC Part 15 Statement and Warning
The HP VPN Server Appliance SA3110 has been tested and
found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. The HP VPN Server Appliance
SA3110 generates, uses, and can radiate radio-frequency
energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to
radio and television communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.

12 Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment. To
maintain compliance to the Emissions Requirements,
Shielded Cables must be use for some of the interfaces.
This manual documents these requirements.
Service Requirements
Do not attempt to repair or modify the HP VPN Server
Appliance SA3110. In the event of equipment malfunction,
all repairs to the HP VPN Server Appliance SA3110 should
be performed by Hewlett-Packard Company, or a Hewlett-
Packard Company-authorized representative. It is the
responsibility of users requiring service to report the need
for service to Hewlett-Packard Company.

Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
13
Canadian Regulations
Canadian Equipment Identification
Requirements
This digital apparatus does not exceed the Class B limits
for radio noise emissions from digital apparatus set out in
the interference-causing equipment standard entitled:
Digital Apparatus, CES-003 of Industry Canada.
Cet appareil numérique respecte les limites de bruits
radioelectriques applicables aux appareils numérique de
Class B prescrites dans le norme sur le matérial broullier:
Apparell numérique, NMB-003 édictée par industrie
Canada.
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user's authority to operate the equipment. To
maintain compliance to the Emissions Requirements,
Shielded Cables must be use for some of the interfaces.
This manual documents these requirements.

14 Hewlett-Packard VPN Server Appliance SA3110 Regulatory Information
European Regulations
European Community (CE) Mark of
Conformity Statement
This product is in conformity with the protection
requirements of EC Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to
electromagnetic compatibility. Hewlett-Packard Company
cannot accept responsibility for any failure to satisfy the
protection requirements resulting from a non-
recommended modification of the product, including the
fitting of non-Hewlett-Packard Company option cards.
This product has been tested and found to comply with the
limits for Class B Information Technology Equipment
according to CISPR 22/European EN 55022. The limits for
Class B equipment were derived for typical residential
environments to provide reasonable protection against
interference with licensed communication devices.
Properly shielded and grounded cables and connectors
must be used in order to reduce the potential for causing
interference to radio and TV communications and to other
electrical or electronic equipment.
This product bears the CE Mark complying with the EMC
and Low Voltage Directives.
This product also complies with the Low Voltage Directive
73/23/EEC via compliance with EN 60950.
