HP StorageWorks HA-Fabric Manager User manual

HP StorageWorks HA-Fabric
Manager Appliance installation
guide
Part number: AA–RU5FC–TE/958–000324–002
(March 2005) Third edition:

Legal and notice information
Copyright ©2003 — 2005-NaN Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard
shall not be liable for errors contained herein or for incidental or consequential damages in connection with
the furnishing, performance, or use of this material.
This document contains proprietary information, which is protected by copyright. No part of this document
may be photocopied, reproduced, or translated into another language without the prior written consent of
Hewlett-Packard. The information contained in this document is subject to change without notice.
Compaq Computer Corporation is a wholly-owned subsidiary of Hewlett-Packard Company.
Intel® and Celeron® are U.S. registered trademarks of Intel Corporation.
Microsoft®, MS-DOS®, MS Windows®, Windows®, Windows NT®, and Windows Server® are U.S.
registered trademarks of Microsoft Corporation.
Pentium® is a U.S. registered trademark of Intel Corporation.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein.
The information is provided “as is” without warranty of any kind and is subject to change without notice. The
warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements for
such products. Nothing herein should be construed as constituting an additional warranty.
Printed in the U.S.A.
HP StorageWorks HA-Fabric Manager Appliance installation guide
FW07.00.00/HAFM SW 08.06.00

Contents
Aboutthisguide ................ 9
Intendedaudience........................ 9
Relateddocumentation...................... 9
Documentconventionsandsymbols ............... 10
Rackstability....................... 11
HPtechnicalsupport...................... 11
HPauthorizedreseller................... 12
Helpfulwebsites ..................... 12
1Initialsetup ................. 13
HAFMappliancedescription .................. 13
Frontpanel.......................... 13
Factorydefaults ........................ 15
Kitcontents.......................... 15
2Installation.................. 19
InstallingtheHAFMappliance.................. 19
Attachingfrontandrearbrackets .............. 19
Installingsliderails .................... 23
InstallingtheHAFMappliance ............... 24
Connecting the HAFM appliance . . . . . . . . . . . . . . 26
PoweringontheHAFMappliance.............. 28
3Configuration ................ 31
Configuring HAFM appliance password and network addresses . . . 31
ConfiguringLCDpanelpassword .............. 31
ConfiguringpublicLANaddresses.............. 32
ConfiguringpublicLANaddressesusingDHCP...... 33
Manually configuring public LAN addresses . . . . . . . 34
ConfiguringprivateLANaddresses ............. 36
Manually configuring private LAN addresses using DHCP . 37
ManuallyconfiguringprivateLANaddresses....... 38
Configuring additional HAFM appliance information . . . . . . . . 40
AccessingtheHAFMappliancedesktop ........... 40
Installinganti-virussoftware................. 43
Configuring HAFM appliance names . . . . . . . . . . . . 43
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
iii

Configuring gateway and DNS server addresses . . . . . . . 45
LoggingintoHAFM.................... 49
ConfiguringWindows2000users ................ 50
Changingdefaultadministratorpassword .......... 51
Addinganewuser .................... 53
SettingHAFMappliancedateandtime.............. 56
Configuring and enabling event notification features . . . . . . . . 59
Configuringthecallhomeviadial-outfeature......... 60
Obtainingrequiredinformation ............ 60
Configuringcallhomefeature ............. 61
Enablingcallhomeviadial-out............. 61
Configuring identification information for directors and edge
switches ...................... 63
Configuring proactive services call home via LAN feature . . . . 64
Configuring call home via LAN on the HAFM appliance . . 65
EnablingcallhomeviaLAN.............. 65
Testingremotenotification ................. 66
Configuringe-maileventnotification............. 67
ARegulatorycomplianceandSafety ....... 69
Regulatorycompliance..................... 69
FederalCommunicationsCommission(FCC)notice....... 69
ClassAequipment .................... 69
ClassBequipment .................... 70
Declaration of conformity for products marked with FCC
logo—UnitedStatesonly.................. 70
Modifications....................... 71
Cables ......................... 71
Regulatorycomplianceidentificationnumbers......... 71
Laserdevice ....................... 71
Lasersafetywarning ................... 71
Certificationandclassificationinformation .......... 72
Laserproductlabel .................... 72
Internationalnoticesandstatements ............... 72
Canadiannotice(AvisCanadien).............. 72
ClassAequipment.................. 72
ClassBequipment.................. 73
EuropeanUnionnotice .................. 73
BSMInotice ....................... 74
Japanesenotice ..................... 74
Koreannotices ...................... 75
Safety ............................ 75
Batteryreplacementnotice................. 75
Taiwanbatteryrecyclingnotice............... 76
Powercords ....................... 76
Japanesepowercordnotice ................ 77
iv

Electrostaticdischarge................... 77
Preventingelectrostaticdischarge............ 77
Groundingmethods.................... 78
BToolsrequired ................ 79
Index..................... 81
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
v

Figures
1HAFMappliance......................... 13

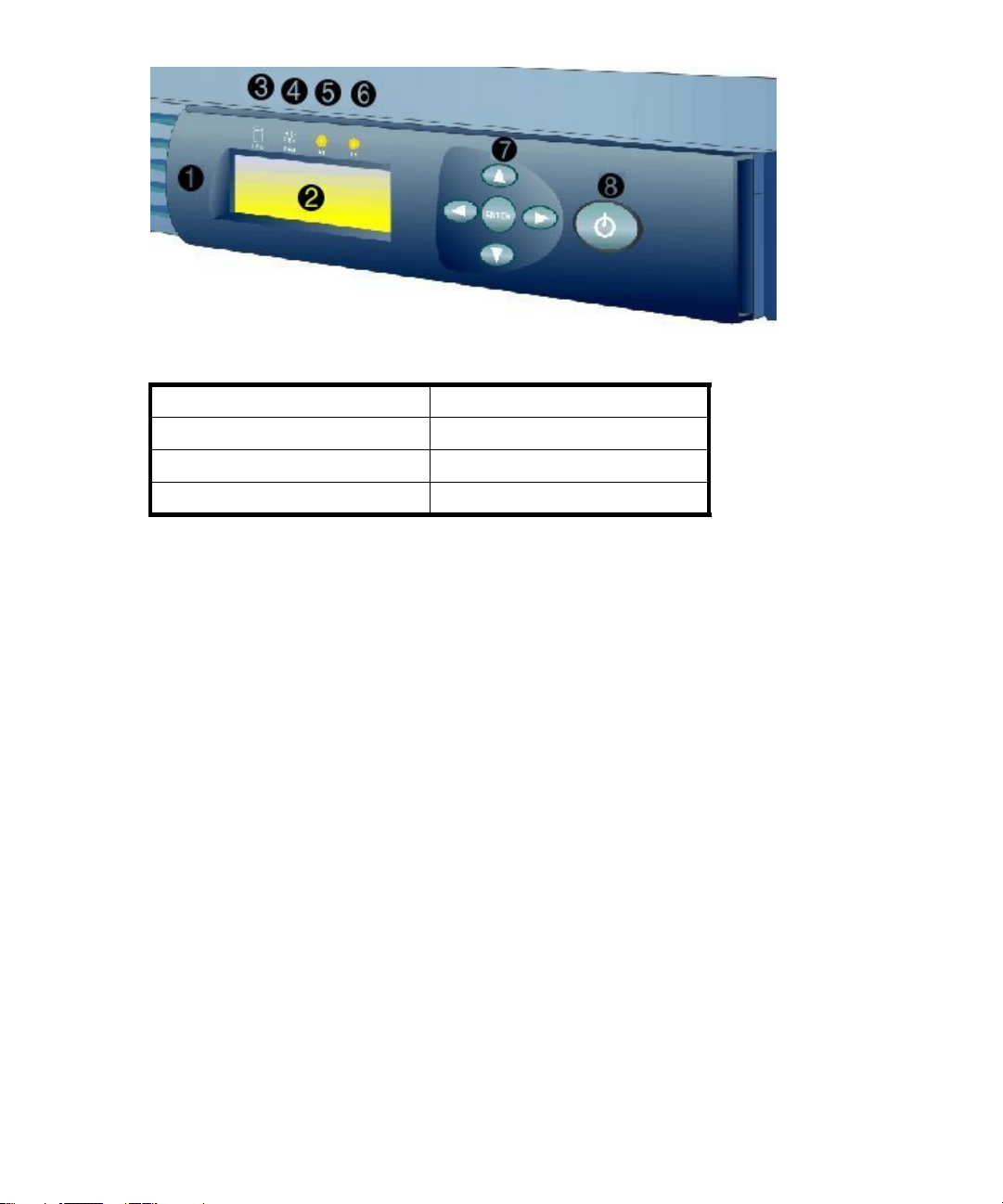

2HAFMappliancefrontpanelfeatures ................ 14
3Mountingbrackets,sliderails,andbarnuts ............. 18
4 Hexagonal-Nut standoff and mounting screws . . . . . . . . . . . . 18
5Three-holebarnutalignment.................... 20
6Frontandrearbracketassembly .................. 22
7Bracketinstallation ........................ 23
8Sliderailinstallation ....................... 24
9Applianceinstallation....................... 25
10Installhexagonal-nutstandoffsandsecuringscrews.......... 26
11 HAFM appliance connections . . . . . . . . . . . . . . . . . . . 28
12LCDpanelduringbootsequence ................. 29
13LCDpanel(InputPassword).................... 32
14LCDpanel(NewPassword).................... 32
15LCDpanel(SaveChange) .................... 32
16LCDpanel(InputPassword).................... 33
17LCDpanel(DHCPselection).................... 33
18LCDpanel(AutoGetDNS).................... 34
19LCDpanel(InputDNS)...................... 34
20LCDpanel(SaveChange) .................... 34
21LCDpanel(InputPassword).................... 35
22LCDpanel(LAN1IPaddress)................... 35
23LCDpanel(InputNetmask) .................... 35
24LCDpanel(InputGateway).................... 35
25LCDpanel(InputDNS)...................... 36
26LCDpanel(SaveChange) .................... 36
27LCDpanel(InputPassword).................... 37
28LCDpanel(UseDHCP)...................... 37
29LCDpanel(AutoGetDNS).................... 37
30LCDpanel(InputDNS)...................... 38
31LCDpanel(SaveChange) .................... 38
32LCDpanel(InputPassword).................... 38
33LCDpanel(InputLAN2IPaddress) ................ 39
34LCDpanel(InputNetmask) .................... 39
35LCDpanel(InputGateway).................... 39
36LCDpanel(InputDNS)...................... 39
37LCDpanel(SaveChange) .................... 40
38VNCAuthenticationscreen.................... 41
39WelcometoWindowsdialogbox................. 41
40LogOntoWindowsdialogbox.................. 42
41 System Properties dialog box (Network Identification tab) . . . . . . . 44
vi

42IdentificationChangesdialogbox................. 45
43LocalAreaConnection2Statusdialogbox............. 46
44LocalAreaConnection2Propertiesdialogbox ........... 47
45InternetProtocol(TCP/IP)Propertiesdialogbox ........... 48
46HAFM8.6LogIndialogbox................... 50
47UsersandPasswordsdialogbox.................. 51
48WindowsSecuritydialogbox................... 52
49ChangePassworddialogbox................... 53
50AddNewUserWizard(firstwindow) ............... 54
51AddNewUserWizard(secondwindow).............. 55
52AddNewUserWizard(thirdwindow) ............... 56
53Date/TimePropertiesdialogbox(Date&Timetab) ......... 57
54Date/TimePropertiesdialogbox(TimeZonetab) .......... 58
55CallHomeConfigurationdialogbox................ 61
56HAFMmainwindow....................... 62
57CallHomeEventNotificationSetupdialogbox ........... 63
58ConfigureIdentificationdialogbox................. 64
59Class1laserproductlabel .................... 72
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
vii

Tables
1Documentconventions....................... 10
2Factory-SetDefaults(HAFMappliance) ............... 15
viii

About this guide
This installation guide provides information to help you:
•Set up and connect the one rack unit (1U) high rack-mount HA-Fabric Manager
(HAFM) appliance.
•Configure HAFM appliance features.
•Back up and restore the HAFM appliance.
•Install the HAFM appliance and its slide-out shelf into a supported equipment
cabinet.
•Install or upgrade HAFM software.
•Troubleshoot and resolve HAFM appliance and application problems.
Intended audience
This book is intended for use by administrators and technicians who are experienced
with the following:
•Fibre Channel technology.
•StorageWorks Fibre Channel switches by Hewlett-Packard.
Related documentation
For a list of corresponding documentation, see the Related Documents section of the
Release Notes that came with this product. For the latest information, documentation,
and firmware releases, please visit the HP StorageWorks web site:
http://h18006.www1.hp.com/storage/saninfrastructure.html.
For information about Fibre Channel standards, visit the Fibre Channel Industry
Association web site, located at: http://www.fibrechannel.org.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
9

Document conventions and symbols
This document follows the conventions in Table 1.
Table 1 Document conventions
Convention Element
Medium blue text: Figure 1 Cross-reference links and e-mail addresses
Medium blue underlined text
(http://www.hp.com)
Web site addresses
Bold font •Key names
•Text typed into a GUI element, such as
into a box
•GUI elements that are clicked or
selected, such as menu and list items,
buttons, and check boxes
Italics font Text emphasis
Monospace font •File and directory names
•System output
•Code
•Tex typed at the command-line
Monospace, italic font •Code variables
•Command-line variables
WARNING!
Text set off in this manner indicates that failure to follow directions in the warning
could result in bodily harm or death.
CAUTION:
Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or data.
10 About this guide

NOTE:
Text set off in this manner presents commentary, sidelights, or interesting points
of information.
Rack stability
Rack stability protects personnel and equipment.
WARNING!
To reduce the risk of personal injury or damage to the equipment, be sure that:
•The leveling jacks are extended to the floor.
•The full weight of the rack rests on the leveling jacks.
•In single rack installations, the stabilizing feet are attached to the rack.
•In multiple rack installations, the racks are coupled.
•Only one rack component is extended at any time. A rack may become unstable if
more than one rack component is extended for any reason.
HP technical support
Telephone numbers for worldwide technical support are listed on the HP support web
site:http://www.hp.com/support/.
Collect the following information before calling:
•Technical support registration number (if applicable)
•Product serial numbers
•Product model names and numbers
•Applicable error messages
•Operating system type and revision level
•Detailed, specific questions
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
11

For continuous quality improvement, calls may be recorded or monitored.
HP strongly recommends that customers sign up online using the Subscriber’s choice
web site at http://www.hp.com/go/e-updates.
•Subscribing to this service provides you with e-mail updates on the latest product
enhancements, newest versions of drivers, and firmware documentation updates
as well as instant access to numerous other product resources.
•After signing up, you can quickly locate your products by selecting Business
support and then Storage under Product Category.
If you still have a question after reading this guide, contact an HP authorized service
provider or access our Web site: http://www.hp.com.
HP authorized reseller
For the name of your nearest HP-authorized reseller:
•In the United States, call 1-800-345-1518.
•Elsewhere, visit the HP web site: http://www.hp.com.ThenclickContactHPto
find locations and telephone numbers.
Helpful web sites
For third-party product information, see the following HP web sites:
•h
ttp://www.hp.com
•http://www.hp.com/go/storage
•http://www.hp.com/support/
•http://www.docs.hp.com
12 About this guide

1 Initial setup
HAFM appliance description
The HAFM appliance (Figure 1) is a one rack unit (1U) high rack-mount device with
the High Availability Fabric Manager (HAFM) application installed. HAFM provides
a graphical user interface (GUI) for operating and managing the Directors and Edge
Switches.
Figure 1 HAFM appliance
The HAFM appliance also includes a TightVNC Viewer version 1.2.7 client-server
software control package that provides remote network access (through a standard web
browser) to the server desktop, enabling remote users to manage the Directors and
Edge Switches using the HAFM and Element Manager applications. For information
about the TightVNC Viewer, refer to http://www.tightvnc.com.
NOTE:
The HAFM appliance and related applications provide a GUI to monitor and manage
Directors and Edge Switches, and are a dedicated hardware and software solution
that should not be used for other tasks. HP tests the HAFM application installed on
the HAFM appliance, but does not compatibility test other third-party software.
Modifications to the HAFM appliance hardware or installation of additional software
(including patches or service packs) are not supported, and may interfere with normal
operation.
Front panel
Figure 2 shows the HAFM appliance front panel indicators and controls.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
13

Figure 2 HAFM appliance front panel features
1— Push label (opens LCD panel) 5— LAN 1 status indicator
2— Liquid Crystal Display (LCD) 6— LAN 2 status indicator
3—HardDiskD
rive (HDD) LED 7—LCDnaviga tion buttons
4—FanLED 8—Poweron/offbutton
14 Initial setup

Factory defaults
Table 2 lists factory-set defaults for the HAFM appliance.
Table 2 Factory-Set Defaults (HAFM appliance)
Item Default
Liquid crystal display (LCD) front panel password 9999
Tight VNC Viewer password (case sensitive) password
Windows 2000 operating system user name (case
sensitive)
Administrator
Windows 2000 operating system password (case sensitive) password
HAFM application user name (case sensitive) Administrator
HAFM application password (case sensitive) password
LAN 1 (public interface) IP address 192.168.0.1
Subnet mask 255.0.0.0
Gateway address 0.0.0.0
LAN 2 (private interface) IP address 10.1.1.1
Subnet mask 255.0.0.0
Gateway address 0.0.0.0
Kit contents
The fully-configured HAFM appliance is delivered with a:
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
15

•HAFM appliance with the following minimum specifications:
• Intel® Pentium® 4 processor with an 1,800 megahertz (MHz) or greater
clock speed.
• 1,024 megabyte (MB) or greater RAM.
• 40 gigabyte (GB) or greater internal hard drive.
• 1.44 MB 3.5-inch slim-type disk drive and slim-type compact disk-rewritable
(CD-RW) drive.
• 56K internal modem and modem adapter with RJ-11 connector.
• Two 10/100 Mbps Ethernet adapters with RJ-45 connectors.
• Hinged liquid crystal display (LCD) front panel.
• Microsoft Windows® 2000 Professional operating system.
• TightVNC™ Viewer Version 1.2.7 client-server software control package that
provides remote network access (through a standard web browser) to the
HAFM appliance desktop.
Current platforms may ship with more enhanced hardware, such as a faster processor,
additional random-access memory (RAM), or a higher-capacity hard drive.
16 Initial setup

•Ship group kit, containing:
•HAFMappliance.
• Ten (10) square alignment washers (required for rack-mounting in HP 9000,
10000 and 11000 series racks).
• HAFM application CD-ROM.
•HAFMboot/restoreCD-ROM.
• Norton AntiVirus CD-ROM.
• Modem cable with RJ-11 connectors.
•CD-RW(blank).
•HAFMReleaseNotes.
•10–ft.Ethernetcable.
•PDUpowercord.
• 110–volt AC power cord.
• Null modem cable.
• Modem phone cable.
• Generic documentation for the HAFM appliance.
•Rack-mount hardware kit, containing:
• Two (2) rear brackets (short) that attach to the cabinet (3.0 inches).
• Two (2) optional rear brackets (long) that attach to the cabinet (15.25
inches).
• One (1) left slide rail that attaches to the HAFM appliance (19.25 inches).
• One (1) right slide rail that attaches to the HAFM appliance (19.25 inches).
• Two (2) two-hole bar nuts for bolting the front and rear brackets together.
• Four (4) three-hole bar nuts for attaching the brackets to the rack-mounting
standards.
Figure Figure 3 illustrates the front and rear brackets, slide rails, and bar nuts.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
17

Figure 3 Mounting brackets, slide rails, and bar nuts
•Mounting screws:
• Ten (10) pan-head Phillips screws (#10 x 1/2) with split lock and flat washers
that secure the bracket assemblies to the vertical rack-mounting standards.
• Ten (10) pan-head Phillips screws (M4 x 10 centimeter) with split lock and
flat washers that secure the slide rails to the HAFM appliance.
• Four (4) flat-head Phillips machine screws (#8 x 7/16) that secure the
two-hole bar nuts, front brackets, and rear brackets.
• Two (2) hexagonal-nut standoffs.
Figure 4 illustrates the standoff and mounting screws.
Figure 4 Hexagonal-Nut standoff and mounting screws
18 Initial setup

2 Installation
The HAFM appliance can be installed in a customer-supplied cabinet as long as the
following requirements are met:
•The mounting standard-to-mounting standard cabinet depth must be from 18
inches to 32 inches to accommodate the rack mount kit. The HP rack mount kit
must be used to install the HAFM appliance.
•It is the customer’s responsibility to accurately calculate power requirements
for the HAFM appliance and switches installed in the cabinet. HP is not
responsible for power-related problems resulting from equipment installed in
a customer-supplied cabinet.
Installing the HAFM appliance
Perform the following to install the HAFM appliance in the cabinet:
•Assemble and attach the front and rear brackets to the cabinet.
•Attach the left and right slide rails to the HAFM appliance.
•Install the HAFM appliance in the cabinet.
• If you are not installing the HAFM appliance in a cabinet, go to Connecting
the HAFM appliance.
Attaching front and rear brackets
To assemble the front and rear brackets and attach the assemblies to the cabinet:
1. Consult with the customer and determine the cabinet installation position for
the HAFM appliance. The HAFM appliance is 1.75 inches or one rack unit
(1U) high.
2. The depth of the equipment cabinet determines if the long rear mounting
bracket or short rear mounting bracket is used.
a. Using a tape measure (provided by installation personnel), measure and
record the depth of the left side of the cabinet from the inside of the
front vertical rack-mounting standard to the inside of the rear vertical
rack-mounting standard.
HP StorageWorks HA-Fabric Manager Appliance installation guide FW07.00.00/HAFM
SW 08.06.00
19

b. Measure and record the depth of the right side of the cabinet from the
inside of the front vertical rack-mounting standard to the inside of the
rear vertical rack-mounting standard.
3. Using a #2 Phillips screwdriver and eight (8) of the ten pan-head Phillips
screws (#10 x 1/2) and, if you are installing the server in an HP 9000, 10000
or 11000 rack, eight (8) square alignment washers, attach four (4) three-hole
bar nuts to the rack-mounting standards as follows:
a. Aligneachthree-holebarnutwiththerack-mountingstandardasshownin
Figure 5. Ensure each bar nut is mounted with the narrow side (drilled
holes-to-edge side) facing the inside of the cabinet.
Figure 5 Three-hole bar nut alignment
NOTE:
Ensure the bar nut screw washers to do not overlap the inside edges of
the rack-mounting standards and mounting brackets. Washer overlap may
interfere with slide rail operation.
20 Installation
