HP StorageWorks 8000 - NAS User manual

hp surestore nas 8000
user’s guide
Edition March 2002
Part number A7418-96001
user’s
guide

2
Notice
© Hewlett-Packard Company, 2002. All rights
reserved.
Hewlett-Packard Company makes no warranty of
any kind with regard to this material, including,
but not limited to, the implied warranties of
merchantability and fitness for a particular
purpose. Hewlett-Packard shall not be liable for
errors contained herein or for incidental or
consequential damages in connection with the
furnishing, performance, or use of this material.
This document contains proprietary information,
which is protected by copyright. No part of this
document may be photocopied, reproduced, or
translated into another language without the prior
written consent of Hewlett-Packard. The
information contained in this document is subject
to change without notice.
Format Conventions
WARNING Identifies a hazard that can cause
personal injury
Caution Identifies a hazard that can cause
hardware or software damage
Note Identifies significant concepts or
operating instructions
Computer font — used for all text to be typed
verbatim: all commands, path names, file names,
and directory names also, text displayed on the
screen
Italics font — used for variables used in
commands
Bold font — used for screen menu options and
controls
Trademark Information
Java and all Java-based marks are trademarks or
registered trademarks of Sun Microsystems, Inc.
in the U.S. and other countries.
Microsoft, Windows, and Windows NT are U.S.
registered trademarks of Microsoft Corporation.
UNIX is a registered trademark of The Open
Group.

1
1HP NAS 8000 Overview 9
What is NAS? 9
Product Overview 10
Hardware 10
Software 12
Product Configurations 13
Direct-Attached Configuration 13
Direct-Attached Configuration with High Availability 14
SAN Configuration 17
SAN Configuration with High Availability 18
User’s Guide Overview 19
2NAS 8000 Concepts 21
Understanding Physical and Logical Storage 21
Physical Storage 22
Disk Drives 22
Logical Storage 23
Logical Unit Number 23
Volume Groups 23
File Volumes 23
Directories 23
Snapshots 23
Understanding High Availability 24
Cluster Components 24
Failover Models 25
Active/Active Failover Model 26
Active/Passive Failover Model 26
Resource Model 26
contents

2
Failover Packages 27
Eliminating Single Points of Failure 27
High-Availability Options in the Command View NAS Web
Interface 28
About HP NAS Server Security 29
HP NAS Server Security in a UNIX-only Environment 29
HP NAS Server Security in an NT-only Environment 30
Share-Level Security 31
User Level (Domain) Security 31
Permissions 32
Sharing Files Across Multiple Platforms 32
Accessing Files Created by UNIX Clients 33
Accessing Files Created by NT Clients 34
3Getting Started 35
Using the Command View NAS Web Interface 35
Downloading the Sun Microsystems Java™ Plug-In 38
Using Online Help 39
Printing Help Information 39
Task Overview 40
Prerequisites 40
Management Tasks 40
4Configuring Your System and Network 43
Using the Configuration Wizard 44
Identifying your NAS Server 46
Shutting Down and Restarting 47
Direct-Attached and SAN Configuration 47
High-Availability Configuration 48
Configuring System Security 49
Editing the Command View NAS Access List 49
Setting an Administrative Password 49
Configuring System Settings 51
Defining the System Name 51
Setting the Date and Time 52
Assigning Contact Information 52

3
Configuring TCP/IP Settings 54
Defining IP Addresses 54
Defining the Command View Management Port 56
Enabling Bonding 56
Setting the Domain Name Service (DNS) 58
Configuring High-Availability Settings 59
Cluster Configuration Overview 59
Entering Node Settings 61
Defining the Cluster Name 62
Defining the Quorum Server 62
Setting Timeouts and Intervals 63
Starting and Stopping Clustering Services 64
Configuring Networking Settings 66
Windows Settings 66
Specifying WINS Properties 66
Defining Windows Security 66
UNIX Settings 68
Specifying NIS Properties 68
Specifying NFS Properties 69
Configuring Alert Settings 70
Defining SNMP Alerts 70
Defining Email Alerts (SMTP) 71
Setting Up the Remote System Log 72
Configuring User and Group Mapping 73
Understanding User and Group Mapping 73
Importing and Exporting Users or Groups 75
Configuring UPS Connections 76
5Managing Your Storage 77
Managing Arrays and LUNs 78
Viewing the Storage Array Summary 78
Scanning for New Storage 79
Renaming an Array 79
Using Advanced Array Management 80
Creating a LUN 80
Deleting a LUN 81

4
Managing Volume Groups 82
Viewing Volume Groups 82
Creating a Volume Group 82
Editing a Volume Group 83
Deleting a Volume Group 84
Managing Failover Packages 85
Viewing Failover Packages 85
Adding a New Package 86
Editing a Package 87
Deleting a Package 88
Starting a Package 88
Stopping a Package 89
Failing Over a Package 89
Failing Back a Package 90
Managing File Volumes 91
Viewing File Volume Information 91
Creating a New File Volume 92
Editing a File Volume 93
Deleting a File Volume 94
Managing Shares and Exports 95
Viewing Shares and Exports 95
Creating or Editing an SMB Share 96
Creating or Editing an NFS Export 97
Deleting a Share or Export 97
Verifying that the HP NAS Server Is Accessible to Users 98
Creating a Directory 98
Renaming a Directory 99
Deleting a Directory 99
Replicating Data with Snapshots 100
Using Snapshots 100
Creating a Snapshot 101
Editing a Snapshot 102
Deleting a Snapshot 102
Scheduling a Snapshot 103
Managing Quotas 105
Understanding Quotas 105

5
Enabling or Disabling Quotas 105
Managing User Quotas 106
Configuring User Quotas 106
Adding a User Quota 107
Editing a User Quota 107
Deleting a User Quota 108
Importing and Exporting User Quotas 108
Managing Group Quotas 109
Configuring Group Quotas 109
Adding a Group Quota 110
Editing a Group Quota 110
Deleting a Group Quota 111
Importing and Exporting Group Quotas 111
6Monitoring the System 113
Viewing the Status Summary 115
Storage Array Status 116
Environment 116
Performance 116
Monitoring the NAS Server 117
Monitoring Events 117
Viewing the Hardware Event Log 117
Viewing the System Log 118
Monitoring the Environment 119
Viewing Temperature Status 119
Viewing System Voltage Status 119
Viewing Cooling Fan Status 120
Monitoring Components 121
Viewing Memory Status 121
Viewing Power Supply Status 121
Viewing UPS Status 122
Monitoring Performance 123
Viewing CPU Utilization 123
Viewing Network Activity 123
Viewing Client Activity 124
Monitoring High-Availability Settings 125
Monitoring Nodes 125

6
Monitoring Failover Packages 125
7Enabling Virus and Backup Software 127
Using NAS Virus Protection 128
Overview 128
Updating the Virus File 130
Using Scheduled Scan Control 131
Understanding Scheduled Scan Control 131
Creating and Editing a Scan Task 131
Performing a Scan Task and Viewing the Status 133
Copying a Scan Task 134
Deleting a Scan Task 134
Using Real Time Protection Control 135
Understanding Real Time Protection Control 135
Creating and Editing an RTP Task 135
Changing RTP Global Settings 136
Deleting an RTP Task 137
Managing Quarantined Files 137
Viewing Virus Logs 139
Using the Backup Agent 140
Connecting Tape Devices 141
Using HP OpenView OmniBack II and the NAS Backup Agent 141
Enabling the NAS 8000 Backup Agent 142
Importing the Client to an OmniBack II Cell 143
Configuring a Backup Device 144
Configuring the Tape Drives 144
Backing Up Files 145
Managing and Configuring the HP OpenView OmniBack II NAS
Agent 147
Snapshot Behavior: Per-volume Snapshot Backup 148
Troubleshooting the OmniBack Agent 149
Enabling Snapshots 152
8Recovering from a Disaster 153
Restoring the NAS Server Configuration 154
Restoring Storage Array Settings 155
Restoring the NAS Server and Storage Array 157

7
9Integrating with Network Backup
Applications 159
Using HP OpenView OmniBack II 161
OmniBack II User Interface for Windows NT 162
OmniBack II User Interface for UNIX 164
Using Computer Associates ARCserve 2000 165
ARCserve 2000 for Windows NT 165
Using Veritas Backup Exec 167
Using Veritas NetBackup 169
NetBackup for Windows 169
NetBackup for UNIX 170
Using IBM Tivoli Storage Manager 171
Storage Manager for Windows 171
Storage Manager for UNIX 172
Using Legato NetWorker 173
Networker for Windows 173
Networker for UNIX 174
10 Obtaining Product Support and Software
Upgrades 175
Contacting HP NAS Server Service and Support 176
HP NAS Server Support Web Site 176
Contact Customer Support 176
Viewing the Command View NAS License 177
Viewing Open Source Code 178
Using Array Diagnostics 179
Upgrades 180
Upgrading NAS Server Software 180
Upgrading Storage Array Firmware 181
ANAS 8000 System and Hardware Upgrades 183
System Upgrades 183
Upgrading to a High-Availability System 183
Hardware Upgrades and Replacements 184
NAS Server Upgrades 184

8
Adding NICs 184
Assigning IP Addresses 186
Firmware Upgrades 186
Standard Server Upgrades 186
Storage Array Upgrades 187
Adding Disks 187
Modifying Storage Settings 187
Tape Library Upgrade 190
Adding a Tape Library 190
Installing SCSI or FC HBA Cards 190
Firmware Upgrades 194
UPS Upgrade 195
Adding a UPS 195
UPS Product Information 196
BSNMP Trap Definitions 197
CLegal Information 201
Acknowledgments 201
HP Surestore Software License Agreement 203
Safety and Regulatory Information 208
HP NAS Server Warranty Information 209
Warranty Information 209
Hewlett-Packard Limited Warranty Statement 211
DCommand View SDM Limitations 213
ECommand View NAS Command Line Interface
221
FGlossary 223

HP NAS 8000 Overview 9
HP NAS 8000 Overview
What is NAS?
Network-attached storage (NAS) is a storage solution attached to a network
that is optimized for file sharing and serving. NAS provides a simple,
reliable, and cost-effective way to add storage to networks. Because a NAS
device is designed specifically for storage, it requires minimal setup and is
easily maintained. NAS devices also have built-in redundancy features to
protect against failure and downtime.
A NAS solution typically consists of a server, a set of disk drives, a custom
operating system, and a built-in web interface for managing storage. NAS
devices provide file services to a mixture of clients that operate in a
heterogeneous network environment. A NAS device can be added to an
existing LAN network to increase storage capacity.
How is NAS different from SAN (Storage Area Network)? In many respects
they are similar and can use the same hardware, but the SAN requires its
own high-speed storage network, while the NAS lives on an already existing
LAN. A NAS device is designed to move files, whereas the SAN is designed
to provide block-level data at high speeds to application servers. SAN
solutions are typically more difficult to implement and more expensive than
NAS solutions.
1

10 HP NAS 8000 Overview
Product Overview
The HP Surestore Network-Attached Storage (NAS) 8000 series offers several
storage solutions that attach directly to your network and provide shared file
storage for workgroups and departments.
Hardware
The NAS 8000 solution can include one or more of the following, sold
separately or pre-installed in a rack:
■A NAS server with a custom operating system.
—Network interface cards (NICs). The server comes with one 10/100TX
port, and you can add up to two dual-port 10/100TX NICs or two
single-port gigabit NICs.
■Storage arrays:
—Direct-attached to the NAS server. The HP Virtual Array (VA) 7100
and 7400 series can have up to 15 drives (18, 36 and 73 GB
capacity); the VA7400 series supports up to six JBODs attached to
each array for additional storage capacity.
—Remotely connected via a SAN network. HP VA and XP arrays are
supported.
■Fiber channel switches for multiple array configurations.
■Quorum server with cluster management software for high-availability
solutions.

HP NAS 8000 Overview 11
HP NAS 8000 Overview

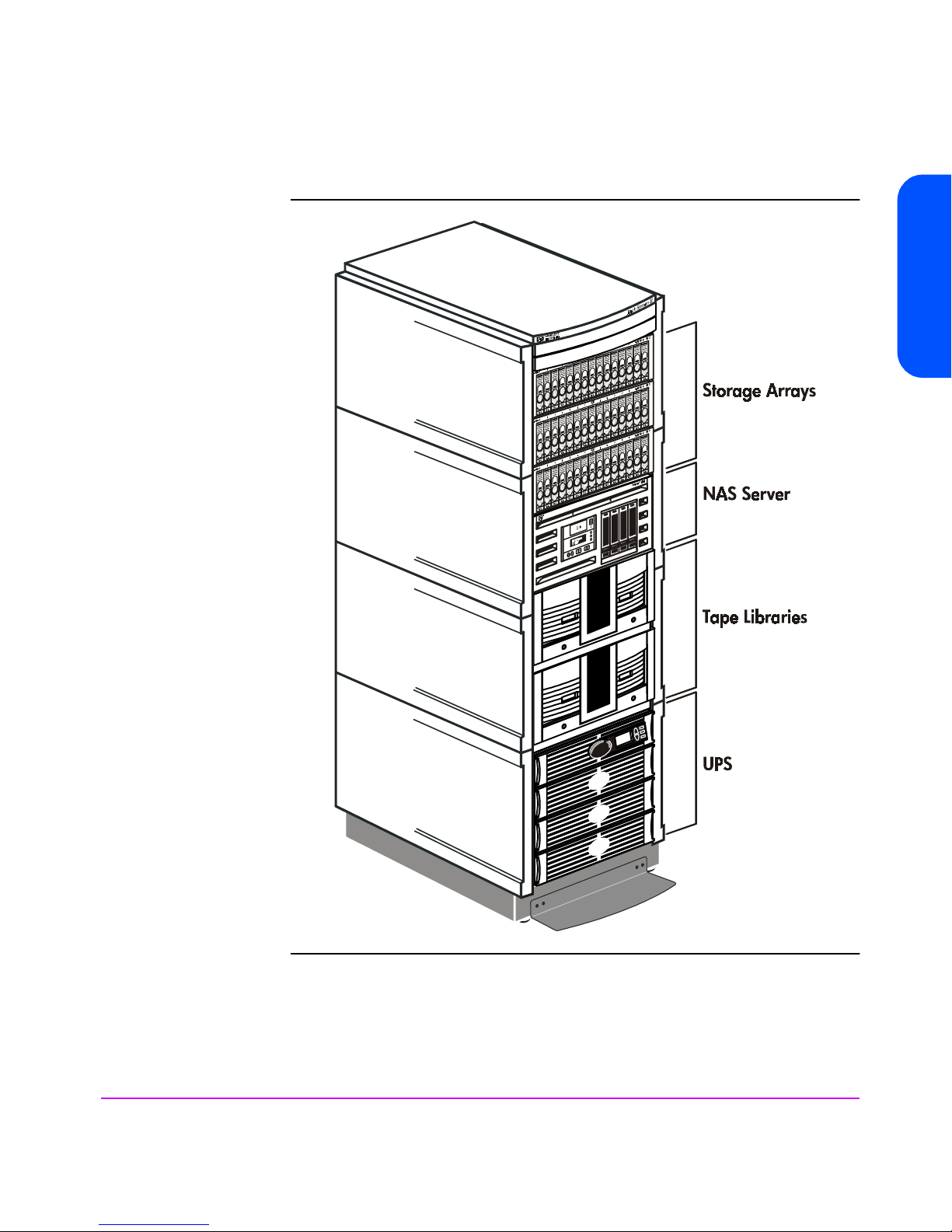

Figure 1 NAS Racked System
Other accessories sold separately are:
■Uninterruptible power supply (UPS).
■HP Surestore tape libraries.

12 HP NAS 8000 Overview
Software
The NAS 8000 server comes preloaded with:
■A custom operating system optimized for file serving. A command line
interface is available for advanced server management.
■HP Command View NAS management software that runs in a web
browser. This graphical user interface is the primary tool for managing the
NAS 8000. Links to Command View SDM are provided for advanced
array management.
■HP Virus Guard virus protection software, which is integrated with the
NAS operating system and Command View NAS.
■A server backup agent for HP OmniBack II 4.1, which is integrated with
the NAS operating system and Command View NAS.
■File volume snapshot capability for data protection.
If you do not use the NAS 8000 backup agent, you can backup your data
using one of the following network backup software products:
■HP OmniBack II
■Computer Associates ARCserve 2000
■Veritas Backup Exec
■Veritas NetBackup
■IBM Tivoli Storage Manager
■Legato Networker
You can also integrate the NAS 8000 with several network management
software products, including HP OpenView Network Node Manager. For
more information about network management plug-ins, see http://
www.hp.com/support/emsp to learn about the HP Surestore Enterprise
Integrations product.
Additional NAS 8000 integrations with other products, such as Oracle and
SQL server may be possible. See http://www.hp.com/support/nas8000 for
a current description of supported product integrations.

HP NAS 8000 Overview 13
HP NAS 8000 Overview
Product Configurations
The NAS 8000 is available in four configurations:
■Direct-attached storage configuration
■Direct-attached storage configuration with high availability
■SAN configuration
■SAN configuration with high availability
Depending on the configuration of your NAS server, different options display
in the Command View NAS web interface.
Direct-Attached Configuration
With direct-attach configurations, one HP VA7100 or VA7400 series disk
array is connected to the NAS server using one Fibre Channel (FC) Host Bus
Adapter (HBA). In addition:
■The server includes one internal NIC with the option of adding two
additional NICs.
■The server may include two SCSI or FC HBAs for connecting to an optional
tape library.
■The server communicates with an optional UPS using a serial connection.

14 HP NAS 8000 Overview

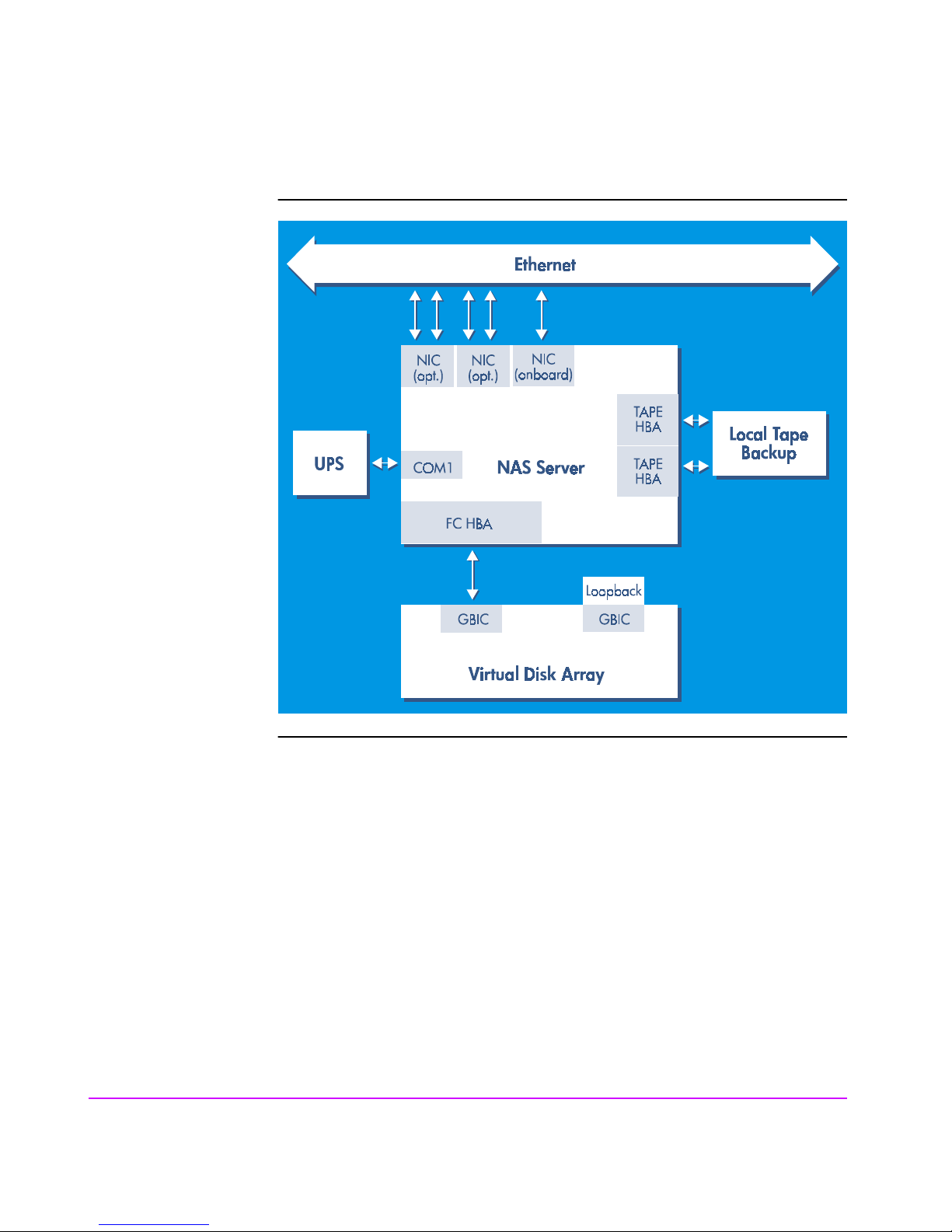

Figure 2 Direct Attached Configuration
Direct-Attached Configuration with High Availability
In direct-attached configurations with high availability, one or two VA7100
or VA7400 series disk arrays are attached to a cluster consisting of two NAS
servers and a Quorum server that manages the high-availability services for
the cluster. In addition:
■A single HBA is pre-installed in each server.
■A separate UPS is required for each NAS server.
■Tape backup can be shared by both NAS servers.

HP NAS 8000 Overview 15
HP NAS 8000 Overview
Figure 3 Direct-Attached Configuration with High Availability

16 HP NAS 8000 Overview
■Multiple arrays may also be attached using FC switches.

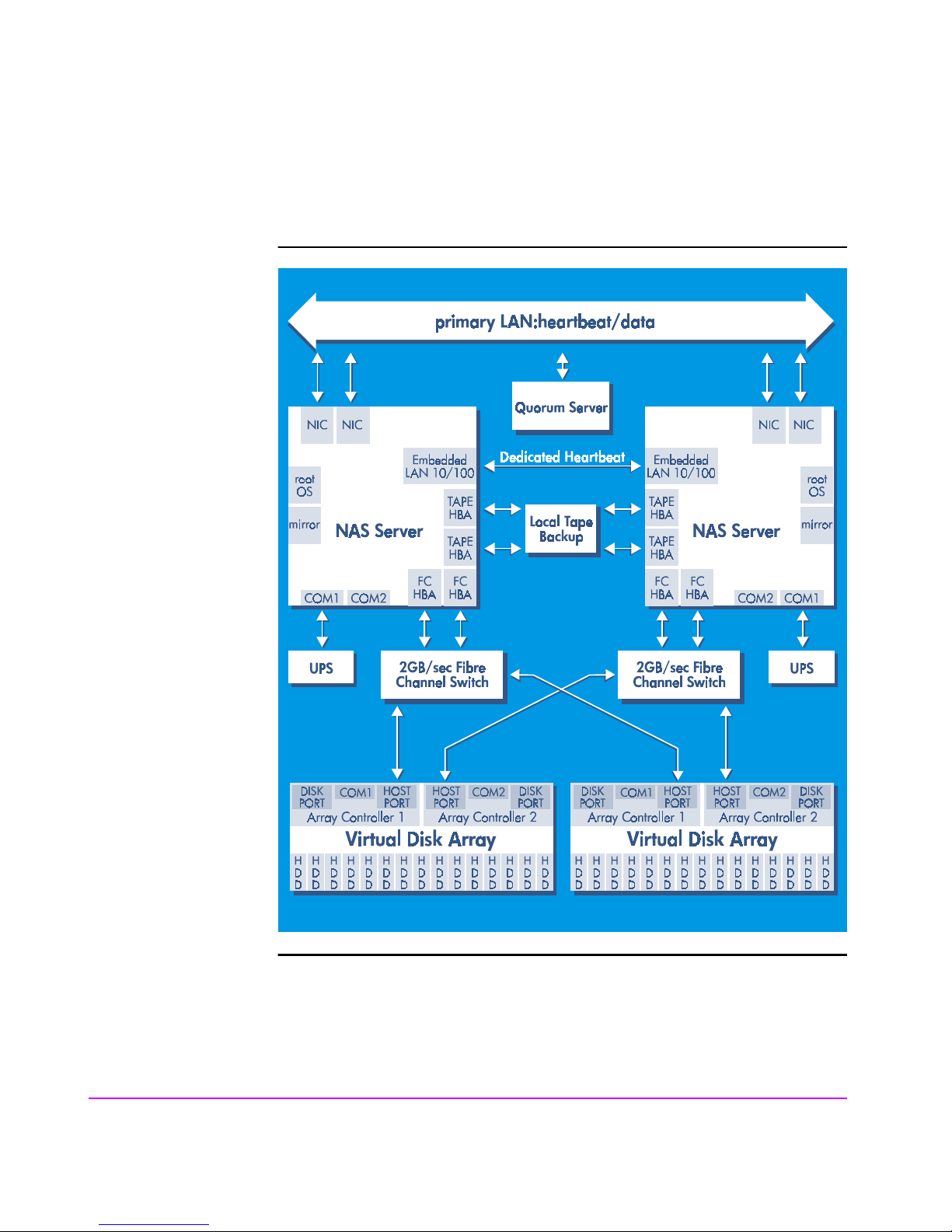

Figure 4 Multiple Arrays with FC Switches

HP NAS 8000 Overview 17
HP NAS 8000 Overview
SAN Configuration
NAS 8000 solutions can also manage storage on HP VA7100, VA7400
series or XP model arrays connected to a SAN. LUNs must be created and
assigned to the NAS 8000 using a product such as HP Surestore Secure
Manager VA or Secure Manager XP.
Figure 5 SAN Configuration

18 HP NAS 8000 Overview
SAN Configuration with High Availability

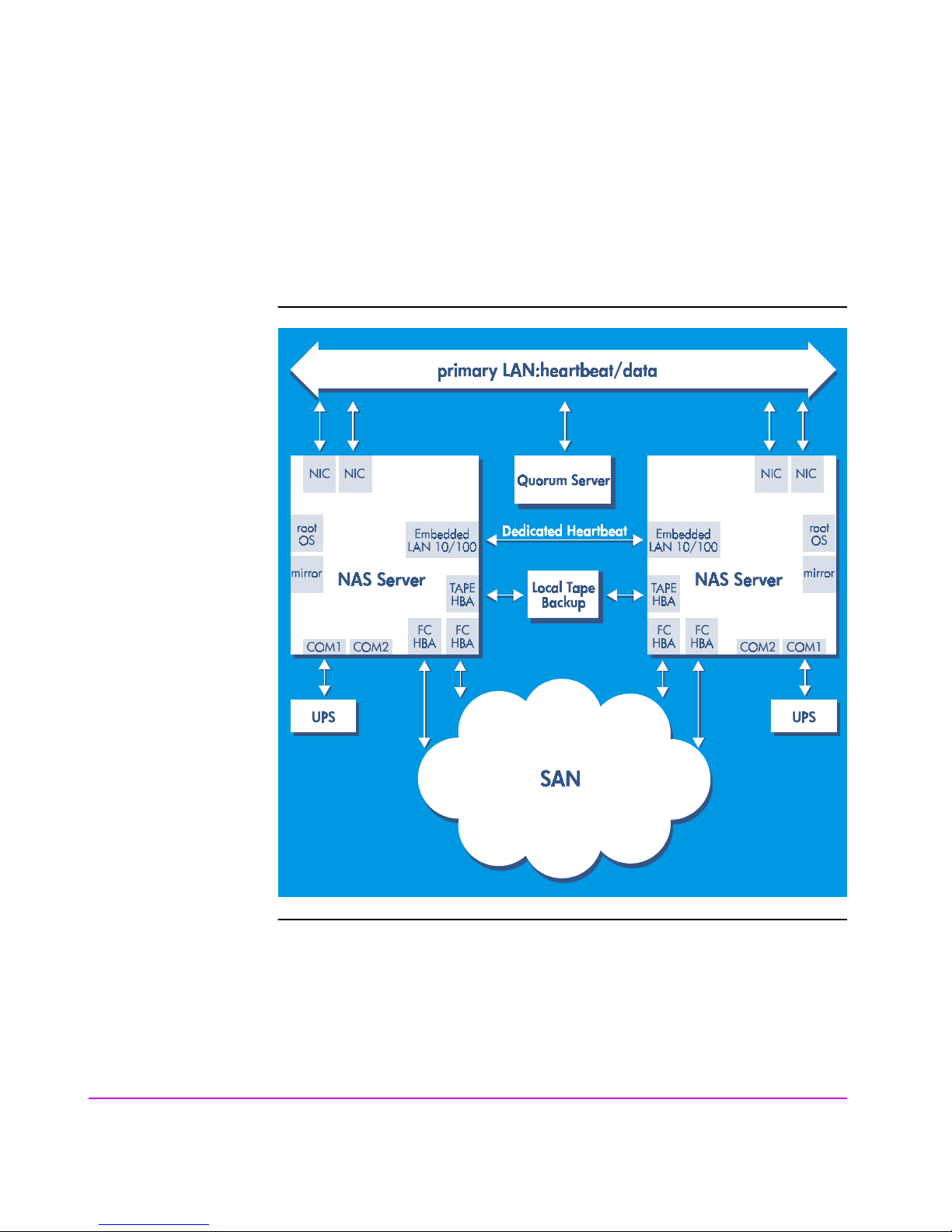

A high-availability, clustered NAS 8000 system can also be configured to
access VA7100, VA7400 series and XP model arrays attached via SAN.
Figure 6 SAN Configuration with High Availability
