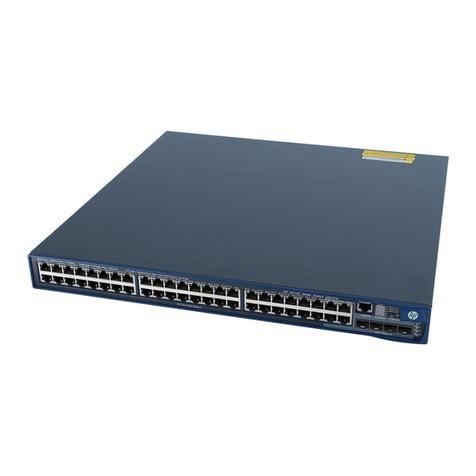

HP 5120-48G EI Switch with 2 Interface Slots
HP 5120-48G EI Switch
HP 5120-24G EI Switch with 2 Interface Slots
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 1

HP 5120-24G EI Switch
HP 5120-48G-PoE+ EI Switch with 2 Interface Slots
HP 5120-24G-PoE+ EI Switch with 2 Interface Slots
Models
HP 5120-48G EI Switch with 2 Interface Slots JE069A
HP 5120-48G EI Switch JE067A
HP 5120-24G EI Switch with 2 Interface Slots JE068A
HP 5120-24G EI Switch JE066A
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 2

HP 5120-48G-PoE+ EI Switch with 2 Interface Slots JG237A
HP 5120-24G-PoE+ EI Switch with 2 Interface Slots JG236A
Key features
High scalability for investment protection
Support for multiple services
Comprehensive security control policies
Diversified Quality of Service (QoS) policies
Excellent manageability
Product overview
The HP 5120 EI Switch Series is comprised of Gigabit Ethernet switches that support static Layer 3 routing, diversified services, and
IPv6 forwarding, as well as provide up to four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework
(IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience,
performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used
at the edge of a network or to connect server clusters in data centers. High scalability provides investment protection with two
expansion slots, each of which can support two-port 10GbE expansion modules. High availability, simplified management, and
comprehensive security control policies are among the key features that distinguish this series.
Features and benefits
Quality of Service (QoS)
Broadcast control
allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Advanced classifier-based QoS
classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority
level and rate limit to selected traffic on a port, VLAN, or whole switch
Powerful QoS feature
supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR
Traffic policing
supports Committed Access Rate (CAR) and line rate
Management
Friendly port names
allows assignment of descriptive names to ports
Remote configuration and management
enables configuration and management through a secure Web browser or a CLI located on a remote device
Manager and operator privilege levels
provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
Command authorization
leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit
trail
Secure Web GUI
provides a secure, easy-to-use graphical interface for configuring
the module via HTTPS
Multiple configuration files
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 3

stores easily to the flash image
Complete session logging
provides detailed information for problem identification and resolution
SNMPv1, v2c, and v3
facilitate centralized discovery, monitoring, and secure management of networking devices
Remote monitoring (RMON)
uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private
alarm extension group
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network
management applications
sFlow (RFC 3176)
provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this
allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-
time network monitoring purposes
Management VLAN
segments traffic to and from management interfaces, including
CLI/telnet, a Web browser interface, and SNMP
Remote intelligent mirroring
mirrors ingress/egress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network
Device Link Detection Protocol (DLDP)
monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, which prevents network
problems such as loops
IPv6 management
provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4
or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
Troubleshooting
ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems
Connectivity
Auto-MDIX
automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Flow control
provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
Jumbo packet support
supports up to 9216-byte frame size to improve the performance of large data transfers
High-density connectivity
provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
Optional 10GbE ports
deliver, through the use of optional modules, additional 10GbE connections, which are available for uplinks or high-bandwidth
server connections; flexibly support copper, XFP, SFP+, or CX4 local connections
IEEE 802.3at Power over Ethernet (PoE+) support
simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying
local power at each access point locatio
Ethernet operations, administration and maintenance (OAM)
detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the
link between two devices
High-bandwidth CX4 local stacking
achieves 12 Gb/s per connection when using local CX4 stacking, allowing for up to 96 Gb/s total stacking bandwidth (full duplex)
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 4

in a resilient stacking configuration
Performance
Nonblocking architecture
up to 192 Gb/s nonblocking switching fabric provides wirespeed switching with up to 143 million pps throughput
Hardware-based wirespeed access control lists (ACLs)
help provide high levels of security and ease of administration without impacting network performance with a feature-rich
TCAM-based ACL implementation
Resiliency and high availability
Separate data and control paths
separates control from services and keeps service processing isolated; increases security and performance
External redundant power supply
provides high reliability
Smart link
allows 50 ms failover between links
Spanning Tree/MSTP, RSTP
provides redundant links while preventing network loops
Rapid Ring Protection Protocol (RRPP)
connects multiple switches in a high-performance ring using standard Ethernet technology; traffic can be rerouted around the
ring in less than 50 ms, reducing the impact on traffic and applications
Intelligent Resilient Framework (IRF)
creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do
not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard
LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree
Protocol, Equal-Cost Multipath (ECMP), or VRRP, thereby simplifying network operation
Layer 2 switching
16K MAC address table
provides access to many Layer 2 devices
VLAN support and tagging
supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
GARP VLAN Registration Protocol
allows automatic learning and dynamic assignment of VLANs
IEEE 802.1ad QinQ and selective QinQ
increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed
campus or metro network
10GbE port aggregation
allows grouping of ports to increase overall data throughput to a remote device
Internet Group Management Protocol (IGMP) and Multicast
Listener Discovery (MLD) protocol snooping
controls and manages the flooding of multicast packets in a Layer 2 network
Per-VLAN Spanning Tree Plus (PVST+)
allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple
VLANs
Layer 3 services
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 5

Address Resolution Protocol (ARP)
determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of
duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2
network
Dynamic Host Configuration Protocol (DHCP)
simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets
Loopback interface address
defines an address that can always be reachable, improving diagnostic capability
User Datagram Protocol (UDP) helper function
allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents
server spoofing for UDP services such as DHCP
Route maps
provide more control during route redistribution; allow filtering and altering of route metrics
Layer 3 routing
Static IP routing
provides manually configured routing for both IPv4 and IPv6 networks
Security
Access control lists (ACLs)
provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL
IEEE 802.1X
industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS
erver
MAC-based authentication
client is authenticated with the RADIUS server based on the client's MAC address
Identity-driven security and access control
Per-user ACLs
permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of
users on the same network to access specific network services without risking network security or providing unauthorized
access to sensitive data
Automatic VLAN assignment
automatically assigns users to the appropriate VLAN based on their identities
Secure management access
delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3
Secure FTP
allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch
configuration file
Guest VLAN
provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X
Endpoint Admission Defense (EAD)
provides security policies to users accessing a network
Port security
allows access only to specified MAC addresses, which can be learned or specified by the administrator
Port isolation
secures and adds privacy, and prevents malicious attackers from obtaining user information
STP BPDU port protection
blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 6

STP root guard
protects the root bridge from malicious attacks or configuration mistakes
DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
IP source guard
helps prevent IP spoofing attacks
Dynamic ARP protection
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
RADIUS/HWTACACS
eases switch management security administration by using a password authentication server
Convergence
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
facilitates easy mapping using network management applications with LLDP automated device discovery protocol
LLDP-MED
is a standard extension that automatically configures network devices, including LLDP-capable IP phones
LLDP-CDP compatibility
receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation
IEEE 802.3af Power over Ethernet
provides up to 15.4 W per port to PoE-powered devices such as IP phones, wireless access points, and video cameras
PoE allocations
supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more
efficient energy savings
Voice VLAN
automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
IP multicast snooping (data-driven IGMP)
prevents flooding of IP multicast traffic
Device support
Cisco prestandard PoE support
detects and provides power to Cisco's prestandard PoE devices such as wireless LAN access points and IP phones
Additional information
Green IT and power
improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes
variable-speed fans, reducing energy costs
Green initiative support
provides support for RoHS and WEEE regulations
Warranty and support
Lifetime Warranty 2.0
advance hardware replacement for as long as you own the product with next-business-day delivery (available in most countries)†
Electronic and telephone support (for Lifetime Warranty 2.0)
limited 24x7 telephone support is available from HP for the first 3 years; limited electronic and business hours telephone
support isavailable from HP for the entire warranty period; to reach our support centers, refer to
www.hp.com/networking/contact-support ; for details on the duration of support provided with your product purchase, refer to
www.hp.com/networking/warrantysummary
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 7

Software releases
to find software for your product, refer to www.hp.com/networking/support ; for details on the software releases available with
your product purchase, refer to www.hp.com/networking/warrantysummary
†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance
replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules, HP
Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765 zl Mobility Controller
and HP Survivable Branch Communication zl Module powered by Microsoft® Lync has a five-year hardware warranty. For details, refer
to the Software license and hardware warranty statements at www.hp.com/networking/warranty .
QuickSpecs
HP 5120 EI Switch Series
Overview
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 8

Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.
Standard Switch Chassis
HP 5120-24G EI Switch JE066A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JE066A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE066A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G EI Switch with 2 Slots JE068A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JE068A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE068A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G-PoE+ EI Switch w/2 Intf Slts JG236A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JG236A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG236A#B2C
C15 PDU Jumper Cord (ROW)
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 9

HP 5120-48G EI Switch JE067A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JE067A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE067A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G EI Switch with 2 Slots JE069A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JE069A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE069A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G-PoE+ EI Switch w/2 Intf Slts JG237A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3
PDU Cable NA/MEX/TW/JP JG237A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG237A#B2C
C15 PDU Jumper Cord (ROW)
Configuration Rules:
Note 1 The following Transceivers install into this Switch
HP X120 1G SFP LC SX Transceiver JD118B
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 10

HP X120 1G SFP LC LX Transceiver JD119B
HP X120 1G SFP RJ45 T Transceiver JD089B
HP X120 1G SFP LC BX 10-U Transceiver JD098B
HP X120 1G SFP LC BX 10-D Transceiver JD099B
HP X125 1G SFP LC LH40 1310nm Transceiver JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver JD062A
HP X125 1G SFP LC LH70 Transceiver JD063B
Note 3 Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E.
(See Localization Menu)
Remark Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and
Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and
Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North
America, Mexico, Taiwan, and Japan)
Box Level Integration CTO Models
CTO Solution Sku
HP 51xx CTO Switch Solution JG706A
SSP trigger sku
CTO Switch Chassis
HP 5120-24G EI Switch - CTO JE066A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 5,7
PDU Cable NA/MEX/TW/JP JE066A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE066A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G EI Switch with 2 Slots - CTO JE068A
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 11

24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 - port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 5,7
PDU Cable NA/MEX/TW/JP JE068A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE068A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G-PoE+ EI Switch w/2 Intf Slts - CTO JG236A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 - port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 5,7
PDU Cable NA/MEX/TW/JP JG236A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG236A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G EI Switch - CTO JE067A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 - port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 4, 5,7
PDU Cable NA/MEX/TW/JP JE067A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE067A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G EI Switch with 2 Slots - CTO JE069A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 - port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 5,7
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 12

PDU Cable NA/MEX/TW/JP JE069A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE069A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G-PoE+ EI Switch w/2 Intf Slts - CTO JG237A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 - port expansion module slots
1 - Power Supply Included
1U - Height
See Configuration
Note:1, 3, 5,7
PDU Cable NA/MEX/TW/JP JG237A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG237A#B2C
C15 PDU Jumper Cord (ROW)
Configuration Rules:
Note 1 The following Transceivers install into this Switch: (Use #0D1 if switch is CTO)
HP X120 1G SFP LC SX Transceiver JD118B
HP X120 1G SFP LC LX Transceiver JD119B
HP X120 1G SFP RJ45 T Transceiver JD089B
HP X120 1G SFP LC BX 10-U Transceiver JD098B
HP X120 1G SFP LC BX 10-D Transceiver JD099B
HP X125 1G SFP LC LH40 1310nm Transceiver JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver JD062A
HP X125 1G SFP LC LH70 Transceiver JD063B
Note 3 Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) or #B2E.
(See Localization Menu)
Note 5 If this Switch is selected, Then a Minimum of 1 factory integrated accessory must be ordered and integrated to CTO
chassis. See Menu below, option must have a #0D1 to be integrated to the CTO Chassis.
Note 7 If the Switch Chassis is to be Box Level Factory Integrated (CTO), Then the #0D1 is required on the Switch Chassis
and integrated to the JG706A - HP 51xx CTO Enablement. (Min 1/Max 1 Switch per SSP)
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 13

Remarks: Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW.
(Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico,
Taiwan, and Japan)
Rack Level Integration CTO Models
Switch Chassis
HP 5120-24G EI Switch JE066A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
PDU Cable NA/MEX/TW/JP JE066A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE066A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G EI Switch with 2 Slots JE068A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
PDU Cable NA/MEX/TW/JP JE068A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE068A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-24G-PoE+ EI Switch w/2 Intf Slts JG236A
24 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 14

PDU Cable NA/MEX/TW/JP JG236A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG236A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G EI Switch JE067A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
0 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
PDU Cable NA/MEX/TW/JP JE067A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE067A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G EI Switch with 2 Slots JE069A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
PDU Cable NA/MEX/TW/JP JE069A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JE069A#B2C
C15 PDU Jumper Cord (ROW)
HP 5120-48G-PoE+ EI Switch w/2 Intf Slts JG237A
48 RJ-45 autosensing 10/100/1000 ports
4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SFP
min=0 \ max=4 SFP Transceivers
2 port expansion module slots
Power supply included
1U - Height
See Configuration
Note:1, 3, 10
PDU Cable NA/MEX/TW/JP JG237A#B2B
C15 PDU Jumper Cord (NA/MEX/TW/JP)
PDU Cable ROW JG237A#B2C
C15 PDU Jumper Cord (ROW)
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 15

Configuration Rules:
Note 1 The following Transceivers install into this Switch:
HP X120 1G SFP LC SX Transceiver JD118B
HP X120 1G SFP LC LX Transceiver JD119B
HP X120 1G SFP RJ45 T Transceiver JD089B
HP X120 1G SFP LC BX 10-U Transceiver JD098B
HP X120 1G SFP LC BX 10-D Transceiver JD099B
HP X125 1G SFP LC LH40 1310nm Transceiver JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver JD062A
HP X125 1G SFP LC LH70 Transceiver JD063B
Note 3 Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable
option on the Switches/Routers.
Note 10 If HP CTO Switch Chassis is selected for Rack Level Integration, Then the Switch needs to integrate (with #0D1) to
the Rack.
Remarks: Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW.
(Watson Default B2B or B2C for Rack Level CTO)
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
Switch Enclosure Options
External/Redundant Power Supplies
HP RPS 800 Redundant Power Supply JD183A
Height = 1U
includes 1 x c13, 800w
See Configuration
Note:2, 3
HP RPS1600 Redundant Power System JG136A
Height = 1U
includes 1 x c13, 1600w and Power Supply port
See Configuration
Note:2, 3
HP RPS1600 1600W AC Power Supply JG137A
Installs into JG136A only See Configuration
Note:1
Configuration Rules:
Note 1 If this power supply is selected, The JG136A - HP A-RPS1600 Redundant Power System must be on order or onsite.
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 16

Note 2 Localization required. (See Localization Menu for list.)
Note 3 Only 1 JD183A or JG136A can be connected per switch.
External/Redundant Power Cables
HP X290 1000 A JD5 2m RPS Cable JD187A
HP X290 500/800 1m RPS Cable JD190A
Enter the following menu selections as integrated to the CTO Model X above if order is factory built.
Modules
(Switch JE066x and JE067x ) No Modules supported
(All other Switches ) System (std 0 // max 2) User Selection (min 0 // max 2)
HP 5500 2-port 10GbE XFP Module JD359B
min=0 \ max=2 XFP Transceivers See Configuration
Note:2, 5, 6
HP 5500 2-port 10GbE Local Connect Mod JD360B
min=0 \ max=2 CX4 Cables See Configuration
Note:4, 5, 6
HP 5500 1-port 10GbE XFP Module JD361B
min=0 \ max=1 XFP Transceivers See Configuration
Note:2, 5, 6
HP 5500/5120 2-port 10GbE SFP+ Module JD368B
min=0 \ max=2 SFP+ Transceivers See Configuration
Note:1, 5, 6
HP 5500/4800 2-port GbE SFP Module JD367A
min=0 \ max=2 SFP Transceivers See Configuration
Note:3, 5, 6
HP 5500/5120 2p 10GBASE-T Module JG535A
No Transceivers See Configuration
Note:5, 6
Configuration Rules:
Note 1 The following Transceivers install into this Module: (Use #0D1 if switch is CTO)
HP X130 10G SFP+ LC ER 40km Transceiver JG234A
HP X130 10G SFP+ LC SR Transceiver JD092B
HP X130 10G SFP+ LC LRM Transceiver JD093B
HP X130 10G SFP+ LC LR Transceiver JD094B
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 17

HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable JD095C
HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable JD096C
HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable JD097C
HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable JC784C
HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable JG081C
HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable JC784C
Note 2 The following Transceivers install into this Module: (Use #0D1 if switch is CTO)
HP X135 10G XFP LC ER Transceiver JD121A
HP X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver JD108B
HP X130 10G XFP LC SR Transceiver JD117B
Note 3 The following Transceivers install into this Module: (Use #0D1 if switch is CTO)
HP X120 1G SFP LC SX Transceiver JD118B
HP X120 1G SFP LC LX Transceiver JD119B
HP X120 1G SFP RJ45 T Transceiver JD089B
HP X120 1G SFP LC BX 10-U Transceiver JD098B
HP X120 1G SFP LC BX 10-D Transceiver JD099B
HP X125 1G SFP LC LH40 1310nm Transceiver JD061A
HP X120 1G SFP LC LH40 1550nm Transceiver JD062A
HP X125 1G SFP LC LH70 Transceiver JD063B
Note 4 The following Cables install into this Module: (Use #B01 if switch is CTO)
HP X230 Local Connect 50cm CX4 Cable JD363B
HP X230 Local Connect 100cm CX4 Cable JD364B
HP X230 CX4 to CX4 3m Cable JD365A
Note: Two JD365A - HP X230 CX4 to CX4 3m Cable should be added by default if Module is selected.
Note 5 If factory intergrated into the switch, This Module must be ordered as #0D1 when the switch is
not Factory Racked
Note 6 If factory intergrated into the switch, This Module must be ordered as #B01 when the switch is
Factory Racked (Rack Level Integration CTO).
Transceivers
SFP Transceivers
HP X120 1G SFP LC SX Transceiver JD118B
HP X120 1G SFP LC LX Transceiver JD119B
HP X120 1G SFP RJ45 T Transceiver JD089B
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 18

HP X120 1G SFP LC BX 10-U Transceiver JD098B
HP X120 1G SFP LC BX 10-D Transceiver JD099B
HP X120 1G SFP LC LH40 1550nm XCVR JD062A
HP X125 1G SFP LC LH40 1310nm Transceiver JD061A
HP X125 1G SFP LC LH70 Transceiver JD063B
SFP+ Transceivers
HP X130 10G SFP+ LC ER 40km Transceiver JG234A
HP X130 10G SFP+ LC SR Transceiver JD092B
HP X130 10G SFP+ LC LRM Transceiver JD093B
HP X130 10G SFP+ LC LR Transceiver JD094B
HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable JD095C
HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable JD096C
HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable JD097C
HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable JG081C
HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable JC784C
XFP Transceivers
HP X130 10G XFP LC LR Single Mode 10km 1310nm Transceiver JD108B
HP X130 LC SR XFP Transceiver JD117B
HP X135 10G XFP LC ER Transceiver JD121A
Cables
Local Connect Cables
HP X230 Local Connect 50cm CX4 Cable JD363B
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 19

HP X230 Local Connect 100cm CX4 Cable JD364B
HP X230 CX4 to CX4 3m Cable JD365A
HP X230 Local Connect 50cm CX4 Cable JD363B
HP X230 Local Connect 100cm CX4 Cable JD364B
HP X230 CX4 to CX4 3m Cable JD365A
Multi-Mode Cables
HP .5m Multi-mode OM3 LC/LC FC Cable AJ833A
HP 1m Multi-mode OM3 LC/LC FC Cable AJ834A
HP 2 m Multimode OM3 LC/LC FC Cable AJ835A
HP 5 m Multimode OM3 LC/LC FC Cable AJ836A
HP 15 m Multimode OM3 LC/LC FC Cable AJ837A
HP 30 m Multimode OM3 LC/LC FC Cable AJ838A
HP 50 m Multimode OM3 LC/LC FC Cable AJ839A
HP Premier Flex LC/LC OM4 2f 1m Cbl QK732A
HP Premier Flex LC/LC OM4 2f 2m Cbl QK733A
HP Premier Flex LC/LC OM4 2f 5m Cbl QK734A
HP Premier Flex LC/LC OM4 2f 15m Cbl QK735A
HP Premier Flex LC/LC OM4 2f 30m Cbl QK736A
HP Premier Flex LC/LC OM4 2f 50m Cbl QK737A
QuickSpecs
HP 5120 EI Switch Series
Configuration
DA - 13850 Worldwide — Version 26 — April 15, 2014 Page 20
