HTC GL PS User manual

HTC GL PS
MANUAL
GB
Translation of manual in original language

HTC GL PS

Contact Information
HTC Sweden AB
Box 69
SE-614 22 Söderköping - Sweden
Tel: [phone]
Fax: [phone]
You can find addresses for our retailers and service partners on our website:
www.htc-floorsystems.com
Always specify the model and serial number when asking questions about your product.
Trademarks
HTC is a trademark owned by HTC Sweden AB. Other names and products mentioned
in this manual may be registered trademarks owned by the relevant companies.
© 2011 HTC Sweden AB. All rights reserved.

EC Declaration of conformity
Manufacturer: HTC Sweden AB
Box 69
SE-614 22 Söderköping
Sweden
[phone]
Type of equipment: Pre-separator
Make: HTC
Model: HTC GL PS
Year of manufacture: See machine name plate
Serial number: See machine name plate
As the manufacturer, we hereby declare under our sole responsibility that the above
product with serial numbers from 2012 onward conforms to the applicable regulations
in directive MD 2006/42/EC.
This product was CE-marked in 2012. The technical documentation is available from
the manufacturer.
Original of the EC declaration of conformity (Swedish). Other languages are
translations of the original of the EC declaration of conformity.
Söderköping 13/04/2012
Daniel Gustavsson
Development Manager,
HTC Sweden AB
Kåre Kilgren
Product Manager,
HTC Sweden AB

HTC GL PS Table of contents
i
1 Introduction 1
1.1 General Information ......................................................... 1
1.2 Responsibility .................................................................. 1
1.3 Manual ............................................................................. 1
1.3.1 Safety Instructions – Explanation of Symbols .... 1
1.4 Transportation ................................................................. 2
1.5 On delivery ...................................................................... 2
1.6 Unpacking ....................................................................... 3
1.7 Handling and storage ...................................................... 3
2 Safety 4
2.1 General Information ......................................................... 4
2.2 Warnings ......................................................................... 4
2.3 Notes ............................................................................... 5
3 Machine description 6
3.1 General Information ......................................................... 6
3.2 Function ........................................................................... 7
4 Usage 9
4.1 General Information ......................................................... 9

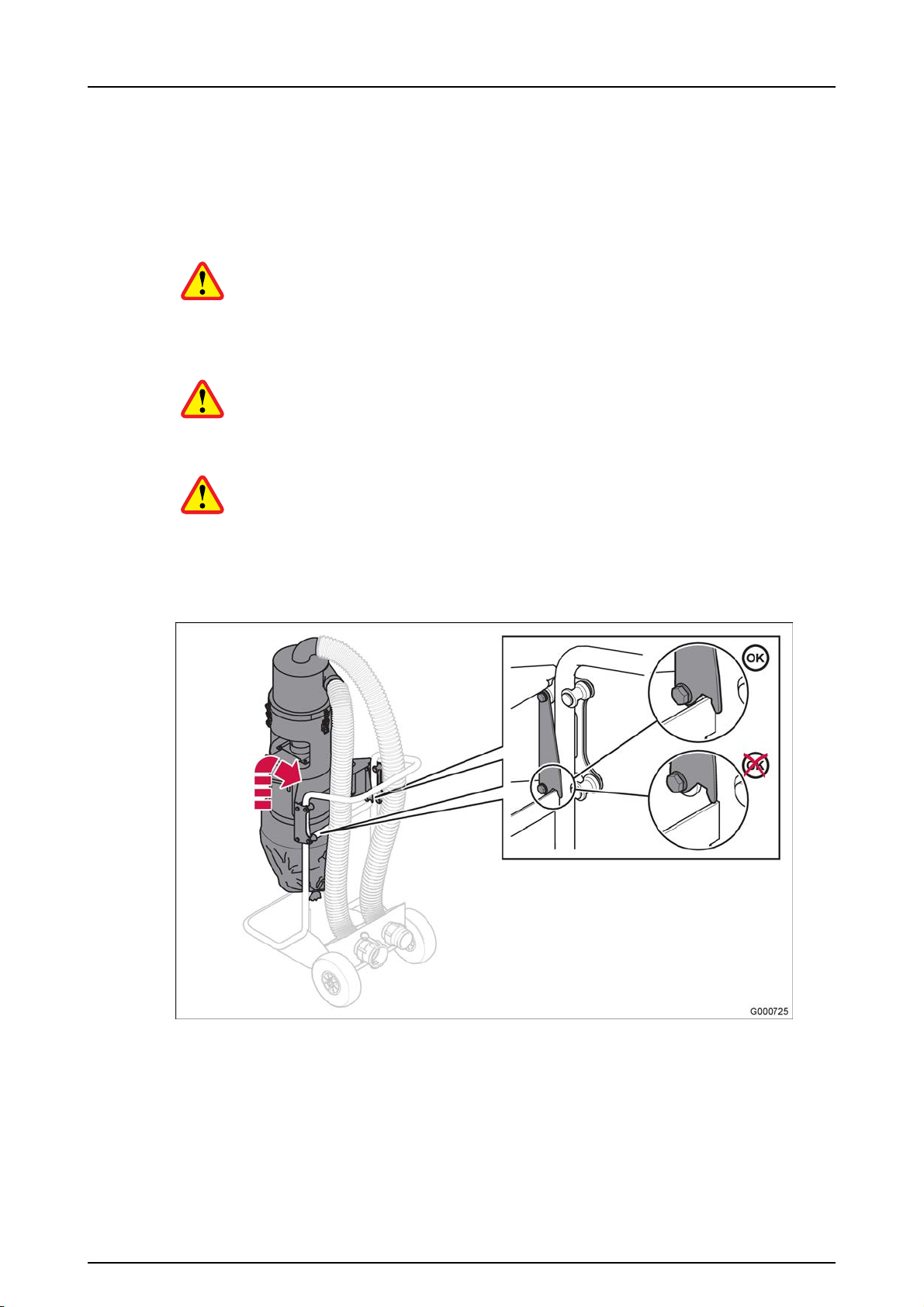

4.2 Raising to operating position ........................................... 9
4.3 Lowering to transport position ......................................... 10

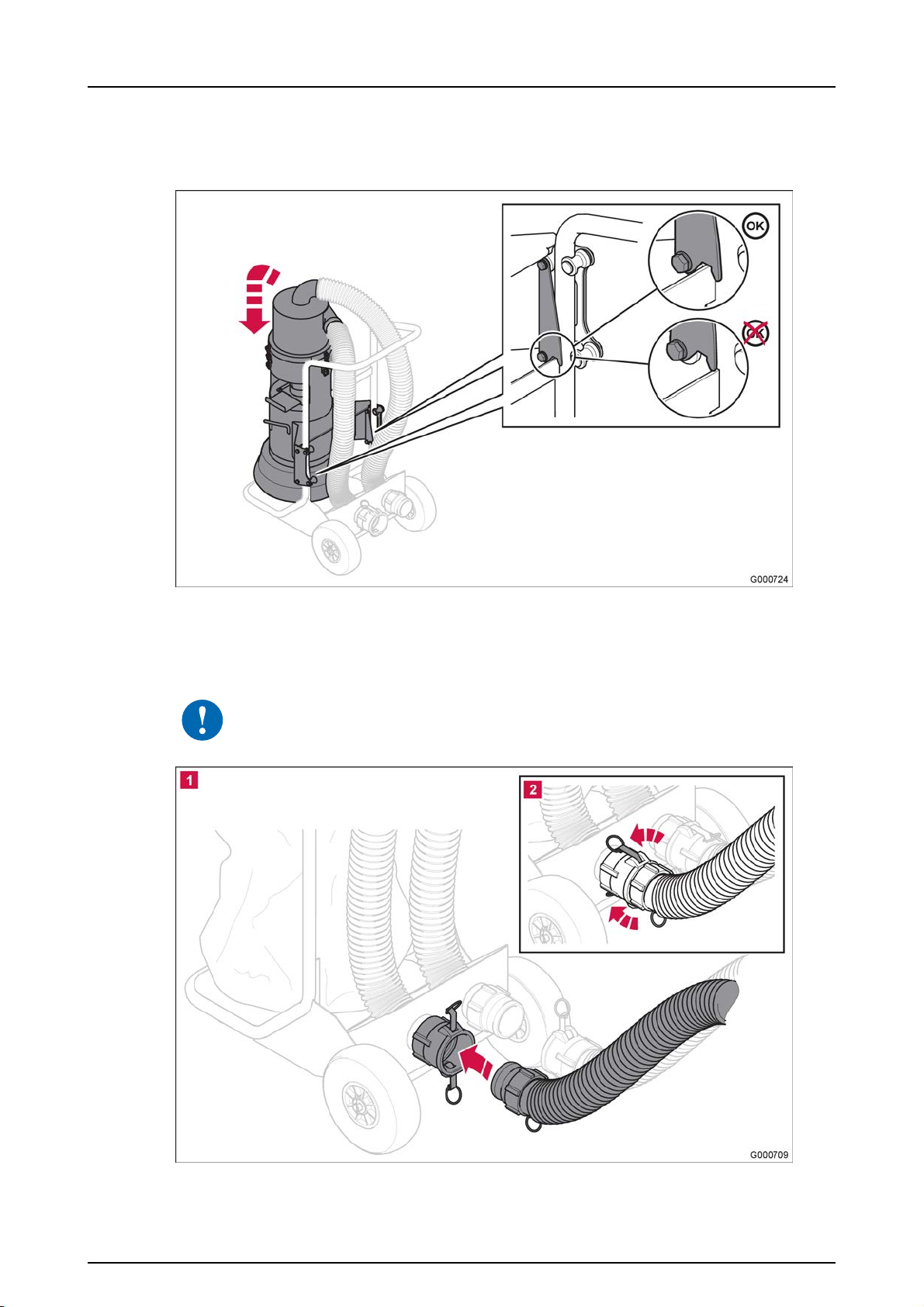

4.4 Connecting hoses ............................................................ 10
4.5 Replacing Longopac ........................................................ 11
4.6 Replacing Longopac during operation ............................. 12
4.7 Fitting Longopac .............................................................. 13
4.8 Transport on sloping surface ........................................... 14
4.9 Lifting the machine .......................................................... 14
4.10 Securing the load ............................................................ 15

Table of contents HTC GL PS
ii
5 Maintenance and repairs 16
5.1 General Information ......................................................... 16
5.2 Cleaning .......................................................................... 16
5.3 Every week ...................................................................... 16
5.3.1 General inspection ............................................. 16
5.4 Every month .................................................................... 16
5.4.1 Check the condition of the hoses. ...................... 16
5.5 Every six months (or 600 hours) ..................................... 16
5.5.1 Check the fastening of the bolts ......................... 16
5.6 Repairs ............................................................................ 16
5.7 Spare parts ...................................................................... 17
6 Troubleshooting 18
7 Technical data 19
8 Environment 20
9 Warranty and CE marking 21
9.1 Warranty .......................................................................... 21
9.2 CE marking ...................................................................... 21

HTC GL PS Introduction
1.0 1
1 Introduction
1.1 General Information
HTC GL PS is a pre-separator that is best used together with HTC's grinding machines
and dust extractors in connection with dry grinding of stone and concrete floors, and in
accordance with HTC's recommendations. The dust sucked up is collected in a bag
under the pre-separator.
Read the manual carefully so that you know how to use and maintain the pre-separator
before using it. Contact your local retailer for further information. For contact
information, see Contact Information at the start of the manual.
1.2 Responsibility
Even though every effort has been made to make this manual as complete and accurate
as possible, we bear no responsibility for incorrect or missing information. HTC
reserves the right to change descriptions in this manual without giving prior notice.
This manual is protected by the Copyright Act and no part of it may be copied or used
in any other way without the written approval of HTC.
1.3 Manual
In addition to the general functions, this manual deals with the areas of application and
the maintenance of the machine.
1.3.1 Safety Instructions – Explanation of Symbols
A number of symbols are used in the manual to highlight the most important sections,
see below. It is important that you carefully read through the descriptions of the symbols
in order to avoid the risk of both material damage and personal injury. There are other
symbols indicating practical tips. These are to help you use the machine in the easiest
and most effective way.
The following symbols are used in the document to indicate where special attention is
needed.
Warning!
This symbol means Warning! and indicates a risk of personal injury or material
damage in the event of incorrect use of the machine. If you see this symbol next
to a section of text, you must pay particular attention when reading through the
text and not carry out any operations of which you are unsure. This is for your
own and other users’ safety and to avoid damage to the machine.

Introduction HTC GL PS
2 1.0
Note!
This symbol means Note! and indicates a potential risk of material damage in
the event of incorrect use of the machine. If you see this symbol next to a
section of text, you must pay particular attention when reading through the text
and not carry out any operations of which you are unsure. This is to avoid
damage to the machine.
Tip!
This symbol means Tips! and implies the inclusion of tips and advice on
effective use of the machine or ways of reducing wear and tear to the machine.
If you see this symbol next to a text, you should read through the text to make
your work easier and to extend the service life of the machine.
1.4 Transportation
Always ensure that the machine is emptied of dust and other particles before it is
transported, lifted or hoisted.
Always make sure that the machine is securely anchored to its surrounding during
transport to prevent it from coming into motion. Make sure that securing straps or other
equipment used for anchoring during transport are tightened over non-moving parts, e.g.
the machine's chassis. See Securing the load, page15.
When lifting the machine, do so according to chapter Lifting the machine, page14.
Do not transport the machine on steep sloping surfaces, e.g. loading ramps, without
securing it properly, for example with a winch. This is a safety measure in case the
machine starts to roll out of control. Also make sure that people (including operator) in
the vicinity are at a safe distance in order to prevent personal injury, in the event that the
machine starts to roll out of control.
When the machine is to be hoisted it has to be secured in the chassis's lifting points (see
position 4 Figure3-1, page7). To prevent the machine from tipping, make sure to
pull with equal force so the machine does not twist askew and end up on its side.
The swivelling wheel must be pointing forwards in the direction of travel.
1.5 On delivery
The following items are included in the delivery. Contact your retailer if anything is
missing.
• Pre-separator
• Manual disc

HTC GL PS Introduction
1.0 3
• Suction hose with couplings
1.6 Unpacking
Warning!
Read carefully through the safety instructions and user manual before using the
equipment.
• Check carefully to see if the packaging or the dust extractor has been damaged
during delivery. If there is any sign of damage, contact your retailer and report it.
• Check that the delivery matches the order. If there are any discrepancies, contact
your retailer.
1.7 Handling and storage
Warning!
If handled carelessly, the machine can overturn and cause both personal injury
and damage to the equipment.
The machine can be lowered to the transport position, which facilitates transport and
maintenance work. See Lifting the machine, page14 when lifting. Make sure that all
the constituent parts of the machine are properly assembled before lifting.

Safety HTC GL PS
4 1.0
2 Safety
2.1 General Information
This chapter contains all the warnings and notes that have to be considered for the
pre-separator.
2.2 Warnings
Warning!
Read carefully through the safety instructions and user manual before using the
equipment.
Warning!
The pre-separator may only be used or repaired by personnel who have
received the requisite theoretical and practical training and who have read the
user manual.
Warning!
Always use the pre-separator in an environment where there is no risk of
explosion and fire. Familiarise yourself with and follow the relevant fire safety
regulations when using the pre-separator.
Warning!
Use protective equipment such as safety shoes, safety goggles, protective
gloves, mouth mask and hearing protection.
Warning!
The dust that is sucked up is harmful if inhaled. Follow local regulations and
use breathing protection.
Warning!
If handled carelessly, the pre-separator can overturn and cause both personal
injury and damage to the equipment.
Warning!
There is a risk of crush injuries while lowering to the transport position or
raising to the operating position. Use the lifting handles to avoid trapping your
hands and fingers.

HTC GL PS Safety
1.0 5
2.3 Notes
Note!
The pre-separator is best used together with HTC's grinding machines in
connection with dry grinding of stone and concrete floors, and in accordance
with HTC's recommendations.
Note!
Never use the pre-separator when wet grinding or to suck up moisture and
water, as this can then cause blockages in the pre-separator's suction hose.
Note!
Only use original spare parts from HTC for the pre-separator. Otherwise,
neither the CE marking nor the warranty will be valid.
Note!
For the CE marking to be valid, the instructions in this manual must be
followed.
Note!
Anti-static hoses must be used when coupling to the grinder and dust extractor.

Machine description HTC GL PS
6 1.0
3 Machine description
3.1 General Information

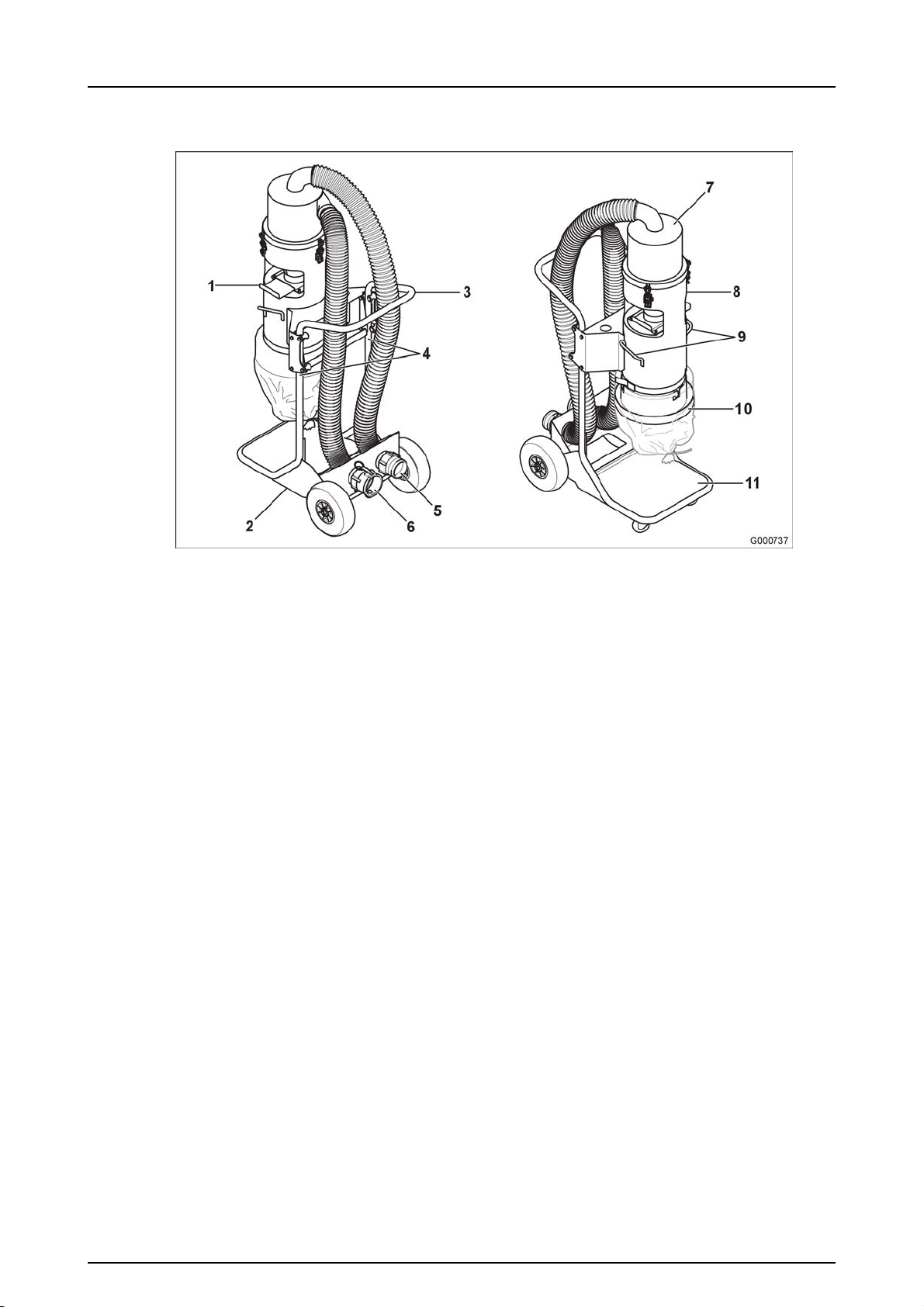

HTC GL PS is a cyclone type pre-separator for industrial and building use intended for
the dry vacuuming of dust particles, e.g. concrete, wood, stone etc. The pre-separator is
equipped with a 3" Camlock connector for quick, easy and safe connection of the
suction hoses between the grinding machine and dust extractor or other accessories that
are to be used for dust collection.
The pre-separator's function is to capture the majority of the dust instead of allowing it
to be sucked into the dust extractor. As a result, the dust extractor's filter is relieved. The
filter has a longer service life and a higher performance is maintained, resulting in more
effective dust collection for the grinding machine. For handling the collected dust, a
Longopac sack system is used.
The separated dust is collected in the volume under the pre-separator, where it can be
emptied by dropping it into the Longopac by closing the bypass valve (Position
1Figure3-1, page7) or turning off the dust extractor.
To prevent the Longopac from being sucked into the pre-separator, it is equipped with a
pair of dust covers that close during operation. These sit in the bottom on a level with
the Longopac holder (pos 9 Figure3-1, page7).
The pre-separator is equipped with a bypass valve (Pos 1 Figure3-1, page7). This
valve makes it possible to use the dust extractor even during replacement of the
Longopac on the pre-separator(Replacing Longopac during operation, page12).

HTC GL PS Machine description
1.0 7
Figure 3-1.
1. Bypass valve
2. Chassis
3. Handle chassis
4. Lifting points
5 Outlet Camlock
6. Inlet Camlock
7. Cylinder cover
8. Cylinder / pre-separator
9. Lifting handle transport / operating position
10. Longopac holder
11. Plate for Longopac
3.2 Function
The pre-separator is connected, with the help of hoses, between the grinder and the dust
extractor. The airflow coming from the grinder and into the pre-separator is saturated
with dust. The cyclone forces the air to rotate and release a large amount of the dust,
down into the collection volume above the Longopac bag. The air then continues to the
dust extractor where the remaining dust is filtered out. See Figure3-2, page8.
If the Longopac needs to be replaced during operation, the bypass valve is closed. When
the bypass valve is closed, the connection between the pre-separator's cyclone and the
volume that stores the dust before it ends up in the Longopac is blocked. It will not then

Machine description HTC GL PS
8 1.0
be possible to separate the dust with the pre-separator; instead it continues directly into
the dust extractor.
When the valve is closed, there is normal pressure in the volume for the pre-separator's
dust collection and the dust that has collected falls down into the Longopac. Should the
Longopac be full of dust, it can now be replaced. If it is not full, the valve can be slid
back.
Figure 3-2.

HTC GL PS Usage
1.0 9
4 Usage
4.1 General Information
Warning!
The pre-separator may only be used or repaired by personnel who have
received the requisite theoretical and practical training and who have read the
user manual.
Warning!
Use protective equipment such as safety shoes, safety goggles, protective
gloves, breathing mask and hearing protection.
Warning!
The pre-separator must always be placed on a horizontal level surface during
operation. There is a risk for crush injuries, if it should start to roll.
4.2 Raising to operating position
Figure 4-1.

Usage HTC GL PS
10 1.0
4.3 Lowering to transport position
Figure 4-2.
4.4 Connecting hoses
Note!
Anti-static hoses must be used when coupling to the grinder and dust extractor.
Figure 4-3.

HTC GL PS Usage
1.0 11
4.5 Replacing Longopac
Warning!
The dust that is sucked up is harmful if inhaled. Follow local regulations and
use breathing protection.
Figure 4-4.

Usage HTC GL PS
12 1.0
4.6 Replacing Longopac during operation
Warning!
The dust that is sucked up is harmful if inhaled. Follow local regulations and
use breathing protection.
Note!
The bypass valve should not be closed for more than a short interval, because
the risk of dust building up and blocking the pre-separator increases
significantly.
Figure 4-5.

HTC GL PS Usage
1.0 13
4.7 Fitting Longopac
Warning!
The dust that is sucked up is harmful if inhaled. Follow local regulations and
use breathing protection.
Figure 4-6.

Usage HTC GL PS
14 1.0
4.8 Transport on sloping surface
Figure 4-7.
4.9 Lifting the machine
Figure 4-8.
