HTI EVO VT8 User manual

VT8 E-SCOOTER
INSTRUCTION MANUAL
14+
Please read and understand this entire manual before assembly or use
IMPORTANT:
Please contact our customer service number if any enquiries:
www.htigroup.co.uk
evo-[email protected]
0300 303 5544
Save all packaging material until assembly is completed.
HTI Group, Eastham House,
Copse Road, Fleetwood,
FY7 7NY, UK
HTI EU Authorised Representative
The Merrion Buildings -
Iconic Offices, 18-20 Merrion Street,
Dublin 2, D02 XH98, Ireland
Scan the QR code
to learn more
about this
lithium scooter

P. 1
TABLE OF CONTENTS
P. 1-3
P. 4
P. 5
P. 6-7
P. 8
P. 9
P. 10
P. 11-12
P. 13
P. 14
P. 15
SAFETY NOTICE
ABOUT YOUR SCOOTER, PARTS LIST & OPERATING RANGE
GENERAL WARNINGS & PRODUCT DIAGRAM
ASSEMBLY & SET UP
FOLD AND UNFOLD
CHARGING YOUR LITHIUM SCOOTER
HOW TO OPERATE YOUR LITHIUM SCOOTER
WARNING
MAINTENANCE & DISPOSAL OF BATTERY
TROUBLE SHOOTING GUIDE
WARRANTY STATEMENT
SAFETY NOTICE
WARNING! IT IS ILLEGAL TO USE THIS VEHICLE ON PUBLIC HIGHWAYS (ROADS/PAVEMENTS): ONLY TO BE
USED ON PRIVATE PROPERTY WITH THE OWNER'S CONSENT. APPROPRIATE PROTECTIVE EQUIPMENT TO BE
WORN AT ALL TIMES AND CHILDREN MUST BE SUPERVISED BY AN ADULT. .
NOTE: PLEASE READ THE FOLLOWING IMPORTANT SAFETY INFORMATION CAREFULLY BEFORE USE AND
FOLLOW IT.
2. This product is an electric scooter for adults. Usage
is limited to one person. Do not carry others at the
same time.
3. Do not ride this product in unsafe or illegal places.
Only use the product in accordance with local
regulation.

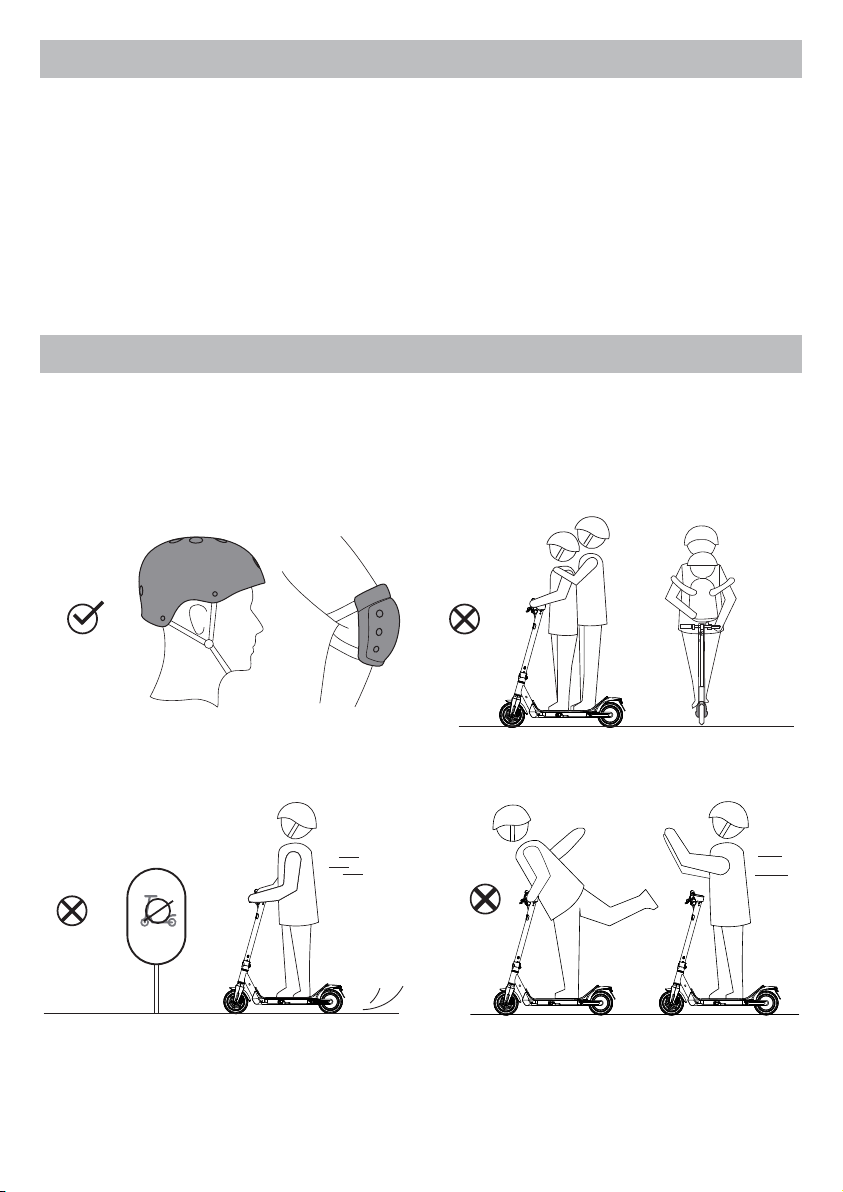

The correct way to ride
1. When riding the scooter, please wear a safety
helmet and other protective equipment, as well as
fitting sports shoes.
5. Do not take dangerous actions such as riding with
one hand while operating the scooter. Always hold
the handlbars with both hands and keep both feet
on the scooter.

P. 2
SAFETY NOTICE

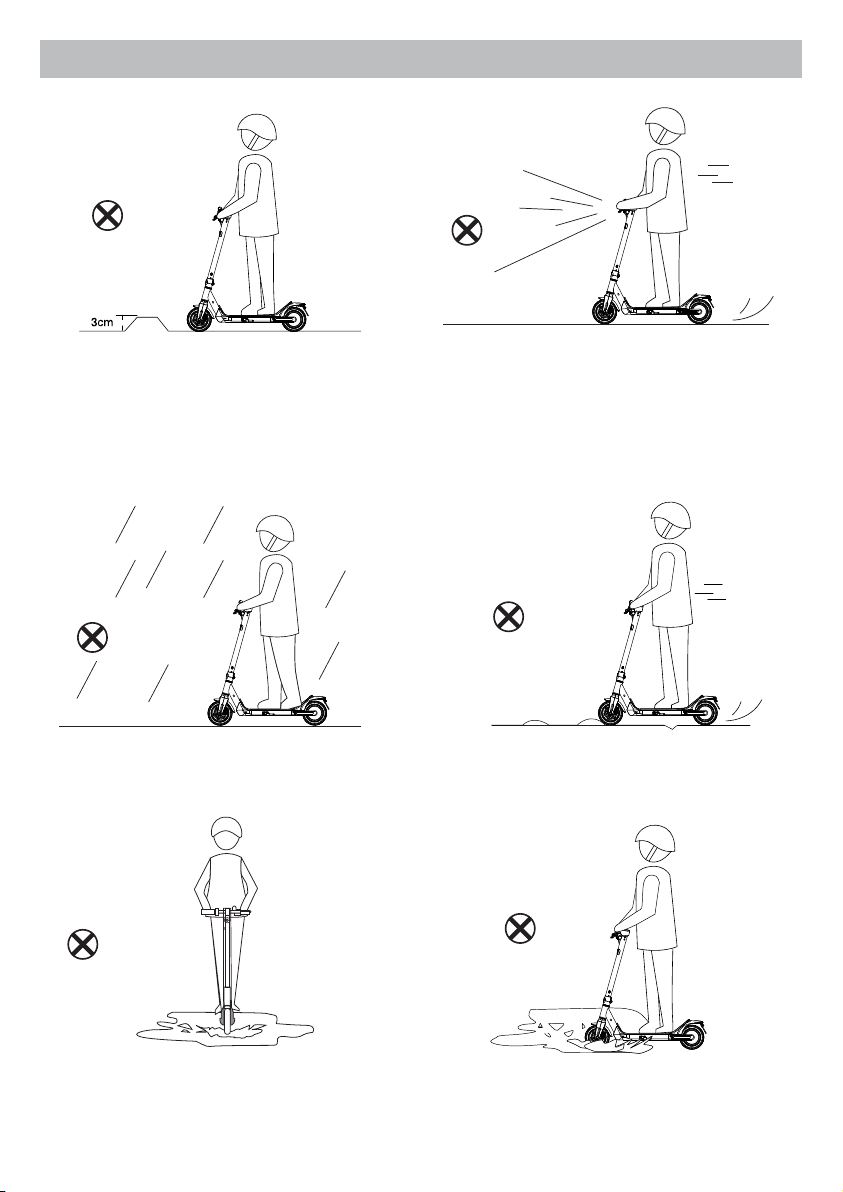

6. Do not go over bumps that are steeper than 3 cm.
This may cause the scooter to overturn and cause
injury to the user or damage the scooter. Bumps
or potholes less than 3cm should also be avoided
as much as possible.
7. For your driving safety, always keep safe speed.
Avoid using the scooter at night.
8. Do not use in wet or icy weather.
10. Do not ride the scooter on oily terrains or icy
surfaces.
9. In the event of bumps or poor road conditions,
please operate the scooter slowly or get off the
scooter and manually push until conditions improve.
11. Do not immerse the product in water to avoid
damage to the electrical parts of the vehicle.

P. 3
SAFETY NOTICE
12. In severe weather such as rain, snow, or strong
winds, please avoid riding as much as possible to
avoid possible damage. During wet weather,
extension of braking distance should be reserved.
16. Ride legally in strict accordance with the local laws
and regulations.
14. Please avoid using or placing or store the scooter
in a extremely high or low temperature
environment.
Caution!
Fire
15. Ride on a smooth road. Don’t ride on a road
with pits.
13. The user should use this product in accordance
with the relevant instructions in this product
manual, and not exceed the load that the
scooter can bear (Maximum weight: 100kg).
>100kg

P. 4
OPERATING RANGE
PARTS LIST
PART
NO.
PART
NAME PICTURE REMARKS
QTY
(pcs)
PART
NO.
PART
NAME PICTURE REMARKS
QTY
(pcs)
ABOUT YOUR NEW ELECTRIC LITHIUM SCOOTER
Weight:
Scooter:
Motor:
Battery:
Charger:
Materials
&
Size:
Thank you for purchasing our product. Keep these points in mind as you read this guide:
Air Valve
Extender
1
Hex Key 1
4
1
1
Screw
1
3
5
2
4
Body
Charger
&
Power Cord
1
Instruction
Manual
5
Material: Steel & Alu.
Folded Size(mm):
1160*705*510mm
Unfolded Size(mm):
1160*690*1150mm
N.W: 15kg
Max Load: 100kg
Max speed(km/h): 25 km/h
Max range(k): 28km
Max incline:15°
Using temperature:
0°C - 45°C
IP Grade: IPX4
Rated input (V/A):
100-240VAC 50/60Hz 1.6A
Rated output voltage: 42V
Current: 2.0A
Charging time(H):
4-5 Hours
Model No.: GJS150-4200200
Plug: Type G
Rated voltage: 36V
Capacity(Ah): 7.5Ah
Rated power(W): 350W
Front Wheel Size: 230mm
Rear Wheel Size: 230mm
3mm
Please notice the scooter can travel a distance of 28km on a fully charged battery in ideal conditions. The following
are some of the major factors that will affect the operating range of your scooter.
TERRAIN: A smooth, flat surface will increase your driving distance, while driving uphill, as well as rough or uneven
terrain will reduce your distance significantly.
WEIGHT: The weight of the user can affect driving distance, a lighter user will have further range than a heavier
user.
AMBIENT TEMPERATURE: Please ride and store the scoooter under recommended temperatures, which will
increase driving distance, battery life, and overall performance of your scooter.
MAINTENANCE: Reasonable battery charging and maintenance will increase the distance. Overcharging the
battery can reduce range.
SPEED AND DRIVING STYLE: Maintaining a moderate speed will increase your distance; while travelling at high
speeds for extended periods, frequent starts, stop, idling, along with frequent acceleration and deceleration will
reduce your overall distance.

P. 5
WARNING!
PRODUCT DIAGRAM
Display
2
Front light
Right handlebar
Hand brake
Display
Left handlebar
Folding lever
Deck
Rear light
Rear wheel
Front wheel
Charging port
Front fender
Steering column
2
3
Folding clip 17
Throttle
5
Power On/O button
4
6
7
8
9
10
11
1
12
13
14
15
Folding hook 18
16
Rear fender
• PREVENT FIRE AND ELECTRIC SHOCK:
- Do not charge near heat or flammable materials. Charge the battery in a well-ventilated area ONLY.
- Do not over charge the lithium battery.
- Charge the battery in a dry area indoor only.
• The charger is not a toy.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock. Only adults may handle or
charge the battery. NEVER allow child to handle or charge the battery.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors. DO
NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly.
• The electric lithium scooter is not intended for use by persons (including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the electric lithium scooter by a person responsible for their safety.
• Do not allow children under 14 years old to use this product.
• IF the supply cord of charger is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• The output cord of charger cannot be replaced. If the cord is damaged, the charger should be scrapped. Use only with
GJS150-4200200 supply (The charger supplied with the scooter).
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this electric
lithium scooter.
• This electric lithium scooter contains batteries that are non-replaceable. The battery should be replaced by a competent
person. Please contact helpline for assistance.
FOR SAFETY, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS.
KEEP THIS GUIDE FOR FUTURE REFERENCE. ADULT ASSEMBLY REQUIRED
The product contains small parts, which are for adult assembly only. Keep children away when assembling.

P. 6
ASSEMBLY & SET UP
●Handle with care! Hold the handlebar and
steering column.
●Life up steering column and handlebar with care.
1 2
●Pull up the folding lever and lock the steering column in place.
3

P. 7

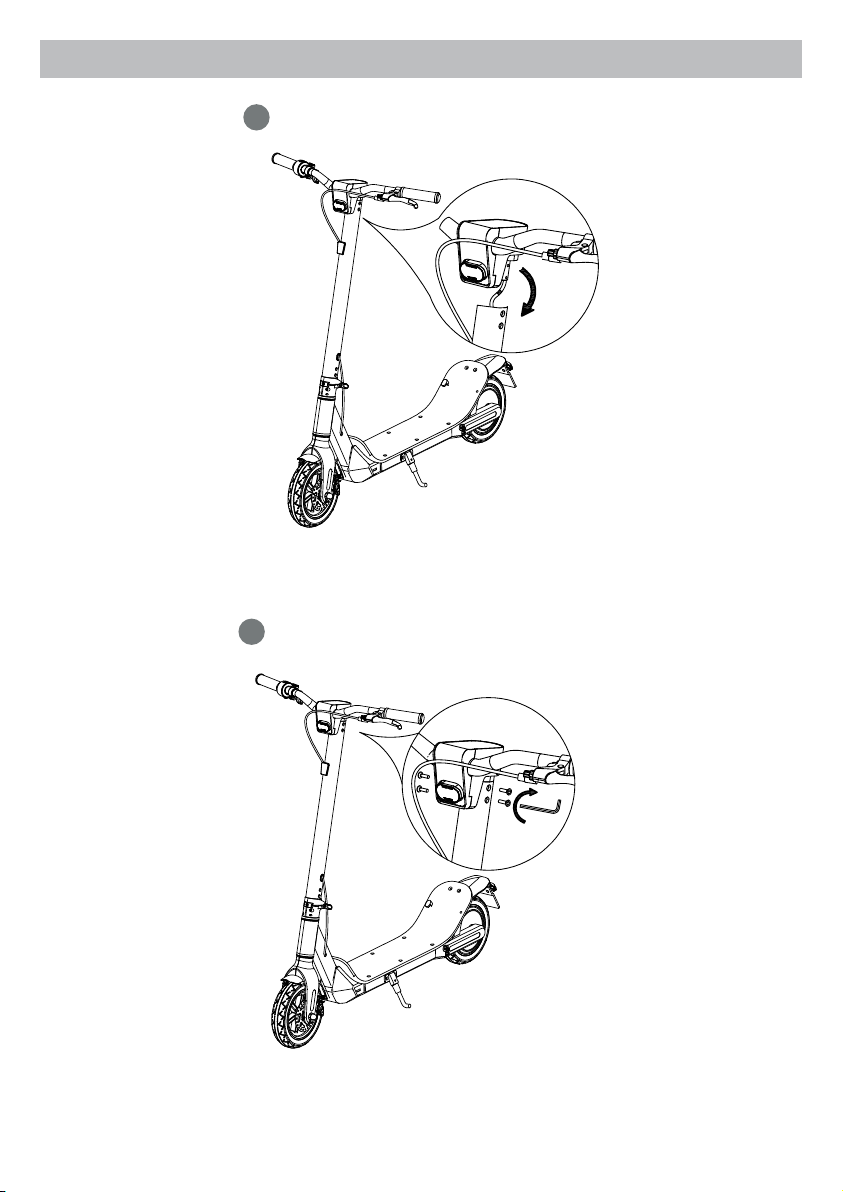

ASSEMBLY & SET UP
4
5
●Insert and assemble the handlebar into the steering column. Make sure the
screw holes on steering column align with the screw holes on handlebar.
●Use the hex key to fasten the screws on both
sides tightly.

P. 8

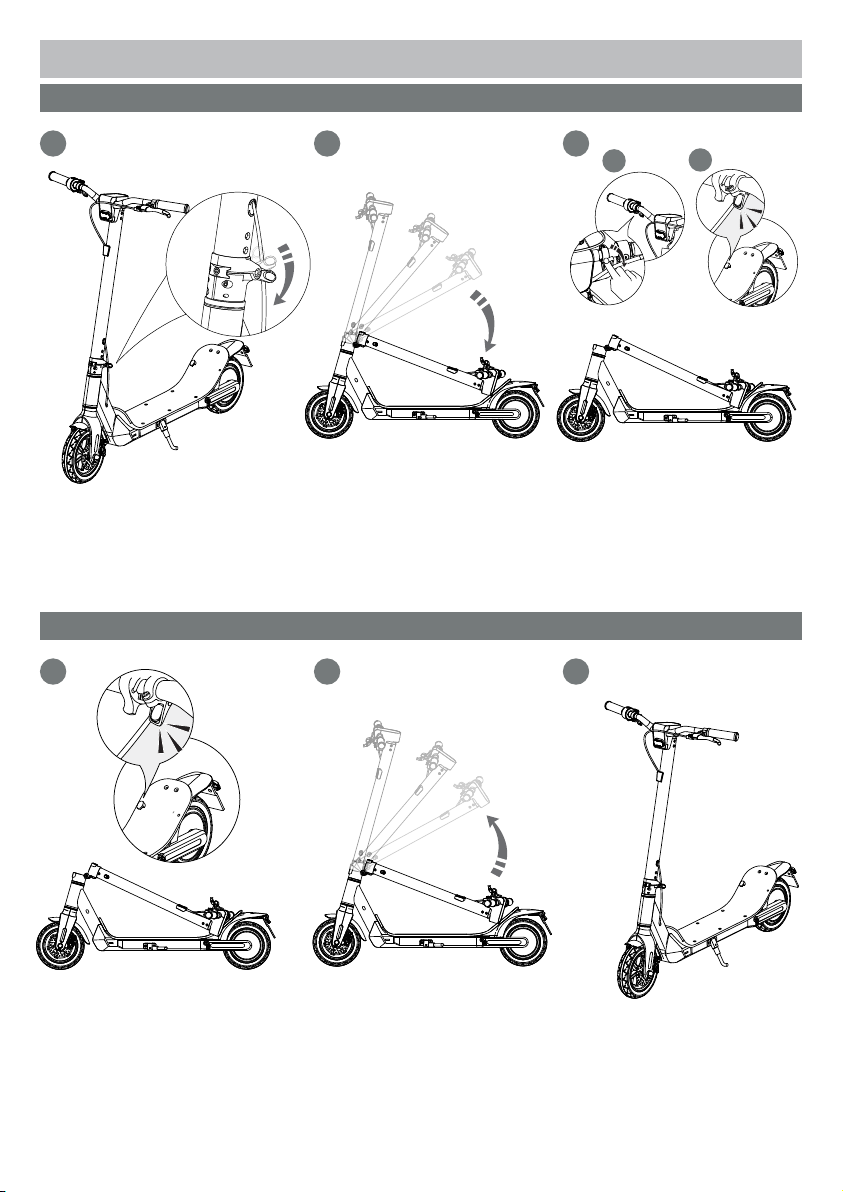

FOLD AND UNFOLD
Fold
1 2 3
●Pull down the folding lever to
release the steering column.
●Fold the steering column. ●Make sure the folding clip (near
the throttle) click onto the folding
hook on deck.
ab
Unfold
1 2 3
●Release folding clip from folding
hook on deck.
●Unfold the steering column. ●Make sure pull up the folding lever
and lock the steering column in place.

P. 9
CHARGING YOUR LITHIUM SCOOTER

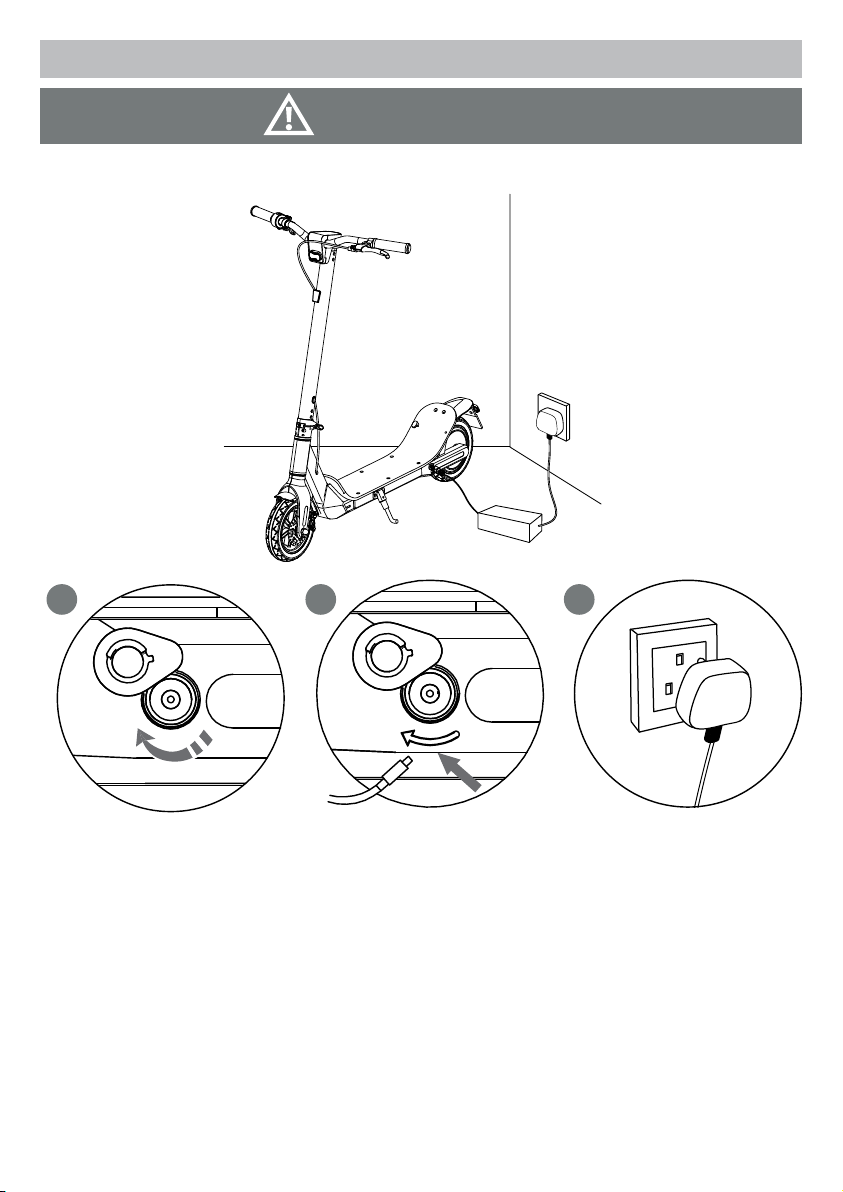

● Plug-in the charging plug of
battery charger to charging port
of lithium scooter.
●Plug-in the power plug of battery
charger into socket.
SCOOTER SHOULD ONLY BE CHARGED
UNDER SUPERVISION OF ADULT!
WARNING!
• This product has CHARGING PROTECTION: When charging, all the functions will be cut off!
2 3
● Power off the scooter. Let it rest on
ground and open charging port
cover.
1
4. Charge for 4 to 5 hours until the light indicator changes from Red to Green.
5. During charging, all function of the lithium scooter is disabled.
6. During the charging, the RED indicator of battery charger will light up.
7. Once the charging is completed or disconnected from the lithium scooter, the GREEN indicator will light up.
8. Unplug charger from lithium scooter and place charging cover back to the charging port.
9. There is CHARGING PROTECTION and the lithium battery will not be charged when the temperature of lithium
battery is hot (e.g. 50 degrees or after extended period of riding. ). If this happens, switch off the lithium scooter,
wait for 30 minutes and let the temperature of lithium battery cool down. Then plug-in the charging plug for
charging again.
