Huawei SUN2000 M0 Series User manual

SUN2000-(3KTL-10KTL)-M0
User Manual
Issue 06
Date 2020-10-23
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2020. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees
or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every eort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: https://e.huawei.com
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. i

About This Document
Purpose
This document describes the SUN2000-3KTL-M0, SUN2000-4KTL-M0,
SUN2000-5KTL-M0, SUN2000-6KTL-M0, SUN2000-8KTL-M0, and SUN2000-10KTL-
M0 (SUN2000 for short) in terms of installation, electrical connections,
commissioning, maintenance, and troubleshooting. Read this document through,
understand the safety information, and get familiar with the functions and
features of the SUN2000 before installing and operating it.
NO TE
The SUN2000-8KTL-M0 and SUN2000-10KTL-M0 inverters are not applicable to Australia.
Intended Audience
This document is intended for:
● Installers
● Users
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Description
Indicates a hazard with a high level of risk which, if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium level of risk which, if not
avoided, could result in death or serious injury.
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
SUN2000-(3KTL-10KTL)-M0
User Manual About This Document
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. ii

Symbol Description
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal
injury.
Supplements the important information in the main text.
NOTE is used to address information not related to personal
injury, equipment damage, and environment deterioration.
Change History
Changes between document issues are cumulative. The latest document issue
contains all updates made in previous issues.
Issue 06 (2020-10-23)
Updated A Grid Codes.
Updated 10 FAQ.
Issue 05 (2019-11-12)
● Updated the appearance and installation diagrams because the structure of
the mounting bracket at the lower part of the inverter rear panel is changed.
● Updated the screenshots of the FusionSolar app.
● Updated E AFCI.
Issue 04 (2019-10-18)
● Updated 5.1 Preparing for Installation and changed the WLAN Smart
Dongle to the WLAN-FE Smart Dongle.
● Updated 5.5 (Optional) Installing the Smart Dongle and added the
installation method of the WLAN-FE Smart Dongle.
● Updated 5.6 (Optional) Installing the Signal Cable. The Dongle signal cable
supports the cascading of multiple inverters.
● Updated 5.6.2 Connecting the RS485 Communications Cable (Smart Power
Sensor) and added the three-phase three-wire wiring diagram.
● Updated 6.2 Powering On the System and added indicator description about
the WLAN-FE Smart Dongle and 4G Smart Dongle.
● Updated 6.3 Commissioning, modied the scenario names, FusionSolar app
download methods, and app screenshots, and added version description about
FusionSolar app supported by the WLAN-FE Smart Dongle.
● Updated C Setting Export Limitation Parameters and modied the
screenshots and parameter description.
SUN2000-(3KTL-10KTL)-M0
User Manual About This Document
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. iii

Issue 03 (2019-07-19)
● Added note: SUN2000-8KTL-M0 and SUN2000-10KTL-M0 inverters are not
applicable to Australia.
● Added 6.3 Commissioning.
● Added E AFCI.
● Added F IPS Test (for Italy CEI0-21 Grid Code only).
● Updated B Setting Dry Contact Scheduling Parameters.
● Added C Setting Export Limitation Parameters.
● Added D Setting Voltage Rise Suppression Q-U Curve.
Issue 02 (2019-04-30)
This issue is the second ocial release.
Issue 01 (2018-12-30)
This issue is used for rst oce application (FOA).
SUN2000-(3KTL-10KTL)-M0
User Manual About This Document
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. iv

Contents
About This Document................................................................................................................ ii
1 Safety Information.................................................................................................................. 1
1.1 General Safety.......................................................................................................................................................................... 1
1.2 Personnel Requirements....................................................................................................................................................... 2
1.3 Electrical Safety........................................................................................................................................................................3
1.4 Installation Environment Requirements.......................................................................................................................... 4
1.5 Mechanical Safety................................................................................................................................................................... 4
1.6 Commissioning......................................................................................................................................................................... 5
1.7 Maintenance and Replacement..........................................................................................................................................6
2 Overview....................................................................................................................................7
2.1 Product Introduction.............................................................................................................................................................. 7
2.2 Appearance............................................................................................................................................................................. 10
2.3 Label Description.................................................................................................................................................................. 13
2.3.1 Enclosure Labels.................................................................................................................................................................13
2.3.2 Product Nameplate...........................................................................................................................................................14
2.4 Working Principles................................................................................................................................................................ 15
2.4.1 Circuit Diagram.................................................................................................................................................................. 15
2.4.2 Working Modes.................................................................................................................................................................. 15
3 Storage.....................................................................................................................................17
4 Installation..............................................................................................................................18
4.1 Checking Before Installation............................................................................................................................................. 18
4.2 Tools.......................................................................................................................................................................................... 18
4.3 Determining the Installation Position............................................................................................................................20
4.3.1 Environment Requirements............................................................................................................................................20
4.3.2 Space Requirements......................................................................................................................................................... 21
4.4 Installing the Mounting Bracket...................................................................................................................................... 24
4.4.1 Wall-mounted Installation............................................................................................................................................. 24
4.4.2 Support-mounted Installation.......................................................................................................................................26
5 Electrical Connections.......................................................................................................... 30
5.1 Preparing for Installation................................................................................................................................................... 30
5.2 Connecting the PE cable.....................................................................................................................................................34
SUN2000-(3KTL-10KTL)-M0
User Manual Contents
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. v

5.3 Connecting the AC Output Power Cable...................................................................................................................... 36
5.4 Connecting the DC input power cable.......................................................................................................................... 40
5.5 (Optional) Installing the Smart Dongle........................................................................................................................ 43
5.6 (Optional) Installing the Signal Cable........................................................................................................................... 45
5.6.1 Connecting the RS485 Communications Cable (Inverter Cascading)............................................................. 47
5.6.2 Connecting the RS485 Communications Cable (Smart Power Sensor)..........................................................48
5.6.3 Connecting the Power Grid Scheduling Signal Cable........................................................................................... 52
6 Commissioning.......................................................................................................................55
6.1 Check Before Power-On......................................................................................................................................................55
6.2 Powering On the System....................................................................................................................................................56
6.3 Commissioning...................................................................................................................................................................... 60
6.3.1 Scenario 1: Smart Dongle Networking Scenario.................................................................................................... 60
6.3.2 Scenario 2: SmartLogger1000A Networking Scenario..........................................................................................63
6.3.3 Scenario 3: FusionSolar App Cannot Access the Internet....................................................................................63
6.4 Powering O the System................................................................................................................................................... 67
7 Maintenance...........................................................................................................................68
7.1 Routine Maintenance.......................................................................................................................................................... 68
7.2 Troubleshooting..................................................................................................................................................................... 69
8 Handling the Inverter...........................................................................................................78
8.1 Removing the SUN2000..................................................................................................................................................... 78
8.2 Packing the SUN2000..........................................................................................................................................................78
8.3 Disposing of the SUN2000................................................................................................................................................ 78
9 Technical Data........................................................................................................................79
10 FAQ......................................................................................................................................... 84
A Grid Codes...............................................................................................................................85
B Setting Dry Contact Scheduling Parameters.................................................................. 89
C Setting Export Limitation Parameters............................................................................. 91
D Setting Voltage Rise Suppression Q-U Curve.................................................................97
E AFCI...........................................................................................................................................99
F IPS Test (for Italy CEI0-21 Grid Code only)................................................................... 103
G Acronyms and Abbreviations........................................................................................... 106
SUN2000-(3KTL-10KTL)-M0
User Manual Contents
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. vi

1 Safety Information
1.1 General Safety
Statement
Before installing, operating, and maintaining the equipment, read this document
and observe all the safety instructions on the equipment and in this document.
The "NOTICE", "CAUTION", "WARNING", and "DANGER" statements in this
document do not cover all the safety instructions. They are only supplements to
the safety instructions. Huawei will not be liable for any consequence caused by
the violation of general safety requirements or design, production, and usage
safety standards.
Ensure that the equipment is used in environments that meet its design
specications. Otherwise, the equipment may become faulty, and the resulting
equipment malfunction, component damage, personal injuries, or property
damage are not covered under the warranty.
Follow local laws and regulations when installing, operating, or maintaining the
equipment. The safety instructions in this document are only supplements to local
laws and regulations.
Huawei will not be liable for any consequences of the following circumstances:
● Operation beyond the conditions specied in this document
● Installation or use in environments which are not specied in relevant
international or national standards
● Unauthorized modications to the product or software code or removal of the
product
● Failure to follow the operation instructions and safety precautions on the
product and in this document
● Equipment damage due to force majeure, such as earthquakes, re, and
storms
● Damage caused during transportation by the customer
● Storage conditions that do not meet the requirements specied in this
document
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 1

General Requirements
D ANGER
Do not work with power on during installation.
● Do not install, use, or operate outdoor equipment and cables (including but
not limited to moving equipment, operating equipment and cables, inserting
connectors to or removing connectors from signal ports connected to outdoor
facilities, working at heights, and performing outdoor installation) in harsh
weather conditions such as lightning, rain, snow, and level 6 or stronger wind.
● After installing the equipment, remove idle packing materials such as cartons,
foam, plastics, and cable ties from the equipment area.
● In the case of a re, immediately leave the building or the equipment area,
and turn on the re alarm bell or make an emergency call. Do not enter the
building on re in any case.
● Do not scrawl, damage, or block any warning label on the equipment.
● Tighten the screws using tools when installing the equipment.
● Understand the components and functioning of a grid-tied PV power system
and relevant local standards.
● Repaint any paint scratches caused during equipment transportation or
installation in a timely manner. Equipment with scratches cannot be exposed
to an outdoor environment for a long period of time.
● Do not open the host panel of the equipment.
Personal Safety
● If there is a probability of personal injury or equipment damage during
operations on the equipment, immediately stop the operations, report the
case to the supervisor, and take feasible protective measures.
● Use tools correctly to avoid hurting people or damaging the equipment.
● Do not touch the energized equipment, as the enclosure is hot.
1.2 Personnel Requirements
● Personnel who plan to install or maintain Huawei equipment must receive
thorough training, understand all necessary safety precautions, and be able to
correctly perform all operations.
● Only qualied professionals or trained personnel are allowed to install,
operate, and maintain the equipment.
● Only qualied professionals are allowed to remove safety facilities and inspect
the equipment.
● Personnel who will operate the equipment, including operators, trained
personnel, and professionals, should possess the local national required
qualications in special operations such as high-voltage operations, working
at heights, and operations of special equipment.
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 2

● Only professionals or authorized personnel are allowed to replace the
equipment or components (including software).
NO TE
● Professionals: personnel who are trained or experienced in equipment operations
and are clear of the sources and degree of various potential hazards in equipment
installation, operation, and maintenance
● Trained personnel: personnel who are technically trained, have required experience,
are aware of possible hazards on themselves in certain operations, and are able to
take protective measures to minimize the hazards on themselves and other people
● Operators: operation personnel who may come in contact with the equipment,
except trained personnel and professionals
1.3 Electrical Safety
Grounding
● For the equipment that needs to be grounded, install the ground cable rst
when installing the equipment and remove the ground cable last when
removing the equipment.
● Do not damage the ground conductor.
● Do not operate the equipment in the absence of a properly installed ground
conductor.
● Ensure that the equipment is connected permanently to the protective
ground. Before operating the equipment, check its electrical connection to
ensure that it is securely grounded.
General Requirements
D ANGER
Before connecting cables, ensure that the equipment is intact. Otherwise, electric
shocks or re may occur.
● Ensure that all electrical connections comply with local electrical standards.
● Obtain approval from the local electric utility company before using the
equipment in grid-tied mode.
● Ensure that the cables you prepared meet local regulations.
● Use dedicated insulated tools when performing high-voltage operations.
AC and DC Power
D ANGER
Do not connect or disconnect power cables with power on. Transient contact
between the core of the power cable and the conductor will generate electric arcs
or sparks, which may cause re or personal injury.
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 3

● Before making electrical connections, switch o the disconnector on the
upstream device to cut o the power supply if people may contact energized
components.
● Before connecting a power cable, check that the label on the power cable is
correct.
● If the equipment has multiple inputs, disconnect all the inputs before
operating the equipment.
Cabling
● When routing cables, ensure that a distance of at least 30 mm exists between
the cables and heat-generating components or areas. This prevents damage
to the insulation layer of the cables.
● Bind cables of the same type together. When routing cables of dierent types,
ensure that they are at least 30 mm away from each other.
● Ensure that the cables used in a grid-tied PV power system are properly
connected and insulated and meet specications.
1.4 Installation Environment Requirements
● Ensure that the equipment is installed in a well ventilated environment.
● To prevent re due to high temperature, ensure that the ventilation vents or
heat dissipation system are not blocked when the equipment is running.
● Do not expose the equipment to ammable or explosive gas or smoke. Do
not perform any operation on the equipment in such environments.
1.5 Mechanical Safety
Using Ladders
● Use wooden or berglass ladders when you need to perform live working at
heights.
● When a step ladder is used, ensure that the pull ropes are secured and the
ladder is held rm.
● Before using a ladder, check that it is intact and conrm its load bearing
capacity. Do not overload it.
● Ensure that the wider end of the ladder is at the bottom, or protective
measures have been taken at the bottom to prevent the ladder from sliding.
● Ensure that the ladder is securely positioned. The recommended angle for a
ladder against the oor is 75 degrees, as shown in the following gure. An
angle rule can be used to measure the angle.
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 4

● When climbing a ladder, take the following precautions to reduce risks and
ensure safety:
– Keep your body steady.
– Do not climb higher than the fourth rung of the ladder from the top.
– Ensure that your body's center of gravity does not shift outside the legs
of the ladder.
Drilling Holes
When drilling holes into a wall or oor, observe the following safety precautions:
● Wear goggles and protective gloves when drilling holes.
● When drilling holes, protect the equipment from shavings. After drilling, clean
up any shavings that have accumulated inside or outside the equipment.
Moving Heavy Objects
● Be cautious to avoid injury when moving heavy objects.
● When moving the equipment by hand, wear protective gloves to prevent
injuries.
1.6 Commissioning
When the equipment is powered on for the rst time, ensure that professional
personnel set parameters correctly. Incorrect settings may result in inconsistency
with local certication and aect the normal operation of the equipment.
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 5

1.7 Maintenance and Replacement
D ANGER
High voltage generated by the equipment during operation may cause an electric
shock, which could result in death, serious injury, or serious property damage.
Prior to maintenance, power o the equipment and strictly comply with the safety
precautions in this document and relevant documents.
● Maintain the equipment with sucient knowledge of this document and
using proper tools and testing equipment.
● Before maintaining the equipment, power it o and follow the instructions on
the delayed discharge label to ensure that the equipment is powered o.
● Place temporary warning signs or erect fences to prevent unauthorized access
to the maintenance site.
● If the equipment is faulty, contact your dealer.
● The equipment can be powered on only after all faults are rectied. Failing to
do so may escalate faults or damage the equipment.
SUN2000-(3KTL-10KTL)-M0
User Manual 1 Safety Information
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 6

2 Overview
2.1 Product Introduction
Function
The SUN2000 is a three-phase grid-tied PV string inverter that converts the DC
power generated by PV strings into AC power and feeds the power into the power
grid.
This document involves the following product models:
● SUN2000-3KTL-M0
● SUN2000-4KTL-M0
● SUN2000-5KTL-M0
● SUN2000-6KTL-M0
● SUN2000-8KTL-M0
● SUN2000-10KTL-M0
NO TE
The SUN2000-8KTL-M0 and SUN2000-10KTL-M0 inverters are not applicable to
Australia.
Figure 2-1 Model description (SUN2000-5KTL-M0 as an example)
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 7

Table 2-1 Model description
Icon Meaning Description
1 Product SUN2000: three-phase grid-tied PV string
inverter
2 Power level ● 3K: The rated power is 3 kW.
● 4K: The rated power is 4 kW.
● 5K: The rated power is 5 kW.
● 6K: The rated power is 6 kW.
● 8K: The rated power is 8 kW.
● 10K: The rated power is 10 kW.
3 Topology TL: transformerless
4 Product code M0: the product series with the 1100 V DC
input voltage
Network Application
The SUN2000 applies to grid-tied PV systems for residential rooftops and small
ground plants. Typically, a grid-tied system consists of the PV string, SUN2000, AC
switch, and alternating current distribution unit (ACDU).
Figure 2-2 Networking application - Single inverter scenario (optional in dashed
boxes)
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 8

Figure 2-3 Networking application - Inverter cascading scenario (optional in
dashed boxes)
NO TE
● indicates a power cable, indicates a signal cable, indicates wireless
communication.
● If the inverter is connected to the FusionSolar app over its built-in WiFi network, only local
commissioning can be performed.
● In the RS485 cascading communication networking, the master inverter model is SUN2000-
(3KTL-20KTL)-M0, and the slave inverter model can be SUN2000-(3KTL-20KTL)-M0,
SUN2000-50KTL/60KTL/65KTL-M0, SUN2000-29.9KTL/36KTL, or SUN2000-33KTL-A.
(A) PV string (B) DC switch (C) SUN2000
(D) AC switch (E) ACDU (F) Smart Power Sensor
(G) Power grid (H) 4G Smart Dongle (I) WLAN-FE Smart
Dongle
(J) Router (K) FusionSolar
management system
(L) FusionSolar app
(M) Load (N) Ripple Control Device
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 9

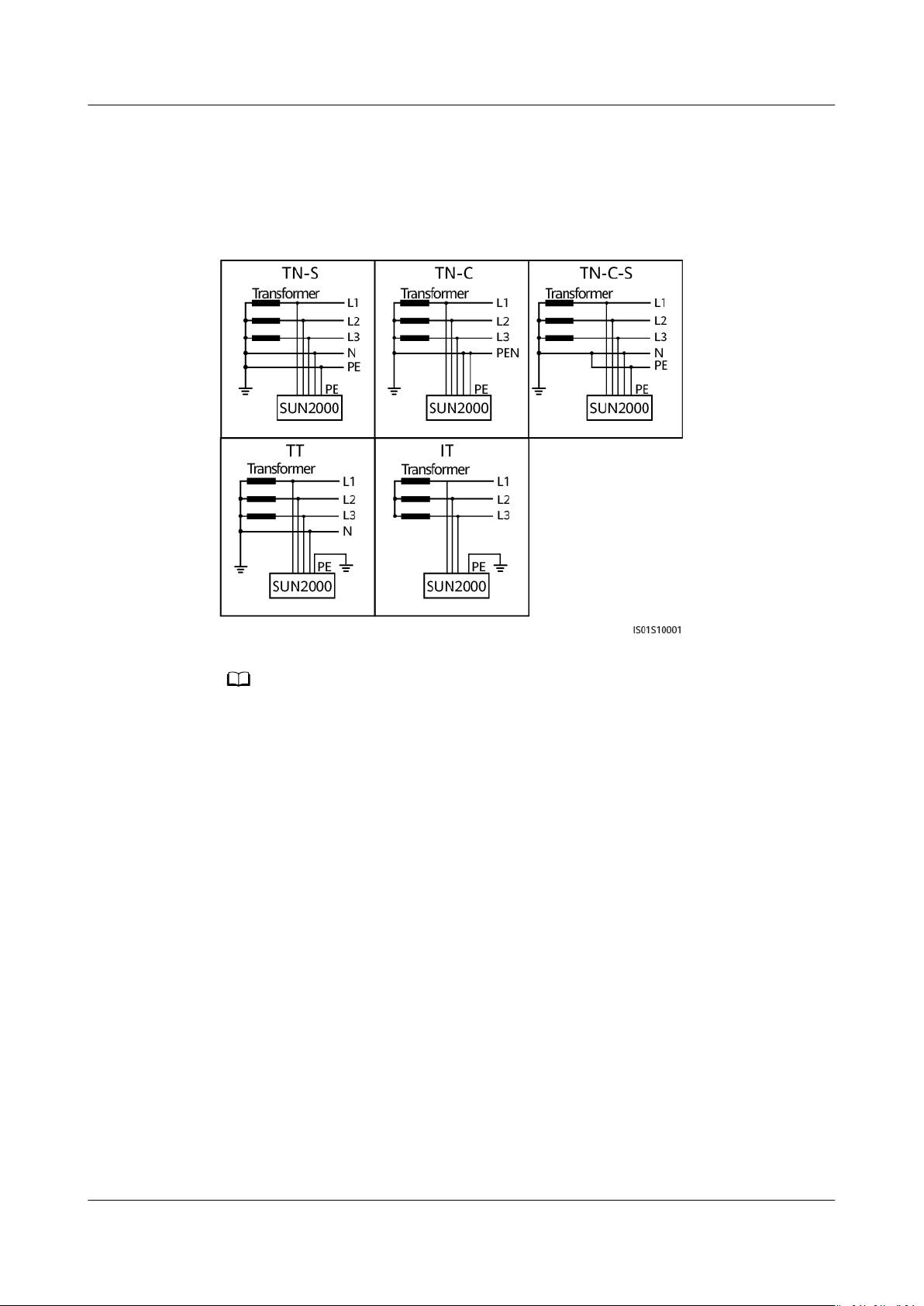

Supported Power Grids
Power grid types supported by the SUN2000 include TN-S, TN-C, TN-C-S, TT, and
IT.
Figure 2-4 Supported power grids
NO TE
● In a TT power grid, the N-PE voltage should be lower than 30 V.
● In an IT power grid, you need to set Isolation settings to Input not grounded, with a
transformer.
2.2 Appearance
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 10

Figure 2-5 Appearance
(1) LED indicator (2) Front panel
(3) Mounting plate (4) Heat sink
(5) Ventilation valve (6) Ground screw
(7) AC output port (AC) (8) Communication port (COM)
(9) Smart Dongle port (GPRS/4G/
WLAN-FE)
(10) Battery terminals (BAT+/BAT–)
(reserved)
(11) DC input terminals (PV2+/PV2–) (12) DC input terminals (PV1+/PV1–)
(13) DC switch (DC SWITCH)
NO TE
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 11

Table 2-2 LED indicator description
Category Status Meaning
Running
indication
LED 1 LED 2 N/A
Steady green Steady green The SUN2000 is operating
in grid-tied mode.
Blinking green
at long
intervals (on
for 1s and then
o for 1s)
O The DC is on and the AC
is o.
Blinking green
at long
intervals (on
for 1s and then
o for 1s)
Blinking green
at long
intervals (on
for 1s and then
o for 1s)
The DC is on, the AC is on,
and the SUN2000 is not
exporting power to the
power grid.
O Blinking green
at long
intervals
DC is o and AC is on.
O O DC and AC are both o..
Blinking red at
short intervals
(on for 0.2s
and then o
for 0.2s)
N/A DC environmental alarm
N/A Blinking red at
short intervals
(on for 0.2s
and then o
for 0.2s)
AC environmental alarm
Steady red Steady red Fault
Communicatio
n indication
LED 3 N/A
Blinking green at short intervals
(on for 0.2s and then o for 0.2s)
Communication is in
progress. (When a mobile
phone is connected to the
SUN2000, the indicator
rst indicates that the
phone is connected to the
SUN2000): blinks green at
long intervals.)
Blinking green at long intervals
(on for 1s and then o for 1s)
The mobile phone is
connected to the
SUN2000.
O There is no
communication.
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 12

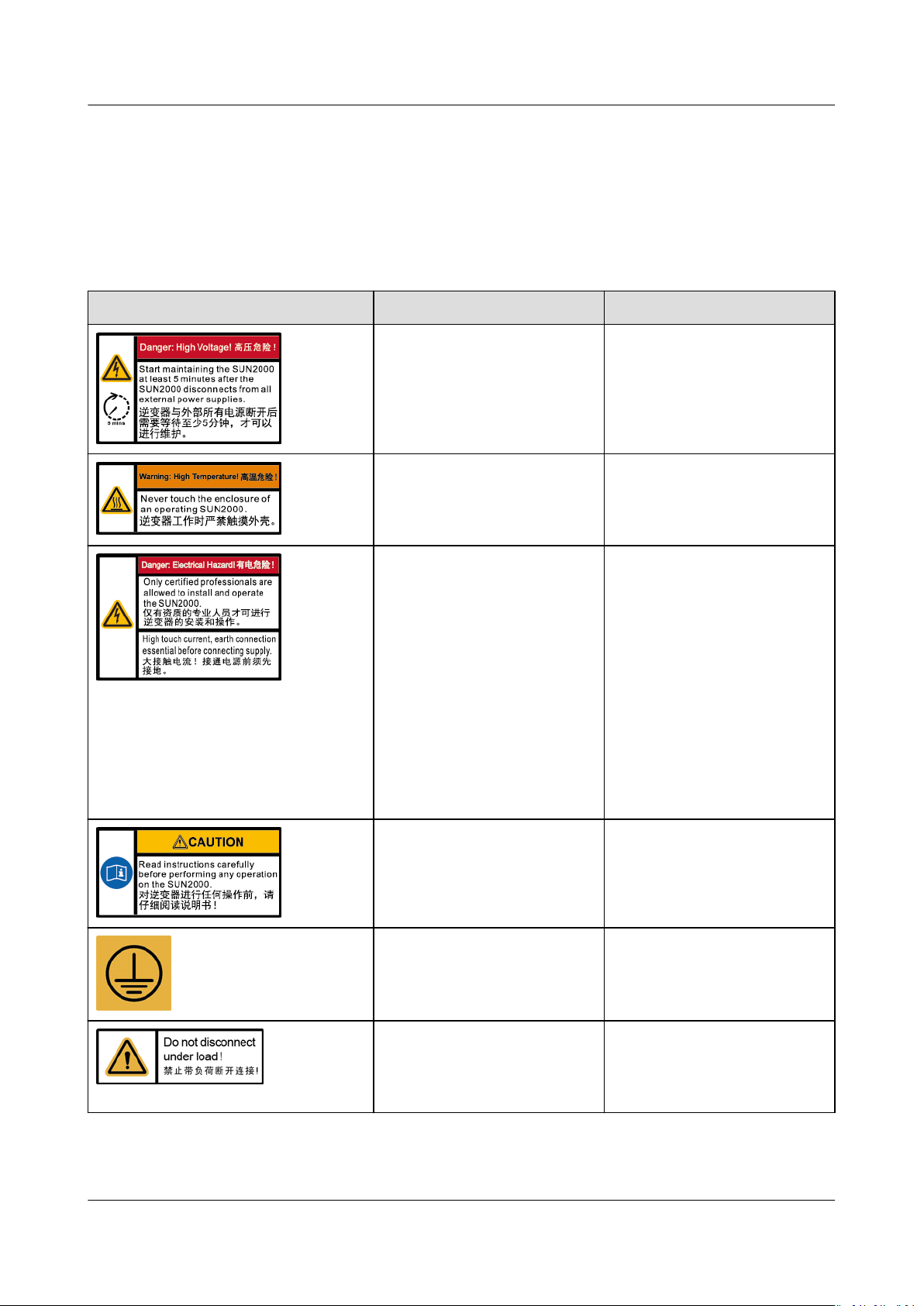

2.3 Label Description
2.3.1 Enclosure Labels
Symbol Name Meaning
Delayed discharge Residual voltage exists after
the SUN2000 is powered o.
It takes 5 minutes for the
SUN2000 to discharge to
the safe voltage.
Burn warning Do not touch an operating
SUN2000 because it
generates high temperatures
on the shell.
Electric shock warning label ● High voltage exists after
the SUN2000 is powered
on. Only qualied and
trained electrical
technicians are allowed
to perform operations on
the SUN2000.
● High touch current exists
after the SUN2000 is
powered on. Ensure that
the SUN2000 has been
grounded before
powering on it.
Refer to documentation Reminds operators to refer
to the documents shipped
with the SUN2000.
Grounding Indicates the position for
connecting the protective
earthing (PE) cable.
Operation warning Do not remove the DC input
connector or the AC output
connector when the
SUN2000 is running.
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 13
