Huawei K3565 User manual

Copyright 2008HuaweiTechnologiesCo.,Ltd.
AllRightsReserved
Nopartofthisdocumentmaybereproducedortransmittedinanyformorbyany
meanswithoutpriorwritten consent ofHuaweiTechnologiesCo.,Ltd.
Trademarks andPermissions
andotherHuaweitrademarks aretrademarks ofHuaweiTechnologiesCo.,
Ltd.
Allothertrademarks andtradenamesmentionedinthisdocumentare the
property oftheirrespective holders.
Notice
The informationinthisdocumentissubjecttochangewithout notice.Everyeffort
hasbeenmadeinthe preparationof thisdocumenttoensureaccuracy of the
contents,butall statements,information,andrecommendationsinthisdocument
donotconstitutethewarranty ofanykind,express orimplied.

i
TableofContents
WhatIsinYour Package............................................1
GettingtoKnowYourK3565......................................2
Preparation.............................................................4
Installation/RemovalGuide........................................6
Safety Information...................................................9
AcronymsandAbbreviations.....................................14

1
ThankyouforchoosingK3565HSDPAUSB Stick.With
theK3565,youcanaccesstheInternetthroughwireless
network atahighspeed.
Note:Thismanualdescribestheappearance,installationandremovalof
theK3565.Fortheoperationofthemanagementprogram,referto the
UserManual.
WhatIs in YourPackage
The package ofyourK3565containsthe followingitems:
nOne K3565
nOne QuickStart
nOne USBcable

2
GettingtoKnowYourK3565
The followingfigure showstheappearance ofthe K3565.Itisonly foryour
reference.The actualproductmaydiffer.
1
2
3
4
ŒUSBInterface
Itconnectsthe K3565toacomputer.

3
•SIM/USIMCardSlot
Itiswhere youinsertthe subscriberidentity module/UMTS subscriberidentity
module (SIM/USIM) card.
ŽMicroSDCardSlot
Itiswhere youinsertthe MicroSecureDigitalMemory(SD)card
•Indicator
Itindicatesthe statusoftheK3565.
Colour Status Meaning
Green Blinking(onfor100msand
off for100ms; thenonfor
100msandoff for
2700ms)
The K3565ispoweredon.
Green Blinking(onfor100msand
off for2900ms) The K3565isregisteredtoa GSM/GPRS/EDGEnetwork.
Blue Blinking(onfor100msand
off for2900ms) The K3565isregisteredtoaUMTS network.
Green On The K3565isconnectedtoaGPRS/EDGE
network.
Blue On The K3565isconnectedtoaWCDMA
network.
CyanOn The K3565isconnectedtoaHSDPA
network.
- Off The K3565isremoved.

4
Preparation
RequirementsfortheComputer
TousetheK3565,the computershouldmeetthefollowingrequirements:
nUSB TypeAReceptacle,Compatible with USB 2.0HighSpeed.
nWindows2000SP4,WindowsXPSP2,WindowsVista.
nYour computer’shardware system shouldmeetorexceedtherecommended
system requirementsfortheinstalledversionof OS.
nResolutionforthe display: 800 ×600orabove.
GettingYourK3565 Ready
nRemovethe USIM/SIMcardslotfromthe K3565.
nInsert the USIM/SIMcardintothecardslot.
nInsert the cardslotintotheK3565.

5
InsertingtheMicroSDCard(Optional)
Insert the microSDcardintotheK3565,asshowninthe followingfigure.
Note:Do notremovethemicro SD cardwhenitisbeingused.Removing
thecardduringanoperationmaydamage themicro SD cardaswell as
thedevice,anddatastored onthecardmaybecorrupted.

6
Installation/RemovalGuide
Ondifferentoperatingsystems(OSs),the installationandremovalprocedures
may differ.Followthe systempromptsduringoperation.
ConnectingtheK3565 withaComputer
Note:First,poweronthecomputer. ThenconnecttheK3565 withthe
computer.Otherwise,theK3565 cannotbe installedasnormal.

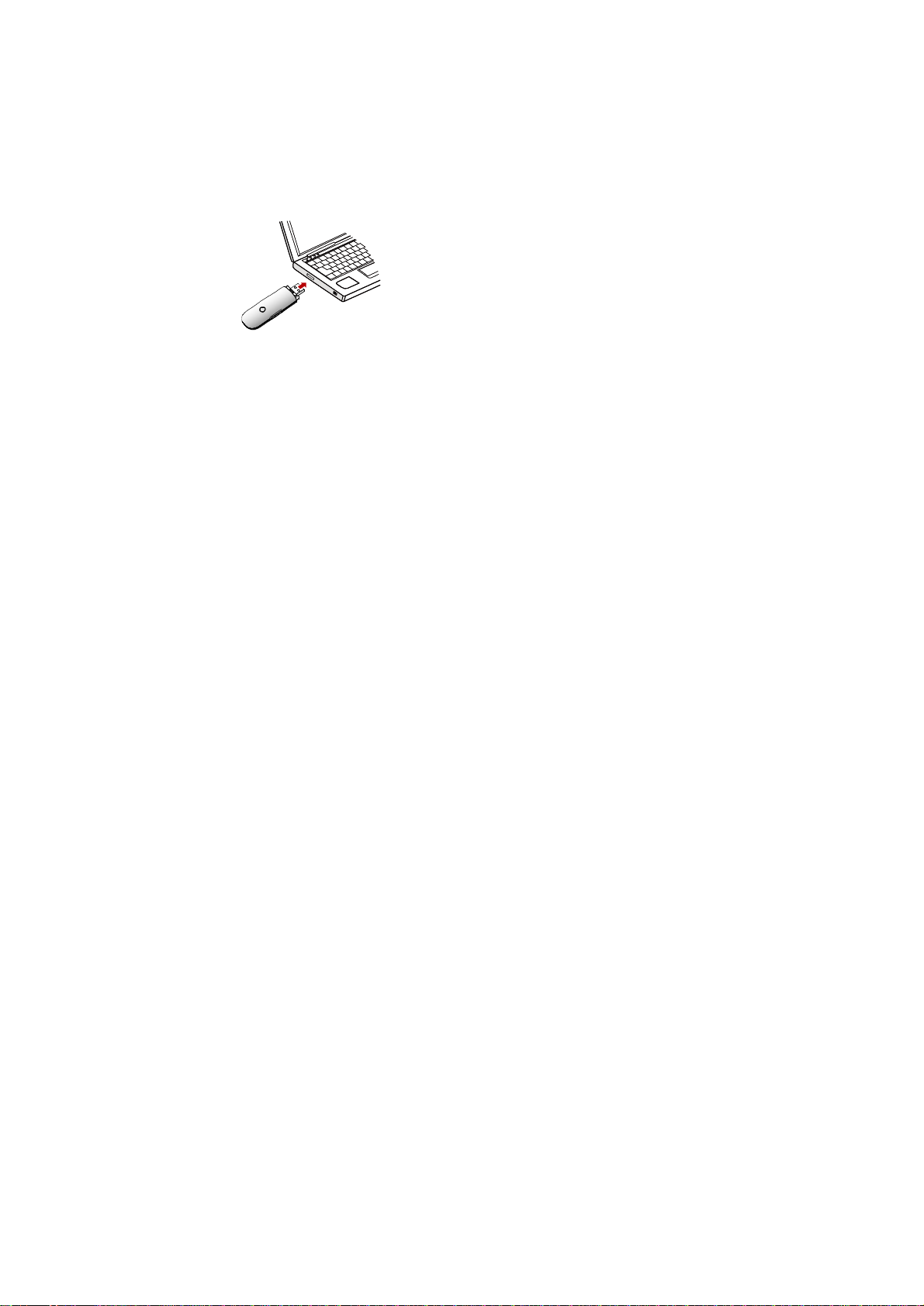

nPlugthe K3565intothe USBinterface ofthe laptopordesktopcomputer.
nYoucanconnecttheK3565toalaptopordesktopcomputerusingthe USB
cable forbettersignals.

7
nThe OS automatically detectsandrecognisesnewhardware andstartsthe
installationwizard.
nFollowthe promptsoftheinstallationwizard.
nAfterthe program isinstalled,ashortcuticonfortheK3565management
programisdisplayedonthedesktop.
StartingtheManagementProgram
AftertheK3565isinstalled,themanagement programislaunchedautomatically.
Theneverytime the K3565isconnectedtothePC,the managementprogramis
launchedautomatically.
Youcanalsodouble-click the shortcuticononthe desktoptolaunchthe
management program.
RemovingtheK3565
Removethe K3565directly.

8
RemovingtheManagementProgram
nClick Start Menu.
nClick Control Panel.
nClick Add/RemoveProgram toremovethemanagementprogramof the
K3565.
Note:Beforeremovingthemanagementprogram,exitthemanagement
program.

9
SafetyInformation
Readthe safetyinformationcarefully toensure thecorrectandsafe use of your
wireless device.
Interference
Donotuseyourwirelessdeviceifusingthedeviceisprohibitedorwhenitcause
dangerorinterference with electricdevices.
MedicalDevice
nDonotuseyourwireless deviceandfollowtherulesandregulationssetforth
by the hospitalsandhealth care facilities.
nSome wireless devicesmayaffectthe performanceof thehearingaids.For
any suchproblems,consultyourservice provider.
nIf youare usinganelectronicmedicaldevice,consultthe doctorordevice
manufacturertoconfirmwhetherthe radiowaveaffectstheoperationofthis
device.
AreawithInflammablesandExplosives
Toprevent explosionsandfiresinareasthatarestoredwith inflammable and
explosive devices,donotuse yourwireless deviceandobservetherules.Areas
storedwith inflammablesandexplosivesinclude but are notlimitedtothe
following:
nGasstation
nFueldepot(suchasthe bunk belowthe deck ofaship)
nContainer/Vehicle forstoringortransportingfuelsorchemicalproducts

10
nAreawherethe aircontainschemicalsubstancesandparticles(suchas
granule,dust,ormetalpowder)
nAreaindicatedwith the "Explosives"sign
nAreaindicatedwith the "Poweroff bi-directionwireless equipment"sign
nAreawhere youare generally suggestedtostopthe engine ofavehicle
TrafficSecurity
nObservelocallawsandregulationswhileusingthewireless device.Toprevent
accidents,donotuseyourwireless device while driving.
nRFsignalsmayaffectelectronicsystemsofmotorvehicles.Formore
information,consultthevehicle manufacturer.
nInamotorvehicle,donotplacethewireless deviceovertheairbagorinthe
airbagdeploymentarea.Otherwise,thewireless devicemay hurtyouowing
tothe strongforce when the airbaginflates.
nObserve the rulesandregulationsof airline companies.Whenboarding,
switchoff yourwireless device.Otherwise,the radiosignalof the wireless
device may interfere with the planecontrolsignals.
Safetyof Children
Donotallowchildren tousethe wireless device without guidance.Small and
sharpcomponentsofthe wireless device maycausedangertochildren orcause
suffocationif children swallowthe components.
EnvironmentProtection
Observethelocalregulationsregardingthedisposalofyour packagingmaterials,
usedwireless device andaccessories,andpromotetheirrecycling.

11
WEEEApproval
The wireless device isincompliance with the essentialrequirementsandother
relevantprovisionsof theWaste ElectricalandElectronicEquipmentDirective
2002/96/EC (WEEE Directive).
RoHSApproval
The wireless device isincompliance with the restrictionof the use of certain
hazardoussubstancesinelectricalandelectronicequipmentDirective
2002/95/EC (RoHS Directive).
LawsandRegulationsObservance
Observe lawsandregulationswhen usingyourwireless device.Respectthe
privacyandlegalrightsofthe others.
Care andMaintenance
Itisnormalthat yourwireless device getshotwhenyouuse orcharge it.Before
youclean ormaintainthewireless device,stopall applicationsanddisconnectthe
wireless device from yourPC.
nUseyourwireless deviceandaccessorieswith careandincleanenvironment.
Keepthe wireless devicefromafire oralitcigarette.
nProtectyourwireless deviceandaccessoriesfromwaterandvaporandkeep
them dry.
nDonotdrop,throworbendyourwireless device.
nClean your wireless device with apiece of dampandsoftantistaticcloth.Do
notuseanychemicalagents(suchasalcoholandbenzene),chemical
detergent,orpowdertocleanit.

12
nDonotleaveyour wireless device andaccessoriesinaplace with a
considerably loworhightemperature.
nUse only accessoriesof the wireless device approvedbythe manufacture.
Contacttheauthorizedservice centerforanyabnormity ofthe wireless
device oraccessories.
nDonotdismantle the wireless device oraccessories.Otherwise,thewireless
device andaccessoriesarenotcoveredbythewarranty.
Emergency Call
Thiswireless device functionsthroughreceivingandtransmittingradiosignals.
Therefore,the connectioncannotbe guaranteedinall conditions.Inan
emergency,youshouldnotrely solely onthe wireless device foressential
communications.
SpecificAbsorptionRate(SAR)
Your wireless device isaradiotransmitterandreceiver.Itisdesignednotto
exceedthe limitsforexposuretoradiowavesrecommendedby international
guidelines.Theseguidelinesweredevelopedbythe independentscientific
organizationICNIRPandincludesafetymarginsdesignedtoassuretheprotection
of all persons,regardless ofageandhealth.
The guidelinesuseaunitofmeasurementknownastheSpecificAbsorptionRate,
orSAR.TheSARlimitforwireless devicesis2.0W/kgandthe highestSAR value
forthisdevice whentestedcompliedwith thislimit.
RegulatoryInformation
The followingapprovalsandnoticesapply inspecificregionsasnoted.
CEApproval(EuropeanUnion)

13
The wireless device isapprovedtobeusedinthe memberstatesofthe EU.The
wireless device isincompliance with the essentialrequirementsandother
relevantprovisionsof theRadioandTelecommunicationsTerminalEquipment
Directive 1999/5/EC (R&TTEDirective).
FederalCommunicationsCommissionNotice (UnitedStates):Beforeawireless
device modelisavailable forsale tothepublic,itmustbetestedandcertifiedto
theFCCthatitdoesnotexceedthe limitestablishedbythe government-adopted
requirementforsafe exposure.
The SAR limitadoptedbythe USA andCanadais1.6watts/kilogram(W/kg)
averagedoverone gramoftissue.ThehighestSAR value reportedtotheFCC for
thisdevice type wascompliant with thislimit.
Federal Communication Commission Interference Statement
15.19
NOTICE:
ThisdevicecomplieswithPart 15 of the FCC Rules[and withRSS-210 of IndustryCanada].
Operation is subject tothe following twoconditions:
(1)this devicemaynot causeharmfulinterference, and
(2)this devicemust accept anyinterferencereceived, including interferencethat may
causeundesired operation.
15.21
NOTICE:
Changesormodificationsmade tothis equipment not expresslyapproved by(HUAWEI)
mayvoidthe FCC authorization tooperatethis equipment.
15.105
NOTE:This equipment hasbeen tested andfoundtocomplywiththe limitsforaClass B
digitaldevice, pursuant toPart 15of theFCC Rules.Theselimitsaredesigned toprovide
reasonableprotection against harmfulinterferenceinaresidentialinstallation.This

14
equipment generates, usesandcan radiateradiofrequencyenergyand, if not installed and
used inaccordancewiththe instructions, maycauseharmfulinterferencetoradio
communications.However, thereis no guarantee that interferencewill not occurina
particularinstallation.Ifthis equipmentdoescauseharmfulinterferencetoradioortelevision
reception, whichcan be determined byturning the equipment offand on, theuseris
encouraged totrytocorrect the interferencebyone ormoreof thefollowing measures:
Reorient orrelocatethe receiving antenna.
Increasetheseparation between the equipment andreceiver.
Connect the equipment intoan outlet on acircuit different fromthat towhichthe receiveris
connected.
Consult the dealeroran experienced radio/TVtechnician forhelp.
FCC Caution:Anychangesormodificationsnot expresslyapprovedbythe party
responsibleforcompliancecouldvoidthe user's authoritytooperatethis equipment.
*If the USB Stickis indented foruseinanymobiledevice, aminimumdistanceof 20cm
between the radiatorandyourbodymust be kept.
AcronymsandAbbreviations
EDGE EnhancedDataRatesforGSMEvolution
GPRS GeneralPacketRadioService
GSM GlobalSystem forMobile Communications
HSDPA HighSpeedDownlink PacketAccess
OS OperatingSystem
PIN PersonalIdentificationNumber
SAR SpecificAbsorptionRate

15
SIM SubscriberIdentityModule
UMTS UniversalMobile TelecommunicationsSystem
USB UniversalSerialBus
USIM UMTS SubscriberIdentityModule
WCDMA WidebandCode DivisionMultiple Access
Version: V100R001_01PartNumber:3101****
