3 Chassis
About This Chapter
Huawei AR routers are available in AR500, AR510, AR530, AR550, AR1500, and AR2500
series. Select the router models that suit your network requirements.
3.1 Naming Conventions
3.2 AR500 Series
3.3 AR510 Series
3.4 AR530 Series
3.5 AR550 Series
3.6 AR1500 Series
3.7 AR2500 Series
3.1 Naming Conventions
AR500&AR510&AR530&AR550 Series
Figure 3-1 shows naming conventions of the AR500&AR510&AR530&AR550 series
routers. Table 3-1 describes the meaning of each letter or digit.
Figure 3-1 AR500&AR510&AR530&AR550 series naming conventions
[-C4]
[AR] [-C2]
Example: AR531G-U-D-H
AR550-8FE-D-H
[5 3 1 C1] [-C3]
A B C D E F G H
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 72

Table 3-1 AR500&AR510&AR530&AR550 series naming conventions
Field Meaning Description
A Product name AR
B Code of IoT gateway The code is 5.
C Combines with B to indicate
different router series using
the same hardware platform
l50: general IoT access gateway
series.
l51: in-vehicle or media gateway
series.
l53: industrial switching router
series mainly used in routing
scenarios.
l55: industrial switching router
series mainly used in switching
scenarios.
D Type of major uplink
interfaces
An integer ranging from 1 to 9,
identifying a specific sub-series.
E Type of auxiliary interfaces
on the router (optional)
Zero or multiple letters, which are
explained as follows:
lF: uplink GE combo interface.
lG: uplink wireless interface
(2G/3G/4G).
lPe: support for HiSilicon power
line communication (PLC) and
spread frequency shift keying (S-
FSK) PLC.
lR: ZigBee or sub-GHz interface.
lZ: BPL interface.
lC: compact model developed
based on a basic model (lower
interface or feature
performance).
lE: enhanced model developed
based on a basic model
(enhanced interface or feature
performance).
lDG: support for dual wireless
uplinks.
lW: support for Wi-Fi access.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 73

Field Meaning Description
F (Optional) Supplementary
information about interfaces
NOTE
This field contains zero, one,
or multiple sub-fields that
provide supplementary
information or configurations
of interfaces on the router. A
sub-field starts with "-" and
specifies supplementary
interface descriptions or other
possible configurations.
lU: complies with the WCDMA
3G standard.
lL: complies with FDD LTE, a
European standard.
lLc: complies with FDD/TDD
LTE, applicable in China, and
does not support CDMA2000.
lLo: complies with FDD-LTE,
applicable in Australia.
lLt: complies with FDD/TDD
LTE, applicable in China, and
supports all mobile
communications standards used
in China.
lLj: complies with FDD/TDD-
LTE, applicable in Japan.
lLa: complies with WCDMA/
FDD-LTE, applicable in
America.
lnC: provides combo interfaces. n
indicates the number of combo
interfaces.
lnFE: provides FE LAN electrical
interfaces. n indicates the
number of FE LAN interfaces.
lA: supports audio input/output.
lV (1 to n): supports video output.
n indicates the number of video
outputs.
–V2 indicates that the router
supports two video outputs.
–V3 indicates that the router
supports three video outputs.
lMn: supports multiple-service
open platform. n is an Arabic
number indicating the
specifications of the multiple-
service open platform. The larger
the number, the higher capability
the platform has. The M3 series,
M7 series, and M8 series are
available now.
–M3: supports an SD card.
–M7: supports a mini Serial
Advanced Technology
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 74

Field Meaning Description
Attachment (mSATA) hard
disk.
–M8: supports a 3.5-inch hard
disk.
–M9: supports a SATA hard
disk.
G (Optional) Power supply
information
lD: product model using DC
power supply.
lBlank: product model using AC
power supply (default).
H (Optional) Chassis type H: industrial chassis.
NOTE
The AR511GW-L-B3 is a customized model; therefore, its product name does not follow the above-
mentioned naming conventions.
AR2500 Series
Figure 3-2 shows naming conventions of the AR2500 series routers. Table 3-2 describes the
meaning of each letter or digit.
Figure 3-2 AR2500 series naming conventions
Example: AR2504-H
[AR] [2500 C1] [-C2] [-C3]
A BCDE G HF
Table 3-2 AR2500 series naming conventions
Field Meaning Description
A Product name AR: application and access routers.
B Hardware platform series Currently, three router series are
available: 1, 2 and 3. A larger value
indicates higher performance.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 75

Field Meaning Description
C Hardware platform type 5: industrial router platform.
D Maximum number of slots
supported by the router
If this field is 0, the router is a cost-
effective model with fixed uplink
interfaces or reduced number of
slots. Field E represents the number
of fixed uplink interfaces or reduced
number of slots.
E Fixed uplink interfaces on
the router
4: four SIC slots.
F (Optional) Series of the
router and other interface
types supported by the router
lC: C series.
lF: F series.
lE: E series.
G (Optional) power supply
information
lD: product model using DC
power supply.
lBlank: product model using AC
power supply (default).
H (Optional) Chassis type H: industrial chassis.
3.2 AR500 Series
3.2.1 AR502CG-L
Version Mapping
Table 3-3 lists the mapping between the AR502CG-L router and software versions.
Table 3-3 Mapping between the AR502CG-L router and software versions
Device Model Software Version
AR502CG-L V200R008C30 and later versions
Appearance and Structure
Figure 3-3 shows the appearance of the AR502CG-L router.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 76

Figure 3-3 AR502CG-L appearance
Config
SIM
GE1MGMT GE0
AR502CG-L
/
453
67
12
8 9
CON RS232
DC
36
8 V;
1 A
DI
9/3IGXJIU\KXXKSU\KJ
9/3IGXJIU\KXOTYZGRRKJ
Config
SIM
GE1MGMT GE0
AR502CG-L
/
10
CON RS232
DC
36
8 V;
1 A
DI
Config SIM
1USB interface 2 WAN interface: LTE antenna interface
NOTE
lThe router has a built-in antenna and can
be configured with an external antenna
(optional). The external antenna is
connected to the LTE antenna interface.
lYou can choose the built-in or external
antenna on the web management system.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 77

3 CON/RS232 interface 4 LAN interfaces: two GE electrical
interfaces
NOTE
lGE0 is a management interface and is
used to upgrade the router.
lThe GE LAN interface can be used as a
WAN interface.
5 Power socket
Applicable power modules:
lThe router supports Huawei 4.5 60 W
Industrial AC Power Module.
lSelf-provided power modules of
customers: see Technical
Specifications for the recommended
power parameters
6 Config button
NOTE
The Config button is used to restore the
factory settings and switch RS232 interfaces.
lHolding down the button for 5s or longer
will restart the router and restore the
factory settings.
lHolding down the button for less than 5s
will switch between the CON and RS232
modes. The factory default mode is
CON.
Restoring the factory settings will cause
service interruption. Exercise caution when
using this button.
7 SIM card slot 8 DI/DO interface
9 Product model silkscreen 10 SIM card cover
Indicator Description

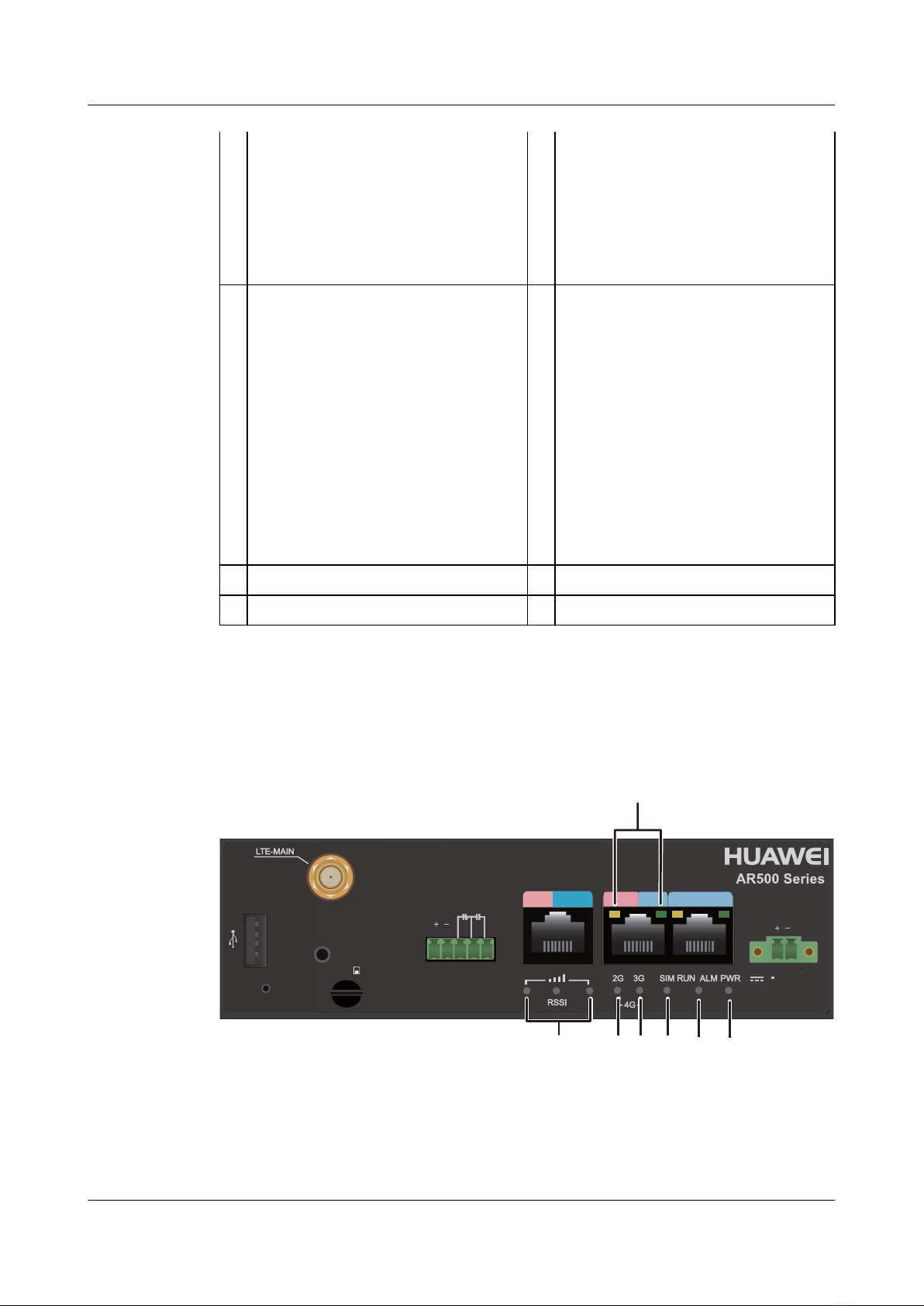

Figure 3-4 shows indicators on the AR502CG-L router.
Figure 3-4 Indicators on the AR502CG-L
Config
SIM
GE1MGMT GE0
AR502CG-L
/
CON RS232
DC
36
8 V;
1 A
DI
45 36
7
12
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 78

Numbe
r
Indicator/
Button
Color Description
1 RSSI
NOTE
There are
three RSSI
indicators
arranged
horizontally
on the panel,
which turn
on in
sequence.
More RSSI
indicators in
steady on
state indicate
a larger
received
signal
strength
indicator
(RSSI) value
and higher
signal
strength.
Green One indicator on: The signal strength is low.
Two indicators on: The signal strength is
medium.
Three indicators on: The signal strength is high.
Three indicators off: No signal is available.
2 and 3 4G/3G/2G
indicators
Green 2G indicator steady on: The wireless module is
working in 2G mode.
3G indicator steady on: The wireless module is
working in 3G mode.
2G and 3G indicators steady on: The wireless
module is working in 4G mode.
2G and 3G indicators off: The wireless module
does not work normally or is unregistered.
4 SIM Green Steady on: A SIM card is installed in the slot
and is working normally.
Off: No SIM card is installed in the slot.
5 RUN/ALM Red and
green
Steady green: The system has been upgraded or
configured using a USB flash drive.
Slow blinking green: The system is running
properly.
Fast blinking green: The system is loading or
undergoing a USB-based deployment.
Steady red: A system fault or USB-based
deployment failure has occurred and requires
manual intervention.
Off: The system software is not running or is
resetting.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 79

Numbe
r
Indicator/
Button
Color Description
6 PWR Green Steady on: The system power supply is normal.
Off: The system power supply is abnormal or
the router is not connected to a power source.
7 GE electrical
interface
indicators
(GE0 to
GE1)
Green Steady on: A link has been established on the
interface.
Off: No link is established on the interface.
Yellow Blinking: Data is being transmitted or received
on the interface.
Off: No data is being transmitted or received.
Interface Description
CON/RS232 interface
The CON/RS232 interface can connect to an operation terminal for onsite configuration.
Table 3-4 lists CON/RS232 interface attributes.
Table 3-4 CON/RS232 interface attributes
Attribute Description
Connector type RJ45
Standards compliance RS232
Working Mode Full-duplex Universal Asynchronous
Receiver/Transmitter (UART)
GE electrical interface
A GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives Ethernet
services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. Table 3-5 lists GE electrical interface
attributes.
Table 3-5 GE electrical interface attributes
Attribute Description
Connector type RJ45
Standards compliance IEEE802.3, IEEE802.3u, IEEE802.3ab
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 80

Attribute Description
Interface attribute MDI/MDIX
NOTE
lMDI stands for medium dependent interface,
an Ethernet interface connection mode.
Ethernet interfaces of most network interface
cards (NICs) are MDI interfaces.
lMDIX stands for medium dependent
interface crossover, a version of MDI. MDIX
interfaces are usually used on hubs or LAN
switches.
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Cable type 6.6 Ethernet Cable
USB interface
Do not remove the USB flash drive during a USB-based deployment. Otherwise, the system
will restart.
The USB interface supports USB 2.0 devices and provides upload and download speeds of
480 Mbit/s. You can use the USB interface to upload or download configuration and
application files to the flash memory. Table 3-6 lists USB interface attributes.
Table 3-6 USB interface attributes
Attribute Description
Connector type TYPE-A
Standards compliance USB 2.0
Working mode Host
LTE antenna interface
LTE antenna interfaces of a router include a MAIN interface (for the primary antenna). The
primary antenna transmits and receives LTE signals. Table 3-7 lists LTE antenna interface
attributes.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 81

Table 3-7 LTE antenna interface attributes
Attribute Description
Connector type SMA-K (screw threads outside and a hole inside)
Standards
compliance and
frequency bands
supported
lLTE FDD: bands 1/2/3/4/5/7/8/20
lDC-HSPA+/HSPA+/HSPA/WCDMA: bands 1/2/5/8
lGSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
Rate lGeneral Packet Radio Service (GPRS): uplink rate of 85.6 kbit/s
and downlink rate of 85.6 kbit/s
lEnhanced Data Rates for GSM Evolution (EDGE): uplink rate of
236.8 kbit/s and downlink rate of 236.8 kbit/s
lWideband Code Division Multiple Access circuit switched
(WCDMA CS): uplink rate of 64 kbit/s and downlink rate of 64
kbit/s
lWCDMA packet switched (PS): uplink rate of 384 kbit/s and
downlink rate of 384 kbit/s
lHigh Speed Packet Access Plus (HSPA+): uplink rate of 5.76
Mbit/s and downlink rate of 21.6 Mbit/s
lDC-HSPA+: uplink rate of 5.76 Mbit/s and downlink rate of 43.2
Mbit/s
lFrequency Division Duplexing (FDD) LTE: uplink rate of 50
Mbit/s and downlink rate of 150 Mbit/s
Cable type l6.3.2 LTE Whip Antenna
l6.3.4 Outdoor LTE Antenna
l6.3.3 LTE Indoor Remote Antenna
DI/DO interface
A DI interface receives alarm input (9.6-60 V), and a DO interface sends output signals to
instruct an external device to perform required actions. Table 3-8 lists the DI/DO interface
attributes.
Table 3-8 DI/DO interface attributes
Attribute Description
Connector type 5-pin Phoenix terminal block
Signal type lDI: 9.6-60 V DC power input
lDO: Boolean value (short circuit and
open circuit)
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 82

Heat Dissipation
The AR502CG-L router has no fans and uses natural heat dissipation.
Technical Specifications
Table 3-9 lists technical specifications of the AR502CG-L router.
Table 3-9 AR502CG-L technical specifications
Item Specification
System parameters
Processor Dual-core, 700 MHz
Memory 256 MB
Flash 512 MB
Dimensions and weight
Dimensions (W x D x H) 150 mm x 100 mm x 44 mm (5.91 in. x 3.94
in. x 1.73 in.), 1 U height
Weight 0.38 kg (0.84 lb)
Power consumption
Maximum power consumption 8 W
Power specifications
DC power input lRated voltage: 12 V DC/24 V DC
lMaximum voltage range: 8 V DC to 36
V DC
Recommended specifications for self-
provided power modules
lRated output power: ≥8 W
lOperating temperature: -25°C to +70°C
(-13°F to +158°F)
lSurge protection: 6 kV in both the
differential mode and common mode,
1.2/50 us pulse
Interface density
Management interfaces 1
USB interfaces 1
Service interfaces LAN interfaces: two GE electrical
interfaces, which can be used as WAN
interfaces
WAN interfaces: one LTE antenna interface
Industrial service interface: CON/RS232
interface and DI/DO interface
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 83

Item Specification
Environment parameters
Operating temperature lOperating at maximum LTE transmit
power: -25°C to +60°C (-13°F to
+149°F)
lOperating at typical LTE transmit power:
-25°C to +70°C (-13°F to +158°F)
Storage temperature -40°C to +85°C (-40°F to +185°F)
Operating relative humidity 5% to 95%, noncondensing
Operating altitude < 5000 m (16404 ft.)
Part number 50010363
3.2.2 AR502EG-L
Version Mapping
Table 3-10 describes the mapping between the AR502EG-L router and software versions.
Table 3-10 Mapping between the AR502EG-L router and software versions
Device Model Software Version
AR502EG-L V200R008C20 and later versions
Appearance and Structure
Figure 3-5 shows the appearance of the AR502EG-L router.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 84

Figure 3-5 AR502EG-L appearance
GE1
Config
MGMT GE0
AR502EG-L
876
12 34 5
9
1
Removing the SIM card cover from the bottom:
Interfaces on the router:
OPEN
LOCK
10
11
1WAN interfaces: two LTE antenna
interfaces
2 RS485/RS422 interface
NOTE
SG is the ground for RS485/RS422 signal
isolation.
3 RS232 interface 4 DI/DO interface
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 85

5 Ground point
NOTE
To protect the router from lightning and
interference, reliably ground the router using
a 6.8 Ground Cable.
6 USB interface
7 LAN interfaces: two GE electrical
interfaces
NOTE
GE0 is a management interface and is used to
upgrade the router.
8 Config button
NOTE
The Config button is used to restore the
factory settings and switch RS232 interfaces.
lHolding down the button for 5s or longer
will restart the router and restore the
factory settings.
lHolding down the button for less than 5s
will switch between the CON and RS232
modes. The factory default mode is
CON.
Restoring the factory settings will cause
service interruption. Exercise caution when
using this button.
9Power socket
NOTE
lThe router supports Huawei 4.5 60 W
Industrial AC Power Module or 4.4 24
W Integrated Power Adapter with an
Adapter Cable.
lGND is the ground for power signal
isolation.
10 Two SIM card slots
NOTE
lThe router must use industrial SIM cards.
lThe router supports double-card single-
standby, and SIM1 is the default master
card.
lIf only one SIM card needs to be
installed, install it in slot SIM1.
11 DIP switch
NOTE
By default, the DIP switch is in RS485 state
and works in half-duplex mode, with pull-up
and pull-down resistance of 150 kohm and
without 120 ohm matched load resistance.
--
Indicator Description
Figure 3-6 shows indicators on the AR502EG-L.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 86

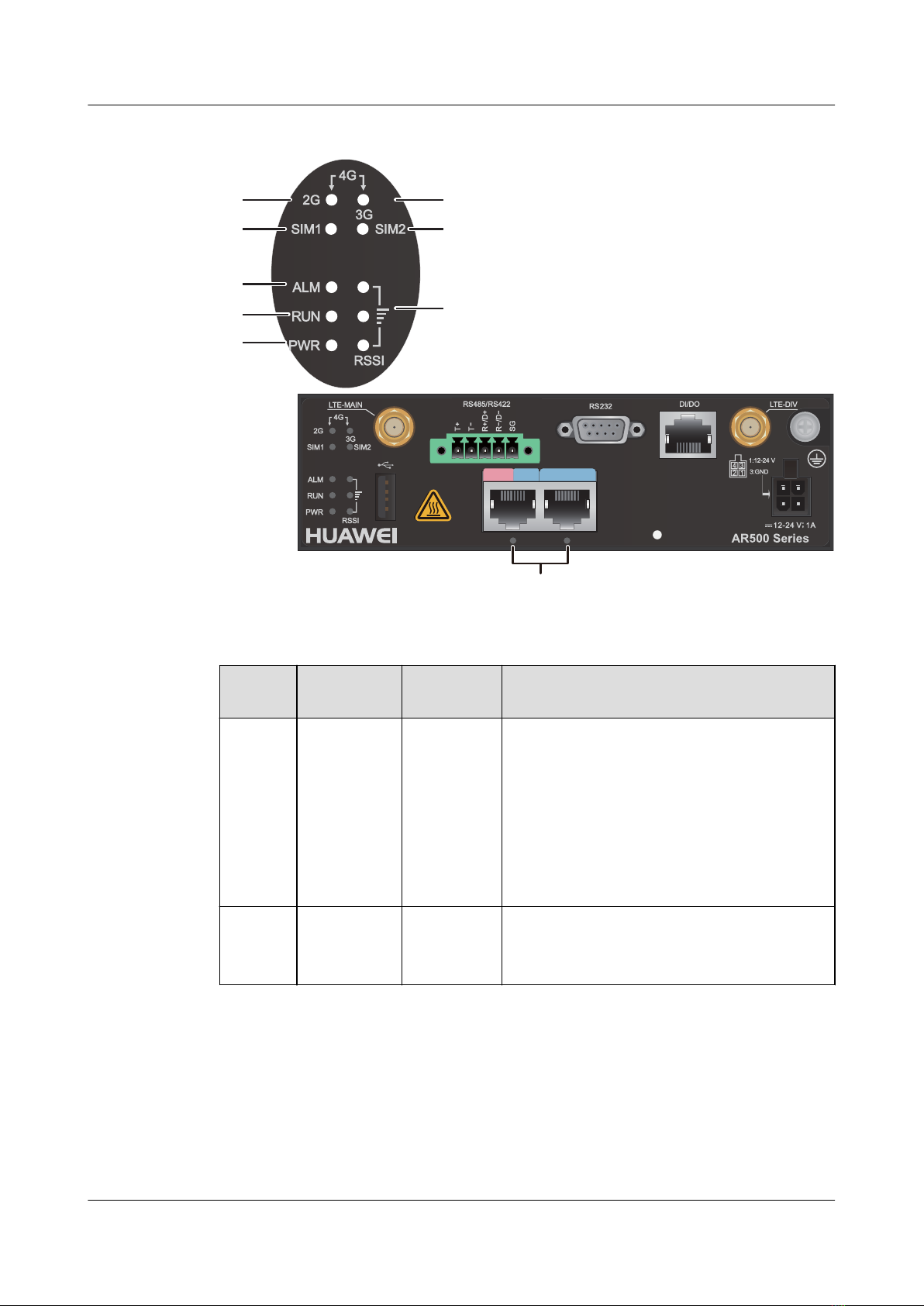

Figure 3-6 Indicators on the AR502EG-L
8
7
6
12
34
5
GE1
Config
MGMT GE0
AR502EG-L
9
Numbe
r
Indicator/
Button
Color Description
1 and 2 4G/3G/2G
indicators
Green 2G indicator steady on: The wireless module is
working in 2G mode.
3G indicator steady on: The wireless module is
working in 3G mode.
2G and 3G indicators steady on: The wireless
module is working in 4G mode.
2G and 3G indicators off: The wireless module
does not work normally or is unregistered.
3 and 4 SIM Green Steady on: A SIM card is installed in the slot
and is working normally.
Off: No SIM card is installed in the slot.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 87

Numbe
r
Indicator/
Button
Color Description
5 ALM Red lWhen no USB flash drive is connected to the
router, the ALM indicator works as the
system indicator:
–Steady red: A system fault has occurred
and requires manual intervention.
–Off: The system is running properly.
lWhen a USB flash drive is connected to the
router, the ALM indicator works as the USB
indicator:
Steady red: The system fails to be upgraded
or configured using the USB flash drive.
6 RUN Green lWhen no USB flash drive is connected to the
router, the RUN indicator works as the
system indicator:
–Off: The system software is not running
or is resetting.
–Slow blinking green: The system is
running properly.
–Fast blinking green: The system is
powering on or restarting.
lWhen a USB flash drive is connected to the
router, the RUN indicator works as the USB
indicator:
–Steady green: The system has been
upgraded or configured using the USB
flash drive.
–Fast blinking: The system is being
upgraded or configured using the USB
flash drive.
7 PWR Green Steady on: The system power supply is normal.
Off: The system power supply is abnormal or
the router is not connected to a power source.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 88

Numbe
r
Indicator/
Button
Color Description
8 RSSI
NOTE
There are
three RSSI
indicators
arranged
vertically on
the panel,
which turn
on in
sequence.
More RSSI
indicators in
steady on
state indicate
a larger
received
signal
strength
indicator
(RSSI) value
and higher
signal
strength.
Green One indicator on: The signal strength is low.
Two indicators on: The signal strength is
medium.
Three indicators on: The signal strength is high.
Three indicators off: No signal is available.
9 GE electrical
interface
indicators
(GE0 to
GE1)
Green Steady on: A link has been established on the
corresponding GE interface.
Blinking: Data is being transmitted over the
link.
Off: No link is established or no data is being
transmitted on the link.
Interface Description
RS232 interface
The RS232 interface can be connected to a data terminal for data transmission or to a console
for onsite configuration. Table 3-11 lists RS232 interface attributes.
Table 3-11 RS232 interface attributes
Attribute Description
Connector type DB9 Female
Standards compliance RS232
Working mode Full-duplex Universal Asynchronous
Receiver/Transmitter (UART)
Data equipment type Data circuit-terminating equipment (DCE)
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 89

Attribute Description
Cable type 6.7 RS232 Cable
GE electrical interface
A GE electrical interface (10/100/1000 Mbit/s auto-sensing) transmits and receives Ethernet
services at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s. Table 3-12 lists GE electrical interface
attributes.
Table 3-12 GE electrical interface attributes
Attribute Description
Connector type RJ45
Standards compliance IEEE802.3, IEEE802.3u, IEEE802.3ab
Interface attribute MDI/MDIX
NOTE
lMDI stands for medium dependent interface,
an Ethernet interface connection mode.
Ethernet interfaces of most network interface
cards (NICs) are MDI interfaces.
lMDIX stands for medium dependent
interface crossover, a version of MDI. MDIX
interfaces are usually used on hubs or LAN
switches.
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
Cable type 6.6 Ethernet Cable
USB interface
Do not remove the USB flash drive during a USB-based deployment. Otherwise, the system
will restart.
The USB interface supports USB 2.0 devices and provides upload and download speeds of
480 Mbit/s. You can use the USB interface to upload or download configuration and
application files to the flash memory. Table 3-13 lists USB interface attributes.
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 90

Table 3-13 USB interface attributes
Attribute Description
Connector type TYPE-A
Standards compliance USB 2.0
Working mode Host
LTE antenna interface
LTE antenna interfaces of a router include a MAIN interface (for the primary antenna) and a
DIV interface (for the secondary antenna). The primary and secondary antennas work
together. The primary antenna transmits and receives LTE signals, and the secondary antenna
helps improve the quality of received LTE signals. Table 3-14 lists LTE antenna interface
attributes.
Table 3-14 LTE antenna interface attributes
Attribute Description
Connector type SMA-K (screw threads outside and a hole inside)
Standards
compliance and
frequency bands
supported
lLTE FDD: bands 1/2/3/4/5/7/8/20
lDC-HSPA+/HSPA+/HSPA/WCDMA: bands 1/2/5/8
lGSM/GPRS/EDGE: 850/900/1800/1900 (MHz)
Rate lGeneral Packet Radio Service (GPRS): uplink rate of 85.6 kbit/s
and downlink rate of 85.6 kbit/s
lEnhanced Data Rates for GSM Evolution (EDGE): uplink rate of
236.8 kbit/s and downlink rate of 236.8 kbit/s
lWideband Code Division Multiple Access circuit switched
(WCDMA CS): uplink rate of 64 kbit/s and downlink rate of 64
kbit/s
lWCDMA packet switched (PS): uplink rate of 384 kbit/s and
downlink rate of 384 kbit/s
lHigh Speed Packet Access Plus (HSPA+): uplink rate of 5.76
Mbit/s and downlink rate of 21.6 Mbit/s
lDC-HSPA+: uplink rate of 5.76 Mbit/s and downlink rate of 43.2
Mbit/s
lFrequency Division Duplexing (FDD) LTE: uplink rate of 50
Mbit/s and downlink rate of 150 Mbit/s
Cable type l6.3.2 LTE Whip Antenna
l6.3.4 Outdoor LTE Antenna
l6.3.3 LTE Indoor Remote Antenna
DI/DO interface
Huawei
AR500&AR510&AR531&AR550&1500&AR2500
Industrial Switch Routers
Hardware Description 3 Chassis
Issue 10 (2019-03-06) Copyright © Huawei Technologies Co., Ltd. 91
