Huawei Enterprise S2700 Series User manual

S2700&S3700&S5700&S6700 Series Ethernet
Switches
Quick Start Guide
Issue 12
Date 2013-07-25
HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the
customer. All or part of the products, services and features described in this document may not be within the
purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,
and recommendations in this document are provided "AS IS" without warranties, guarantees or representations
of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://enterprise.huawei.com
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i

About This Document
Intended Audience
This document describes hardware installation and basic configuration of the
S2700/3700/5700/6700 series to help you understand S2700/3700/5700/6700 hardware and
configuration.
This document is intended for:
lNetwork planning engineers
lHardware installation engineers
lCommissioning engineers
lOnsite maintenance engineers
lSystem maintenance engineers
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
DANGER
Indicates a hazard with a high level or medium level of risk
which, if not avoided, could result in death or serious injury.
WARNING
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
CAUTION
Indicates a potentially hazardous situation that, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
TIP
Provides a tip that may help you solve a problem or save time.
NOTE
Provides additional information to emphasize or supplement
important points in the main text.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide About This Document
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii

Change History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in earlier issues.
Issue 12 (2013-07-25)
This version has the following updates:
The following information is modified:
lS5710-HI installation instruction.
l2.4 Connecting Cables.
Issue 11 (2013-05-30)
This version has the following updates:
The following information is added:
S5710-HI installation instruction.
The following information is modified:
l2.2 Installing a Chassis.
l2.3 Installing and Removing Device Modules.
l2.4 Connecting Cables.
Issue 10 (2013-02-08)
This version has the following updates:
The documentation is modified according to updates in product features.
Issue 09 (2012-12-08)
This version has the following updates:
Quick Installation Guide changes to Quick Start Guide
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide About This Document
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii

Contents
About This Document.....................................................................................................................ii
1 Product Introduction.....................................................................................................................1
2 Device Installation........................................................................................................................2
2.1 Preparing for Installation................................................................................................................................................3
2.2 Installing a Chassis.........................................................................................................................................................4
2.3 Installing and Removing Device Modules...................................................................................................................20
2.4 Connecting Cables........................................................................................................................................................23
2.5 Powering on the Device................................................................................................................................................30
3 Logging in to the Device............................................................................................................33
3.1 Logging In to the Switch Through the Console Interface............................................................................................34
3.2 Example for Configuring to Manage the SwitchThrough Telnet.................................................................................38
3.3 Logging In to the Web System Client..........................................................................................................................40
4 Service Deployment....................................................................................................................43
5 Where to Obtain Documentation.............................................................................................44
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide Contents
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv

1 Product Introduction
This section provides a brief introduction about the S2700/3700/5700/6700 series switches.
For details about the models included in the S2700/3700/5700/6700 series and specifications of
each model, see "Overview" or "Chassis" in the S2700/3700/5700/6700 hardware description.
NOTE
To obtain the electronic hardware description manuals, see 5 Where to Obtain Documentation.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 1 Product Introduction
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1

2 Device Installation
About This Chapter
This section describes how to install S2700/3700/5700/6700 switches, connect cables, power
on the switches, and check the switches after power-on.
2.1 Preparing for Installation
This section describes the tools and accessories required for installation of the
S2700/3700/5700/6700 series switches.
2.2 Installing a Chassis
This section describes the installation scenarios of the S2700/3700/5700/6700 series and
installation methods in these scenarios.
2.3 Installing and Removing Device Modules
This section describes how to install and remove various modules on the
S2700/3700/5700/6700 series switches.
2.4 Connecting Cables
This section describes how to connect an S2700/3700/5700/6700 chassis to a network.
2.5 Powering on the Device
This section provides the checklist used to check the S2700/3700/5700/6700 switches before
and after powering on the switches.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2

2.1 Preparing for Installation
This section describes the tools and accessories required for installation of the
S2700/3700/5700/6700 series switches.
Installation Tools
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

Accessories
2.2 Installing a Chassis
This section describes the installation scenarios of the S2700/3700/5700/6700 series and
installation methods in these scenarios.
WARNING
The S2700/3700/5700/6700 series Ethernet switches are class A products. Customers should
take preventative measures as the operating devices may cause radio interference.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4

CAUTION
lTake ESD protection measures before the installation, for example, wear ESD gloves or ESD
wrist strap.
lWhen installing multiple fan-free or intelligent-heat-dissipation devices in a cabinet or rack,
leave at least 1 U (1 U = 44.45 mm) distance between each two.
lLeave at least 50 mm clearance at two sides and rear of each chassis for heat dissipation.
lPreventing trips are required to fix AC terminals only in desk-mounting or wall-mounting,
and are not required in cabinet-mounting.
The S2700/3700/5700/6700 switches support the following installation scenarios:
lDesk-mounting
lWall-mounting
lCabinet- or rack-mounting
lNetwork box-mounting
Desk-Mounting
CAUTION
The S6700 chassis cannot be installed on a desk.
Before placing an S2700, S3700, S5700 chassis on a desk, attach rubber pads onto each of the
four recessed corner areas on the bottom of the chassis.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5

Wall-Mounting
CAUTION
lThe S6700, S5710-EI and S5710-HI cannot be wall-mounted.
lBefore drilling holes on a wall, make sure that no power cable is routed in the wall. Otherwise,
power cables in the wall may cause body injuries.
lWhen a 220 mm deep S2700 or S3700 chassis needs to be installed on a wall, only two screws
are required to fix a mounting ear to the chassis.
lThe panel with interfaces must face down to protect the interfaces from water.
lEnsure that there are no flammable or explosive materials near the chassis and no sundries
within 100 mm around the chassis.
1. Fix short mounting ears to both sides of the panel with interfaces using M4 screws.
M4
2. Use a marker to mark the positions of mounting holes according to the size of the chassis
and positions of the mounting ears.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6

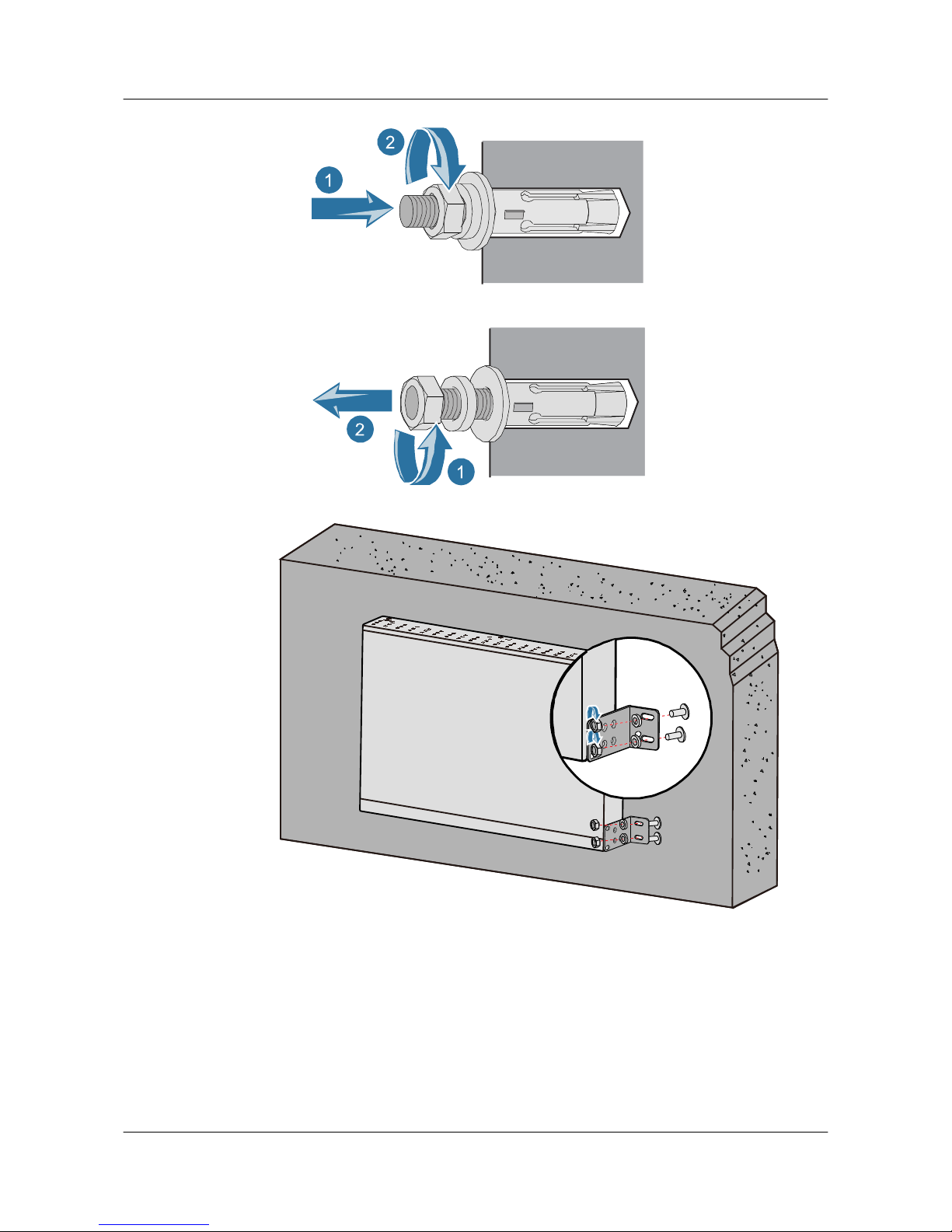

3. Install expansion bolts in the wall.

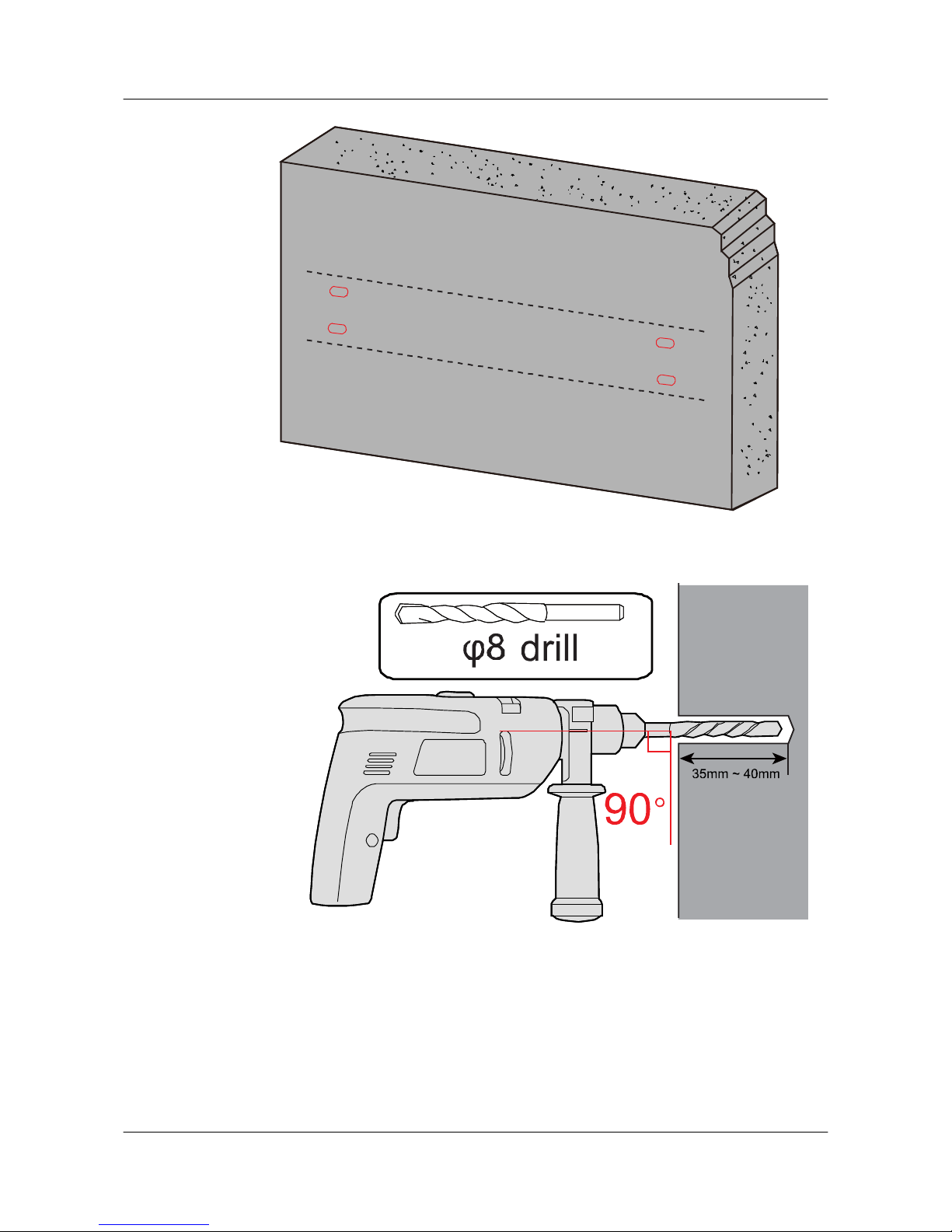

a. Use a φ8 drill bit to drill 35 mm to 40 mm deep holes in the marked positions.
b. Insert expansion bolts into the holes and screw the nuts to fasten the expansion bolts.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7

c. Remove the nuts.
4. Install the chassis on the wall.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8

Cabinet- or Rack-Mounting
CAUTION

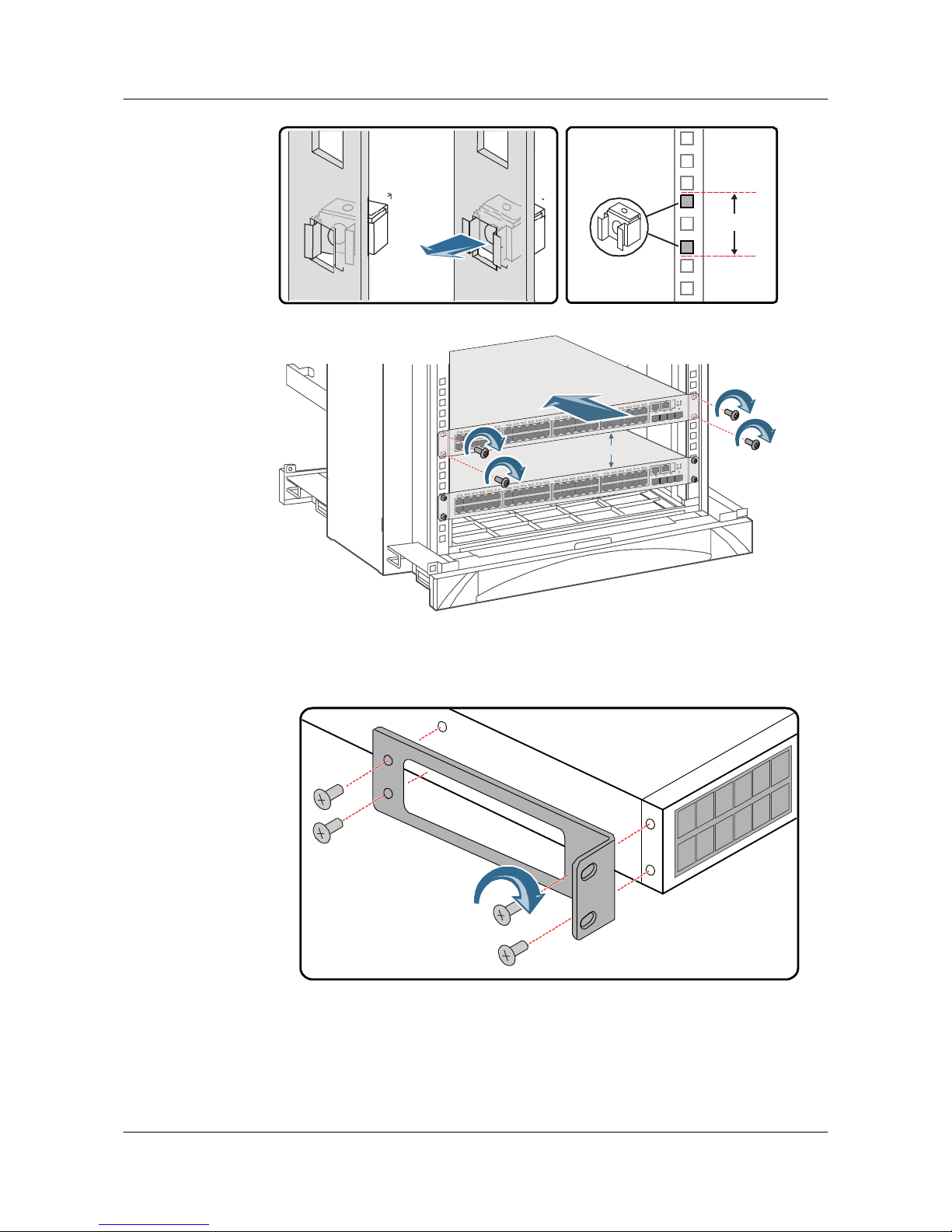

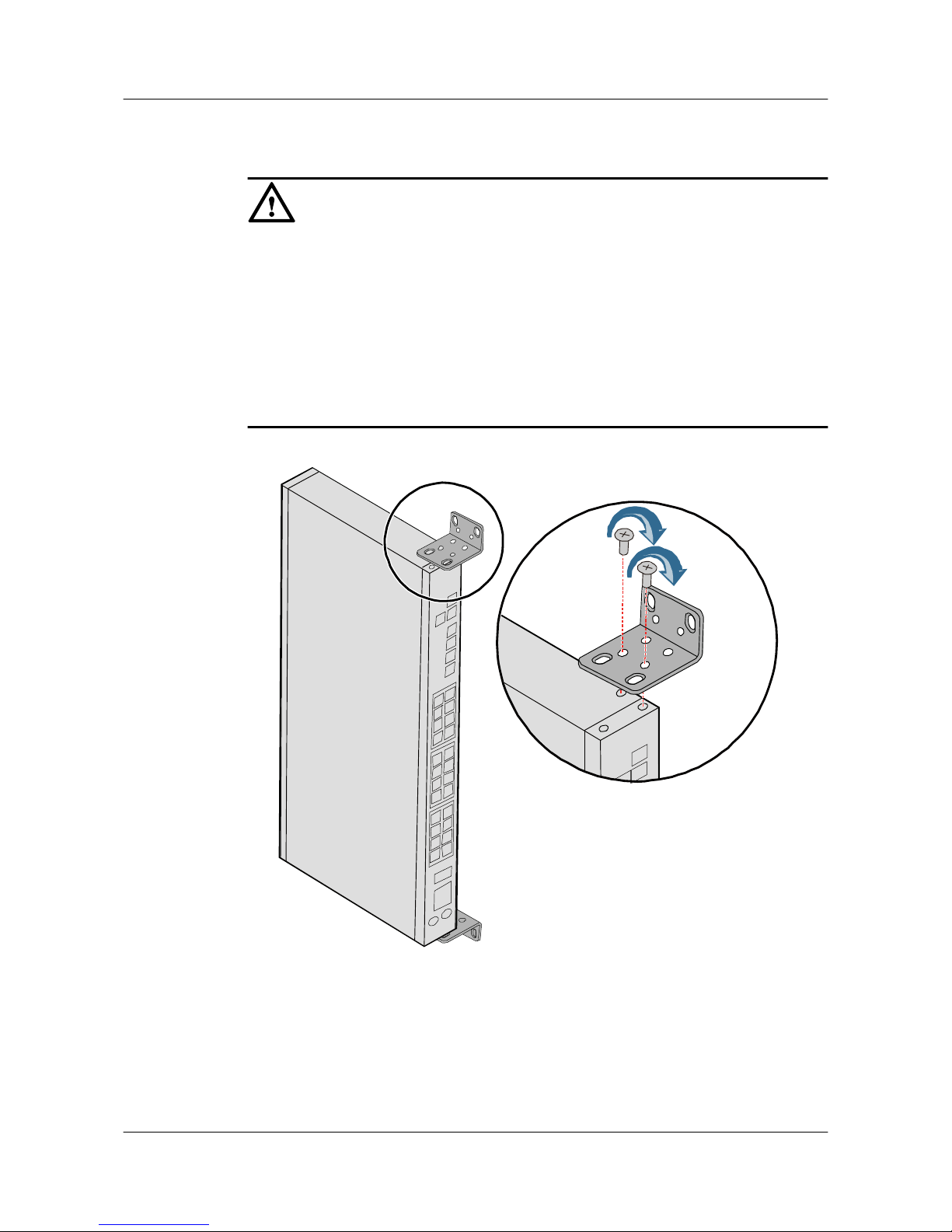

lWhen mounting a switch in a cabinet/rack with rack-mounting brackets, ensure that the rack-
mounting brackets are kept in a horizontal line in the mounting holes on the left and right
mounting rails of the cabinet/rack. If the rack-mounting brackets are not in a horizontal line,
do not install the switch with force. Or the chassis may be distorted.
lWhen the ground point is located on one side of the chassis, the ground cable cannot be
connected when the chassis is in a cabinet. Connect the ground cable before installing the
chassis in the cabinet.
lWhen a 220 mm deep S2700 or S3700 chassis needs to be installed in a cabinet, only two
screws are required to fix a mounting ear to the chassis.
lThe dimensions of an RPS1800 chassis are 442 mm x 310 mm x 43.6 mm (W x D x H), and
the chassis can be installed only in a 19-inch IEC cabinet.

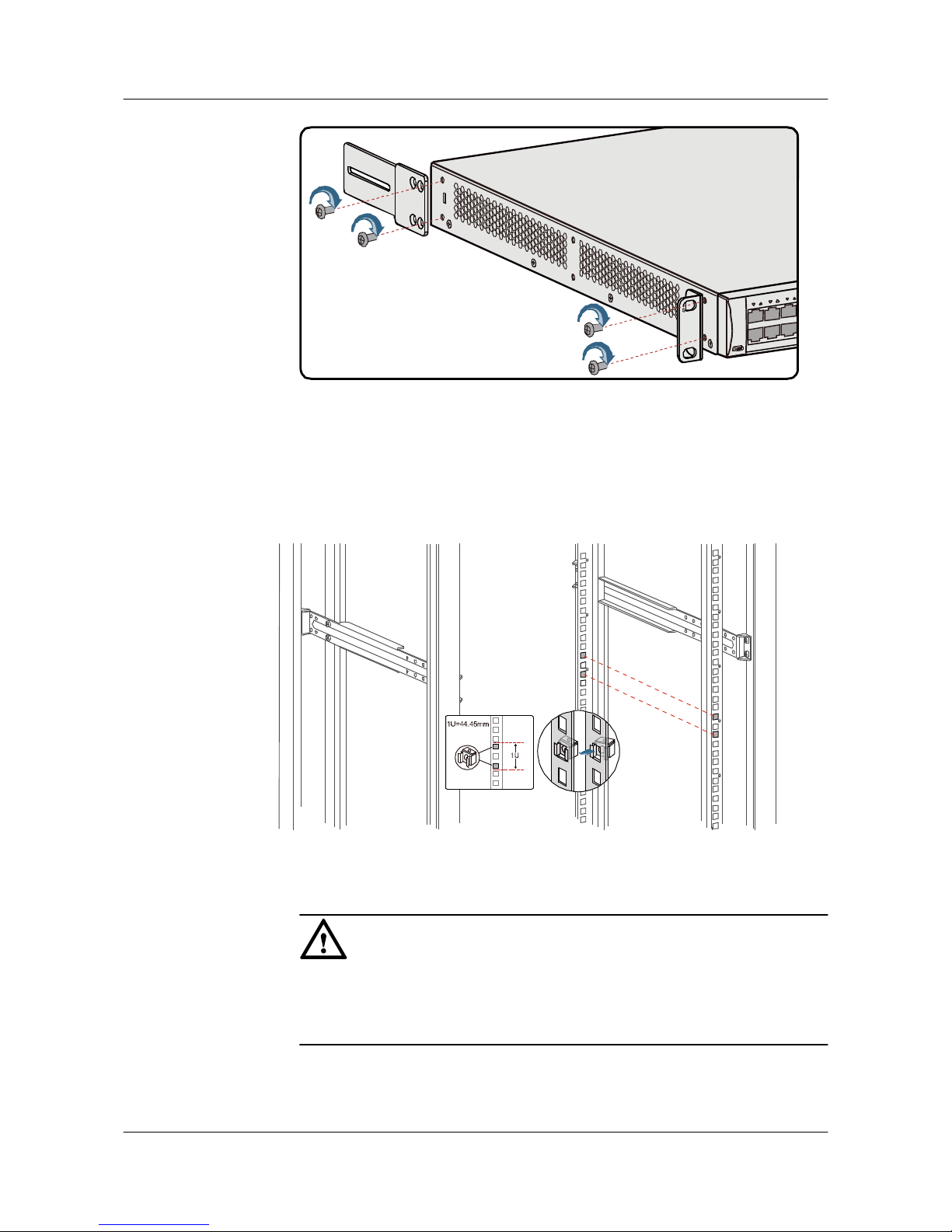

lMounting ears can be installed at two ends and the middle of each side on an RPS1800.

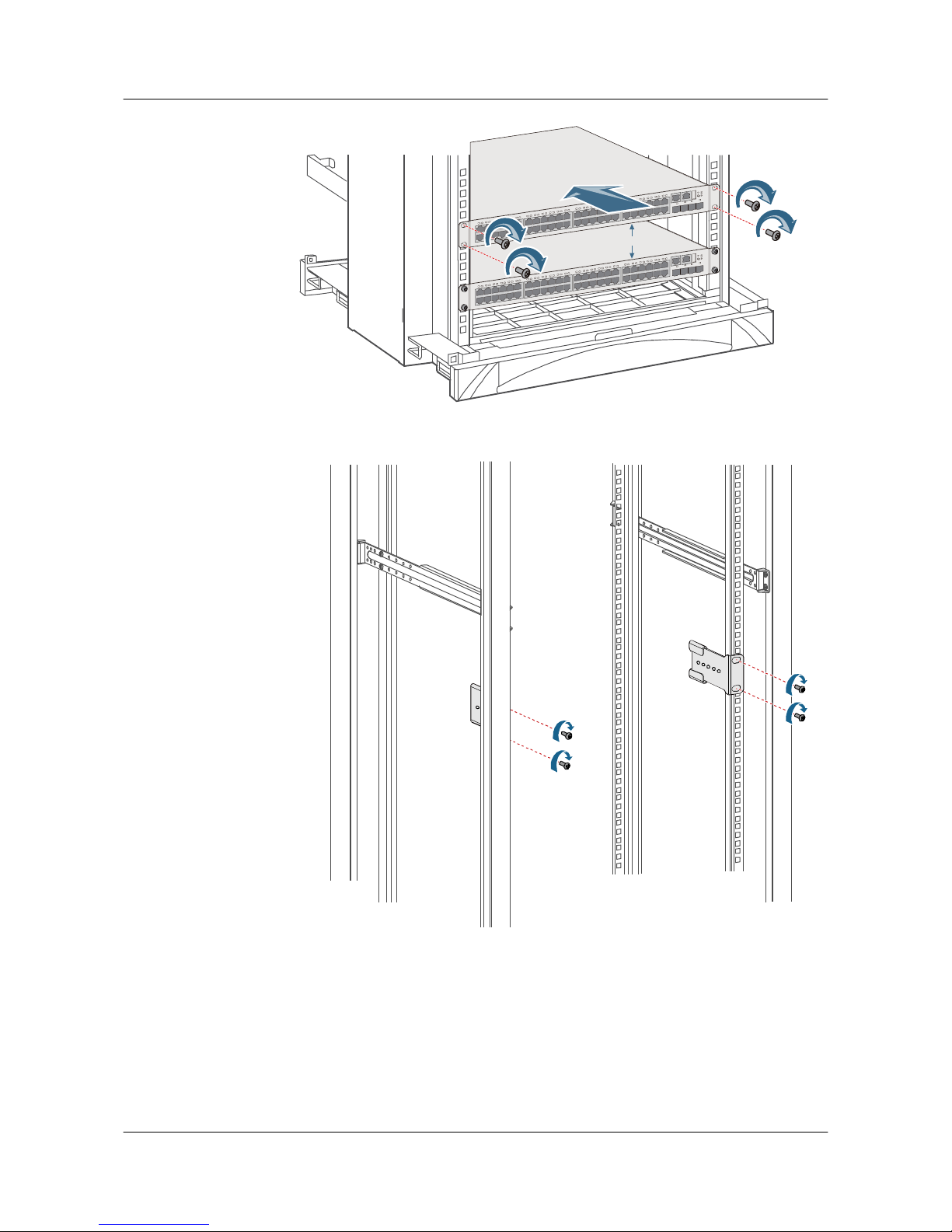

lNo guide rails are delivered with the chassis, and you need to buy appropriate guide rails
when the chassis needs to be installed in a cabinet or rack.
Table 2-1 lists the mounting ears and cabinets applicable to chassis of different dimensions.
Table 2-1 Applicable mounting ears and cabinets
Dimensions (W x D x H) Mounting Ear Cabinet
250 mm x 180 mm x 43.6 mm
320 mm x 220 mm x 43.6 mm
Front mounting ear (1) 19-inch cabinet
442 mm x 220 mm x 43.6 mm Front mounting ears (2) 19-inch or 21-inch cabinet
442 mm x 220 mm x 43.6 mm
442 mm x 310 mm x 43.6 mm
Front mounting ears (3) 19-inch cabinet
442 mm x 420 mm x 43.6 mm
(S6700)
Front mounting ears (4) and
guide rails
19-inch cabinet
442 mm x 420 mm x 43.6 mm
(S5710-EI)
Front mounting ears (5) and
rear mounting ear (1)
19-inch cabinet
442 mm x 420 mm x 43.6 mm
(any switch except the S6700
and S5710-EI )
Front mounting ears (4) 19-inch cabinet
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9

Dimensions (W x D x H) Mounting Ear Cabinet
442 mm x 470 mm x 86.1 mm lFront mounting ears (6)
and rear mounting ears (2)
lFront mounting ears (6)
and guide rails
lCable management
frames and rear mounting
ears (2)
lCable management
frames and guide rails
19-inch cabinet
Installing a Chassis of 250 mm x 180 mm x 43.6 mm or 320 mm x 220 mm x 43.6 mm
1. Install mounting ears.
Fix mounting ears to both sides of the panel with interfaces using M4 screws.
M4
2. Install floating nuts.
Install four floating nuts on the front mounting rails, two on each side. The
S2700/3700/5700/6700 chassis is 1 U high, so the distance between two floating nuts on
one side is 1 U (one mounting hole between them). The floating nuts on the left and right
sides must be on the same horizontal line.
1U
1U=44.45mm
3. Install the chassis in the cabinet.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10

M6
>=1U
Installing a Chassis of 442 mm x 220 mm x 43.6 mm or 442 mm x 310 mm x 43.6 mm
1. Install mounting ears.
lInstall the chassis in a 19-inch cabinet.
M4 M4
AB
lInstall the chassis in a 21-inch cabinet. Only 220 mm deep chassis with front mounting
ears (2) can be installed in a 21-inch cabinet.
2. Install floating nuts.
Install four floating nuts on the front mounting rails, two on each side. The
S2700/3700/5700/6700 chassis is 1 U high, so the distance between two floating nuts on
one side is 1 U (one mounting hole between them). The floating nuts on the left and right
sides must be on the same horizontal line.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11

1U
1U=44.45mm
3. Install the chassis in the cabinet.
M6
>=1U
Installing a Chassis of 442 mm x 420 mm x 43.6 mm
1. Install mounting ears.
l442 mm x 420 mm x 43.6 mm (any switch except the S5710-EI)
M4
l442 mm x 420 mm x 43.6 mm (S5710-EI)
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12

2. Install floating nuts.
lInstall four floating nuts on the front mounting rails, two on each side. The
S2700/3700/5700/6700 chassis is 1 U high, so the distance between two floating nuts
on one side is 1 U (one mounting hole between them).
lInstall four floating nuts on the rear mounting rails, two on each side. The floating nuts
on the rear mounting rails must be on the same horizontal line with the floating nuts on
the rear mounting rails.
3. Install the chassis in the cabinet.
l442 mm x 420 mm x 43.6 mm (any switch except the S5710-EI)
CAUTION
The S6700 chassis is heavier than other models, and the front mounting ears are not
strong enough to support the chassis because of the long cantilever. Before installing
an S6700 chassis in a cabinet, install guide rails in the cabinet.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13

M6
>=1U
l442 mm x 420 mm x 43.6 mm (S5710-EI)
a. Install guide rails for rear mounting ears on the rear mounting rails.
b. Hold the bottom of the chassis and move the chassis into the cabinet or rack. Align
the rear mounting ears with the guide rails on the rear mounting rails and gently
slide the chassis into the guide rails.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14

c. Hold the bottom of the chassis with one hand and fix the front mounting ears onto
the front mounting rails with a screwdriver. Fix the rear mounting ears onto the
guide rails.
Installing a Chassis of 442 mm x 470 mm x 87.2 mm
NOTE
The S5710-HI chassis is heavier than other models, and the mounting ears are not strong enough to support
the chassis because of the long cantilever. Before installing an S5710-HI chassis in a cabinet, install guide
rails in the cabinet.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
