Huawei Enterprise S2700 Series Switches

Product Brochure Huawei Enterprise S2700 Series Switches
2

Product Brochure Huawei Enterprise S2700 Series Switches
1
S2700-9TP-EI/SI S2700-9TP-PWR-EI S2700-18TP-EI/SI
Product Overview
The S2700 series enterprise switches (S2700s) are next-generation energy-saving intelligent 100M Ethernet switches.
The S2700 utilizes cutting-edge switching technologies and Huawei Versatile Routing Platform (VRP) software to
meet the demand for multi-service provisioning and access on Ethernet networks. It is easy to install and maintain
and can be used in a variety of enterprise network scenarios. With its flexible VLAN deployment, comprehensive
security and QoS policies, and energy-saving technologies, the S2700 helps enterprise customers build next-
generation IT networks.
The S2700 is a box device that is 1 U high. It is available in a standard version (SI) or an enhanced version (EI).

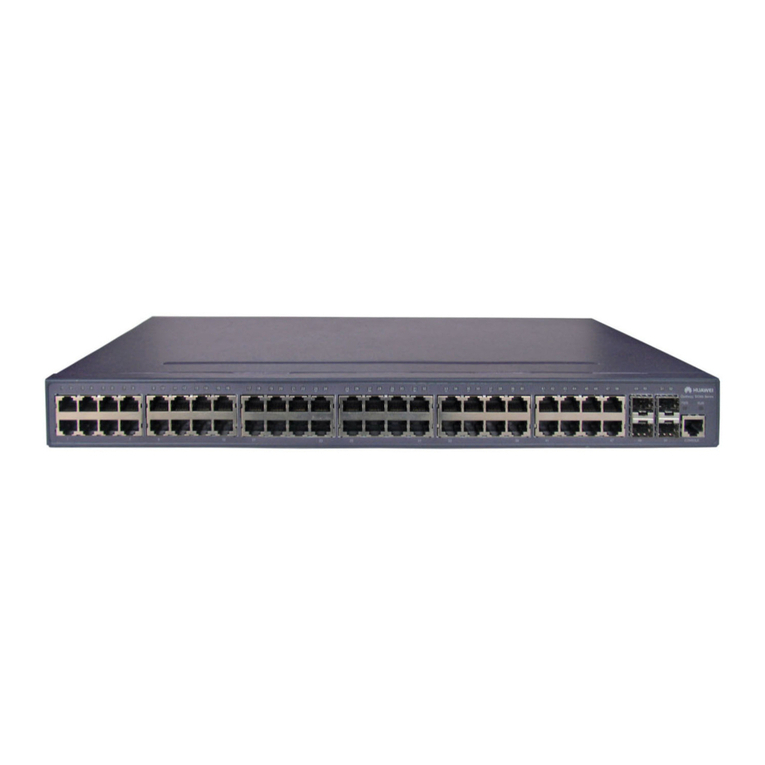

Product Appearance
Eight 10/100Base-TX ports•
and one gigabit combo
port (10/100/1000Base-T or
100/1000Base-X)
AC and DC power supply for the•
EI version; AC power supply for
the SI version
Forwarding performance: 2.7•
Mpps
Eight 10/100Base-TX ports•
and one gigabit combo
port (10/100/1000Base-T or
100/1000Base-X)
AC power supply•
PoE+•
Forwarding performance: 2.7•
Mpps
Sixteen 10/100Base-TX ports•
and two gigabit combo
ports (10/100/1000Base-T or
100/1000Base-X)
AC power supply•
Forwarding performance: 5.4•
Mpps

Product Brochure Huawei Enterprise S2700 Series Switches
2
S2700-26TP-EI/SI
S2700-52P-EI S2710-52P-PWR-SI
Twenty-four 10/100Base-TX•
ports and two gigabit combo
ports (10/100/1000Base-T or
100/1000Base-X)
AC and DC power supply for the•
EI version; AC power supply for
the SI version
Forwarding performance: 6.6•
Mpps
Forty-eight 10/100Base-TX ports,•
two 100/1000Base-X SFP ports,
and two 1000Base-X SFP ports
AC power supply•
PoE+•
Forwarding performance: 13.2•
Mpps
Forty-eight 10/100Base-TX•
ports, two 100/1000Base-X
SFP ports, and two
1000Base-X SFP ports
AC and DC power supply•
Forwarding performance:•
13.2 Mpps
S2700-26TP-PWR-EI
Twenty-four 10/100Base-TX•
ports and two gigabit combo
ports (10/100/1000Base-T or
100/1000Base-X)
AC power supply•
PoE+•
Forwarding performance: 6.6•
Mpps
Forty-eight 10/100Base-TX•
ports, two 100/1000Base-X SFP
ports, and two 1000Base-X SFP
ports
AC power supply•
PoE+•
Forwarding performance: 13.2•
Mpps
S2700-52P-PWR-EI
S2710-52P-SI
Forty-eight 10/100Base-TX ports,•
two 100/1000Base-X SFP ports,
and two 1000Base-X SFP ports
AC power supply•
Forwarding performance: 13.2•
Mpps

Product Brochure Huawei Enterprise S2700 Series Switches
3
Product Features
Maintenance-free, easy deployment and effortless management
The S2700 supports automatic configuration and plug-and-play, which dramatically reduces maintenance costs.•
The S2700 offers a new application-specific integrated circuit (ASIC) switching technique and a fan-free design.
This design reduces mechanical faults and protects the device against damages caused by condensed water and
dust, reducing the maintenance workload by 53%.
The S2700 supports batch remote upgrades, which makes the device easy to use and deploy. It provides a Web•
NMS system with a user-friendly GUI to implement automatic topology discovery, alarm management, and visual
configuration, facilitating operation and maintenance. The Network Quality Analyzing (NQA) function assists
users with network planning and upgrades. In addition, the S2700 supports HGMP v2, SSH v2, HWTACACS,
RMON, and port-based traffic statistics.
The S2700 supports GARP VLAN Registration Protocol (GVRP), which dynamically distributes, registers, and•
propagates VLAN attributes to ensure correct VLAN configuration and reduce network administrator workloads.
Flexible service control
The S2700-EI supports various ACLs. ACL rules can be applied to VLANs to flexibly control ports and schedule•
VLAN resources.
The S2700 supports port-based VLAN assignment and MAC address-based VLAN assignment. Port-based VLAN•
assignment is used in networks where users move frequently, and MAC address-based VLAN assignment applies
to networks that require high levels of security.
Excellent security features
The S2700 supports DHCP snooping, which generates user binding entries based on users' access interfaces,•
MAC addresses, IP addresses, IP address leases, VLAN IDs. The DHCP snooping function protects enterprises from
common attacks such as bogus IP packet attacks, man-in-the-middle attacks, and bogus DHCP server attacks.
The S2700 can limit the number of MAC addresses that can be learned on an interface to prevent attackers from•
exhausting MAC address entries by using bogus source MAC addresses. This function minimizes packet flooding,
which occurs when users' MAC addresses cannot be found in the MAC address table. The S2700 can also limit
the number of ARP entries to prevent ARP spoofing attacks. In addition, it provides an IP source check function
to prevent malicious users from using spoofed IP addresses to initiate DoS attacks.
The S2700 supports centralized MAC address authentication and 802.1x authentication. It authenticates users•
based on statically or dynamically bound user information such as the user name, IP address, MAC address,
VLAN ID, access interface, and flag indicating whether antivirus software is installed. VLANs, QoS policies, and
ACLs can be dynamically applied to users.

Product Brochure Huawei Enterprise S2700 Series Switches
4
PoE function
The S2700 PWR can use Power over Ethernet (PoE) power supplies with different power levels to provide -48•
V DC power for powered devices (PDs) such as IP Phones, WLAN APs, and Bluetooth APs. In its role as power
sourcing equipment (PSE), the S2700 PWR complies with IEEE 802.3af and 802.3at (PoE+), and can work with
PDs that are incompatible with 802.3af or 802.3at (POE+). Each port provides a maximum of 30 W of power,
complying with IEEE 802.3at. The PoE+ function increases the maximum power available on each port and
implements intelligent power management for high-power consumption applications. This process facilitates the
ease of PD use. PoE ports are still able to work while in power-saving mode.
High scalability
The S2700 supports intelligent stacking (iStack). Multiple S2700s can be connected with stack cables to set up•
a stack, which functions as a virtual switch. These switches can be managed using a single IP address, which
greatly reduces the costs of system expansion, operation, and maintenance.
Comprehensive QoS policies
The S2700 supports complex traffic classification based on packets' port numbers, VLAN IDs, source MAC/IP•
addresses, destination MAC/IP addresses, IP protocols, or priorities. By limiting the traffic rate based on traffic
classification results, the S2700 implements line-speed forwarding on each port to ensure high-quality voice,
video, and data services. Each port supports four queues and multiple queue scheduling algorithms, such as
WRR, SP, and WRR+SP.
Powerful surge protection capability
The S2700 uses a Huawei-patented surge protection technique to prevent lightning-induced overvoltage. All•
ports on the S2700 have 6 kV of surge protection, making them eight times more lightning-proof than 4 kV
switches. The Huawei patented surge protection technique greatly reduces the possibility of equipment being
damaged by lightning, even in extreme situations or in scenarios where grounding is not feasible.
Quiet operation, energy conservation, and low radiation
The S2700 uses an energy-saving integrated circuit design to ensure even heat dissipation. Idle ports can enter a•
sleep mode to further reduce power consumption. The S2700 generates no sound because it does not contain
any fans. Radiation produced by the S2700 is within the standard range for electric appliances and causes no
harm to the human body.

Product Brochure Huawei Enterprise S2700 Series Switches
5
Product Specifications
Item S2700-EI S2700-SI
100M port
S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI: 8*10/100Base-TX
S2700-18TP-SI/S2700-18TP-EI: 16*10/100Base-TX
S2700-26TP-SI/S2700-26TP-EI/S2710-26TP-PWR-SI/S2700-26TP-PWR-EI: 24*10/100Base-TX
S2710-52P-SI/S2700-52P-EI/S2710-52P-PWR-SI/S2700-52P-PWR-EI: 48*10/100Base-TX
1000M
port
S2700-9TP-SI/S2700-9TP-EI/S2700-9TP-PWR-EI: 1*GE Combo
S2710-52P-SI/S2700-52P-EI/S2710-52P-PWR-SI/S2700-52P-PWR-EI: 2*100/1000Base-X,2*1000Base-X
Others：2*GE Combo
MAC
address
table
8 K MAC address entries
Manual creation and deletion of MAC address entries
Aging time of MAC address entries
Disabling MAC address learning on an interface or aggregation group
Limit on the number of MAC addresses learned on an interface
Blackhole MAC address entries
VLAN
4 K VLANs, complying with IEEE 802.1Q
Port-based VLAN assignment
MAC address-based VLAN assignment
QinQ N/A
QoS
Port-based rate limiting and flow-based rate limiting
Four queues of different priorities on each port
Mapping between 802.1p priorities and queues
SP, WRR, and SP+WRR algorithms
Traffic classification based on the source MAC
address, destination MAC address, source IP
address, destination IP address, Layer 4 port
number, protocol type, VLAN ID, Ethernet
protocol, and CoS
Flow-based priority marking and packet
redirection
N/A
IPv6
features
IPv6 host
Static IPv6 routes
IPv6 ACLs
MLD v1/v2 snooping
IPv6 host
Static IPv6 routes
Multicast
IGMP v1/v2/v3 snooping
Multicast load balancing among member ports of a trunk
Port-based rate limiting and traffic statistics for multicast packets
Port
mirroring
1:1 and N:1 port mirroring
Traffic mirroring N/A

Product Brochure Huawei Enterprise S2700 Series Switches
6
Item S2700-EI S2700-SI
Security
802.1x authentication and limit on the number
of users on an interface
Dynamic ARP detection
IP source guard
N/A
AAA authentication, RADIUS authentication,
HWTACACS authentication, and NAC
Binding of the IP address, MAC address,
interface, and VLAN
Port-based rate limiting
Port isolation, port security, and sticky MAC
Packet filtering
Packet filtering based on MAC addresses
Suppression of multicast, broadcast, and
unknown unicast packets
Limit on the number of learned MAC addresses
CPU defense
Port isolation
Suppression of multicast, broadcast, and
unknown unicast packets
CPU defense
Surge
protection
All service ports have a surge protection capability of 6 KV, which can be increased to 15 KV
when using additional surge protection devices.
Device
management
Stacking
Auto-Config
CLI-based configuration
Remote configuration using Telnet
SNMP V1/V2/V3
RMON
HGMP v2
SSHv2
Web-based device management
GVRP
Operating
environment
Operating temperature: 0OC–50OC (long term); -5OC–55OC (short term)
Relative humidity: 10%–90% (non-condensing)
Power
supply
AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:
Rated voltage range: –48 V to –60 V DC
Maximum voltage range: –36 V to –72 V DC
Note: PoE-support switches do not use DC
power supplies.
N/A
Dimensions
(W x D x H)
S2700-9TP-EI/SI: 250 mm x 180 mm x 43.6 mm
S2700-9TP-PWR-EI: 320 mm x 220 mm x 43.6 mm
S2700-18TP-EI/SI, S2700-26TP-EI/SI: 442 mm x 220 mm x 43.6 mm
S2710-26TP-PWR-SI/S2700-26TP-PWR-EI: 442 mm x 420 mm x 43.6 mm
S2710-52P-SI/S2700-52P-EI: 442 mm x 220 mm x 43.6 mm
S2710-52P-PWR-SI/S2700-52P-PWR-EI: 442 mm x 420 mm x 43.6 mm

Product Brochure Huawei Enterprise S2700 Series Switches
7
Applications
100 Mbit/s Access Rate for Terminals
The S2700 can function as a desktop access device that provides an access rate of 100 Mbit/s for terminals and
1000 Mbit/s uplink interfaces to communicate with uplink devices.
S5700
AR
S2700
WAN
Item S2700-EI S2700-SI
Weight
S2700-9TP-EI<1.4kg
S2700-9TP-PWR-EI<2.5kg
S2700-18TP-EI<2.4Kg
S2700-26TP-EI<2.4kg
S2700-52P-EI<3kg
S2700-26TP-PWR-EI<4kg
(without power supply)
S2700-52P-PWR-EI<4.3Kg
(without power supply)
S2700-9TP-SI<1.4Kg
S2700-18TP-SI<2.4kg
S2700-26TP-SI<2.4kg
S2710-52P-SI<3kg
S2710-26TP-PWR-SI<4kg
(without power supply)
S2710-52P-PWR-SI<4.3Kg
(without power supply)
Power
consumption
S2700-9TP-EI<12.8W
S2700-18TP-EI<14.5W
S2700-26TP-EI<15.5W
S2700-52P-EI<38W
S2700-9TP-PWR-EI<154W (PoE: 124W)
S2700-26TP-PWR-EI<808W (PoE: 740W)
S2700-52P-PWR-EI<880W (PoE: 740W)
S2700-9TP-SI<12.8W
S2700-18TP-SI<14.5W
S2700-26TP-SI<15.5W
S2710-52P-SI<38W
S2710-26TP-PWR-SI<808W(PoE: 740W)
S2710-52P-PWR-SI<880W(PoE: 740W)

Product Brochure Huawei Enterprise S2700 Series Switches
8
Product List
Product Description
S2700-9TP-EI (input voltage: 220 V AC or –48 V DC)
S2700-9TP-SI (input voltage: 220 V AC)
S2700-18TP-EI (input voltage: 220 V AC)
S2700-18TP-SI (input voltage: 220 V AC)
S2700-26TP-EI (input voltage: 220 V AC or –48 V DC)
S2700-26TP-SI (input voltage: 220 V AC)
S2700-52P-EI (input voltage: 220 V AC or –48 V DC)
S2710-52P-SI (input voltage: 220 V AC)
S2700-9TP-PWR-EI (input voltage: 220 V AC, providing the PoE function)
S2700-26TP-PWR-EI (two hot swappable AC power supplies, with an input voltage of 220 V, providing the
PoE function)
S2710-26TP-PWR-SI (two hot swappable AC power supplies, with an input voltage of 220 V, providing the
PoE function)
S2700-52P-PWR-EI (two hot swappable AC power supplies, with an input voltage of 220 V, providing the PoE
function)
S2710-52P-PWR-SI (two hot swappable AC power supplies, with an input voltage of 220 V, providing the PoE
function)
250 W PoE power supply unit
500 W PoE power supply unit
For more information, visit http://enterprise.huawei.com or contact your local Huawei sales office.

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
Trademark Notice
General Disclaimer
, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective owners.
The information in this document may contain predictive statements including,
without limitation, statements regarding the future financial and operating results,
future product portfolio, new technology, etc. There are a number of factors that
could cause actual results and developments to differ materially from those
expressed or implied in the predictive statements. Therefore, such information is
provided for reference purpose only and constitutes neither an offer nor an
acceptance. Huawei may change the information at any time without notice.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei
Technologies Co., Ltd.
