Step into the next generation of water heating with...
The Tankless Advantage by Hubbell.
Everyone understands the need to respect the environment…now it is time to take
action. Replace your old tank type water heater with the Hubbell Electric Tankless
Water Heater thereby lowering your carbon footprint, conserving water and energy,
and reducing your hot water energy cost by up to 40%. Get the Tankless Advantage
by Hubbell and enjoy endless hot water, longer equipment life, reduced operating cost and at the same time
do your part to help the environment.
99% Efficient
99% Efficient
Reliable Hot Water for Today's Families
Advantages of Electric vs. Gas
Save Money and Go Green with The Tankless Advantage by Hubbell
The advantages of eliminating your large storage tank water heater are obvious…gain space, reduce your
energy consumption and lower your operating cost. Now Hubbell makes it easier than ever to install this
revolutionary device. This compact water heater, not much larger than a phone book, mounts easily to the
wall and frees up significant space in your utility room, closet or basement and features an all stainless steel
exterior providing a durable, long lasting and corrosion free product. The Hubbell Tankless easily connects
to your plumbing with our Shark-bite connections which “push-fit” onto bare 3/4" copper or PEX tubing
eliminating the need for soldering at the unit. Switching to Tankless has never been easier or more rewarding.
You need an advantage, “The Tankless Advantage” by Hubbell.
Electric Tankless Water Heater
Wall Mounted
Space Saving

Dishwasher
Bathroom Sink
Utility Sink
Kitchen Sink
Washing Machine
Shower *
Bath Tub
0.5 - 1.0 GPM
0.5 - 1.5 GPM
1.5 - 2.0 GPM
2.0 - 2.5 GPM
1.5 - 2.0 GPM
1.5 - 2.5 GPM
2.5 - 4.0 GPM
GPM (Gallons per Minute Calculation Chart)
Determine the flow rate (GPM) of 105°F (40°C) Hot Water provided by the Hubbell
Tankless Electric Water Heater. Based upon 240V
110-2 145-2 165-2 180-2 220-3 240-3 280-3
40˚F (4˚C)
45˚F (7˚C)
50˚F (10˚C)
55˚F (13˚C)
60˚F (15˚C)
65˚F (18˚C)
70˚F (21˚C)
75˚F (24˚C)
80˚F (27˚C)
85˚F (29˚C)
90˚F (32˚C)
11kW
1.2
1.3
1.4
1.5
1.7
1.9
2.1
2.5
3.0
3.8
5.0
14kW
1.5
1.6
1.7
1.9
2.1
2.4
2.7
3.2
3.8
4.8
6.4
Cold Water
Inlet Temp 16kW
1.7
1.8
2.0
2.2
2.4
2.7
3.1
3.6
4.4
5.5
7.3
18kW
1.9
2.0
2.2
2.5
2.7
3.1
3.5
4.1
4.9
6.1
8.2
21kW
2.2
2.4
2.6
2.9
3.2
3.6
4.1
4.8
5.7
7.2
9.6
24kW
2.5
2.7
3.0
3.3
3.6
4.1
4.7
5.5
6.6
8.2
10.9
27kW
2.8
3.1
3.3
3.7
4.1
4.6
5.3
6.1
7.4
9.2
12.3
Hubbell 200 Series
Dimensions: 17” x 16” x 3”
Weight: 23 lbs.
Model 280-3 27 kW
Model 240-3 24 kW
Model 220-3 21 kW
Three Models to choose from
Hubbell 100 Series
Dimensions: 13.5” x 16” x 3”
Weight: 19 lbs.
Model 180-2 18 kW
Model 165-2 16 kW
Model 145-2 14 kW
Model 110-2 11 kW
Four Models to choose from
The Hubbell 100 Series Tankless Electric Water
Heater offers 2 element heating and is perfect
for homes in the southern part of the country.
The Hubbell 200 Series Tankless Electric Water
Heater offers 3 element heating ad is perfect
for homes in the northern part of the country.
*If simultaneous operation of multiple showers is absolutely necessary, two units may be needed. Installation of two
units will likely require electrical service upgrade to the home.
Total Fixture
Flow Rate
(GPM)
Residential
Demand Factor
(0.30)
=Instantaneous Demand
(GPM)
Example
At 40°F cold water and 2.7 GPM select Model 280-3
At 70°F cold water and 2.7 GPM select Model 145-2
MODEL SELECTIONS:
➤
Dishwasher 1 x 0.5 = 0.5
Washing Machine 1 x 2.0 = 2.0
Bathroom Sink 2 x 0.5 = 1.0
Kitchen Sink 1 x 1.5 = 1.5
Shower 2 x 2.0 = 4.0
Total 9.0
9.0 x 0.30 = 2.7 GPM
+
Minimum Recommended Model Average Cold Water Temp.
Model 280-3 27kW 37 °F 50 °F
Model 240-3 24kW 40 °F 52 °F
Model 220-3 21kW 50 °F 61 °F
Model 180-2 18kW 62 °F 75 °F
Model 165-2 16kW 65 °F 77 °F
Model 145-2 14kW 65 °F 77 °F
Model 110-2 11kW 65 °F 77 °F
Winter Summer
www.buytankless.com
Sizing Formula For Average Household
Visit www.buytankless.com for current pricing and technical specifications or call 1-877-649-8589
x
Flow Rate Chart Typical Hot Water Flow Rates

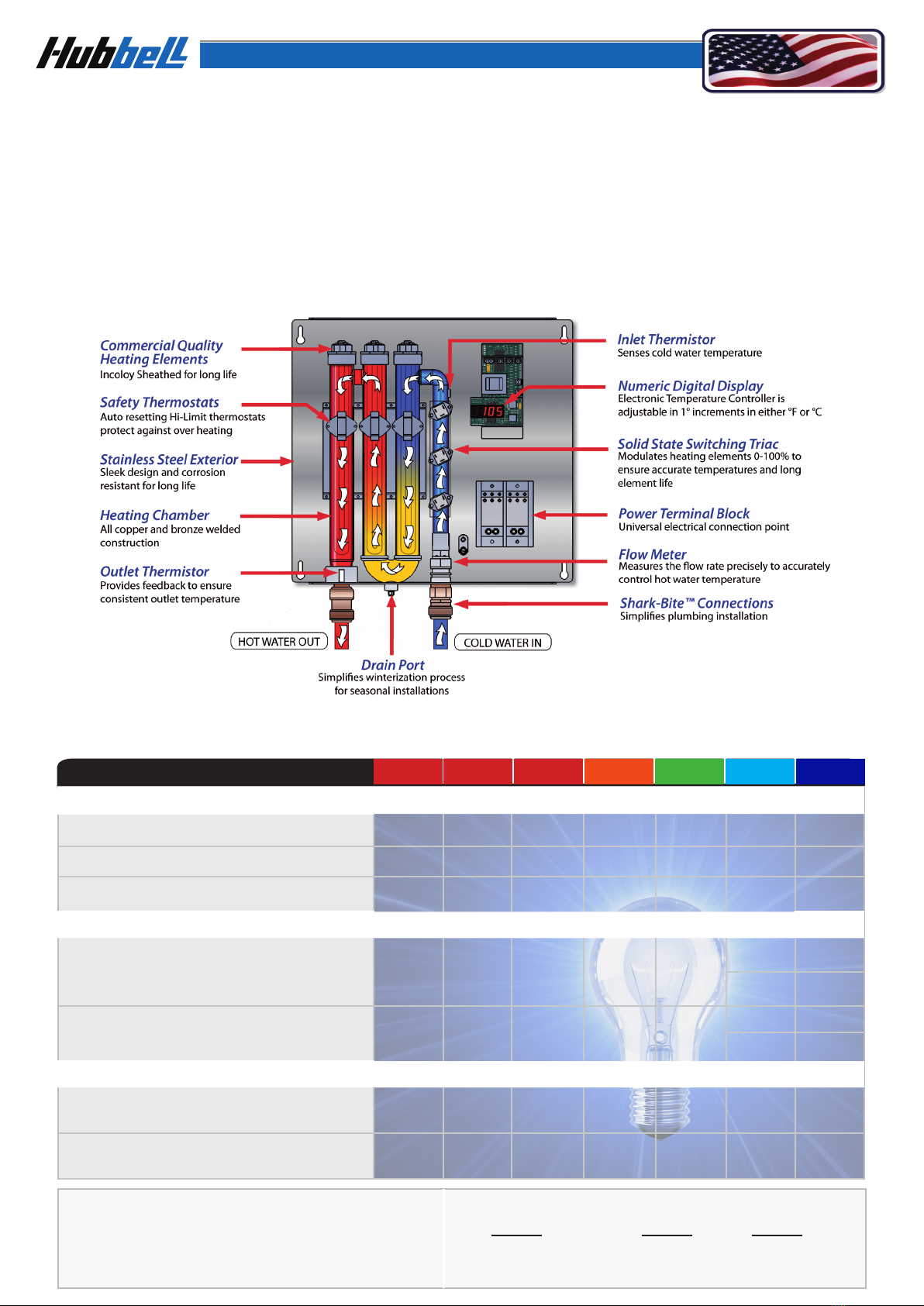

How Does The Hubbell Tankless Water Heater Work?
Hubbell has applied its 90 years of water heating experience and engineered a tankless electric water heater
that will provide many years of reliable service in your home. The cold water enters the unit and passes
through a flow meter and inlet thermistor which measure the precise flow rate and temperature of the
incoming water. The control system uses advanced logic with solid state switching devices to fully
modulate the power to the heating elements from 0-100% to provide the most accurate and consistent hot
water temperatures in the industry. As the water flows out of the unit a second thermistor makes any
necessary adjustments to ensure the Hubbell Tankless delivers accurate and consistent hot water. With
numerous control features including the ability to track kW hours consumed, operating cost and hot water
usage, the Hubbell Tankless allows the homeowner to maximize their savings and gain the most benefit from
their investment.
Electrical Requirements
Hubbell Tankless Model No. 110-2 145-2 165-2 180-2 280-3
If actual supply voltage is less than 240V, the kW
will be reduced, see de-rating factors below:
If 230 Volt multiply kW by 0.92
If 220 Volt multiply kW by 0.84
If 208 Volt multiply kW by 0.75
To solve for flow rate using a derated kW use the formula:
kW x 6.824 ÷ °FΔT = GPM
°FΔT = Change in Temperature (Hot - Cold)
Electrical Requirements
kW @ 240V 11 14 16 18 21 24 27
Amps @ 240V 45.8 58.3 66.7 75.0 87.5 100.0 112.5
Min. Recommended Amperage to Home 100 100 125 150 200 200 200
Multiple Circuit Breaker Installation (US Only)
Minimum Double-Pole Circuit
Breaker Size (quantity x amps)
2 x 25 2 x 35 2 x 40 2 x 40 2 x 50 2 x 60 2 x 60
3 x 40 3 x 40
Min. Feed Wire Size at 75°C
THHN or Equivalent (AWG Copper) 8 8 8 8 8 6 6
8 8
Single Circuit Breaker Installation (Canada & US)
Minimum Double-Pole Circuit
Breaker Size (quantity x amps)
1 x 50 1 x 70 1 x 80 1 x 80 1 x 100 1 x 110 1 x 125
Min. Feed Wire Size at 75°C
THHN or Equivalent (AWG Copper) 8 6 4 4 3 2 1
PROUDLY MADE IN THE USA
220-3 240-3

Why Hubbell Tankless?
Gain valuable space when you replace your
conventional tank water heater with a Hubbell
Electric Tankless Water Heater .
Enjoy unlimited hot water. Simply set The Hubbell
Electric Tankless Heater to your comfort temperature
setting (typically 105°F or 40°C) and get consistent
and endless hot water.
No more inefficient mixing of cold water.
Begin saving up to 40% on the hot water heating
portion of your utility bill.
Proven and reliable technology.
Ecient · Reliable · Energy Saving
The Hubbell Tankless Electric Water Heater is 99% efficient making it your best option for water heating.
Unlike storage tanks which are constantly working to maintain a tank full of 140°F water which is then
mixed with cold water when delivered to your fixture, the Hubbell Tankless unit heats water on demand
and precisely to your desired temperature (typically 105°F or 40°C). When you replace a tank water heater
with a Hubbell Tankless you eliminate 365 days of “standby heat loss” and save energy by delivering hot
water more efficiently to the point of use. The end result is a savings of up to 40% on the water heating
portion of your utility bill.
Applications
Whole House water heating for residential applications
including houses, condos, apartments, cabins and
cottages.
Commercial Properties including hotels, motels, resorts,
multi-family houses, and businesses where space is a
premium and reduced operating cost is critical.
Supplemental water heating for solar or geothermal
water heating systems.
Point of Use water heating for fixtures that are
physically located a long distance from the existing
water heater.
Industrial Process water heating for process systems
requiring continuous or cyclical hot water.
Radiant Floor heating to provide heated water for a
closed loop heat transfer system.
Technical Specications
Energy Efficiency: 99.0%
Adjustable Temperature Range: 32 -140°F (0-60°C)
Outer Casing Construction: Stainless Steel
Heating Chamber Construction: Copper and Bronze
Rated Voltage: 240 Volt, 1 Phase
Plumbing Connection: 3/4”
Minimum Flow to Activate Heater: 0.2 GPM
Operating Pressure Range: 5 - 150 psi
Pressure Drop (psi): 3 psi @4 GPM
Altitude Limitation: None
Safety Hi-Temp: 150°F (65°C)
Approvals (UL and cUL): UL 499
CAN/CSA-C22.2 No. 64-M91
Warranty: 5 Year Heating Chamber
3 Year Electrical
Applications
Whole House water heating for residential applications
including houses, condos, apartments, cabins and
cottages.
Commercial Properties including hotels, motels, resorts,
multi-family houses, and businesses where space is a
premium and reduced operating cost is critical.
Supplemental water heating for solar or geothermal
water heating systems.
Point of Use water heating for fixtures that are
physically located a long distance from the existing
water heater.
Industrial Process water heating for process systems
requiring continuous or cyclical hot water.
Radiant Floor heating to provide heated water for a
closed loop heat transfer system.
www.buytankless.com
www.buytankless.com

Since 1920 Hubbell has been manufacturing high quality electric water heaters for the residential, commercial,
industrial and marine/naval markets. Today, Hubbell is providing new state of the art “Whole House Electric
Tankless Water Heater” technology that is the ‘wave’ of the future. It produces an endless ow of hot water at a
consistent and accurate temperature while reducing your hot water heating energy costs by up to 40% when
compared to a conventional tank type water heater. Experience the Tankless Advantage today with Hubbell.
WATER HEATERS SINCE 1920
The Electric Heater Company
P.O. Box 288
Stratford, CT 06615 USA
Phone: [phone] Fax: [phone]
www.buytankless.com
Continuing research results in product improvement; therefore these specications are subject to change without notice. For the most updated information, please visit us on the web at www.buytankless.com
Visit us on the web at www.buytankless.com and start saving today!
Contact Hubbell Via Email:
Sales Assistance [email protected]
Technical Support [email protected]om
[email protected]
PROUDLY MADE IN THE USA
ISO 9001:2008
