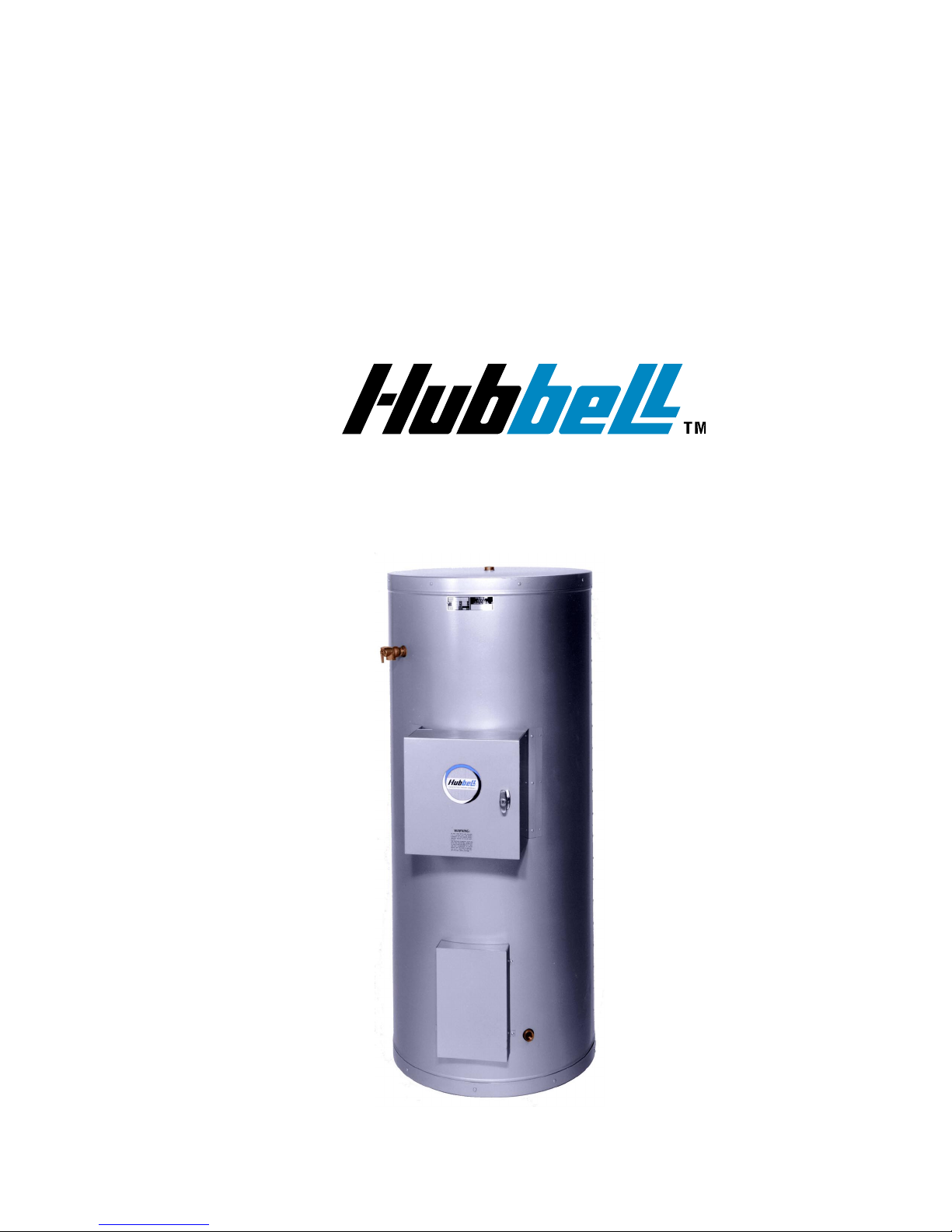

OPERATING AND MAINTENANCE MANUAL FOR
ELECTRIC STAINLESS STEEL HEATER
FOR DEIONIZED (DI) WATER
ELECTRIC HEATER COMPANY
BASE MODEL “ D ”

2
HUBBELL
ELECTRIC HEATER COMPANY
P.O. BOX 288
STRATFORD, CT 06615
PHONE: [phone]
FAX: [phone]
INTERNET: http://www.hubbellheaters.com/
-- IMPORTANT --
Always reference the full model number and serial number when calling the factory.
WARNING / CAUTION
1. Tank is to be completely filled with water and all air is to be vented before energizing.
2. Due to the rigors of transportation, all connections should be checked for tightness before heater
is placed in operation.
3. Safety relief valve must be installed in tapping provided.
4. The refractory material used in heating elements may absorb some moisture during transit,
periods of storage, or when subjected to a humid environment. This moisture absorption results
in a cold insulation resistance of less than twenty(20) megohms. If this heater has been
subjected to the above condition, each heating element must be checked for insulation
resistance before energizing. A low megohm condition can be corrected by removing the
terminal hardware and baking the element in an oven at 350°F -700°F for several hours or until
the proper megohm reading is obtained.
5. KEEP AWAY FROM LIVE ELECTRICAL CIRCUITS.
Do not perform any maintenance, make any adjustments, or replace any components inside the
control panel with the high voltage power supply turned on. Under certain circumstances,
dangerous potentials may exist even when the power supply is off. To avoid casualties, always
turn the power supply safety switch to off, turn the charge or ground the circuit before
performing any maintenance or adjustment procedure.
6. The unit is designed to operate at pressure not more than 150 psi.
7. Generalized instructions and procedures cannot anticipate all situations. For this reason, only
qualified installers should perform the installations. A qualified installer is a person who has
licensed training and a working knowledge of the applicable codes regulation, tools, equipment,
and methods necessary for safe installation of an electric resistance water heater. If questions
regarding installation arise, check your local plumbing and electrical inspectors for proper
procedures and codes. If you cannot obtain the required information, contact the company.

3
TABLE OF CONTENTS
SECTION TITLE PAGE #
I GENERAL DESCRIPTION AND CONSTRUCTION 5
II INSTALLATION 9
III SCHEDULED MAINTENANCE AND OPERATION 12
IV TROUBLESHOOTING 14
V SERVICING AND REPLACEMENT OF PARTS 16
VI MISCELLANEOUS CHARTS AND FORMULAS 23

4

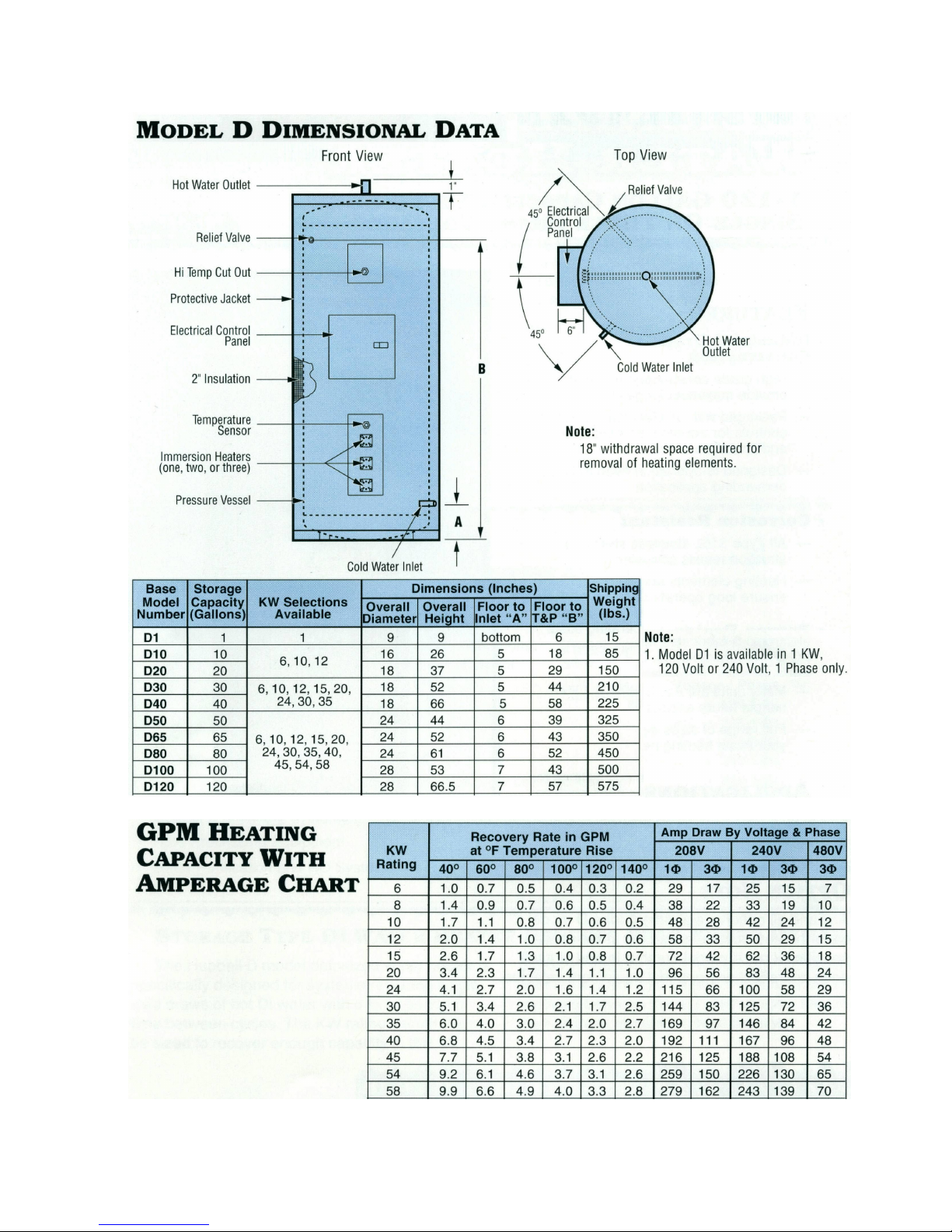

5
SECTION I - GENERAL DESCRIPTION AND CONSTRUCTION
GENERAL DESCRIPTION
This booklet describes an electric heater designed specifically for use in deionized (DI) water
applications. The complete assembly consists of a type 316L stainless steel storage tank, type 316L
stainless steel immersion electric heating element(s), thermostat, safety relief valve, safety high
temperature cut out, magnetic contactor(s), and any other required electrical operating control.
Optional equipment may be supplied with your unit. Please consult the product drawing for details
specific to your assembly. The unit is factory assembled, insulated, jacketed, wired, tested, and ready
for electrical and plumbing service connections.
CONSTRUCTION
TANK
The storage tank is constructed of type 316L stainless steel for maximum tank longevity. The tank is
formed by all welded construction and is designed for a maximum allowable working pressure of 150
psi (300 psi TP). As an optional, the tank may be supplied with a passivated / electropolished finish.
TANK CONNECTIONS
The heater is supplied with separate connections for the cold water inlet and the hot water outlet. Water
entering the cold water inlet is deflected by means of a baffle within the tank. A ¾-inch FNPT
connection is provided for mounting a combination safety temperature and pressure relief valve. An
overflow line should be utilized from the relief valve outlet to a floor drain. See drawing for locations
and sizes.
HEATING ELEMENT
The water heater is supplied with an electric immersion heating element assembly(s), composed of type
316L stainless steel sheathed elements that are welded into a stainless steel flange. Each assembly is
fastened to a corresponding tank flange using a Teflon gasket and four (4) 3/8-16 x 1-inch long hex
head steel bolts and nuts. See drawing for voltage and power ratings.

6

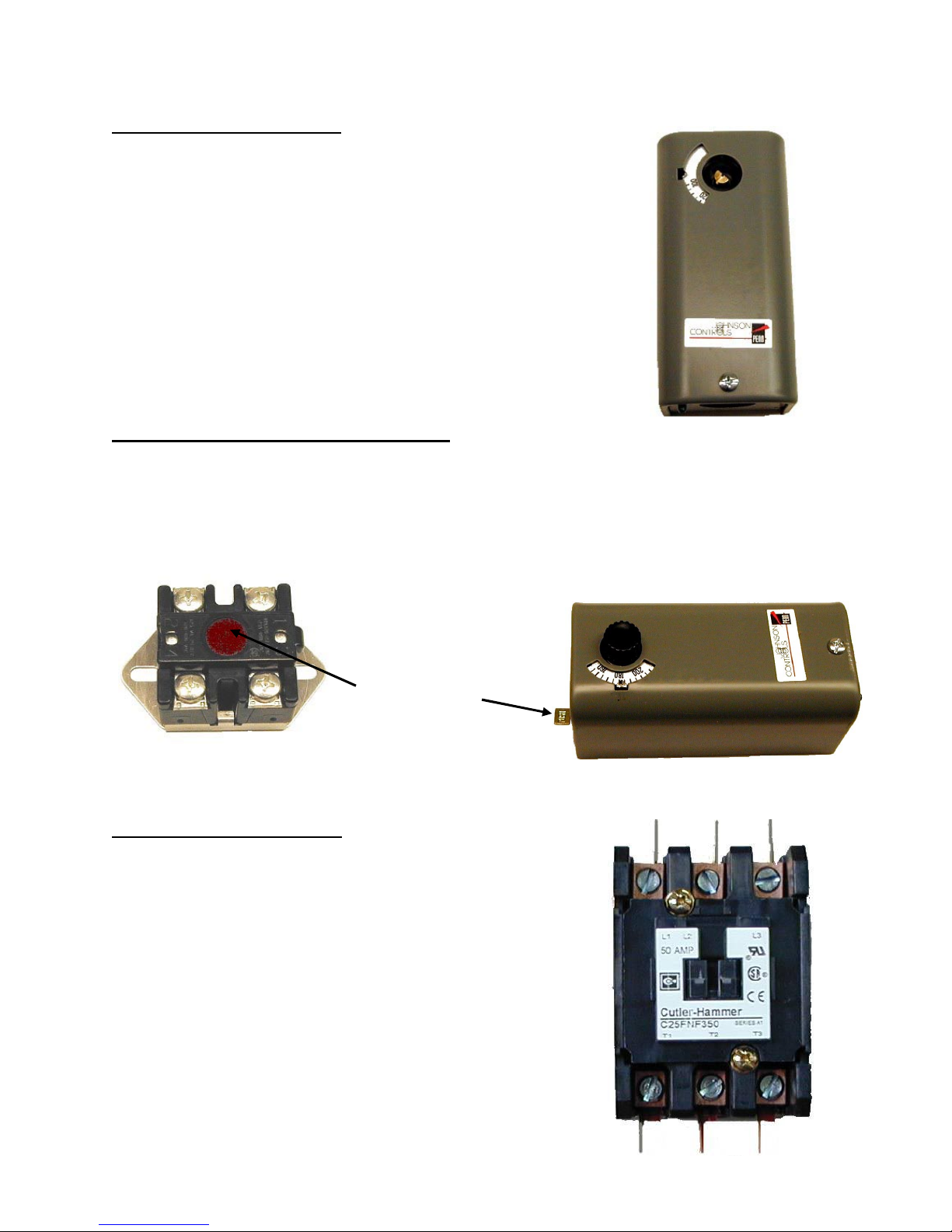

CONTROL THERMOSTAT
The water heater is supplied with a single stage immersion thermostatic
switch that is installed and wired at the factory. The thermostat can be
adjusted through a range of 100° - 195° F, (an optional low range, 30° -
110° F, is available), and is adjustable with a flat tip screwdriver. Other
thermostatic controls are available, see Options below.
TEMPERATURE HIGH LIMIT SWITCH
As a safety device, either a surface mounted high temperature cut-off switch with manual reset, factory
set at 205° F, or an optional immersion high temperature cut-off switch with manual reset, adjustable
through a range of 100° - 240° F, is provided. In the event of an over-temperature condition, the
thermostat will disengage the power from the system. The high limit must be manually reset thereafter
to restart the heater.
ManualReset
Surface Mounted High
TemperatureCut-OffSwitch ImmersionHighTemperatureCut-OffSwitch
MAGNETIC CONTACTOR
The magnetic contactor(s) is a heavy-duty resistive load type
rated for 100,000 cycles. The contactor supplies power to the
heating element(s) based on the resistive load (non-inductive) of
the heater only when the thermostatic switch is engaged, thereby
pulling in the contacts until the desired temperature is reached.
At this point, the contacts will drop out, which in turn
disconnects power from the elements. Magnetic contactors are
installed only on units rated greater than 6kW.

7
OUTER SHELL AND INSULATION
The tank is encapsulated in 2-inches of high-density fiberglass insulation. The protective shell is
constructed of galvaneel and is coated with a durable silver hammertone finish.
OPTIONS
The following optional features may be included in your water heater. Reference included drawing
specific to your heater for further details.

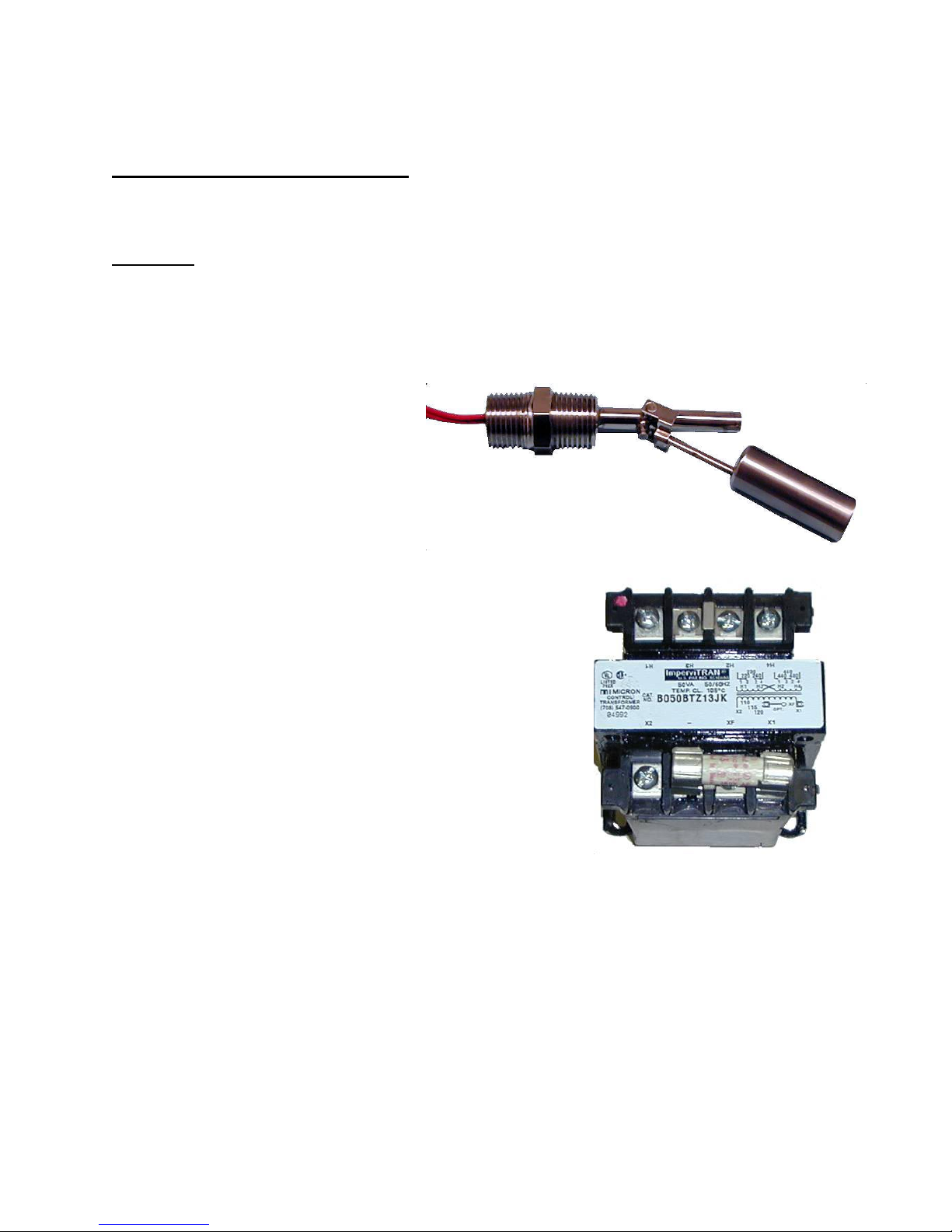

Low Water Cut-Off
Used as a safety device, the float type (316 stainless steel) low water cut-off is used to detect a low
water situation and disengage the
operating coils in the magnetic
contactor(s). Once the condition is
remedied, the low water cut-off switch is
automatically reset. This type of low
water cut-off uses a 316 stainless steel
float.
Fused Low Voltage Transformer
A fused low voltage transformer may be supplied. This option
is provided only in 480-volt systems with low water cut-offs to
step down the voltage to 240-volt for safety when working with
control circuits. As an option, a transformer may be installed on
any unit to step down the voltage to 120-volts
Stainless Steel Outer Jacket
An optional stainless steel outer jacket may replace the standard
galvaneel jacket.
Optional Connections
Flanged inlet and outlet connections (150#)
Threaded inlet and outlet connections (1 ½”, 2” MNPT)
Sanitary Connections
NEMA 4 or NEMA 4X Electric Control Panel
A NEMA 4 control panel may be supplied to provide watertight construction for installation in “wet”
areas.

8
Individually Fused Elements
To prevent the possibility of damage to control circuits and other elements in case of electrical
overloads, fuses may be supplied for each circuit. Two types of fuses may be used; a type NON for
voltages less than 250-volt or type JJS for voltage less than 600-volt.
Type JJS Type NON
Digital Display
A 1/16 DIN electronic temperature control package may
be installed. A separate manufacturer’s operating
manual will be supplied with the unit.
Stainless Steel Pressure-Only Relief Valve
Optionally, a ¾” NPT, type 316 stainless steel pressure-only relief valve may be supplied, as shown
below.

9
SECTION II – INSTALLATION
WARNING / CAUTION
DO NOT TURN ON THE ELECTRIC POWER SUPPLY to this equipment until heater is
completely filled with water and all air has been released. If the heater is NOT filled with water when
the power is turned on, the heating elements will burn out.
For protection against excessive pressures and temperatures, local codes require the installation of a
temperature-and-pressure (T&P) relief valve certified by a nationally recognized laboratory that
maintains periodic inspection of production of listed equipment of materials, as meeting the
requirements for Relief Valves and Automatic Gas Shutoff for Hot Water Supply Systems. ANSI
Z21.22-1971. THE CUSTOMER IS RESPONSIBLE TO PROTECT PROPERTY AND
PERSONNEL FROM HARM WHEN THE VALVE FUNCTIONS.
All water heaters have a risk of leakage at some unpredictable time. IT IS THE CUSTOMER'S
RESPONSIBILITY TO PROVIDE A CATCH PAN OR OTHER ADEQUATE MEANS, SO THAT
THE RESULTANT FLOW OF WATER WILL NOT DAMAGE FURNISHINGS OR PROPERTY.
WATER HEATER PLACEMENT
1. Place the heater on a solid foundation in a clean, dry location nearest to the point of hot water
use.
2. The water heater should be protected from freezing and waterlines insulated to reduce energy
and water waste.
3. Leave a minimum of 18” clearance for element withdrawal, if necessary.
4. Do not install in an area where flammable liquids or combustible vapors are present.
PIPING INSTALLATION
NOTE: The most effective means for preventing deterioration from accelerated corrosion due to
galvanic and stray current is the installation of dielectric fittings/unions. The installation of these
fittings is the responsibility of the installing contractor.
1. Connect the cold water inlet and hot water outlet to the appropriate connections as shown;
refer to the drawing for location and sizes.
2. Install the combination temperature and pressure safety relief valve in the tapping provided.
Note that this is required by law for safety considerations.

10
Outlet to floor drain Install into provided tapping
Manual Release
Lever

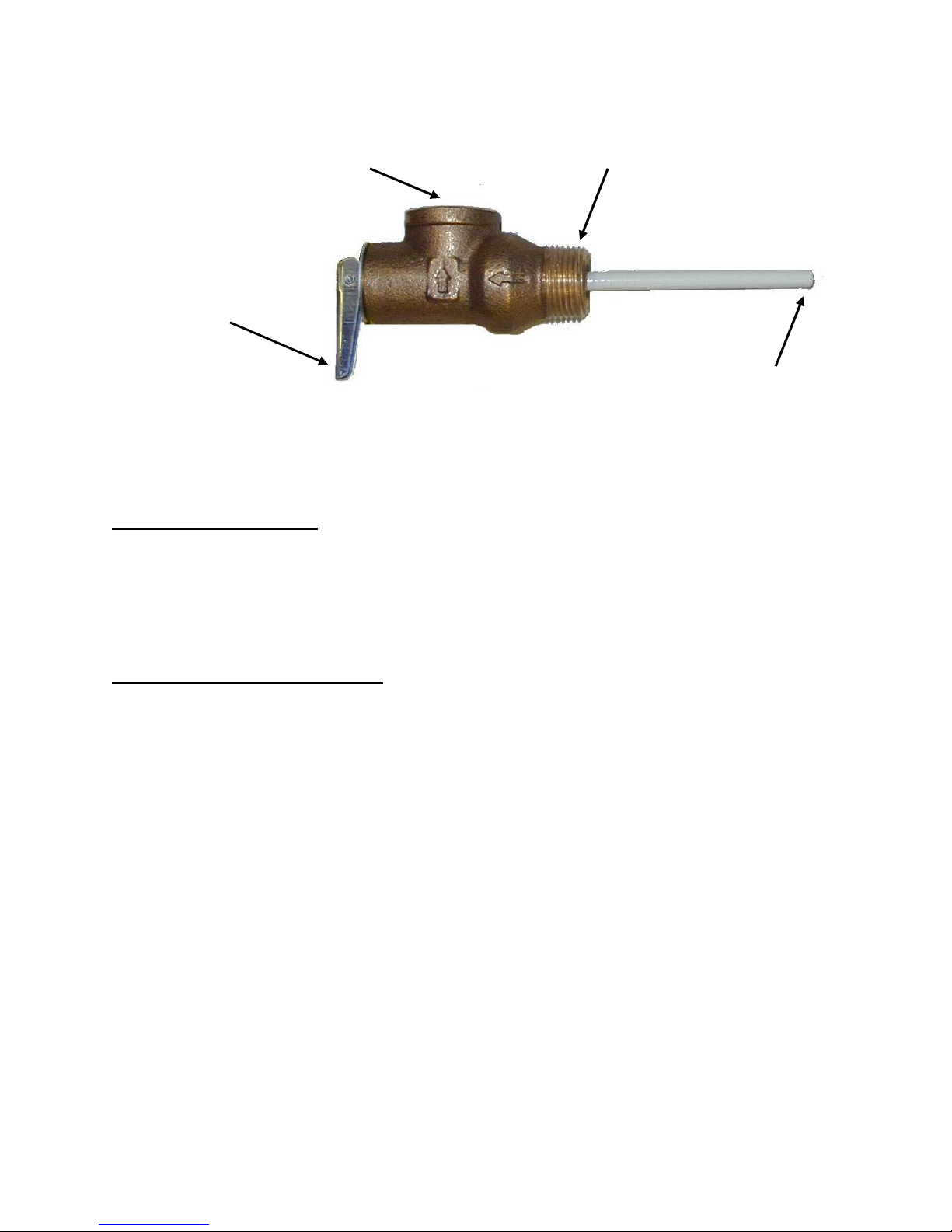

Temperature and Pressure Relief Valve
3. Install a relief valve overflow pipe to a nearby floor drain. CAUTION: No valve of any type
should be installed between the relief valve and tank or in the drain line.
FILLING THE HEATER
1. Open the pressure relief valve test lever to allow air to escape.
2. Open the valve to the cold water inlet and allow the heater and piping system to completely
fill, as indicated by a steady flow of water from the relief valve.
ELECTRICAL INSTALLATION
1. Enter electric enclosure with properly sized feeder leads. Single-phase installations require
two (2) leads; three phase installations require three (3) leads.

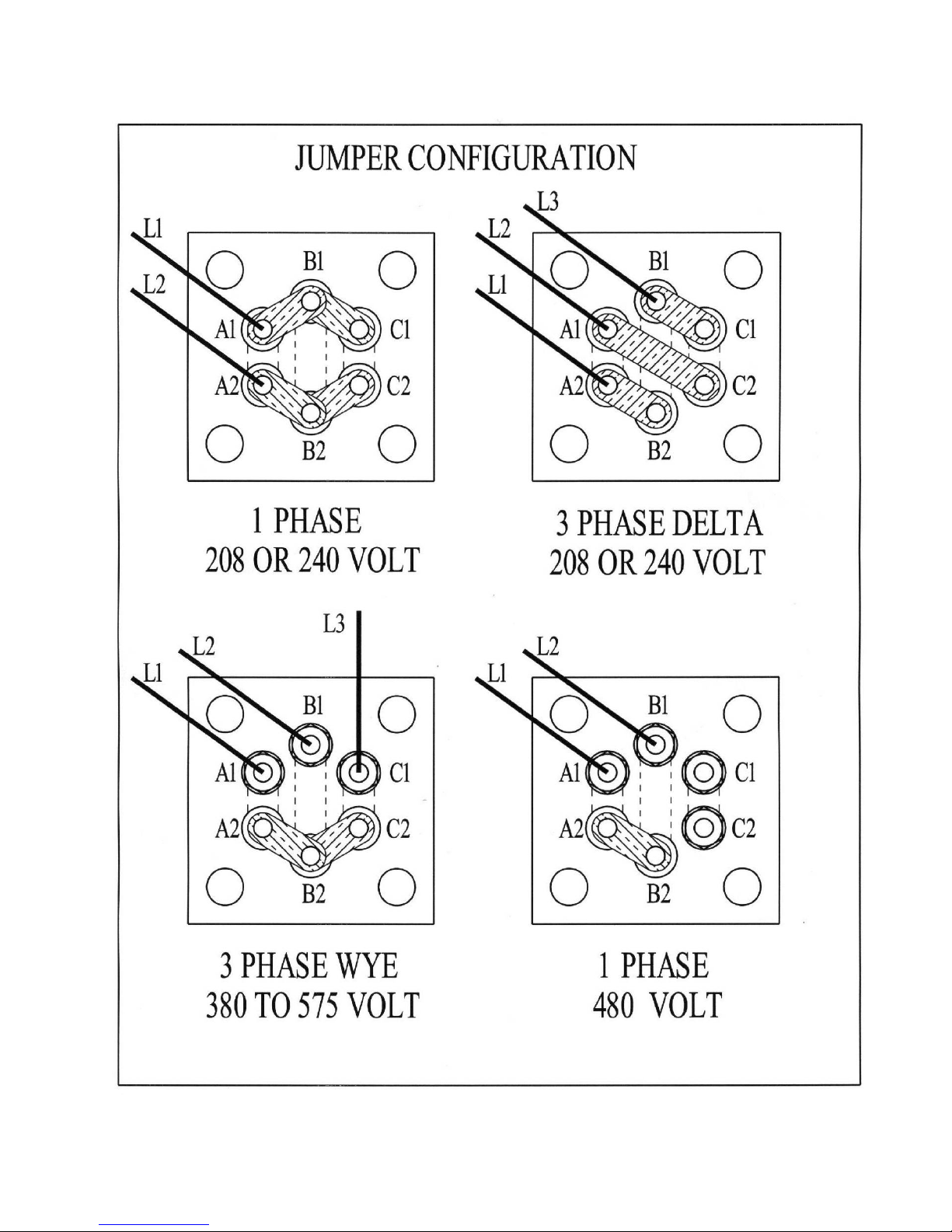

2. Install these power leads into the box lugs on the terminal block or magnetic contactor. See
wiring diagrams below.
3. Torque screws per torque chart included in Section VI.
4. All other electrical connections are made at the factory; therefore, no other electrical
connections are necessary.
Temperature Probe

11
THERMOSTAT SETTING (BULB AND CAPILLARY IMMERSION TYPE)
The bulb and capillary type thermostat is immersed in a Type 316L stainless steel well in the storage
vessel. The full thermostat range is 100-240°F, but should not be operated over 195°F. There is a
setting screw, which can be locked at a particular setting to prevent an operator from turning the dial
beyond a determined temperature point. To change the locking set screw open the thermostat cover
and follow the printed directions on the inside of the cover. To change the operating temperature
setting on the thermostat within the allowed range simply insert a screwdriver in the slot and make
the appropriate adjustment to the temperature setting according to the desired point on the dial.
FINAL CHECKS
1. Check all connections for tightness.
2. Ensure that all the above steps are completed
3. After the water is heated for the first time, monitor the water temperature as described in
Section III, Quarterly Inspection.

12
SECTION III - SCHEDULED MAINTENANCE AND OPERATION
WARNING / CAUTION
Before performing any maintenance procedure, make certain power supply is OFF and cannot
accidentally be turned on.
MAINTENANCE AND OPERATION
The water heater is automatic in its operation. It will maintain a full tank of water at the temperature
setting of the thermostat. The water heater should not be turned on without first making sure that the
tank is full of water and that all air has been released.
FREEZING
The tank should be fully drained in the event the electricity has been turned off and if there is danger
of freezing.
QUARTERLY INSPECTION
1. Monitor thermostat
a. Let water heater completely heat to a designated thermostat setting.
b. After thermostat satisfies (that is, when the thermostat actually clicks off), draw water from
heater.
c. Compare water temperature of drawn water to the temperature setting of the thermostat when
it satisfies. Normal variation between the two points is approximately + 5°F.
d. If these two readings do not coincide within acceptable tolerances and verification has been
made of the accuracy of the temperature-reading gauge, replace the thermostat.
2. Lift test lever on relief valve and let water run through valve for a period of approximately 10
seconds. This will help flush away any sediment that might build up in water passageways.
3. Inspect element flange for leakage as follows:
a. Shut off Power Supply.
b. Remove element housing cover.
c. Visually inspect heating element gasket for evidence of leaks.
d. Rub finger around gasket that is between the heating element and tank flange for any
evidence of moisture. If moisture is present or a water drip is observed, follow procedure
outlined in Section V.
4. Check for loose electrical connections. Tighten as necessary.

13
ANNUAL INSPECTION
1. Flush tank as follows
a. Shut off power supply.
b. Close valve on hot water outlet piping.
c. Open valve on drain piping.
d. Cold water inlet line pressure will be strong enough to flush sediment from the bottom of the
tank out through the drain. Let water run for 3-4 minutes.
e. Close drain valve.
f. Open hot water valve.
g. Turn power supply ON.

14
SECTION IV – TROUBLESHOOTING
Symptom Probable Cause Corrective Action / Remedy
Circuit breaker tripped at source. Reset circuit breaker.
Blown fuse in transformer, if
installed.
Replace fuse.
Circuit breaker at control cabinet
tripped, if installed.
Reset circuit breaker.
Blown fuse in element fuse block,
if installed.
Replace fuse.
High limit switch tripped. Reset high limit switch.
Loose wires. Tighten wires. Torque screws
per torque chart included in
Section VI.
Heating element inoperable. Check heating element
operation by clamping an
Amprobe around each wire to
the element. The ampere
reading should agree with the
nameplate ‘AMP’ figure.
Low line voltage. Have source electrical system
checked by an electrician.
Faulty thermostat. Move thermostat dial through
full range. A definite ‘click’
should be heard. If not, replace
thermostat.
Faulty low water cut-off, if
installed.
Check to see if tank is full of
water. If not, fill tank. If problem
continues and tank is full, check
for continuity between the
common and normally open
contact of the relay board. If
continuity is not observed,
replace low water cut-off.
No hot water
Magnetic contactor does not
energize.
Replace complete magnetic
contactor. Because of the design
of this particular contactor, it is
more desirable to replace
complete control rather than
rebuilding coil, contacts and
springs, etc.

15
Faulty thermostat. Check thermostat adjustment.
Monitor thermostat as described
in Section III, Quarterly
Inspection. Replace if necessary.
Heating element not working on all
phases
Check to see that heating
element is working on all
phases, by checking the
resistance (ohms) value for each
element and comparing with the
chart included in Section VI.
Blown fuse in element fuse block,
if installed.
Replace fuse.
Water temperature below
settings at all times
Heater improperly sized Verify heater is properly sized
for the flow rate and temperature
rise of your system. See formulas
included in Section VI. Replace
elements with proper size as
necessary.
Relief valve discharges
continuously
Excessive temperature or pressure
in tank
Temperature and pressure relief
valves are made to operate if the
water temperature exceeds
210°F or water pressure exceeds
the pressure rating of the safety
relief valve. If trouble is
excessive temperature, then
thermostat is not shutting off at
the right setting and thermostat
must be replaced.

16
SECTION V - SERVICING & REPLACEMENT OF PARTS
WARNING / CAUTION
Before servicing or replacing any part make sure to turn the power supply switch to the OFF position.
SURFACE TEMPERATURE HIGH LIMIT CUT-OFF
1. Disconnect power from unit.
2. Remove access cover.
3. Disconnect the four (4) 14 gauge wires.
Control Wires
4. Remove the two (2) mounting screws.
5. Replace control and install new high limit switch by performing above steps in reverse order.
See wiring diagram included with drawing for assistance.
Mounting Screws

17

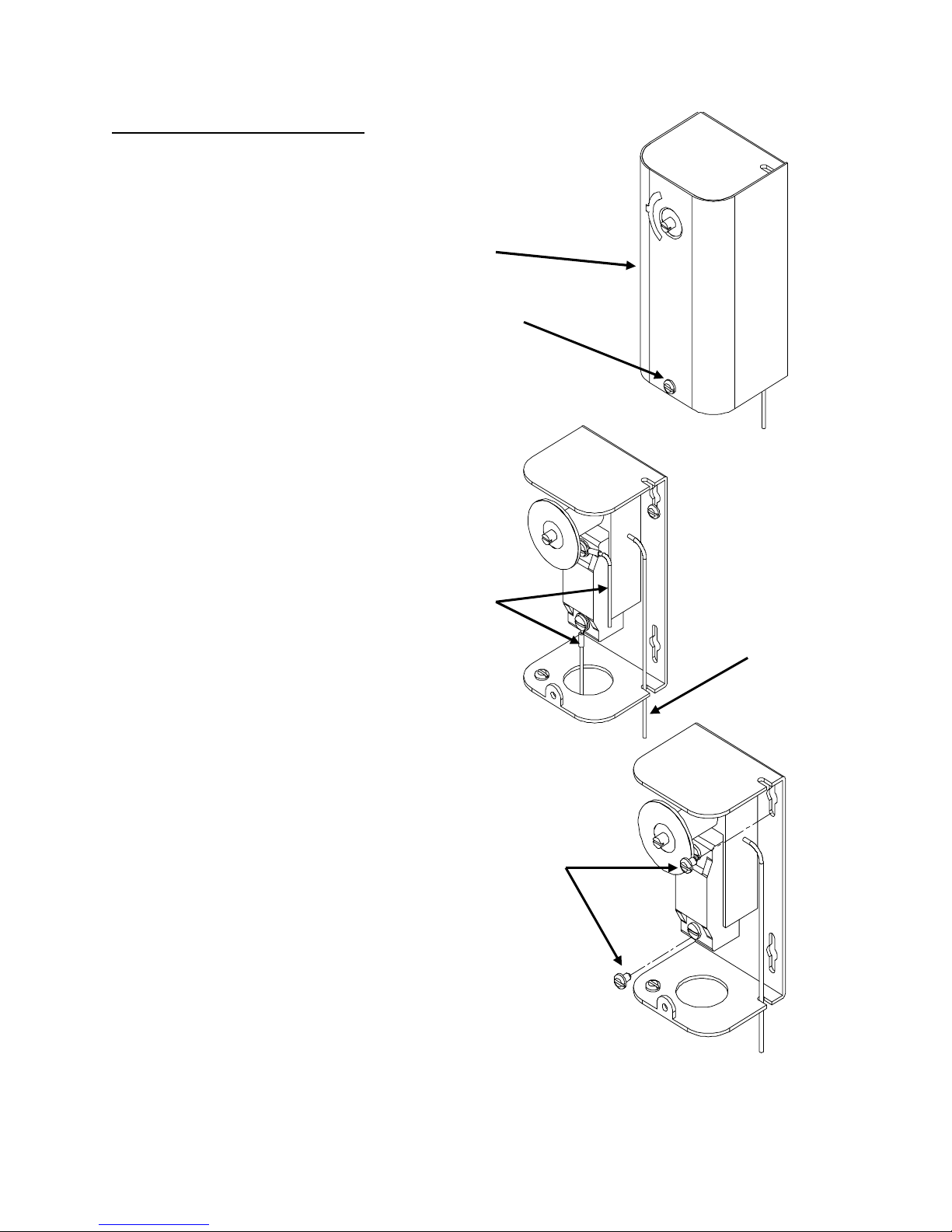

IMMERSION TEMPERATURE HIGH LIMIT CUT-OFF
1. Disconnect power from unit.
2. Remove access cover.
3. Remove high limit cover screw and cover.
Cover
Cover Screw
Reset Switch
4. Disconnect the two (2) 14 gauge wires.
Wires
Capillary Tube
5. Remove capillary tube and bulb from thermowell
6. Remove two (2) mounting screws.
Mounting Screws
7. Remove control and install new high limit switch by performing above steps in
reverse order. (Note: Be sure to place capillary tube into slot in base prior to installing cover.)

18

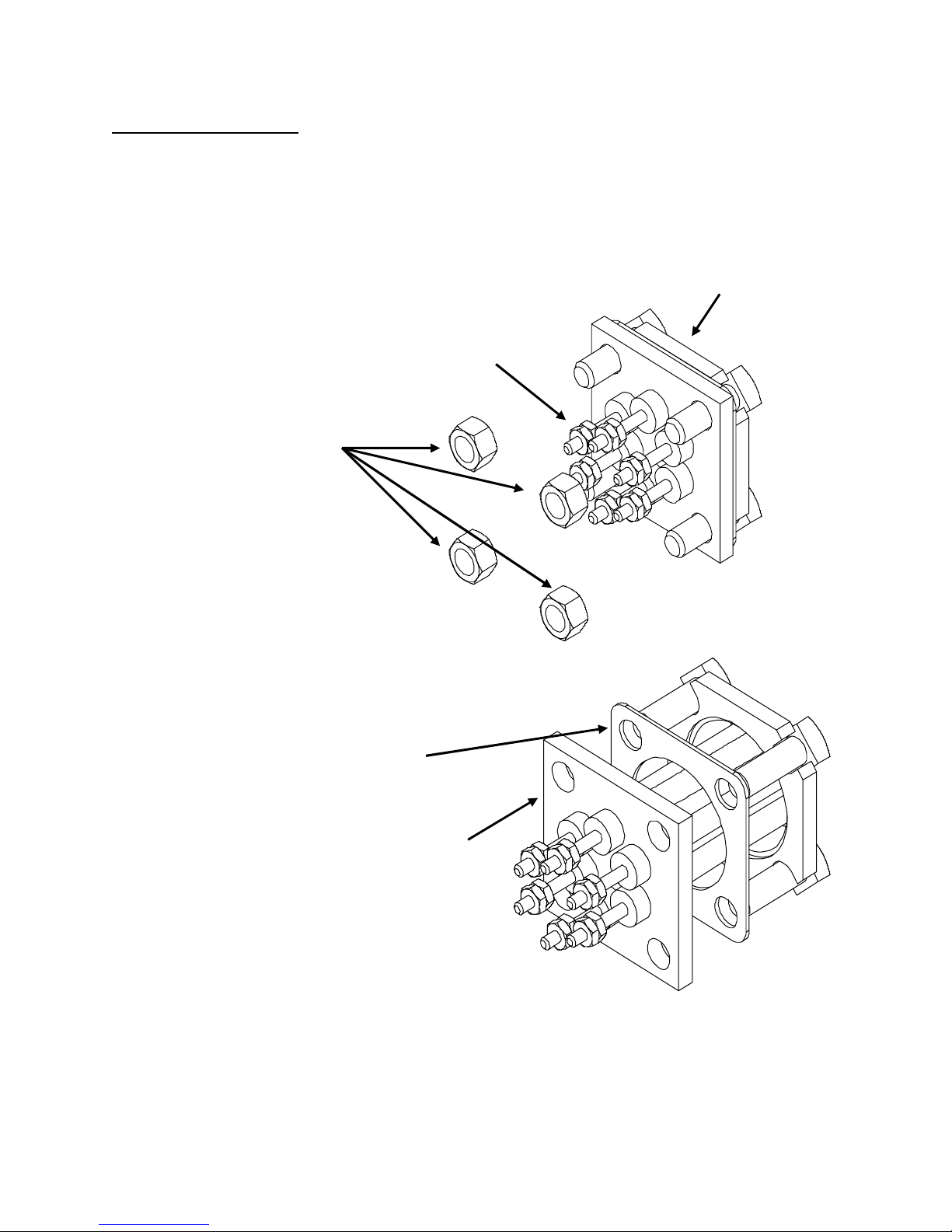

HEATING ELEMENT
1. Disconnect power from unit.
2. Shut off incoming water supply.
3. Attach hose to drain connection.
4. Lift manual release lever on relief valve to let air into system or break union on outgoing
water line.
5. Drain water from tank.
6. Disconnect the wires from the heating element terminals.
7. Remove the 3/8-16 nuts. Tank Flange
Element Terminals
Nuts
8. Withdraw element assembly and remove gasket.
Gasket
Element Assembly
9. Install new gasket and insert new heating element.
10. Rewire element according to the voltage and phase rating of the unit as shown below.
11. Fill tank and check around gasket for any leaks.

19

20
IMMERSION THERMOSTAT
1. Disconnect power from unit.
2. Remove access cover and locate thermostat.
3. Remove high limit cover screw and cover.
Cover
Cover Screw
4. Disconnect the two (2) 14 gauge wires.
Wires
Capillary Tube
5. Remove capillary tube and bulb from thermowell.
6. Remove two (2) mounting screws.
Mounting Screws
7. Replace thermostat using reverse procedure. (Note: Be sure
to place capillary tube into slot in base prior to installing cover.)
