hugo 008 PRO User manual

1
ELECTRICAL KICK-BIKE
(KICK-BIKE WITH AUXILIARY ELECTRICAL MOTOR)
HUGO BIKE
TYPE 008 PRO
Congratulations on your purchase of the luxury electrical kick-bike HUGO Bike, which will grant you with an
extraordinary experience of riding it for miles comfortably and with smile on your face.
Please keep in mind that improper installation and handling of this electrical kick-bike could decrease its
performance and worsen your riding experience. Therefore before using this product please read this
operational manual thoroughly and follow every item in installation manual!
Thank you again for your purchase of our unique electrical kick-bike HUGO Bike!

2
TABLE OF CONTENTS
TABLE OF CONTENTS ......................................................................................................................................... 2
RIDING ON THE BUBLIC ROADS ......................................................................................................................... 3
SPECIFICATIONS................................................................................................................................................. 4
ELECTRICAL KICK-BIKE HUGO BIKE .................................................................................................................... 5
INSTALLATION MANUAL.................................................................................................................................... 6
FINAL INSPECTION............................................................................................................................................. 6
BATTERY INTALLATION AND DISMANTLING...................................................................................................... 8
BATTERY CHARGING ........................................................................................................................................ 10
BATTERY STORAGE .......................................................................................................................................... 11
ELECTRICAL KICK-BIKE RANGE ......................................................................................................................... 12
MAINTENANCE ................................................................................................................................................ 13
PROBLEMS AND THEIR SOLUTION................................................................................................................... 14
SAFETY WARNING............................................................................................................................................ 15
SAFETY NOTICE!!! ............................................................................................................................................ 16
WARRANTY ...................................................................................................................................................... 17

3
RIDING ON THE PUBLIC ROADS
If you are riding the electrical kick-bike on the public road, you are bound to observe all the rules of the road
that are valid in your country. The kick-bike is equipped for the road use in accordance with the law of Czech
Republic and the manufacturer bears no liability for any accident, damage or penalty caused by the use of
the electrical kick-bike in the way that is in conflict with the local legislation.
Please familiarize yourself thoroughly with the local legislation regarding this type of vehicle and follow it to
the letter.
It is recommended to use the safety helmet and high visibility vest while riding on the public road, along with
knee, elbow and spine protectors, reinforced gloves and shoes. Following these safety requirements will help
you to prevent serious injuries and damages. The rider is fully responsible for his safety!
In case that your kick-bike is not equipped with the front white light and rear red light, it is in accordance
with Czech road laws not suitable for the operation in decreased visibility.
Electrical kick-bike shall not be operated by the persons with lowered ability to keep balance, bad sight or
other medical or movement restriction.
Electrical kick-bike is in general a sport equipment and not a road vehicle.

4
SPECIFICATIONS
Max. Bearing capacity: 100 kg
Fork: spring fork
Front brakes: disk brake
Rear brakes: disk brake
Rims: aluminium (26“ front and 16“ rear)
Motor power: 1000 W
Battery: Li-ion 48V up to 20Ah
Charge time: 6-8 hours
Dimensions (l x w x h): 164 x 35 x 105 cm
Weight without batteries: 22 kg
Handle bars: wide

5
ELECTRICAL KICK-BIKE HUGO BIKE

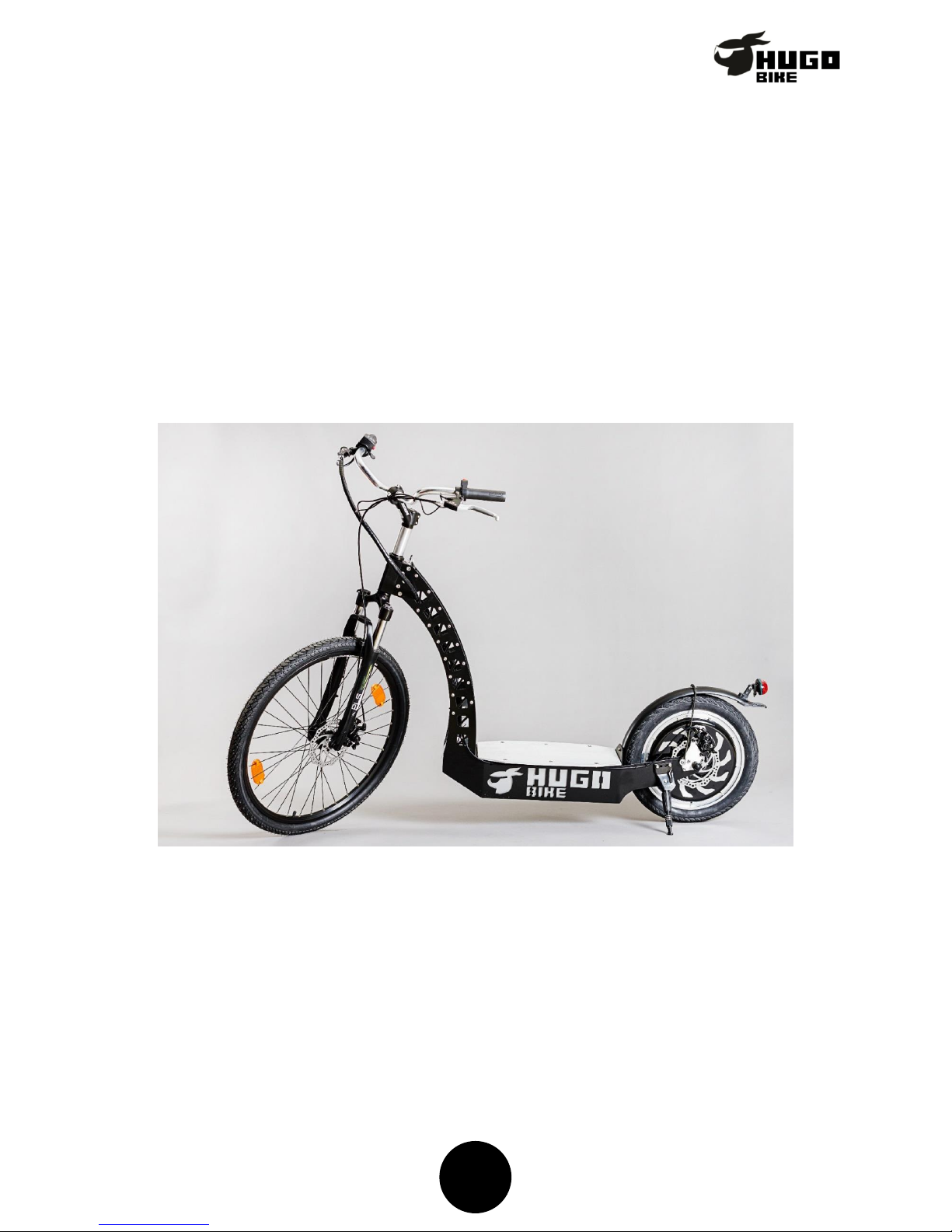

PICTURE 1
PICTURE 2

6

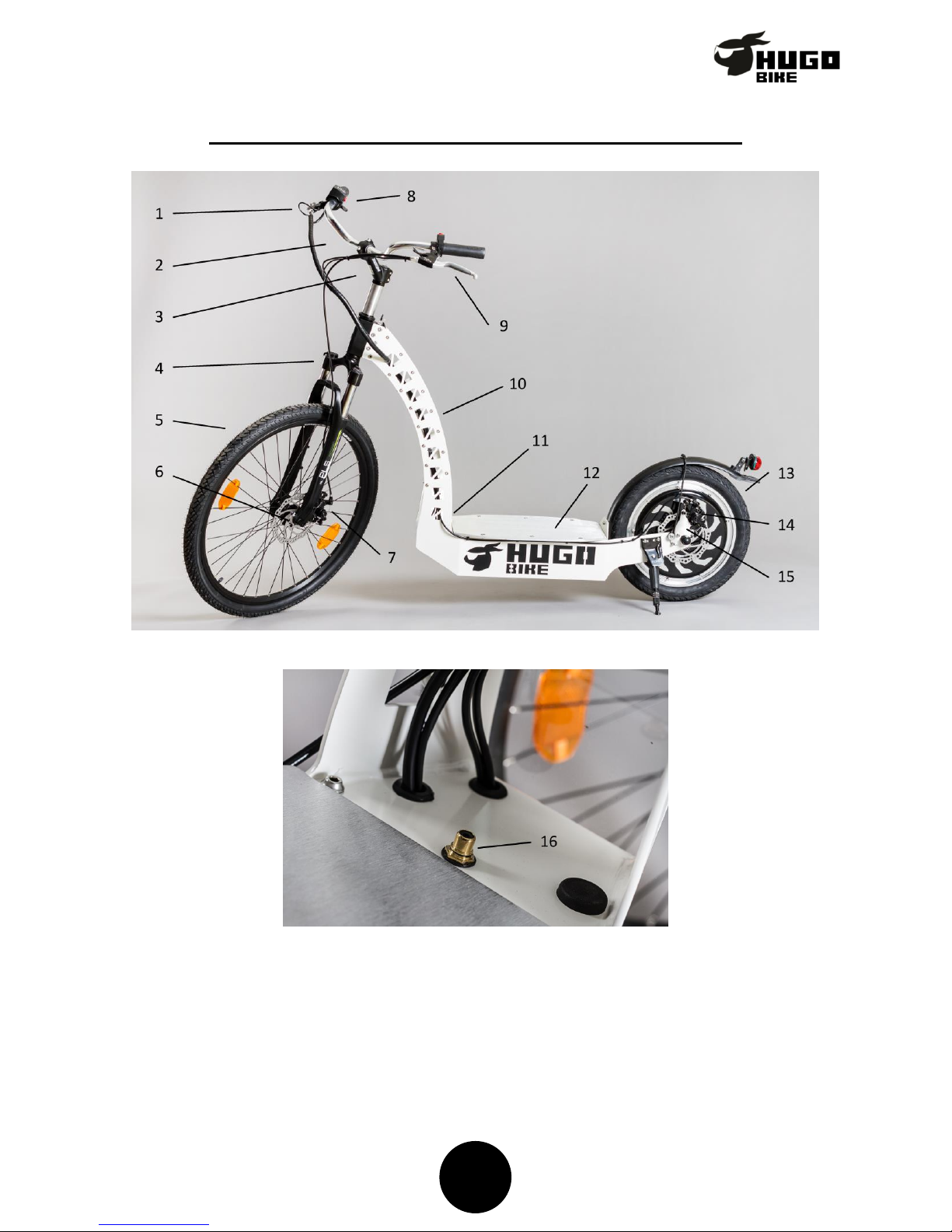

Description of picture 1 and 2
1. Rear brake handle with disconnecting switch
2. Handle bars
3. Handle bar attachment piece
4. Front spring fork
5. Front wheel
6. Front wheel axis
7. Front brake callipers
8. Accelerator with battery indicator
9. Front brake handle with disconnecting switch
10. HUGO Bike frame
11. Battery, control unit and external electrical
installation
12. Standing plate
13. Rear wheel with electrical motor
14. Rear brake callipers
15. Turning rear wheel safeguard
16. Feed connector (picture 2)
INSTALLATION MANUAL
Please remove all packaging material and inspect the kick-bike if there was no damage during the transport.
When the kick-bike is delivered by delivery service or courier, it is usually divided into three parts:
-Handle bars
-Front wheel
-Rim with the rear wheel including other equipment
Necessary tools (not part of the delivery):
-Allen key 4, 5 & 6
-Nut key 15
Installation instructions:
1. Extract all parts from the transport package
2. Insert the handle bars into the handle bar hole
3. Use the allen key 5 or 6 (according to the handle bar type) to fasten the screw in the handle bar
holder.
4. Loosen the end nuts on the front wheel axis using the nut key 15 (if the fast attachment system is
used, fasten the handle and unscrew)
5. Attach the front wheel into the front fork (in accordance the direction shown on the tire if available)
and fasten the nuts (see item 3) so that there is no spontaneous loosening possible.
6. Attach the front wheel so that the disk fits into the brake callipers attached to the spring fork.
FINAL INSPECTION
After you have finalized the installation, conduct the final inspection and make sure that:
Each screw is properly tightened
Tires are pumped with the recommended value (shown on the tires)
Brakes are working properly
Inspect the proper operation of the brakes prior to every ride!
If the brakes are not used properly, you could lose control over your kick-bike. Braking your kick bike
requires a bit of practice to prevent you to put you or others into danger. Please go slow on your

7
first ride and brake gently to familiarize yourself with their operation. Front brake lever is located at
the left side of handle bars, the rear brake lever is on the right side.
If you have assembled and inspected the electrical kick-bike before the ride, turn on the power switch or key
by turning to “on” position. The battery indicator on the handle bars turns on and the electrical kick-bike is
prepared for the ride.
Notice: prior to every ride check the fastening of all screws, pressure in the tires
and brakes!
Notice: when you accelerate on full throttle from stopped position, you shall
expect that the motor power could imbalance you. To limit this risk we
recommend to use the accelerator after setting the kick-bike into motion by your
foot.
USING ALARM
Electrical kick-bike is equipped with the acoustic theft protection device, an alarm. The alarm is activated by
turning the start key to OFF position and pulling of the key out of the kick-bike. Alarm sound is activated at
the moment when the control unit notices that the rear wheel has turned. To disable the alarm, insert the
key and turn it to ON position.
The alarm is powered from the kick-bike battery and requires no maintenance. Alarm is not functional when
the battery is completely depleted.

8
BATTERY INTALLATION AND DISMANTLING
Picture 3
Picture 4

9
Dismantling
Turn the power off by turning of the key. Fasten the six screws on the edge of the standing plate (see picture
3). Remove the standing plate. Disconnect the connection cable from the battery (see picture 4) as well as
the charging connectors. Lift the battery straight up.
Installation
Proceed in reverse order. Please observe the correct polarity of the battery and charging connector!
Please make sure that the accumulator is fully charged prior to the first ride. Use only the charger that was
supplied with the electrical kick bike HUGO Bike. Using of different charger could damage or destroy the
battery or the kick-bike electronics, invalidating the warranty as well as creating the fire hazard. Make sure
that the charger uses the same voltage as in the country where you use the kick-bike.

10
BATTERY CHARGING
Battery supplied with the electrical kick-bike HUGO Bike will very slowly discharge when not in use. It is
therefore recommended to charge the battery frequently –at least always after you finish your ride and if
you are not using the kick bike every 14 days to full capacity.
Regardless to the battery state charge the battery after every ride! If you will take your charger with you,
you could re-charge during every stop, increasing the HUGO Bike range. Timely charging of your battery will
secure you with long lifespan, increased capacity and prevents damage.
Always have the power off during charging.
Battery charging:
1. Battery could be charged in electrical kick-bike or while removed from the frame, in which case you
have to use the reduction that is not part of the standard delivery. Charge the battery with the kick-
bike turned off.
2. Always connect the charger to the battery or kick-bike first and to the mains second.
3. Electrical connection shall meet the requirements on the charger.
4. When the charger is connected to the battery and mains, the red led indicator lights up, signaling the
start of the charging process. The charging will stop immediately when the battery is fully charged.
The charging is completed when the led indicator turns green.
5. Disconnect the charger from the mains first and from the battery second. Store the battery out of
the reach of children.
Maximal charging time is 5 –8 hours when the battery is fully depleted. The charger is supplied with the kick-
bike with the overcharge protection and will stop the charging process when the battery is fully charged.
Warranty conditions for the battery in relation with its capacity, charging cycles and age are listed at the end
of this document.
Notice: use only the charger supplier with the electrical kick-bike or charger
designated to the exact battery type used. Otherwise you could irreversibly
damage the battery or the charger.
Notice: Never charge the battery in wet environment. This could lead to
destruction of the charger as well as damage to the kick-bike control unit.

11
BATTERY STORAGE
Battery shall be fully charged before the use or storage.
Do not throw the battery into the fire or damage it mechanically. This could release toxic substances.
Do not break the battery open. Contact the service for repair.
Store the battery in room or slightly cooler temperature (maximal temperature range is 5°c to 30°c, ideally
from 5°c to 20°c). Freezing the battery leads to its damage, voiding the warranty.
If the battery is emitting sound, gets too hot or leaks liquids, stop using it immediately.
Always store the battery in cool, dry and well ventilated place out of the sunlight and heat sources.
Store the battery in room or slightly cooler temperature (maximal temperature
range is 5°c to 30°c, ideally from 5°c to 20°c) in cool, dry and well ventilated place
out of the sunlight and heat sources.
Never store the battery in area with temperature lower than 5°c. This will damage
the battery and void the warranty.

12
ELECTRICAL KICK-BIKE RANGE
Several factors influence the maximal range of your kick-bike, for example:
-Battery status
-Headwind
-Tire pressure
-Rider weight and load
-Age / battery use
-Terrain
-Outside temperature
-Road surface
Please keep in mind that the range and power is significantly affected by the outside temperature. When the
temperature drops below 5°c, the range and power is lowered. This is a normal attribute with the batteries
and it is not a subject to the warranty.
Battery is equipped with the total discharge protector, preventing the possibly damaging complete discharge
of the battery. This protector causes that at the moment of a near-depletion the battery shuts off completely,
which will stop the kick-bike. By turning the on/off key it is possible to turn the kick-bike back on. If you will
operate the thumb accelerator gently –maintaining low load to the kick-bike, gradual power increase,
maintaining low speed –it is possible to ride the bike. Recharge the battery as soon as possible to prevent
damage by further self-discharge.

13
MAINTENANCE
Notice!!!
Use only original spare parts.
Never submerge the batter, charger or other electrical components into the water
or other liquid.
Do not expose the electrical kick-bike to the rain!
General instructions
Regular maintenance guarantees a long lifespan and safety of your kick-bike. The maintenance covers
cleaning, lubrication and proper adjustment of all components. Regular maintenance is also a warranty
condition. Always keep your electrical kick bike and all its components clean. Use only recommended and
tested cleaning materials. If you will use your kick-bike in winter, clean it after each ride from salt. Check the
proper tightening of all screws and nuts, especially the nuts on the rear wheel axis. We recommend that
these operations are made in regular intervals. If necessary, contact our nearest service or the manufacturer
directly on www.hugobike.cz.
Battery fuse replacement
Always exchange the damaged fuse with the fuse with the same electrical current value. Never repair the
fuse! If the fuse gets burned regularly, please contact the service.
The kick bike is equipped with one fuse located in the battery bag. Remove the fuse by unscrewing standing
plate, opening the battery bag and opening the fuse case.

14
PROBLEMS AND THEIR SOLUTION
If the kick-bike is not functioning properly, please check first if you are not able to rectify the problem on
your own. If not, contact the service.
Cause / solution
Kick bike is not operating on full power:
Battery charge too low charge the battery
Accelerator is damaged accelerator shall be replaced by service
Battery fuse is damaged exchange the fuse
Main cable is damage replace the cable or contact the service
Contacts are disconnected check the connection between the battery and motor
Battery is depleted and disconnected by the total discharge protector Turn the kick-bike on and
off by the key on/off switch, allowing emergency operation; charge the battery as soon as possible
Motor is not turning, even with the system on:
Battery cable is damaged check the battery cabling
Brake lever switch is damaged check the cabling and switch operation
Battery fuse is damaged exchange the fuse
Low range even with fully charged battery:
Tire pressure too low pump the tires
Battery too old or damaged exchange the battery
Heavy load on steep slope, in headwind or under load use less motor
Low outside temperature (lower than 0°c) use less motor
Charger does not charge the battery:
Charger is not connected to the mains connect the charger
Cables are damaged exchange the charger
Damaged charger exchange the charger
Loosened connectors check and secure the cables
Battery fuse is damaged exchange the fuse
Battery is damaged change the battery
Charger indicator is always green:
Damaged or unsuitable battery exchange battery or charger
Loosened connectors check and secure the cables
Battery fuse is damaged exchange the fuse
Check the installation for short circuit
Charger indicator is always red:
Check the battery for damage
Battery fuse is damaged exchange the fuse

15
SAFETY WARNING
Safety symbols shall draw your attention to possible danger. Safety symbols and their explanation are
requiring your keen attention and understanding. Safety warning will not remove the danger on itself.
Instructions or warnings are not a replacement for the proper accident prevention.
Failure to comply with the safety notices could result in the damage to you, other person or the property.
Always follow the safety warnings, reducing the fire risk, risk of electric shock and injury.
1. Prior to the ride carefully read this operation manual and make sure that you understand before you
start to use the product. Be informed about the proper use of HUGO Bike.
2. Prior to any ride inspect your kick-bike properly for loose joints or damaged parts before every use. If
some parts are loose or damaged, fix them before using the electrical kick-bike.
3. The manufacturer or supplier is not responsible for the accidental or subsequent damages or damages
caused directly or indirectly by using this product.
4. When riding the kick-bike abroad, check if you and electrical kick-bike meets the requirements for road
use of the specific country.
5. Prior to any ride check the screws for tightness, proper tyre pressure (shown on the tyre) and brake
operation
6. Accelerating from the full stop could be sudden, impeding your balance. To limit the risk of falling, use
the accelerator only after setting the kick-bike in motion by foot.
7. If the active recuperation is on, a slight pressing of the brake handle starts the recuperation system,
braking the rear wheel. To customize yourself with this system we recommend to start on straight, level,
firm and open surface. The kick bike is supplied with this option turned off and its use is not
recommended.
8. Always have an on/off switch turned “OFF” when charging the kick-bike.
9. Never charge the battery in wet conditions
10. Use only the supplied, original charger. Otherwise you could irreversibly damage the battery or the
charger.
11. Try to maintain the batteries charged as much as possible. This increases the battery life span. Do not
leave the charged batteries connected to the charger for extended period of time.
12. Store the battery in room or slightly colder temperatures (maximal temperature range is 0°C to 40°C,
15°C to 25°C is ideal) in dry and ventilated place, away from the direct sunlight and sources of heat
radiation. Never store the batteries in the environment with temperatures below 0°C. Battery damage
by cold voids the warranty.
13. Do not expose the electrical kick-bike to rain. Never submerge the battery, charger or other electrical
parts into the water or other liquid.
14. Use only original spare parts.
15. First warranty inspection shall take place after 500 km or 6 months from purchase, whichever of these
occurs first.
Your insurance policy may not cover the possible accident while using this electrical kick-bike. Please
contact your insurance company or agent to conclude the injury insurance or damage responsibility
insurance.

16
SAFETY NOTICE!!!
Information for the users on disposal of electric and electronic equipment
This symbol on the product or in the accompanying documentation means that the used
electrical or electronic equipment shall not be disposed of together with the communal
waste. To properly dispose these products you shall hand them over on designated
collection places, where they will be accepted free of charge.
By the proper disposal of this product you help to preserve the valuable natural
resources and help to prevent the potential negative effects on the environment and
human health, which could result from improper waste disposal.
For more details ask your local authority or closest collection depot. Improper disposal
could result in fines in accordance with national legislation.
GIGOLOZ s.r.o.
Generála Svobody 242/21, 373 07 České Budějovice
tel: [phone]
www.hugobike.cz [email protected]

17
WARRANTY
2 year warranty –for manufacturing, hidden or accidental defects of all mechanical components (apart of the parts
which are subject to regular wear by riding).
6 months warranty or 500 charging cycles –for battery lifetime. Battery is a consumer goods with limited lifespan. The
regular decline of battery capacity, observable during its use or storage, is not considered a defect. This is an attribute
caused by natural aging and battery wear. This process is not a subject to warranty if it is not higher than 20% during
500 charging cycles within 6 months of battery age.
General principles
Gigoloz s.r.o. confirms that the electrical motor of the designated type, installed on the kick-bike, follows the Czech
ministry of transport regulation no. 341/2002 coll. With its power and maximal speed as an auxiliary motor for the
electrical bike.
Warranty conditions
-The product shall be used solely for the purpose for which it was manufactured and designated
-The product shall be properly stored and maintained in accordance with the operation manual
-Properly filled warranty shall be presented while applying for the warranty
-The warranty shall be applied immediately by the business organization which sold the product
The warranty is void
-If it was discovered that the damage to the product was not cause by the manufacturer or the importer, but the user
(accident, improper handling or installation, interference with the frame or electrical parts, improper repair, bad
storage etc.)
-If the warranty was not applied for during the warranty period
-If the product was not used or maintained properly in accordance with the operation manual
-If the properly filled warranty was not presented when applying for the warranty
-If the damage concerns the wear part (e.g. tires, brake disks, bearings)
-If it concerns the decrease of the battery capacity which is lower than 20% during the 300 charge cycles in first 6
months and it is observable during its usage and storage.
We recommend the first guarantee inspection after 500 km or 6 months from the date of purchase
(whichever happens first).
Gigoloz s.r.o., Generála Svobody 242 / 21, České Budějovice 370 01
Electrical kick-bike HUGO Bike type: HB008
Seller:
Battery type:
Frame serial number:
Selling or installation date:
Seller’s signature:
. . . . . . . . . . . . . . . . . . .
Li-Ion 48V 20Ah
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
Warranty repair:
Handover date repair date problem description seller’s signature
1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
