Huion KAMVAS Pro 24 User manual

Kamvas Pro 24(4K)
Contents
Product Overview ...................................................... 2
Display Introduction ................................................... 2
Product and Accessories ................................................ 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
Install Driver ........................................................ 6
Driver Interface Preview ................................................ 17
Pen Display Setting ................................................... 19
Digital Pen Setting .................................................... 22
Driver Setting ....................................................... 31
Pen-enabled OSD Menu ................................................ 36
Digital Pen Basic Operation .............................................. 39
Specifications ........................................................ 43
Troubleshooting Solutions .............................................. 45
1 / 48

Kamvas Pro 24(4K)
Product Overview
Display Introduction
Thanks for choosing HUION KAMVAS Pro 24(4K) creative pen display. This is a new generation
of professional drawing display, which can greatly improve your work efficiency of painting
and creation, and full of fun. You can freely painting and writing, depicting different lines and
colors, just as the pen writes on the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual
carefully. The user manual only shows the information under Windows, unless otherwise
specified, this information applies to both Windows and Mac systems.
Note: The pictures in the User Manual are for reference only.
Product and Accessories
Product Overview
Please see the detailed product introduction.
2 / 48

Kamvas Pro 24(4K)
Accessories
After unboxing your package, make sure that you have the following items:
Pen Display*1
Battery-free Pen*1
Pen Holder*1
KD100 *1
Replacement Nibs(Inside the Pen Holder)*10
HDMI Cable*1
USB-C To USB-C Cable*1
USB-C Cable*1
Power Cable*1
Power Adapter*1
Quick Start Guide*1
Cleaning Cloth*1
3 / 48

Kamvas Pro 24(4K)
Product Connection
The display supports the connection of a computer and Android device, please refer to the
following connection method.
Connect to the computer
Connect the pen display to your computer with HDMI Cable and USB Cable. Please refer to the
follower steps.
① Connect the display to your computer with HDMI cable;
② Connect the display to your computer with USB cable;
③ Connect the power adapter to the power cable.
4 / 48

Kamvas Pro 24(4K)
USB-C to USB-C Cable
Connect the display to your computer or Android device with USB-C to USB-C cable.
① Connect the display to your computer or Android device with USB-C to USB-C cable.
② Connect the power adapter to the power cable.
5 / 48

Kamvas Pro 24(4K)
Driver and Setting
Install Driver
How to Install and Uninstall the Drivers on Windows/Mac Device
Notice:
1. Before installing driver, please close all graphic software and antivirus program.
2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or
later.
4. Run the tablet driver program and complete the installation according to the instruction.
After the download is successful, double-click to open the driver, Connect the device to your
computer.
If the connection fails, please reconnect the computer to the device, or restart the driver or
computer.
Here are the step-by-step instructions for installing the driver:
1. Please choose the correct driver for your device from our website: Driver-Kamvas Pro
24(4K)
2. Click Driver-Inspiroy Giano to download it.
6 / 48

Kamvas Pro 24(4K)
3. Follow the instructions to complete the installation.
7 / 48

Kamvas Pro 24(4K)
How to Install and Uninstall the Drivers on Linux Devices
Notice:
1.Please remember to close the command window and reboot your Linux device after
installing the driver, or the driver will not be useful. After rebooting the device, you can access
the system main menu to find the Huion Tablet driver and then open it to finish some
settings.
2.If you are running Linux operating system on VMware, you must use the VMware
Workstation Pro version. And the Play version of VMware Workstation doesn’t support the
Huion Tablet driver.
3.Some versions of the Ubutun operating system don’t support using more than one monitor
simultaneously. And we recommend you upgrade your system to 20.04LTS or later if you want
to use a Huion painting device on multiple display screens simultaneously smoothly.
Huion Tablet Driver installation packages in 2 different formats are available for
Linux devices:
· tar.xz (file format)
8 / 48

Kamvas Pro 24(4K)
· deb (file format)
Here are the step-by-step instructions for installing the driver packages in
different file formats respectively:
1.Instructions for installing the driver package file in tar.xz format.
Linux operating systems supported:
Ubuntu
Steps to Install:
1.Extract the contents of the driver file, huiontablet_XXXX.tar.xz, into a folder.
2.Open the command window in the folder.
3.Input the following command: “sudo sh install.sh”, and press the enter key on the keyboard
to make your Linux device execute it.
9 / 48

Kamvas Pro 24(4K)
4.Enter the user password to complete the installation.
10 / 48

Kamvas Pro 24(4K)

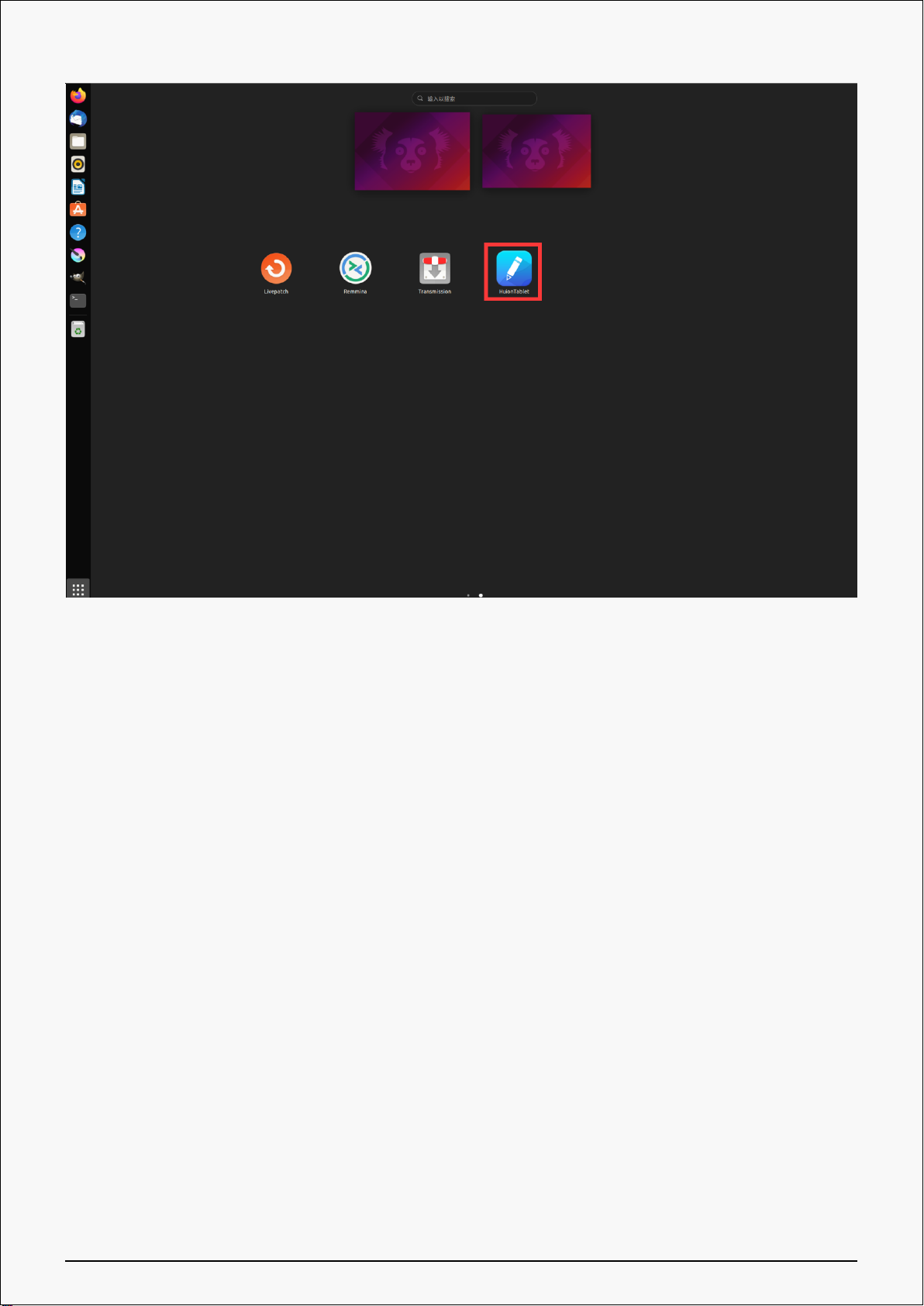

5.Please reboot your Linux device to run the driver, or the driver will not be useful.
11 / 48

Kamvas Pro 24(4K)

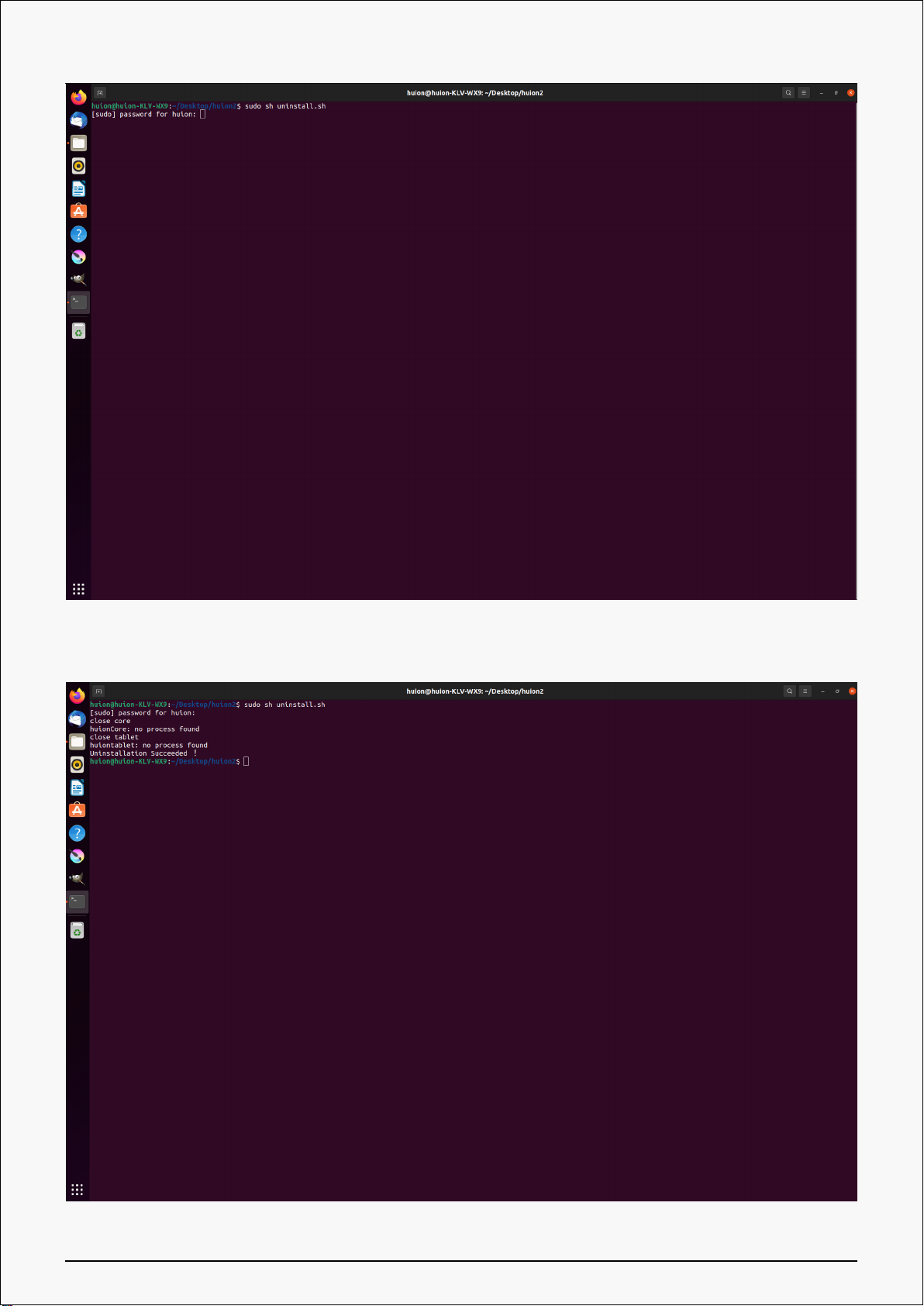

Steps to Uninstall:
1.Open the command window in the folder of the driver.
2.Input the following command in the command window: “sudo sh uninstall.sh”, and press the
enter key on the keyboard to make your Linux device execute it.
12 / 48

Kamvas Pro 24(4K)
3.Enter the user password to complete the uninstallation.
13 / 48

Kamvas Pro 24(4K)
2.Instructions for installing the driver package file in deb format.
Linux operating systems supported:
Ubuntu
Steps to Install:
1.Open the folder and double-click the driver file in deb format to enter the system default
interface of installing the driver on the application store, then click to install.
2.Enter the user password to complete the installation.
14 / 48

Kamvas Pro 24(4K)
3.Please reboot your Linux device to run the driver, or the driver will not be useful.
15 / 48

Kamvas Pro 24(4K)
Tips: Please ensure that your Linux device has been connected to the internet when installing
the driver, or the installation will fail when entering the application store interface.
Steps to Uninstall:
1.Enter the interface of the installed applications on the system’s built-in application store.
2.Find the driver and click to uninstall it.
16 / 48

Kamvas Pro 24(4K)
Tips: If you can't access the system’s built-in application store, you can search out the driver
file, huiontablet_xxx.deb, then double-click it to enter the installation interface, and click the
remove button to uninstall it.
Driver Interface Preview
17 / 48

Kamvas Pro 24(4K)
1. Pen Display
Pen Tablet function setting interface, the users can set the device function on this interface.
See Section
2. Digital Pen
The users can set the Pen function on this interface. About Press Key, Mode selection,
Pressure Sensitivity Adjustment and Pressure Test.
See Section
3. Store
Huion Store, where you can get the latest information about the product such as its FAQ or
sales promotion. Additionally, you can also purchase other products or accessories on Huion
Store.
18 / 48

Kamvas Pro 24(4K)
4. Add Programs
You can customize different functions on the current device for different programs.
When select All programs, the setting of the device is valid for every program.
By clicking Add a Program from the drop-down list, you can set the functions for a specific
program and hence have unique settings for different programs. After that, when launching a
specific program, the Driver will automatically recognize it and the setting features will change
to its corresponding one.
5. Setting
The users can set the Driver function on this interface. About Device Information, Backup
Setting, General Setting and Driver Update.
See Section
6. Switch between Devices
Driver can support the connection to two digital drawing devices at the same time. When
these devices are sharing the same Driver with the current device, users can customize the
settings of the devices by switching the Driver interface to the corresponding one.
Pen Display Setting
Working Area
Select the Working Area tab to define the relationship between pen movement on the device
and cursor movement on the monitor screen.
By default the entire active area of device maps to the entire monitor. If more than one
monitor is in use and you are in extended mode, you need to choose the related monitor on
the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the device maps
to the entire space on each monitor and the screen cursor is displayed on each monitor
simultaneously.
19 / 48

Kamvas Pro 24(4K)
1. Working Area Setting
Define the device area that will be mapped to the screen area.
[1] Full Area: the entire active area of the device. This is the default setting.
[2] Screen Ratio: As a general rule, be 16:9.
[3] Customized Area:
1> Enter coordinate values.
2> Drag the corners of the foreground graphic to select the screen area.
2. Rotate Working Area
By changing the direction of the device to adapt to the left and right hand operation. You can
rotate the tablet by 0°, 90°, 180° or 270°.
20 / 48
