Huion INSPIROY H420X User manual

H420X(8192)
Contents
Product Overview .................................................. 2
Tablet Introduction .................................................. 2
Product and Accessories .............................................. 2
Product Connection ................................................ 4
Driver and Setting ................................................. 6
Install Driver ....................................................... 6
Driver Interface Preview .............................................. 8
Pen Tablet Setting .................................................. 10
Digital Pen Setting .................................................. 12
Driver Setting ..................................................... 18
Digital Pen Basic Operation ........................................ 22
Specifications ..................................................... 28
Troubleshooting Solutions ......................................... 29
1 / 30

H420X(8192)
Product Overview

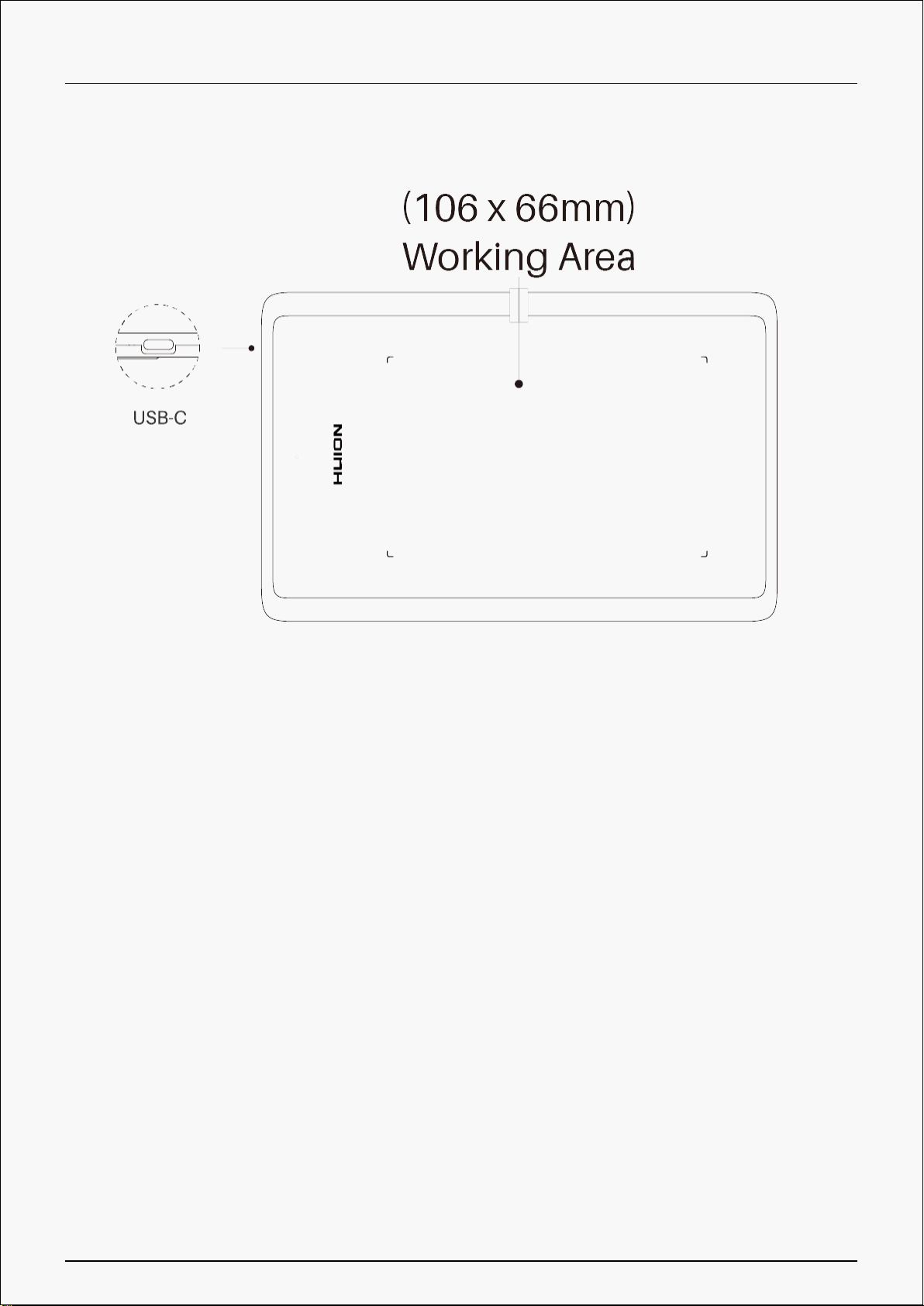

Tablet Introduction
Thanks for choosing HUION INSPIROY H420X creative pen tablet. This is a new
generation of professional battery-free drawing tablet, which can greatly improve your
work efficiency of painting and creation, and full of fun. You can freely painting and
writing, depicting different lines and colors, just as the pen writes on the paper, which
brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user
manual carefully. The user manual only shows the information under Windows, unless
otherwise specified, this information applies to both Windows and Mac systems.
Note: The pictures in the User Manual are for reference only.
Product and Accessories
2 / 30

H420X(8192)
Please see the detailed product introduction.

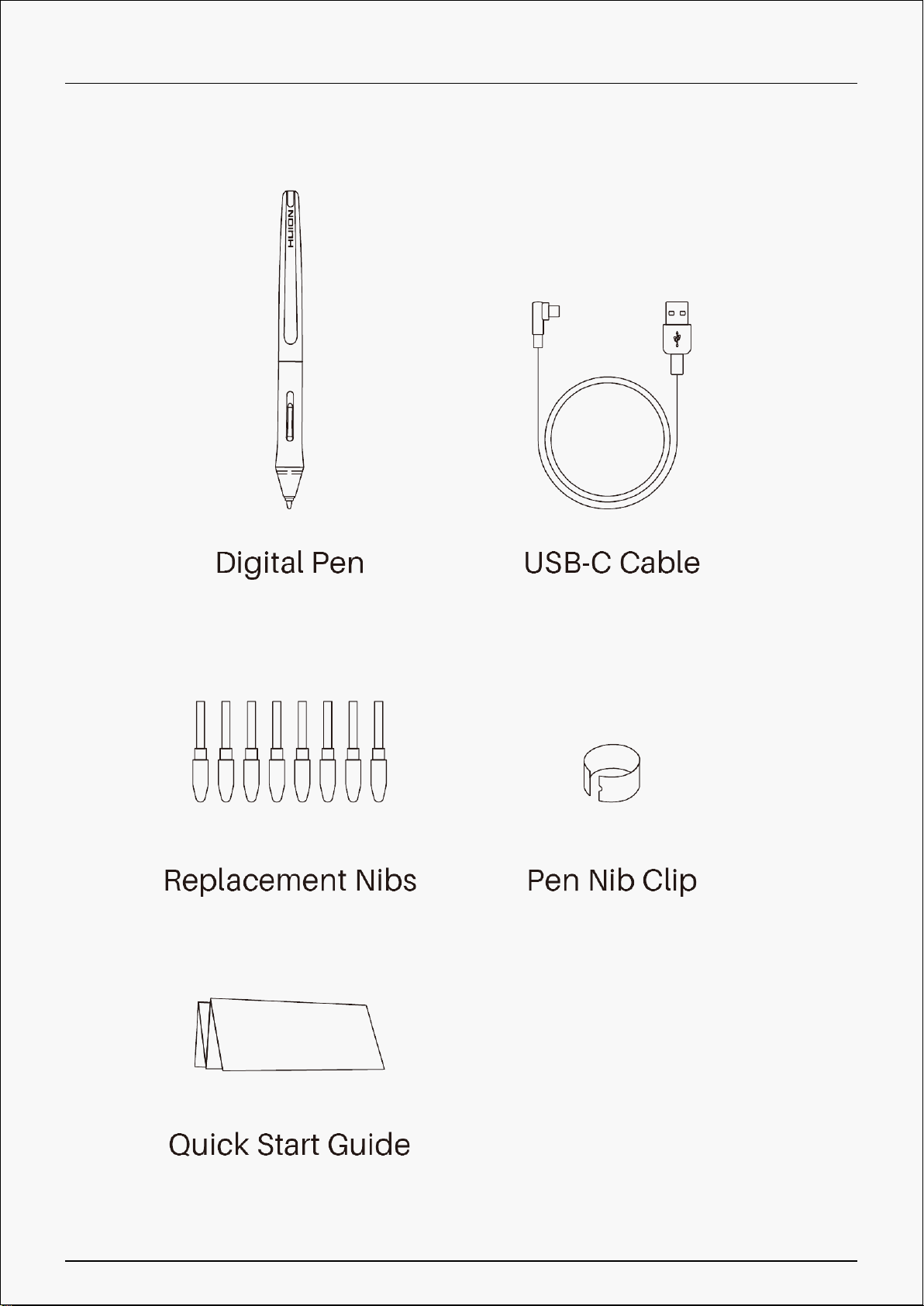

After unboxing your package, make sure that you have the following items:
Tablet*1
Battery-free Pen*1
Pen Nib Clip*1
Replacement Nibs*8
USB Cable*1
Quick Start Guide*1
3 / 30

H420X(8192)
4 / 30

H420X(8192)
Product Connection
1. Wired Connection
Connect the tablet to your computer with USB cable. Please follow the steps below:
1. Take out the USB cable from the package, then connect tablet to your computer.
2. Please download the Pen Driver from our website:Driver-H420X.
3. Open the driver interface, the device picture will be displayed on the interface, indicating that
the tablet is successfully connected to the computer.You can start use the tablet.
See Section
2. Android connection
Please follow the steps below:
5 / 30

H420X(8192)
1. Please make sure your phone & pad OS is as following: Android OS 6.0 or later.
2. For some models, you need to go phone or pad "Settings" then enable "OTG"
function.
3. Choose OTG Adapter from package,then connect pen tablet to your phone following
the illustrations below:
Driver and Setting
Install Driver
Please download the driver from our website: Driver-H420X
Note:
1. Before installing driver, please close all graphic software and antivirus program.
2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or
later,ChromeOS 88 or later.
4. Run the tablet driver program and complete the installation according to the instruction.
After the download is successful, double-click to open the driver, Connect the device to your
6 / 30

H420X(8192)
computer.
If the connection fails, please reconnect the computer to the device, or restart the driver or
computer.
7 / 30

H420X(8192)
Driver Interface Preview
8 / 30

H420X(8192)
1. Pen Tablet
Pen Tablet function setting interface, the users can set the tablet function on this interface.
See Section
2. Digital Pen
The users can set the Pen function on this interface. About Press Key, Mode selection, Pressure
Sensitivity Adjustment and Pressure Test.
See Section
3. Store
Huion Store, where you can get the latest information about the product such as its FAQ or sales
promotion. Additionally, you can also purchase other products or accessories on Huion Store.
9 / 30

H420X(8192)
4. Add Programs
You can customize different functions on the current device for different programs.
When select All programs, the setting of the device is valid for every program.
By clicking Add a Program from the drop-down list, you can set the functions for a specific
program and hence have unique settings for different programs. After that, when launching a
specific program, the Driver will automatically recognize it and the setting features will change to
its corresponding one.
5. Setting
The users can set the Driver function on this interface. About Device Information, Backup
Setting, General Setting and Driver Update.
See Section
6. Switch between Devices
Driver can support the connection to two digital drawing devices at the same time. When these
devices are sharing the same Driver with the current device, users can customize the settings of
the devices by switching the Driver interface to the corresponding one.
Pen Tablet Setting
Working Area
Select the Working Area tab to define the relationship between pen movement on the tablet and
cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than one monitor is
in use and you are in extended mode, you need to choose the related monitor on the driver
interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to
10 / 30

H420X(8192)
the entire space on each monitor and the screen cursor is displayed on each monitor
simultaneously.

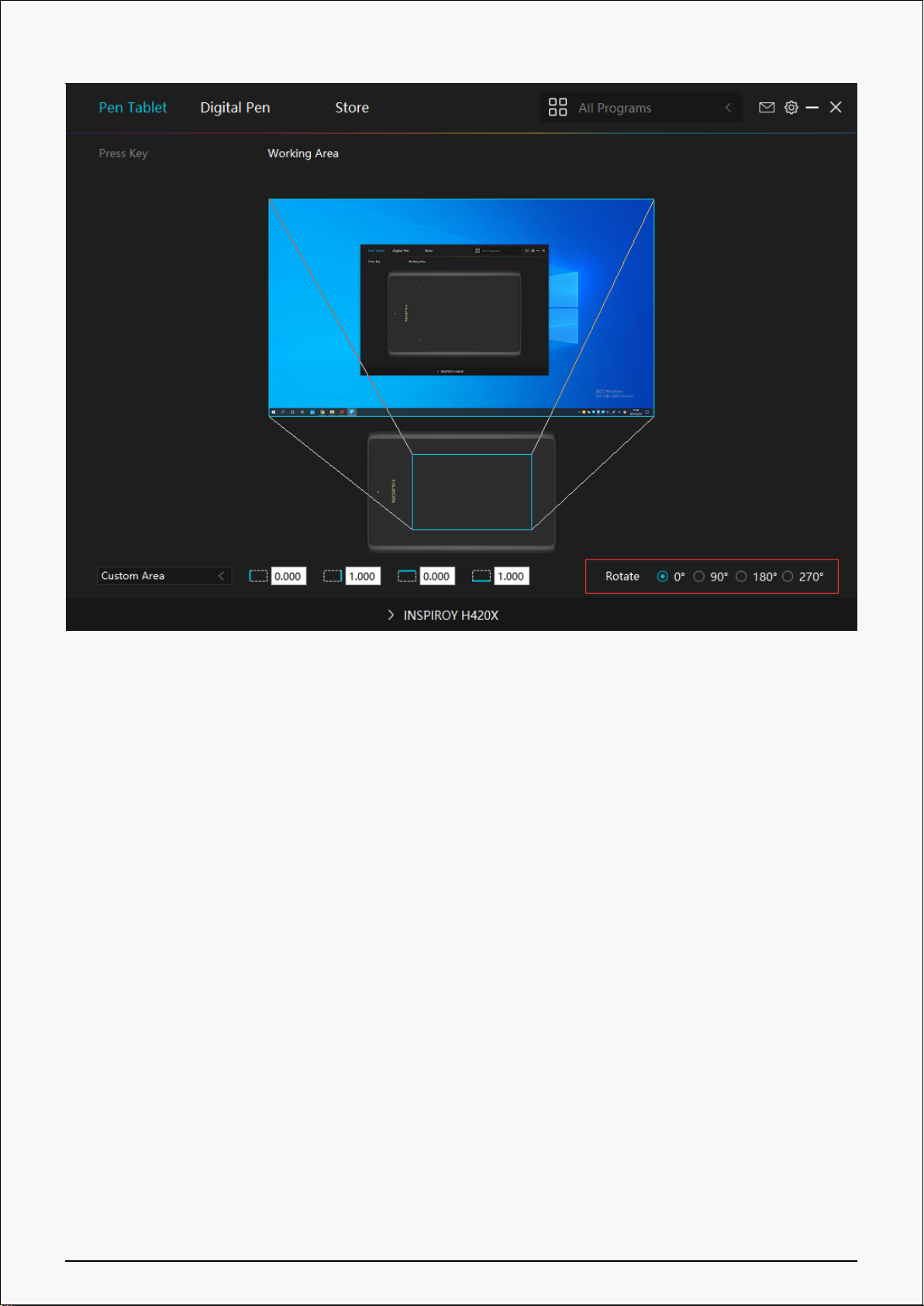

1. Working Area Setting
Define the tablet area that will be mapped to the screen area.
[1] Full Area: the entire active area of the tablet. This is the default setting.
[2] Screen Ratio:As a general rule, be 16:9.
[3] Customized Area:
1> Enter coordinate values.
2> Drag the corners of the foreground graphic to select the screen area.
2. Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand operation. You can
rotate the tablet by 0°,90°,180° or 270°.
11 / 30

H420X(8192)
Digital Pen Setting

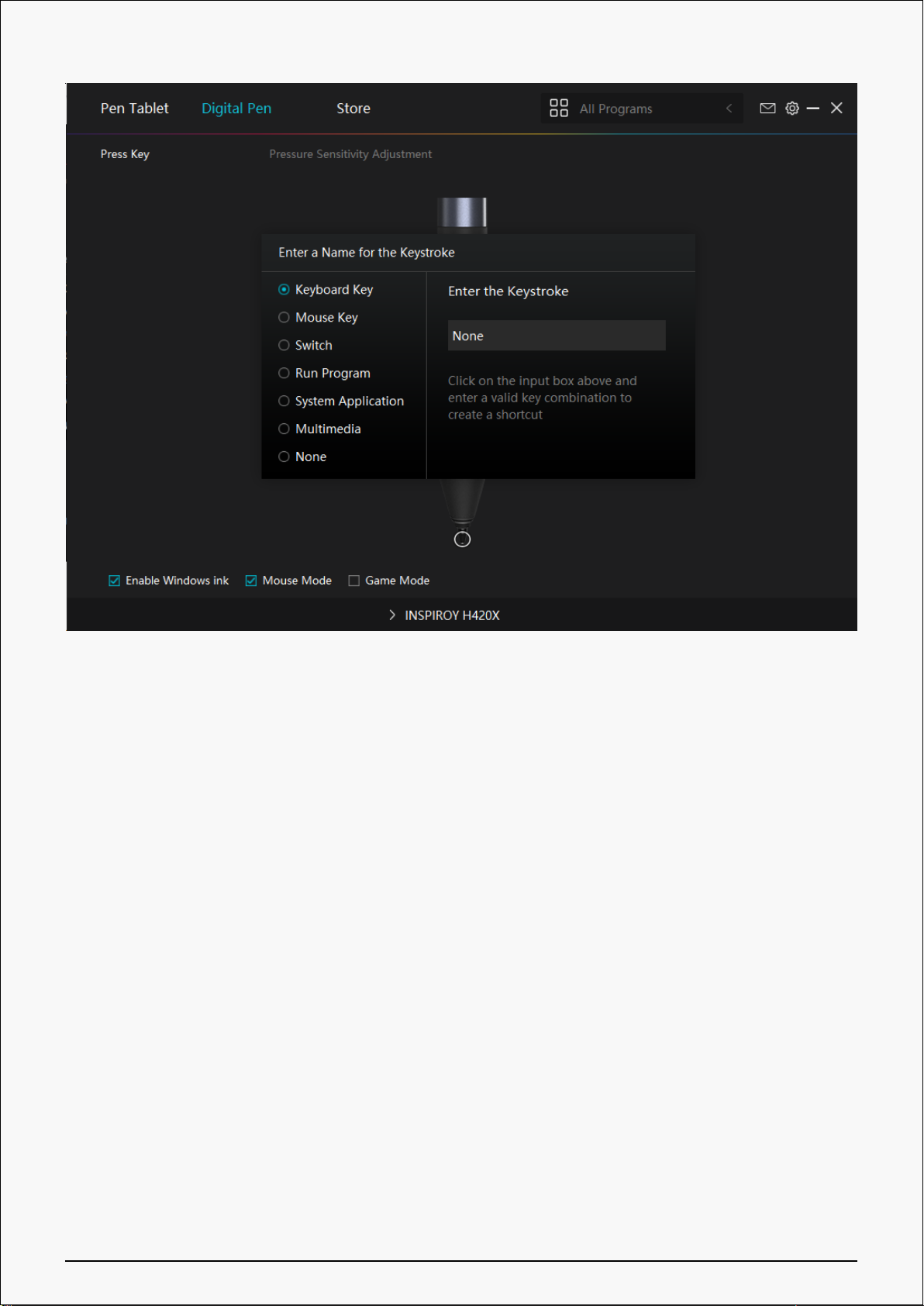

1. Press Key
Please refer to it.
12 / 30

H420X(8192)
2. Pen Nib Activity
The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In
Valid mode, the digital pen can be used normally. In Invalid mode, the digital pen has cursor
movement, but cannot complete the specified action.
13 / 30

H420X(8192)

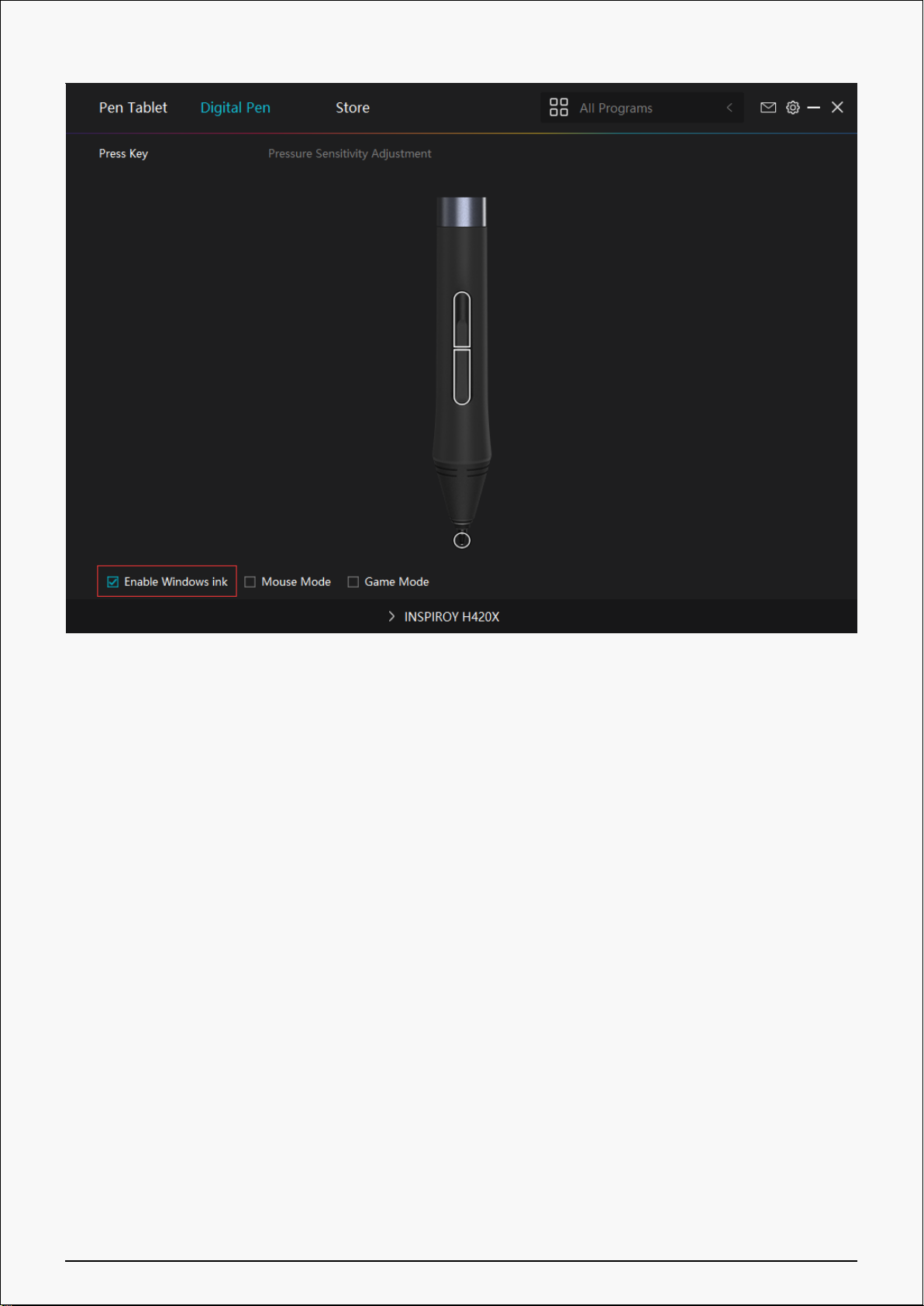

3. Enable Windows ink
Microsoft Windows provides extensive support for pen input. Pen features are supported in such
as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on.
14 / 30

H420X(8192)

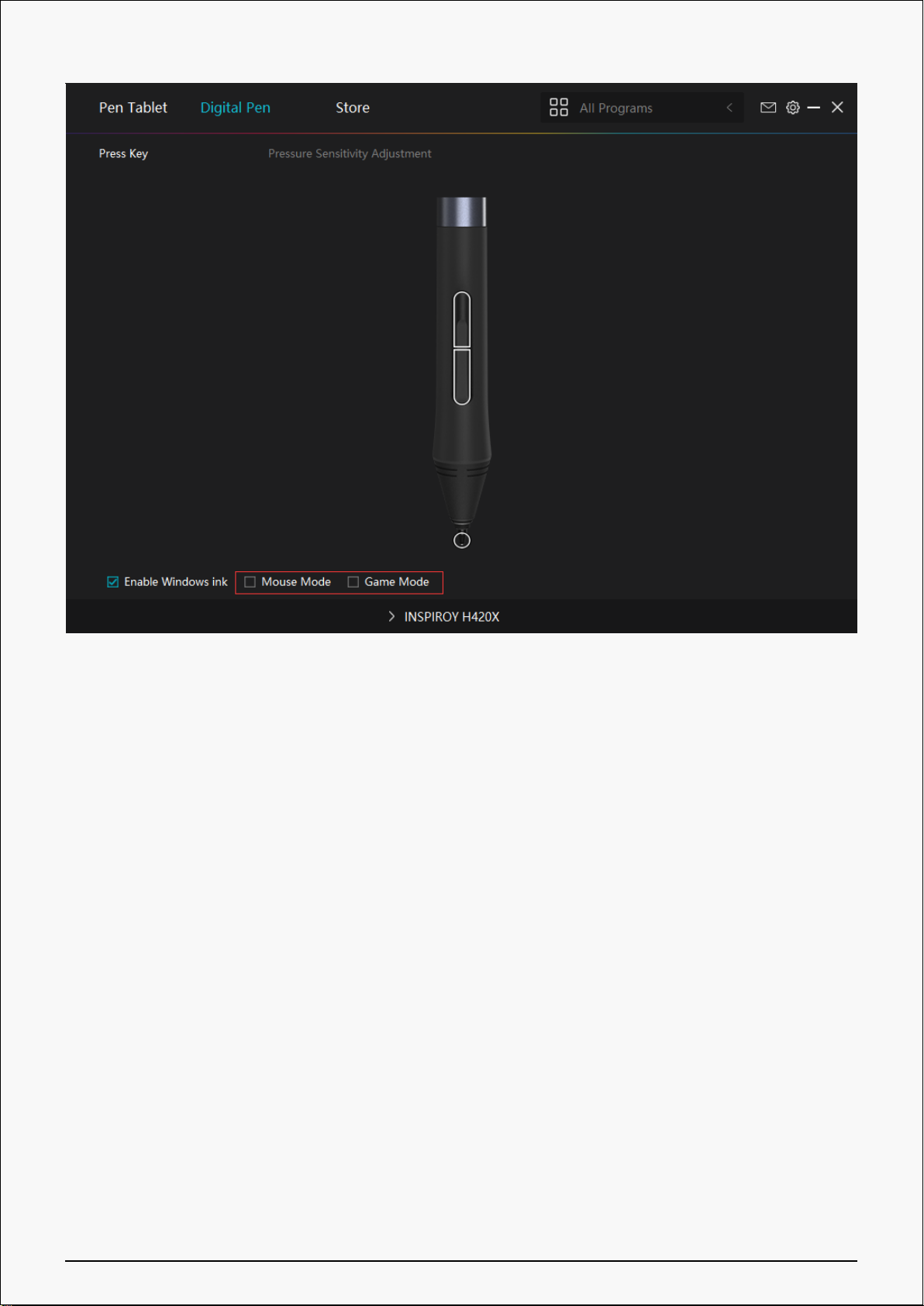

4. Mode Selection
Game Mode: This mode is specially designed for OSU games. OSU game users can turn on the
"Game Mode" to increase the cursor's following speed when the pen tip moves quickly. It is not
recommended for non-OSU game users.
Mouse Mode: When the digital pen moves on the tablet work area, the"absolute coordinate"
mode is adopted by default. After selecting the "mouse mode", it will change to the "relative
coordinate"mode. At this time, the user can use the digital pen like a mouse.
15 / 30

H420X(8192)

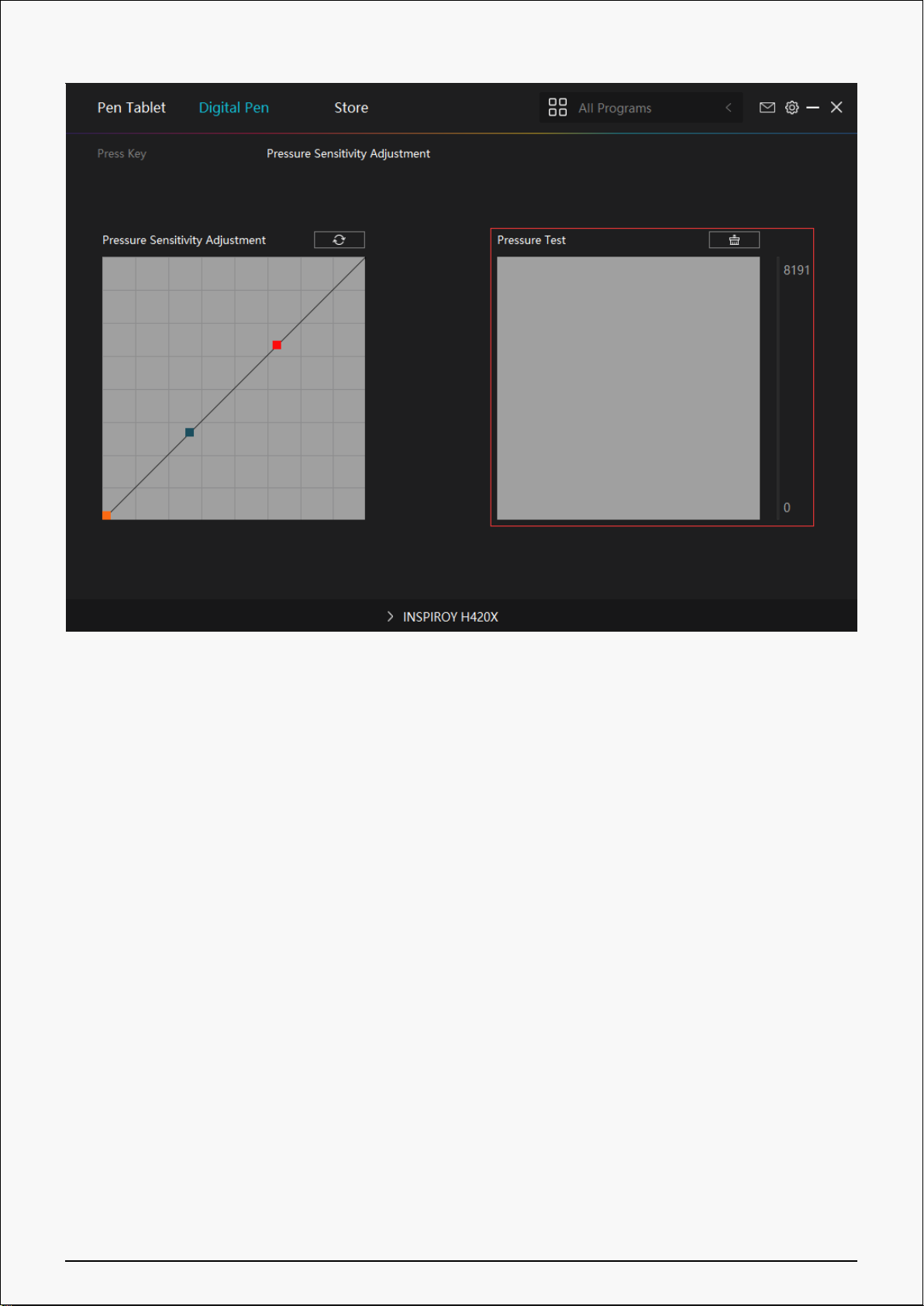

5. Pressure Sensitivity Adjustment
The pressure sensitivity will be changed by dragging the slider up and down, the smaller the
value, the more pressure sensitive.
Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to the
default state.
16 / 30

H420X(8192)
6. Pressure Test
You can gradually apply pressure to the stylus on the screen to test the pressure level. Click the
Clear button to clear all the ink.
17 / 30

H420X(8192)
Driver Setting
1. Device
You can view product information.
18 / 30

H420X(8192)
2. Backup
The Driver can import and export your custom settings, which helps to avoid repeated settings
when launching a different program.
19 / 30

H420X(8192)
3. General Setting
[1] Language: Click the drop down menu to select a language.
[2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according
to your preference.
[3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates.
[4] Hotkey: A hotkey can be used to call out the Driver interface quickly, you can set one
according to your usage habits.
20 / 30
