Hulk HU6554 User manual

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children

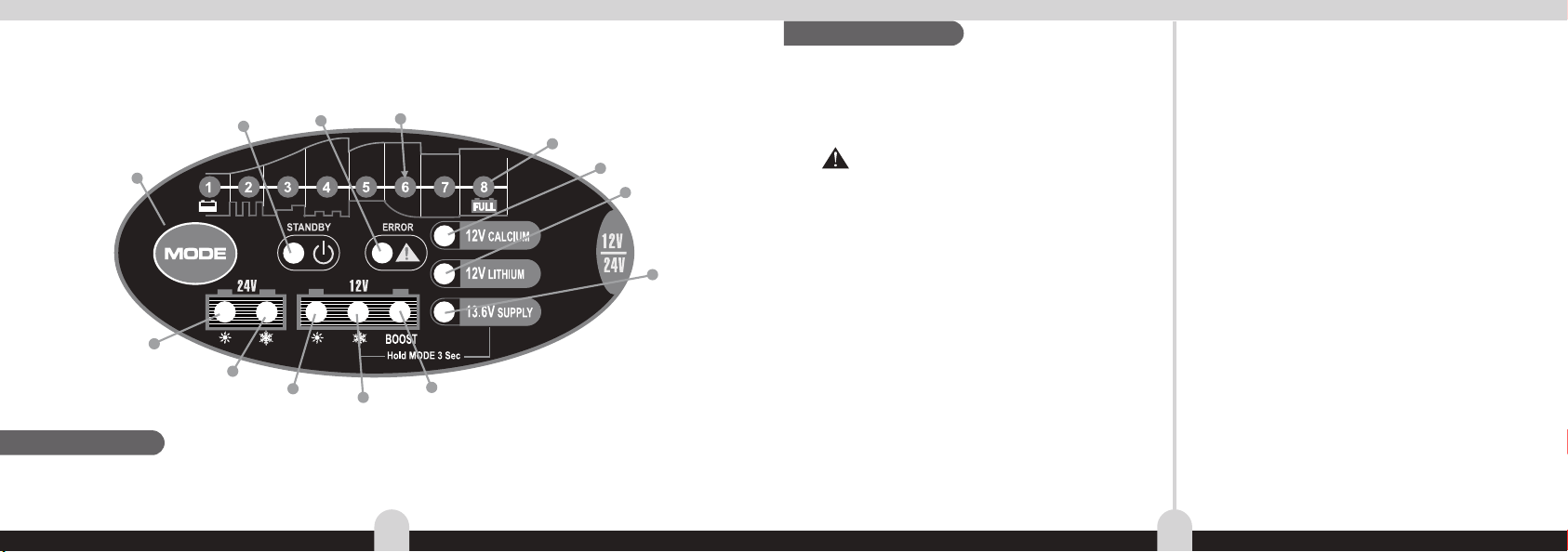

Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)

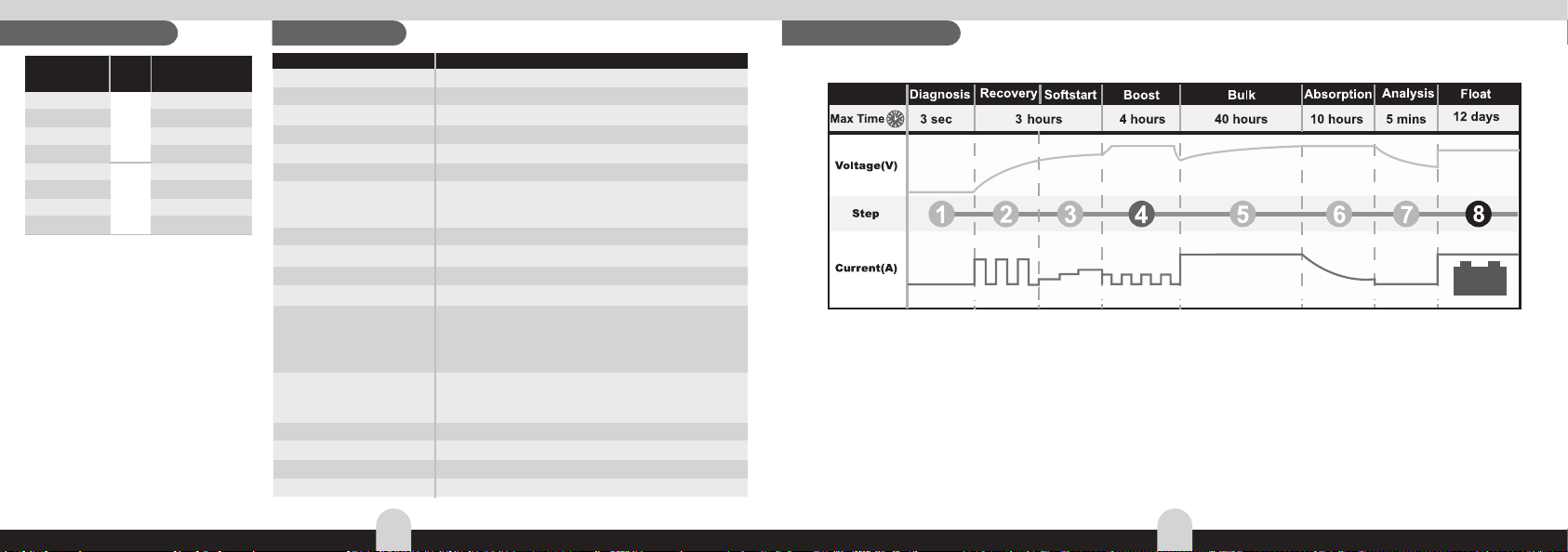

Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children
Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)
Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children
Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)
Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children
Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)
Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children
Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)
Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging

4
3
12
6
5
8
7
910
HULK Professional 7.5A Battery Charger is designed
for charging 12V/24V 10-240Ah Lead-Acid rechargeable
batteries and 10-80Ah Lithium batteries.
WARNING! DO NOT ATTEMPT TO CHARGE A
NON-RECHARGEABLE BATTERY (PRIMARY CELLS)
• Before charging make sure the input power is as per
rated specifications, otherwise the charging
performance may be seriously affected.
• Do not use the charger with a damaged cable. It
must be replaced by the manufacturer, its service
agent or similarly qualified technician in order to
ensure safety.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place charger above battery being charged,
gases from battery will corrode and damage charger.
• Do not cover the charger while charging.
• During charging the battery must be placed in a well
ventilated area.
• While charging always use safety glasses, gloves,
protective clothing and keep your face away from the
battery.
• Explosion hazard! A battery being charged could
emit explosive gasses. Avoid smoking or open sparks
or flames in the vicinity of the battery. Explosive and
flammable substances such as fuel or solvents should
not be kept in the vicinity of the charger or the battery.
• Danger of chemical burns! Battery acid is highly corrosive.
If your skin or eyes come into contact with acid,
immediately rinse the affected part of the body with
excessive water and seek medical advice.
• All batteries eventually fail. If that happens during charging,
charger’s advance control system will detect it, but there
may some rare errors still exist in the battery, so do not
leave charging unattended for a long period of time.
• Normally, a battery is grounded either, on negative or
positive terminal to the vehicle’s chassis. The
charger’s DC Clips are to be connected to the
battery terminal not connected to the chassis first.
The other connection is to be made to the terminal
connected to the chassis, far from the battery and
fuel line. The battery charger is then to be connected
to the power supply.
• After charging, disconnect the battery charger from
supply mains. Remove the chassis connection and
the battery connection, respectively. This will
reduce back drain current.
• Keep away from children
Mode Button
Boost Mode
24V Normal Mode
Cold Mode
Normal Battery Mode
24V Cold Mode
Fully Charged
Ready To Use
Error LED
Standby LED
Calcium Mode
Lithium Mode
Power
Supply Mode
This manual contains important safety and operating instructions. Read this manual carefully before using the charger for
the first time and keep the manual in a safe place for future reference.
For Your Safety
Safety Information
1) HULK Professional 7.5A Battery Charger
2) Quick connect battery leads with clamps
3) Quick connect battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent
attachment to the battery posts to allow quick connection/disconnection through snap-connector.
4) User Manual
AC Plug
Mains Cable
Charge Cable
DC Cable
Eyelet M6
Terminals
Clamp
DC Cable
DC Connector
10A
Fuse Holder
Contents
Symbol
AGM+
CA+
Li-ion
13.6V Supply
Boost
Mode 12V/7.5A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 12V/7.5A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures
Mode 12V/7.5A
This mode is recommended for AGM+ batteries.
Mode 12V/7.5A + BOOST
This mode is suitable to recover severely discharged batteries. Recommended to boost at least
once a year.
Mode 12V/7.5A
This mode is used for Calcium batteries.
Mode 12V/7.5A
This mode is used for Lithium batteries
Mode 13.6V/5A
Power Supply special Mode
AGM+
Mode 24V/3.75A
This mode is used for WET, MF, VRLA, EFB and GEL batteries.
Mode 24V/3.75A
This mode is recommended for AGM batteries. This mode is also suitable for charging batteries
in sub-zero temperatures.
Mode 24V/3.75A
This mode is recommended for AGM+ batteries.
24V
24V
24V
Charging Modes
Operation
Charging 1) Charging of a permanently installed battery in a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Check polarity of the battery post. A positive (“+”) battery
post usually has a larger diameter than a negative (“-”) post.
c) Identify the pole of battery which is connected to the
chassis (earth). Normally the negative terminal is
connected to the chassis.
d) Charging of negatively earthed battery:
• Connect the red (+) clamp to the positive (+) terminal of
the battery.
• Connect the black negative (-) clamp to the vehicles
chassis away from the fuel line or any moving parts.
e) Charging of positively earthed battery:
• Connect the black negative (-) clamp to the negative (-)
terminal of the battery.
• Connect the red positive (+) clamp to the vehicles
chassis away from the fuel line or any moving parts.
2) Charging of a battery not connected to a vehicle
a) Before connecting or disconnecting the battery leads,
the power cord should be removed from the mains.
b) Connect the red clamp or eyelet terminal (“+”) to
the positive (“+”) pole of the battery and the black
clamp or eyelet terminal (“-“) to the negative (“-“) pole.
3) Connect charger to the mains.
4) Select charging mode
Charger automatically detects 12V or 24V batteries.
For 24V batteries
By pressing MODE button once, Standard or Cold
charge and AGM+ charge options can be selected.
For 12V batteries
By pressing MODE button once, Standard or Cold
charge or BOOST and AGM+ charge options could
be selected.
Press MODE button for 3 second to change to special modes.
By pressing MODE button once, 13.6V Power Supply,
12V Calcium or Lithium charge options can be selected.
Press MODE button for 3 seconds to change from special
modes to Standby.
10
40
80
120
20
80
160
240
12V
24V
Battery Size
(Ah)
For about 80%
Charge (hours)
Mode Input Voltage AC
Output Voltage
Input Current
Minimum Battery Voltage
Output Power
Efficiency
Charging Current
Back Current Drain*
Standby Power
Operating Temperature
Type of Charger
Type of Batteries
Battery Capacity
Dimensions (L x W x H)
Housing Protection
Weight
Noise Level
Model 7.5 Amp
Bulk Charging Time Technical Data
3
11
22
32
3
11
22
32
220 - 240VAC, 50Hz
Nominal: 12V / 24V
1.33A RMS max
> 2.0V
110W
> 80%
7.5A for 12V battery
3.75A for 24V battery
5.0A for 13.6V Power Supply
< 10 mA
< 1W
0°C to 40°C
Eight step, fully automatic, switch mode charging
12V / 24V Lead-acid rechargeable batteries
(WET, MF, VRLA, AGM, EFB and GEL);
12V Calcium batteries;
Lithium: 12,8V; 4-cells LiFePO4
Lead-acid: 12V: 18Ah-240Ah
24V: 10Ah-120Ah
Lithium: 10 - 80Ah
219.3 x 90.8 x 60.8mm
IP65 (Dust and Splash proof) Indoor
0.95kg
< 50 dB (Tested from a distance of 50cm)
Charging Phases
HULK Professional 7.5A Battery Charger performs 8-step fully automatic charging cycle.
Full
1) Diagnosis : The unique diagnostic function checks
status of battery and ascertains if battery can accept
charging.
4) Boost : Recovers severely discharged batteries under
high voltage charge. Recommended to apply it at least
once a year.
6) Absorption : With use of declining current charging up
to almost 100% is achieved.
7) Analysis : Checks status of charge. If battery does not
retain energy, it must be replaced.
8) Float : Battery is fully charged and ready to use. The
battery is maintained at maximum level by applying low
current charge.
2) Recovery and 3) Sofstart : A deeply discharged battery
of over 2.0V can be recovered and charged with pulse
charging of small current.
5) Bulk : 80% of energy is returned in this phase with
maximum charging current.
Charger
does
not work
Charger
has no
DC output
Charger
has no
DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
Charger has
no DC output
No charging
Phases
Indicator
lights are
not on
a) Charger is not plugged in
b) Poor electrical connection
c) AC outlet is dead
a) Charging is interrupted in Phase 4
b) Charging is interrupted in Phase 7
a) Battery is connected with reverse
polarity poles
a) Charging is interrupted in Phase 2
a) Lithium Battery may be defective /
excessive current draw
b) Lithium Battery may be severely sulfated
a) Battery may be defective/excessive
current draw
b) Battery may be severely sulfated
a) Battery is over voltage.
a) Poor contact from charger to battery
b) Charger is not connected to battery
over 2 mins
a) Plug in
b) Check AC connections and make sure mains is
switched on
c) Check receptacle
a) Battery is extremely sulphated, it must be replaced
b) Battery cannot retain charge, it must be replaced
a) Check DC connection between charger and battery
and make sure they are not short circuited
a) Battery cannot accept charge, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Dead battery, it should be replaced
b) If battery cannot be de-sulfated, it must be replaced
a) Damaged battery, it should be replaced
a) Check that connectors are not greasy or corroded
and making a clean connection and there are no
loose or damaged connections
b) Charger is in energy save mode
Problem Indication Possible Cause Solution
ERROR
Green
ON
ERROR
Red ON
ERROR
ERROR
Yellow ON
Flashing Red
ERROR
Flashing
Green
ERROR
Flashing
Yellow
Trouble Shooting Declaration of Compliance
Tested and approved by and conforms to -
EN 60335-1
EN 60335-2-29
EN 62233:2008
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
* = Back current drain is the amount of
current drawn by the charger from battery,
when the charger is connected to the
battery, without power cord connected.
HULK Professional 7.5A Battery Chargers
has extremely low back current drain.
Operation
12V/24V
Battery
Charger
HU6554
Charging Current
7.5 Amp
8Step
Charging
Battery Capacity
18-240Ah
Manufactured and Packaged for
Automotive Imports Pty Ltd
22 - 28 Lexton Road, Box Hill, Victoria, Australia
Made in China
AUS: www.hulk4x4.com.au NZ: www.hulk4x4.co.nz
User Manual
For Lead Acid / Lithium / Calcium Batteries
User’s Manual And Guide To Professional Battery Charging
