Hultafors DPL User manual

DPL
Operating instructions EN

2
INCLUDED IN DELIVERY WITH THE DPL
DPL
Belt pouch
AA battery

3
Operating manual
Digital Spirit Level DPL
About this manual
Congratulations on the purchase of your new DPL!
You have acquired a Hultafors measuring
instrument, which can make your work easier,
faster and more precise. To utilize the complete
functionality range of this measuring instrument,
and to ensure safe operation, please observe the
following instructions:
• Please read this operating manual before
starting to use the device.
• Always keep the operating manual near
the device.
• Only hand over the device to other users
together with the operating manual.
• Never render the attached warning signs
unreadable.
Contents
1. General information
2. Description
3. Technical data
4. Safety instructions
5. Getting started
6. Operation
7. Calibration
8. Maintenance, storage and transportation
9. Scope of delivery and accessories
10. Troubleshooting
11. Disposal
12. Warranty
13. EC conformity declaration

4
1.1 Signal words and their meaning
DANGER
For an imminent danger that could lead to
serious injury or death.
WARNING
For a possibly dangerous situation that could
lead to serious injury or death.
CAUTION
For a possibly dangerous situation that could
lead to slight injury or property damage.
NOTE
For application notes and other useful information.
1. General information
1.2 Pictograms and other information
1.2.1 WARNING SIGNS
Warning of dangers in general.
1.2.2 SYMBOLS
Read instructions before use.
Batteries and devices must not be
disposed of with household waste.
Do not throw batteries into a fire.
Warning signs on battery: Do not
heat the battery above 60 °C.

1. 4.
5.
2.
3.
5

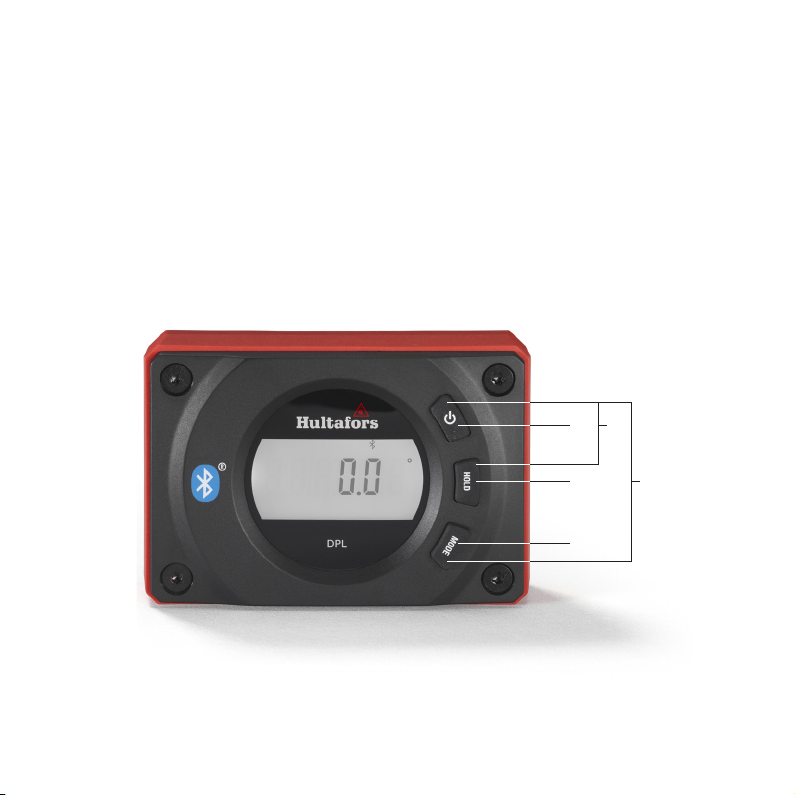

1. On/O switch
2. Hold function (measurement is retained by pressing once) /
Toggling between ABS (absolute) and INC (incremental)
3. Mode button for switching between measured value settings (°, mm/m, %, in/)
4. Calibration
5. Changing the display resolution
2. Description

6
3. Technical data
Gradient module
Max. measurement tolerance
0° & 90° ± 0.05°
1°–89° ± 0.20°
Protection class IP 52
Power supply 1 x AA battery
Battery life (at 20°C) 65 h (if display light switched o, approx. 80h)
Permissible temperatures
Operating temperature -10°C to +50°C
Storage temperature -20 °C to +60 °C

7
4. Safety instructions
4.1 Area of responsibility
4.1.1 MANUFACTURER
Hultafors is responsible for the safe delivery
condition of the product, including the operating
manual and the original accessories.
Hultafors Group AB
Hultaforsvägen 21
517 21 Bollebygd, Sweden
4.1.2 OPERATOR
e operator is responsible for using the product
as intended, the deployment of personnel,
their training and the operational safety of the
product.
• e operator understands the safety
information which is stated on the product
and the instructions which are contained in
the operating manual.
• e operator shall comply with local
regulations relating to safety and accident
prevention regulations as well as worker
protection laws and regulations.
• e operator shall immediately notify Hultafors
if safety-related issues should develop on the
product or during its utilization.
• e operator shall ensure that the product
is not utilized any further if defects become
evident, and he will have the product repaired
professionally.
4.2 Improper Use
• Use of the device and the accessories without
instruction.
• Use of third-party accessories or additional
equipment.
• Use outside of the intended limits
(see Chapter 3 Technical data).
• Use under extreme temperature fluctuations
without an adequate acclimatization.
• Disabling of safety devices and removal of
hazard notices and labels.
• Unauthorized opening of the device.
• Performance of modifications or alterations
the device or the accessories.
• Deliberate blinding of third parties.
• Inadequate safeguarding at the installation site.
4.3 Utilization limitations
e DPL is suitable for a continuous use in an
atmosphere which can be inhabited by humans.
• Do not operate the product in explosion-prone
or corrosive environments.
• Inform the local safety authorities and
safety experts before working in hazardous
environments, in close proximity to electrical
installations or similar surroundings.

8
4.4 Usage Hazards
4.4.1 GENERAL
WARNING
Missing or incomplete instructions may
result in improper or incorrect use.
is can cause accidents with serious
damages to persons, property, assets
and the environment.
• Follow the manufacturer‘s and operator‘s
safety instructions.
• Protect equipment and accessories from
access by children.
CAUTION
A fall, longer storage, transportation
or other mechanical eects can lead
to erroneous measurement results.
Check the unit for damage before use.
Do not use damaged equipment.
• Repairs have to be exclusively performed by
Hultafors.
• Before use, check the accuracy of the device
(see Chapter 7 Calibration).
4.4.2 CHARGER/BATTERIES/RECHARGEABLE
BATTERIES
DANGER
Strong mechanical influences, can
lead to a leakage, fire or explosion of
the batteries or trigger the release
of toxic substances.
• Batteries and rechargeable batteries may not
be opened or exposed to mechanical loads.
• Damaged batteries may not be used.
• Repairs have to be exclusively performed by
Hultafors.
WARNING
High ambient temperatures and
immersion into liquids can cause
a leakage, fire or explosion of the
batteries or trigger the release of
toxic substances.
• Protect batteries and rechargeable batteries
from mechanical influences during transport.
• Do not overheat batteries and rechargeable
batteries or expose them to fire.
• Avoid the ingress of moisture into batteries
and rechargeable batteries.
• Do not use damaged batteries or rechargeable
batteries. Perform a proper disposal
(see Chapter 11 Disposal).

9
WARNING
A short-circuiting or unintended use can
cause batteries to overheat and create
an injury or fire hazard.
• Do not transport or store batteries in the
pockets of garments.
• Do not bring the battery contacts in contact
with jewelery, keys, or other electrically
conductive objects.
• Do not charge non-rechargeable batteries.
• Do not discharge the batteries through
short-circuiting.
• Do not solder the batteries within the device.
• Do not mix old and new batteries, and do not
mix batteries from dierent manufacturers or
with a diering type designation.
WARNING
If disposed of improperly third parties
can possibly be seriously injured and
the environment polluted. e burning
of plastic components generates toxic
fumes which may impair the health
of people. Batteries/rechargeable
batteries may explode if they are
damaged or heated excessively, and
thereby cause poisoning, burning,
corrosion or environmental
contamination.
If disposed of negligently unauthorized
persons are able to use the product
improperly.
• e product must not be disposed of together
with household waste. Dispose of the device
and accessories properly
(see Chapter 11 Disposal).
• Protect the product at all times from access
through unauthorized persons, especially
children.
4.5 Electromagnetic compatibility (EMC)
e electromagnetic compatibility is the ability of
the product to function in an environment where
electromagnetic radiation and electrostatic
discharges are present, without causing
electromagnetic interference to other devices.

10
4.6 FCC statement
WARNING
e user is cautioned that changes or
modifications not expressly approved
by the party responsible for compliance
could void the user‘s authority to
operate the equipment.
is device complies with Part 15 of the
FCC Rules. e following two conditions apply for
operation: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
NOTE
is device has passed the compliance
test for limits for a digital class B
device as per Part 15 of the FCC Rules.
ese limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
4.5.1 INTERFERENCE OF OTHER DEVICES
BY DPL
Although the product meets the strict
requirements of the relevant directives and
standards, Hultafors can not completely
exclude the possibility of interference with other
devices (for example, when using the product in
combination with third-party devices, such as
field computers, personal computers, wireless
devices, mobile phones, certain cables or
external batteries).
• When using computers and radio equipment
make sure to observe the vendor-specific
information about electromagnetic
compatibility.
• Only use original Hultafors equipment and
accessories.
4.5.2 INTERFERENCE OF THE DPL
BY OTHER DEVICES
Although the product meets the strict
requirements of the relevant directives and
standards, Hultafors can not entirely exclude the
possibility that intense electromagnetic radiation
in the immediate vicinity of radio transmitters,
two-way radios, diesel generators, etc. can
distort the measurement results.
• When performing measurements under these
conditions check the plausibility of the results.

11
NOTE
is device produces and uses radio-
frequency energy and can also emit it.
If it is not installed and used according
to the instructions, it may cause harmful
interference to radio communication.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment o and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
• Realign the receiving antenna or set up in
a dierent location.
• Set up the device further away from the receiver.
• Plug the device into a dierent electrical outlet.
• Seek advice from the distributor or a technical
expert.
NOTE
is equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to
part 15 of the FCC Rules. ese limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. is
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can be
determined by turning the equipment o
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/
TV technician for help.

12
4.7 Use of the product with Bluetooth
WARNING
Electromagnetic radiation can cause
disturbances in other equipment, in
installations (e.g. medical ones such
as pacemakers or hearing aids) and
in aircra. It can also aect humans
and animals. Precautions: Although
this product conforms to the most
stringent standards and regulations,
the possibility of harm to people and
animals cannot totally excluded.
• Do not use the product near gas stations,
chemical plants, in areas with an increased
risk of explosion and where blasting takes
place.
• Do not use the product near medical
equipment.
• Do not use the product in airplanes.
• Do not use the product near your body for
extended periods of time.
5. Getting Started
Prior to initial set-up, check whether the batteries
have been installed correctly in the device.
Inserting batteries
1. Open the battery compartment cover.
2. Insert battery making sure that the poles
of the battery are in the right position.
3. Close the battery compartment cover.
Only use type AA batteries!
Remove the batteries if the instrument is not
used over a longer period of time.
6. Operation
6.1 Switching On/O
On:
Press the “On/O switch” to switch on the
gradient module.
O:
Press the “On/O switch” for at least 2 seconds
to switch o the gradient module.
6.2 Display
If the spirit level is used in the inverted position
(upside down – above your head), the display
screen turns too so that the measurement can
be read easily.

13
e display switches o automatically aer
5 minutes, as soon as the device is stationary.
6.3 Acoustic signal
Press and hold the "Mode button" for 2 seconds
to activate/deactivate the sound signal (signal at
0 °and 90 °). e closer the spirit level gets to the
standard position, the more rapid the frequency
of the acoustic signal.
is function assists you with levelling work,
where it is not possible for you to read the
measurement from the display.
6.4 Hold function
e current measurement is frozen by pressing
the “Hold function” once.
A previously measured value can be “frozen”
on the display using this function.
e measurement remains unchanged until
the “Hold function” button is pressed again.
6.5 Toggling between ABS and INC
You can toggle between ABS (absolute) and
INC (incremental) by pressing the “Hold function”
for more than 2 seconds.
In “ABS” (absolute) mode, the measurement
result is displayed based on the device calibration.
In contrast, in “INC” (incremental) mode,
the measurement result is displayed based
on a relative reference level.
For example, you can take a measurement on a
5° inclined plane in “ABS” mode and then toggle
to “INC” function. In doing so, the measurement
display is set to 0°. You can now take additional
measurements based on this new zero value.
To leave “INC” mode, press the button again for
2 seconds.
6.6 Changing measurement display
• Press the "Mode button" to switch between
units; ° / mm/m / % / in/.
6.7 Changing the display resolution
Press the “Hold function” and the “On/O switch /
Display light” button at the same time to change
the resolutions between: 0.00° and 0.0°.
6.8 Bluetooth
Fast and ecient data transfer of measured
values can be made directly to a smartphone
via Bluetooth.
NOTE
To pair with a smartphone,
launch the Hultafors measures
app and connect using one of
the function options.

180°
14
7. Calibration 8. Maintenance, storage
and transportation
Calibration of gradient module
Calibration stage 1 based on position 0°.
• Place the DPL with the measurement surface
horizontally.
• Briefly press buttons and .
• Display -1- appears on the screen.
• Press the button briefly, display -1- flashes
for approx. 5 seconds.
• Display -2- appears on the screen.
• Turn DPL again by 180°.
• Press the button briefly, display -2- flashes
for approx. 5 seconds.
• Measurement display appears on the screen,
calibration stage 1 is complete.
8.1 Cleaning
• Wipe o the dirt with a so damp cloth.
• Do not use aggressive cleaning agents or
solvents.
• Do not immerse the device into water!
• Clean and dry wet equipment, accessories
and transport containers prior to packaging
them. Only pack equipment again when it is
completely dry.
• Keep plug connections clean and protected
from moisture.
8.2 Storage
8.2.1 GENERAL
• e equipment may only be stored within the
specified temperature limits
(see Chapter 3 Technical data).
• Aer prolonged storage check the accuracy
of the measuring device before using it.
8.2.2 BATTERIES/RECHARGEABLE BATTERIES
• To store the rechargeable battery remove it
from the device or the charging station.
• e storage should preferably be in a dry
environment at room temperature
(see Chapter 3 Technical data).
• Protect from moisture and humidity. Dry wet or
damp batteries before storage, or before usage.

15
• Check battery for any damage before use.
Do not use damaged equipment.
8.3 Transport
8.3.1 GENERAL
• e device may be damaged by strong
vibrations or by falling.
• Never transport the product loose. Always
use the original packaging or an equivalent
transport container.
• Switch o the measuring device before
transporting it.
• Check the unit for damages before use.
8.3.2 BATTERIES/RECHARGEABLE BATTERIES
• When transporting or shipping batteries, the
operator is responsible for complying with the
applicable national and international laws and
regulations.
• Before shipping, remove the batteries from
the device.
Delivery contents of DPL
DPL
Belt pouch
AA battery
Further information on accessories can be found
at www.hultafors.com
9. Delivery contents and accessories

16
10. Troubleshooting
Error Possible cause Remedy
Device is switched on,
no display, screen not
illuminated
• Battery flat
• Battery inserted incorrectly
• Device or switch faulty
• Replace battery
• Insert battery correctly
• Contact dealer and have device
repaired
Display jumps or screen
“frozen”
• Program error • Remove battery, wait one minute,
reinsert batteries
Irregular display screen • Battery power low • Replace battery
Device switches itself on
Commissioning
immediately out again
• Battery empty • Replace battery

17
11. Disposal
If disposed of improperly third parties can
possibly be seriously injured and the
environment polluted.
e burning of plastic components generates
toxic fumes which may impair the health of
people.
Batteries/rechargeable batteries may explode
if they are damaged or heated excessively, and
thereby cause poisoning, burning, corrosion or
environmental contamination.
If disposed of negligently unauthorized persons
are able to use the product improperly.
Measuring tools, accessories and packaging
must be recycled in an environmentally-friendly
manner.
e product as well as the
accessories – especially the
batteries and rechargeable
batteries – may not be disposed
of with household waste.
• Ensure proper disposal of the
device and the accessories.
• Only dispose of batteries in
a discharged state.
• Observe the country-specific
disposal requirements.
Only for EU countries
Electric tools may not be
disposed of with household
waste!
According to the European
Directive 2002/96/EC on
Waste Electrical and Electronic
Equipment and its
implementation in national law,
no longer usable electrical and
electronic equipment must
be collected separately and
recycled in an environmentally
friendly manner.

18
12. Manufacturer‘s Guarantee
e manufacturer warrants to the original
purchaser stated on the guarantee card,
freedom from defects of the device for a period
of two years, with the exception of batteries,
as of the point in time the device is handed
over. e guarantee is limited to repairs and/or
replacements at the manufacturer‘s discretion.
Defects which are caused through improper
handling by the purchaser or third parties, natural
wear and optical flaws that do not aect the
usability of the equipment, are not covered by this
guarantee. Claims under this guarantee can only
be invoked if the device is submitted along with the
guarantee card, completely filled out by the dealer,
dated and provided with the company stamp.
If the guarantee claim is justified, the manufacturer
shall bear the transport costs. e duration of the
guarantee will not be extended through repair or
spare parts work which is carried out within the
scope of the guarantee.
Further claims are excluded, unless these
are stipulated by the respective by the
respective national legislation. In particular the
manufacturer shall not be liable for any direct,
indirect, incidental or consequential damages,
losses or expenses in connection with the use
or because of the inability to use the tool for any
purpose whatsoever. Implied warranties for the
usage or suitability for a particular purpose are
expressly excluded.

19
EN61326-1:2013
EN61326-2-2:2013
EN 55011:2009+A1:2010
EN 301489-1 V2.1.1
EN 301489-17V3.1.1
EN 300328 V2.1.1
EN 62479:2010
EMC
Radio transfer
13. EC conformity declaration
Declaration of Conformity
We Hultafors Group AB, Hultaforsvägen 21, Hultafors
declare under our sole responsibility that the Product(s)
DPL
to which this declarations relates is in conformity with the following standards.
Following the provisions of Directive(s)
Electromagnetic compatibility 2014/53/EU

2021 v.1
