Hunt CCTV HCR-HD SERIES User manual

Stand-alone Digital Video Recorder
HCR-HD DVR
4, 8, 16 Channel Models
User`s Manual
MADE IN KOREA
M2126QCR This document contains preliminary information and is subject to change without notice. Q3

2
FCC Compliance Statement
Notice to Users:This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part
15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment can generate, use and radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at own expense.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
ATTENTION
Des changements ou des modifications non expressément approuvées par le responsable de la conformité pourraient annuler l'autorisation
de l'utilisateur à exploiter l'équipement.
The equipment complies with the requirement of FCC CFR 47 PART 15 SUBPART B, Class A.
Explanation of Graphical Symbols
Warnings
}Installation and servicing should be performed only by qualified and experienced personnel.
}Power off the DVR when connecting cameras, audio, or sensor cables.
}The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for
the product.
}The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the DVR for
examination or attempting to fix the unit.
}The manufacturer may not be held liable for any issues with the unit if any labels are removed in the product.
This symbol indicates the presence of important operating and maintenance (servicing) instruction in the
literature accompanying the product.
This symbol indicates the presence of non-insulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Ce symbole indique la présence d’instructions importantes et de maintenances dans le manuel
accompagnant le produit
Ce symbole indique la présence de « haute tension » non-isolé dans le produit qui peut avoir pour
conséquence un risque de la décharge électrique aux personnes.

3
Cautions
}This product has free voltages (100V and 240V). See installation instructions before connecting to the power supply.
}This product uses a Lithium battery.
}To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery.
}Dispose of used batteries according to the manufacturer’s instructions.
}This equipment and all communication wirings are intended for indoor use only.
}To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
WEEE(Waste Electrical and Electronic Equipment)
Important Safeguards
1. Read Instructions
yTo reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
2. Retain Instructions
yThe safety and operating instructions should be retained for future reference.
3. Cleaning
yUnplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for
cleaning.
4. Attachments
yNever add any attachments and/or equipment without manufacturer approval as such additions may result in the risk of fire,
electric shock, or other personal injury.
5. Water and/or Moisture
yDo not use this equipment near water or in contact with water.
6. Accessories
yDo not place this equipment on an unstable cart, stand or table. The equipment may fall, causing serious injury to a child or
adult and serious damage to the equipment.
yWall or shelf mounting should follow the manufacturer’s instructions and should use a mounting kit approved by the
manufacturer.
yMove this equipment and cart combination with care. Quick stops, excessive force and uneven surfaces may cause the
equipment and cart combination to overturn.
7. Power Sources
yThis equipment should be operated only from the type of power source indicated on the marking label. If not sure the type of
power, please consult to distributor or local power company.
8. Power Cords
yOperator or installer must remove power, BNC, alarm and other connections before moving the equipment.
9. Lightning
yFor added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment
due to lightning and power-line surges.
10. Overloading
yDo not overload wall outlets and extension cords to avoid the risk of fire or electric shock.
11. Objects and Liquids
yNever push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
yNever spill liquid of any kind on the equipment.
Customers in European Union countries are advised to dispose this product, at the end of its
useful life, as per applicable local laws, regulations and procedures.

4
12. Servicing
yDo not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.
13. Damage Requiring Service
yUnplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:
① When the power-supply cord or the plug has been damaged.
② If liquid is spilled or objects have fallen into the equipment.
③ If the equipment has been exposed to rain or water.
④ If the equipment does not operate normally by following the operating instructions, adjust only those controls that are
covered by the operating instructions as an improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the equipment to its normal operation.
⑤ If the equipment has been dropped or damaged the cabinet.
⑥ When the equipment exhibits a distinct change in performance—this indicates a need for service.
14. Replacement Parts
yWhen replacement parts are required, ensure the service technician uses replacement parts specified by the manufacturer
or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
15. Safety Check
yUpon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to
determine that the equipment is in proper operating condition.
16. Field Installation
yThis installation should be made by a qualified service person and should conform to all local codes.
17. Correct Batteries
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
ATTENTION
RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UN TYPE INCORRECT
DISPOSEZ DE BATTERIES EN ACCORS AVEC LES INSTRUCTIONS
18. Operating Temperature
yAn operating temperature range is specified so that the customer and installer may determine a suitable operating
environment for the equipment.
19. Elevated Operating Ambient Temperature
yIf installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment
compatible with the specified operating temperature range.
20. Reduced Air Flow
yInstallation of the equipment in the rack should be such that the amount of airflow required for safe operation of the
equipment is not compromised.
21. Mechanical Loading
yMounting of the equipment in the rack should be such that a hazardous condition is not caused by uneven mechanical
loading.
22. Circuit Overloading
yConsideration should be given to connection of the equipment to supply circuit and the effect that overloading of circuits
might have on over-current protection and supply wiring. Appropriate consideration of equipment nameplate ratings should
be used when addressing this concern.
23. Reliable (Grounding)
yReliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (for example, use of power strips).
Warning
Warranty is void if seal or label is removed or damaged.

5
The List of Configuration
DVR Set
All Type
16CH
CD (CMS Software/Manual)
Remote Controller
Manual
Screws
HDD Brackets
Data Cable
Rack Braket
Power Cable
Adapter
(Only for A and B Type)

6
Operation Precautions
}Power Off
yDo not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause
permanent damage to the equipment. Please click () SETUP>SYSTEM>Shutdown sequentially and then remove the
power after DVR is shutdown completely. It is safe to wait for 5 seconds before turning the power on again.
yDo not turn DVR off, or plug off the power adapter while External storage device (e.g., USB memory stick, removable
external hard disk and the like) in use. Otherwise, it may cause permanent damage to the equipment. Make sure that the
power switch is in the “ON” position until data storage is completed. Please be aware that removing the storage device
cause the same damage to the equipment.
yDo not turn DVR off, or plug off the power adapter during the format of the hard disk. Otherwise, it may cause permanent
damage to the equipment. Make sure that the power switch is in the “ON” position until the formatting of the disk is
completed.
}HDD Installation / Addition / Moving / Replacement / Removal
yFor installation/addition/replacement/Removal of HDD (DVD-RW), make sure that DVR is turned off. Otherwise, it may
cause permanent damage to the HDD (DVD-RW).
yWhen wish to power DVR off, please click () SETUP>SYSTEM>Shutdown sequentially and then remove the power after
DVR is shut down completely.
yInstallation/Addition/Moving/Replacement: Start ‘HDD initialization’ including formatting. Otherwise, DVR would not
recognize the hard disk and may begin to function abnormally. Please follow the below procedure for ‘HDD initialization’.
① (Date/Time setup) Set up the current date and time (SETUP>SYSTEM>Admin>Date/Time).
② (Initialization of system setup) All setup values are restored to original factory default settings.
(SETUP>SYSTEM>Information>Status>Setup>Default).
③ (HDD format) HDD format is done by SETUP>SYSTEM>Admin>Storage>Format. If there are more than two HDDs,
each must be formatted, separately. When the format is completed, DVR will auto-reboot.
yRemoval: Follow the Remove procedure even when a pre-installed hard disk has been removed.
-SETUP>SYSTEM>Admin>Storage>Format, click () ‘Removed’ item under the discrete Format headings of a
corresponding HDD to discard ‘HDD’ item. When the Remove procedure is completed, DVR will auto-reboot.
}Date / Time Change
yAny change in Date/Time is immediately applied onto live video (LIVE), but the date/time when the recording was done are
not changed.
yMake sure to reboot DVR after adjusting the Date/Time.
yAlso, do not forget to execute SETUP>SYSTEM>Shutdown in sequence before reboot.
}Upgrade
yDo not upgrade until install a hard disk drive. Make sure that upgrade when the hard disk drive is in proper operation.
}Using a Mouse
yLeft mouse button: have the same function as Enter () on the Front panel of DVR.
yCentral button (wheel): have the same function as Search key on the Front panel of DVR(display search menu).
yRight mouse button: display a number of ‘Function keys’ (please see ‘Input Device and Screen Icons>Using a mouse’ in
this manual).
}PLAY / PAUSE Key
yPress the PLAY/PAUSE key to one-touch playback on the viewing screen (playback the recorded video from the last one
minute).
yEvery time pressing the PLAY/PAUSE key during playback mode, it is changed to ‘1X PLAY’ and ‘PAUSE’. The displayed
sign on the screen also changes from to II.
yIf wish to change mode (1X PLAY, REW, FF, BACKWARD, FORWARD) during playback, always press the PLAY/PAUSE
key first (please see if the sign II is shown on the screen).
yPress the PLAY/PAUSE key to back up. Make sure that the backup is done in ‘PAUSE’ mode.
}Camera Title
yCamera Title displayed in Record and Playback modes of DVR is set to CAM1 ~CAM16. Registering camera title in setup
menu (DEVICES>Camera/PTZ>Title) is to make every setup process easier.

7
Table of Contents
Server
1. PRODUCT FEATURES ...........................................................10
1.1 Unpacking ............................................................................10
1.2 Service .................................................................................10

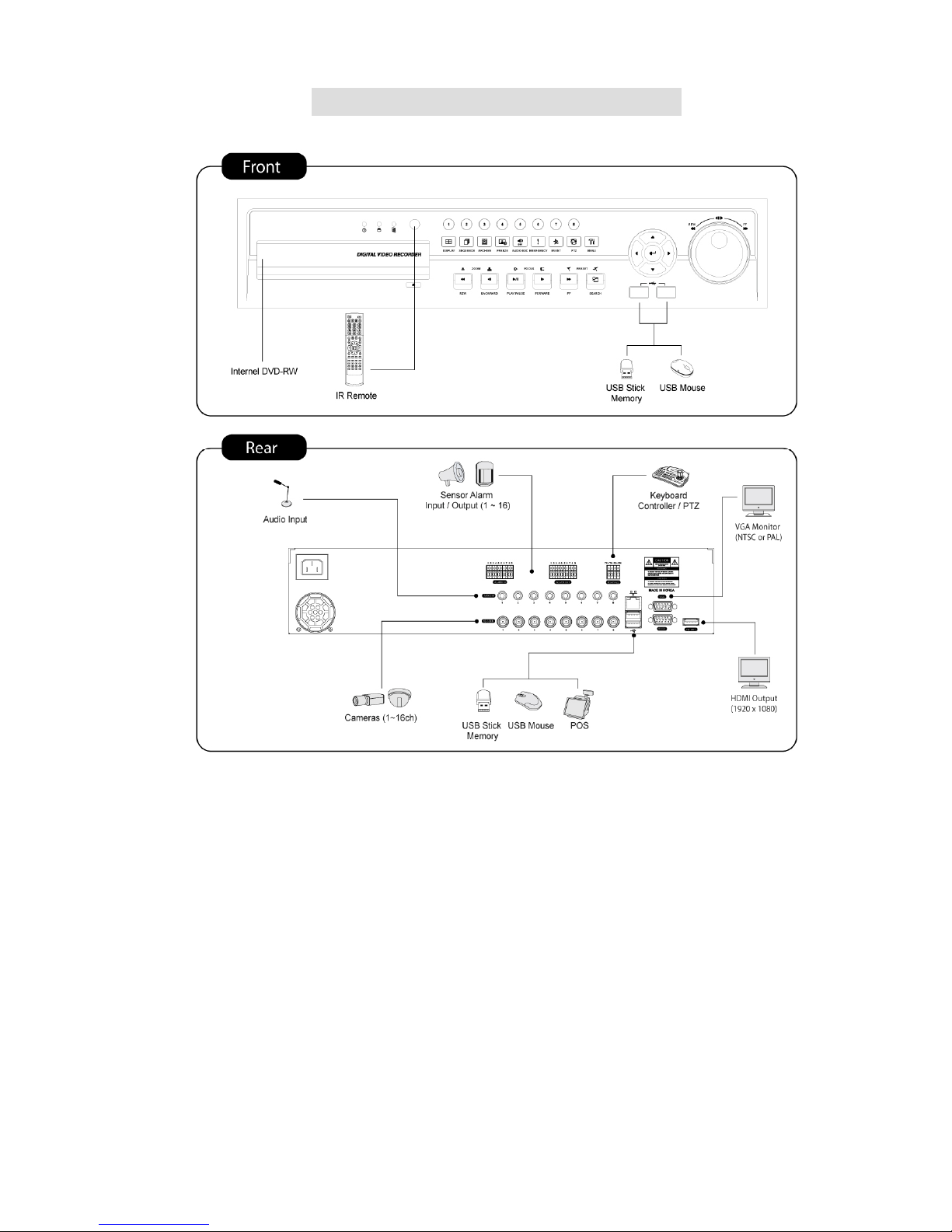

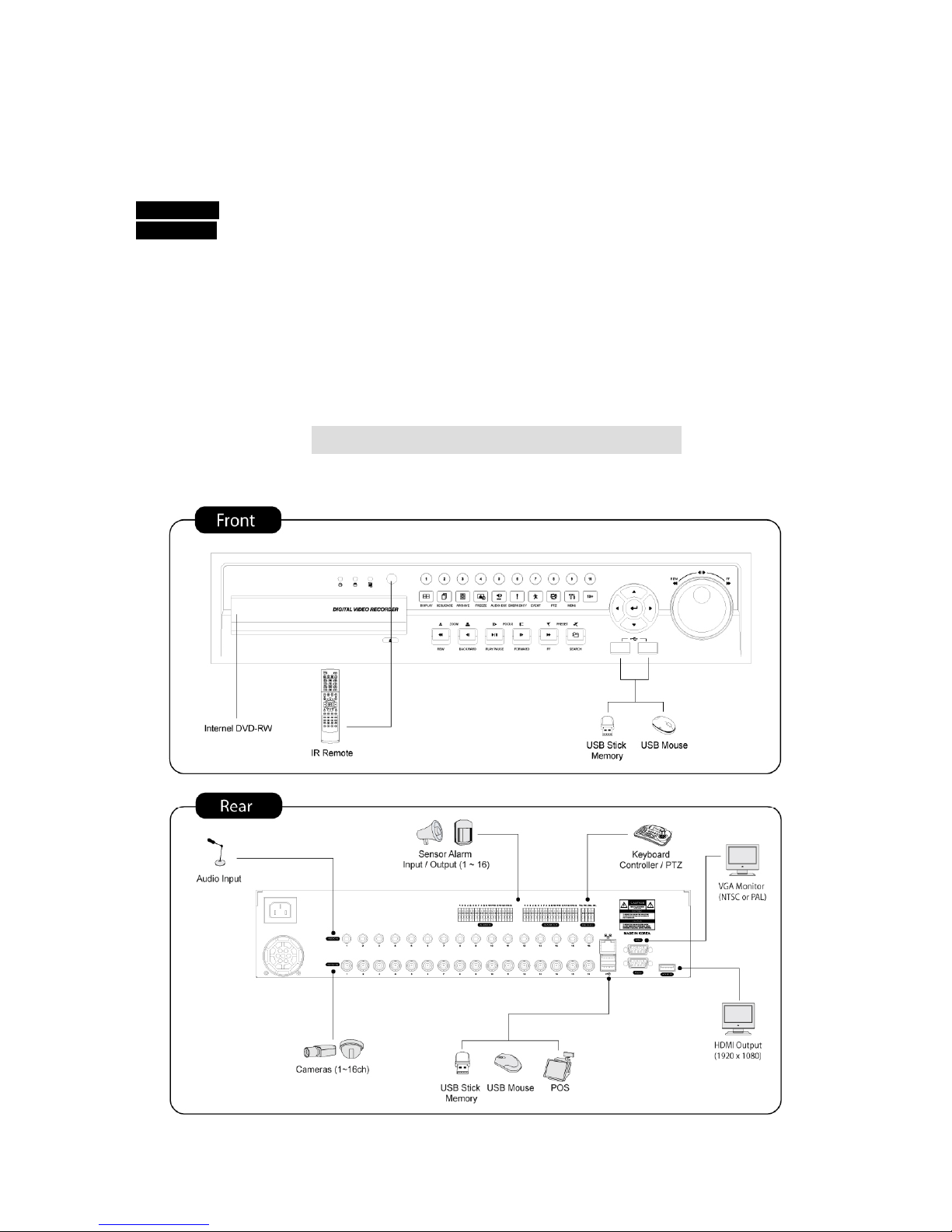

1.3 System Connection Diagram ...............................................10
2. INSTALLATION.......................................................................14
2.1 Hard disk and DVD-RW Installation.....................................14

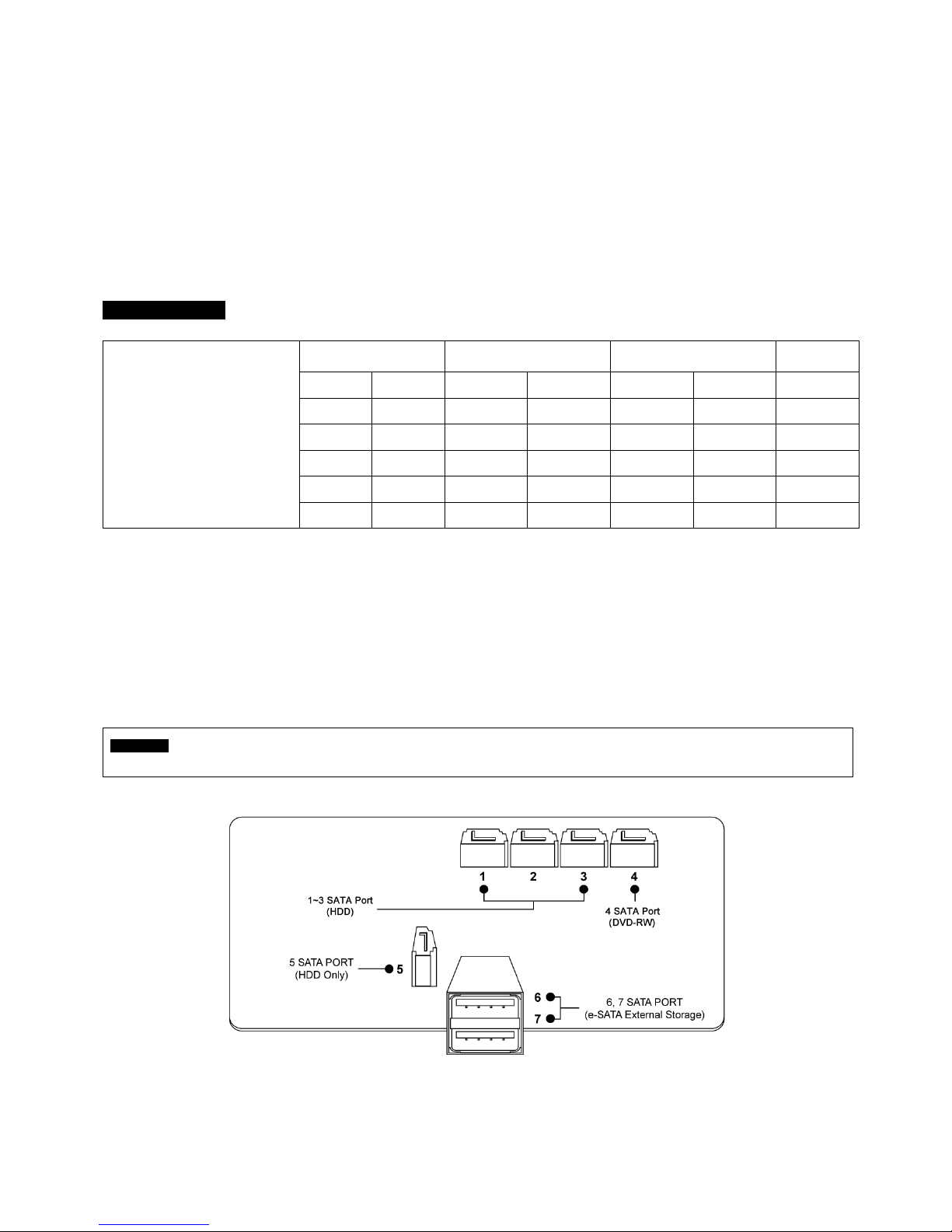

2.1.1 SATA Port ....................................................................14
2.1.2 Internal SATA Storage .................................................14
2.1.3 e-SATA External Storage.............................................14
2.1.4 HDD Installation ...........................................................15
2.1.5 Maximum HDD Capacity..............................................15
2.1.6 DVD-RW installation ....................................................15
2.2 Connector Wiring .................................................................15
2.2.1 HD-SDI In Connections................................................15
2.2.2 Monitor Connections (Video Out, VGA and Spot)........16
2.2.3 HDMI connections........................................................16
2.2.4 Audio Connections.......................................................16
2.2.5 TCP/IP(Ethernet) Connections ....................................16
2.2.6 Alarm Connections.......................................................16
2.2.7 RS-485/422 Connections.............................................17
2.2.8 USB Connections.........................................................17
2.2.9 RS-232 Connections....................................................17
2.2.10 Factory Reset Switch ...................................................17
2.2.11 Power Supply connections...........................................17
2.2.12 Connections Guideline.................................................17
3. INPUT DEVICE AND SCREEN ICONS...................................18
3.1 Key and LEDs ......................................................................18

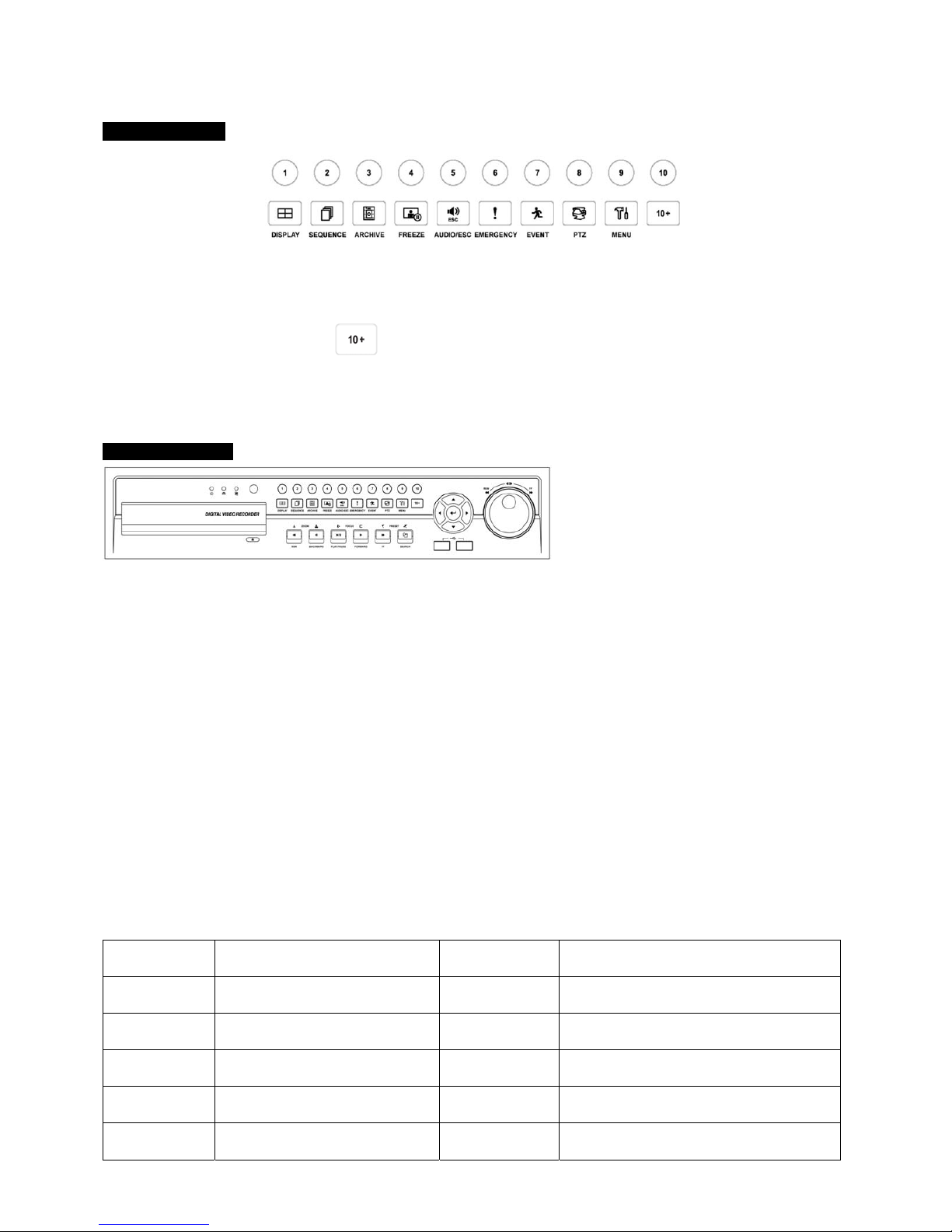

3.2 Camera Select Keys for 16 Channel DVR ...........................19
3.3 Front Panel...........................................................................19
3.4 Using a Remote Controller...................................................19
3.5 Using a Mouse .....................................................................19
3.6 Screen Icon..........................................................................20
4. SETUP .....................................................................................21
4.1 Login / Logout ......................................................................21
4.2 SYSTEM ..............................................................................22
4.2.1 Information ...................................................................22
4.2.2 Admin...........................................................................25
4.2.3 Account ........................................................................28
4.2.4 System Log ..................................................................30
4.2.5 Exit ...............................................................................30
4.2.6 Shutdown .....................................................................31
4.3 DISPLAY..............................................................................31
4.3.1 OSD .............................................................................31
4.3.2 Main Monitor ................................................................32
4.3.3 Spot Monitor (D Type)..................................................32
4.3.4 Spot Monitor Control on Display Mode (D Type) .........33
4.3.5 VGA .............................................................................33
4.4 DEVICES .............................................................................34
4.4.1 Network........................................................................34
4.4.2 Camera / PTZ.............................................................. 37
4.4.3 Audio ........................................................................... 38
4.4.4 Alarm In ....................................................................... 38
4.4.5 Alarm Out .................................................................... 39
4.4.6 Serial In ....................................................................... 39
4.5 RECORD............................................................................. 40
4.5.1 Setting ......................................................................... 40
4.5.2 Schedule ..................................................................... 44
4.5.3 Pre Alarm .................................................................... 45
4.5.4 Motion Detection ......................................................... 46
4.5.5 Holiday ........................................................................ 47
4.6 LINK .................................................................................... 47
4.6.1 Alarm In ....................................................................... 48
4.6.2 Motion Event ............................................................... 48
4.6.3 Video Loss................................................................... 49
4.6.4 System Event .............................................................. 49
4.6.5 Popup Link .................................................................. 50
5. OPERATION INSTRUCTION ................................................. 51
5.1 Viewing................................................................................ 51
5.1.1 First Image .................................................................. 51
5.1.2 View Format ................................................................ 51
5.1.3 Digital Zoom ................................................................ 52
5.1.4 Freeze Live Image....................................................... 52
5.1.5 Pan / Tilt Control.......................................................... 52
5.1.6 System Log ................................................................. 53
5.1.7 Key Lock...................................................................... 53
5.1.8 Emergency Recording................................................. 54
5.2 Search ................................................................................. 54
5.2.1 Date / Time Search ..................................................... 54
5.2.2 Calendar Search ......................................................... 54
5.2.3 Event Search............................................................... 55
5.3 Playback.............................................................................. 56
5.4 One-touch Playback ............................................................ 57
5.5 Digital Zoom in Playback..................................................... 57
5.6 Archive ................................................................................ 58
5.7 Menu Bar............................................................................. 59
5.8 Color Control and Position .................................................. 59
5.9 Alarm Out Control................................................................ 60
CMS Pro
6. FEATURES ............................................................................. 62
6.1 Introduction.......................................................................... 62
6.2 Features .............................................................................. 62
6.3 System Requirements ......................................................... 62
7. INSTALLATION ...................................................................... 63
7.1 Software Installation ............................................................ 63
7.2 Login.................................................................................... 64
7.2.1 Login Process.............................................................. 64

8
8. MENU.......................................................................................66
9. SETUP .....................................................................................67
9.1 Local Setup - Device............................................................67
9.1.1 Remote Site Connection Setup....................................67
9.1.1.1. New Device Register ...............................................67
9.1.1.2. Edit Registered Site .................................................68
9.1.1.3. Remove Registered Site ..........................................68
9.1.2 Device Group Setup.....................................................68
9.1.2.1. New Grouping Setting..............................................69
9.1.2.2. Edit Group Setting....................................................69
9.1.2.3. Remove Group Setting ............................................69
9.2 Local Setup - Environment...................................................69
9.2.1 System .........................................................................69
9.2.2 Viewer ..........................................................................70
9.2.2.1. Audio........................................................................70
9.2.2.2. Video Display ...........................................................70
9.2.3 Record .........................................................................70
9.2.4 Setup............................................................................71
9.2.5 Instant Playback...........................................................71
9.3 Local Setup - Account......................................................72
9.3.1 Add User Account ........................................................72
9.3.2 Edit User Account ........................................................73
9.3.3 Remove User Account .................................................73
9.3.4 Login Setting ................................................................73
9.4 Local Setup – E-map .......................................................74
9.4.1 Registering a New E-map ............................................74
9.4.2 Remote Device Setup ..................................................76
9.4.3 Change Password........................................................76
9.5 Help..................................................................................77
9.5.1 About............................................................................77
10. VIEW ........................................................................................78
10.1 Server List........................................................................78
10.2 Remote Device System Log ............................................78
10.3 Remote Device Event Log ...............................................78
10.4 CMS System Log .............................................................80
10.5 Health Check....................................................................80
10.6 Show All Windows ...........................................................82
11. APPLICATION.........................................................................83
11.1 Search..............................................................................83
11.2 Exit ...................................................................................83
12. LIVE (LIVE VIDEO MONITORING SYSTEM) .........................84
12.1 Overview ..........................................................................84
12.2 Live Monitor Menu ...........................................................84
12.2.1 Full Screen On .............................................................84
12.2.2 Instant Playback...........................................................85
12.2.3 PTZ Control..................................................................86
12.2.4 Screen Capture & Print ................................................86
12.2.5 Audio On/Off ................................................................87
12.2.6 Mike On/Off..................................................................88
12.2.7 Instant Recording.........................................................88
12.2.8 Display Option..............................................................89
12.3 Screen Layout Control .....................................................89
12.4 Change Division Display ..................................................89
12.5 Sequencing ......................................................................90
12.6 Audio Volume Control ..................................................... 90
13. SEARCH ................................................................................. 91
13.1 Overview ......................................................................... 91
13.2 Time Bar Search ............................................................. 91
13.3 Event Search................................................................... 92
13.4 POS/ATM Search............................................................ 93
13.5 Thumbnail Search ........................................................... 93
13.6 Smart Search .................................................................. 94
14. E-MAP ..................................................................................... 95
14.1 Overview ......................................................................... 95
14.2 Controls ........................................................................... 95
14.2.1 E-map Camera – Instant Playback.............................. 95
14.2.2 Alarm In/Out Control.................................................... 96
14.2.3 Audio ........................................................................... 96
15. UNINSTALLING CMS PRO .................................................... 97
16. OTHERS.................................................................................. 98
16.1 Viewer ............................................................................. 98
16.2 E-MAP ............................................................................. 98
16.3 Watermark Check System............................................. 100
16.4 Estimator ....................................................................... 100
16.5 EXE to AVI Converter.................................................... 100
17. CMS WEB CLIENT PRO ...................................................... 103
17.1 Setup and Login ............................................................ 103
17.2 Menu ............................................................................. 103
17.3 Setup ............................................................................. 104
17.3.1 Local Setup - Enviornment........................................ 104
17.3.1.1. System .............................................................. 104
17.3.2 Viewer ....................................................................... 104
17.3.2.1. Audio ................................................................. 104
17.3.2.2. Video Display .................................................... 104
17.3.3 Record....................................................................... 105
17.3.4 Instant Playback........................................................ 106
17.3.5 Remote Device Setup ............................................... 106
17.4 Help ............................................................................... 107
17.4.1 About......................................................................... 107
17.5 View............................................................................... 107
17.5.1 Remote Device System Log...................................... 107
17.5.2 Remote Device Event Log......................................... 108
17.5.3 Web Client Pro System Log ...................................... 109
17.5.4 Health Check............................................................. 109
17.5.5 Show All windows...................................................... 111
17.6 Application..................................................................... 111
17.6.1 Search....................................................................... 111
18. LIVE (LIVE VIDEO MONITORING SYSTEM)....................... 112
18.1 Overview ....................................................................... 112

9
18.2 Live Monitor Menu .........................................................112
18.2.1 Full Screen On ...........................................................112
18.2.2 Instant Playback.........................................................113
18.2.3 PTZ Control................................................................114
18.2.4 Screen Capture & Print ..............................................114
18.2.5 Audio On/Off ..............................................................116
18.2.6 Mike On/Off................................................................116
18.2.7 Display Option............................................................116
18.3 Screen Layout Control ...................................................116
18.4 Change Division Display ................................................117
18.5 Audio Volume Control ....................................................117
19. SEARCH ................................................................................118
19.1 Overview ........................................................................118
19.2 Time Bar Search ............................................................118
19.3 Event Search..................................................................119
19.4 POS/ATM Search...........................................................120
19.5 Thumbnail Search..........................................................120
19.6 Smart Search .................................................................121
20. CMS MOBILE VIEWER .........................................................123
20.1 iPhone Mobile ................................................................123
20.1.1 System Requirements................................................123
20.1.2 Installation..................................................................123
20.1.3 Site Registration.........................................................125
20.1.4 Connection.................................................................126
20.1.5 Search........................................................................127
20.1.6 PTZ Control................................................................129
20.1.7 Information .................................................................129
20.1.8 Disconnection ............................................................130
20.1.9 Uninstallation .............................................................130
20.2 Android Phone ...............................................................131
20.2.1 System Requirements................................................131
20.2.2 Installation..................................................................131
20.2.3 Site Registration.........................................................132
20.2.4 Connection.................................................................133
20.2.5 Search........................................................................133
20.2.6 Audio..........................................................................134
20.2.7 PTZ control ................................................................134
20.2.8 Information .................................................................135
20.2.9 Disconnection ............................................................135
20.2.10 Uninstallation .........................................................136
20.3 Blackberry Mobile...........................................................136
20.3.1 System Requirements................................................136
20.3.2 Installation..................................................................136
20.3.3 Site Registration.........................................................137
20.3.4 Connection.................................................................138
20.3.5 PTZ Control................................................................139
20.3.6 Disconnection ............................................................139
20.3.7 Uninstallation .............................................................139
20.4 Symbian Mobile .............................................................140
20.4.1 System Requirements................................................140
20.4.2 Installation..................................................................
140
20.4.3 Site Registration.........................................................142
20.4.4 Connection.................................................................143
20.4.5 PTZ Control................................................................145
20.4.6 Information .................................................................146
20.4.7 Disconnection ............................................................146
20.4.8 Uninstallation .............................................................146
20.5 Windows Mobile.............................................................147
20.5.1 System Requirements................................................147
20.5.2 Installation..................................................................147
20.5.3 Site Configuration...................................................... 149
20.5.4 Connection ................................................................ 150
20.5.5 Uninstall..................................................................... 151
Application
21. KEYBOARD CONTROLLER................................................ 153
21.1 Connection .................................................................... 153
21.1.1 Configuration Diagram I ............................................ 153
21.1.2 Configuration Diagram II ........................................... 153
21.1.3 Configuration Diagram III .......................................... 154
21.2 Keyboard Setup in DVR ................................................ 154
21.3 Keyboard Configuration................................................. 155
21.4 Operation....................................................................... 155
21.4.1 DVR/PTZ Mode conversion....................................... 155
21.4.2 DVR Control Mode .................................................... 155
21.4.3 PTZ Control Mode..................................................... 156
22. SERIAL IN (POS/ATM)......................................................... 158
22.1 Usage of Serial-In Function........................................... 158
22.2 Connection Method ....................................................... 158
22.3 Connection Diagram...................................................... 158
22.4 Link................................................................................ 159
22.4.1 Link Setup ................................................................. 159
22.4.2 Schedule Setup......................................................... 159
22.5 Setup ............................................................................. 160
22.5.1 Title............................................................................ 160
22.5.2 Port Setting................................................................ 160
22.5.3 OSD Display.............................................................. 161
22.5.4 Pattern Setting........................................................... 161
22.6 Search ........................................................................... 163

10
1. Product Features
1.1 Unpacking
yThis equipment is an electronic appliance, so it should be handled with special care.
yAfter unpacking, please check if all the following items are included.
-DVR Main body
-A and B Type:: Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable
-C and D Type: Power Supply Cable
-Remote Control With 2 AAA batteries
-Installation CD (CMS Software & User’s Manual)
1.2 Service
yIf there is any problem in the product, please refer servicing to a supplier or a distributor with qualified service personnel.
1.3 System Connection Diagram
A T
yp
e
–
4/8/16channel Series HCR-HD DVR
