Pa ts List - ATTITUDE
Attitude
Installation Manual
®

4
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Attitude
Installation Manual
®
IMPORTANT INFORMATION
The table below contains information that can help you quickly identify the product you are
installing. If you have any difficulties installing our product, we recommend you to call our warranty
line on 1300 360 280 for advice.
ATTITUDE Ceiling Fans 132cm (52”)
CODE FAN MODEL NAME COLOUR
A0160 ATTITUDE White Motor & Blades
A0161 ATTITUDE Matt Black Motor & Blades
A0162 ATTITUDE Brushed Aluminium Motor
& Brushed Silver Blades
A0163 ATTITUDE Pearl Ice Motor & Blades
A0164 ATTITUDE Black Ice Motor
& Black Ice UV coated Blades
A0165 ATTITUDE Silver Ice Motor
& Silver Ice UV coated Blades

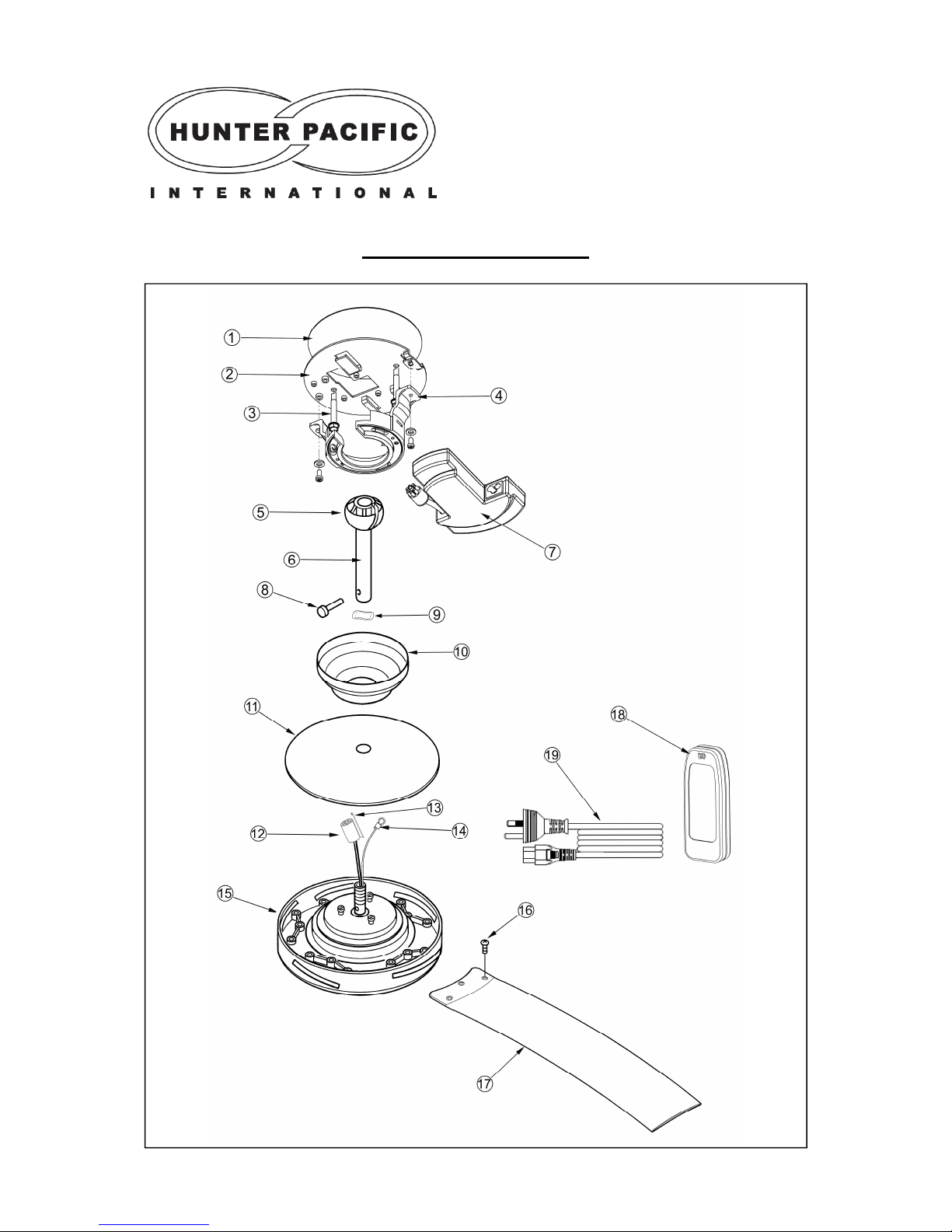

ATTITUDE Ceiling Fan Pa ts List
No. Pa t Quantity No. Pa t Quantity
1 Silicone pad 1 11 Motor Canopy 1
2 Plate 1 12 Motor Plug 1
3 Hex Head Screw 2 13 Motor Plug Clip 1
4 Hanger Bracket 1 14 Tether 1
5 Ball Joint 1 15 Motor Housing 1
6 own Rod (26mm iameter) 1 16 Blade Screws 15
7 Control Module 1 17 Blades 5
8 own Rod Pin 1 18 Handset 2
9 Wave washer 1 19 IEC C5 AU Specification 3
pin plug
1
10 Top Canopy 1
The contents inside an Attitude fan box are listed in the table below:

5
The following installation steps apply if you are installing the fan on a plasterboard ceiling
with access to the crawl space. If you are installing the fan on a concrete ceiling or access
to the roof space is limited please go to page 6. ALL FIXE WIRING WORK MUST BE
ONE BY A LICENSE ELECTRICAL WORKER.
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Installation Inst uctions
(Installing the fan on a Plasterboard Ceiling)
Attitude
Installation Manual
®
Fig. 1
Hole for IEC C5 plug
Ceiling
Timber nogging
Ceiling
Plug
Power point (pre-installed
by licensed electrical
worker).
Fig. 2
Timber nogging
Hex Head
Screw
Plate
Ceiling
IEC C5 plug
Fig. 3
Silicone
Pad
Fig. 4
Ceiling
IEC C5 plug
Plate
Hex Head
Screw
STEP 1 (Fig. 1)
a) rill a minimum size hole of 25mm or 1-1/8” in or beside the timber nogging for the IEC C5 plug.
A timber nogging must be supported between two ceiling joists as shown in Figure 1.
STEP 2 (Fig. 2)
a) Install power point* in the roof space (*power point is for illustrative purposes. A standard 3 pin plug base can
also be used. Any power outlet must include earth and be installed by a licensed electrical worker.)
b) Insert plug into power point
STEP 3 (Fig. 3 & 4)
a) Pass the IEC C5 plug through the hole in the Plate
b) Place Plate on the ceiling and mark holes for the hex head screws.
c) rill a pilot hole into timber nogging for each screw.
d) Slit the Silicone pad with a utility knife to allow the IEC C5 to pass through.
e) Place Silicone Pad between Plate and Ceiling, secure Plate using the supplied Hex Head screws
DANGER: PLASTERBOARD CANNOT SUPPORT THE WEIGHT OF A CEILING FAN!
A SUPPORTING STRUCTURE MUST BE PLACED ABOVE THE CEILING.

6
Installation Inst uctions
(Installing the fan on a Concrete Ceiling or where access to roof space is limited)
Fig. 1
Attitude
Installation Manual
IEC C5
plug
The following installation steps apply if you are installing the fan on a concrete
ceiling or where access to crawl space is limited. (THIS TYPE OF HARDWIRED
POWER CONNECTION MUST ONLY BE DONE BY A LICENSED ELECTRICAL
WORKER)
®
Fig. 2
Wires from cord
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Junction Box
Cover
Silicone Pad
Silicone Pad IEC C5 plug
Terminate
Wires
Ceiling
Approx. 200mm (8”)
STEP 1 (Figs 1, 2 & 3)
a)
Remove 3 pin plug from cord set, strip
sheath and strip conductors. Cut cord
approximately 200mm(8”) as shown in
Figure 1.
b) rill a hole the same diameter as cord
through the junction box cover and silicone
insulating pad and pass wires through both.
c) Connect the cord-set to the fixed wiring with
appropriate terminals and insulate to comply
with wiring rules.
d) Slit the Silicone pad with a utility knife to al-
low the IEC C5 to pass through.
e) Re-install junction box cover and then install
Plate making sure the Silicone Pad is placed
between the Ceiling and the Plate.
Use anchors appropriate for the ceiling
material
(Mounting screws shown in Fig. 3 are for illustrative
purposes only).
Fig. 3
Ceiling
Silicone Pad
Plate
IEC C5 plug
Mounting
Screws
DANGER: DO NOT PLACE TERMINATED WIRES INSIDE CANOPY. THIS MAKES
THE FAN NON-USER SERVICEABLE AND THE CONTROL MODULE WILL NOT FIT

7
Installation Inst uctions
(Installing the Bracket to the Plate )
Fig. 5
Attitude
Installation Manual
®
Fig. 6
Fig. 7
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Large hole Small threaded hole
Plate
Bracket
IEC C5
Plug
Ceiling
Ceiling
Plate
Bracket
M5 Bracket
Screw and
washer
Bracket
Small
threaded
hole
Cradle in Plate
Bracket
Plate
STEP 4 (Fig. 5)
a) Identify the holes in the Bracket.
b) Bracket will only fit one way onto the Plate
STEP 5 (Fig. 6 & 7)
a) Slide the leg of the Bracket with the small
hole into the cradle on the Plate.
b) Lift the other end of the Bracket into place
and secure using the screws provided.

STEP 7 (Fig. 9)
a) Ensure th IEC C5 plug and flex can move
freely through the hole in the ceiling and
Plate.

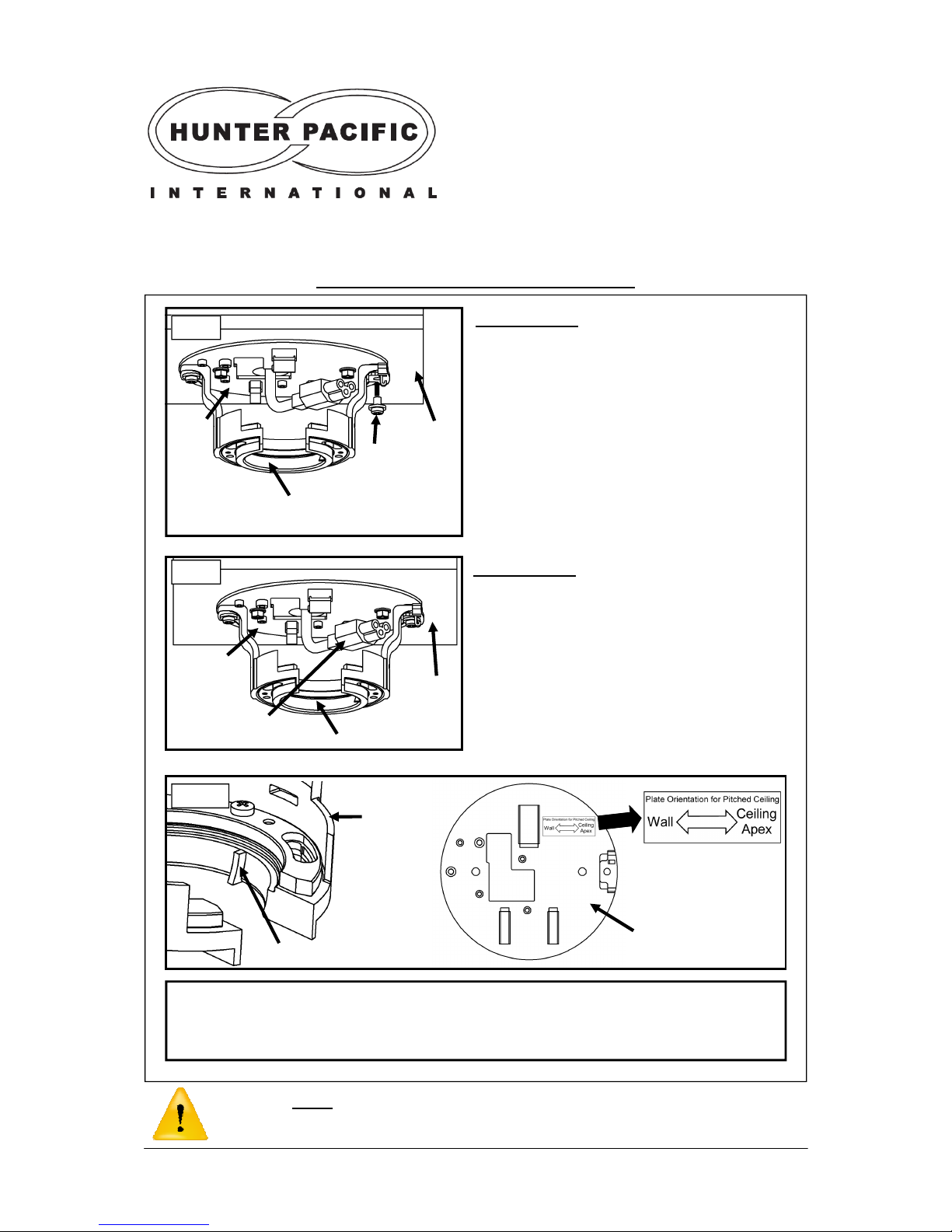

Installation Inst uctions
(Installing the Bracket to the Plate )
Fig. 8
Attitude
Installation Manual
®
Fig. 9
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Ceiling
Plate
Bracket
M5 Bracket
Screw and
washer
Ceiling
Plate
Bracket
STEP 6 (Fig. 8)
a) Secure the other end of the Bracket into
place with the screws provided.
IEC C5 Plug
IMPORTANT: IF INSTALLING ON PITCHED CEILING: DOUBLE CHECK THE
LUG IN THE BRACKET IS ON THE HIGH SIDE TOWARD APEX OF THE CEILING.
IF LUG IS ON LOW SIDE THE FAN WILL NOT HANG PROPERLY
Fig. 10
Lug
Bracket
Plate

9
DANGER: The Down Rod must be screwed all the way down until the holes line up clearly between the Down Rod
and Motor Shaft.
A thin screwdriver or tool maybe used through the hole in the top of the Down Rod to aid in screwing it down properly.
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
Fig. 13
Fig. 11
Blade
Blade
Screw
Motor
Housing
Motor Plug
own Rod
Motor Shaft
Wave
Washer
Tether

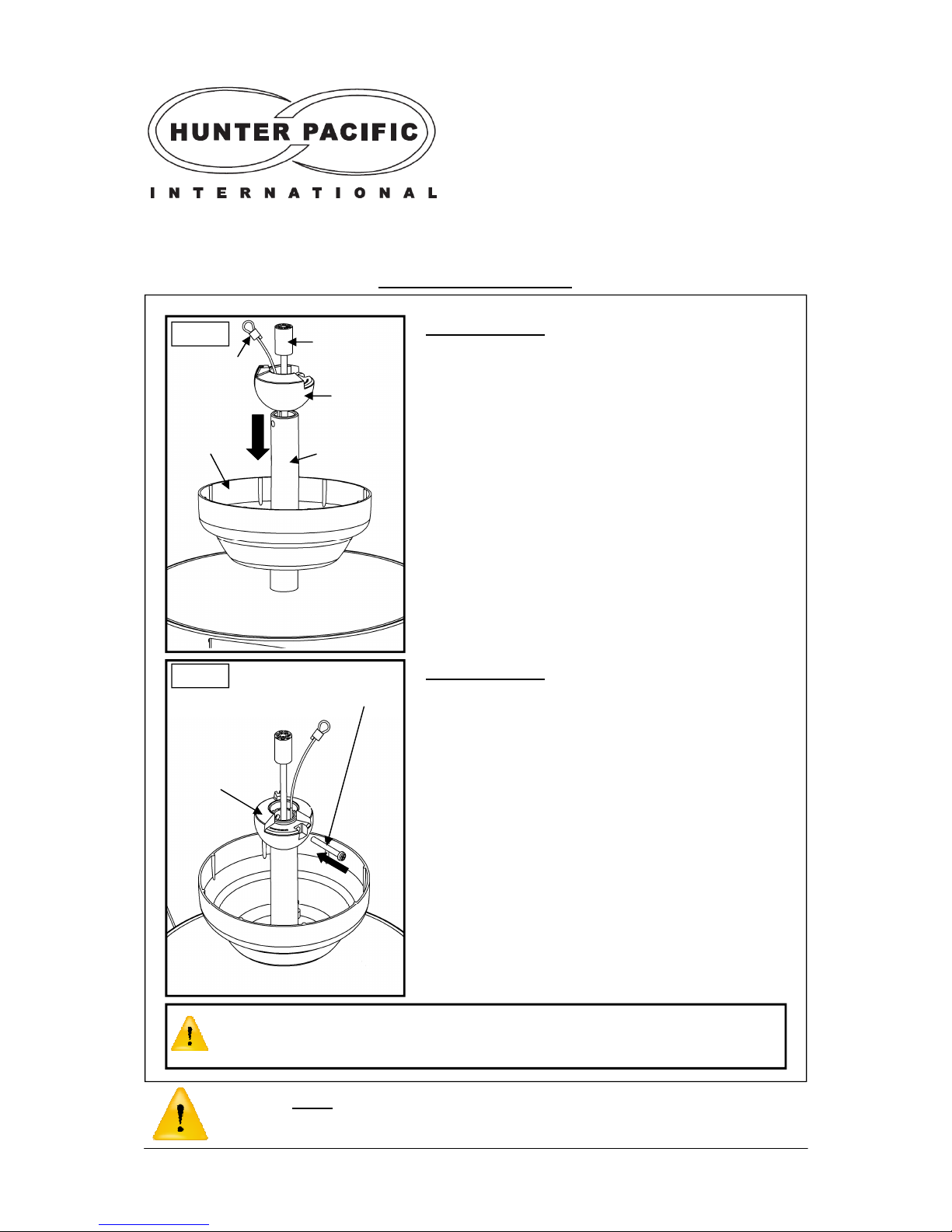

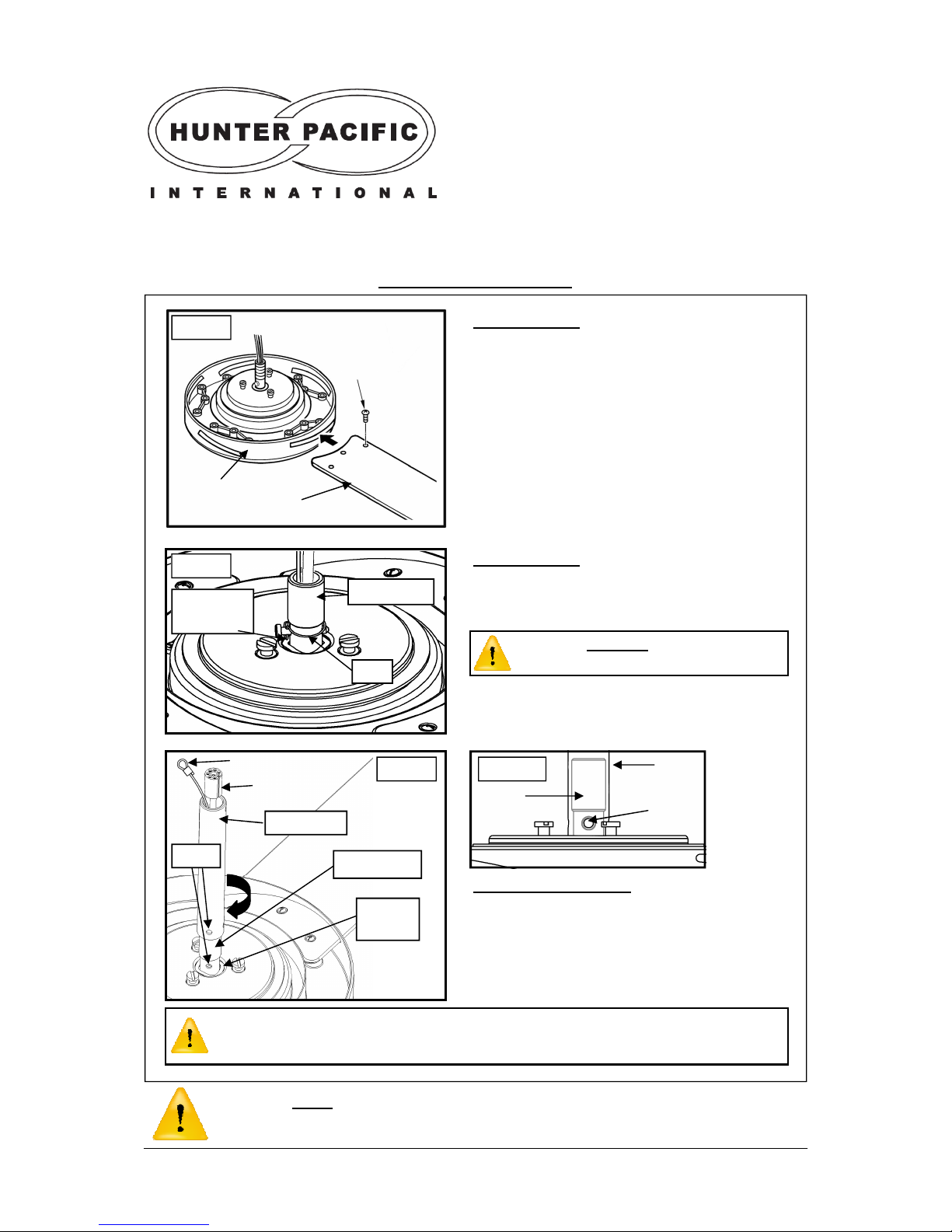

STEP 8 (Fig 11)
a) Insert blade into to the motor housing as
shown in Figure 5.
b) Tighten the 3 blade screws firmly but do not
over tighten. (Do not use powe tools)
c) Repeat the above steps fo the emaining
blades. o not mix blades from different
fans as this may upset the balance of the
fan.
STEP 10 (Fig 13 & 13a)
a) Pass the Motor Plug and Tether through the
own Rod. Screw own Rod on to Motor Shaft
until own Rod compresses Wave Washer and
the holes completely line up between the own
Rod and Motor Shaft.
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
STEP 9 (Fig 12)
a) Remove pre-fitted own Rod Pin from Motor
Shaft.
DANGER: DO NOT DISCARD PIN AS
IT MUST BE USED AGAIN.
Fig. 12
Motor Shaft
own Rod
Pin
Wire
Holes
Fig. 13a own
Rod
Motor
Shaft Holes

10
Installation Inst uctions
(Assembling the fan )
Fig. 1
Attitude
Installation Manual
®
Fig. 15
Blade
Motor
Housing
own
Rod
own Rod Pin STEP 11 (Fig. 14)
a) Remove wire attached to own Rod Pin
and discard the wire.
b) Insert own Rod Pin into the hole. It
maybe necessary to wiggle it through the
wires. Make sure the pin is pushed all the
way through or the Motor Canopy will not
fit.
Keyway
Motor Canopy
Keyway Screw
Motor Housing

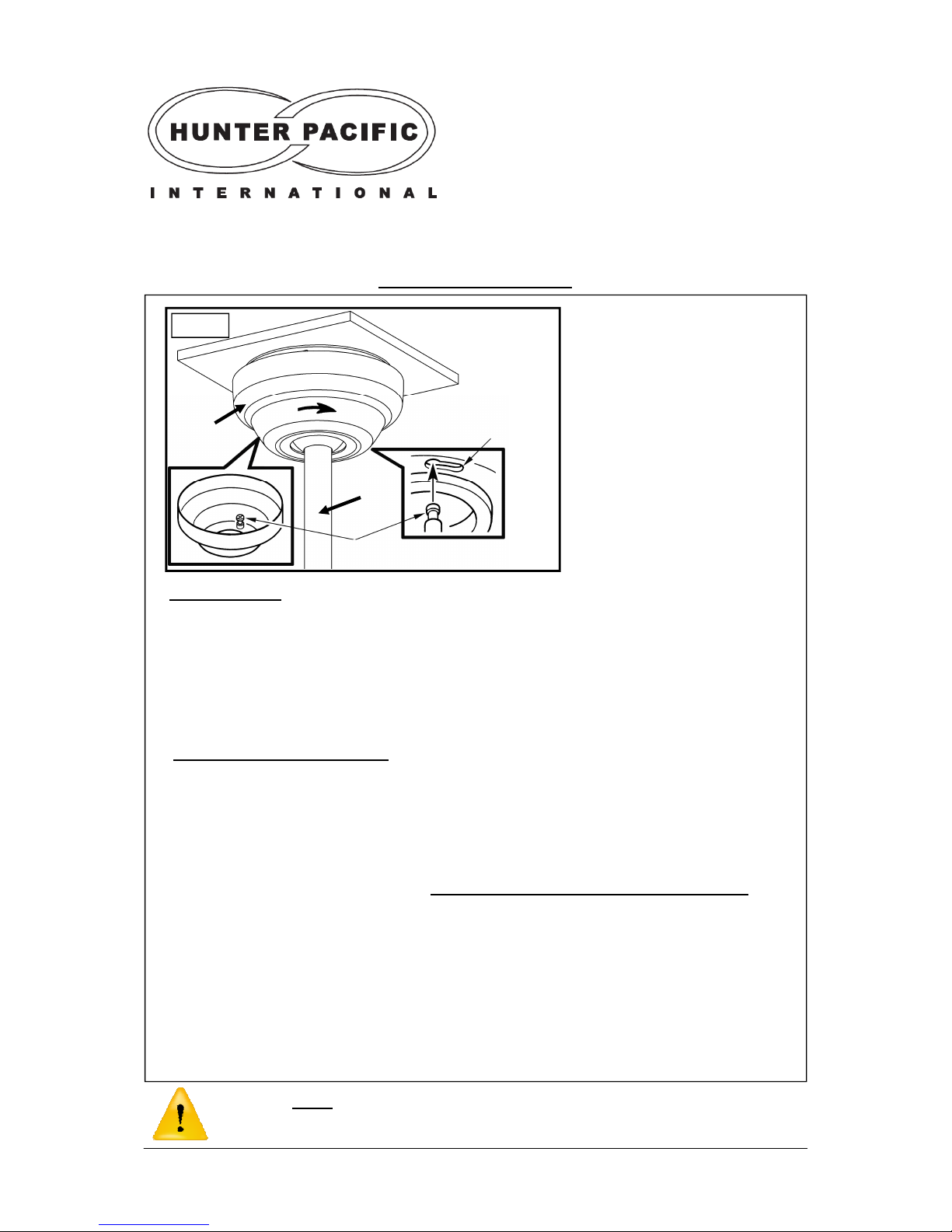

STEP 12 (Fig. 15)
a) Slide Motor Canopy over own Rod
b) Align holes in Keyway with the Keyway
Screws.
c) While tightly holding the own Rod, turn
the Motor Canopy clockwise until a dull
‘click’ noise is heard. This indicates the
Motor Canopy is secured firmly to the
Motor Housing (a screwdriver through the
hole in the top of the own Rod may
assist in holding own Rod still).
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
DANGER: PIN MUST BE INSERTED!!
The pin prevents the Down Rod unscrewing from the Motor Shaft. If the pin is not inserted
the fan could fall. Never o erate fan without in in lace.
Fig. 14
Note: If the Motor Canopy does not fit properly make sure the pin is pushed all the way
in and the wire removed from the pin.
If the Motor Canopy is not secured it will rattle when fan is in use.

11
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
Fig. 16 Motor Plug
own Rod
Top
Canopy
Ball
Joint
Tether

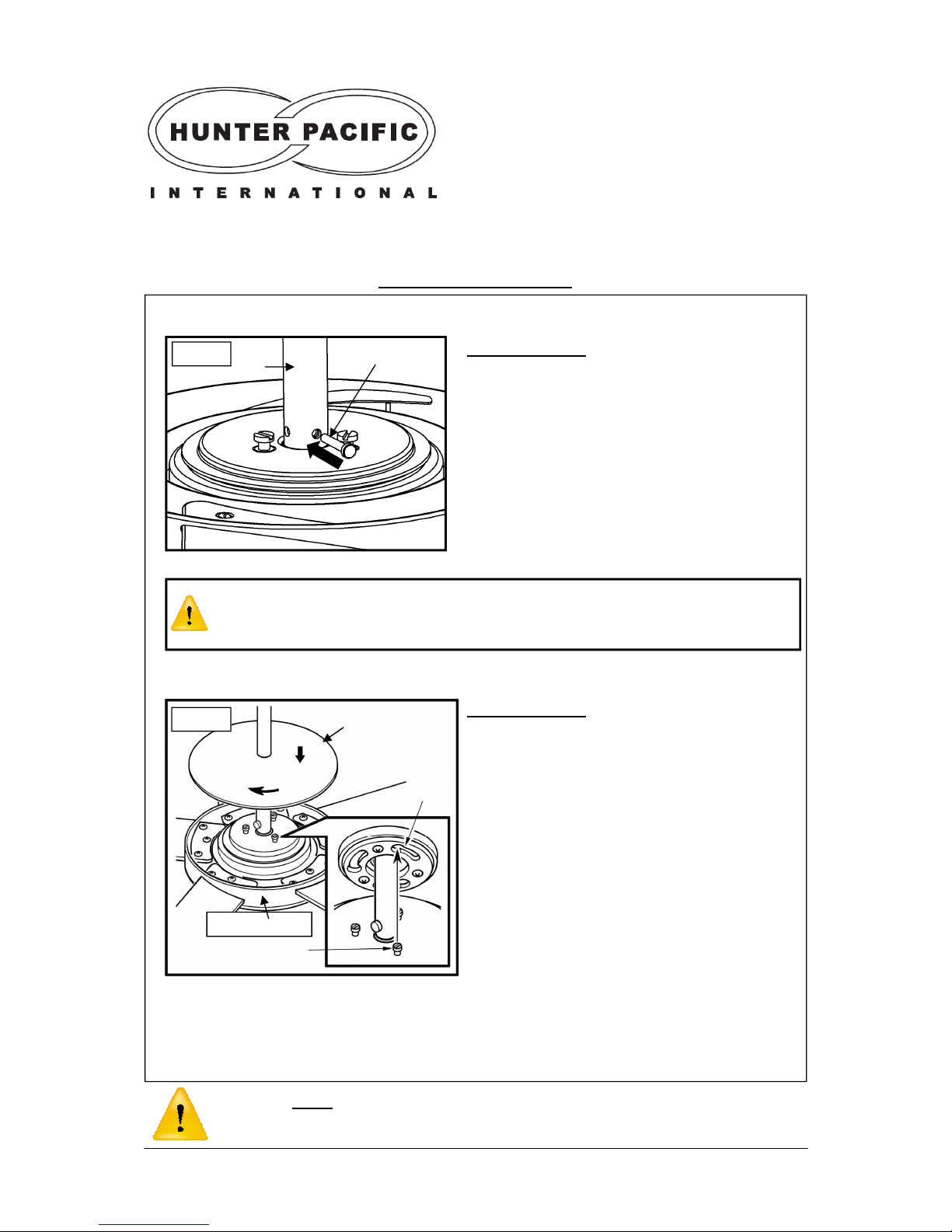

STEP 13 (Fig. 16)
a) Slide Top Canopy over own Rod
b) Remove screw from Ball Joint (do not
disca d sc ew)
c) Slide Ball Joint over own Rod
STEP 14 (Fig. 17)
a) Align hole in Ball Joint with hole in own Rod
b) Insert Ball Joint screw through the hole in
the Ball Joint and own Rod. Use a
screwdriver to tighten Ball Joint to own
Rod. Do not ove tighten and do not use
powe tools.
Ball Joint
Screw
Ball
Joint
Fig. 17
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
DANGER: The Ball Joint Screw supports the weight of the fan. Do not replace with a
different type of screw. Do not attempt to install fan if Ball Joint Screw is missing or
damaged.

12
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Fig. 18
Control
Module
Ball Joint
Tether
Top
Canopy
Groove
Motor Plug
Control Module
Plug
Retaining
Clip

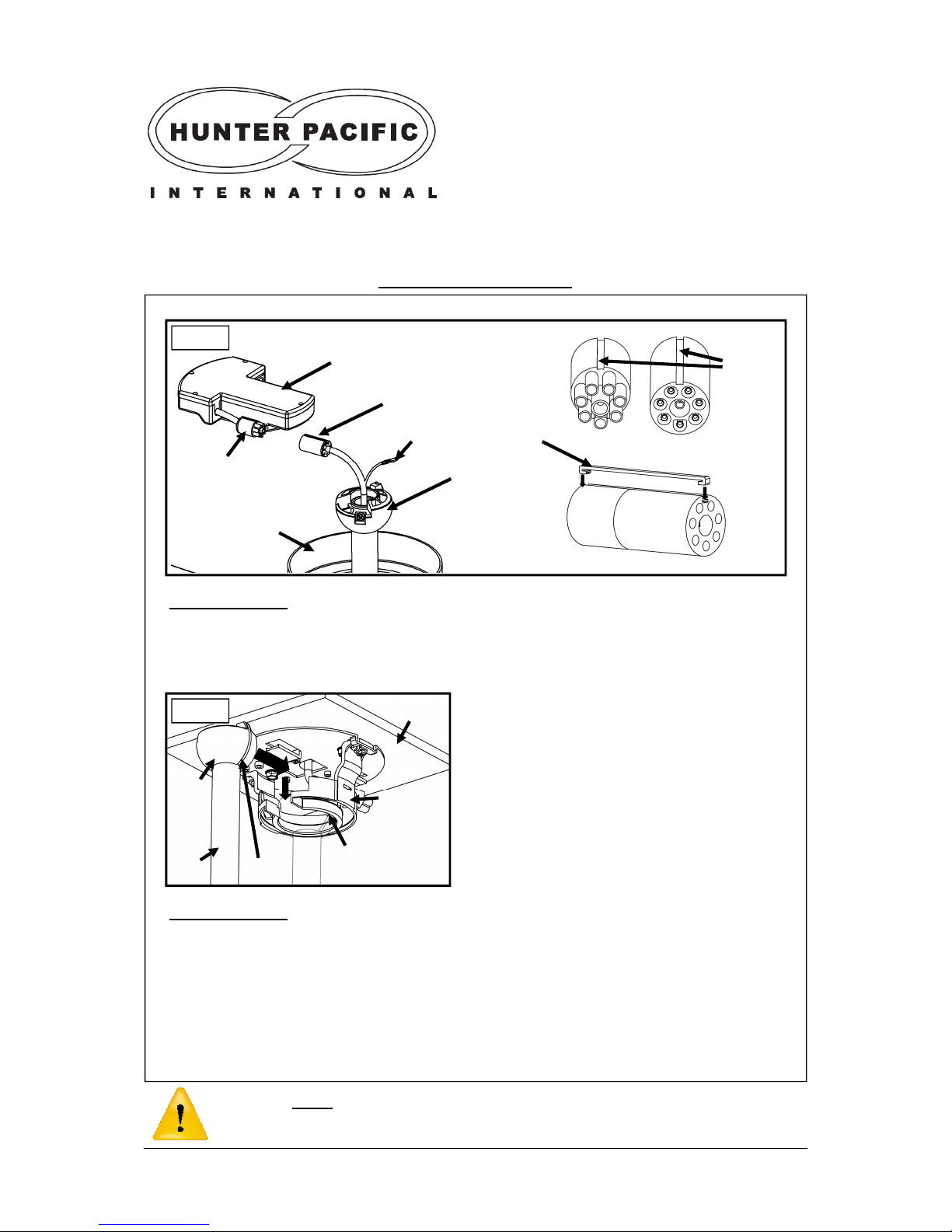

STEP 15 (Fig. 18)
a) Connect the Motor Plug to the connector coming from the Control Module. Align
grooves in the two plugs to ensure proper connection. Snap retaining clip into
Fig. 19
own
Rod
Ball
Joint Bracket
Ceiling
Groove
Lug
(Hidden)
STEP 16 (Fig. 19)
a) Once fan is assembled lift into place. Set Ball Joint into Bracket as shown in Figure
18. Make sure the groove in the Ball Joint is positioned over the lug in the Bracket.
b) Check own Rod and Ball Joint do not rotate in the bracket (the lug and groove
will prevent rotation when properly aligned.

13
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Fig. 20 Fig. 21
Bracket
Plate
M5 Screw
& Washer
Tether
Bracket
Plate
M5 Screw
& Washer
Tether
WARNING: The Tether is an essential safety device and must be connected as
described
Plate M5 Bracket Screw
Tether
Bracket
Fig. 22
STEP 17 (Fig. 20, 21 & 22)
a) Secure Tether under the M5 Bracket Screw, where the Bracket slides into the
cradle.
b) The weight of the fan is supported by the cradle so the screw can be safely
loosened.
WARNING: DO NOT SECURE TETHER UNDER THE OTHER BRACKET
SCREW — NOTE CAREFULLY THE ABOVE DRAWINGS.
Cradle

14
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Bracket
IEC C5 Plug Control
Module
Fig. 23
STEP 18 (Fig. 23)
a) Push the IEC C5 power plug into the Control Module until it is firmly seated.
Installation and removal of the Control Module can be done by personnel who are not qualified
electrical workers. Thus Control Module replacement can be a user performed repair/
maintenance task.
Fig. 24
Control Module
Bracket Ball Joint
Plate
IEC C5 Plug
Step 19 (Fig. 24)
a) Once the Motor Plugs and IEC C5 are connected to the Control Module slide Control Module
into the Bracket. It will be necessary to feed excess cord back into the ceiling or to tuck it on
top of the Control Module to fit the Control Module into the Bracket. The Control Module
must slide all the way in or the Top Canopy will not fit.

15
Installation Inst uctions
(Assembling the fan )
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
Fig. 25
Step 20 (Fig. 25)
a) Located inside the Top Canopy are 3 Keyway Screws. These screws match the keyway in
the Bracket.
b) Slide the Top Canopy up the own Rod and align the 3 Keyway Screws with the Bracket
Keyway.
c) Once the screws are positioned into the Bracket Keyway twist the Top Canopy in a clockwise
direction, as shown in Fig. 25, to lock the Top Canopy to the Bracket.
Keyway in
Bracket
Top Canopy
own Rod
Keyway Screw
USER MAINTAINABLE PARTS: IMPORTANT WARRANTY INFORMATION
Unlike ceiling fans that are directly connected to the building wiring system, the ATTITU E fan
uses an appliance coupler (connector) that allows power to be safely disconnected from the
control module (just like a computer or most TVs). The power to the fan must be turned off at
the wall switch or circuit breaker. All parts (including the electronic control module) can then be
easily changed by the user without specialist knowledge in the case of defect or damage.
An electrician or other repair personnel will not be ordinarily supplied to repair or replace in case
of defect or damage since the fan must be installed in a location accessible for cleaning and
general maintenance by the user. All parts, other than fixed wiring, are user changeable.
When ceiling fans are installed in a location requiring special equipment (such as scaffolding or
scissor lifts) the cost of providing such equipment must be borne by the site owner in case of
maintenance and repair and such costs should be considered when deciding on fan placement.
Signals (ripple control) sent through the power grid by the electricity supplier for the control of
off peak devices may cause intermittent noises and do not occur as a result of a fault in the fan.

16

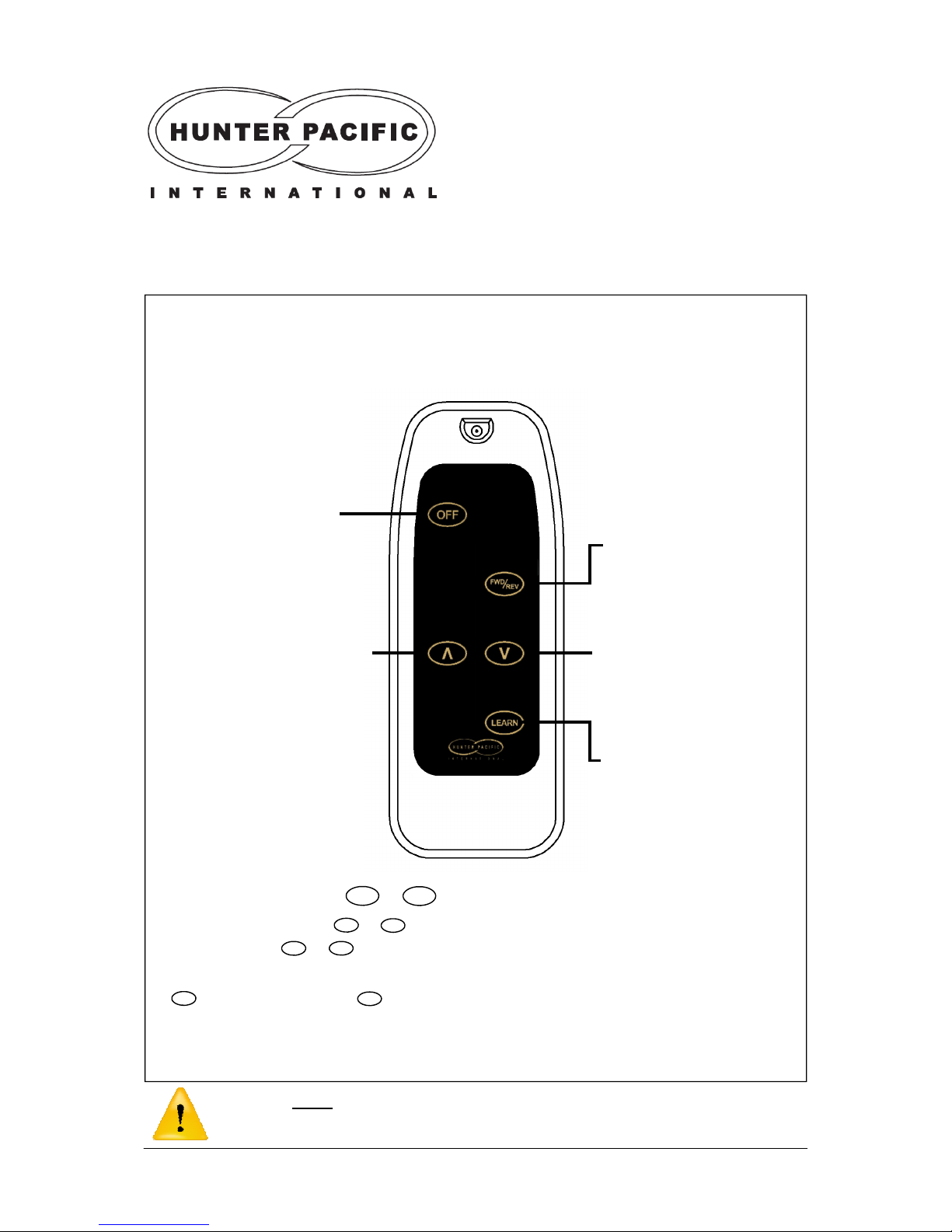

ATTITUDE HANDSET BUTTON
EXPLANATION
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
OFF Button
Pressing the OFF button
turns the fan off
Increase Fan Speed
Button
The speed of the fan will
increase
Forward/Reverse Button
Fan will spin in forward
(summer) or reverse
(winter) mode
ecrease Fan Speed
Button
The speed of the fan will
decrease
Learning Button
To turn fan on press either or and the fan will start and settle on the speed it was
last used.
To change speeds press or When fan has reached minimum or maximum speed
another press of or button will step fan directly to maximum or minimum.
There are seven preset speeds, step through them as follows:
1-2-3-4-5-6-7-1-2….. or 7-6-5-4-3-2-1-7-6……
Use FW /REV anytime to change direction. epending on speed it may take a little while for
the fan to stop and change direction.
V
V
V
V
V
V
V
V

17
ATTITUDE CONTROL MODULE AND HANDSET
PROGRAMMING
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
MAKE SURE THE WALL SWITCH IS ON OR REMOTE CONTROL WILL NOT WORK
Handset Batte y Installation/Replacement
Open the battery compartment by sliding the hatch downwards. Gently press the grooved
section inwards to disengage latch. UNWRAP THE PLASTIC FROM AROUN NEW
BATTERIES. Observe polarity and make sure battery sits properly in recess. Slide hatch back
into place.
How To Add a New o Replacement Handset
The receiver can learn the identification code for a new handset using the following procedure:

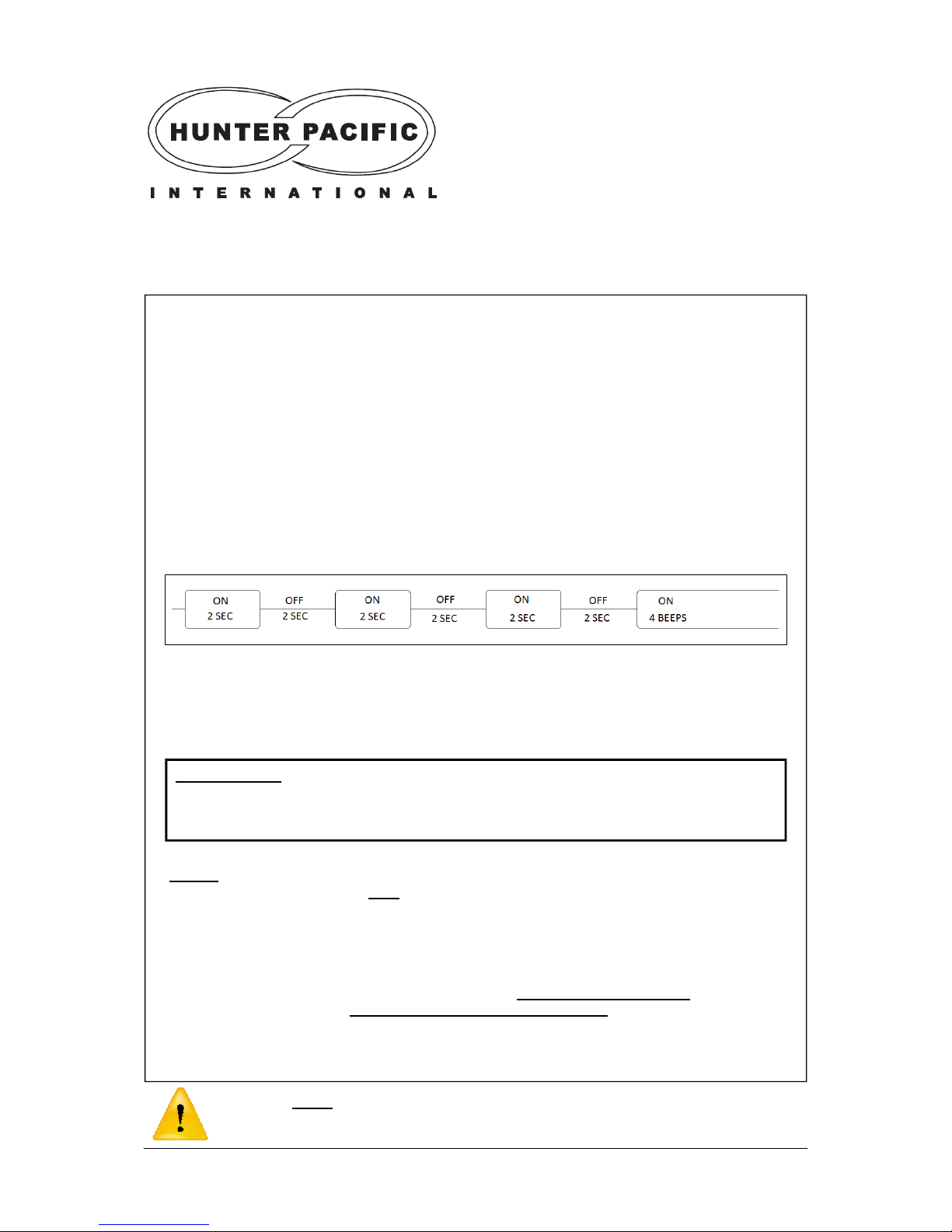

A. Turn off the MAINS POWER to the Control Module for 30 seconds
B. Toggle the MAINS POWER ON and OFF as follows (each ON and OFF must be 2
secs).
C. The Control Module will beep four times when it enters program mode. The duration
of each on period and each off period must be 2 seconds. epending on how
accurate the 2 second periods are the Control Module should enter program mode
after 3 or 4 cycles of turning the power on/off. If the 2 second periods are too short
or too long simply keep toggling power until it does enter program mode.
NOTE: THE MAINS POWER TO THE CONTROL MO ULE MUST BE SWITCHE ON-OFF
VIA AN EXTERNAL SWITCH. NOT THE BUTTONS ON THE HAN SET.
D. Move the new handset to within 2 metres of the receiver and press “LEARN” button
on the handset to add it, or the OFF button to erase all handsets from control
module memory (without any handsets the module will beep 4 times when powered)
SEE TERMS AND CONDITIONS OF WARRANTY. YOU WILL BE CHARGED A SERVICE
FEE IF THE PRODUCT IS NOT DEFECTIVE OR IS DAMAGED BY POWER SURGES,
LIGHTNING, WEATHER, MISUSE/ABUSE AND SIMILAR SITUATIONS. ALL
INSTALLATION INSTRUCTIONS MUST BE FOLLOWED.
IMPORTANT: IF MULTIPLE FANS ARE CONNECTED TO THE SAME FINAL
CIRCUIT OR FED FROM THE SAME POWER SWITCH THEN PROGRAM THE
CONTROL MODULE BY PLUGGING IT INTO A GPO/POWER POINT BEFORE
INSTALLATION.

1
ATTITUDE CONTROL MODULE AND HANDSET
PROGRAMMING
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.
INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS:
The following statement is equi ed by Aust alian Standa ds
AS/NZS60335-1 & AS/NZS60335-2-80:
“This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.”
DANGER: Contact with ceiling fan blades can cause se ious inju y o death.
To electricians and installers. The Australian Competition and Consumer Law 2010 mandates
consumer protection against defects or poor workmanship in provision of services (such as
installing a ceiling fan). To protect yourself and the consumer these instructions must be
followed. Failure to do so may result in the consumer making a claim against you for
consequential loss or damage.
This remote control system is for use only as intended and connection to equipment other than
ceiling fans and associated lighting or installation for purposes outside of those recommended
by Hunter Pacific International may void the manufacturers warranty against defects.
The Control Module and Handset portions are for indoor use only or must be protected against
moisture.
AS/NZS60335-1:2011 Clause 7.12.2 states the following:
“If a stationary appliance is not fitted with a supply cord and a plug, or with other means for
disconnection from the supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the instructions shall state that means
for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules”
The appliance coupler on the end of the supply cord fulfills the requirement for an all pole
disconnect device and an all pole switch is not required. So the fan power can be
disconnected for user maintenance and handset programming a switch in series with the active
(live) must be provided. Connection without this switch may cause undue expense to the
customer if a fault develops. Emergency disconnection under fault conditions is not covered by
defects warranty.
Placing the receiver in the ceiling cavity may exceed its maximum operating temperature,
reduce its life or make it work erratically and may void warranty.
An internal, non-replaceable high rupture capacity fuse is fitted in the receiver. If an in-situ
receiver is open circuit then check for a fault in the attached fan or light before replacing and
possibly damaging another receiver.

19
T ouble Shooting Tips
Fan does not wo k
• Check power switch at wall is turned on
• Check remote control handset battery is OK (LE on handset should glow when a
button is pressed)
• oes Control Module in the fan’s top canopy beep when a button is pressed? If
not, check power is available.
Fan is wobbling
• Check the ball joint slot is locked into the hanger bracket groove.
• Make sure blades are a matching set; the numbers on matching sets of blades
should be identical with the numbers varying within 5 grams of each other.
• Check blade screws are tightened firmly (do not use power tools)
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.

20
FWD (Summe ) and REV (Winte ) Modes Explained
Attitude
Installation Manual
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control or
optional special modules only. Contact Hunter Pacific International for details. Any modification or
attempt to directly wire the fan will void warranty unless those modifications are authorised.

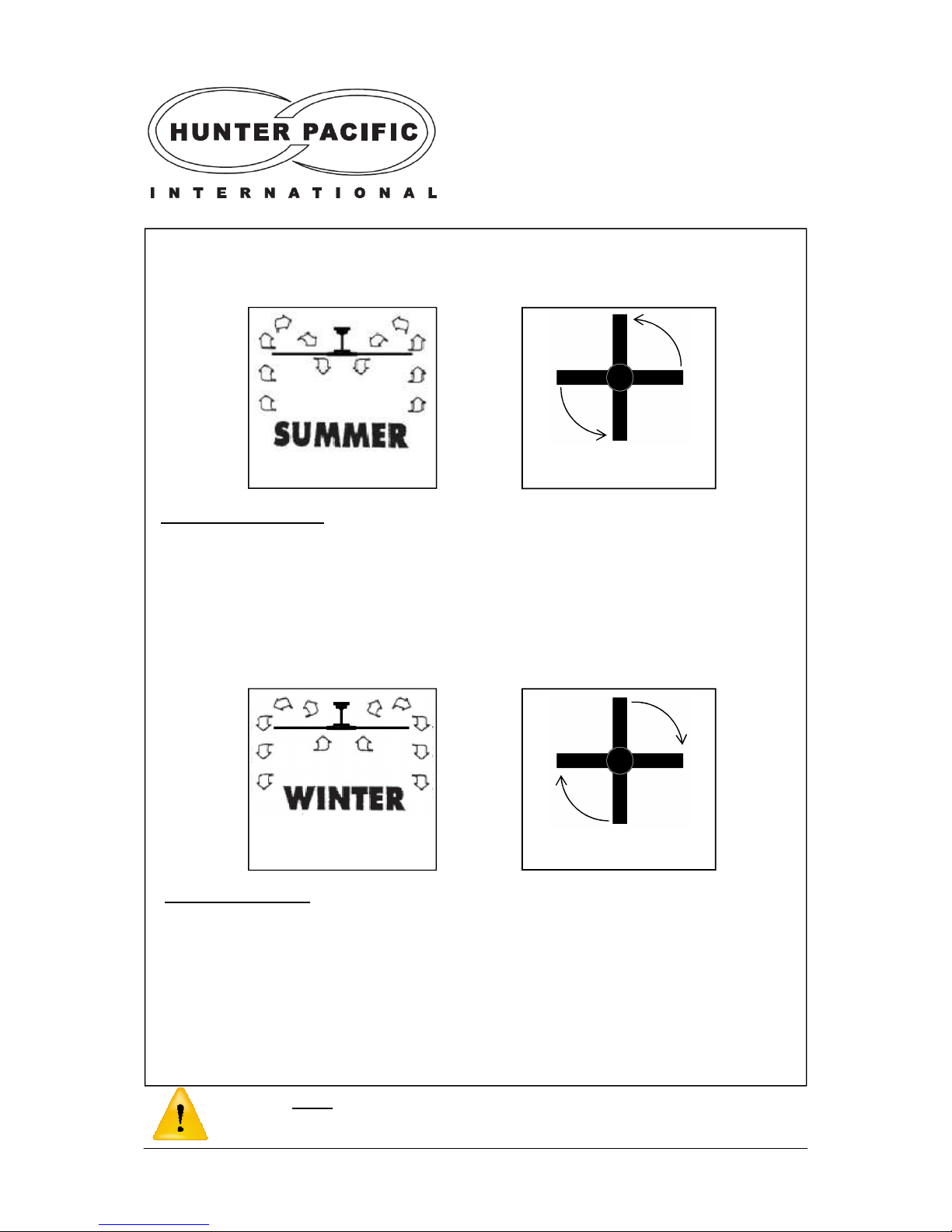

Air is blown down,
producing a cool breeze
irection fan will spin in FW
(Summer) mode when viewed from
underneath
FWD (Summe ) Mode
Ceiling fans are an environmentally smart choice to assist with cooling and warming your
home.
In FW (Summer) mode your ceiling fan will spin to push air down the centre of the fan
producing a cooling breeze.
The direction the fan will spin in FW (Summer) when viewed from underneath will be
An upward airflow will push warm
air off the ceiling and circulate it
downwards
irection fan will spin in REV
(Winter) mode when viewed from
underneath
REV (Winte ) Mode
In REV (Winter) mode your ceiling fan will spin the opposite direction. Air is drawn up
the centre of the fan, and pushed along the ceiling to circulate down to the living areas.
The REV (Winter) mode can also be for air circulation in a poorly ventilated rooms.
The direction the fan will spin in REV (Winter) when viewed from underneath will be
clockwise.
