Hunter Pacific Majestic Duo User manual

1
Electrician
Installation Manual
Majestic Duo Ceiling Fan
CEILING FAN MUST BE INSTALLED
BY A LICENSED ELECTRICIAN
(NO OTHER PERSONS SHOULD ATTEMPT TO INSTALL THIS FAN)
*After installation, electricians must tick off all items on the
quick checklist and fill out their details onto the back page of
the Fan Owner Warranty & Operations Manual
National Warranty Line
1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2158 Australia
ABN :18 063 521 666
ELECTRICIANS - TO PROTECT YOUR CUSTOMER’S WARRANTY, PLEASE READ
PAGE 2 OF THIS BOOKLET PRIOR TO THE INSTALLATION OF THIS PRODUCT.

2
IMPORTANT INFORMATION
ELECTRICIANS MUST READ PRIOR TO INSTALLATION
1. Distributor and installer details and purchase receipts are essential for on-site warranty claims
and must be presented to repair personnel, make sure you record your details in the Fan Owner
Warranty and Operations Manual.
2. Fans and fixed wiring products must only be installed by persons who are appropriately licensed
by the applicable State regulatory body. Therefore, to protect our repair personnel, on-site
warranty claims will not be accepted if products have been installed by unlicensed persons.
3. Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid
fluctuations, water or by connection to alternative power supply sources (such as solar inverters,
etc.) is not eligible for warranty repair.
4. Blades must be replaced only as a complete set. Blades are supplied only as a pre-balanced set
and the replacement of individual blades may void the warranty by causing mechanical
damage to the motor, excessive noise or premature wear.
5. When products are installed in a location requiring special access equipment (such as
scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access
equipment must be borne by the site owner.
For safety, and to protect your customers warranty, the following must be taken into
account when installing and operating the product(s):
IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF
INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY
HOT LINE NUMBER 1300 360 280. BEFORE LEAVING THE JOB
SITE. PLEASE DO NOT REMOVE THE FAN FROM THE CEILING
ONCE INSTALLED UNLESS INSTRUCTED TO DO SO.
(a) DO NOT USE SOLID-STATE WALL CONTROLLERS. Neither leading nor lagging edge
controllers will give satisfactory performance. Wall controls must only be types approved
for use by Hunter Pacific International.
(b) The fan, light and bracket must be earthed.
(c) Fan and light must be run from the same final circuit.
(d) Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,
steel structure or timber framing. If additional bracing is added it must be firmly secured to
the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are
available for certain types of installation.
(e) After installation, fan blades must be at least 2.1 m (7 feet) above floor level.
(f) The use of these products by children and the infirm must be under supervision.
Electrician
Installation Manual
Majestic Duo Ceiling Fan

3

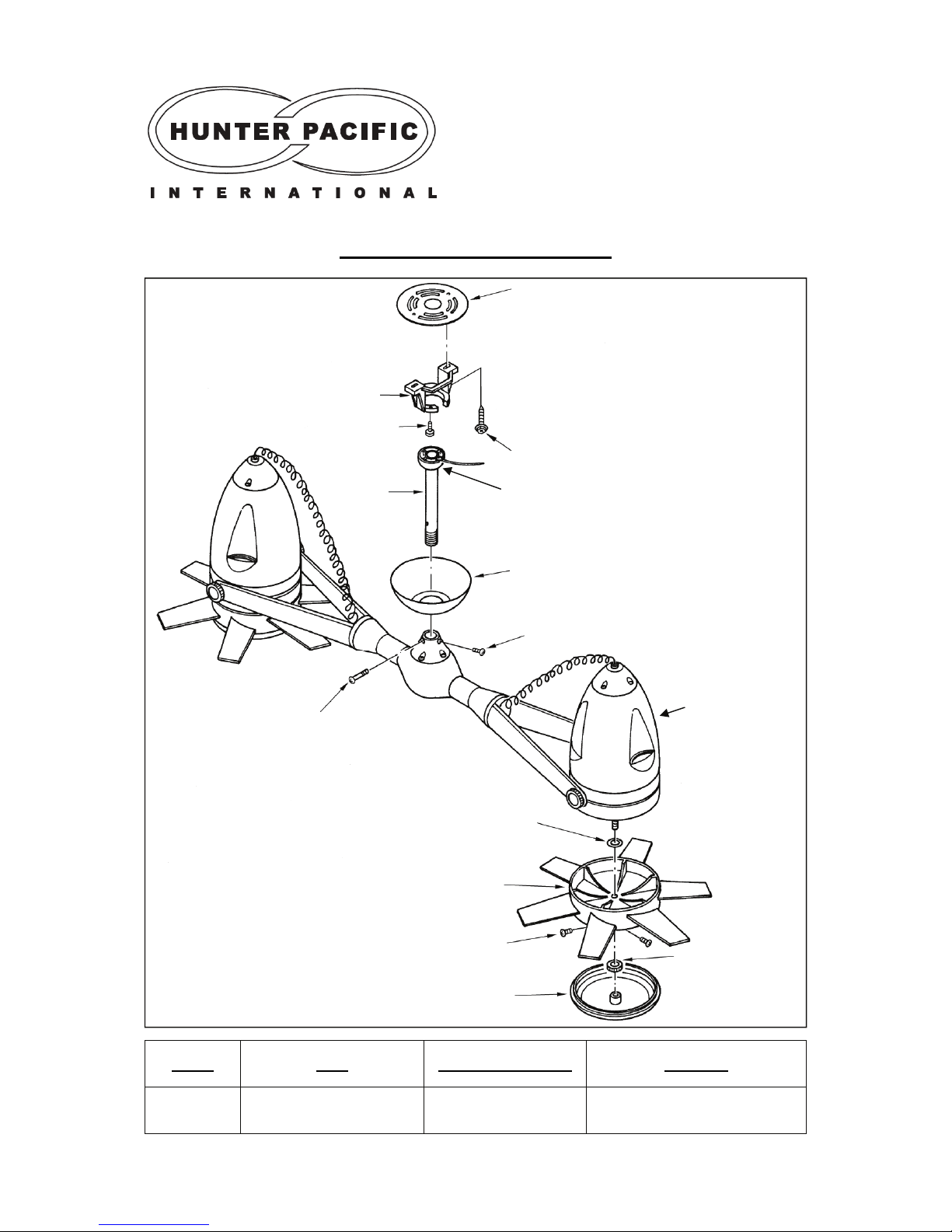

Parts List - Majestic Duo
Hanger Bracket
Standard
Down Rod
Hex Head Screw
Canopy Cover Screw
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Ball Joint
Mounting Plate (Optional)
Canopy Cover
Down Rod Screw
Down Rod Pin Screw
Rotator Washer
Rotator
Rotator Screw
Retaining Nut
Motor Unit Base Plate
CODE SIZE FAN MODEL NAME COLOUR
850 2x 40cm (16”) fan heads Majestic Duo Brushed Aluminium
Motor Unit

4
PARTS LIST TABLE:
Please refer to the parts list image on the previous and the parts list table below when installing this
fan. It is also a good idea to use this table to check that all the parts you require to install this fan
properly is in the fan box.
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Majestic Duo Parts List
Part Qty Part Qty Part Qty
Mounting Plate (Optional) 1 Rotator Washer 2 Motor Unit Base Plate 2
Hanger Bracket 1 Rotator 2 Retaining Nuts 2
Hex Head Screws 2 Rotator Screws 4 Wall Speed Capacitor 1
Canopy Cover Screws 2 Knurled Knobs 4 HPI Wall Controller 1
Canopy Cover 1 Motor Unit 2
Ball Joint 1 Standard Down Rod 1
Ball Joint Screw 1 Down Rod Pin Screw 1
Ball Joint Pin 1 Down Rod Screw 2
(these parts come
preassembled in the box)

5
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Installation Instructions
(Assembling the fan)
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Mounting Plate
Timber Nogging
Hanger Bracket
Hex Head Screw
STEP 1 (Fig. 1 & 2)
Use the hex head screws to secure the hanger
bracket onto the mounting plate (optional) and into
the timber nogging in the ceiling. Timber nogging
should be supported in between two ceiling joist
as shown in the diagram below (figure 2).
FIG (1)
Timber Nogging
Hanger
Bracket
Hex Head
Screw
FIG (2)
STEP 2 (Fig. 3)
With the ball joint attached to the down rod,
slot the ball joint into the hanger bracket.
Refer to page 6 for wiring instructions.
Hanger Bracket
Ball Joint
Down Rod
FIG (3)
Brown
Blue
Green
STEP 3 (Fig. 4)
a) Feed the fan wires from the adjustable arms joining point through the down rod and the ball joint.
b) Then connect the adjustable arms joining point with the down rod using the screws provided.
c) Now, lock the ball joint onto the down rod using the ball joint pin, carefully move the wires to the
sides and avoid pinching them.
FIG (4)
Adjustable Arms
Joining Point
Down Rod Pin Screw
Down Rod Screw
Fan Wires
Down Rod
Pin Screw Hole
Canopy Cover
Ball Joint
Fan Wires
Down Rod

6
Installation Instructions
(Assembling the fan )
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Hanger Bracket
Canopy Cover
Canopy Cover Screw
STEP 4 (Fig 5)
a) Slide canopy cover up and over the
hanger bracket.
b) Twist canopy cover as shown in diagram
until the screws holes can be seen.
c) Half loosen canopy cover screws.
d) Now twist canopy cover in the opposite
direction to the diagram and fully tighten the
canopy covers screws, this will stabilise the
canopy cover.
FIG (5)
STEP 5 (Fig.6) Take the motor unit and
remove the knurled knobs as shown in the
diagram above.
Motor Unit
Knurled Knob
Knurled Knob
FIG (6)
Supply
E N A
A A
FA LA E N
Green-yellow
Black
Red
Red
Red
Brown
White
Green-yellow
Blue
Fan Wiring
Combi
Control
Separate
Control
Separate terminal
for when 3 pole
block is fitted.
Wiring for use with 3 pole block
- Colours representative only
- Separate extension terminal for active
wire for light when 3 pole block fitted.
Wiring Instructions
Note: 2 Wall switches are included for
individual operation of the motor units.

7
Installation Instructions
(Assembling the fan )
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Knurled Knob
Adjustable Arms
Motor Unit

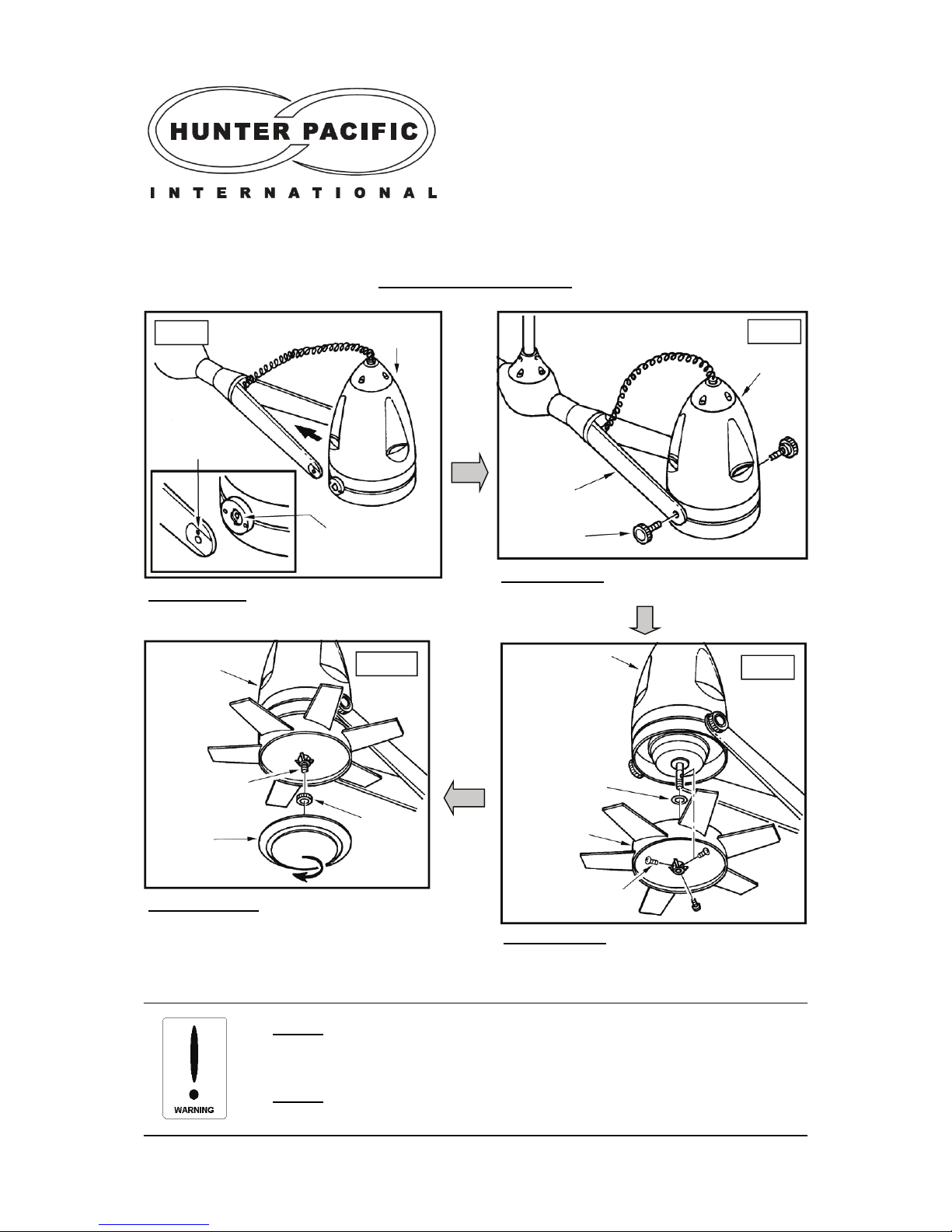

STEP 7 (Fig. 8) Secure the motor unit on to
the adjustable arms using the knurled knobs.
Motor Unit
Rotator
Screw
FIG (8)
FIG (9)
STEP 8 (Fig. 9) Fit the washer onto the motor
shaft, then put the rotator on after it. Once the
rotator is on, tighten the screws to secure the
rotator in place.
Motor Unit
Motor Shaft
Motor Unit
Base Plate
FIG (10)
STEP 9 (Fig. 10) Tighten the retaining nut
to the motor shaft at the bottom of the
rotator and then place the motor unit base
plate on to the rotator. Secure the motor
unit base plate by pressing it against the
rotator and turning it clockwise.
FIG (7)
Locating Lug
STEP 6 (Fig.7) Take the motor unit and lock
the locating lug into the locating slot.
Washer
Retaining
Nut
Locating Slots

8
Installation Instructions
(Assembling the fan )
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
FIG (11)
Adjustable Arms
STEP 10 (Fig. 11) Manually adjust the adjustable arms as
shown in the diagram above to the position that suits you.
STEP 11 (Fig. 12) Manually adjust the motor units to
the angle that suits you. Refer to the diagram above.
Motor Unit
FIG (12)

9
Installation Instructions
(Attaching an extension rod - Hunter Pacific rods to be used ONLY)
Step 1) (Fig. 13)
Loosen the down rod screws and unlock the
down rod pin screw to remove the standard
down rod from the adjustable arm centre point.
Step 2) (Fig. 14)
Loosen the ball joint screw, take out the
ball joint pin and remove the ball joint.
Then slide off the canopy cover.
Ball Joint
Ball Joint Pin
Ball Joint
Screw
Down Rod
Fig. 14
Down Rod
Tighten Ball
Joint Screw
Ball Joint
Ball Joint Pin
Fig. 15
Step 3) (Fig. 15 & 16)
Now install the extension rod and
reverse step 1 & 2 to secure the rod to
the fan and the ball joint.
NOTE: If the extension rod needs to be shortened, cut the rod to the required length and drill the
appropriate hole size to fit the ball joint pin. The cut end of the rod should be used on the ball joint
end only. When installing a 1.8m extension rod the wiring will need to be extended and joined. This
should be done using crimp style connectors.
Fig. 13
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
Down Rod Pin
Screw Hole
Fan Wires
Screws
Down Rod Pin Screws
Adjustable Arms Centre Point
Down Rod Pin
Screw Hole
Fan Wires
Screws
Down Rod Pin Screws
Adjustable Arms Centre Point
Fig. 16

10
Trouble Shooting Tips - Fan
Fan will not start
 Check that the reversing switch is pushed into its Summer or Winter position.
 Check wire connections in the wall switch and terminal blocks, ensure all wires
are making proper contact.
 If it is a Typhoon fan, check and ensure the reversing switch plate under the
switch cover is not bent, also check the 3 wires coming from the switch plate are
straight. Occasionally the switch plate may get bent during transportation, this
allows the switch cover to press against the plate and stop the fan from working.
 If it is a Typhoon fan, check the nine pin plug under the switch cover is properly
connected and the colours on the plug are corresponding.
 If it is a Concept fan and it has an external start up capacitor, check that this
external capacitor is properly connected.
Fan speed is not corresponding to the wall controller
 Check the speeds on the wall controller has been wired correctly and are making
proper contact. Brown = speed 1, Purple= speed 2, Red = speed 3.
 Check wires in the terminal block are connected properly, connection wires
should be stripped back at the connection point and unused wires should be
sealed and capped off.
 Check that the reversing switch is pushed into its Summer or Winter position.
Fan is not corresponding to the remote control
 Check for flat battery. Make sure the dipswitch settings in the hand piece and the
remote receiver for the same fan are corresponding.
Fan is wobbling
 Check the ball joint slot is locked into the hanger bracket groove.
 Make sure blades are a matching set; the letters on matching sets of blades
should be identical with the numbers varying within 3 grams of each other.
 Check blade screws are tightened firmly. If necessary use balancing kit provided
to settle the wobble.
Fan is noisy
 Check all screws and parts are secured firmly. Ensure there are no loose parts
moving inside the motor housing.
 Make sure the fan is installed with a Hunter Pacific wall controller only, do not use
solid state controllers as they can cause unpleasant motor noises.
National Warranty Line 1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan

11
Quick Checklist
1.
Ceiling fan is not installed to a solid-state wall controller. Neither leading nor
lagging edge controllers will give satisfactory performance. Wall controllers
must only be types approved for use by Hunter Pacific International.
2. The fan, optional fan light and bracket is earthed.
3. Fan and optional fan light are run from the same final circuit.
4.
Mounting bracket must be firmly secured to a solid structure such as a concrete
ceiling, steel structure or timber framing. If additional bracing is added it must be
firmly secured to the rafters and not left floating on the ceiling. Special mounts,
such as T-hooks, are available for certain types of installation.
5. Fan blades are at least 2.1m (7feet) above floor level.
6. If fan is installed on a wall controller, check the fan is operating correctly on all
three speeds using the wall controller.
7. If light is installed. Check light switch is functioning properly.
8. If remote control is installed. Check the fan (and light if installed) is responding to
the remote control correctly.
9. If remote control is installed. Check where possible a separate isolation switch has
been installed for the fan.
10. Check electrician’s details have been recorded onto the back page of the Owner’s
Operations and Warranty Manual.
Electricians make sure everything on this checklist is ticked off before you leave the installation site.
If you have trouble installing our product please refer to the trouble shooting section on the previous
page first then phone the Hunter Pacific Warranty Line on 1300 360 280 (open 9am to 5pm EST).
DO NOT uninstall the fan and DO NOT return fan to retailer.
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is
not approved by Hunter Pacific for use with its fans. DO NOT use solid state
controllers. The use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of
the fan. If only one blade is damaged you are still required to replace with a new set.
Electrician
Installation Manual
Majestic Duo Ceiling Fan
