Hunter Pacific Icon Fan User manual

Electrician
Installation Manual
Icon Ceiling Fan
CEILING FAN MUST BE INSTALLED
BY A LICENSED ELECTRICIAN
(NO OTHER PERSONS SHOULD ATTEMPT TO INSTALL THIS FAN)
*Electricians are recommended to tick off all items on the quick
checklist and fill out their details onto the back page of the Fan
Owner Warranty & Operations Manual after installation
National Warranty Line
1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2158 Australia
ABN :18 063 521 666
ELECTRICIANS - TO PROTECT YOUR CUSTOMER’S WARRANTY, PLEASE READ
PAGE 2 OF THIS BOOKLET PRIOR TO THE INSTALLATION OF THIS PRODUCT.
NOTE: The Icon light fitting does not come standard,
however it can be bought as an accessory item.

IMPORTANT INFORMATION
ELECTRICIANS MUST READ PRIOR TO INSTALLATION
1. Distributor and installer details and purchase receipts are essential for on-site warranty claims
and must be presented to repair personnel, make sure you record your details in the Fan Owner
Warranty and Operations Manual.
2. Fans and fixed wiring products must only be installed by persons who are appropriately licensed
by the applicable State regulatory body. Therefore, to protect our repair personnel, on-site
warranty claims will not be accepted if products have been installed by unlicensed persons.
3. Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid
fluctuations, water or by connection to alternative power supply sources (such as solar inverters,
etc.) is not eligible for warranty repair.
4. Blades must be replaced only as a complete set. Blades are supplied only as a pre-balanced set
and the replacement of individual blades may void the warranty by causing mechanical
damage to the motor, excessive noise or premature wear.
5. When products are installed in a location requiring special access equipment (such as
scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access
equipment must be borne by the site owner.
For safety, and to protect your customers warranty, the following must be taken into
account when installing and operating the product (s):
IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF
INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY
HOT LINE NUMBER 1300 360 280. BEFORE LEAVING THE JOB
SITE. PLEASE DO NOT REMOVE THE FAN FROM THE CEILING
ONCE INSTALLED UNLESS INSTRUCTED TO DO SO.
(a) DO NOT USE SOLID-STATE WALL CONTROLLERS. Neither leading nor lagging edge
controllers will give satisfactory performance. Wall controls must only be types approved
for use by Hunter Pacific International.
(b) The fan, light and bracket must be earthed.
(c) Fan and light must be run from the same final circuit.
(d) Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,
steel structure or timber framing. If additional bracing is added it must be firmly secured to
the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are
available for certain types of installation.
(e) After installation, fan blades must be at least 2.1 m (7 feet) above floor level.
(f) The use of these products by children and the infirm must be under supervision.
Electrician Installation Manual
Icon Ceiling Fan
2

Part Qty Part Qty Part Qty
Blades 4 Base Plate 1 Canopy Cover Screws 2
Blade Screws 12 HPI Wall Controller 1 Canopy Cover 1
Blade Washers 12 Hanger Bracket 1 Motor Housing 1
Wall Speed Capacitor 1 Hex Head Screw 2
Ball Joint 1 15cm Down Rod 1 Reversing Switch Cover 1
Ball Joint Screw 1 Down Rod Pin Screw 1 (these parts come preassembled)
Ball Joint Pin 1 Down Rod Short Screw 1
Hanger Bracket
Hex Head Screw
Ball Joint
Canopy Cover
Parts List - Icon Fan
Blade
Blade Screw
Base Plate
Motor Housing
Electrician Installation Manual
Icon Ceiling Fan
3

4
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
STEP 3 (Fig. 3)
a) TIGHTEN THE GRUB SCREW.
(This is important to ensure the fan will not
wobble and the weight of the fan is supported).
b) Hang the ball joint into the hanger bracket.
Ensure the groove on the hanger bracket is
locked into the slot on the ball joint.
Assembling the fan
STEP 2 (Fig. 2)
a) Drill a hole in the timber nogging for wiring.
b) Use the two hex screws to secure the hanger
bracket onto the timber nogging. The timber
nogging should be supplied by the installing
electrician and must be supported between the
two ceiling joists as shown in the diagram
above.
STEP 1 (Fig. 1)
PERFORM THIS STEP IF THE WIRES HAVE NOT
BEEN FED THROUGH THE DOWN ROD.
a) Loosen the ball joint screw and remove the
ball joint pin to separate the down rod from the
ball joint.
b) Feed wires from motor housing up and
through the down rod.
c) Insert the down rod pin screw through the
connection collar and the down rod (avoid
pinching wires). Tighten down rod pin screw.
Secure down rod with the other shorter down
rod screw provided.
d) Slide on canopy cover and refit the ball joint.
If an extension rod needs to be installed
please go to page 9.
Hanger
Bracket
Down Rod
Fig. 2
Timber Nogging
Hex Head Screw
Hanger
Bracket
Fig. 3
Fig. 1
Down Rod
Down Rod Pin Screw
Canopy Cover
Connection Collar
Motor Housing
Ball Joint

5
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Assembling the fan
Fig. 4
Green
Earth Wires

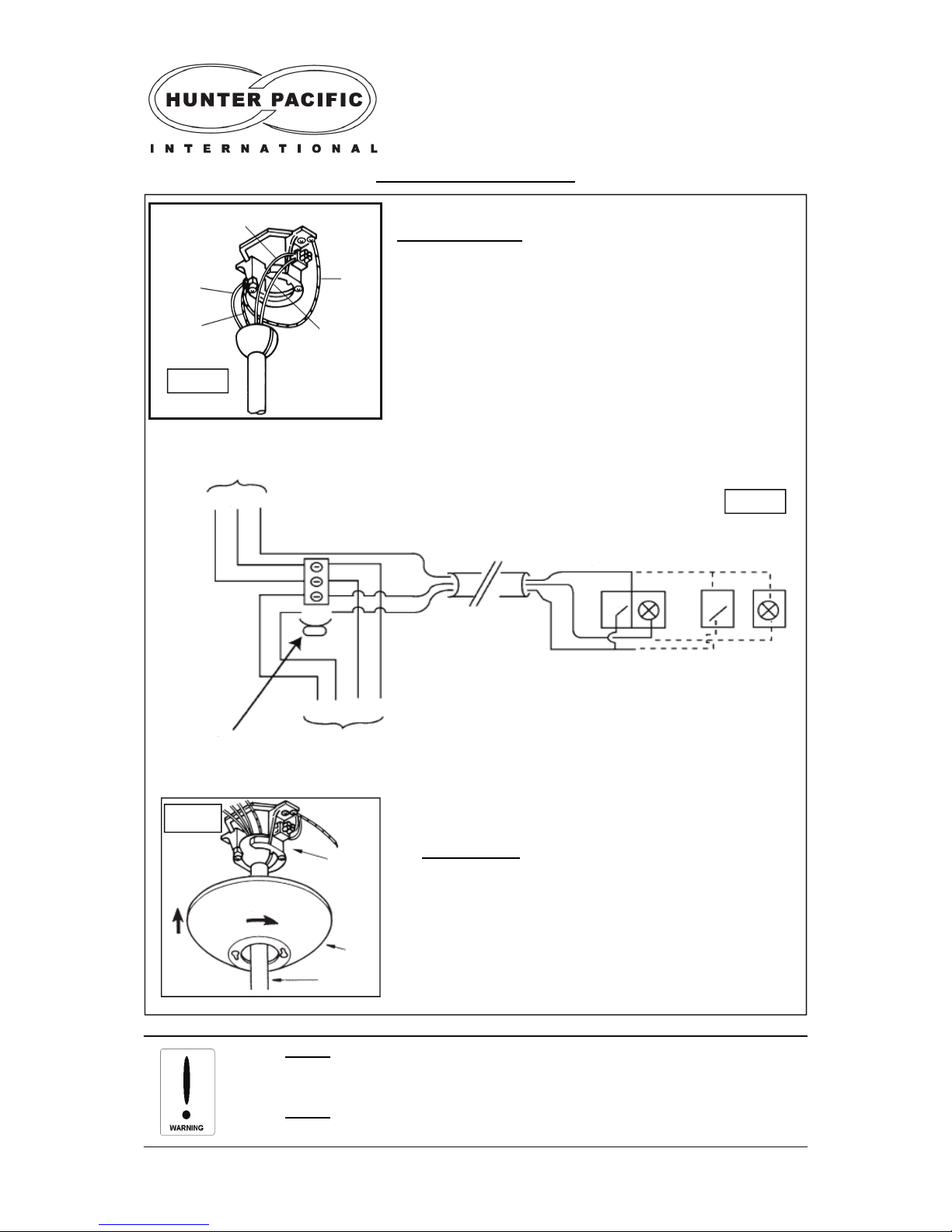

STEP 4 (Fig 4 & 5)
a) Connect wires from the fan with wires in the ceiling via the
terminal block on the hanger bracket refer to figure 4 and 5.
b) Make sure earth wires are also connected.
c) Connect light wires (red/white) if a light fitting is going to be
used. (Cap seal light wires if a light fitting is not going to be
used).
Wiring Instructions (with and without accessory light)
Brown
Blue
Red/White Earth
Wires
Supply
E N A
LA LA
FA LA E N
Green-yellow
Black
Red
Red
Red
Brown White or Red
Green-yellow
Blue
Fan Wiring
Combi
Control
Separate
Control
Separate terminal
For when 3 pole
block is fitted.
Wiring for use with 3 pole block
- Colours representative only
- Separate terminal required for active
for light when 3 pole block fitted.
Fig. 5
STEP 5 (Fig 6)
a) Slide canopy up and over the hanger bracket.
b) Twist the canopy to locate screws holes then loosen
canopy screws half way.
c) Now twist the canopy to the opposite direction and
fully tighten screws until the canopy is stabilised.
Fig. 6
Hanger
Bracket
Canopy
Down Rod

6
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Assembling the fan
Fig. 7
STEP 6 (Fig 7)
a) Slightly push the base plate upward and turn
anticlockwise until tabs unlock to remove it.
b) Once the base plate is removed, the
internal blade carriers will be exposed. Insert blades
and attach them to the motor housing as shown in
figure 8.
c) Tighten the 3 blade screws firmly but do not over
tighten.
d) Install blades for each fan individually.
Blad
Blade Screws
Tab
Base Plate
Fig. 8
STEP 7 (Fig. 8)
a) Once all blades are attached to the motor
housing, refit the base. The tabs should lock in to
place ensuring the base plate is securely
attached to the motor housing. Tab slots
Tabs
Base Plate
STEP 8 (Fig. 9)
a) Reverse switch should be in the down
position for Summer (fan spins anticlockwise)
and in the up position for Winter (fan spins
clockwise).
b) Make the sure reverse switch is not stuck in
its neutral position otherwise the fan will not
spin.
Fig. 9 Reverse

7
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.

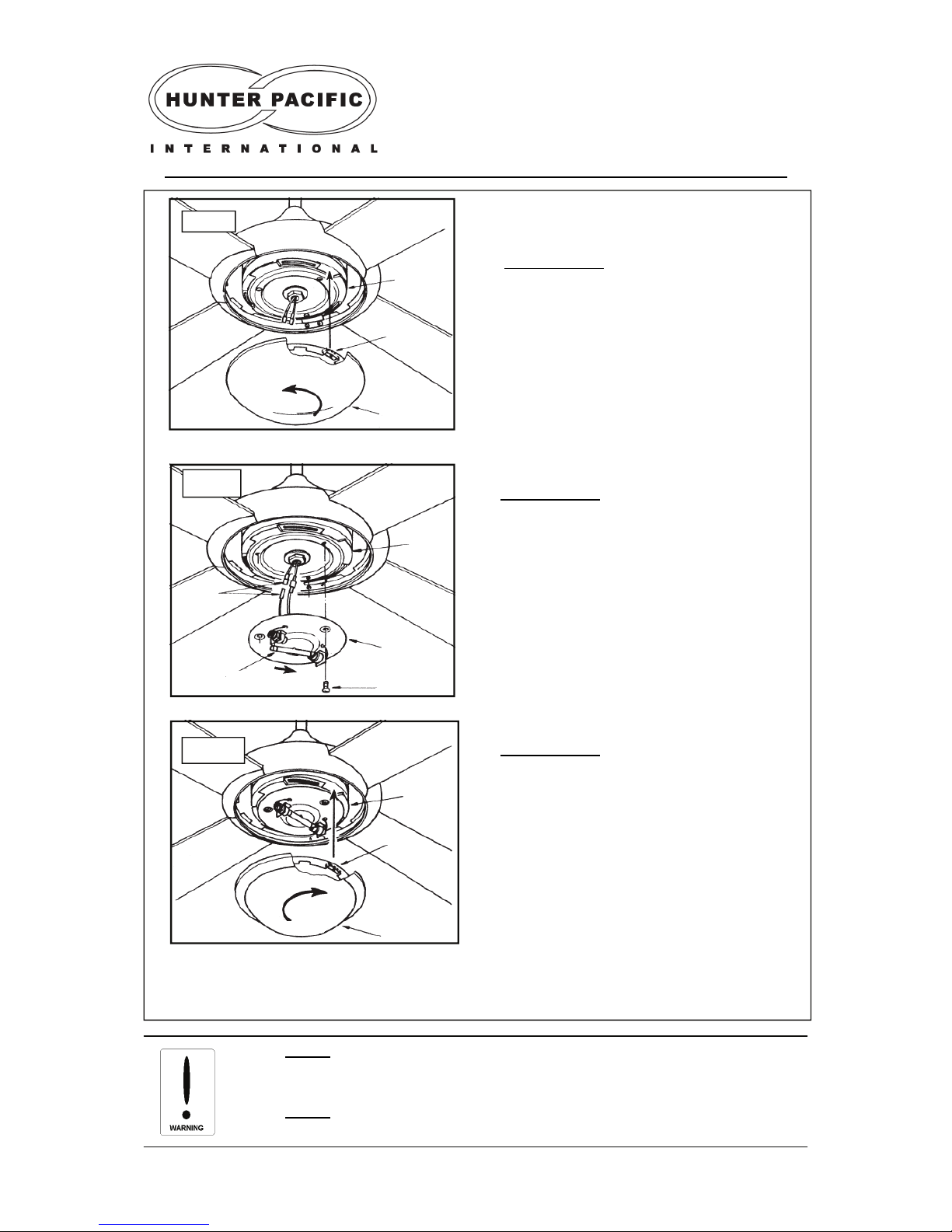

Attaching an accessory light kits - 78 mm halogen light (MAX 100W)
Fig. 11
Tab
Slots
Light
Wires
Light
Assembly Kit
Globe
STEP 2 (Fig. 11)
a) Use the connectors to attach the light wires
from the motor housing to the light assembly kit.
b) Attach and secure the light assembly kit using
the 3 screws provided.
c) Plug the light globe into the socket. DO NOT
touch the light globe with your fingers. It is
important to keep the globe clean or it will fail pre-
maturely.
STEP 1 (Fig. 10)
a) Slightly push the base plate upward and turn
until tabs unlock to remove it.
Screws
Tab Slots
Tabs
STEP 3 (Fig. 12)
Gently push the glass cover upwards and turn to
attach the light glass to the fan.
Fig. 12
Glass cover
Base
Tab
Slots
Tabs
Fig. 10

8
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Attaching an accessory light kit — GX 53M 14W compact fluorescent light
STEP 2 (Fig. 14)
a) Using the connectors on the wires
connect the light wire from the motor housing with
the light wires on the light assembly.
b) Attach and secure the light assembly kit using the
3 screws provided.
Tab
Slots
Tabs
Base Plate
STEP 1 (Fig. 13)
a) Slightly push the base plate upward and turn until
tabs unlock to remove it.
Fig. 13
Tabs
Screws
Light
Wires
Fig. 14
STEP 4 (Fig. 16)
a) Turn the light to lock it to the light socket.
b) Gently push the glass cover upwards and turn
it to attach the glass cover to the fan.
Tab
Slots
Tabs
Glass Cover
Fig. 15 Fig. 16
Compact
Fluorescent
Light
Light Socket
STEP 3 (Fig. 15)
a) Fit the compact fluorescent light to the
light socket.
Compact
Fluorescent
Light

9
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Tab
Slots
Tabs
Base
STEP 1 (Fig. 17)
Slightly push the base plate upward and turn until
tabs unlock to remove it.
Fig. 17
STEP 2 (Fig. 18)
a) Using the connectors on the wires attach
the light wires from the motor housing to the light
wires on the light assembly.
b) Attach and secure the light assembly kit using
the 3 screws provided.
c) Install light globes into the light sockets.
Tabs
Screws
Light
Wires
Fig. 18
STEP 3 (Fig. 19)
a) Once globes are installed, the glass cover can
be fitted on to the fan.
b) Gently push the glass cover upwards and turn
it to attach the glass cover to the fan.
Tab
Slots
Fig. 19
Glass Cover Tabs
E14 light
globes
Attaching an accessory light kit — E14 Light (2 x 40W)

10
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Attaching an extension rod - Hunter Pacific rods to be used ONLY
Step 1 (Fig. 20)
Loosen and remove the down rod screws and
the down rod pin screw to remove the
standard down rod from the motor housing.
Step 2 (Fig. 21)
Loosen the ball joint screw, take out the ball joint
pin and remove the ball joint. Then slide off the
canopy cover.
Fig. 17
Down Rod
Tighten Ball
Joint Screw
Ball Joint
Ball Joint Pin
Fig. 23
Step 3 (Fig. 22 & 23)
Now install the extension rod and
reverse step 1 & 2 to secure the rod to
the fan and the ball joint.
NOTE: If the extension rod needs to be shortened, cut the rod to the required length and drill
the appropriate hole size to fit the ball joint pin. The cut end of the rod should be used at the ball
joint end only. When installing a 1.8m extension rod the wiring will need to be extended and
joined. This should be done using crimp style connectors.
Motor
Housing
Down Rod
Pin Screw
Down Rod
Canopy
Cover
Fig. 20 Ball Joint Pin
Ball Joint
Loosen
Ball Joint
Screw
Down Rod Down Rod
Ball Joint
Motor
Housing
Down Rod
Pin Screw
Down Rod
Canopy
Cover
Fig. 22
Fig. 21

11
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Fan will not start
 Check that the reversing switch is pushed into its Summer or Winter position.
 Check wire connections in the wall switch and terminal blocks, ensure all wires
are making proper contact.
 If it is a Typhoon fan, check and ensure the reversing switch plate under the
switch cover is not bent, also check the 3 wires coming from the switch plate are
straight. Occasionally the switch plate may get bent during transportation, this
allows the switch cover to press against the plate and stop the fan from working.
 If it is a Typhoon fan, check the nine pin plug under the switch cover is properly
connected and the colours on the plug are corresponding.
 If it is a concept fan and it has an external start up capacitor, check that this
external capacitor is properly connected.
Fan speed is not corresponding to the wall controller
 Check the speeds on the wall controller has been wired correctly and are making
proper contact. Brown = speed 1, Purple= speed 2, Red = speed 3.
 Check wires in the terminal block are connected properly, connection wires
should be stripped back at the connection point and unused wires should be
sealed and capped off.
 Check that the reversing switch is pushed into its Summer or Winter position.
Fan is not corresponding to the remote control
 Check for flat battery. Make sure the dipswitch settings in the hand piece and the
remote receiver for the same fan correspond.
Fan is wobbling
 Check the ball joint slot is locked into the hanger bracket groove.
 Make sure blades are a matched set; the letters on matching sets of blades
should be identical with the numbers varying within 3 grams of each other.
 Check blade screws are tightened firmly. If necessary use balancing kit provided
to settle the wobble.
Fan is noisy
 Check all screws and parts are secured firmly. Ensure there are no loose parts
moving inside the motor housing.
 Make sure the fan is installed with a Hunter Pacific wall controller only, do not use
solid state controllers as they can cause unpleasant motor noises.
National Warranty Line 1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
Trouble Shooting Tips — Fan

12
Electrician Installation Manual
Icon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
 Light will not turn on - Make sure globe has not blown and it is properly fit-
ted between the metal prongs. Check all light wires in the light kit, the terminal
block in the canopy cover and the wall switch have been connected together
correctly.
 Light is not corresponding to remote control- Make sure globe has not
blown and it is properly fitted between the metal prongs. Check all light wires
in the light kit, the terminal block in the canopy cover and the wall switch have
been connected together correctly. Check dip switch settings in remote hand
piece and remote receiver correspond.
 Light wires appear to be missing or too short - Wires may be stuck in the
motor housing. Carefully pull wires out of the motor housing, careful not to
strip the wires as this may cause the fan to short.
 Light flickers or flashes - Check globe is secured between the metal prongs
in the light kit. Make sure you are using the globes specified.
National Warranty Line 1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
Trouble Shooting Tips — Light

Quick Checklist
1.
Ceiling fan is not installed to a solid-state wall controller. Neither leading nor
lagging edge controllers will give satisfactory performance. Wall controllers
must only be types approved for use by Hunter Pacific International.
2. The fan, optional fan light and bracket is earthed.
3. Fan and optional fan light are run from the same final circuit.
4.
Mounting bracket must be firmly secured to a solid structure such as a concrete
ceiling, steel structure or timber framing. If additional bracing is added it must
be firmly secured to the rafters and not left floating on the ceiling. Special
mounts, such as T-hooks, are available for certain types of installation.
5. Fan blades are at least 2.1m (7feet) above floor level.
6. Check the fan is operating correctly on all three speeds using the wall control-
ler.
7. If light is installed. Check light switch is functioning properly.
8. If remote control is installed. Check the fan (and light if installed) is responding
to the remote control correctly. Write Dip switch code in user guide.
9. If remote control is installed. Check where possible a separate isolation switch
has been installed for the fan.
10. Check electrician’s details have been recorded onto the back page of the
Owner’s Operations and Warranty Manual.
Electricians make sure everything on this checklist is ticked off before you leave the installation site.
If you have trouble installing our product please refer to the trouble shooting section on the previous
page first then phone the Hunter Pacific Warranty Line on 1300 360 280 (open 9am to 5pm EST).
DO NOT uninstall the fan and DO NOT return fan to retailer.
Electrician Installation Manual
Icon Ceiling Fan
12
