Hunter Pacific THE WOOD Series Owner's manual

POWER OUTLETS OR FIXED WIRING
MUST BE INSTALLED BY A LICENSED
ELECTRICIAN
National Warranty Line
1300 360 280
Monday to Friday from 9am to 5pm EST
Only available within Australia
Hunter Pacific International Pty Ltd, Building 8, 256 New Line Road, Dural NSW 2158 Australia
ABN :18 063 521 666
TO PROTECT YOUR WARRANTY, PLEASE READ PAGE 2 OF THIS BOOKLET PRIOR
TO THE INSTALLATION OF THIS PRODUCT.
®
™
SUPPLEMENTAL INSTRUCTION AND WARRANTY MANUAL
WARRANTY INFORMATION APPLIES TO AUSTRLIA ONLY
(If outside Australia then consult local supplier for their warranty terms))

2
(a) DO NOT USE WALL CONTROLLERS. Other than a simple On/Off switch
(b) The power outlet must provide an earth.
(c) Mounting bracket must be firmly screwed to a solid structure such as a concrete ceiling,
steel structure or timber framing. If additional bracing is added it must be firmly secured to
the rafters and not left floating on the ceiling. Special mounts, such as T-hooks, are
available for certain types of installation.
(d) After installation, fan blades must be at least 2.1 m (7 feet) above floor level.
(e) The use of these products by children and the infirm must be under supervision.
®
IMPORTANT INFORMATION READ PRIOR TO INSTALLATION
1. Installer details and purchase receipts are essential for warranty claims and must be available
upon demand. A page towards the back of this manual has been allocated to allow you to record
these details.
2. Power outlets, switches and fixed wiring products must only be installed by persons who are
appropriately licensed by the applicable State regulatory body. Therefore, to protect our repair
personnel, on-site warranty claims will not be accepted if power outlets or fixed wiring has been
performed by unlicensed persons.
3. Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid
fluctuations, water or by connection to stand alone alternative power supply sources (such as
non-grid solar inverters, etc.) is not eligible for warranty repair.
4. When products are installed in a location requiring special access equipment (such as
scaffolding or scissor lifts, etc) the cost of providing, installing and operating special access
equipment must be borne by the site owner.
For safety, and to protect your warranty, the following must be taken into account when installing
and operating the product(s):
ATTENTION ELECTRICIANS:
This product must be installed using an ON/OFF wall switch to aid in Control Module
programming and troubleshooting. If it is not possible to use a wall switch then the
Control Module and Handsets must be checked before installation. To do so connect
the Control Module to a standard GPO and verify the Control Module beeps when
buttons are pressed on the hand piece. If not program the unit as per page 6.
IF THERE ARE ANY PROBLEMS WITH THE PRODUCT AT TIME OF
INSTALLATION THE INSTALLER MUST CONTACT THE WARRANTY
HOT LINE NUMBER 1300 360 280 BEFORE LEAVING THE JOB SITE.
™

3

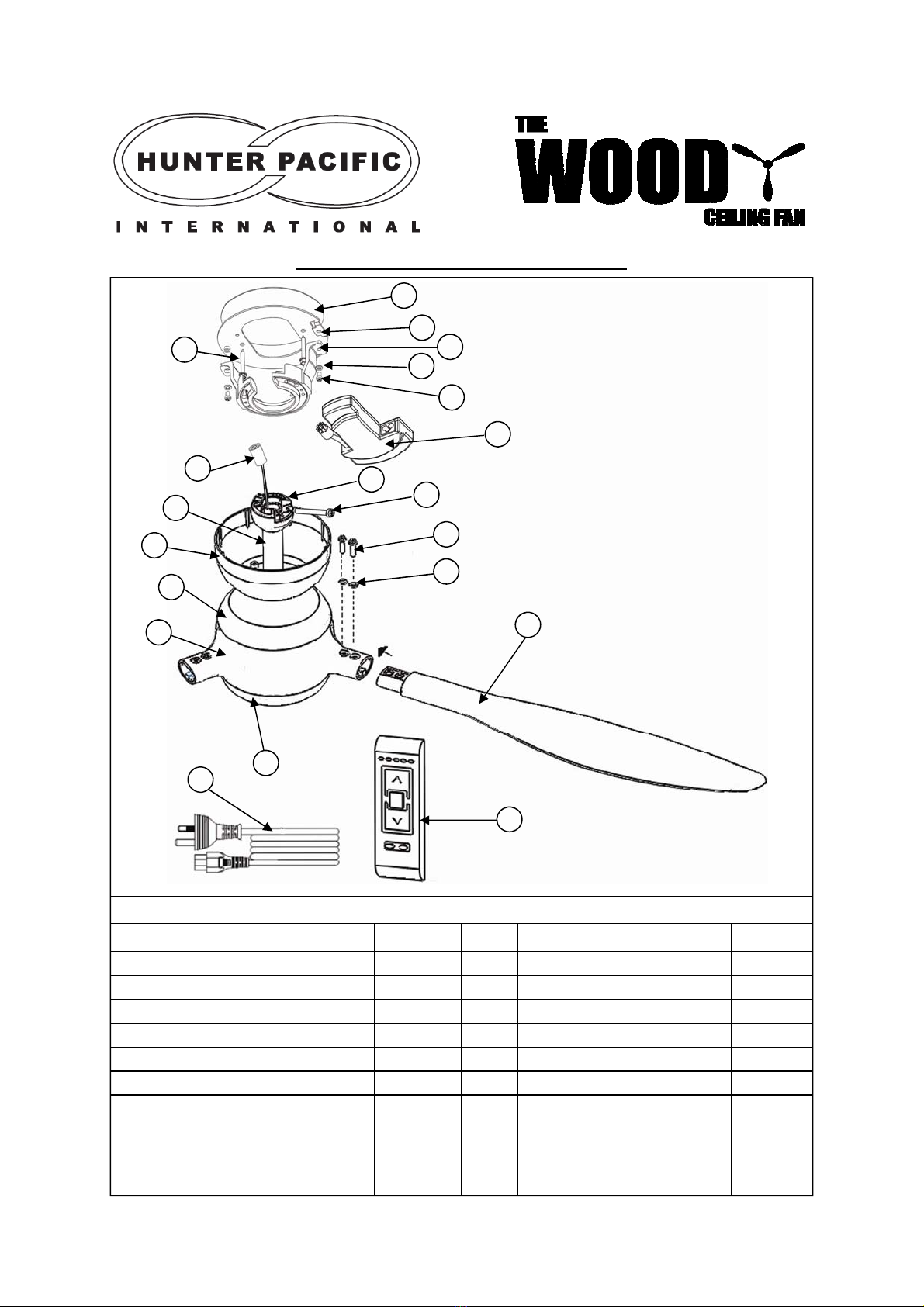

Parts List - Woody Ceiling Fan
®
1
2
3 4
5
6
7
8
10
14
15
17
16 18
12
20
19
13
WOODY Ceiling Fan Parts List
No. Part Quantity No. Part Quantity
1 Silicone Pad 1 11 Down Rod (26mm Diameter) 1
2 Plate 1 12 Top Canopy 1
3 Wood Screw 2 13 Blade Screws 6
4 Hanger Bracket 1 14 Blade Screw Washers 6
5 Bracket Washer 2 15 Top Motor Cover 1
6 Bracket Screw 2 16 Central Band 1
7 Control Module 1 17 Bottom Motor Cover 1
8 Motor Plug 1 18 Blades 3
9 Ball Joint 1 19 IEC C5 AU 3 pin plug 1
10 Ball Joint Screw 1 20 Handset 1
9
11
™

4
®
IMPORTANT INFORMATION
The table below contains information that can help you quickly identify the product you are installing.
If you have any difficulties installing our product, we recommend you to call our warranty line on
1300 360 280 for advice.
Woody Ceiling Fans 132cm (52”)
CODE FAN MODEL NAME COLOUR
800 WOODY CEILING FAN White Motor & Blades
802 WOODY CEILING FAN Brushed Aluminium Motor
& Natural Timber Blades
Woody Ceiling Fans 152cm (60”)
CODE FAN MODEL NAME COLOUR
810 WOODY CEILING FAN White Motor & Blades
812 WOODY CEILING FAN Brushed Aluminium Motor
& Natural Timber Blades
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
™

5
®
WOODY CEILING FAN HANDSET BUTTON
EXPLANATION
To turn fan on press either or and the fan will start and settle on the speed it was last
used. The fan may swing back and forth as it sense the present blade position.
The five LED lights on the remote control display the fans current speed. Low speed is indicated
by the 1st LED on the left of the handset. High speed is shown by the 5th LED. A further press of
the Λafter selecting high speed will enable Boost mode, shown by the 1st and 5th LED briefly
illuminating.
^
^
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
LED Speed Display
Increase Fan
Speed Button
Decrease Fan
Speed Button
Forward/Reverse Button
Fan Off
Light On/Off *
Pressing the Fan Off
button turns the fan off
Fan will spin in forward
(summer) or reverse
(winter) mode
The speed of the fan will
increase
The speed of the fan will
decrease
Turns the light on the
fan on or off.
™
Use REVERSE anytime to change direction. Depending on speed it may take a little while for the
fan to stop and change direction.
*Only applies to fans fitted with lights (Note: not all fans can be fitted with a light). Make sure the
power is turned off at the isolating wall switch before changing light globes.

6
®
WOODY CEILING FAN CONTROL MODULE AND
HANDSET PROGRAMMING
MAKE SURE THE WALL SWITCH IS ON OR REMOTE CONTROL WILL NOT WORK
Handset Battery Installation/Replacement
Open the battery compartment by pushing the latch away from you. UNWRAP THE PLASTIC
FROM AROUND NEW BATTERIES (if wrapped). Observe polarity and make sure battery sits
properly in recess. Slide hatch back into place. Check red LEDs illuminate after pressing buttons.
How To Add a New or Replacement Handset
The receiver can learn the identification code for a new handset using the following procedure:
A. Turn OFF the MAINS POWER to the Control Module for 30 seconds.
B. Turn ON the MAINS POWER.
C. Within 3 minutes of turning the power ON press the and buttons
simultaneously. The fan will beep when successfully programmed. Only one handset
can be used with each fan, but the same handset can control multiple fans.
NOTE: THE MAINS POWER TO THE CONTROL MODULE MUST BE SWITCHED ON-OFF VIA
AN EXTERNAL SWITCH TO PROGRAM. NOT THE BUTTONS ON THE HANDSET.
SEE TERMS AND CONDITIONS OF WARRANTY. YOU WILL BE CHARGED A SERVICE FEE
IF THE PRODUCT IS NOT DEFECTIVE OR IS DAMAGED BY POWER SURGES, LIGHTNING,
WEATHER, MISUSE/ABUSE AND SIMILAR SITUATIONS. ALL INSTALLATION
INSTRUCTIONS MUST BE FOLLOWED.
RE-PROGRAMMING HANDSETS IS NOT COVERED BY WARRANTY
IMPORTANT: IF MULTIPLE FANS ARE CONNECTED TO THE SAME FINAL
CIRCUIT OR FED FROM THE SAME POWER SWITCH THEN REMOVE THE
CONTROL MODULE AND PLUG IT INTO A GPO/POWER POINT TO PROGRAM IT.
OTHERWISE ALL FANS WILL OPERATE ONLY FROM THE NEW HANDSET
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
™

7
®
USER MAINTAINABLE PARTS:
IMPORTANT WARRANTY INFORMATION
Unlike ceiling fans that are directly connected to the building wiring system, the Woody
fan uses an appliance coupler (connector) that allows power to be safely disconnected
from the control module (just like a computer or most TVs). The power to the fan must
be turned off at the wall switch or circuit breaker. All parts (including the electronic
control module) can then be easily changed by the user without specialist knowledge
in the case of defect or damage.
An electrician or other repair personnel will not be ordinarily supplied to repair or
replace in case of defects since the fan must be installed in a location accessible to the
user for cleaning and general maintenance. All parts, other than fixed wiring, are user
changeable.
All electronic devices are vulnerable to damage from surges. When ceiling fans are in-
stalled in a location requiring special access equipment (such as scaffolding or scissor
lifts) the cost of providing such equipment must be borne by the site owner in case of
maintenance and repair and such costs should be considered when deciding on fan
placement.
Signals (ripple control) sent through the power grid by the electricity supplier for
the control of off peak devices may cause intermittent noises and do not occur
as a result of a defect or fault in the fan and is not covered by warranty.
Trouble Shooting Tips
Fan does not work
 Check power switch at wall is turned on
 Check remote control handset battery is OK (LED on handset should
glow when a button is pressed)
 Does Control Module in the fan’s top canopy beep when a button is
pressed? If not, check power is available.
Fan is wobbling
 Check the ball joint slot is locked into the hanger bracket groove.
 Make sure blades are a matching set; the numbers on matching sets
of blades should be identical with the numbers varying within 5 grams
of each other.
 Check blade screws are tightened firmly (but do not use power tools)
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
™

8
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
REV (Winter) Mode
In REV (Winter) mode your ceiling fan will spin the opposite direction. Air is drawn up the
centre of the fan, and pushed along the ceiling to circulate down to the living areas.
The REV (Winter) mode can also be for air circulation in a poorly ventilated rooms.
FWD (Summer) Mode
Ceiling fans are an environmentally smart choice to assist with cooling and warming your
home.
In FWD (Summer) mode your ceiling fan will push air down from the centre of the fan
producing a cooling breeze.
FWD (Summer) and REV (Winter) Modes Explained
Air is blown down,
producing a cool breeze
An upward airflow will push warm
air off the ceiling and circulate it
downwards
Direction fan will spin in FWD
(Summer) mode when viewed from
underneath
Direction fan will spin in REV
(Winter) mode when viewed from
underneath
™

9
General Maintenance
Changing Remote Batteries: - Batteries used in Handsets will weaken over time and should be re-
placed every 6 months. Batteries removed from the Handset should be disposed of properly and kept
out of reach of children.
NOTE: Always ensure fan is switched off at the wall switch or circuit breaker
before cleaning or maintaining any ceiling fan or light fitting.
Cleaning the Motor Housings: - Motor housings should be regularly cleaned to avoid build up of dust.
Dust will attract moisture and hold condensation leading to corrosion. Use a soft damp (not wet) cloth
to remove dust at least every three to four months.
Blade and Blade Screws: - at least once per year blades and blade screws must be removed
and checked for damage or corrosion. This is an important safety inspection. Replacement
parts are readily available but not supplied under warranty.
Cleaning the Blades: - Use a soft damp cloth to remove dirt from blades. Always dry blades after
cleaning. Blades should not be left damp or wet as this will damage blade finish or cause corrosion
or softening of the protective coating. Do not use solvent based cleaners but non-hydrocarbon based
furniture polish is acceptable.
Always use soft cloths to clean blades and motor housings to avoid scratching metal finishes. Ideally
your fan should be cleaned every 3 to 4 months. If removing blades for cleaning then do so for each
fan separately, do not mix blades from different fans as this can upset the balance of the fan.
Normal Wear and Tear: - Ceiling fans travel enormous distances during normal operation. Air is
abrasive and suspended dust, high humidity and other contamination will cause wear and tear of sur-
faces. Wearing away of paint, coatings or corrosion of blade leading edges is not covered by
warranty.
The use of fans under roofed decks near swimming pools or coastal areas will require increased
maintenance due to the presence of chlorides (such air borne salt spray or from compounds in pool
chemicals)
The temperatures in the peak of a pitched roof can easily exceed 60-70°C and when coupled with
chlorides this will vastly increase maintenance requirements. Even indoors in coastal areas the influx
of warm, sea air can accelerate the surface corrosion of metal parts. This can still happen a great
many kilometres from the sea.
When humidity is high and temperature drops moisture condenses on metal surfaces such as ceiling
fans. The layer of moisture can be almost microscopic but it will affect the surface by depositing a
tiny layer of dissolved salts or airborne acidic compounds and thus eventually leading to corrosion if
the product is not properly and regularly cleaned.
LACK OF MAINTENANCE LEADING TO SURFACE CORROSION OR SIMILAR
DAMAGE IS NOT COVERED BY WARRANTY.
®
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
™

10
®
Please to fill out the product and purchase details
PRODUCT DETAILS
Qty Product Name Install Area Colour Fan Sweep (i.e.
48”, 52”, 54” etc)
PURCHASE DETAILS
Qty Product Name Purchase Place Purchase Date
PLEASE RETAIN THE PURCHASE RECEIPT FOR WARRANTY CLAIMS
Fill out the details below and keep this manual. You will need to present your product
information, installing electricians license number and proof of purchase for warranty
claims.
CUSTOMER DETAILS
CustomerName:
Installation Site Address:
INSTALLING ELECTRICIAN DETAILS
Electrical company and Electrician Name:
LicenseNo:
Telephone:
Mobile:
InstallDate:
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.
™

11
®
Warranty periods begin from the day of purchase from an authorised reseller or dealer. Warranty on
builder supplied and installed fans commences when fans are delivered to the builder or contractor
(which generally precedes hand over of the dwelling). Warranty periods are as follows:
 2 years on customer replaceable electronic modules and components that fail due to defect in
materials or workmanship (this excludes over-voltage and surge damage)
 3 years on mechanical components that that fail due to defect in materials or workmanship
(this excludes cosmetic issues and corrosion that occurs due to normal wear and tear).
 5 years on motor windings and non-replaceable electrical parts.
This statement is required by the Australian Consumer Law 2010: “Our goods come with guarantees
that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.”
Please note carefully - If the product is found to be free of defects or the product is not functioning
properly as a result of faulty installation or lack of maintenance then Hunter Pacific International Pty
Ltd or its service agent will charge a service fee to rectify the reported problem.
An electrician or other repair personnel will not ordinarily be dispatched to repair or replace parts of a
Woody fan under warranty since the installation instructions state the fan must be installed in a
location accessible for cleaning and general maintenance by the user.
Plus, unlike ceiling fans that are directly connected to the building wiring system, power can be safely
disconnected from the control module (just like a computer or most TVs). After power to the fan is
turned off at the wall switch or circuit breaker all parts (including the electronic control module) can
then be easily changed by the user without specialist knowledge in the case of any defect or
damage. Take this into account when locating the fan in a place that is difficult to access.
Damage caused by incorrect installation, force-majeure, electrical surges, lightning, power grid
fluctuations, water or alternative power supply sources (such as solar inverters etc.) will not be
covered by warranty. This warranty does not cover the product being incorrectly used, physically
abused, accidentally damaged or not looked after as per the maintenance instructions.
This product warranty excludes to the maximum extent possible under law any liability for conse-
quential loss or damages directly or indirectly resulting from a faulty ceiling fan or accessory product
that is not installed or maintained according to the installation instructions. Following the instructions
will minimize loss or damage. Signals sent through the power grid by the electricity supplier for the
control of off peak devices may cause intermittent noises and do not occur as a result of a fault in the
fan. Since there is no defect this is not covered by warranty.
When ceiling fans are installed in a location requiring special equipment (such as scaffolding or
scissor lifts) the cost of providing such equipment must be borne by the site owner. When deciding
on fan placement such costs should be taken into consideration.
PLEASE RETAIN THE PURCHASE RECEIPT FOR WARRANTY CLAIMS
WARRANTY TERMS
Applies in Australia Only
(consult your supplier if not in AU)
1. Do not attempt to operate the fan with any wall control. This fan operates using remote control
only. Contact Hunter Pacific International for details. Any modification or attempt to directly wire
the fan will void warranty unless those modifications are authorised.

12
®
Hunter Pacific International Pty Ltd
Head Office: Building 8, 256 New line Road,
New Line Business Park, Dural, NSW, Australia.
www.hunterpacific.com.au
ABN 18 063 521 666
National Warranty Line: 1300 360 280
Available Monday to Friday, from 9am to 5pm AEST.
™
WDYMAUS-v1.0
