Owner’s Guide and Installation Manual

2
41818-01 • 03/12/09 • Hunter Fan Company
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Ceiling Plate ..........5
3 • Assembling and Hanging the Fan ...6
4 • Wiring the Fan.....................8
5 • Installing the Canopy and Canopy Trim
Ring ..............................9
6 • Assembling the Blades..............10
7 • Completing Your Installation With or
Without a Light Fixture............11
8 • Operating and Cleaning Your Ceiling
Fan ...............................14
9 • Troubleshooting....................15
© 2009 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome
Table Of Contents

3
41818-01 • 03/12/09 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Prole, Standard, or Angled mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angled Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angled
Mounting
Style
Low Profile Mounting ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Prole
Mounting
Style
Ceiling
Outlet Box
8
12
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.

4
41818-01 • 03/12/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
41818-01 • 03/12/09 • Hunter Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

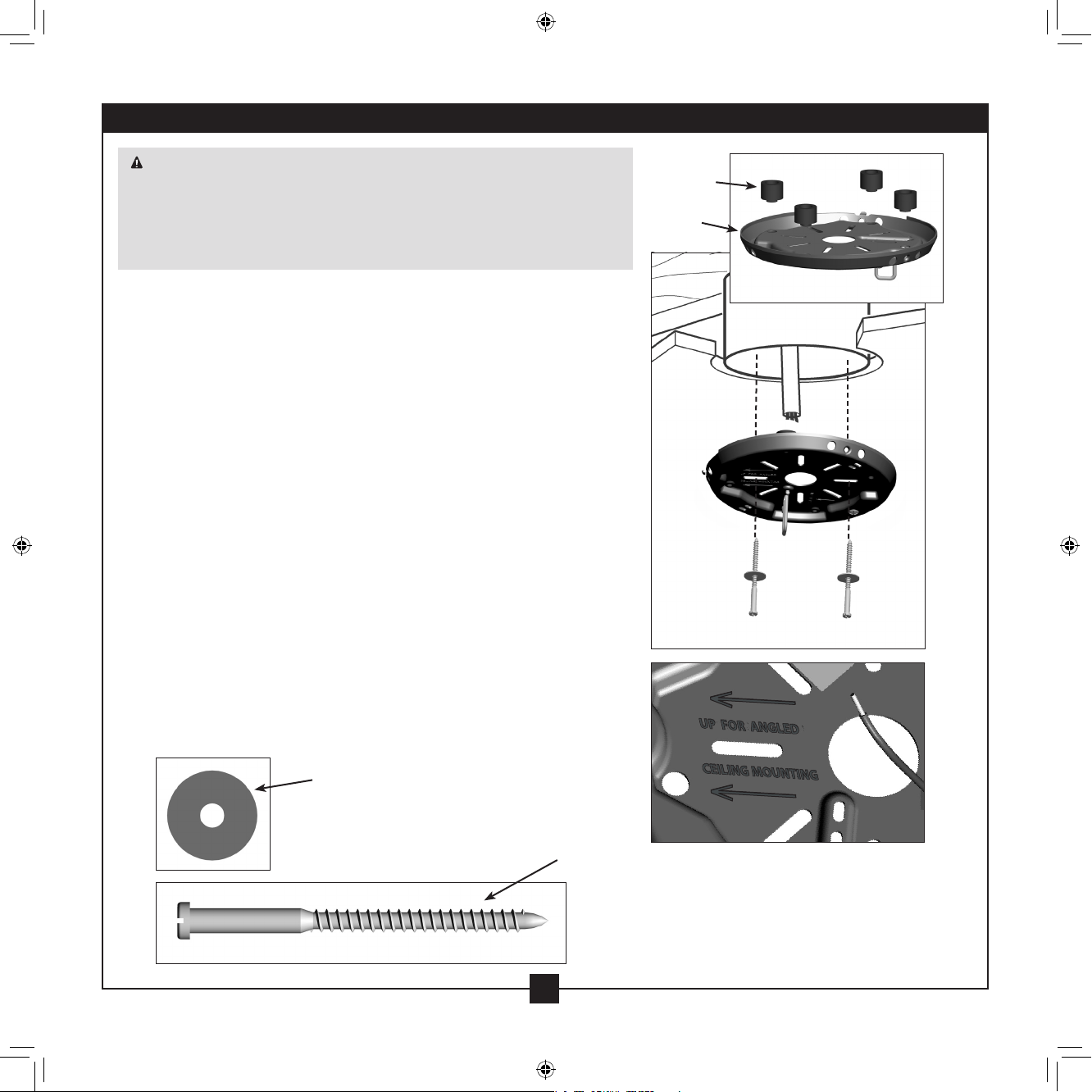

2-1. Drill two pilot holes into the wood support structure.
e pilot holes should be 9/64” in diameter and through the
outermost holes in the outlet box.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-5. Place a at washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood
Screw
Step 2-2
Steps 2-3 – 2-5
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing toward the ceiling peak.
Ceiling
Plate
Isolator
2 • Installing the Ceiling Plate

6
41818-01 • 03/12/09 • Hunter Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
You can assemble your fan for standard or angled mounting as shown
in steps 3-1 – 3-4. For low profile mounting (ceilings less than 8 feet
high), go to steps 3-5 – 3-11 on the next page.

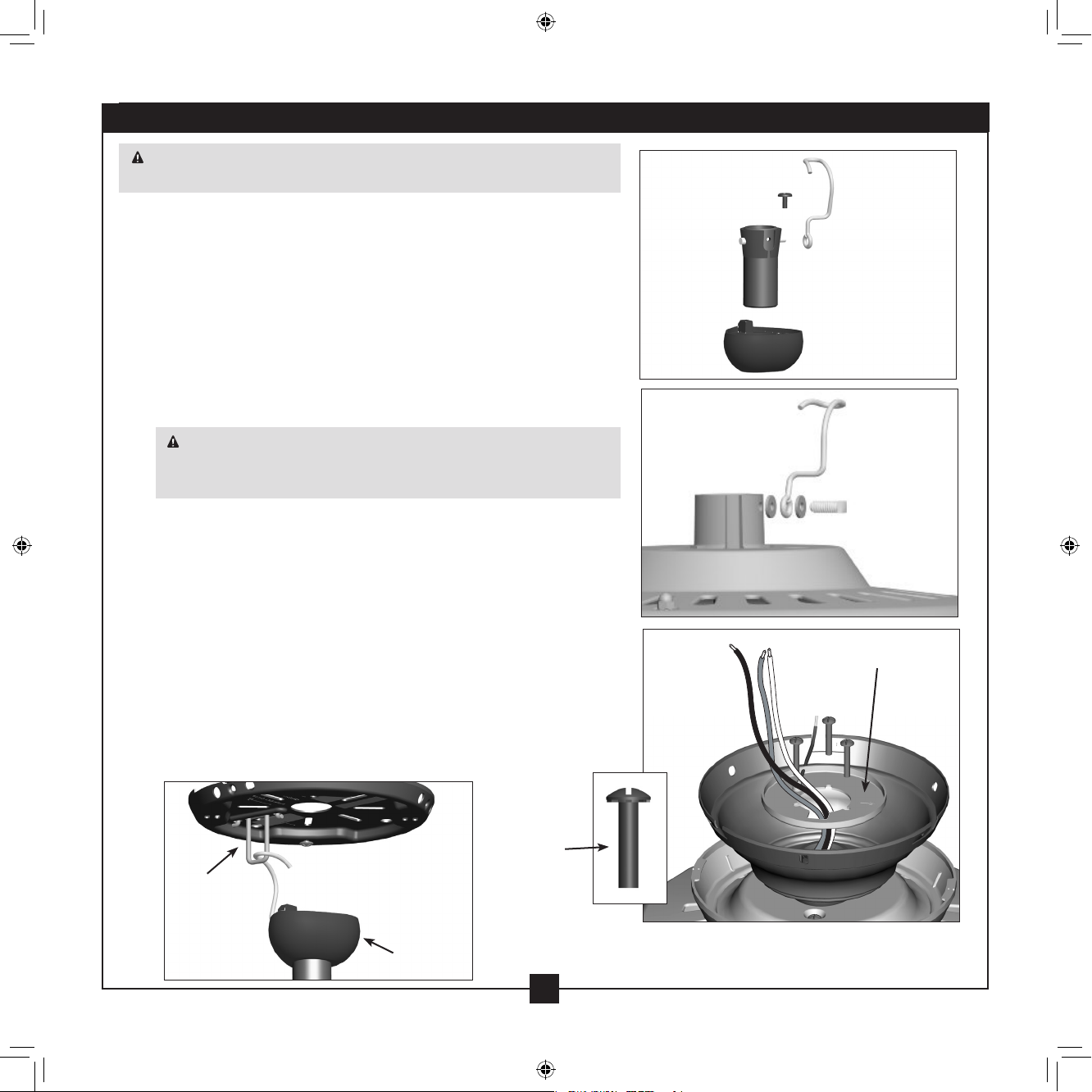

For Standard or Angled Mounting:
3-1. Unbundle the wires from the fan.
3-2. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-3. Loosen the square head setscrew on the adapter to install the pipe
and ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is normal.
Securely retighten the setscrew with a wrench or pliers.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-4. Raise the fan and place the hook on the downrod through the
loop on the ceiling plate. e arrows on the downrod and on the
ceiling plate should both be pointing toward the tab hole on the
canopy. Go to 4 • Wiring the Fan.
Steps 3-1 – 3-2
Downrod
Canopy
Canopy
Trim Ring
Setscrew
Step 3-4
Downrod
with Hook
Loop
3 • Assembling and Hanging the Fan

7
41818-01 • 03/12/09 • Hunter Fan Company
Steps 3-9 – 3-10
Low Prole
Screw
Low Prole Washer
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
You can assemble your fan for standard or angled mounting as shown
in steps 3-1 – 3-4 on the previous page. For low profile mounting
(ceilings less than 8 feet high), see steps 3-5 – 3-11 on this page.
For Low Profile Mounting:
Note: For low prole mounting, the downrod is replaced with the low
prole washer.
3-5. Unbundle the wires from the fan.
3-6. Remove the screw from the hanger ball on the downrod, and
then remove the hook from the hanger ball.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-7. Remove the setscrew from the adapter.
3-8. Install the hook and two neoprene washers onto the adapter
using the setscrew. the top of the hook must hang over the
adapter. Note: e screw should be tight, but still allow the hook
to rotate slightly.
3-9. Place the low prole washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
3-10. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low prole screws.
3-11. Raise the fan and place the hook on the adapter through the
loop on the ceiling plate.
Step 3-6
Step 3-8
Step 3-11
Loop
3 • Assembling and Hanging the Fan (Low Profile Only)

8
41818-01 • 03/12/09 • Hunter Fan Company
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Make sure the power to the outlet box and associated wall switch
location is still OFF.
To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.

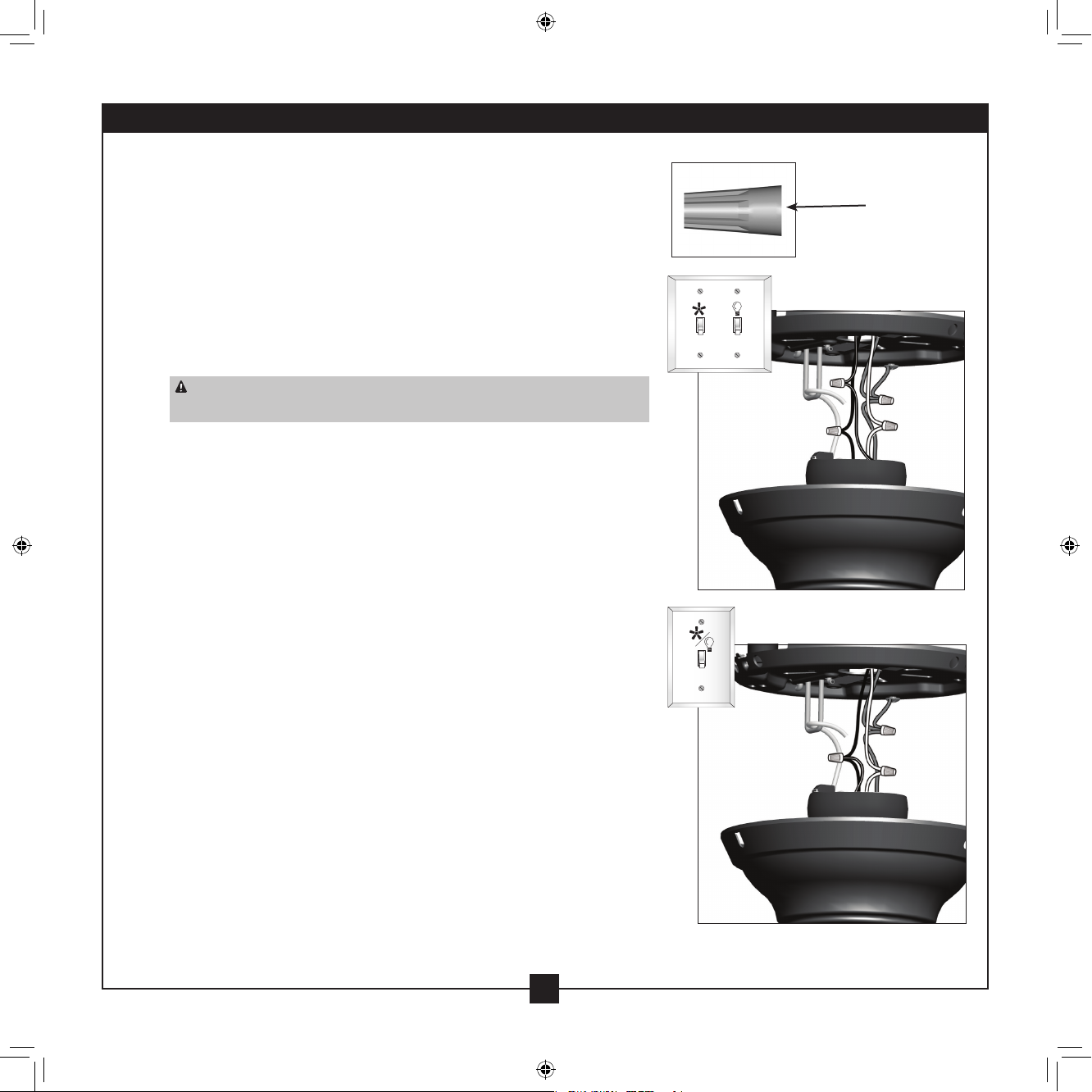

Dual Switch Wiring:
• e bare or green ground wire (grounding) from the ceiling to
the green ground wire (grounding) from the ceiling plate and
the green ground wire (grounding) from the fan
• e white wire (grounded) from the ceiling to the white wire
(grounded) from the fan
• e black wire (ungrounded) from the ceiling to the black wire
(ungrounded) from the fan
• e black/white wire (ungrounded) from the ceiling to the
black/white wire (ungrounded) from the fan
Single Switch Wiring:
If you want to, you can control both fan and light with one switch.
To do so connect the wires as follows:
• e bare or green ground wire (grounding) from the ceiling to
the green ground wire (grounding) from the ceiling plate and
the green ground wire (grounding) from the fan
• e white wire (grounded) from the ceiling to the white wire
(grounded) from the fan
• e black wire (ungrounded) from the ceiling to the black and
the black/white wire (ungrounded) from the fan
4-2. Push all wires and wire connectors back through the ceiling plate
hole into the outlet box.
Single Switch Wiring
Dual Switch Wiring
Wire
Connector
4 • Wiring the Fan

9
41818-01 • 03/12/09 • Hunter Fan Company
Note: Be sure the arrows on the downrod and on the ceiling plate are
both pointing toward the tab hole on the canopy.
5-1. Hook the tab hole in the canopy over the tab on the ceiling plate.
5-2. Raise the canopy. Make sure the holes in the canopy and in the
ceiling plate are aligned.
5-3. Partially install the three canopy screws into the canopy one at a
time. Once all three screws are in, tighten them.
5-4. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press rmly on opposite sides of the
ring toward the canopy. e tabs will
ex out releasing the trim ring from
the canopy.
Steps 5-2 – 5-3
Step 5-1
Step 5-4
Tab Hole
Tab
Canopy
Canopy
Screw
Canopy
Trim Ring
5 • Installing the Canopy and Canopy Trim Ring

10
41818-01 • 03/12/09 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
6-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 6-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 6-1 – 6-2
Step 6-4
6 • Assembling the Blades

11
41818-01 • 03/12/09 • Hunter Fan Company
7 • Completing Your Installation With or Without a Light Fixture
Your Hunter fan comes with an integrated light xture assembly and an
optional switch housing cap and plug button. is feature gives you the
option of installing the fan with OR without the included light xture.
e steps below direct you whether or not you are installing a light
xture.
WARNING: Use only the light xture supplied with this fan model.
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light xture falling.
7-5. If you want to install the light xture, proceed with step 7-6
now.
If you do not want to install the light xture, proceed with step
7-10 now.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Step 7-4
7 • Completing Your
Installation With or
Without a Light Fixture
(Continued)

12
41818-01 • 03/12/09 • Hunter Fan Company
11
w f g.
C
AUTI
O
N
:
B
e
su
r
e
n
o
ba
r
e
w
ir
e
o
r
w
ir
e
st
r
a
n
ds
a
r
e
v
i
s
i
b
l
e
a
f
ter
m
akin
g
connections
.
Light Fixture
M
ounting Scre
w
w
itc
h
u
s
i
n
g
L
i
g
As
s
L
ight Fixture
M
ounting Screw
s
7-6. Insert the black wire and white wire from the light xture through
the hole in the bottom on the lower switch housing. Use the
included nut and washer to attach the light xture to the lower
switch housing. Securely tighten the nut and washer onto the end
of the light xture.
7-7. Insert and tightern two xture mounting screws.
7-8. Remove the wire connectors from the two wires from the lower
switch housing. Use one wire connector to connect the black wire
from the light xture to the black/white wire from the lower switch
housing. Use the other to connect the white wire from the light
xture to the white wire from the lower switch housing.
7 • Completing Your Installation With or Without a Light Fixture (continued)
Step 7-6
Step 7-7

13
41818-01 • 03/12/09 • Hunter Fan Company
Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 7-9 – 7-10

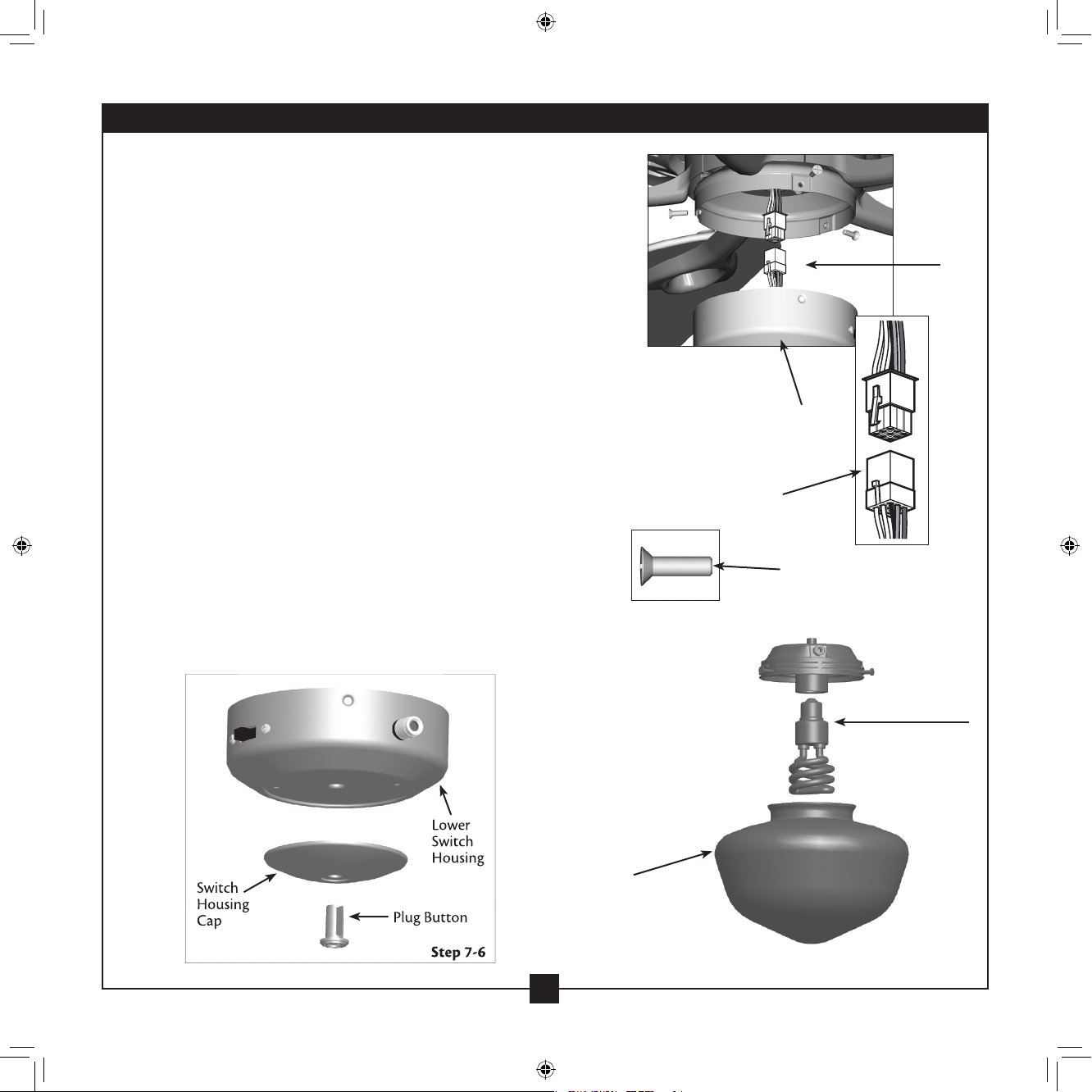

7-9. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-10. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
If you are not installing the light xture, Install the switch
housing cap and plug button to the lower switch housing.
Otherwise, proceed with step 7-11.
7-11. Install one screw-in CFL (compact ourescent) bulb (19 Watt
Maximum). Do Not use incandescent bulbs in this xture.
7-12 Insert the globe into the xture. Install and tighten the
thumbscrews manually. Do not overtighten.
Note: If thumbscrews are pre-threaded, loosen the screws before
inserting the globe, then retighten securely.
CFL bulb
(max 19W)
Steps 7-11 – 7-12
Globe
7 • Completing Your Installation With or Without a Light Fixture (continued)

14
41818-01 • 03/12/09 • Hunter Fan Company
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
four settings in sequence: High, Medium, Low, and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the
blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls the power to the light xture. e
chain has two settings: ON and OFF.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan. Reversing
Switch
8 • Operating and Cleaning Your Ceiling Fan

15
41818-01 • 03/12/09 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch rmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure the wattage and type of light bulbs installed
match the specications on the light socket.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
9 • Troubleshooting
