Hunter 41923 User manual

41923-01 • 11/21/05
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: _______________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.

2
Hunter Fan Company 41923-01 • 11/21/05
3
41923-01 • 11/21/05 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save
these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Table of Contents
1 • Getting Ready ...................................................4
2 • Installing the Ceiling Plate..........................5
3 • Assembling and Hanging the Fan..........6
4 • Setting the Remote Transmitter and
Reciever.................................................................7
5 • Wiring the Fan..................................................8
6 • Installing the Canopy and Canopy
Trim Ring .............................................................9

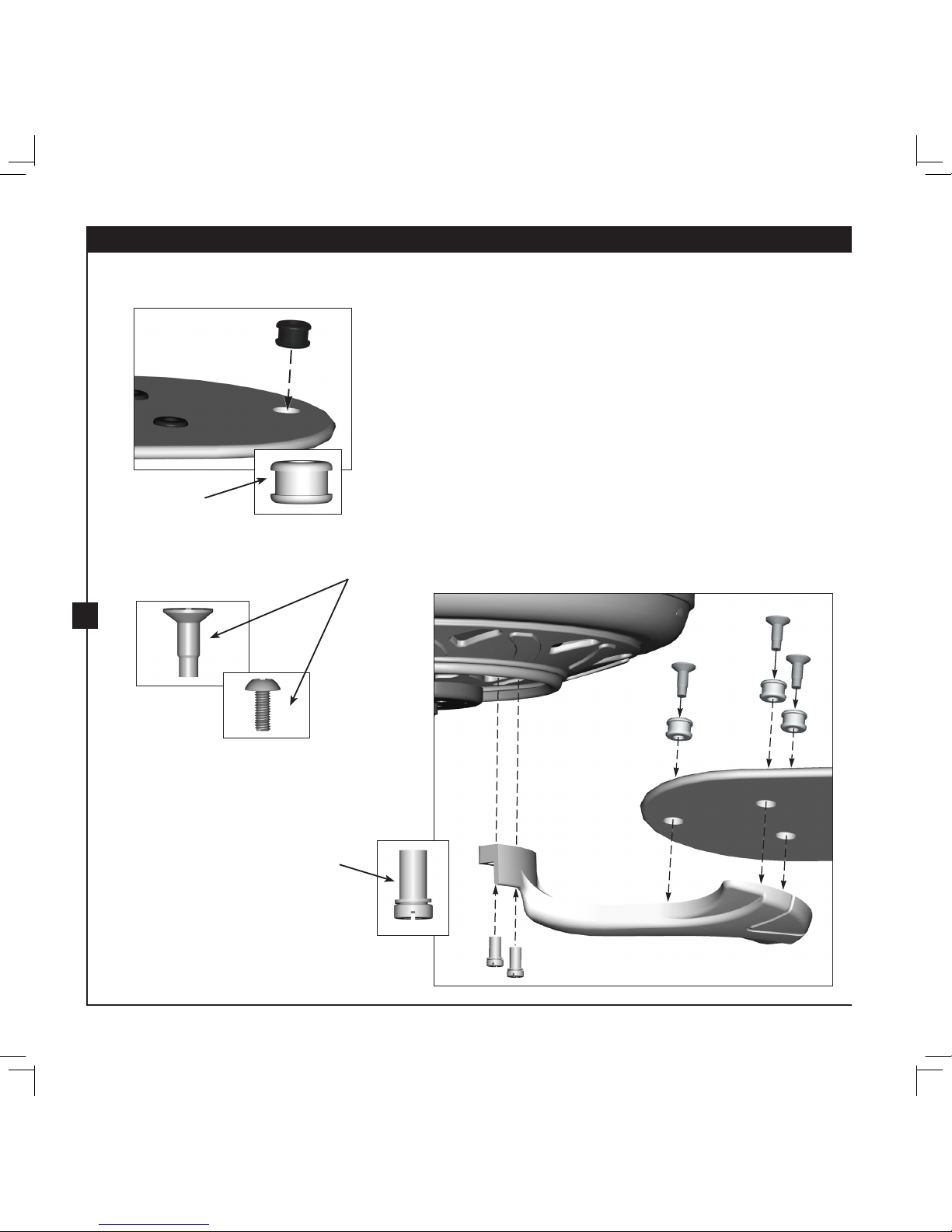

7 • Assembling the Blades.............................. 10
8 • Installing the Switch Housing................ 11
9 • Operating the Remote Control and
Mounting the Holder................................. 12

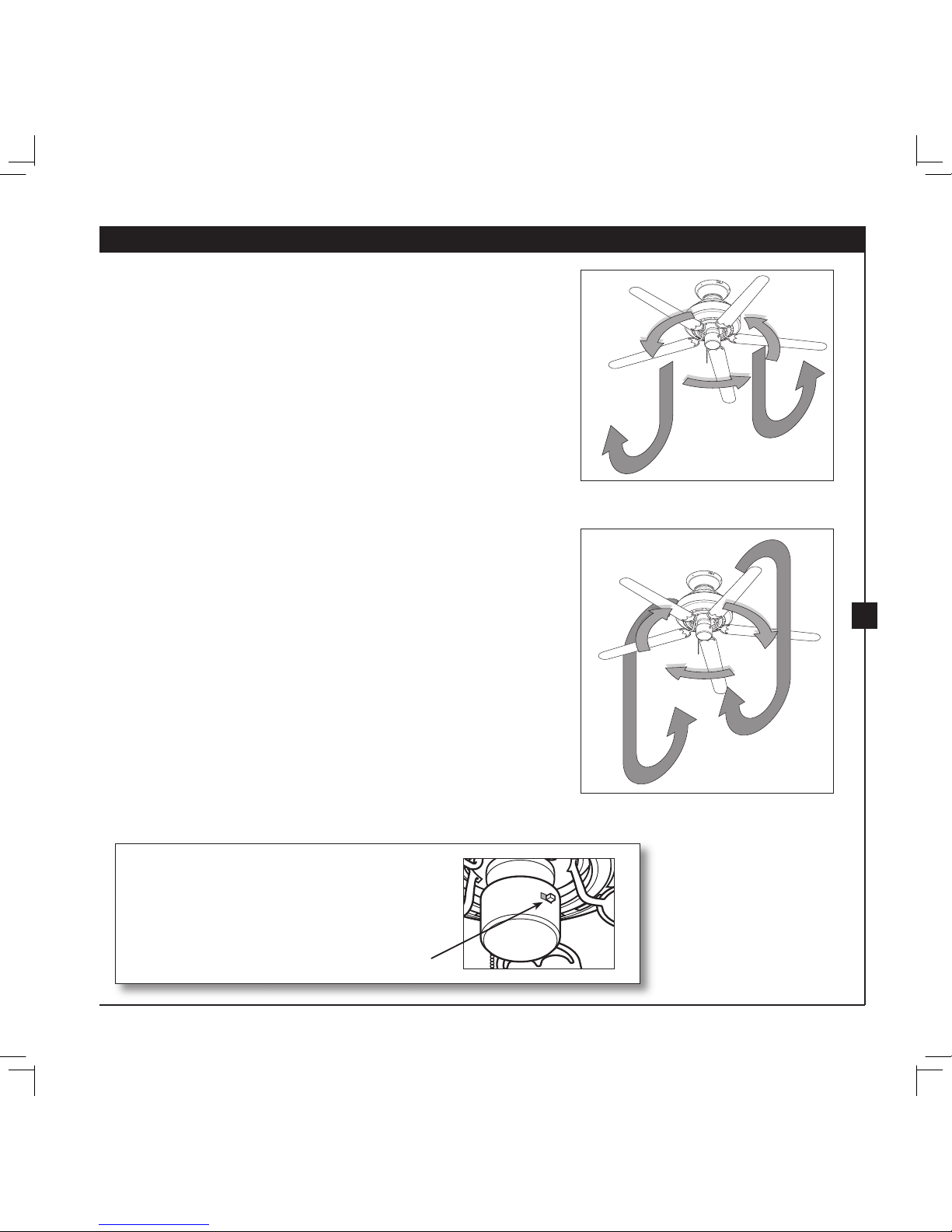

10 • Operating and Cleaning Your
Ceiling Fan...................................................... 13
11 • Troubleshooting......................................... 14
Welcome
© 2005 Hunter Fan Company

2
Hunter Fan Company 41923-01 • 11/21/05
3
41923-01 • 11/21/05 Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation  exibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Pro le, Standard, or Angle mounting.  e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
Low Pro le Mounting  ts close to the
ceiling, recommended for ceilings less
than 8 feet high
Standard Mounting hangs from
the ceiling by a downrod (included),
recommended for ceilings 8 feet or higher
Angle Mounting recommended for a
vaulted or angled ceiling
For ceilings higher than 8 feet, you
can purchase Hunter extension
downrods. All Hunter fans use sturdy
3/4” diameter pipe to assure stability
and wobble-free performance.

4
Hunter Fan Company 41923-01 • 11/21/05
5
41923-01 • 11/21/05 Hunter Fan Company
1 • Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum e ciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.

4
Hunter Fan Company 41923-01 • 11/21/05
5
41923-01 • 11/21/05 Hunter Fan Company

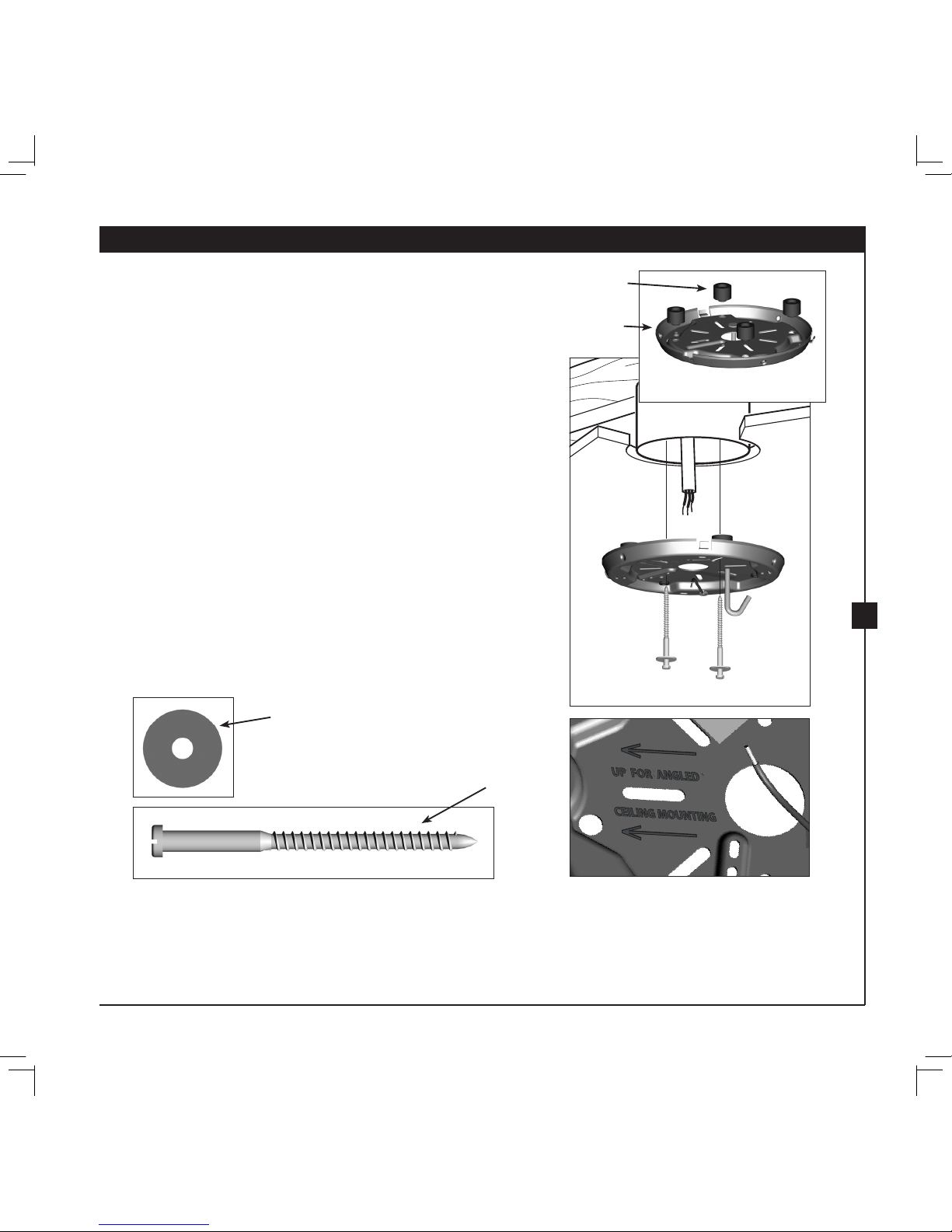

2 • Installing the Ceiling Plate
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be ush against the ceiling.
2-5. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the ceiling plate into the pilot
holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Screw
Steps 2-3 – 2-5
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing towards the ceiling peak.
Ceiling
Plate
Isolator

6
Hunter Fan Company 41923-01 • 11/21/05
7
41923-01 • 11/21/05 Hunter Fan Company

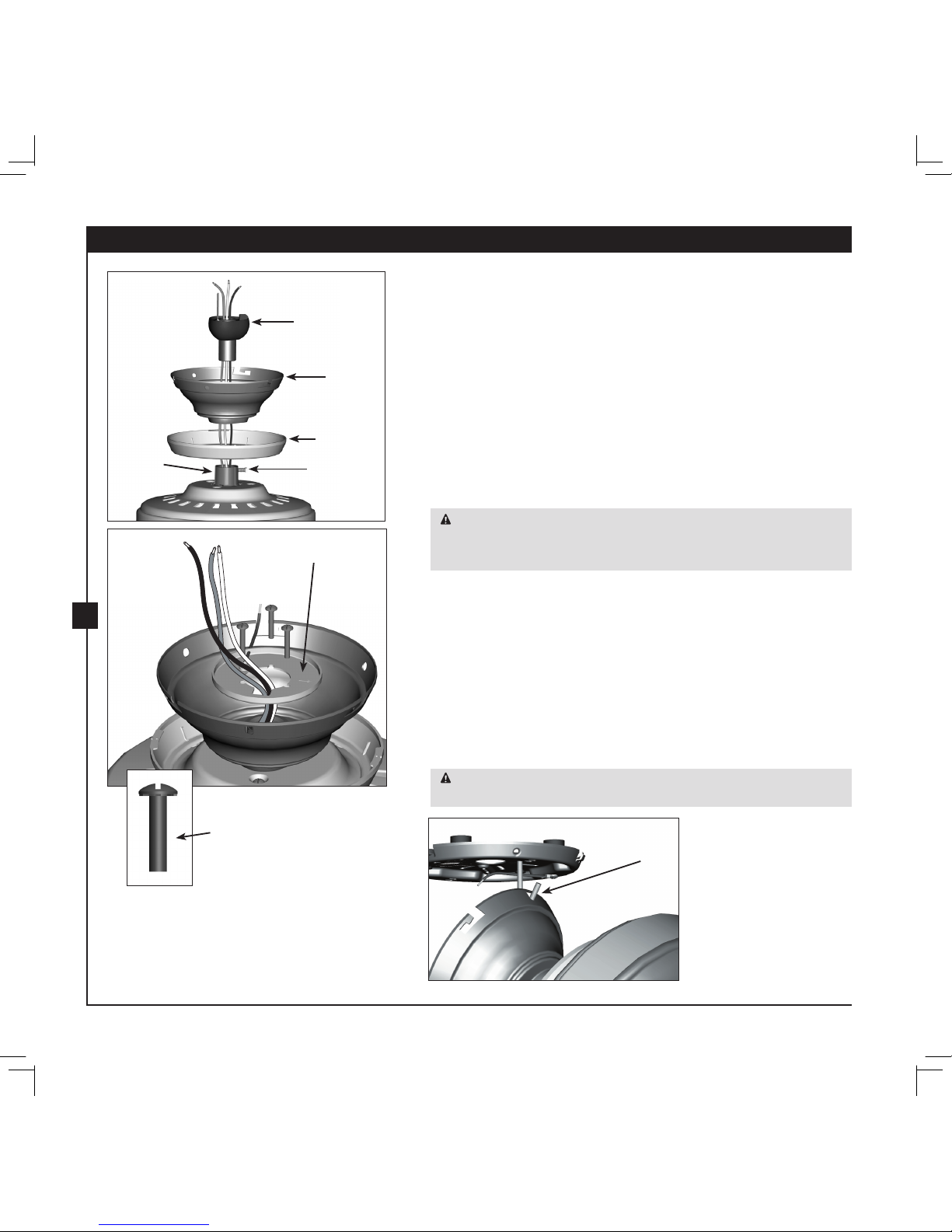

3 • Assembling and Hanging the Fan
You can assemble your fan for standard mounting (steps 3-1 – 3-2)
or for low prole mounting (steps 3-3 – 3-5). Note: For low prole
mounting, the downrod is replaced with the low prole washer.
3-1. To assemble fan to hang down from a at or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-2. Using the provided allen wrench, loosen the allen head set screw
on the adapter to install the pipe and ball assembly. Note: When
the pipe and ball assembly is fully installed, 2-3 threads on the
pipe will still be visible; this is normal. Securely retighten the set
screw with the allen wrench. Skip to Step 3-6.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
3-3. Remove the set screw from the adapter.
3-4. To assemble the fan to hang from a low ceiling, place the low
prole washer (lip up) into the canopy. Be sure the green ground
wire is pointing up toward the ceiling.
3-5. Align the holes in the washer with the holes in the adapter.
Assemble securely with three #8-32 x 3/4” screws.
3-6. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-4 – 3-5
Low Prole Washer
Steps 3-1 – 3-2
Downrod
Canopy
Canopy
Trim Ring
Allen Head
Set Screw
Adapter
#8-32 x 3/4” Screw Step 3-6
U-shaped
Hole

6
Hunter Fan Company 41923-01 • 11/21/05
7
41923-01 • 11/21/05 Hunter Fan Company
4 • Setting the Remote Transmitter and Receiver
CAUTION:  e remote control device complies with part 15 of the FCC rules.
Changes or modi cations not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1.  is device may not cause harmful interference.
2.  is device must accept any interference received, including interference that may
cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall switch).
WARNING: Maximum fan load is 1 Amp; maximum lamp is 100 Watts. Do not use
any speed control with this product.
You must now set the jumpers in the remote transmitter and receiver
so that they match.
4-1. Change the position of the jumpers in the transmitter and the
receiver. Be sure the position of the jumper in the transmitter
matches the position of the jumper in the receiver. If they don’t
match, the controller will not function. For instructions on how to
set the jumpers, read the box below.
4-2. Install the included 12-volt battery into the transmitter.
Setting Jumpers
When two or more fans are located near each other, you may desire to
have the receiver/transmitter for each fan set to a di erent code, so that
the operation of one fan does not a ect the operation of the other fans.
In the transmitter you can access the jumpers from the battery
compartment.  e jumpers are very small. You can move them most
easily using a small pair of pliers or tweezers. IMPORTANT! Before
you change a jumper, make sure the battery is not connected to the
transmitter.
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
4 = off
3 = on
2 = on
1 = on
4 = off
3 = on
2 = off
1 = on
Example Jumpers Settings
Receiver 1 Receiver 2
Transmitter 2Transmitter 1
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
4 = off
3 = on
2 = on
1 = on
4 = off
3 = on
2 = off
1 = on

8
Hunter Fan Company 41923-01 • 11/21/05
9
41923-01 • 11/21/05 Hunter Fan Company
5• Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
5-1. Make sure the power is still o.
5-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the wire nuts provided.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-3. Connect the ground wire from the ceiling to the green ground
wire from the ceiling plate and the green ground wire from the
downrod or low prole washer.
5-4. Using the large wire nuts, connect the white wire and the black
wire from the ceiling as follows:
• e white (common) power wire from the ceiling to the white
wire from the receiver (marked on red tag “NEUTRAL IN”)
• e black power wire from the ceiling to the black wire from
the receiver (marked on red tag “LIVE IN”)
5-5. Using the small wire nuts, connect the wires from the fan as
follows:
• e black/white wire from the fan to the red wire from the
receiver (marked on white tag “LIGHT OUT”)
• e black wire from the fan to the black wire from the receiver
(marked on white tag “FAN OUT”)
• e white wire from the fan to the white wire from the receiver
(marked on white tag “COMMON OUT”)
5-6. Check each connection to make sure no bare wire or wire strands
are visible. Push all wires and wire nuts back through the ceiling
plate hole into the outlet box.
5-7. Run the white antenna wire from the receiver through one of the
slots in the ceiling plate so that it rests between the ceiling plate
and the ceiling. Push it to the edge of the ceiling plate for clear
reception.
Large Wire Nut
Small Wire Nut
Steps 5-3 – 5-7
Receiver

8
Hunter Fan Company 41923-01 • 11/21/05
9
41923-01 • 11/21/05 Hunter Fan Company

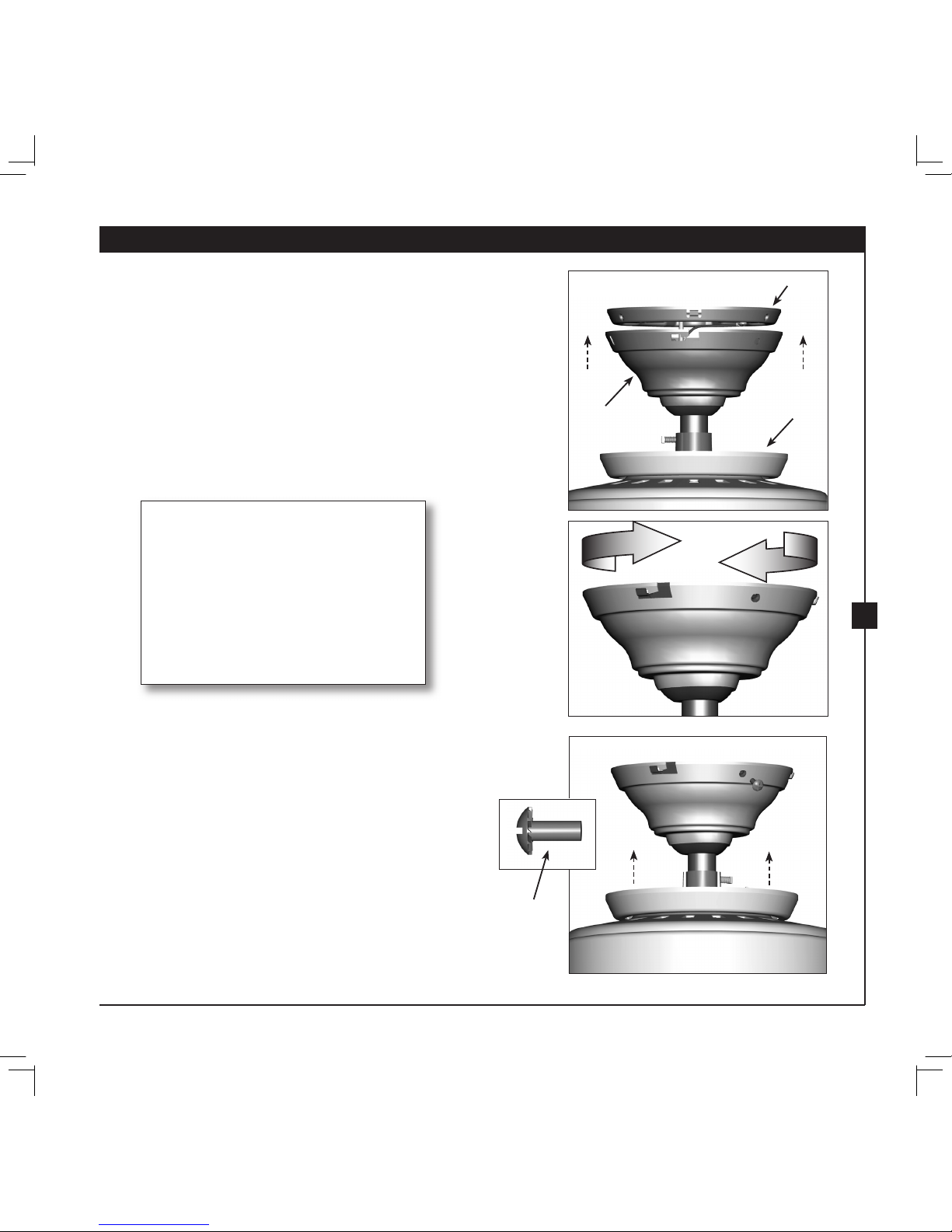

6 • Installing the Canopy and Canopy Trim Ring
6-1. Holding the canopy, raise the fan o the hook.
6-2. Align the slots in the canopy with the tabs on the ceiling plate.
6-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
6-4. Loosely assemble the three canopy screws into the canopy one at
a time. Once all three screws are in, tighten them.
6-5. Using both hands, push the canopy trim ring up to the top of the
canopy.  e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press  rmly on opposite sides of the
ring towards the canopy.  e tabs
will  ex out releasing the trim ring
from the canopy.
Canopy
Screw
Step 6-2
Canopy Trim
Ring
Canopy
Ceiling Plate
Step 6-3
Steps 6-4 – 6-5

10
Hunter Fan Company 41923-01 • 11/21/05
11
41923-01 • 11/21/05 Hunter Fan Company
7 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
7-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
7-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
7-3. Some blade mounting screws are installed in the motor to
secure shipping blocks. Remove the blade mountings screws and
rubber bumpers from the motor. Save the screws and discard the
bumpers.
7-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 7-1 (Detail)
Grommet
Blade Assembly
Screws
Use with grommet
Use without grommet
Blade Mounting
Screw
Steps 7-1 – 7-2
Step 7-4

10
Hunter Fan Company 41923-01 • 11/21/05
11
41923-01 • 11/21/05 Hunter Fan Company
8 • Installing the Switch Housing
8-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
8-2. Feed the upper plug connector through the center opening of the
housing.
8-3. Align the keyhole slots in the housing with the housing assembly
screws.
8-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining housing assembly screw into the housing.
Tighten all three screws rmly.
CAUTION: Make sure the upper switch housing is securely attached
to the switch housing mounting plate. Failure to properly attach and
tighten all three assembly screws could result in the switch housing
xture falling.
8-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-6. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
Note: You can customize your Hunter fan with a number of accessory
light kits.
Steps 8-1 – 8-4
Housing
Assembly
Screw
Upper
Switch
Housing
Housing
Assembly
Screw
Lower
Switch
Housing
Steps 8-5 – 8-6
Plug
Connector

12
Hunter Fan Company 41923-01 • 11/21/05
13
41923-01 • 11/21/05 Hunter Fan Company
9• Operating the Remote Control and Mounting the Holder
9-1. e remote transmitter has individual buttons for turning the
fan o and on and controlling the light and fan speed.
9-2. For best operation, start the fan by pressing high, then select
your desired speed.
9-3. e light button turns the light on to full brightness. To dim the
light, hold the light button down until you reach your desired
brightness. Push the light button again to turn o the light.
9-4. Press the OFF button to turn the fan o.
9-5. When necessary, replace the battery with a 12-volt type 23A,
MN-21 battery or equivalent.
9-6. You can mount the remote holder to any toggle switch plate
with the screws already in the switch plate. Or, you can simply
mount the remote holder on the wall.
Fan Light
Steps 9-1 – 9-4
Fan Speed
High
Fan Speed
Medium
Fan Speed
Low Fan O
Step 9-5
Step 9-6

12
Hunter Fan Company 41923-01 • 11/21/05
13
41923-01 • 11/21/05 Hunter Fan Company
10 • Operating and Cleaning Your Ceiling Fan
10-1. Turn on electrical power to the fan.
10-2. Ceiling fans work best by blowing air downward
(counterclockwise blade rotation) in warm weather to cool the
room with a direct breeze. In cold weather, having the fan draw
air upward (clockwise blade rotation) will distribute the warmer
air trapped at the ceiling around the room without causing a
draft.
10-3. For cleaning  nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may
use an artistic agent, but never abrasive cleaning agents, as they
will damage the  nish.
10-4. Clean wood  nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in
the same manner as the fan  nish.
In warm weather, use
downward air  ow pattern
In cold weather, use upward
air  ow pattern
To Change Air ow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch

14
Hunter Fan Company 41923-01 • 11/21/05
11 • Troubleshooting
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch  rmly left or right to ensure that the
switch is engaged.
5. Remove the shipping bumpers
6. If the transmitter LED light does not come on, replace the battery
with a new 12-volt alkaline battery. If the LED light does come on
but the fan will not work, check the settings in the receiver and
transmitter. Refer to 4• Setting the Remote Transmitter and
Receiver 7 for more information.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Tighten the blade screws until snug.
3. Check to see if the blade is cracked. If so, replace all the blades.
4. Be sure that the glass is secure.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade and/or blade iron screws.
3. Turn power o , support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
