Hunter Bristol 20495 Instruction manual

Type 3 ModelsType 3 ModelsType 3 Models
Form# 45048-01
20090121
©2009 Hunter Fan Co.
For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
English Español
Owner’s Guide and Installation Manual
Bristol
20495

2
45048-01 • 01/21/09 • Hunter Fan Company
© 2009 Hunter Fan Company
Your new Hunter® ceiling fan is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome
Table Of Contents
1 • Getting Ready......................4
2 • Installing the Hanger Bracket . . . . . . . 5
3 • Assembling and Hanging the Fan ...6
4 •Wiring the Fan......................7
5 • Installing the Canopy and Canopy
Trim Ring .........................8
6 • Assembling the Blades .............9

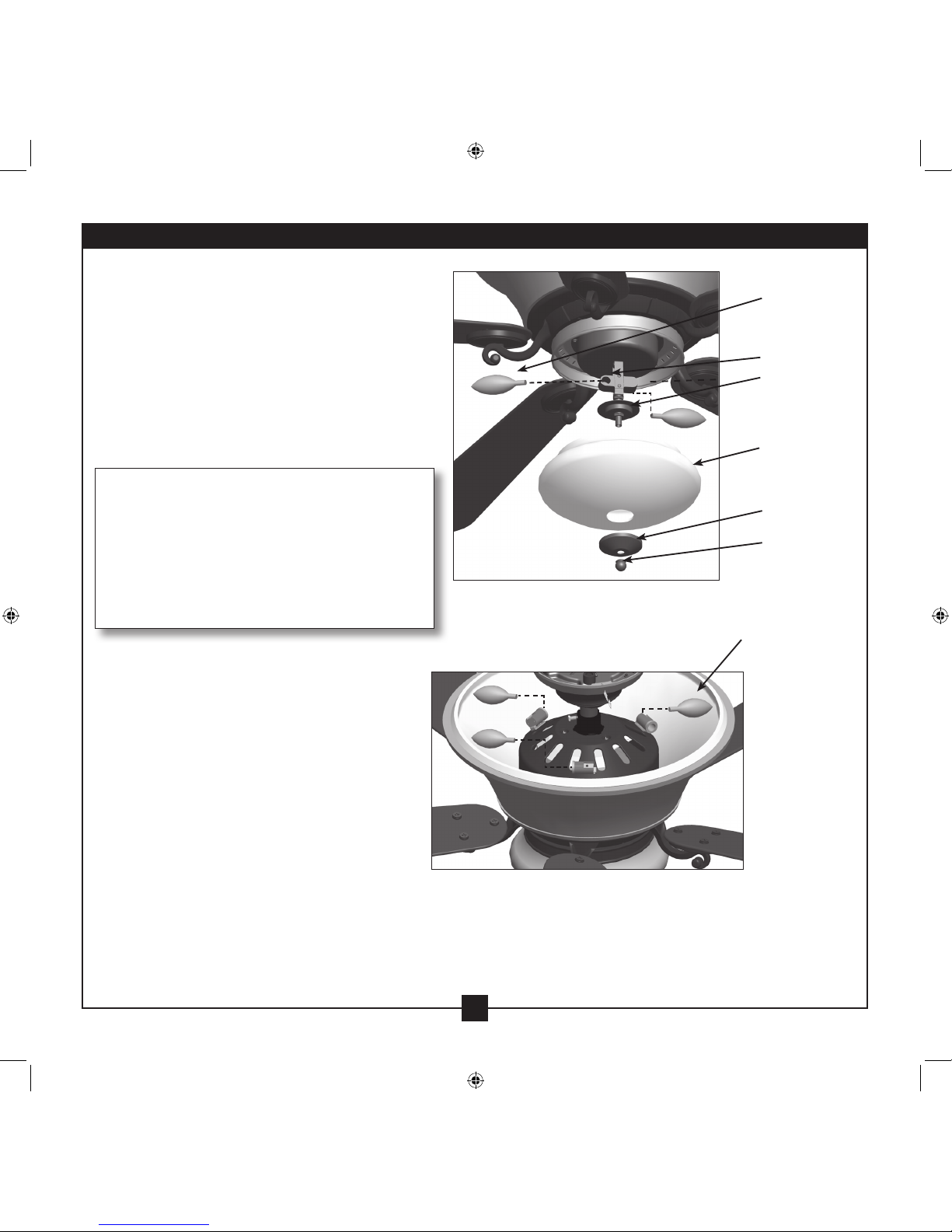

7 • Completing Your Installation With a
Bowl Light Fixture.................10
8 • Assembling the Remote Control and
Mounting the Cradle..............13
9 • Operating and Cleaning Your Ceiling
Fan ...............................15
10 • Troubleshooting ..................16

3
45048-01 • 01/21/09 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 2-position mounting system provides you maximum
installation exibility and ease. You can install your Hunter fan in
one of two ways, depending on ceiling height and your preference:
Standard, or Angle mounting. e steps in this manual include
instructions for the Standard and the Angled Installer’s Choice
mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angle Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
8
12
CAUTION: To reduce the risk of personal
injury, attach the fan directly to the support
structure of the building according to these
instructions, and use only the hardware
supplied.

4
45048-01 • 01/21/09 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum eciency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
45048-01 • 01/21/09 • Hunter Fan Company
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
Note: Your fan comes with four pre-installed neoprene noise
isolators.
2-2. read the lead wires from the outlet box down through the hole
in the middle of the hanger bracket.
2-3. Align the slotted holes in the hanger bracket with the pilot holes
you drilled in the wood support structure. For proper alignment
use slotted holes directly across from each other. If you are
installing the fan on an ANGLED ceiling, be sure to orient the
hanger bracket as shown in Illustration 2-3 (left or right view).
Note: e isolators should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” screws and pass the
screws through the slotted holes in the hanger bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Screw
Steps 2-2 – 2-4
Hanger
Bracket
Isolator
Step 2-3 (Angled Ceiling Only)
OR
Ceiling Peak Ceiling Peak
Large
Opening Large
Opening
LEFT RIGHT
2 • Installing the Hanger Bracket

6
45048-01 • 01/21/09 • Hunter Fan Company
3 • Assembling and Hanging the Fan
Steps 3-2 – 3-3
Downrod
Canopy
Canopy
Trim Ring
Upper
Glass
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
3-2. To assemble fan to hang down from a at or angled ceiling,
insert the downrod through the canopy, canopy trim ring, and
upper glass. Feed the wires from the fan through the downrod.
3-3. Loosen the set screw on the adapter to install the pipe and
ball assembly. Note: When the pipe and ball assembly is fully
installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with the provided allen
wrench.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
WARNING: Do not carry or lift fan by canopy.
3-4. Raise the fan and place the ball into the hanger bracket.
3-5. Align the notch on the ball with the indent in the hanger
bracket. (Rotate the fan until you hear the notch pop into
place.)
Go to 4 • Wiring the Fan.
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
Steps 3-4 – 3-5
Indent
Allen Wrench
3 • Assembling and Hanging the Fan

7
45048-01 • 01/21/09 • Hunter Fan Company
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
Wall switches are not included. Select an acceptable general-use switch
in accordance with national and local electrical codes.
4-1. Before attempting installation, make sure the power is still o.
4-2. To connect the wires, hold the bare metal leads together and place
a wire connector over them, then twist clockwise until tight. For
all these connections use the wire connectors provided.
4-3. Connect the bare or green ground wire (grounded) from the
ceiling to the green ground wire (grounded) from the ceiling plate
and the green ground wire from the fan.
4-4. Connect the white wire (ungrounded) from the ceiling to the
white wire (ungrounded) from the fan.
4-5. Connect the remaining wires as follows:
Single Switch Wiring:
• e black wire (ungrounded) from the ceiling to the black
(ungrounded) and the black/white wire (ungrounded) from
the fan
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
4-6. Turn the wire connectors upward and push them carefully back
through the ceiling plate into the outlet box.
4-7. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the
outlet box.
Wire
Connector
4 •Wiring the Fan

8
45048-01 • 01/21/09 • Hunter Fan Company

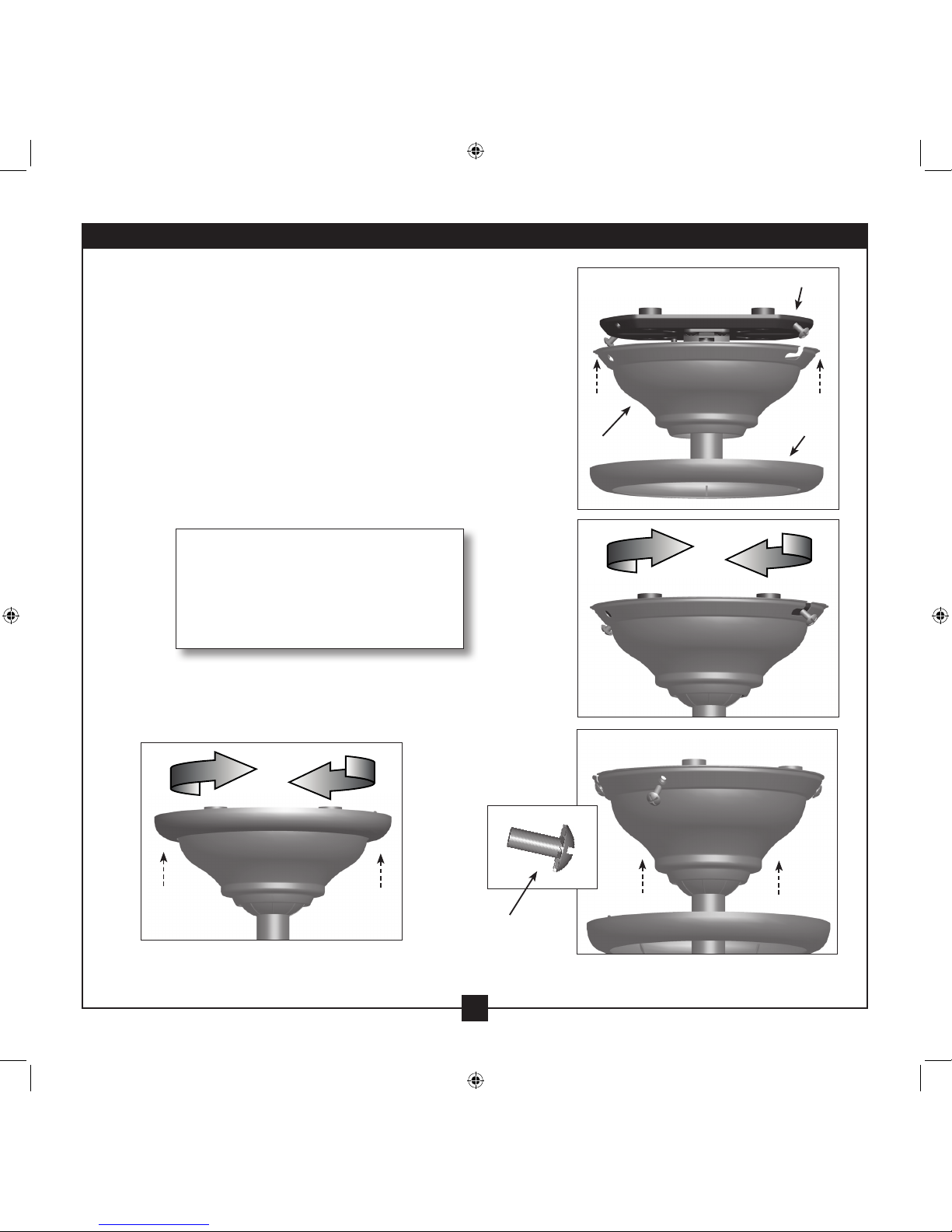

5 • Installing the Canopy and Canopy Trim Ring
5-1. Partially install two canopy screws (about 2 full turns) in the
hanger bracket.
5-2. Raise the canopy over the hanger bracket. Align partially installed
screws with key slots in canopy.
5-3. Twist canopy clockwise to secure.
5-4. Install third & fourth canopy screw in round hole on canopy.
Securely tighten all four screws.
5-5. Using both hands, push the canopy trim ring up to the top of the
canopy.
5-6. Twist canopy trim ring clockwise to secure the canopy.
Should you need to remove the canopy
trim ring, follow these steps:
1. Twist canopy trim ring counter
clockwise until it releases from
canopy.
Steps 5-1 – 5-2
Canopy Trim
Ring
Canopy
Hanger Bracket
Step 5-3
Canopy
Screw
Step 5-4
Step 5-5
5 • Installing the Canopy and Canopy Trim Ring

9
45048-01 • 01/21/09 • Hunter Fan Company
6 • Assembling the Blades
Steps 6-2 – 6-4
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Install the grommets into the blades by hand.
6-2. Place each blade between a blade iron and medallion. Install three
blade screws to attach the medallion to the blade iron. Repeat for
all blades.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Step 6-1 (Detail)
Blade
Mounting
Screw
6 • Assembling the Blades

10
45048-01 • 01/21/09 • Hunter Fan Company
Your Hunter fan comes with an integrated light xture assembly.
WARNING: Use only the light xture supplied with this fan model.

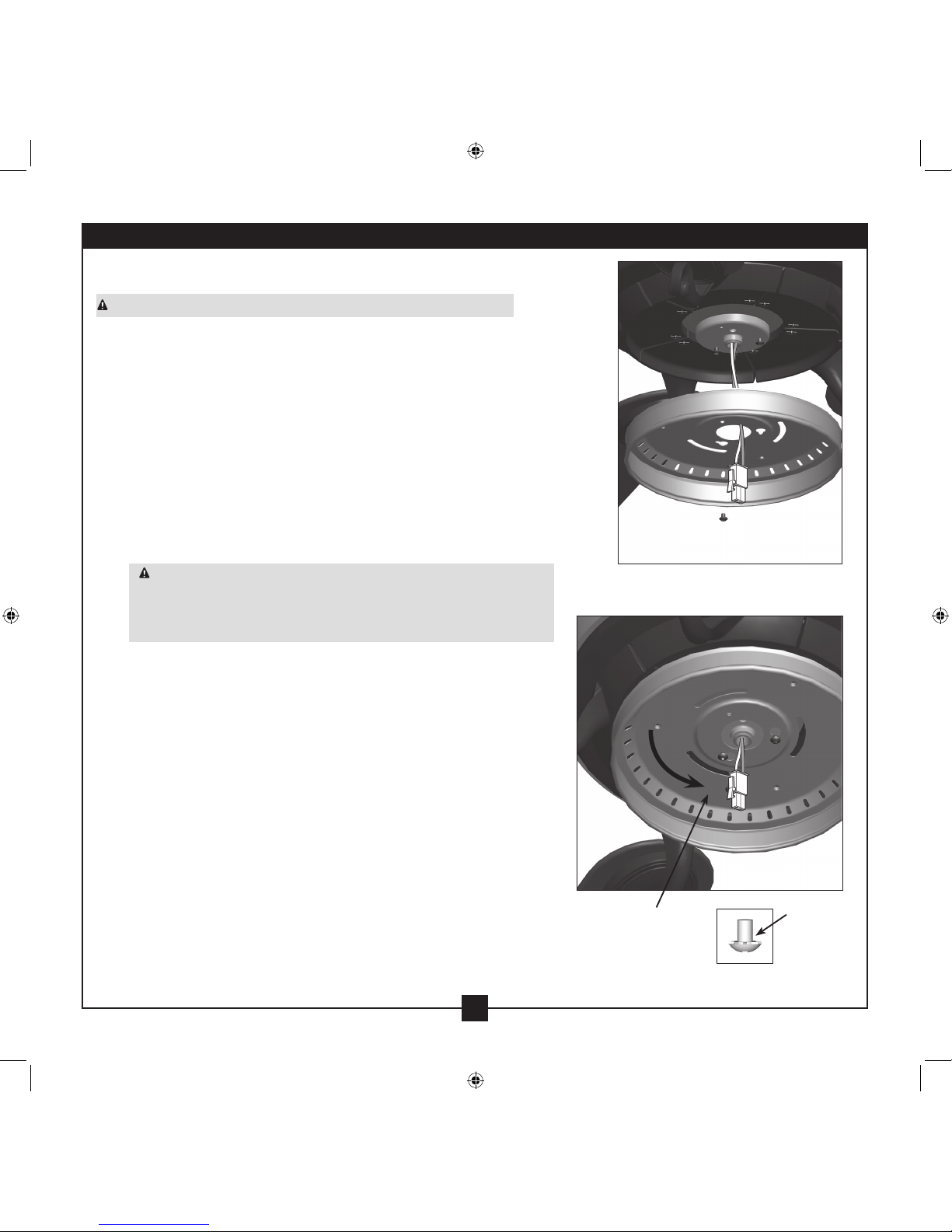

7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light xture falling.
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Steps 7-1 – 7-2
7 • Completing Your Installation With a Bowl Light Fixture

11
45048-01 • 01/21/09 • Hunter Fan Company
Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 7-6 – 7-7
7-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-6. Place the lower switch housing assembly into the upper switch
housing. Align the screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
7 • Completing Your Installation With a Bowl Light Fixture (Continued)

12
45048-01 • 01/21/09 • Hunter Fan Company
7 • Completing Your Installation With a Bowl Light Fixture (Continued)
Light Bulbs
(B10 Candelabra
Base 40 Watt
Maximum)
Metal Rod
Metal Disk
Glass Bowl
Cover Plate
Finial
Installing the Glass Bowl
7-7. First install B10 candelabra bulbs (40 Watt
Maximum) into the sockets.
7-8. Place the cover plate up against the glass
bowl. Align the holes in the cover plate and
glass bowl.
7-9. Screw the nial onto the threaded rod end
until tight.
Light Bulbs
(B10 Candelabra
Base 40 Watt
Maximum)
Note: In compliance with US federal energy
regulations, this ceiling fan contains a
device that restricts the light kit to a
maximum of 190 Watts. Exceeding that
limit or the marked limit on this product
may result in re hazard or improper
operation.

13
45048-01 • 01/21/09 • Hunter Fan Company
8-1. To install the battery, remove the back cover of the remote.
Insert the included 12-volt alkaline battery (Type 23A, MN-21 or
equivalent) inside the remote, matching polarity on the battery
as indicated by the + and - symbols in the battery compartment.
Replace the cover.
If you are using more than one remote controlled fan in the same
area and want to control them separately, you must change the
dipswitch settings in the remote before you install the battery. For
instructions on setting the dipswitches, read the box on the next
page.
8-2. To install the remote cradle on a switch plate, remove the two
screws holding the switch cover plate. Do not remove the cover
plate.
Note: If you are installing the remote cradle on a rocker light
switch, rst break o the two tabs by pushing outward.
Orient the control cradle by lining up the two mounting holes
with those on the switch. Insert and tighten the screws (do not
over tighten).
8-3. To install the remote cradle on the wall, locate a 2 x 4 wall stud
in a convenient location. Orient the remote cradle over the 2 x 4
stud. Use 1” wood screws in either the inner or outer mounting
holes.
Wall anchors and 6-32 x 1” screws may be used in situations where
mounting to a stud is not possible. Use the inner mounting holes.
CAUTION: e remote control device complies with part 15 of the
FCC rules. Changes or modications not expressly approved by Hunter Fan
Company could void your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference
that may cause undesired operation.
Note: Use with a fan that incorporates an air gap switch (normal on-o wall
switch).
WARNING: Maximum fan load is 100 Watts; maximum lamp is 300 Watts.
Do not use any speed control with this product.
Step 8-1
Step 8-2
Step 8-2 (Rocker Light Switch)
Removed
Tabs
8 • Assembling the Remote Control and Mounting the Cradle

14
45048-01 • 01/21/09 • Hunter Fan Company
8 • Assembling the Remote Control and Mounting the Cradle (Continued)
Setting the Dipswitches
You will only have to change the dipswitch settings in the remote if you are using more than
one remote controlled fan in the same area and want to control them separately. You may
want to label your remotes to ensure you do not mix them up.
1. At the circuit breaker or fuse box, turn the power o for the fan you want to change. Do
not turn the power o at the circuit breaker for the previously installed fan, as you may
inadvertently change the dipswitch code settings for it as well.
2. Slide the cover o the back of the remote and remove the battery. e battery must be
removed when changing dipswitch settings. Refer to Step 8-1.
3. Change the dipswitch settings, so that they are dierent from the previously installed fan.
4. Replace the battery and cover.
5. At the circuit breaker or fuse box, turn the power back on for the fan whose settings you
are changing.
6. Within 20 seconds of restoring power, push the 3 (high), 2 (medium), and 1 (low) buttons
(in that order) on the remote.
Note: e receiver (built into the fan) has a memory function that retains the last
dipswitch code setting. e setting will not change in the event of power failure or if the
power to the fan is inadvertently shut o.

15
45048-01 • 01/21/09 • Hunter Fan Company
To Change Airow Direction
Press the reversing switch on the remote
while the fan is running.
9-1. To start the fan, press the speed button on the remote at the level
you desire: 3 for high, 2 for medium, 1 for low. To turn o the fan,
press the o button on the remote.
9-2. You can control the uplight and downlight using separate buttons
on the remote. To turn the light on or o independently from
the fan, press the appropriate light button once for gradual o or
twice for instant o.
With the Auto Resume feature, the light will come on at the level
you used last. You can also hold the light button down to use the
remote as a dimmer. (As you hold the button, the light level will
move throughout its entire range within 16 seconds.) Release the
button at the desired level.
9-3. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
9-4. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents, as they will
damage the nish.
9-5. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
Steps 9-1 – 9-2
Fan High
Fan Low
Fan
Medium
Uplight
Downlight
Fan O Reversing
Switch
9 • Operating and Cleaning Your Ceiling Fan

16
45048-01 • 01/21/09 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
Problem: Lights dim when turned on or do not turn on
1. Check to make sure the wattage and type of light bulbs installed
match the specications on the light socket.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy.
Memphis, Tennessee 38016
10 • Troubleshooting
