Hunter Original User manual

English
Hunter Fan Company 41532-01 • 02/11/15
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.

Welcome
Your new Hunter®ceiling fan is an addition to your home or office that will provide comfort and
performance for many years. is installation and operation manual gives you complete instructions for
installing and operating your fan.
We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available
anywhere in the world.
Before installing your fan, for your records and warranty assistance, record the information from the
carton and the Hunter nameplate label (located on the top of the fan motor housing).
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the support structure of the building
according to these instructions, and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service
panel.
• All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are
unfamiliar with wiring, use a qualified electrician.
• To reduce the risk of personal injury, do not bend the blade attachment system when installing,
balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with
this fan. Use only Hunter speed controls.
• is product conforms to UL STD 507 and is certified to STD C22.2 No.113.
• Wash your hands after your fan installation is complete.
• Use only with light kits marked suitable for damp locations.
READ AND SAVE THESE INSTRUCTIONS
Table Of Contents
Getting Ready .........................4
Pre-Installation ........................5
Installing Ceiling Hardware ............6
Hanging e Fan ......................7
Wiring the Fan ........................9
Installing e Canopy..................10
Lubrication............................11
Fan Blade Assembly ...................12
Operation And Care...................13
Energy Star ............................14
Troubleshooting Guide . . . . . . . . . . . . . . . . 15

Hunter Fan Company 41532-01 • 04/13/18
3
Optional Accessories
Understanding Mounting
Hunter’s patented mounting system provides you maximum ease in installing your fan. is fan was
designed to be mounted only on flat ceilings and can be used only on ceilings no less than 8 feet high.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted or remote speed control.
To install and use the accessories, follow the instructions included with each product. For quiet and
optimum performance of your Hunter fan, use only Hunter speed controls.
Standard Mounting
hangs from the ceiling by a
downrod (included), recommended
for ceilings 8 feet or higher.

Hunter Fan Company 41532-01 • 04/13/18
4
Installing Multiple Fans?
If you are installing more than one
fan, keep the blades and blade
irons in sets as they were shipped.
Getting Ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 70 lbs (31.8 kg) pounds.
If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer
or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Adjustable wrench or pliers
• Electric drill with 11/64” bit
• #1 Phillips-head screwdriver (magnetic tip recommended)
• #2 Phillips-head screwdriver (magnetic tip recommended)
• Ladder (height dependent upon installation site)
• 11 mm socket wrench
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to the included Parts Guide.
Check for any shipping damage to the motor or fan blades. If any parts are missing or damaged,
contact your Hunter dealer or call Hunter Technical Support Department at 1-888-830-1326.

Hunter Fan Company 41532-01 • 04/13/18
5
Pre-Installation
Pre-Installation

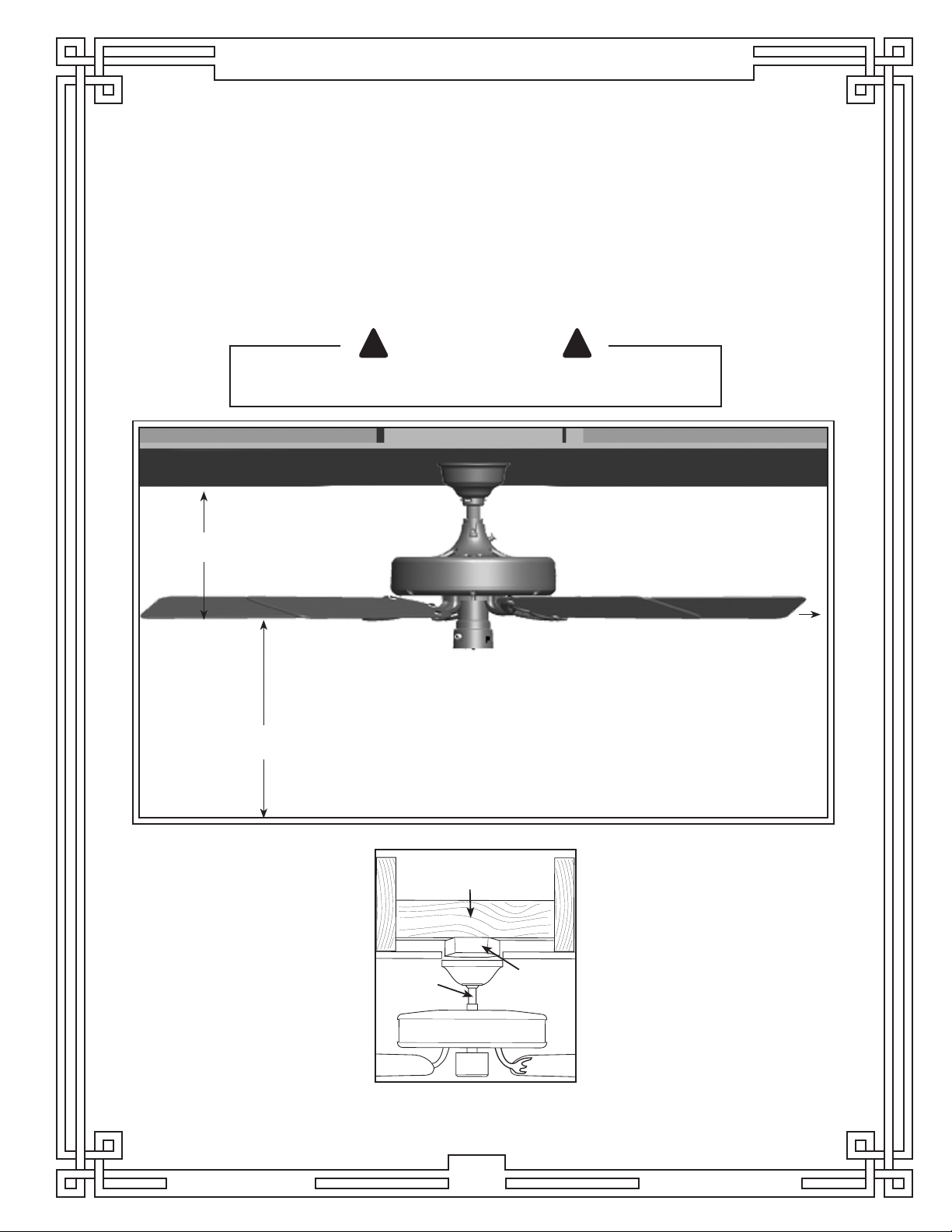

Select installation site: Normally this is near the center of the room, often replacing a light fixture. Make
certain that ample clearance is left for the rotating fan blades. For maximum efficiency, no obstruction
(walls, posts, etc.) should be within 30” of the tips of the blades (see Fig. 1).
Your Hunter fan comes with the proper hardware to hang the fan from a 8 foot ceiling so the fan
blades will be 12” from the ceiling and approximately 7 feet from the floor (see Fig. 1).
NOTE: On vaulted ceilings, up to 45° pitch, you may want to use the Hunter Angled Ceiling Mounting
Kit, which can be purchased via our website or by calling 1-888-830-1326.
! !
CAUTION
NEVER LIFT THE MOTOR BY THE WIRES.
LET MOTOR REST IN THE CARTON LINER FOR PROTECTION.
12” Minimum
7’ From Floor
30” Clearance
Fig. 1
Use Standard Mounting to hang the
fan from a flat ceiling.
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)

Hunter Fan Company 41532-01 • 04/13/18
6
Installing Ceiling Hardware
Fig. 2
3 1/2” Lag Bolt
CAUTION
DO NOT USE LUBRICANT ON SCREWS
! !

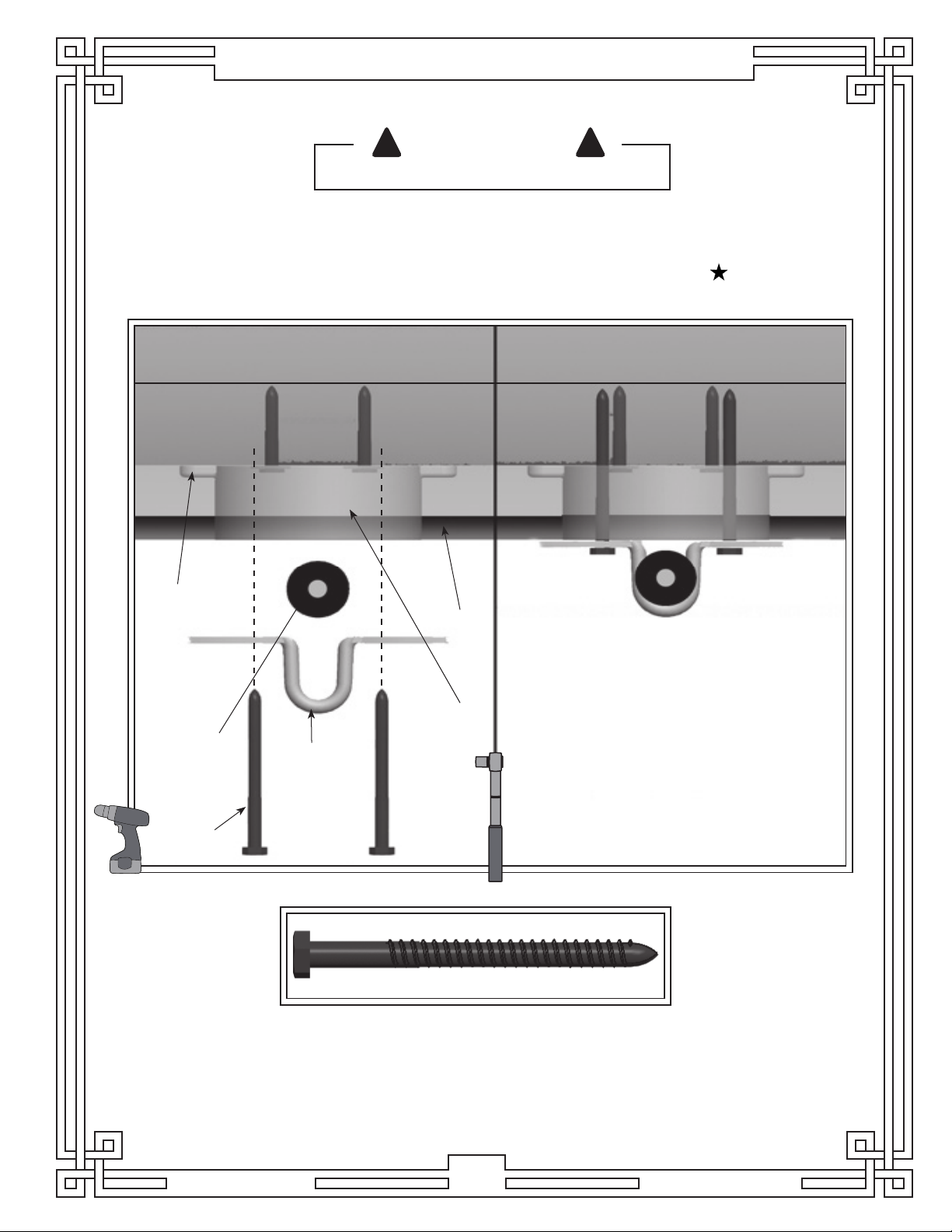

1. Drill two (2) 1/4” diameter holes 2-9/16” apart through the back of the outlet box into the cross
brace 2" deep. ese holes are for the U-bracket bolts. Install rubber bushing and pin into the
u-bracket. Use a 11 mm wrench to install the (2) 3 1/2” lag bolts, found in the hardware bag, to
secure the U-bracket to the joist (see Fig. 2).
Lag Bolt
U-Bracket
Rubber
Bushing
and Pin
Exploded View Installed View
Cross
Brace Ceiling
Outlet
Box

Hunter Fan Company 41532-01 • 04/13/18
7
Motor
Housing
Hanger Pipe
Wires
Motor Housing
Set Screw
TO SECURELY HANG THE FAN, CAREFULLY FOLLOW THE STEPS ON PAGES 7 AND 8.
BE SURE TO TIGHTEN THE HANGER PIPE INTO THE FAN AND THE HANGER BRACKET
ONTO THE PIPE. TIGHTEN THE 2 SET SCREWS, AS DESCRIBED IN STEP 7, TO PREVENT
THE FAN FROM FALLING. YOUR FAN MAY WEIGH UP TO 50 LBS. ALL OF THE
FOLLOWING STEPS MUST BE FOLLOWED IN ORDER TO ENSURE A SECURE MOUNTING.
! !
CAUTION
Hanging The Fan
1. Feed the wires from the top of the fan motor through the hanger pipe (see Fig. 3).
2. Loosen the motor housing set screw (do not completely remove from the fan) in the neck of the
fan motor housing.
3. Screw the pipe into the fan until tight (at least 4 1/2 turns) (see Fig. 4).
4. Excess wiring can be cut, but leave at least 8" extending from the top of the downrod.
NOTE: Some of the pipe threads may still be visible.
Fig. 3 Fig. 4

Hunter Fan Company 41532-01 • 04/13/18
8
Hanging The Fan
5. Back out the set screw on the hanger bracket.
6. Feed the wires through the hanger bracket assembly and screw the hanger bracket onto the
hanger pipe until tight (at least 3 turns) (see Fig. 5).
7. Use pliers to tighten both the hanger bracket assembly and the hanger pipe together.
8. Tighten the set screw in the motor housing and the hanger bracket assembly (see Fig. 6).
Fig. 5 Fig. 6
9. Be sure that the pin is centered in the rubber bushing (see Fig. 7a).
10. Lift the fan by the motor housing. Hook the hanger bracket assembly onto the rubber bushing
and pin. Ensure both ends of the pin are outside the hanger bracket assembly (see Fig. 7b).
Fig. 7b
Fig. 7a Hanger
Bracket
Assembly
Hanger
Bracket
Motor Housing
Set Screw
Hanger
Bracket
Set Screw
Rubber
Bushing
and Pin
Hanger
Pipe
NOTE: Some of the pipe threads may still be visible.
Bushing
Pin

Hunter Fan Company 41532-01 • 04/13/18
9
CAUTION
BE CERTAIN THAT THE ELECTRICITY IS TURNED OFF AT THE
MAIN PANEL BEFORE STARTING THIS SECTION.
! !
CAUTION
NO BARE WIRES OR WIRE STRANDS SHOULD
BE VISIBLE AFTER MAKING CONNECTIONS.
! !
Wiring the Fan
Wall switches are not included. Select an
acceptable general-use switch in accordance with
national and local electrical codes.
1.Before attempting installation, make sure the
power is still off.
2.To connect the wires, use the wire connectors
provided in the hardware bag. Hold the
bare metal leads together and place a wire
connector over them, then twist clockwise
until tight.
3.Connect the bare or green ground wire
(grounding) from the ceiling to the side of the
hanger bracket assembly.
4.Connect the white wire (grounded) from the
ceiling to the white wire (grounded) from the
fan.
5.Connect the remaining wires as follows for
either Dual or Single Switch Wiring:
For Dual Switch Wiring (see Fig. 8):
• e black wire (ungrounded) from the ceiling
to the black wire (ungrounded) from the fan.
• e blue wire (ungrounded) from the fan to
the wire (ungrounded) from the wall switch.
For Single Switch Wiring (see Fig. 9):
• The black wire (ungrounded) from the ceiling
to the black (ungrounded) and the blue wire
(ungrounded) from the fan.
Fig. 8
6.Turn the splices upward and push them
carefully into the outlet box.
7.Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the
outlet box.
Wire Connector
Fig. 9
NOTE: All wiring must be in accordance with national and
local electrical codes and ANSI/NFPA 70-1999. If you are
unfamiliar with wiring, use a qualified electrician.
Ground
Wire
Ground
Wire

Hunter Fan Company 41532-01 • 04/13/18
10
NOTE: Your canopy comes pre-assembled. Uninstall the canopy screws using a #1 Phillips-head
screwdriver and separate the two halves of the canopy before continuing to step 1.
1. Assemble canopy halves around pipe, and loosely install the canopy assembly screws.
2. Slide canopy up close to ceiling.
3. Tighten the canopy assembly screws (see Fig. 10) using a #2 Phillips-head screwdriver.
4. Tighten the canopy set screw (see Fig. 10) using a #1 Phillips-head screwdriver.
Installing The Canopy
Fig. 10
Canopy
Canopy Set Screw
Canopy Assembly
Screw

Hunter Fan Company 41532-01 • 04/13/18
11
Lubrication
Adding Oil

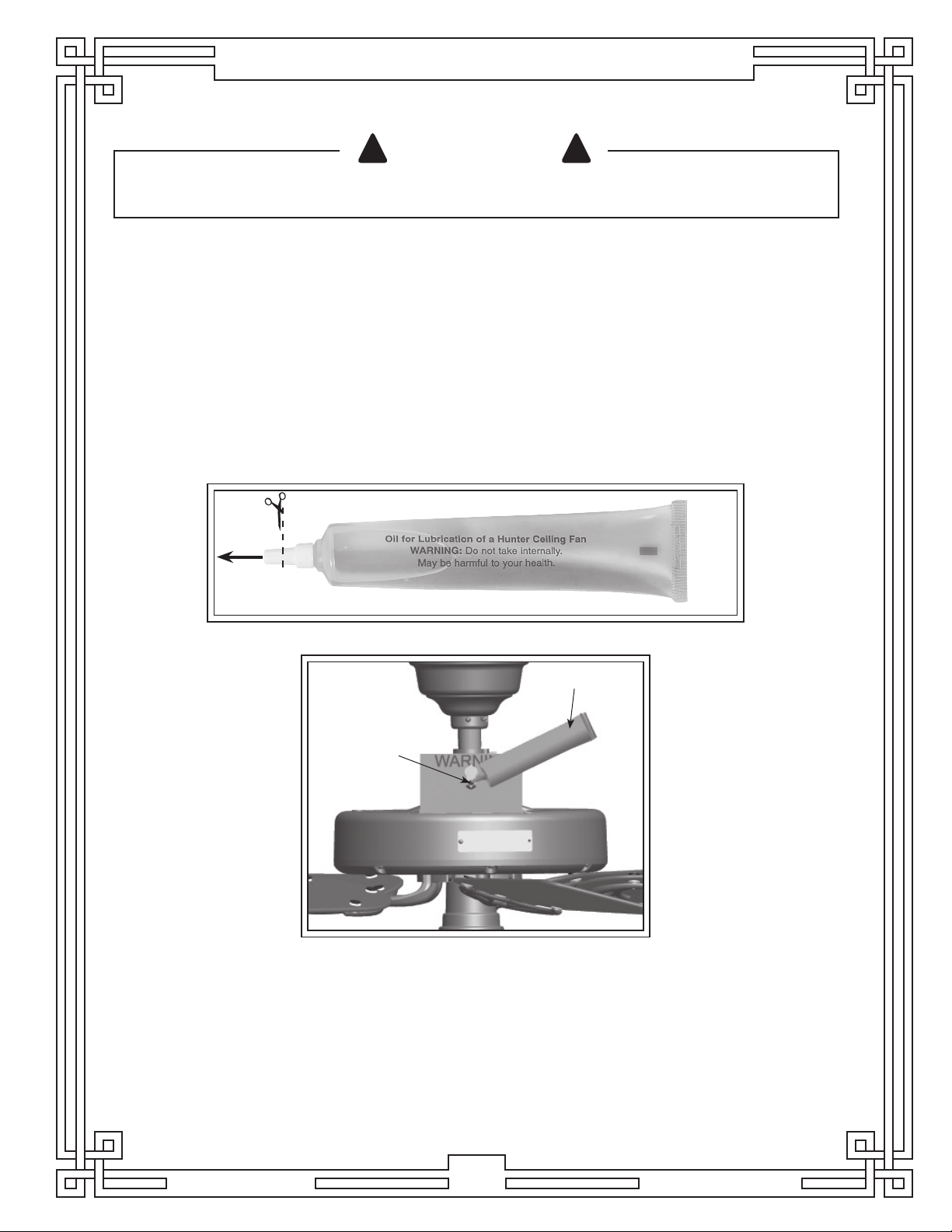

Note: Your fan has been shipped without oil in the motor. A tube of high grade SAE 10 non-detergent
oil is packaged in the hardware bag.
1. Remove cap if present.
2. Cut the tip off the end of the tube (see Fig. 11).
3. Place the tube into the oil hole and gently squeeze the tube to empty the oil into the fan's
reservoir (see Fig. 12).
NOTE: To avoid overflowing during filling, add a third of the oil from the tube at a time. Pause for 30
seconds between each third to allow the oil to settle in the fan. Be sure to add all of the oil in the
tube to the fan.
Fig. 12
Fig. 11
Your Original Hunter’s Unique Lubricating System
e bearings in your Hunter Original Ceiling Fan are submerged in oil, which lubricates all bearing
surfaces as the fan operates. We recommend periodically checking the oil to ensure the correct level
is maintained. is unique lubrication system is one reason why your Hunter Original Ceiling Fan will
last a lifetime.
CAUTION
DO NOT TURN FAN ON UNTIL LUBRICATION HAS BEEN ADDED. TO OPERATE THE FAN
WITHOUT OIL OR WITH LOW OIL WILL VOID YOUR WARRANTY.
! !
Oil Tube
Oil Hole

Hunter Fan Company 41532-01 • 04/13/18
12
CAUTION
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE
BRACKETS WHEN INSTALLING THE BRACKETS, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN
BETWEEN ROTATING FAN BLADES.
! !
Fan Blade Assembly

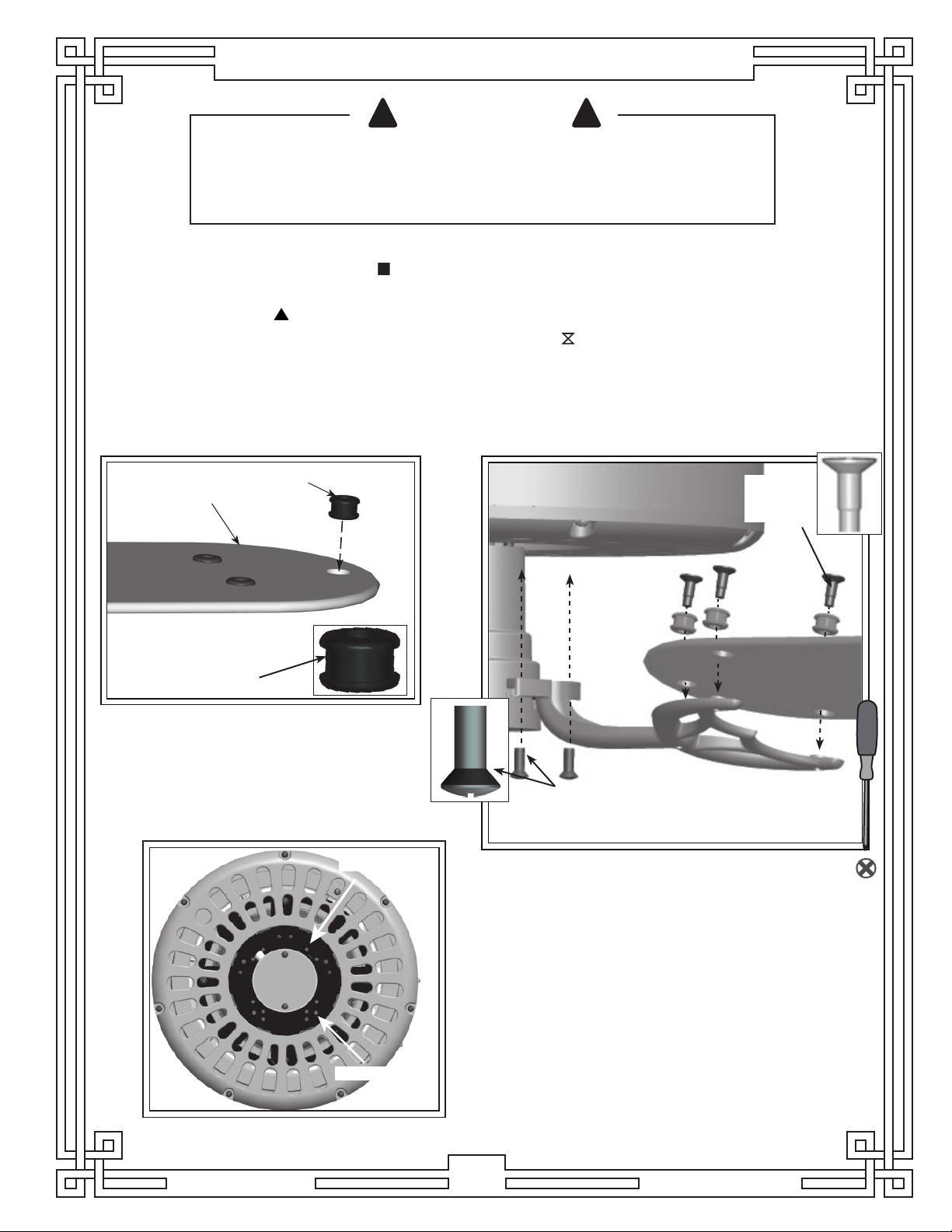

1. Insert blade grommets, found in the hardware bag, by hand into the holes on the blades (see Fig. 13).
2. Using a #2 Phillips-head screwdriver, attach each blade to a blade iron using three blade assembly
screws, found in the hardware bag (see Fig. 14).
3. For each blade, insert one blade mounting screw, found in the hardware bag, through the blade iron,
and attach lightly to the fan. Insert the second blade mounting screw, then securely tighten both
mounting screws (See Fig. 14) using a #2 Phillips-head screwdriver.
NOTE: With the Hunter Original, you have an option to install either four or five blades. For five blades,
mount to the outer row of holes on the motor. For four blades, use the inner row (see Fig. 15).
Fan Blade Assembly
Blade
Mounting
Screw
Fig. 14
Fig. 15
Blade
Grommet
Grommet
Blade
Assembly
Screws
Outer Row
Inner Row
Fig. 13

Hunter Fan Company 41532-01 • 04/13/18
13
Checking Oil
1. Check oil level immediately after filling the reservoir and every 1 to 5 years thereafter.
2. To check oil, bend an ordinary pipe cleaner into 1/2” long hook and dip it into the oil reservoir
(see. Fig. 17).
3. If the oil touches the end of the pipe cleaner, the fan has ample oil. If it does not touch, add SAE
10 non-detergent oil slowly until it touches the pipe cleaner (see. Fig. 18).
1/2"
Pipe
Cleaner
Pipe Cleaner
Fig. 16
Fig. 17 Fig. 18
Directional
Lever
UP
DOWN
Operation And Care
1. e fan pull chain controls power to the fan. e pull chain has four settings in sequence: High,
Medium, Low, and Off.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the blades.
2. For cleaning finishes, use a soft brush or lint-free cloth to prevent scratching. A vacuum cleaner
brush nozzle can remove heavier dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may use an artistic agent, but never
abrasive cleaning agents as they will damage the finish.
3. Clean wood finish blades with a furniture polishing cloth. Occasionally, apply a light coat of
furniture polish for added protection and beauty.
To Reverse The Flow Of Air.
1. Move the directional lever down for down draft (see Fig. 16).
2. Move the directional lever up for up draft (see Fig. 16).

Hunter Fan Company 41532-01 • 04/13/18
14
Troubleshooting Guide
Problem: Nothing happens; fan does not move.
1. Check all fuses and circuit breakers. Make sure power is turned on for your fan.
2. Check all connections according to the wiring the fan section.
3. Pull the pull chain to ensure it is on.
4. Check to make sure the reverse switch is firmly in the up or down position.
Note: If the blades will not turn by hand, contact your nearest service representative or dealer.
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron screws until they are snug.
2. Check to see if any of the blades are cracked. If so, replace all the blades.
3. Lower the canopy so it does not make contact with the ceiling.
4. Check the oil level and add oil if required (see page 13 for details).
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the
fan.
2. Tighten the blade assembly screws and blade iron screws until they are snug.
3. Ensure the fan is secured properly to the hanger assembly.
Problem: Fan only operates at slow speeds.
1. Contact your nearest service representative or dealer.
If you need parts or service assistance, please call
1-888-830-1326 or visit us at our web site at
www.HunterFan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
