Hunter Type 3 Models User manual

For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual. TYPE 3 Models
installation and
operation manual
for Hunter
Ceiling Fans
42756-01 • 06/26/07

2
42756-01 • 06/26/07 • Hunter Fan Company
© 2007 Hunter Fan Company
Your new Hunter®ceiling fan is an addition to your home or office that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Hunter nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Hunter speed
controls.
Welcome
Table Of Contents
1•GettingReady......................4
2 • Installing the Ceiling Plate . . . . . . . . . . 5
3 • Assembling and Hanging the Fan . . . 6
4 • Setting the Remote Transmitter
andReceiver......................7
5•WiringtheFan.....................8
6 • Installing the Canopy and Canopy
TrimRing.........................9
7 • Assembling the Blades . . . . . . . . . . . . . 10
8 • Completing Your Installation With
or Without a Bowl Light Fixture . . . 11
9• Operating the Remote Control and
Mounting the Holder . . . . . . . . . . . . . 15
10 • Operating and Cleaning Your
CeilingFan........................16
11 • Troubleshooting . . . . . . . . . . . . . . . . . . 17

3
42756-01 • 06/26/07 • Hunter Fan Company
Installer’s Choice and Optional Accessories
Understanding Mounting and Installer’s Choice®
Hunter’s patented 3-position mounting system provides you maximum
installation flexibility and ease. You can install your Hunter fan in one
of three ways, depending on ceiling height and your preference: Low
Profile, Standard, or Angle mounting. e steps in this manual include
instructions for all three Installer’s Choice mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted
or remote speed control. To install and use the accessories, follow
the instructions included with each product. For quiet and optimum
performance of your Hunter fan, use only Hunter speed controls.
For ceilings higher than 8 feet, you can purchase
Hunter extension downrods. All Hunter fans use
sturdy 3/4” diameter pipe to assure stability and
wobble-free performance.
Standard Mounting hangs from the
ceiling by a downrod (included).
Angle Mounting recommended for a
vaulted or angled ceiling
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Support Brace
Ceiling
Outlet Box
Angle
Mounting
Style
Low Profile Mounting fits close to the
ceiling, recommended for ceilings less
than 8 feet high
Support Brace
Low Profile
Mounting
Style
Ceiling
Outlet Box
8
12
CAUTION: To
reduce the risk of
personal injury, attach
the fan directly to the
support structure of
the building according
to these instructions,
and use only the
hardware supplied.

4
42756-01 • 06/26/07 • Hunter Fan Company
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts

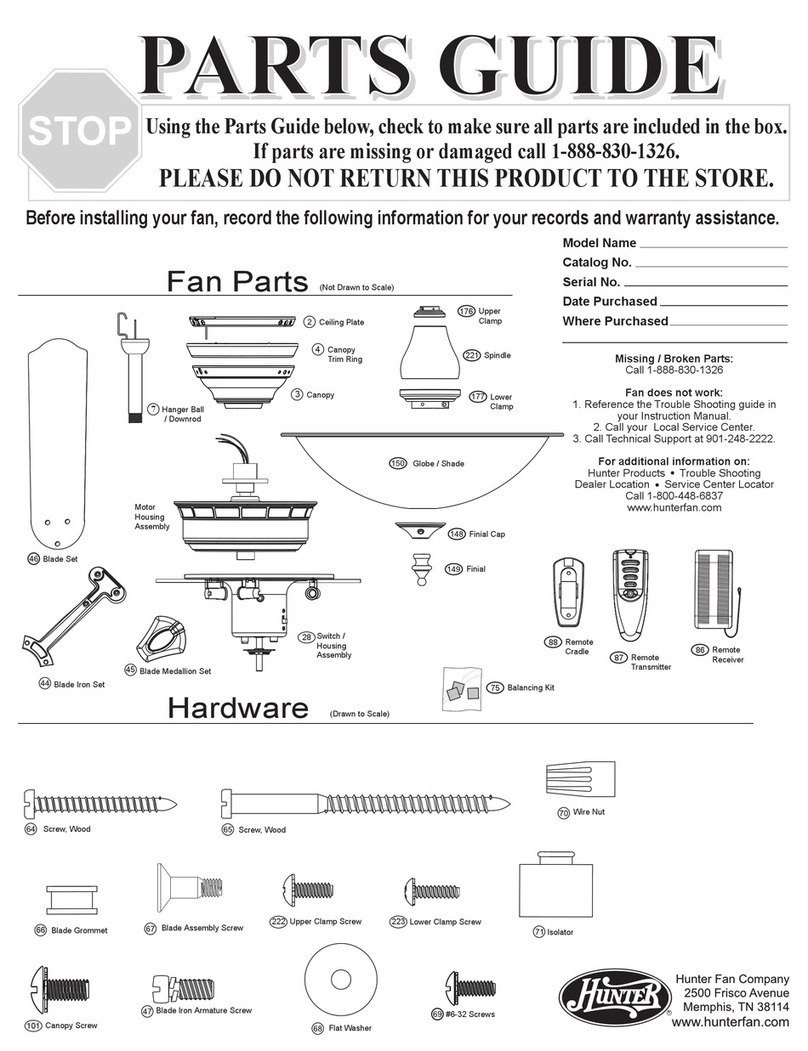

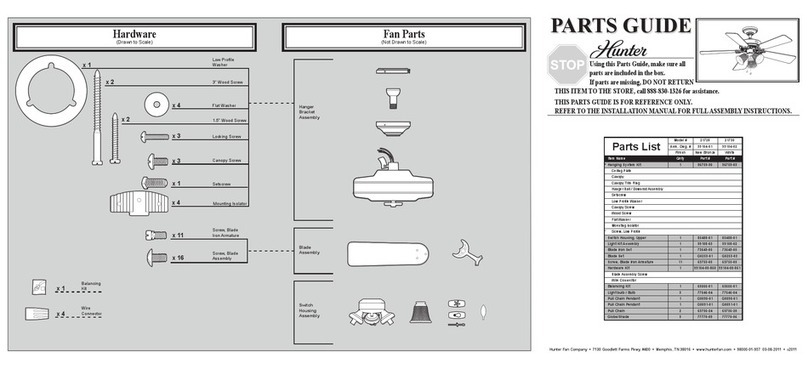

Carefully unpack your fan to avoid damage to the fan parts. Refer to
the included Parts Guide. Check for any shipping damage to the motor
or fan blades. If any parts are missing or damaged, contact your Hunter
dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan
location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
1 • Getting Ready

5
42756-01 • 06/26/07 • Hunter Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning off the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the off position, securely fasten a prominent warning device, such as a
tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through the
outermost holes in the outlet box. e pilot holes should be 9/64”
in diameter.
2-2. Your fan comes with four neoprene noise isolators (“Isolators”).
Position the isolators between the ceiling plate and ceiling by
inserting the raised areas on each isolator into the holes in the
ceiling plate.
2-3. read the lead wires from the outlet box down through the hole
in the middle of the ceiling plate.
2-4. Align the slotted holes in the ceiling plate with the pilot holes you
drilled in the wood support structure. For proper alignment use
slotted holes directly across from each other.
Note: e isolators should be flush against the ceiling.
2-5. Place a flat washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling plate into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Wood Screw
Steps 2-3 – 2-5
For Angled Ceilings: Be sure to
orient the ceiling plate so that the
arrows printed on the ceiling plate are
pointing towards the ceiling peak.
Ceiling
Plate
Isolator
2 • Installing the Ceiling Plate

6
42756-01 • 06/26/07 • Hunter Fan Company
Steps 3-5 – 3-6
Low Profile Screw
Low Profile Washer
Steps 3-2 – 3-3
Downrod
Canopy
Canopy
Trim Ring
Set Screw
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
3-1. Unbundle the wires from the fan.
For Standard or Angle mounting:
3-2. To assemble fan to hang down from a flat or angled ceiling, insert
the downrod through the canopy and canopy trim ring. Feed the
wires from the fan through the downrod.
3-3. Loosen the square head set screw on the adapter to install the
pipe and ball assembly. Note: When the pipe and ball assembly
is fully installed, 2-3 threads on the pipe will still be visible; this is
normal. Securely retighten the set screw with a wrench or pliers.
Skip to Step 3-7.
CAUTION: e adapter has a special coating on the threads. Do
not remove this coating; the coating prevents the downrod from
unscrewing. Once assembled, do not remove the downrod.
For Low Profile mounting:
Note: For low profile mounting, the downrod is replaced with the low
profile washer.
3-4. Remove the set screw from the adapter.
3-5. Place the low profile washer (lip up) into the canopy. Be sure the
green ground wire is pointing up toward the ceiling.
3-6. Align the holes in the washer with the holes in the adapter.
Assemble securely with three low profile screws.
3-7. Raise the fan and place the hook on the ceiling plate through the
U-shaped hole in the rim.
Step 3-7
U-shaped
Hole
3 • Assembling and Hanging the Fan

7
42756-01 • 06/26/07 • Hunter Fan Company
CAUTION: e remote control device complies with part 15 of the FCC rules.
Changes or modifications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:
1. is device may not cause harmful interference.
2. is device must accept any interference received, including interference that may
cause undesired operation.
WARNING: Use only the Hunter Fan speed control supplied with this fan.
4-1. IMPORTANT! Before you change the dipswitch settings, make
sure the battery is not connected to the transmitter.
Change the position of the dipswitches in the remote transmitter
and the receiver. Make sure that the dipswitches match in
the remote receiver and transmitter. If they don’t match, the
transmitter will not function.
4-2. Install the included 9-volt battery into the transmitter.
Setting Dipswitches
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a different code,
so that the operation of one fan does not affect the operation of the
other fans.
e dipswitches for the receiver are located on the flat surface of the
receiver. e dipswitches for the transmitter are in the the battery
compartment.
Receiver Dipswitches
Transmitter Dipswitches
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Example Dipswitch Settings
Receiver 1 Receiver 2
Transmitter 2
Transmitter 1
4-3. Raise the fan and align the slots in the canopy with the hooks
on the ceiling plate.
Note: To hang the fan, you must tilt the canopy to an almost
vertical position so that the canopy slots sit on the ceiling
plate hooks.
4 • Setting the Remote Transmitter and Receiver

8
42756-01 • 06/26/07 • Hunter Fan Company
5 • Wiring the Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
5-1. Make sure the power is still off.
5-2. To connect the wires, hold the bare metal leads together and place
a wire nut over them, then twist clockwise until tight. For all these
connections use the wire connectors provided.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
5-3. Using a large wire connectors, connect the ground wire from the
ceiling to the green ground wire from the ceiling plate and the
green ground wire from the downrod.
5-4. Using the large wire connectors, connect the white wire and the
black wire from the ceiling as follows:
• e white (common) power wire from the ceiling to the white
wire from the receiver (marked on red tag “NEUTRAL IN”)
• e black power wire from the ceiling to the black wire from
the receiver (marked on red tag “LIVE IN”)
5-5. Using the small wire connectors, connect the wires from the fan as
follows:
• e black/white wire from the fan to the red wire from the
receiver (marked on white tag “LIGHT OUT”)
• e black wire from the fan to the black wire from the receiver
(marked on white tag “FAN OUT”)
• e white wire from the fan to the white wire from the receiver
(marked on white tag “COMMON OUT”)
5-6. Check each connection to make sure no bare wire or wire strands
are visible. Push all wires and wire connectors, except for the white
antenna wire from the receiver, back through the ceiling plate into
the outlet box.
5-7. Position the receiver in the canopy so that the antenna is close to
the edge of the ceiling plate for clear reception.
Large Wire
Connector
Steps 5-3 – 5-7
Antenna
Receiver
Small Wire
Connector

9
42756-01 • 06/26/07 • Hunter Fan Company
6-1. Holding the canopy, raise the fan off the hook.
6-2. Align the slots in the canopy with the tabs on the ceiling plate.
6-3. Raise the canopy over the ceiling plate. Rotate the canopy
clockwise until the tabs on the ceiling plate totally engage with
the slots in the canopy.
6-4. Partially install the three canopy screws into the canopy one at a
time. Once all three screws are in, tighten them.
6-5. Using both hands, push the canopy trim ring up to the top of the
canopy. e canopy trim ring will snap and lock into place.
Should you need to remove the canopy
trim ring, follow these steps:
1. Locate the tab indicators, small
bumps on top of tabs.
2. Press firmly on opposite sides of the
ring towards the canopy. e tabs
will flex out releasing the trim ring
from the canopy.
Step 6-2
Canopy Trim
Ring
Canopy
Ceiling Plate
Step 6-3
Steps 6-4 – 6-5
Canopy
Screw
6 • Installing the Canopy and Canopy Trim Ring

10
42756-01 • 06/26/07 • Hunter Fan Company
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
7-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
7-2. Attach each blade to a blade iron using three blade assembly
screws. If you used grommets, the blades may appear slightly loose
after screws are tightened. is is normal.
7-3. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
7-4. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Step 7-1 (Detail)
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Blade
Mounting
Screw
Steps 7-1 – 7-2
Step 7-4
7 • Assembling the Blades

11
42756-01 • 06/26/07 • Hunter Fan Company
Your Hunter fan comes with an integrated light fixture assembly and
an optional switch housing cap and plug button. is feature gives
you the option of installing the fan with OR without the included light
fixture. e steps below direct you whether or not you are installing a
light fixture.
WARNING: Use only the light fixture supplied with this fan model.
8-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
8-2. Feed the upper plug connector through the center opening of the
housing.
8-3. Align the keyhole slots in the housing with the housing assembly
screws.
8-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling.
8-5. If you want to install the light fixture, proceed with step 8-6
now.
If you do not want to install the light fixture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on step 8-11.
Once you have uninstalled the light fixture, continue with step 8-6.
Steps 8-1 – 8-3
Housing
Assembly
Screw
Upper
Switch
Housing
8 • Completing Your Installation With or Without a Bowl Light Fixture

12
42756-01 • 06/26/07 • Hunter Fan Company
Lower Switch
Housing
Plug
Connector
Housing
Assembly Screw
Plug
Connector
Detail
Steps 8-6 – 8-7
8-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-7. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

13
42756-01 • 06/26/07 • Hunter Fan Company
8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Installing the Glass Bowl
8-8. First install B10 candelabra bulbs (60 Watt Maximum) into the
sockets.
8-9. Place the cover plate up against the glass bowl. Align the holes in
the cover plate and glass bowl.
8-10. Screw the finial onto the threaded rod end until tight.
Light Bulbs
(B10
Candelabra
Base 60 Watt
Maximum)
Metal Rod
Metal Disk
Glass Bowl
Cover Plate
Finial

14
42756-01 • 06/26/07 • Hunter Fan Company
8 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
Uninstalling the Light Fixture
8-11. To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the black/white wire.
8-12. Disconnect the plug connectors between the two white
wires.
8-13. Uninstall the nut and washer from the end of the light
fixture inside the lower switch housing.
8-14. Unscrew the threaded rod of the light fixture from the
lower switch housing.
8-15. Remove the light fixture from the lower switch housing
pulling disconnected wires through the hole in the
center of the lower switch housing.
Note: When removing the wires, pull the thin plug
connector (male) through first, and then pull the other
plug connector (female) through the hole.
8-16. Install the dummy terminals (included in the sack parts)
on the two disconnected wires in the lower switch
housing.
8-17. Install the switch housing cap and plug button to the
lower switch housing.
8-18. Once you have uninstalled the light fixture, continue
with step 8-6.
Lower Switch
Housing
readed Rod
Steps 8-13 – 8-15
Male Dummy
Terminal
Female Dummy
Terminal
Step 8-17
Cap
Plug Button

15
42756-01 • 06/26/07 • Hunter Fan Company
9• Operating the Remote Control and Mounting the Holder
9-1. e remote has individual buttons for setting fan speed and light
intensity. Refer to the figure on the right.
Note: For best operation, start the fan by pressing high, then
select your desired speed.
9-2. e light button turns the light on to full brightness. To dim
the light, hold the light button until you reach your desired
brightness. Push the light button again to turn off the light.
9-3. When necessary, replace the battery with a 9-volt alkaline battery.
9-4. You can mount the remote holder to any toggle switch plate with
the screws already in the switch plate. Or, you can simply mount
the remote holder on the wall.
Fan Light
Steps 9-1 – 9-2
Fan Speed
High Fan Speed
Medium
Fan Speed
Low Fan Off
Step 9-4

16
42756-01 • 06/26/07 • Hunter Fan Company
In warm weather, use
downward air flow pattern
In cold weather, use upward
air flow pattern
10-1. Turn on electrical power to the fan.
10-2. Ceiling fans work best by blowing air downward
(counterclockwise blade rotation) in warm weather to cool the
room with a direct breeze. In winter, having the fan draw air
upward (clockwise blade rotation) will distribute the warmer air
trapped at the ceiling around the room without causing a draft.
10-3. For cleaning finishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may
use an artistic agent, but never abrasive cleaning agents as they
will damage the finish.
10-4. Clean wood finish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in
the same manner as the fan finish.
To Change Airflow Direction
Turn the fan off and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch
10 • Operating and Cleaning Your Ceiling Fan

17
42756-01 • 06/26/07 • Hunter Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Check the plug connection in the switch housing.
4. Push motor reversing switch firmly left or right to ensure that the
switch is engaged.
5. Pull the pull chain to ensure it is on.
6. Remove the shipping bumpers.
Problem: Noisy operation.
1. Tighten the blade bracket screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power off, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114
11 • Troubleshooting
