Hunter Type C User manual

Hunter Fan Company 42704-01 • 01/29/07
For Your Records and Warranty
Assistance
Model Name: _____________________
Catalog/Model No.: ________________
Serial No.: ________________________
Date Purchased: ___________________
Where Purchased: _________________
For reference also attach your receipt or a
copy of your receipt to the manual.

Hunter Fan Company 42704-01 • 01/29/07
2
Welcome
Table of Contents
1 • Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 • Optional Accessories . . . . . . . . . . . . . . . . . . . 3
3 • Getting Ready . . . . . . . . . . . . . . . . . . . . . . . 4
4 • Pre-Installation . . . . . . . . . . . . . . . . . . . . . . . 5
5 • Installing Ceiling Hardware . . . . . . . . . . . . . . . 6
6 • Hanging e Fan . . . . . . . . . . . . . . . . . . . . 7-8
7 • Wiring e Fan . . . . . . . . . . . . . . . . . . . . . . . 9
8 • Installing e Canopy. . . . . . . . . . . . . . . . . . .10
9 • Lubrication . . . . . . . . . . . . . . . . . . . . . . . . .11
10 • Fan Blade Assembly . . . . . . . . . . . . . . . . . . .12
11 • Installing Bulb And Globe . . . . . . . . . . . . . . .13
12 • Operation And Care. . . . . . . . . . . . . . . . . . .14
13 • Troubleshooting Guide . . . . . . . . . . . . . . . . .15
© 2007 Hunter Fan Company
Your new Hunter®ceiling fan is an addition to your home or office that will provide comfort and
performance for many years. is installation and operation manual gives you complete instructions for
installing and operating your fan.
We are proud of our work. We appreciate the opportunity to supply you with the best ceiling fan available
anywhere in the world.
Before installing your fan, for your records and warranty assistance, record information from the carton
and Hunter nameplate label (located on the top of the fan motor housing).
ese installation instructions are for a Hunter Type “ C “ Fan.
Cautions and Warnings
• Read this entire manual carefully before beginning installation. Save these instructions.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the support structure of the building
according to these instructions, and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service
panel.
• All wiring must be in accordance with national and local electrical codes and ANSI/NFPA 70. If you are
unfamiliar with wiring, use a qualified electrician.
• To reduce the risk of personal injury, do not bend the blade attachment system when installing,
balancing, or cleaning the fan. Never insert foreign objects between rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor damage, do not use a solid-state speed control with
this fan. Use only Hunter speed controls.
READ AND SAVE THESE INSTRUCTIONS

Hunter Fan Company 42704-01 • 01/29/07
3
Optional Accessories
Understanding Mounting
Hunter’s patented mounting system provides you maximum ease in installing your fan. is fan was
designed to be mounted only on flat ceilings and can be used only on ceilings no less than 9 feet high.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a wall-mounted or remote speed control.
To install and use the accessories, follow the instructions included with each product. For quiet and
optimum performance of your Hunter fan, use only Hunter speed controls.
Standard Mounting
hangs from the ceiling by a
downrod (included), recommended
for ceilings 9 feet or higher

Hunter Fan Company 42704-01 • 01/29/07
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or
electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Adjustable wrench or pliers
• Electric drill with 11/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Ladder (height dependent upon installation site)
• 3/8” socket wrench

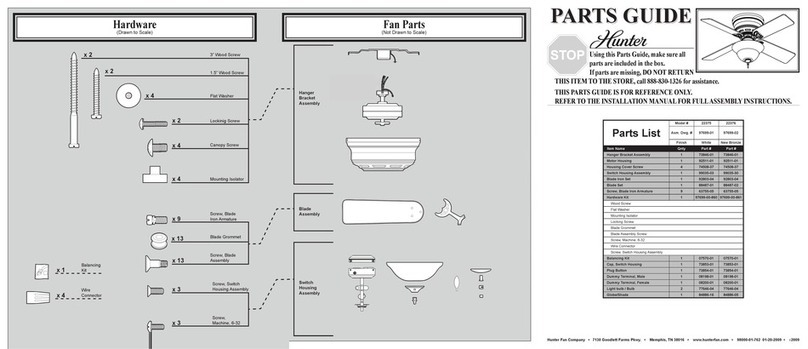

Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer to the included Parts Guide. Check
for any shipping damage to the motor or fan blades. If any parts are missing or damaged, contact
your Hunter dealer or call Hunter Technical Support Department at 888-830-1326.
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in the pullout sheet called “Preparing
the Fan Site.” Proper ceiling fan location and attachment to the building structure are essential for
safety, reliable operation, maximum efficiency, and energy savings.
Installing Multiple Fans?
If you are installing more
than one fan, keep the blade
assemblies in sets, as they were
shipped.
4
Getting Ready

Hunter Fan Company 42704-01 • 01/29/07
! !
5
Pre-Installation
Pre- Installation
Select installation site: Normally this is near the center of the room, often replacing a light fixture.
Make certain that ample clearance is left for the rotating fan blades. For maximum efficiency, no
obstruction (walls, posts, etc.) should be within 24” of the tips of the blades (see Fig. 1).
Your Hunter fan comes with the proper hardware to hang the fan from a 9 foot ceiling so the fan
blades will be 17 1/4” from the ceiling and approximately 7 feet from the floor (see Fig. 1).
NOTE: On vaulted ceilings, up to 45° pitch, you may want to use the Hunter Vaulted Ceiling
Mounting Kit (22174). is kit can be purchased via our website or our parts and service number
provided on page 15 of this manual.
CAUTION
NEVER LIFT THE MOTOR BY THE WIRES.
LET MOTOR REST IN THE CARTON LINER FOR PROTECTION.
17 1/4” (ref.) Minimum
7’ From Floor
24” Clearance
Fig. 1

Hunter Fan Company 42704-01 • 01/29/07
6
Installing Ceiling Hardware
Fig. 2
3 1/2” Lag Bolt
CAUTION
DO NOT USE LUBRICANT ON SCREWS
! !
1. Drill (2) 11/64” diameter holes through the outermost holes in the box 2” deep into the cross brace.
ese holes are for the U-bracket bolts. Install rubber bushing and pin into the u-bracket. Use a
3/8” wrench to install the (2) 3 1/2” lag bolts to secure the U-bracket to the joist (see Fig. 2).
Lag Bolt
U-Bracket
Rubber
Bushing
and Pin
Exploded View Installed View
Cross
Brace
Ceiling
Outlet
Box

Hunter Fan Company 42704-01 • 01/29/07
Motor
Housing
Hanger
Pipe
Wires
Motor Housing
Set Screw
Canopy
CAUTION
BE SURE TO TIGHTEN THE HANGER PIPE INTO THE FAN, AND THE
HANGER BRACKET ONTO THE PIPE. TIGHTEN THE 2 SET SCREWS, AS
DESCRIBED IN STEP 7, TO PREVENT THE FAN FROM FALLING. YOUR FAN
MAY WEIGH UP TO 50 LBS. ALL OF THE FOLLOWING STEPS MUST BE
FOLLOWED IN ORDER TO ENSURE A SECURE MOUNTING.
! !
7
Hanging The Fan
1. Feed the wires from the top of your motor through the hanger pipe (see Fig. 3).
2. Back out the motor housing set screw (Do not completely remove from fan) in neck of fan motor
housing and hanger bracket assembly so the hanger pipe can be screwed in.
3. Screw the pipe into the fan until tight (at least 4 1/2 turns) (see Fig. 4).
NOTE: Some of the pipe threads may still be visible.
4. Slide the canopy down over the hanging pipe (see Fig. 5).
Fig. 3 Fig. 4
Fig. 5

Hunter Fan Company 42704-01 • 01/29/07
8
Hanging The Fan
5. Back out the set screw on the hanger bracket.
6. Feed the 3 wires through the hanger bracket assembly and screw the hanger bracket onto the
hanger pipe until tight (at least 3 turns) (see Fig, 6).
7. Use pliers to tighten both the hanger bracket assembly and the hanger pipe together.
8. Tighten the set screw in the motor housing and the hanger bracket assembly (see Fig 7).
Fig. 6 Fig. 7
9. Be sure that the pin is centered in the rubber bushing.
10. Lift the fan by the motor housing, hook the hanger bracket assembly onto the rubber bushing
and pin. Make sure both ends of the pin are outside the hanger bracket assembly (see Fig 8).
Fig. 8
Hanger
Bracket
Assembly
Hanger
Bracket
Motor Housing
Set Screw
Hanger
Bracket
Set Screw
Rubber
Bushing
and Pin
Hanger
Pipe

Hunter Fan Company 42704-01 • 01/29/07
CAUTION
BE CERTAIN THAT THE ELECTRICITY IS TURNED OFF AT THE
MAIN PANEL BEFORE STARTING THIS SECTION.
! !
CAUTION
NO BARE WIRES OR WIRE STRANDS SHOULD
BE VISIBLE AFTER MAKING CONNECTIONS.
! !
9
Wiring the Fan
NOTE: All wiring must be in accordance with
national and local electrical codes and ANSI/
NFPA 70-1999. If you are unfamiliar with
wiring, use a qualified electrician.
Wall switches are not included. Select an
acceptable general-use switch in accordance with
national and local electrical codes.
1. Before attempting installation, make sure the
power is still off.
2. To connect the wires, hold the bare metal
leads together and place a wire nut over them,
then twist clockwise until tight. For all these
connections use the wire nuts provided.
3. Connect the bare or green ground wire
(grounded) from the ceiling to the side of the
hanger bracket assembly.
4. Connect the white wire (ungrounded) from the
ceiling to the white wire (ungrounded) from
the fan.
5. Connect the remaining wires as follows:
Dual Switch Wiring (see Fig. 9):
• e black wire (ungrounded) from the ceiling
to the black wire (ungrounded) from the fan.
• e black/white wire (ungrounded) from the
fan to the wire (ungrounded) from the wall
switch.
Single Switch Wiring (see Fig. 10):
• The black wire (ungrounded) from the ceiling
to the black (ungrounded) and the black/white
wire (ungrounded) from the fan.
Fig. 9
6. Turn the splices upward and push them
carefully into the outlet box.
7. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the
outlet box.
Wire Nut
Fig. 10

Hunter Fan Company 42704-01 • 01/29/07
10
Installing The Canopy
1. Partially install the fillister head #8-32 set screw.
2..Slide canopy up close to ceiling.
3. Tighten the canopy fillister head #8-32 set screw (see Fig. 11).
Fig. 11
Screw,
Fillister Head #8-32
Canopy
Screw,
Fillister Head #8-32

Hunter Fan Company 42704-01 • 01/29/07
11
Lubrication
Adding Oil
1. Your fan has been shipped without oil in the motor.
2. A 1-ounce tube of high grade SAE 10 non-detergent oil is packaged in the sack parts.
3. All of the oil in the tube must be put into the fan.
4. Cut the tip off the end of the tube and place the tube into the oil hole (see. Fig. 12).
NOTE: To avoid overflowing during filling, allow oil to gravity flow about one minute to fill the oil
reservoir. (It may be necessary to puncture the tube to allow air in.)
Fig. 12
Checking Oil
1. Check oil level immediately after filling the reservoir and every 1 to 5 years thereafter.
2. To check oil, bend an ordinary pipe cleaner into 1/2” long hook and dip it into the oil reservoir.
3. If the oil touches the end of the pipe cleaner, the fan has ample oil. If it does not touch, add SAE 10
non-detergent oil slowly until it touches the pipe cleaner. (see. Fig. 13).
Fig. 13
Your Original Hunter’s Unique Lubricating System
e bearings are submerged in a bath of oil. e oil moves up a spiral groove in the shaft, lubricating
all bearing surfaces as the fan operates. e Lubrication System does not normally “use up” or require
the addition of extra oil once the oil reservoir has been filled to the correct level. is unique
lubrication system is one reason your Original Hunter Ceiling Fan will last a lifetime. It is highly
unlikely that you will ever need to add oil to you Original fan once it is installed. Should you move
your fan to another location, it is a good idea to check the oil reservoir. Hunter has developed an
accessory ‘Original Relocation Kit’ that includes all mounting hardware and a fresh tube of oil for this
reason. e model number is 22360.
CAUTION
DO NOT TURN FAN ON UNTIL LUBRICATION HAS BEEN ADDED. TO OPERATE THE FAN
WITHOUT OIL OR WITH LOW OIL WILL VOID YOUR WARRANTY.
! !
Oil Tube
Oil Hole
Pipe
Cleaner
Oil
Reservoir

Hunter Fan Company 42704-01 • 01/29/07
Fig. 15
Installation Of Fan Blade Assembly
1. Loosen the blade assembly screw, but do not remove.
2. Align the blade blase assembly screw with the Adapt Air blade shaft counter sink (see Fig. 14).
3. Slide the blade assembly onto the Adapt Air blade shaft. (see Fig. 15).
4. Before tightening the blade assembly screw, slightly turn blade assembly while hand tightening the
set screw.
5. Tighten the blade assemble screw with pliers or adjustable wrench.
CAUTION
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE
BRACKETS WHEN INSTALLING THE BRACKETS, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
IN BETWEEN ROTATING FAN BLADES.
! !
Fig. 14
12
Fan Blade Assembly
Blade Assembly
Screw
Adapt Air
Blade Shaft
Blade
Counter Sink

Hunter Fan Company 42704-01 • 01/29/07
Fig. 16
13
Installing Bulb And Globe
1. Make sure the fan and light circuits are off before installing the 19 watt CFL (Compact Fluorescent
Light) bulb.
2. Insert and screw the CFL bulb into the light socket turning the CFL bulb clockwise (see. Fig. 16).
19 Watt
CFL Bulb
Light Socket
4. Slide the globe into the fitter and tighten the thumb screws until globe is secure.
NOTE: Do not overtighten thumb screws, this can cause globe to crack.
5. Tighten the locking nut to keep thumb screw from loosening (see Fig. 17).
6. Turn on the power at the main junction box.
Fig. 17
Globe
umb Screw
w/ Locking Nut

Hunter Fan Company 42704-01 • 01/29/07
Fig. 19
Directional
Lever
UPDOWN
14
Operation And Care
1. e fan pull chain controls power to the fan. e pull chain has four settings in sequence: High,
Medium, Low and Off.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the blades.
• e chain uses a breakaway connector that separates if the chain is jerked. If this happens, simply
reinsert the chain into the connector (see Fig. 18).
2. e light pull chain controls power to the light. e pull chain has two settings: On and Off.
3. For cleaning finishes, use a soft brush or lint-free cloth to prevent scratching. A vacuum cleaner
brush nozzle can remove heavier dust. Remove surface smudges or accumulated dirt and dust
using a mild detergent and a slightly dampened cloth. You may use an artistic agent, but never
abrasive cleaning agents as they will damage the finish.
4. Clean wood finish blades with a furniture polishing cloth. Occasionally, apply a light coat of
furniture polish for added protection and beauty.
Fig. 18
To Reverse The Flow Of Air.
1. Move the directional lever all the way to the left side for down draft (see Fig. 19).
2. Move the directional lever all the way to the right side for up draft (see Fig. 19).
Pull Chain
Breakaway
Connector

Hunter Fan Company 42704-01 • 01/29/07
15
Troubleshooting Guide
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Check all connections according to the wiring the fan section.
3. Pull the pull chain to ensure it is on.
Problem: Noisy operation.
1. Tighten the blade assembly screws until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the
fan.
If you need parts or service assistance, please call
888-830-1326 or visit us at our WEB site at
http://www.hunterfan.com.
Hunter Fan Company
2500 Frisco Avenue
Memphis, Tennessee 38114

Hunter Fan Company 42704-01 • 01/29/07
16
Notes

©2007 HUNTER FAN CO.™
HUNTER FAN COMPANY
2500 FRISCO AVENUE
MEMPHIS, TN 38114
