Schaerer Cup warmer User manual

Schaerer Coffee Art / Coffee Art Plus
Schaerer Coffee Vito
Cup warmer / Cup & Cool
Operating instructions
V03 / 01.2010

2 / 16 Operating instructions / V03 / 01.2010

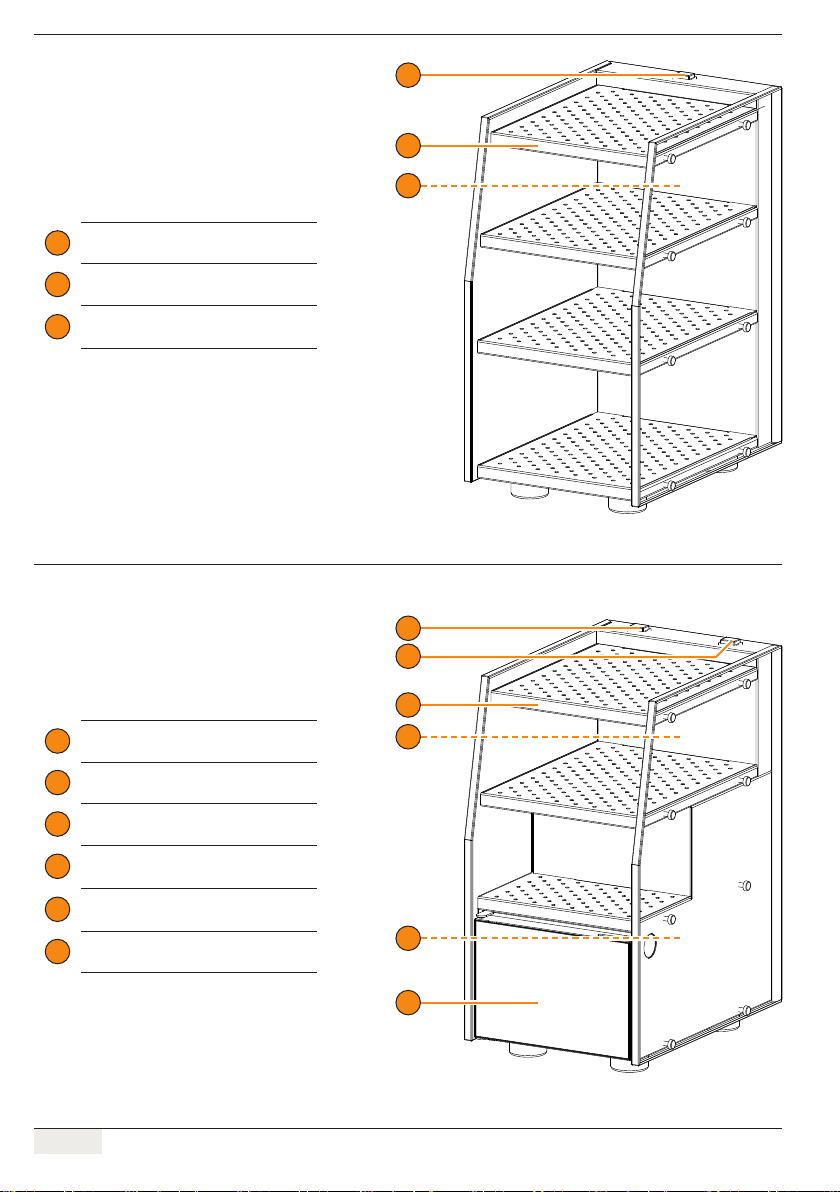

1ON- / OFF switch cup warmer
2Cup plate
3Temperature adjustment cup plate
(refer to page 7)
1ON- / OFF switch cup warmer
2ON- / OFF switch refrigerator
3Cup plate
4Temperature adjustment cup plate
(refer to page 8)
5Temperature adjustment refrigera-
tor (refer to page 8)
6Refrigerator
1
1
2
3
6
3
4
5
2

Operating instructions / V03 / 01.2010 3 / 16
All rights reserved, including translations into foreign languages. It is prohibited to copy, reproduce and distribute this docu-
ment or any excerpts thereof in any manner – including electronic means – without rst obtaining the publisher’s written
consent. All of the information, technical data, pictures and illustrations in this manual are based on the most current data
available at the time of printing. Schaerer Ltd. reserves the right to make changes at any time without issuing a separate
notication. All pictures, illustrations and display messages in this manual serve only as examples. Due to a variety of pos-
sible options, your machine may differ from the devices shown in this manual. In the event, for any reason, of disaccord, the
German (DE) document shall be authoritative for Schaerer Ltd..
Published by:
Schaerer Ltd., P.O. Box, Alllmendweg 8, CH-4528 Zuchwil
Edition:
Version 03 / 01.2010
Concept and editorial department:
Schaerer Ltd., P.O. Box, Alllmendweg 8, CH-4528 Zuchwil
© Copyright:
Schaerer Ltd., P.O. Box, Alllmendweg 8, CH-4528 Zuchwil
Schaerer Coffee Art / Coffee Art Plus
Schaerer Coffee Vito
Cup warmer / Cup & Cool
Operating instructions
V03 / 01.2010

4 / 16 Operating instructions / V03 / 01.2010
Table of contents
Safety notes.............................................................................................. 5
User safety ...............................................................................................5
Risk of damage to the machine ............................................................ 6
Operation ................................................................................................... 7
Cup warmer.............................................................................................. 7
Switch on the cup warmer................................................................. 7
Adjust cup plate temperature ............................................................ 7
Filling the cup warmer ....................................................................... 7
Switch off the cup warmer................................................................. 7
Cup & Cool............................................................................................... 8
Switch on the Cup & Cool................................................................. 8
Adjust cup plate temperature ............................................................ 8
Adjust the refrigerator temperature ................................................... 8
Filling the Cup & Cool ....................................................................... 8
Fill the milk container......................................................................... 9
Switch off the Cup & Cool................................................................. 9
Change appliance fuse.........................................................................10
Cleaning.................................................................................................... 11
Cup warmer............................................................................................ 11
Cleaning the cup plates................................................................... 11
Cup & Cool............................................................................................. 11
Cleaning the cup plates................................................................... 11
Cleaning the milk container............................................................. 11
Cleaning the refrigerator.................................................................. 12
Defrosting the refrigerator................................................................12
Technical data .......................................................................................13
Troubleshooting...................................................................................13
Declaration of conformity...............................................................14
Manufacturer’s address........................................................................ 14
Applied standards .................................................................................14
Notes ..........................................................................................................15

Operating instructions / V03 / 01.2010 5 / 16
Safety notes
Observe the safety instructions and the chapter liability in the user manual
Schaerer Coffee Art, Schaerer Coffee Art Plus & Schaerer Coffee Vito!
User safety
●Only skilled electricians may carry out work on electrical systems!
The device must be connected to a secured circuit. (We recommend us-●
ing an earth leakage circuit breaker in the connection).
All relevant guidelines on low voltage and/or country-specic or local ●
safety regulations and laws must be observed.
The connection must be grounded according to regulations and safe-●
guarded against electrocution.
The voltage must correspond to the data on the device’s serial plate●●●
Never insert the power plug into the socket while it is wet or touch it●
with wet hands!
Never touch energized parts!●
Before carrying out service work, always switch off the main switch●
and/or disconnect the device from the power supply system.
The power cord may only be replaced by a qualied service technician.●
Built-in safety devices must never be altered!●
●Children and persons under the inuence of alcohol, drugs or medica-
tion or those with physical, sensory or mental impairments may not use
the device except under supervision..
The coffee machine must be installed by the operator so that there are●
no impediments to care and maintenance. In both self service and full
service applications, trained personnel must supervise the machine in
order to ensure that the care instructions are observed and personnel
are available for questions regarding use.
●Do not touch hot device components! The stainless steel shelves be-
come hot! The cup warmer has to cool down before cleaning!
DANGER!
Electrocution!
ATTENTION!
Health hazard!
ATTENTION!
Risk of burns!

6 / 16 Operating instructions / V03 / 01.2010
Risk of damage to the machine
●The device must be set on a at, level and secure surface!
Do not expose the device to frost! This machine is not for outdoor use!●
Do not spray the machine with water. The maximum relative humidity●
should not exceed 80%; do not allow dewing.
For insurance reasons always ensure that, at the end of operation, the●
mains power switch is switched off or the machine is unplugged!
Never spray the device with water or any other uid (e.g. steam clean-●
er)!
Never immerse the device in water or in any other uid!●
Maintenance work and repairs must only be performed by Schaerer Ltd.●
service personnel using original spare parts!
We recommend damage prevention measures: – e.g. installing smoke●
detectors.
If the coffee machine and/or auxiliary devices are transported at tem-●
peratures below 10°C, the coffee machine and/or auxiliary devices must
remain for 3 hours at room temperature before being connected to a
power supply and switched on. If this recommendation is not observed,
there is a risk of short circuits or damage to the electrical components
as a result of condensation.
ATTENTION!
Risk of damage to
the machine

Operating instructions / V03 / 01.2010 7 / 16
Operation
Cup warmer
Switch on the cup warmer
Plug in the mains plug.►
Switch on the cup warmer using the ON/OFF switch►1.
The switch lights up. The cup warmer is heated up after ± 60 minutes.;
Adjust cup plate temperature
Mark the ground position of the switch on the backside of the machine! If the
temperature should be to high or to low, the switch can always be turned back to
its ground position.
Turn the adjustment screw clock wise on the backside of the machine.►
The cup plate temperature increases.;
Turn the adjustment screw counterclockwise wise on the backside of the ma-►
chine.
The cup plate temperature decreases.;
Filling the cup warmer
Carefully place the desired cups or pots with their openings downward in the►
cup warmer.
Switch off the cup warmer
Switch off the cup warmer using the ON/OFF switch►1.
The switch will no longer be illuminated.;
►Remove the plug from the power supply.
1
OFF
MAX.
FACTORY
SETTING
If this is not observed,
the warranty is invali-
dated in the event of
any resultant damage.

8 / 16 Operating instructions / V03 / 01.2010
Cup & Cool
Switch on the Cup & Cool
Plug in the mains plug.►
Switch on the cup warmer using the ON/OFF switch►1.
The switch lights up. The cup warmer is heated up after ± 60 minutes.;
Switch on the refrigerator using the ON/OFF switch►2.
The switch lights up. After ± 60 minutes the refrigerator is on operating;
temperature.
Adjust cup plate temperature
Mark the ground position of the switch on the backside of the machine! If the
temperature should be to high or to low, the switch can always be turned back to
its ground position.
Turn the adjustment screw clock wise on the backside of the machine.►
The cup plate temperature increases.;
Turn the adjustment screw counterclockwise wise on the backside of the ma-►
chine.
The cup plate temperature decreases.;
Adjust the refrigerator temperature
Mark the ground position of the switch on the backside of the machine! If the
temperature should be to high or to low, the switch can always be turned back to
its ground position.
Turn the adjustment screw clock wise on the backside of the machine.►
The refrigerator temperature decreases.;
Turn the adjustment screw counterclockwise wise on the backside of the ma-►
chine.
The refrigerator temperature increases.;
Filling the Cup & Cool
Carefully place the desired cups or pots with their openings downward in the►
Cup & Cool.
12
OFF
MAX.
FACTORY
SETTING
OFF
MAX.
FACTORY
SETTING

Operating instructions / V03 / 01.2010 9 / 16
Fill the milk container
Open the refrigerator door.►
Pull out the milk container.►
Push the cover of the milk container back.►
►Pour precooled milk (3 – 5°C) into the milk container.
Place the cover back on the container.►
Push the milk container back in carefully.►
Insert the adapter on the milk hose into the connection on the milk cover.►
Close the refrigerator door.►
Switch off the Cup & Cool
Switch off the cup warmer using the ON/OFF switch►1.
The switch will no longer be illuminated.;
Switch off the refrigerator using the ON/OFF switch►2.
The switch will no longer be illuminated.;
►Remove the plug from the power supply.
Never top up milk
and always clean the
container thoroughly
before relling!
If this is not observed,
the warranty is invali-
dated in the event of
any resultant damage.

10 / 16 Operating instructions / V03 / 01.2010

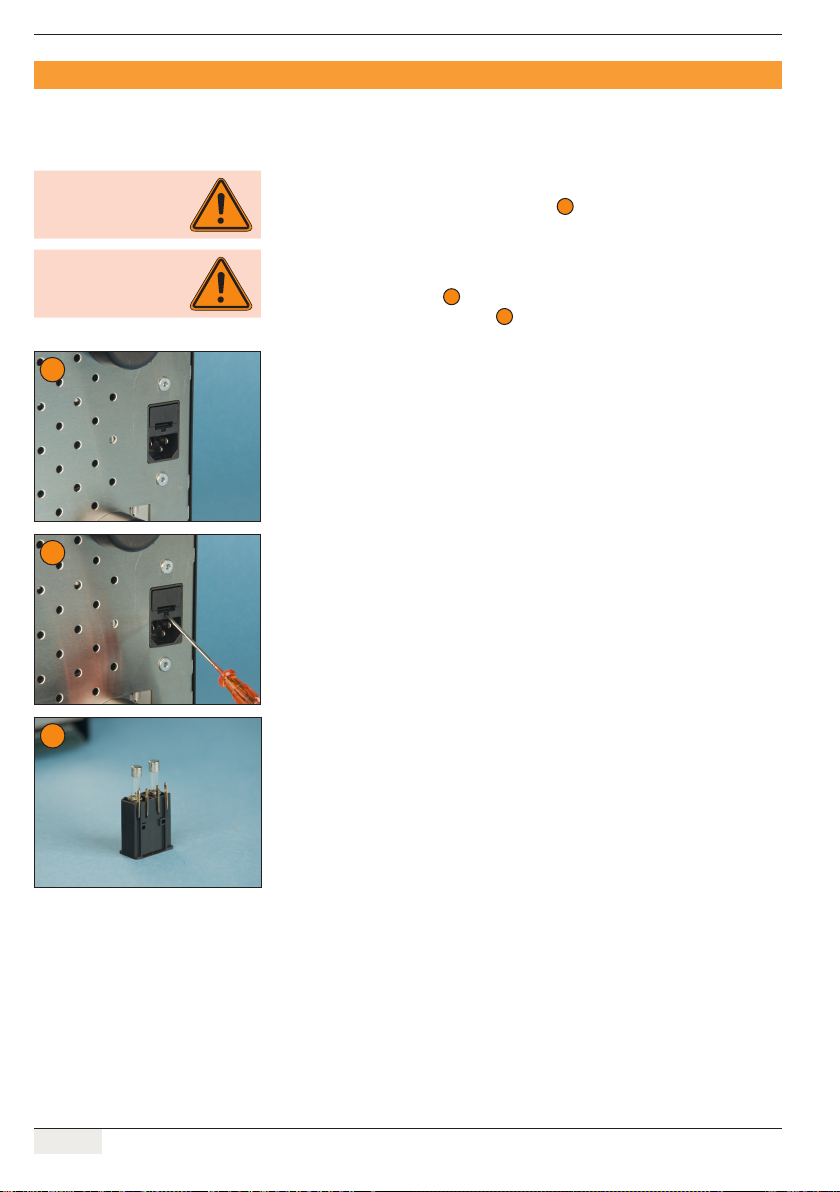

Change appliance fuse
Switch off the cup warmer / Cup & Cool using the ON/OFF switch(es)►.
The switch(es) will no longer be illuminated.;
R►emove the plug from the power supply.
Cup warmer:
►Carefully lay the cup warmer on the side 1.
Cup & Cool:
►Carefully tilt the Cup & Cool until the fuse tray is accessible.
Remove the fuse tray►2using a screw driver.
Remove and replace the fuses►3(refer to technical data, page 13).
Place the fuse tray back in.►
Carefully move the cup warmer / Cup & Cool back to its origin position.►
►Plug in the mains plug.
ATTENTION!
Risk of damage to
the machine!
ATTENTION!
Risk of damage to
the machine!
1
2
3
