Husky 1000 000 000 User manual

HUSKYTOOLS.com
Please contact 1-888-HD-HUSKY for further assistance.
Use and
Care Guide

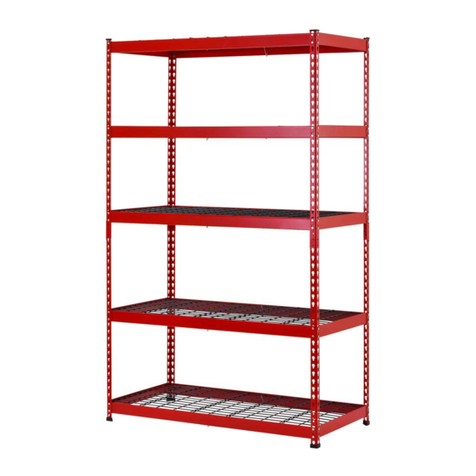

5 - SHELF HEAVY-DUTY
STORAGE UNIT
ITEM #1000 000 000
MODEL #XXXXX
A - Wire shelf x 5 B - Coupler x 8
C - Crossbeam x 5
G - Post cap x 4
H - Post feet x 4
D - Brace x 10 F - Beam x 10
E - Post x 8
TOOLS REQUIRED HARDWARE INCLUDED
Safety GlovesMallet Screwdriver
Installation
1 CONNECTING THE POSTS
□Install the post feet (H) at the bottom
of each of the four lower posts (E). See
Fig. a.
IMPORTANT: All posts
should be positioned with
the rectangular end of the
slots pointing downwards.
□Position one coupler (B) on the bottom
edge of the top post (E) and tap the
coupler down until the midpoint of the
coupler is aligned with the bottom of
the post. See Fig. b.
□Position the coupler (B) into the top
edge of the lower post (E), and tap
down until the two posts connect fully
into the coupler (B). See Fig. c.
□Position the second coupler (B) at the
same level of the rst coupler and tap
down to attach. See Fig. d.
□Repeat for all four posts (E).
2 ATTACHING BRACES ON THE
POSTS
□Attach one brace (D) on the inside of the
two assembled posts (E). Start with the
rst slot at the top of the posts (E).
□Place the “shelf-clip” into the post slot,
and tap lightly to seat the shelf clip.
□Repeat for all other braces (D) and
posts (E).
3 ATTACHING THE BEAMS
□Attach the beams (F) between the
two post and brace assemblies.
Start with the upper beam and work
downwards.
□Make sure each beam (F) is installed
at the same level as the brace (D).
This is possible by counting the
number of post slots.
□TIP! When assembling the rst beam
it is easy to put one post and brace
assembly against the wall for extra
stability.
HB
EE
E
E
Shelf-clip
Bottom
Bottom
Suggestion for dividing
the levels
9
(open)
Holes
9
(open)
Holes
11
(open)
Holes
11
(open)
Holes
D
D
D
DF
F
E
Top
Top
Fig. a
Fig. c Fig. d
Fig. b

HUSKYTOOLS.com
Please contact 1-888-HD-HUSKY for further assistance.
4 ASSEMBLING THE CROSSBEAMS 5 ATTACHING THE WIRE SHELVES AND POST CAPS
□Place the bottom of the crossbeam (C) into the notch
found on the bottom center of the beam (F). Once you
have the bottom into position, rotate the crossbeam (C)
to 90 degrees, making sure you hear the crossbeam (C)
click into the top notch of the beam (F).
Top
C
G
A
FC
C
F
Bottom
□Place the wire shelves (A) on the ledge of the assembled beams
(F) and braces (D) with the at side facing upwards.
□When all the wire shelves (A) are in place, install the post caps
(G) on the top of all four posts (E).
Safety Information
IMPORTANT: Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
CAUTION: Wear suitable gloves when assembling.
WARNING: Do not stand on any part of the unit or use it as a ladder. Use care when working with metal parts.
IMPORTANT: These storage units should be placed on a level surface. Failure to do so can result in a possible safety hazard.
WARNING: Do not exceed the shelf load claim of 1,000 lbs of evenly distributed weight on any shelf.
Warranty
2 YEAR LIMITED WARRANTY
A two (2) year warranty is guaranteed when the storage unit is utilized for the intended use in non-aggressive, indoor environments and when it is
assembled according to the instructions. If this product is defective, contact the Customer Servise Team at 1-888-HD-HUSKY or visit www.HUSKYTOOLS.
com.
