1 Introduction
1.1 Document description
This manual gives a full description of how to do
maintenance and repair on the product. It also gives
safety instructions that the personnel must obey.
1.2 Outline
This manual is for K1270 II Rail Vac and Dry Cut. Most
chapters are applicable to the two models. The chapters
that are applicable for only one model has that model
name included in the title.
1.3 Target group
This manual is for personnel with a general knowledge
of how to do repair and do servicing. All personnel that
do repair or do servicing on the product must read and
understand the manual.
1.4 Revisions
Changes to the product can cause changes to the
maintenance work and spare parts. Separate
information is sent out for each change.
Read the manual together with all received information
about changes to maintenance and spare parts for the
product.
1.5 Safety
WARNING: All personnel that repair or do
servicing on the product must read and
understand the safety instructions in this
workshop manual.
1.6 Servicing tools
The manual gives information about necessary servicing
tools. Always use original tools from Husqvarna.
1273 - 001 - 04.11.2019 Introduction - 3

2 Safety
2.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of injury or
death for the operator or bystanders if the
instructions in the manual are not obeyed.
CAUTION: Used if there is a risk of damage to
the product, other materials or the adjacent area
if the instructions in the manual are not obeyed.
Note: Used to give more information that is necessary in
a given situation.
2.2 General safety instructions
• Do not repair the product unless you have read and
understood this workshop manual.
• The service center where the product is repaired
must have safety equipment approved by local
bylaws.
• The product is examined and approved only with the
equipment given or recommended by the
manufacturer.
• Prevent health and safety risks. All personnel must
obey laws and requirements when they do the
procedures given in this manual.
• Obey the local waste regulations.
• Always make sure that all nuts and bolts are
correctly tightened.
• Use protective gloves and eye protection. Goggles
must obey the ANSI Z87.1 for US or EN166 for EU
countries.
• When using compressed air, do not point it to your
body. Air can go into the bloodstream.
• Use hearing protection when the engine is started.
• The product can make sparks and cause ignition of
flammable materials.
• Replace all damaged or missing warning symbol
decals.
• Gasoline and its fumes are poisonous.
• Gasoline can cause damage to the eyes and the
skin.
• Gasoline can cause breathing problems.
• Gasoline is flammable.
2.3 Symbols on the product
WARNING: Careless or incorrect use can
result in injury or death to the operator or
others.
Read the manual carefully and make sure
you understand the instructions before
using the product.
Always put on personal protective
equipment:
• Hearing protection
• Protective goggles or a visor
• Breathing mask.
This product in compliance with applicable
EC directives.
WARNING! Dust from cutting can cause
breathing problems. Use breathing
protection. Do not breathe exhaust fumes.
Always make sure there is good airflow.
WARNING! Sparks from the cutting blade
can cause a fire in materials such as,
gasoline, wood, fabric and dry grass.
WARNING! Kickbacks can be sudden,
fast and can cause injuries. Read and
understand the instructions in the manual
before using the product.
Make sure the cutting disc is not
damaged.
WARNING! Do not use circular saw
blades.
Note: Other symbols/decals on the product refer to
special certification requirements for some markets.
4 - Safety 1273 - 001 - 04.11.2019

3 Servicing data
3.1 Symbols in the diagrams

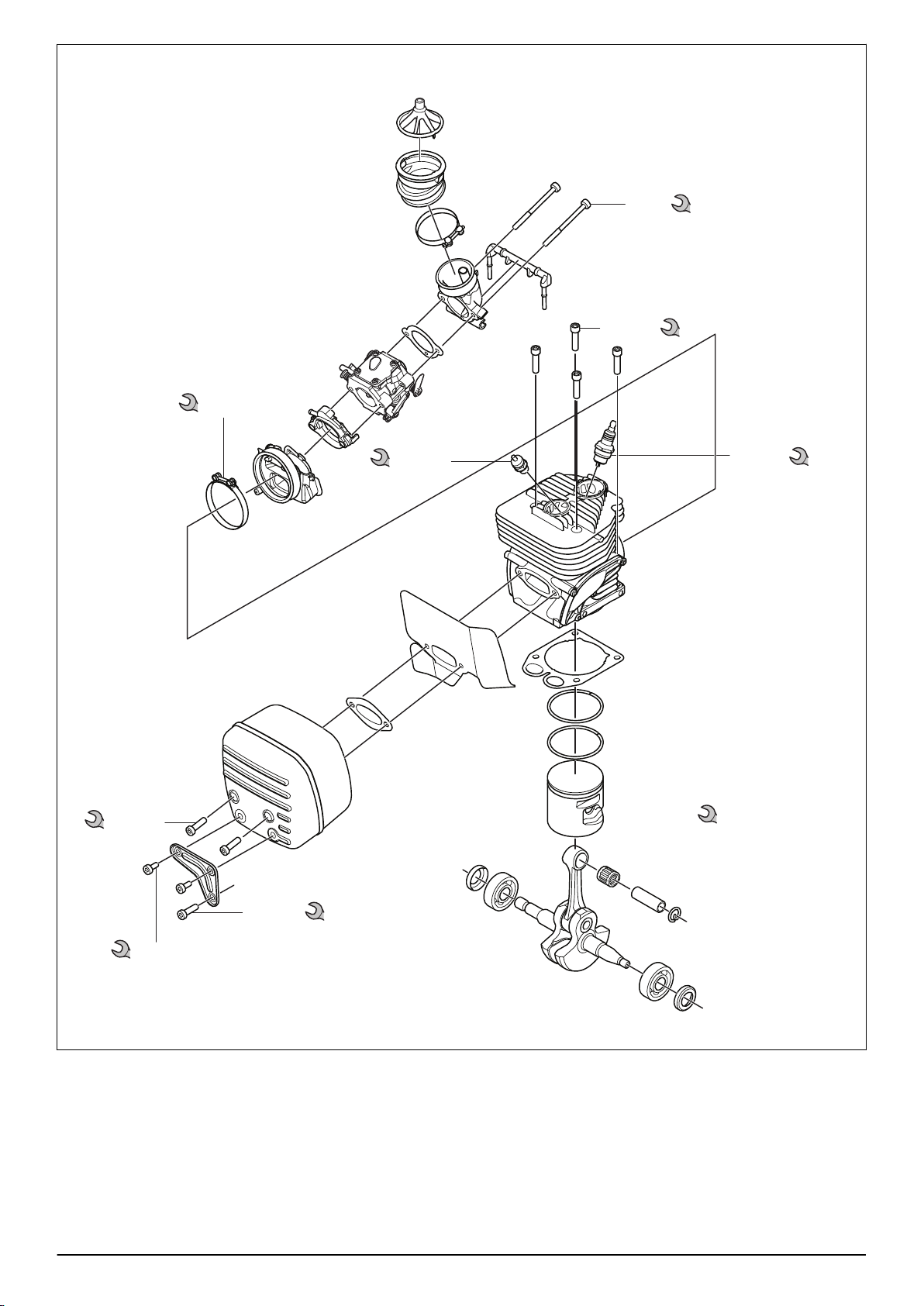

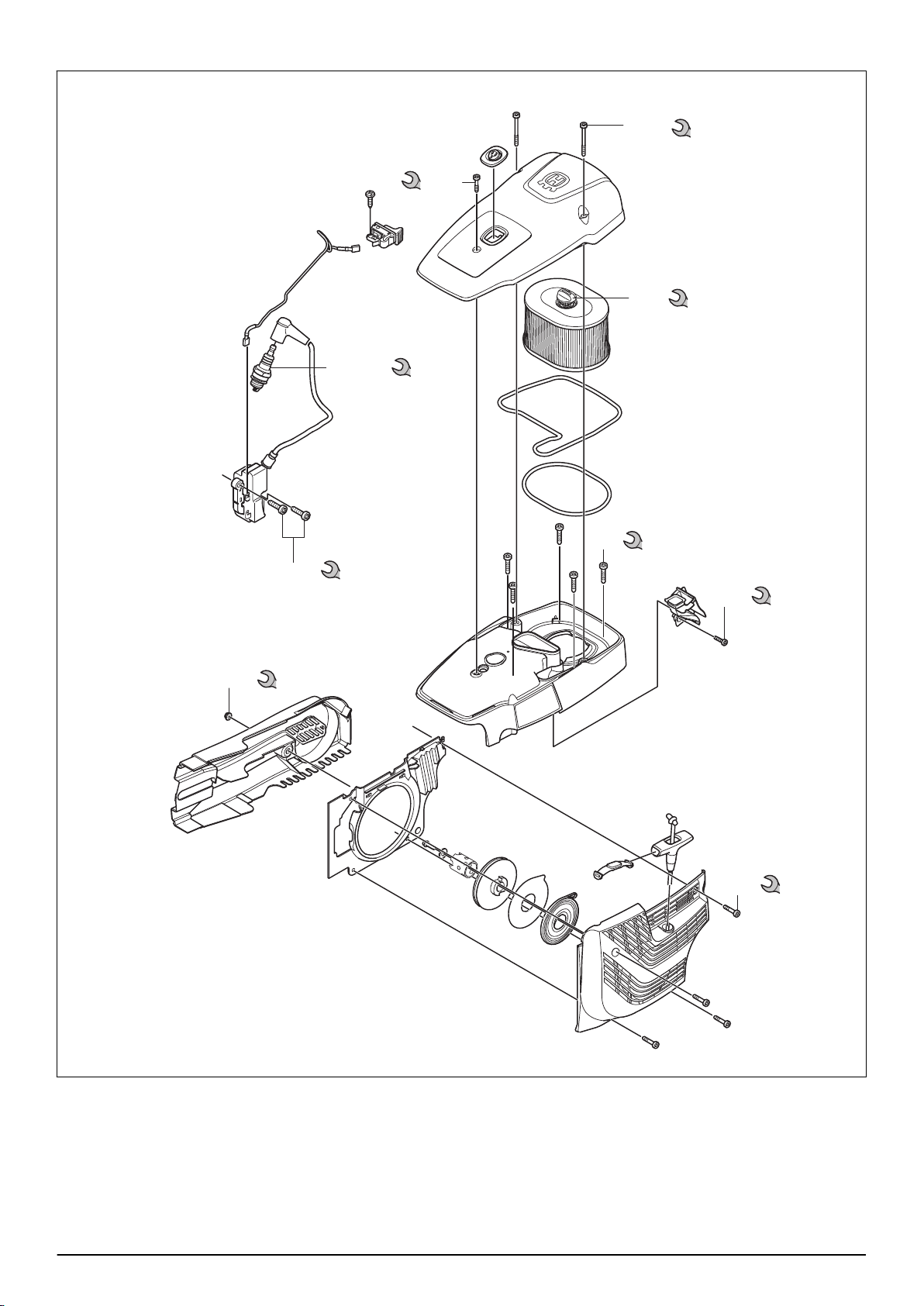

Tightening torque, Nm
1273 - 001 - 04.11.2019 Servicing data - 5

3.2 Tightening torques
7-9
3-4
17-23
10-12
20-33
3-4
1-2
3-4
3-4
6 - Servicing data 1273 - 001 - 04.11.2019

3 - 4
10 - 14
15 - 17
11 - 13
8 - 9
17 - 23
1 - 1,4
10 - 18
1273 - 001 - 04.11.2019 Servicing data - 7

10-12
25
2-10
38-42 5-7
10-12
20-33
20-33
8 - Servicing data 1273 - 001 - 04.11.2019

5 - 6
4-6
5-7
4-6
6-9
9-11
9 -11
8-11
7-9
8-11
6-9
6-9
5-7
35-40
3-4
35-40
1273 - 001 - 04.11.2019 Servicing data - 9

4 Servicing tools
4.1 Servicing tools overview
4 5 6
7 8
1 2 3
9
Po-
si-
tion
Designation Used for Order No./Source
1 Sealing plug To examine the crankcase for leaks. 503 55 22-01
2 Bearing press To assemble the primary bearing. 506 37 61-02
3 Press tool To disassemble and assemble the blade shaft bearings and axle. 575 96 20-01
4 Puller To disassemble the sealing rings of the crankcase in the crank-
case.
504 91 40-01
5 Assembly punch To assemble the sealing rings of the crankshaft in the crankcase. 502 50 82-01
6 Bearing press To disassemble and assemble the clutch drum ball bearing and
blade shaft bearing.
504 56 79-01
7 Universal puller To disassemble the support washer of the clutch on the crank-
shaft. To divide the crankcase.
504 90 90-02
8 Fuel filter hook To catch the fuel filter in the tank. 502 50 83-01
9 Special screwdriver To adjust the idle speed. 501 60 02-03
10 - Servicing tools 1273 - 001 - 04.11.2019

4.2 Servicing tools overview
4 5 6
7 8
1 2 3
9
Po-
si-
tion
Designation Used for Order No./Source
1 Grip plate To divide the crankcase. 544 06 00-02
2 Bearing puller Remove the primary bearing from the crankshaft. 531 00 48-67
3 Bearing press To disassemble the primary bearing and assemble the crankshaft. 544 10 36-02
4 Combination wrench General. 506 38 26-01
5 Key Torx T27 General. 502 71 27-03
6 Compression tester To examine the compression in the cylinder. 531 03 16-86
7 Kit for piston servic-
ing
To do servicing on the piston. 502 50 70-01
8 Piston stop To disassemble the clutch. 504 91 06-05
9 Wrist pin To disassemble and assemble the wrist pin. 505 38 17-05
1273 - 001 - 04.11.2019 Servicing tools - 11

4.3 Servicing tools overview
0,3 mm
4 5 6
9
7 8
1 2 3
Po-
si-
tion
Designation Used for Order No./
Source
1 Test spark plug To do servicing on the ignition unit 502 71 13-01
2 Air clearance gauge To adjust the air clearance between the ignition module and the fly-
wheel.
502 51 34-02
3 Flywheel puller To disassemble the flywheel. 502 51 49-02
4 Pressure tester To examine the crankcase for leaks. 531 03 06-23
5 Cylinder seal To do a test for crankcase leakages. 502 71 39-01
6 Tachometer To adjust the idle and maximum speed. 502 71 14-01
7 Pressure tester To examine the carburetor, fuel lines and check valve. 501 56 27-01
8 Cylinder seal To do a test for crankcase leakages. 593 78 62-01
9 Assembly wedge To install the crankshaft sealing ring on the clutch side. 502 50 52-01
12 - Servicing tools 1273 - 001 - 04.11.2019

5 Product overview for repair and servicing
5.1 Components K1270 II
2
3
4
6
5
7
1
9
10
12
11
13 14
15
16
17
18
19
20
21
822
23
1. Decompression valve
2. Water connection with filter
3. Fuel tank cap
4. Rear belt guard
5. Combination wrench
6. Front belt guard
7. Cutting blade (not included)
8. Blade guard
9. Adjustment handle for blade guard
10. Type plate
11. Starter housing
12. Starter rope handle
13. Stop switch
14. Air purge bulb
15. Throttle trigger
16. Throttle lock
17. Choke control
18. Start instruction decal
19. Air filter cover
20. Information and warning decal
21. Water valve with tool holder
22. Cutting equipment decal
23. Flange, spindle, arbor bushing
1273 - 001 - 04.11.2019 Product overview for repair and
servicing - 13

5.2 Components K1270 II Rail
2
4
6
5
9
3
8
16
18
17
20
21 22
23
24
25
26
27
7
29
31
10 13
28
119
11
12
15
14
1. Rear handle
2. Fuel tank cap
3. Decompression valve
4. Rear belt guard
5. Installation point for rail fixture
6. Front belt guard
7. Blade guard
8. Adjustment handle for blade guard
9. Cutting blade (not included)
10. Combination wrench
11. Cutting guide
12. Rail fixture
13. Bushing and decal
14. Lever to lock the rail fixture to the rail
15. Lever to lock the product to the rail fixture
16. Type plate
17. Starter housing
18. Starter rope handle
19. Air intake
20. Stop switch
21. Air purge bulb
22. Throttle trigger
23. Throttle lockout
24. Choke control
25. Start instruction decal
26. Air filter cover
27. Information and warning decal
28. Front handle
29. Cutting equipment decal
14 - Product overview for repair
and servicing
1273 - 001 - 04.11.2019

5.3 Basic modules of the product
This chapter shows how to disassemble the product into
basic modules
K1270 II
K1270 II Rail
K1270 II
K1270 II Rail
1273 - 001 - 04.11.2019 Product overview for repair and
servicing - 15

5.3.1 To remove the starter
1. Remove the 4 screws on the guard.
2. Remove the starter.
5.3.2 To remove the cutting head
1. Open the hose clip with a screwdriver.
2. Loosen the 2 screws on the cutting head.
3. Loosen the belt tension with the adjuster screw.
4. Remove the 2 screws.
5. Remove the front belt cover.
16 - Product overview for repair
and servicing
1273 - 001 - 04.11.2019

6. Remove the nut and the rear belt guard.
7. Remove the cutting head.
5.3.3 To remove the cutting arm
1. Remove the cutting head. Refer to To remove the
cutting head on page 16 .
2. Remove the 3 screws and the nut.

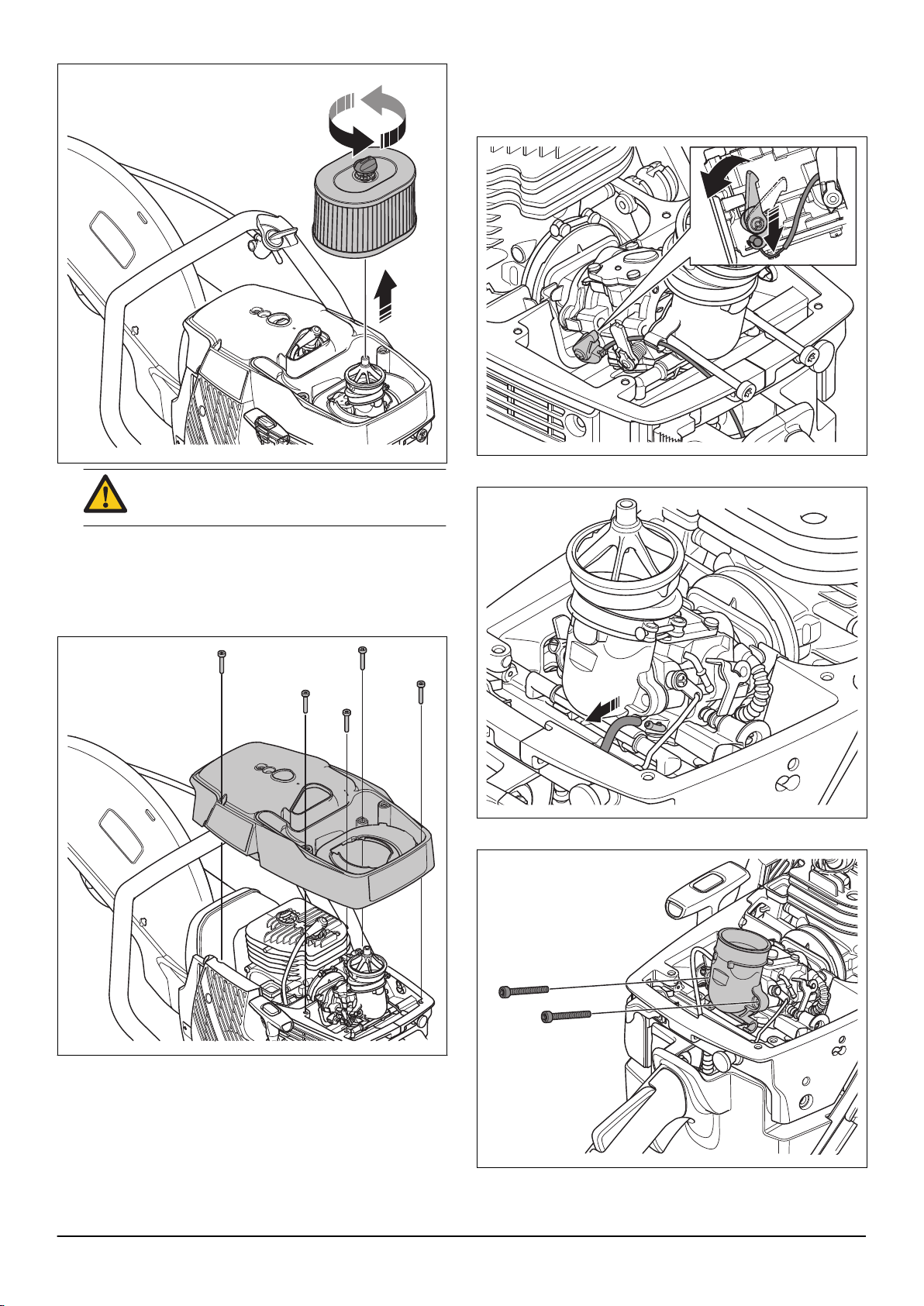

5.3.4 To remove the air filter
CAUTION: Be careful when the air filter is
removed. Dust particles must not fall down in
the carburetor inlet. Removal of waste is best
done with a vacuum cleaner.
1. Remove the 3 screws and remove the cover.
2. Clean around the area with a vacuum cleaner.
1273 - 001 - 04.11.2019 Product overview for repair and
servicing - 17

3. Loosen the center screw. Remove the air filter.
CAUTION: Make sure that dust does not fall
into the carburetor inlet.
5.3.5 To remove the cylinder cover
1. Remove the air filter. Refer to To remove the air filter
on page 17 .
2. Remove the 5 screws and the cylinder cover.
5.3.6 To remove the carburetor
1. Remove the cylinder cover. Refer to To remove the
cylinder cover on page 18 .
2. Remove the throttle cable end from the throttle lever.
3. Remove the tube to the air purge bulb.
4. Remove the 2 screws for the inlet hose.
18 - Product overview for repair
and servicing
1273 - 001 - 04.11.2019

5. Remove the inlet hose.
6. Remove the gasket.
7. Remove the fuel hose.
8. Remove the choke and remove the carburetor.

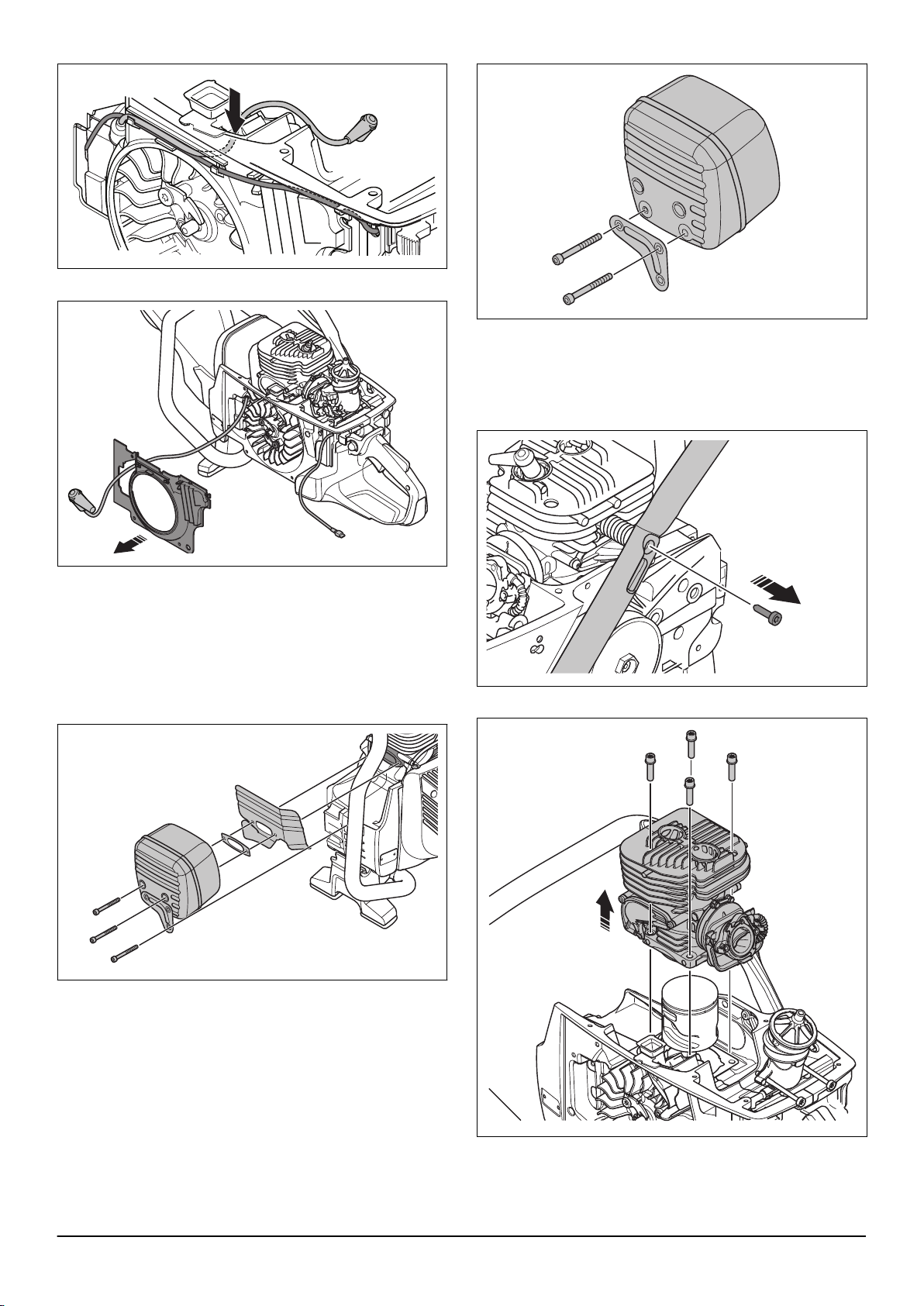

5.3.7 To remove the air duct
1. Remove the starter. Refer to To remove the starter
on page 16 .
2. Remove the cable lug for the stop switch cable.
3. Remove the ignition cable from the spark plug.
1273 - 001 - 04.11.2019 Product overview for repair and
servicing - 19

4. Push the ignition cable through the air nozzle.
5. Remove the air duct.
5.3.8 To remove the muffler
Before you can remove the muffler, it is necessary to
remove the cutting head and the starter.
1. Remove the cutting arm. Refer to To remove the
cutting arm on page 17 .
2. Remove the 3 screws that hold the muffler.
3. Remove the 2 screws that hold the support plate.
5.3.9 To remove the inlet manifold
1. Remove the carburetor. Refer to To remove the
carburetor on page 18 .
2. Remove the screw to the vibration damping unit.
3. Remove the 4 screws and the cylinder.
20 - Product overview for repair
and servicing
1273 - 001 - 04.11.2019
