Husqvarna 539104726 User manual

MODEL : 539104726
Parts Manual for:
MANUAL NO. 539104755 REV. 02 (07/10/00)
RIDING
SULKY
Husqvarna policy is to improve its products whenever it is possible and practical to do
so. In an effort to keep pace with changes in technology, Husqvarna reserves the right to make
changes or improvements at any time without incurring any obligation to make such changes
on products previously manufactured.
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

2
PART
ITEM NO. QTY. DESCRIPTION
17 ....539104616....2....Tire Assy., Complete
(Incl. #16,19,22,&23)
18 ....539976597....1....Sulky Seat
19 ....539976998....2....Zerk, 1/4-28 Straight
20 ....539977000....2....Clamp Collar, 7/8 I. D.
22 ....539977312....4....Flange Bearing
23 ....539977313....4....Roller Bearing
24 ....539977774....1....Warning Decal
25 ....539977778....2....Abrasive Pad
26 ....539977780....2....Lynch Pin
27 ....539990209...12....5/16-18 x 1 HHCS
28 ....539990250....1....1/2" Flat Washer
29 ....539990254....1....1/2" Split Lock Washer
30 ....539990297....1....Cotter Pin 1/8 x 1-1/2
31 ....539990546....1....3/8-16 HN, Center Lock
32 ....539990646....1....1/2-13 x 1 HHCS
33 ....539990717...12....5/16-18 HN, Nylon Insert
PART
ITEM NO. QTY. DESCRIPTION
1 ....539104789....3....Decal, Crown
3 ....539102134....1....Clevis Pin 1/2 x 4
4 ....539100173....4....Shoulder Bushing
5 ....539104536....1....Cross Weldment
6 ....539104537....1....Cross Assembly
(Incl. #5 & 4)
7 ....539104538....1....Axle Weldment
8 ....539100200....1....Shoulder Bolt 1/2 x 3-1/4
9 ....539104539....1....Seat Mounting Weldment
10 ....539104540....1....Tongue Weldment
11 ....539104541....1....Hitch Weldment
12 ....539104542....1....Tongue Assembly
(Incl. #10 & 4)
13 ....539104543....1....Deck w/Decal & Pads
(Incl. #24 & 25)
14 ....539101128....1....Roller
15 ....539923787....4....7/8" Machinery Bushing
16 ....539923788....2....Tire, 13 x 6.5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com

3
INTRODUCTION
This manual covers the set-up, and proper SAFE opera-
tion of MODEL 539104726 RIDING SULKY.
When riding the SULKY, always follow the safety and
operating instructions below as well as those covered in
the Commercial Mower Operator’s Manual:
MODEL 539104726 RIDING SULKY
SAFETY/OPERATING INSTRUCTIONS
1. Do not modify sulky nor use it on non-
approved machines.
2. Make surethat sulky is properly attached to
machine and is in good working order prior to use.
3. Only one rider (the machine operator) per
sulky.
4. Do not allow use by untrained operators.
5. Use appropriate personal protactive appara-
tus (ppa) such as boots, gloves, etc..
6. Practice operation of machine without
attchment untill familiar with the controls.
7. Practice operation of the machine with sulky
attached on large open, level terrain with no ob-
stacles present before use. The sulky will affect the
machine operation, especially on slopes, when
turning, and when stopping.
8. Do not ride sulky over curbs, rocks, roots or
other obstructions.
9. Slow down before making turns and use
extra caution on rough terrian and on slopes.
10. Travel across slopes is recommended,
avoid operation on steep slopes.
11. Avoid making sharp turns / jack knifing.
12. Keep feet on foot rest at all times.
13. Never tow loads behind sulky.
14. Look behind and down before backing up
to be sure of a clear path. Use extra care when
operating in reverse. Note: Before operating in
reverse, the operator must dismount (type II, III, and
V) sulkies.
15. Use extra care when loading and unloading
the machine with sulky attached.
ASSEMBLY
Before starting assembly, refer to illustration for proper
location of parts and fasteners.
STEP 1: Remove all parts from carton and inspect for
shipping damage. Remove tire assemblies (17) and
clamp collars (20) from axle (7).
STEP 2: Insert axle (7) with tab up, through hole in deck
(13) flange, from inside, slide through far enough for other
end of axle to clear opposite flange, swing up and slide
into opposite hole until tab contacts flange.
Axle may also be inserted into front hole in the deck
flange when the seat and seat mount are in the forward
position.
STEP 4: Remove lynch pin (26) and 1 bushing (15) from
pivot pin on underside of deck (13). Place tongue
assembly (12) and bushing (15) on pivot pin, secure by
inserting lynch pin (26) through cross hole of pivot pin and
lock in place.
STEP 5: Place seat (18) on mounting weldment (9) and
secure with flat washer (28), lock washer (29) and bolt
(32). Adjust to desired position and tighten securely.
STEP 6: Attach hitch weldment (11) to rear flange of
mower case with bolt (27) and nut (33). NOTE: Bolts are
to be inserted from outside and nuts attached from
underside of mower case.
STEP 7: Check and tighten all fasteners. Check tire
pressure (28 psi MAX). Apply lubrication to wheel
bearing through grease fitting in wheel until visible
between clamp collar and wheel bearing flange.

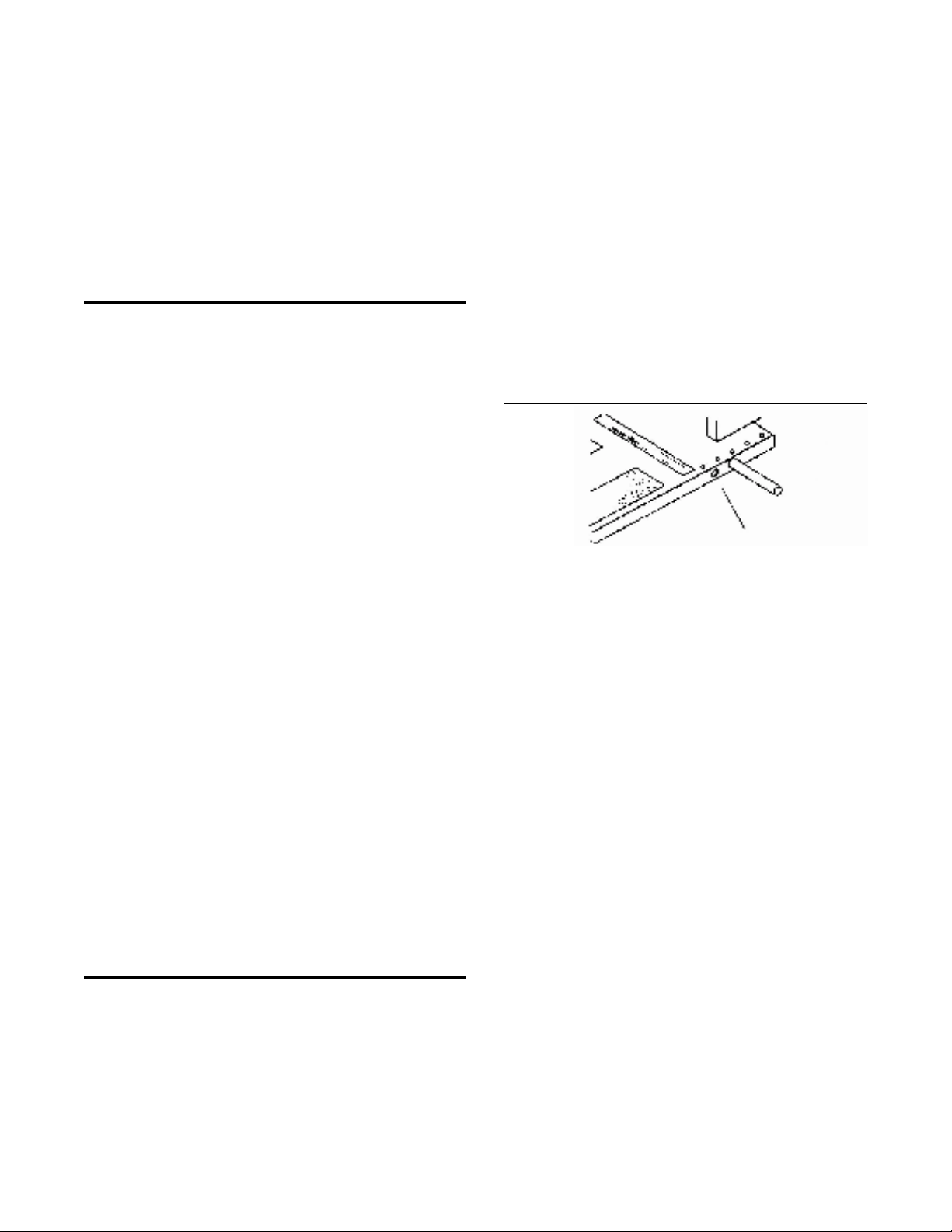

FRONTADJUSTMENTHOLE
TECHNICAL ASSISTANCE
If you have any questions pertaining to your machine con-
tact your dealer. To locate the nearest dealer please call:
1-800-HUSKY-62.
For technical assistance please write: Husqvarna, 9906
Perimeter Woods Drive, Charlotte, NC, 28216 or call:
1-800-HUSKY-MD.
