Husqvarna PW 130 User manual

PW 130
EN Operator's manual 8-24
BG Ръководство за експлоатация 25-44
CS Návod k použití 45-60
DA Brugsanvisning 61-76
DE Bedienungsanweisung 77-95
EL Οδηγίες χρήσης 96-114
ES Manual de usuario 115-132
ET Kasutusjuhend 133-148
FI Käyttöohje 149-164
FR Manuel d'utilisation 165-182
HR Priručnik za korištenje 183-198
HU Használati utasítás 199-215
IT Manuale dell'operatore 216-233
LT Operatoriaus vadovas 234-250
LV Lietošanas pamācība 251-267
NL Gebruiksaanwijzing 268-285
NO Bruksanvisning 286-301
PL Instrukcja obsługi 302-319
PT Manual do utilizador 320-337
RO Instrucţiuni de utilizare 338-355
RU Руководство по эксплуатации 356-375
SK Návod na obsluhu 376-392
SL Navodila za uporabo 393-408
SR Priručnik za rukovaoca 409-424
SV Bruksanvisning 425-440
TR Kullanım kılavuzu 441-456
UK Посібник користувача 457-475

12 17
4
10 11
9
15
13
6
7
2
3
14
16
1
8
5
1
2 3 4 5 6 7
8 9 10 11 12 13
14 15

A
B
16 17
18 19
CLICK!
20
CLICK!
21
22 23

24 25
GENTLE NOZZLE ROUGH NOZZLE
HARD
SURFACES
ONLY
26
CLICK!
27
28
MPa
bar
29
MPa
bar
30 31

32
CLICK!
33
MAX
20°C
MAX
0.5m
MIN 1/2"
MAX
20°C
34 35
36 37
38 39

CLICK!
40 41
42 43
44
CLICK!
45
46 47

48 49
50 51
52 53

Contents
Introduction..................................................................... 8
Safety..............................................................................9
Assembly...................................................................... 15
Operation...................................................................... 15
Maintenance................................................................. 18
Troubleshooting............................................................ 19
Transportation, storage and disposal........................... 20
Technical data.............................................................. 20
Accessories.................................................................. 22
Declaration of Conformity............................................. 23
Introduction
Product description
The product is an electrical high-pressure washer. The
product can be operated with different levels of water
pressure and different cleaning agents.
Intended use
Use the product for domestic cleaning only. Do not use
the product for other tasks. Use the product in an upright
position only.
Note: National regulations can set limit to the
operation of the product.

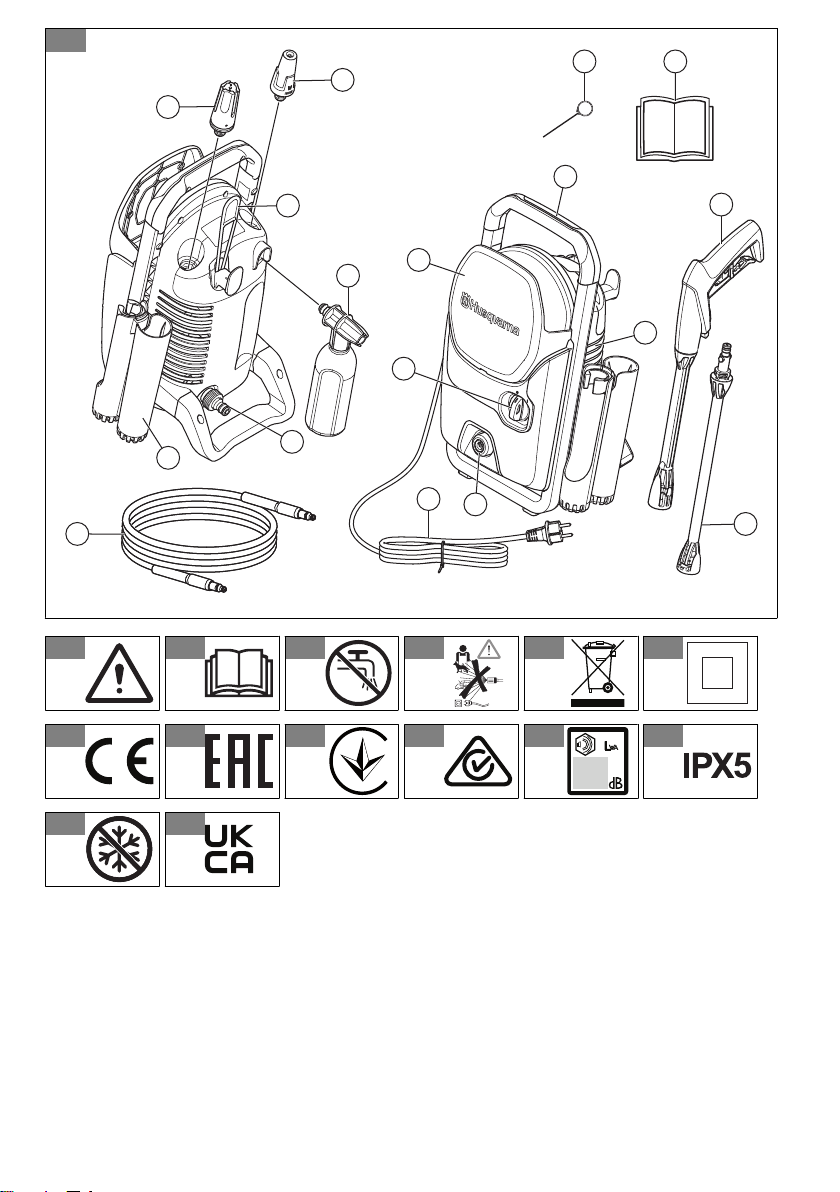

Product overview
(Fig. 1)
1. Nozzle with straight water jet
2. Nozzle with rotating water jet
3. Rubber strap for power cord holder
4. Holder for spray handle and spray lance
5. High-pressure water hose
6. Water inlet
7. Foam sprayer
8. Storage for high-pressure water hose
9. Power switch
10. Power cord
11. Water outlet with quick connection
12. Cleaning tool for nozzles
13. Transport handle
14. Air intake
15. Spray handle
16. Spray lance
17. Operator's manual
Symbols on the product
(Fig. 2) WARNING: This product
can be dangerous and
cause serious injury or
death to the operator
or others. Be careful
and use the product
correctly.
(Fig. 3) Read the operator's
manual carefully and
make sure that
you understand the
instructions before you
use this product.
(Fig. 4) The product is not
suitable for connection
to the potable water
mains.
(Fig. 5) High-pressure water
jets can be dangerous
if subject to misuse.
The jet must not be
directed at persons,
electrical equipment or
the product.
(Fig. 6) Environmental mark.
The product or
81839 - 006 - 21.10.2022

package of the product
is not domestic
waste. Recycle it
at an approved
disposal location for
electrical and electronic
equipment.
(Fig. 7) Class II tool.
(Fig. 8) The product agrees with
applicable EC directives.
(Fig. 9) The product agrees
with applicable Eurasian
Customs Union
directives.
(Fig. 10) The product agrees with
applicable UkrSEPRO
directives.
(Fig. 11) The product agrees
with applicable RCM
directives. Applies to
AU/NZ only.
(Fig. 12) Noise emission to the
environment label as per
EU and UK directives
and regulations, and
New South Wales
legislation "Protection
of the Environment
Operations (Noise
Control) Regulations
2017". The guaranteed
sound power level of the
product is specified in
Technical data on page
20 and on the label.
(Fig. 13) Protected against low
pressure water stream
from any angle.
(Fig. 14) Keep away from frost.
(Fig. 15) This product conforms
to the applicable UK
regulations.
Note: Other symbols/decals on the product refer to
certification requirements for some markets.
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes
are used to point out specially
important parts of the manual.
WARNING: Used if
there is a risk of
injury or death for the
operator or bystanders
1839 - 006 - 21.10.2022 9

if the instructions in the
manual are not obeyed.
CAUTION: Used if there
is a risk of damage to the
product, other materials
or the adjacent area if
the instructions in the
manual are not obeyed.
Note: Used to give more
information that is necessary in
a given situation.
General safety instructions
WARNING: Read the
warning instructions that
follow before you use the
product.
•This product is dangerous if
used incorrectly or if you are
not careful. Injury or death can
occur if you do not obey the
safety instructions.
•Always be careful and use
your common sense. If you
are not sure how to operate
the product in a special
situation, stop and speak to
your Husqvarna service agent
before you continue.
•Keep in mind that the operator
will be held responsible for
accidents that involve other
persons or their property.
•Keep the product clean. Make
sure that you can clearly read
signs and decals.
•Never allow children or
people unfamiliar with these
instructions to use the
appliance. Local regulations
may restrict the age of the
operator.
•This product can be operated
by persons with reduced
physical, sensory, or mental
capabilities if they are
supervised or given the
instructions for how to
operate the product safely
and understand the hazards
involved.
•This product can be operated
by persons who do not have
the necessary experience
or knowledge if they are
supervised or given the
instructions for how to
operate the product safely
and understand the hazards
involved.
•Do not use the product if
you are tired, ill, or under
the influence of alcohol, drugs
or medicine. This has a
negative effect on your vision,
alertness, coordination and
judgement.
10 1839 - 006 - 21.10.2022

•Do not use the product if it is
defective.
•Do not change this product or
use it if it is possible that it has
been changed by others.
Safety instructions for operation
WARNING: Read the
warning instructions that
follow before you use the
product.
•Do not use the product if
the power cord, high-pressure
hose, trigger lockout or spray
handle is damaged.
•Do a check for damage
before you operate the
product. Do not use the
product if parts are damaged
or missing.
•Hold the spray handle tightly
with both hands. A kickback
force occurs when you pull
the power trigger.
•Be careful when you operate
the product. The high
pressure supplied by the
product is dangerous and can
cause injury.
•Do not point the jet in
the direction of you, other
persons or animals.
•Do not point the jet in the
direction of yourself or others
to clean footwear.
•Do not point the jet in
the direction of electrical
equipment or the product
itself.
•Use personal protective
equipment when you operate
the product. Refer to Personal
protective equipment on page
13 .
•Do not operate the product
near persons unless they
wear protective equipment.
•If you use a cleaning agent,
follow the safety instructions
for the cleaning agent.
•Use Husqvarna cleaning
agents only.
•Use correct water pressure
and cleaning agents, and
use the product only for the
tasks given in this manual.
If you use incorrect water
pressure, cleaning agent, or
use the product for other
tasks than the tasks given
in this manual, it can cause
damage to the product,
surfaces, materials or other
devices. Husqvarna does not
accept liability for damage
that is caused by incorrect
use.
•It is not recommended that
you connect the product to
potable water mains. If you
must connect the product to
potable water mains, obey
local and national regulations.
1839 - 006 - 21.10.2022 11

Use a backflow preventer (not
included) if it is necessary.
Water that has flowed through
a backflow preventer is
considered to be non-potable.
•Do not spray flammable
liquids. Risk of explosion.
•Do not let children operate
the product.
•Do not let children play with
the product.
•Do not let persons operate
the product without training.
•Use only accessories and
spare parts that are approved
by Husqvarna.
•Make sure that the electric
connection is made by an
approved electrician and that
it complies with IEC 60364-1.
•Use a residual-current device
that stops the electricity if the
leakage current is more than
30 mA for 30 ms. If you do
not have a residual-current
device, use a device that will
prove earth circuit.
•Use motor start/delayed fuses
with characteristic C or D
according to IEC 898-1 or
IEC947-2, or corresponding
standards outside IEC.
•No actions are needed for
adjusting products marked
with dual voltage and
frequency.
•If it is necessary to use
an extension cable, make
sure that it is applicable
for operation outdoors. Make
sure that the socket is at
a minimum distance of 60
mm from the ground. The
connection must always be
kept dry.
•Put the power switch in the
off (0) position, disconnect
the power plug, and engage
the power trigger lockout
before you go away from the
product.
•Put the power switch in the
off (0) position and disconnect
the power plug before you
change accessory.
•Put the power switch in the
off (0) position and disconnect
the power plug before you
clean or do maintenance on
the product.
•Do not operate the product
in environments where the
ambient temperature is less
than 0°C.
•Do not start a frozen product.
•Do not operate the product
indoors.
•Do not put objects on
the product when it is in
operation.
•Do not drink water that has
been used with the product.
12 1839 - 006 - 21.10.2022

•Do not operate the product
near open windows.
•Watch out for thrown objects.
Stones and loose objects can
be thrown up into the eyes
causing blindness or serious
injury.
•If the product does not
operate correctly, refer to
Troubleshooting schedule on
page 19 .
Personal protective equipment
WARNING: Read the
warning instructions that
follow before you use the
product.
•Personal protective equipment
cannot fully prevent injury but
it decreases the degree of
injury if an accident does
occur. Let your dealer help
you select the right equipment.
•Use heavy-duty, slip-resistant,
boots or shoes. Do not use
open shoes or go with bare
feet.
•Use protective clothes.
•Use approved hearing
protection.
•Use protective goggles.
•Use breathing protection with
class FFP2 or equivalent
if you operate the product
in environments where
dangerous aerosols can be
formed.
Safety devices on the product
WARNING: Read the
warning instructions that
follow before you use the
product.
•Do not use a product with
defective safety devices.
•Do not remove or do
modifications to safety
devices.
•Do a check of the safety
devices regularly. If the safety
devices are defective, speak
to your Husqvarna service
agent.

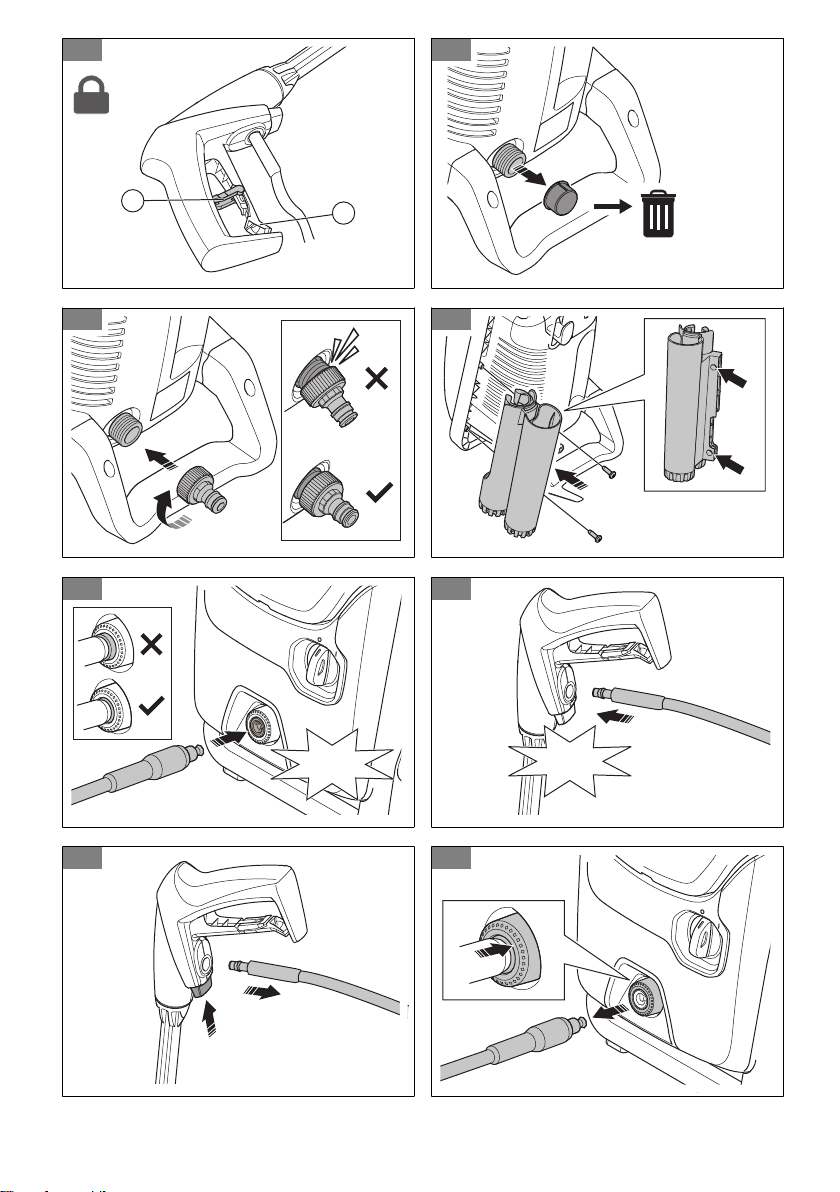

Power trigger lockout
The power trigger lockout (A)
prevents accidental operation of
the power trigger (B). When
the power trigger lockout is in
the locked position, the power
trigger cannot be pushed in.
(Fig. 16)
Power trigger
The product starts when the
power trigger is pushed in. The
product stops when the power
trigger is released.
1839 - 006 - 21.10.2022 13

Thermal protector
The product has an automatic
thermal protector. If the product
becomes too hot, the thermal
protector will stop the power
supply to the product. If the
thermal protector has stopped
the power, wait until the product
is cool. The thermal protector
will reset automatically when
the product is sufficiently cool.
Hydraulic relief valve
The product has an integrated
hydraulic relief valve that
prevents too high pressure in
the system.
Safety instructions for
maintenance
WARNING: Read the
warning instructions that
follow before you do
maintenance on the
product.
CAUTION: Always do
maintenance before you
start the product after a
long time in storage.
•Put the power switch in the
off (0) position and disconnect
the power plug from the
power source before you do
maintenance on the product.
•Disconnect the product from
the water source and make
sure that all parts are dry
before you do maintenance
on the product.
•Do the maintenance work
written in this operator's
manual only.
•Use only spare parts
recommended by Husqvarna.
High pressure water hoses,
fittings and couplings are
important for the safety
when you operate the
product. Use only hoses,
fittings and couplings that
are recommended by the
manufacturer.
•Do not repair the product.
Speak to your Husqvarna
service agent.
•Speak to your Husqvarna
service agent if the power
plug or power cord is
damaged.
•Do not let children clean or do
maintenance on the product.
14 1839 - 006 - 21.10.2022

Assembly
Introduction
WARNING: Read and understand the
safety chapter before you assemble the
product.
To install the garden hose adapter
1. Remove the transport cover from the water inlet and
discard it. (Fig. 17)
2. Install the garden hose adapter on the water inlet.
(Fig. 18)
CAUTION: Make sure that you
install the garden hose adapter straight
on the water inlet. If the garden hose
adapter is not installed straight, it can
cause damage to the threads and
leakage can occur.
3. Tighten the garden hose adapter fully.
4. Remove the garden hose adapter in the opposite
sequence.
To install the holder for the spray
handle and the spray lance
• Install the holder with the 2 screws. (Fig. 19)
Operation
Introduction
WARNING: Read and understand the
safety chapter before you use the product.
Husqvarna Connect
Husqvarna Connect is a free app for your mobile device.
The Husqvarna Connect app gives extended functions
for your Husqvarna product:
• Extended product information.
• Information about, and help with, product parts and
servicing.
To start to use Husqvarna Connect
1. Download the Husqvarna Connect app on your
mobile device.
2. Register in the Husqvarna Connect app.
3. Follow the instruction steps in the Husqvarna
Connect app to connect and register the product.
Note: Husqvarna Connect app is not available for
download in all markets. Speak to your servicing
dealer for more information.
To install the spray handle
1. Push the high-pressure water hose into the quick
connection until it locks in position. (Fig. 20)
CAUTION: To prevent leakage,
make sure that the high-pressure hose
is fully connected to the quick connection
on the product.
2. Hold the spray handle tightly with one hand and
push the high-pressure water hose into the quick
connection on the spray handle. (Fig. 21)
To remove the spray handle
1. Push the button on the spray handle and pull out the
high-pressure water hose. (Fig. 22)
2. Push the outer ring on quick connection and pull out
the high-pressure water hose. (Fig. 23)
To install the spray lance

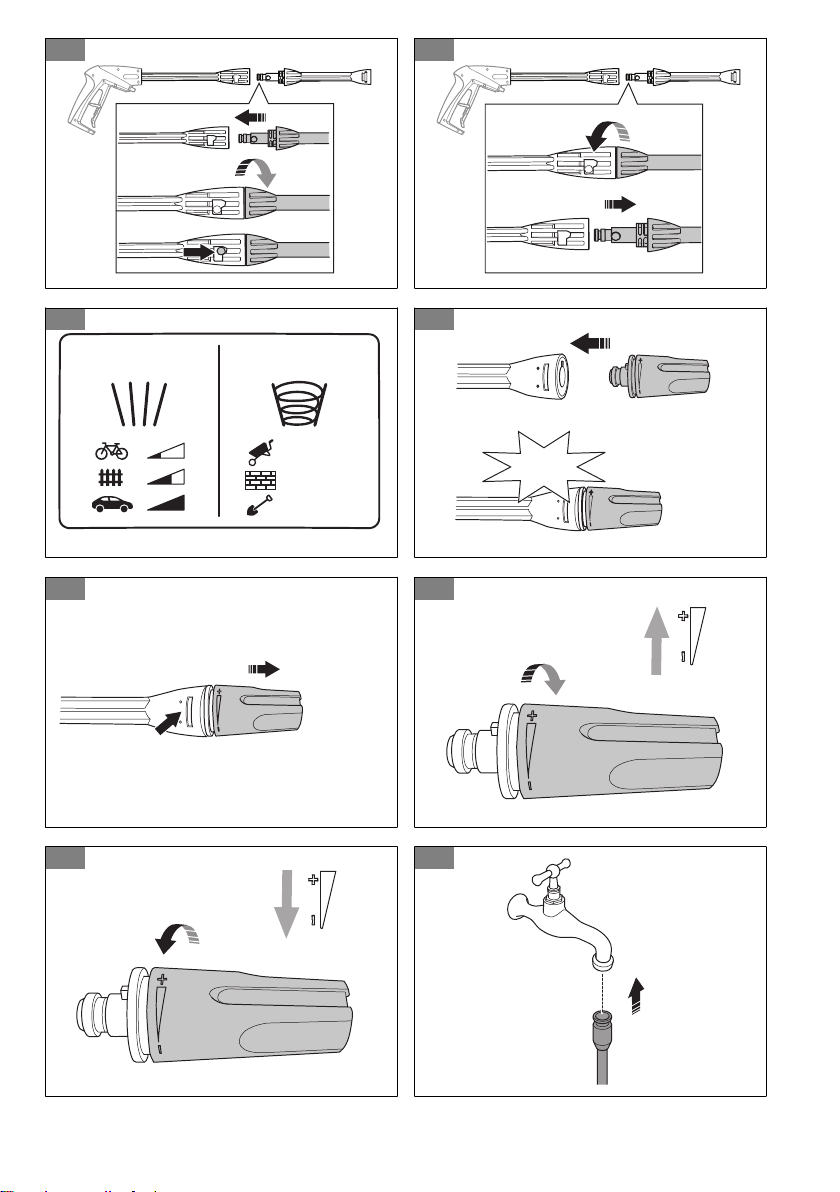

1. Hold the spray handle with one hand and push the
coupling on the spray lance into the spray handle.
(Fig. 24)
2. Turn the spray lance clockwise and release the
spray lance. The spray lance locks in position.
To remove the spray lance
1. Push in the spray lance and turn it counterclockwise.
(Fig. 25)
2. Pull out the spray lance from the spray handle.
To install and remove a nozzle
The product is supplied with 2 nozzles: 1 nozzle with
a straight water jet (identified with "gentle nozzle") and
1 rough nozzle with a rotating water jet (identified with
"rough nozzle". The nozzle with a straight water jet
can be used to clean sensitive surfaces, for example
vehicles. The nozzle can be used to clean surfaces that
are not sensitive, for example driveways.
(Fig. 26)
1839 - 006 - 21.10.2022 15

CAUTION: Do not use the nozzle with
a rotating water jet on sensitive surfaces, for
example painted surfaces on a vehicle. The
rotating water jet can cause damage to the
surface.
• To install a nozzle, hold the spray lance with one
hand and push in the nozzle until it locks in position.
(Fig. 27)
• To remove a nozzle, push in the tab on the spray
lance and pull out the nozzle from the spray lance.
(Fig. 28)
To adjust the pressure of the water jet
The nozzle with a straight water jet has adjustable
pressure.
• To increase the pressure of the water jet, turn the
nozzle clockwise. (Fig. 29)
• To decrease the pressure of the water jet, turn the
nozzle counterclockwise. (Fig. 30)
To operate the product
1. Connect the product to a water source. Refer to
To
connect the product to a water source on page 16
.
2. Bleed the system. Refer to To bleed the system on
page 17
.
3. Start the product. Refer to To start the product on
page 17 .
To connect the product to a water
source
The product can be used with water from the water
mains or water from an open water source, for example
a lake or a water barrel.
• To connect the product to the water mains, refer to
To connect the product to the water mains on page
16 .
• To connect the product to an open water source,
refer to
To connect the product to an open water
source on page 16 .

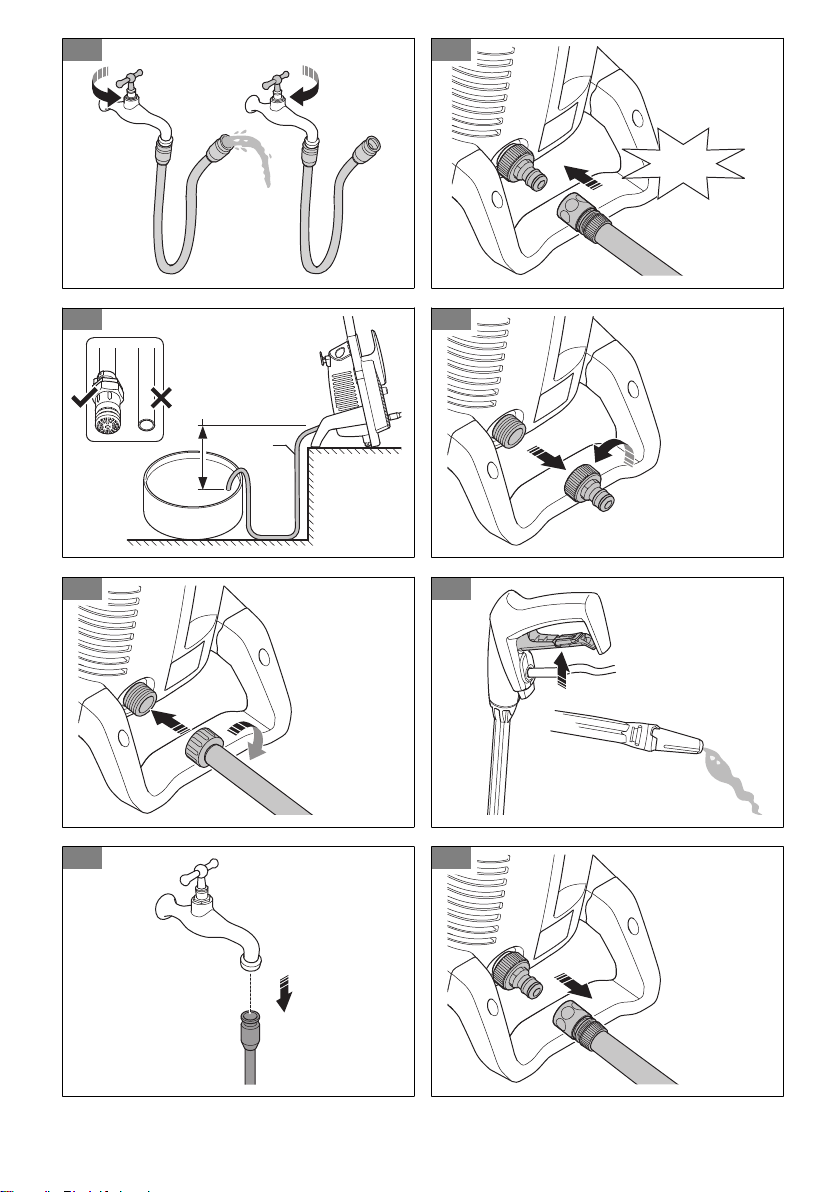

To connect the product to the water mains
1. Install the garden hose adapter and the water filter to
the water inlet on the product if they are not installed.
Refer to
To install the garden hose adapter on page
15
.
2. Connect the garden hose to the water mains. Use a
½ in. garden hose that is 10–25 m long. (Fig. 31)
CAUTION: The water pressure in
the water mains must not be more than 1
MPa (10 bar).
CAUTION: The water temperature
in the water mains must not be more
than 40°C.
3. Open the valve on the water mains and make sure
that water can flow freely from the garden hose. (Fig.
32)
4. Close the valve on the water mains.
5. Connect the garden hose to the water inlet on the
product. (Fig. 33)
6. Connect the power plug to a power source.
7. Open the valve on the water mains.
8. Bleed the system before you operate the product.
Refer to
To bleed the system on page 17 .
To connect the product to an open water
source
The product can be used with water from an open water
source, for example a lake or a water barrel. Use a ½ in.
suction hose (not included) that is maximum 3 m long.
(Fig. 34)
CAUTION: The water temperature in
the water source must not be more than
20°C.
CAUTION: The product must not be
more than 0.5 m above the water source.
1. If the garden hose adapter is installed, remove it
from the water inlet on the product. (Fig. 35)
CAUTION: Do not remove the water
filter in the water inlet.
2. Install a suction hose (not included) to the water inlet
on the product. (Fig. 36)
3. Put the suction hose in the water source and make
sure that the filter is fully submerged.
CAUTION: Do not use a suction
hose without a filter.
4. Push in the button on the spray handle and pull out
the high-pressure hose from the spray handle. (Fig.
22)
5. Connect the power plug to a power source.
6. Turn the power switch to the on (I) position and let
the product operate for 2 minutes.
7. Turn the power switch to the off (0) position.
8. Hold the spray handle tightly with one hand and
push the high-pressure hose into the quick coupling
on the spray handle. (Fig. 21)
16 1839 - 006 - 21.10.2022

9. Bleed the system before you operate the product.
Refer to To bleed the system on page 17 .
To bleed the system
CAUTION: Make sure that the power
switch is in the off (0) position before you
bleed the system.
1. Connect the product to a water source. Refer to To
connect the product to a water source on page 16 .
2. Install the spray lance on the spray gun. Refer to
To
install the spray lance on page 15 .
3. Disengage the power trigger lockout. Refer to To
engage and disengage the power trigger lockout on
page 17
.
4. Push the power trigger and keep it pushed in until
water comes out of the nozzle on the spray lance.
(Fig. 37)
To disconnect the product from the water
source
1. Turn the power switch to the off (0) position.
2. If the product is connected to the water mains, close
the valve on the water mains.
3. If the product is connected to the water mains,
disconnect the garden hose from the water mains.
(Fig. 38)
4. If the product is connected to an open water source,
remove the suction hose from the water source.
5. Push the power trigger and keep it pushed in until no
water comes out of the nozzle.
6. Disconnect the garden hose from the water inlet on
the product. (Fig. 39)
Note: If the product is connected to an open water
source, disconnect the suction hose.
7. Push the button on the spray handle and pull out the
high-pressure hose from the spray handle. (Fig. 22)
8. Turn the power switch to the on (I) position. Let the
product operate until no water comes out of the high-
pressure hose.
9. Turn the power switch to the off (0) position.
10. Let the spray handle, the spray lance, and the
nozzles become dry before you put the product in
storage.
To engage and disengage the power
trigger lockout

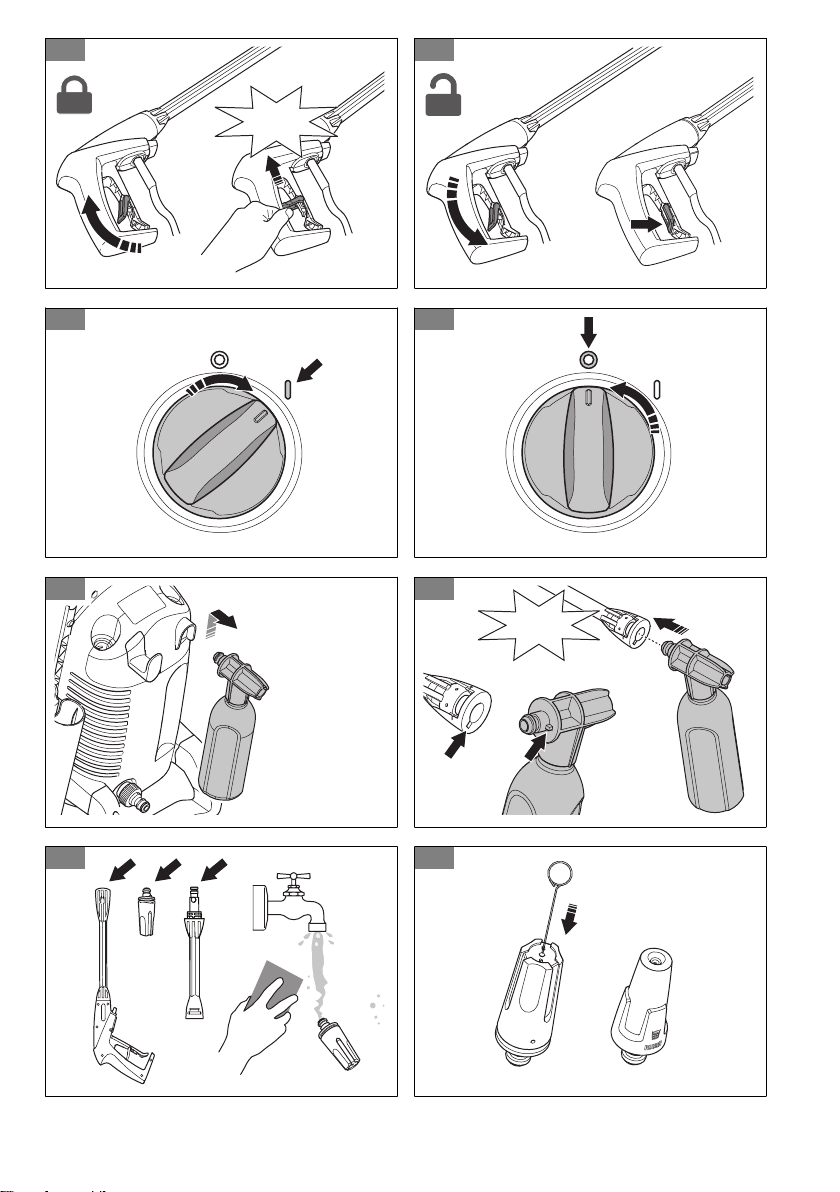

• To engage the power trigger lockout, turn the power
trigger lockout clockwise until you hear a click. (Fig.
40)
• To disengage the power trigger lockout, turn the
power trigger lockout counterclockwise fully. (Fig.
41)
To start the product
1. Connect the product to a water source. Refer to To
connect the product to a water source on page 16
.
2. Connect the power plug to a power source.
3. Turn the power switch to the on (I) position. (Fig. 42)
4. Disengage the power trigger lockout. Refer to To
engage and disengage the power trigger lockout on
page 17
.
5. Push the power trigger on the spray handle.
Note: The product stops automatically when you
release the power trigger.
To stop the product
Note: The product stops automatically when you
release the power trigger.
1. Release the power trigger on the spray handle.
2. Engage the power trigger lockout. Refer to
To
engage and disengage the power trigger lockout on
page 17 .
3. Turn the power switch to the off (0) position. (Fig. 43)
4. Disconnect the power plug from the power source.
5. Disconnect the product from the water source. Refer
to
To disconnect the product from the water source
on page 17 .
Note: Always disconnect the product from the
water source if you go away from the product for
more than 5 minutes.
To use the foam sprayer
1. Remove the foam sprayer from its holder. (Fig. 44)
2. Fill the container on the foam sprayer with cleaning
agent.
CAUTION: Use only cleaning
agents that are recommended by
Husqvarna.
3. Push the quick connection on the foam sprayer into
the quick connection on the spray lance until it locks
in position. (Fig. 45)
Note: The flange on the foam sprayer must align
with the groove in the spray lance.
4. Connect the product to a water source. Refer to To
connect the product to a water source on page 16
.
5. Start the product. Refer to To start the product on
page 17
.
1839 - 006 - 21.10.2022 17

Maintenance
Introduction
WARNING: Before you do
maintenance, you must read and
understand the safety chapter.
For all servicing and repair work on the product, special
training is necessary. We guarantee the availability of
professional repairs and servicing. If your dealer is not
a service agent, speak to them for information about the
nearest service agent.
For more detailed information, refer to
www.husqvarna.com.
Maintenance schedule
Maintenance Before use After use
Do a general inspection. Refer to To do a general inspection on page 18 . X
Clean the product. Refer to To clean the product on page 18 . X
Clean the spray lance and the nozzles. Refer to To clean the spray lance and the nozzles
on page 18 .X
Clean the water filter. Replace the water filter if it is damaged. Refer to To clean the water
filter on page 19 .X
Lubricate the O-rings on the couplings. Refer to To lubricate the O-rings on the couplings
on page 19 .X
To do a general inspection
WARNING: Put the power switch in the
off (0) position and disconnect the power
plug from the power source before you do
maintenance on the product.
CAUTION: Disconnect the product from
the water source and make sure that all
parts are dry before you do maintenance on
the product.
• Make sure that the nuts and the screws on the
product are tightened.
• Make sure that the cables on the product are not in a
position where they can be damaged.
• Examine the high-pressure hose for wear and
damage.
WARNING: Do not operate the
product if the high-pressure hose is worn
or damaged.
To clean the product
WARNING: Put the power switch in the
off (0) position and disconnect the power
plug from the power source before you do
maintenance on the product.
CAUTION: Disconnect the product from
the water source and make sure that all
parts are dry before you do maintenance on
the product.
• Clean all external parts with a dry cloth.
• Do not use a high-pressure washer to clean the
product.
• Keep the air inlets clean to make sure that the
product always has sufficiently cool temperature.
To clean the spray lance and the nozzles
WARNING: Put the power switch in the
off (0) position and disconnect the power
plug from the power source before you do
maintenance on the product.
CAUTION: Disconnect the product from
the water source and make sure that all
parts are dry before you do maintenance on
the product.
1. If a nozzle is installed on the spray lance, remove it
from the spray lance. Refer to
To install and remove
a nozzle on page 15 .
18 1839 - 006 - 21.10.2022

2. Clean the nozzles, the coupling on the spray lance,
and the coupling on the spray handle with soap and
water. (Fig. 46)
3. If there is blockage in the nozzles, remove it with the
cleaning tool. (Fig. 47)
To clean the water filter
WARNING: Put the power switch in the
off (0) position and disconnect the power
plug from the power source before you do
maintenance on the product.
CAUTION: Disconnect the product from
the water source and make sure that all
parts are dry before you do maintenance on
the product.
1. If the garden hose adapter is installed, remove it
from the water inlet on the product. (Fig. 35)

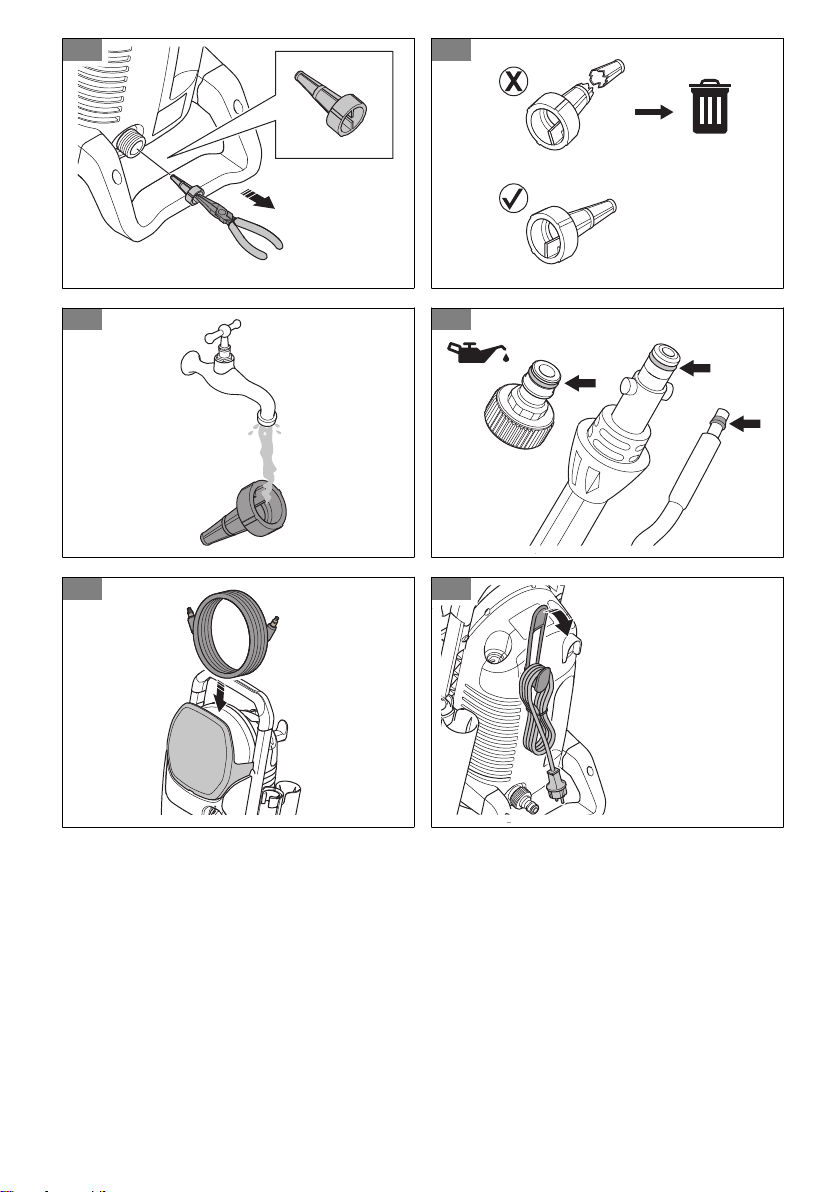

2. Pull out the water filter. Use a pair of pliers. (Fig. 48)
3. Do a check for damage on the water filter. Replace
the water filter if it is damaged. (Fig. 49)
4. Flush the water filter with clean water. (Fig. 50)
To lubricate the O-rings on the
couplings
WARNING: Put the power switch in the
off (0) position and disconnect the power
plug from the power source before you do
maintenance on the product.
CAUTION: Disconnect the product from
the water source and make sure that all
parts are dry before you do maintenance on
the product.
1. Remove the spray lance from the spray handle and
the spray handle from the high-pressure hose. Refer
to
To install the spray lance on page 15 and To
install the spray handle on page 15 .
2. Lubricate the O-rings on the garden hose adapter,
the spray lance, and the high-pressure hose with
grease. Refer to
Technical data on page 20 for the
correct type of grease. (Fig. 51)
Troubleshooting
Troubleshooting schedule
Problem Possible cause Solution
The product does not start. The power plug is not connected to a
power source.
Connect the power plug to a power
source
The power switch is in the off (0) po-
sition.
Turn the power switch to the on (I)
position.
There is no electricity in the power
source.
Speak to an approved electrician.
The power cord is damaged or defec-
tive.
Speak to an approved service agent.
The thermal protector has stopped
the power.
Wait until the product becomes
cool before you operate the product
again.
An incorrect type of extension cable
is used.
Make sure that the extension cable
is unwound fully and that the voltage
supply agrees with the voltage of the
product.
The fuse blows during start or opera-
tion.
An incorrect type of fuse is used. Make sure that you use a slow-blow
fuse that has class "C" or "K".
The product does not stop. The product is defective. Disconnect the power plug and
speak to an approved service agent.
The product becomes too hot. The air flow is not sufficient. Clean the air intakes.
1839 - 006 - 21.10.2022 19

Problem Possible cause Solution
The product does not operate
smoothly.
There is air in the system. Bleed the system.
The water pressure is unsatisfactory. The hose is bent Make sure that there are no bends
on the hoses.
The power switch is in the off (0) po-
sition.
Turn the power switch to the on (I)
position.
The water flow is not sufficient. Make sure that the product is con-
nected to the water source correctly.
Make sure that the water flow is suffi-
cient.
The water filter is clogged. Clean the water filter.
There is air in the system. Bleed the system.
The accessory is not correct. Make sure that you use the correct
accessory.
Transportation, storage and disposal
Transportation
• Disconnect the power plug from the power source
before transportation of the product.
• Disconnect the product from the water source before
transportation of the product.
• Put the product horizontally during transportation.
• Attach the product to prevent movement during
transportation.
Storage
• Drain all water from the product, the high-pressure
water hose, and the accessories before you put the
product in storage.
• Prepare the product for storage. Refer to
To prepare
the product for storage on page 20 .
• Keep the product in a dry and frost-free environment.
To prepare the product for storage
1. Stop the product and disconnect the power plug from
the power source.
2. Disconnect the product from the water source. Refer
to
To disconnect the product from the water source
on page 17 .
3. Make sure that all accessories are dry.
4. Put the spray handle, the spray lance, and the
nozzles in their holders.
5. Disconnect the high-pressure water hose and put it
in its holder. (Fig. 52)
6. Put the power cord on its holder and attach the
strap. (Fig. 53)
Disposal
Husqvarna products are not domestic waste and must
only be discarded as given in this manual.
• Obey the local disposal requirements and applicable
regulations.
• Recycle the product and package at an applicable
disposal location.
• Speak to your local Husqvarna dealer for more
information on how to recycle and discard the
product.
Technical data
PW 130
Motor and pump
Type Series AC Motor
20 1839 - 006 - 21.10.2022
