Husqvarna A 600 User manual

Operators manual
A-Line Air Scrubber
Please read the operator’s manual carefully and make sure you understand the instructions before using
the machine.
US
A 600, A 1200

2
Introduction
Notice!
These instructions are only for the air scrubber type Husqvarna A 600 / A 1200.
The air scrubber, Husqvarna A 600 / A 1200 can only be used with dry, non-explosive materials.
Husqvarna not be held responsible if the air scrubber is used for other applications or has been
used in ways other than those outlined in this instruction manual.
Before using the machine, please read the safety regulations carefully.
Read the complete instruction manual before using the Husqvarna A 600 / A 1200.
All spare parts used for the Husqvarna A 600 / A 1200 must those specified by Husqvarna
Construction Products.

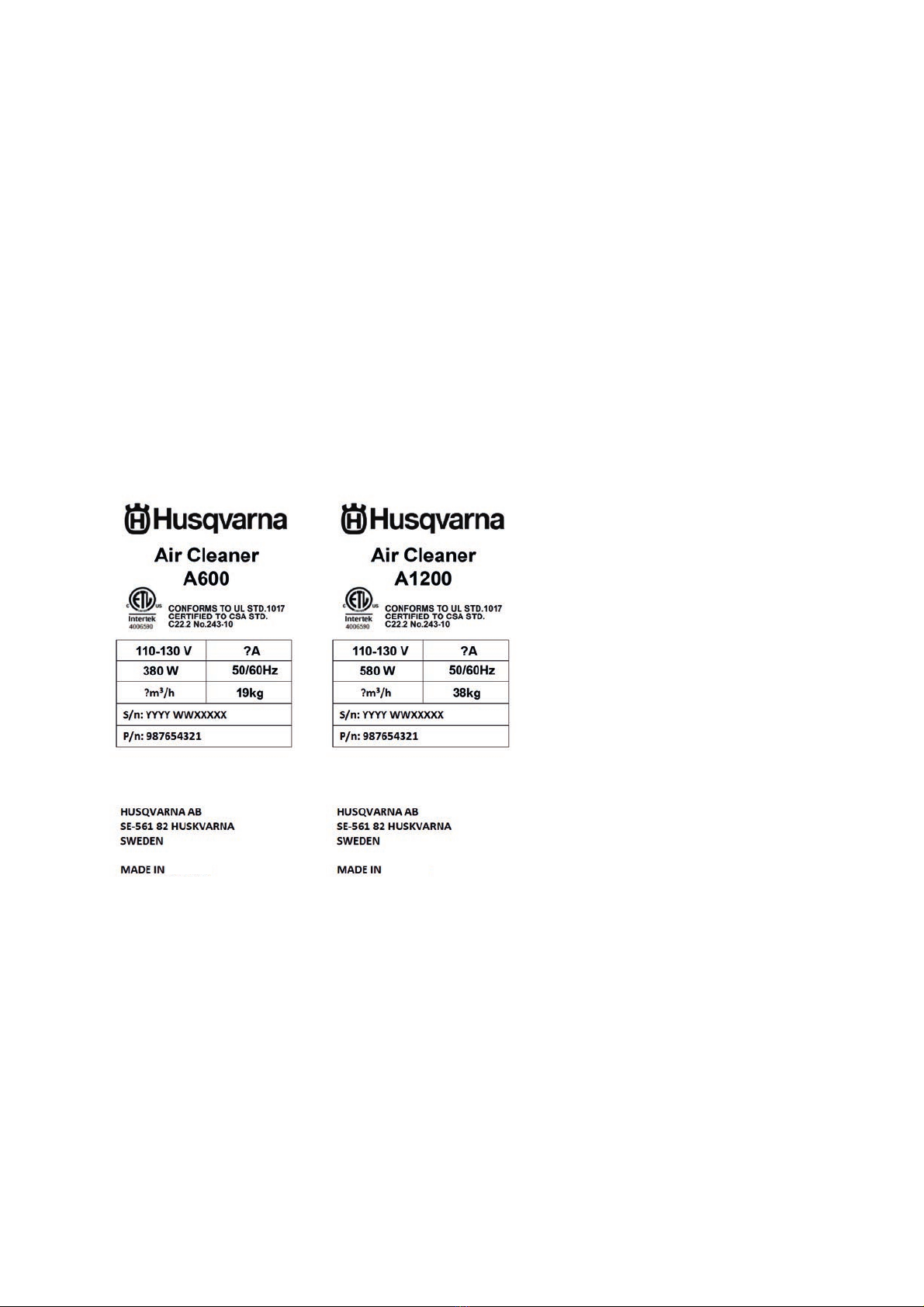

Type plate
CHINA
CHINA
Unpacking
When unpacking the machine, please check that the air scrubber has not been damaged in transport.

3
Product overview
A 600
A 1200
Safety Instructions
Handling
Warning
•Make sure that you read and understand the instructions for the main product to ensure that
you know what personal equipment to wear, what safety equipment to use and how to work in
a safe mode.
Warning
•Cables damaged through crushing or splitting can be dangerous if used and should be replaced
immediately. Risk of personal injury.
Warning
•Do not connect the machine to an unearthed socket. Risk of personal injury.
Warning
•Make sure the assembly area is firm, so the air scrubber does not tip over. Risk of personal
and material injury.
Stop button
Stop button

4
Warning
•Risk of pinching when handling the toggle fastener.
Warning
•The machine must not be used in environments where explosive gases may be present. Serious
risk of explosion
Warning
•The machine should be turned off at the switch before releasing the power lead from the wall
outlet. If the switch is in the on position, a spark can occur between the contact on the power
lead contact.
Service
Warning
•Remove the plug from the wall socket when carrying out maintenance work. Risk of personal
injury.
Warning
•Dust that is hazardous to health can be spread when the coarse filter and the absolute filter are
replaced. Accordingly, the user should wear protective glasses, protective gloves, and a
breathing mask conforming to protection class FFP2
Warning
•Do not puncture the absolute filer. Risk of dust dispersion.
Function
Connect the lead to the power outlet, attach the outlet hose if available. Start the machine by pressing
the start knob. The air scrubber has two speeds.
The air scrubber separates material in two stages:
The first stage uses a coarse filter. This traps the bigger particles and acts as protection for the main
filter. The coarse filter should be changed on a daily basis.
The second absolute filter separates the unhealthy dust that is invisible to the eye.
Coarse filter characteristics
The coarse filter is strong and easy to change. It has low pressure drop and good separation capability.
The coarse filter takes care of big particles and acts as protection for the absolute filter.
Main filter characteristics
The main filter is an absolute filter with class HEPA H13 that is dimensioned for fine, dry dust and
should be preceded by a pre-filter.
Caution
•The operating life of the absolute filter decreases and can be completely destroyed if exposed
to water.
Caution
•The absolute filters cannot be cleaned and must be replaced when full.

5
Filter indicator
A 600 / A 1200 has two filter indicators connected to a warning light which measures the pressure
drop over the filter. If the pressure drop is too high, a yellow lamp light up, indicating that the pre-
filter should be changed. When the Yellow light stays on even after a pre-filter change. It is time to
Change the HEPA filter. Using the air scrubber when light is showing will reduce the effectiveness of
the machine. When the pressuredrop is too low, a red lamp will light up, indicating that the Hepa filter
is leaking/damaged and needs to be replaced immediately.
Please note that the filter indicators only does work at full speed.
Recommended intervals for filter change: Socks filter every 6 months and Hepa filter every 12 month.
Fan
The air scrubber is equipped with a single, 1 phase fan.
Risk of dust dispersion - Use of personal safety equipment
Unhealthy dust can be spread when cleaning the coarse filter and during filter change.
Accordingly, the user should wear protective glasses, protective gloves, and a breathing mask
conforming to protection class FFP2.
Accessories
PART NO. DESCRIPTION No./machine Machine
590430001 Pre-filter 20-pcs 1 ea A 600
590460801 HEPA filter 1 ea A 600
590430002 Pre-filter 20-pcs 1 ea A 1200
590463201 HEPA filter 1 ea A 1200
Contact your local representative for other spare parts.
Warranty
All Husqvarna devices and accessories have a 12-month factory warranty from the date of purchase
for material and manufacturing defects. Do not attempt to repair the suction apparatus without the
consent of the manufacturer.
The warranty does not cover defects which are the result of normal wear and tear, negligence,
defective use, unauthorised repair or the suction apparatus being connected to the incorrect voltage.
In the event of any complaint, the suction apparatus or an agreed part of it must be returned to us or
our authorised representative for warranty examination and for any warranty repair or replacement.

6
PROBLEM SOLVING
The A 600 / A 1200 is designed and manufactured for severe environments and tasks, but the user
must note that the machine components must be protected from knocks and blows. Filter and sealing
connections are carefully chosen to serve the operator. Therefore, the machine must be handled with
care if it is to work correctly for many years.
Problem Cause Procedure
The fan does not start No power Connect the machine
Cable defective Change
Switch defective Change
The fan stops immediately Wrong fuse Connect the correct fuse
The fan runs, Blocked filter Change filter
but suction is poor Cover loose Adjust
Sealing defect Change current seal
Dust blows from unit Defective or loose filter Adjust or change
Abnormal noise Order service
Keep these instructions!
TECHNICAL DATA
Air scrubber A 600 A 1200
Power 0,385 kW / 0,5 HP 0,585 kW / 0,8 HP
Voltage 120 120 V
Current 3,2 A 4,9 A
Power supply 1-phase 1-phase
Airflow 500/1000 m3/h / 300-600 CFM 1000/2000 m3/h / 600/1200 CFM
HEPA FILTER Filter classification: H13 Filter classification: H13
Filter Area 3,5 m2/ 60 ft210,5 m2 / 150 ft2
Dimension LxWxH mm: 465x385x466 mm: 724x424x810
in: 18,3x15,1x18,3 in: 28,5x16,7x31,9
Weight 20 kg / 44 lbs 38 kg / 84 lbs

7
Notes
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________
______________________

www.husqvarnacp.com
Original instructions
1158768-95
2017-04-26
