*DVROLQH9HKLFOHV
2ZQHUV0DQXDO

Husqvarna Forest and Garden
7349 Statesville Rd.
Charlotte, NC 28269
USA
www.usa.husqvarna.com/huv
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 1
NOTICE
The Husqvarna Limited Warranty appears on the last pages of this manual. No other warranties, express or
implied, are contained herein. Your authorized representative checked the vehicle before it was delivered to
you and will provide you a copy of the completed vehicle warranty registration form.
Husqvarna is not liable for errors in this manual or for incidental or consequential damages that result from the
use of the material in this manual.
This manual contains proprietary information that is protected by copyright. All rights are reserved. No part of
this manual may be photocopied, reproduced, or translated to another language without the written consent
of Husqvarna.
The information contained in this document is subject to change without notice.
Husqvarna reserves the right to change specifications and designs at any time without notice and without the
obligation of making changes to units previously sold.
These vehicles do not conform to Federal Motor Vehicle Safety Standards for automobiles or to FMVSS 500
for low-speed vehicles, and are not equipped for operation on public streets, roads, or highways.

Page 2 2005 HUV4213 Gasoline Vehicle Owner’s Manual
FOREWORD
Thank you for choosing Husqvarna, a world leader in outdoor products. You have chosen the finest utility
vehicle on the market. Please protect your investment and ensure that your Husqvarna vehicle provides years
of reliable, superior performance by reading and following the maintenance instructions in this manual.
Your comfort and safety are important to us, so we urge you to read and follow the step-by-step operating
instructions and safety precautions in this manual. These instructions must be followed in order to avoid the
risk of severe personal injury. If you rent or loan your vehicle to others, we recommend that you ask them to
read this manual before they operate the vehicle.
Husqvarna products are backed by a customer support system designed to offer you fast, courteous service.
In the event that your Husqvarna vehicle needs repairs or service, we recommend that your local authorized
Husqvarna representative perform them. For the name and address of the Husqvarna representative nearest
you, logon to our web site at www.usa.husqvarna.com. If you would prefer to write to us, direct your letter to:
Husqvarna, Attention: Marketing Services, 7349 Statesville Rd., Charlotte, NC 28269 USA. Your local autho-
rized Husqvarna representative can also provide technical advice, parts, and service manuals.
We hope you will consider this owner’s manual a permanent part of your Husqvarna vehicle. If you sell the
vehicle, please include the manual so that the next owner will have the important operating, safety, and main-
tenance information it contains. Translated owner’s manuals can be downloaded from the Husqvarna web
site at www.usa.husqvarna.com/huv.
Below is a quick reference table of items that will help you maintain this vehicle. These parts can be pur-
chased from your authorized Husqvarna dealer.
REGULAR MAINTENANCE ITEMS PERIODIC MAINTENANCE ITEMS
Engine Oil Filter
(P/N 603 00 00-06)
Battery
(P/N 603 00 00-02)
Engine Air Filter
(P/N 603 00 00-04)
Spark Plug O.H.V.
(P/N 603 00 00-07)
Engine Fuel Filter
(P/N 603 00 00-08)
Spring Tune-Up Kit
(P/N 603 00 00-05)
Battery Terminal Protector Spray
(P/N 603 00 00-03)
Dry Moly Lube
(P/N 603 00 00-01)

2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 3
TABLE OF CONTENTS
Vehicle Feature Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Seat Latch and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pre-Operation and Daily Safety Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Driving Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bed Latch and Prop Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Front Shock Absorbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Loading and Unloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Towing with the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Transporting on a Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Periodic Service Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Periodic Lubrication Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Master Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fueling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Subsequent Owner Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Vehicle Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Husqvarna® Limited Two Year Warranty for 2005 Transportation and Utility Vehicles . . . . . . . . . . . . . . 38

Vehicle Feature Identification
Page 4 2005 HUV4213 Gasoline Vehicle Owner’s Manual
HUV4213
VEHICLE LOADING DECAL
OPERATING
INSTRUCTIONS DECAL
DIFFERENTIAL
LOCK CONTROL
DECAL
BED LOAD
WARNING DECAL
DRIVER/PASSENGER WARNING
DECAL
UNDERAGE
WARNING DECAL
(UNDER SEAT
SUPPORT)
(ON TOP OF
FUEL TANK)

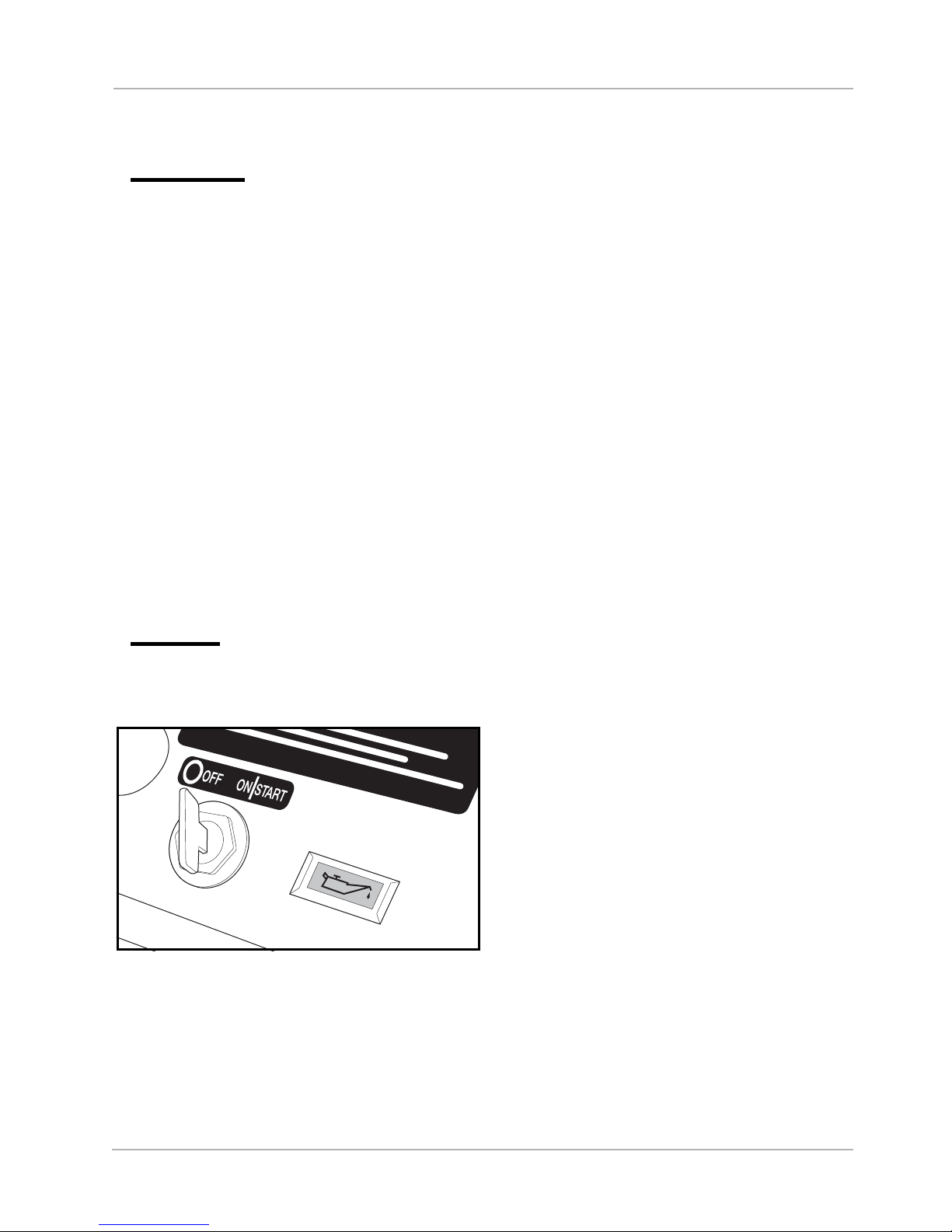

KEY SWITCH
FUEL SHUT-OFF
VALVE
(TOP OF PASSENGER SIDE FENDER)
ROTATING PARTS
DECAL
CRUSH AREA
DECAL
BED
LATCH
BRAKE
PEDAL
ACCELERATOR
PEDAL
LOW OIL
WARNING
LIGHT
LIGHT
SWITCH
SERIAL
NUMBER
FUEL GAUGE/
HOUR METER

Vehicle Feature Identification
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 5
HUV4213
PARK BRAKE
RECEIVER
HITCH
WINCH CABLE
WARNING DECAL
FORWARD/REVERSE
HANDLE
CHOKE
BED LATCH
WARNING DECAL
DIODE
WIRING DECAL
(ON FRONT AND REAR
RECEIVER HITCHES)
FRAME GROUND AND
GOVERNOR WARNING DECAL
(ON FRAME)
ROTATING PARTS AND
HOT MANIFOLD DECAL
(ON STARTER/GENERATOR
AND ENGINE)
(ON SEAT SUPPORT PANEL)
GASOLINE WARNING DECAL
(ON PASSENGER SIDE
SEAT SUPPORT)
(DOTTED LINE)
TRAILER HITCH
DECAL
(FOR VEHICLES WITH WINCH ACCESSORY)
(ON FRAME ABOVE DIODE)

!WARNING
Rotating Parts
Practice Safety
Page 6 2005 HUV4213 Gasoline Vehicle Owner’s Manual
Safety signs like you see above may at first seem shocking, but their impact is mild
compared with the reality of severe personal injury.
Your safety and satisfaction are of the utmost importance to Husqvarna. That is why
before operating the vehicle, we urge you to review the information in this manual.
Understand and become familiar with the DANGER, WARNING and CAUTION state-
ments and procedures it contains, along with the safety decals that are affixed to your
vehicle.
Take time to understand the language of safety. It is a language that can save your life.
PROPOSITION 65 – STATE OF CALIFORNIA
ý WARNING
This product contains or emits chemicals or substances that have been determined by the state of
California to cause cancer and birth defects or other reproductive harm.

Safety Details
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 7
SAFETY DETAILS
ý WARNING
• This owner’s manual should be read completely before attempting to drive or service the
vehicle. Failure to follow the instructions in this manual could result in property damage,
severe personal injury, or death.
It is important to note that some vital statements throughout this manual and on the decals affixed to the vehi-
cle are preceded by the words DANGER, WARNING, or CAUTION. For your protection, we recommend that
you take special notice of these safety precautions. Safety precautions are essential and must be followed.
If any of the operation or warning decals on the vehicle become damaged, have been removed, or cannot be
easily read, they should be replaced immediately to avoid possible property damage, personal injury, or
death. Contact your Husqvarna dealer.
ý DAN GE R
• A DANGER indicates an immediate hazard that will result in severe personal injury or death.
ý WARNING
• A WARNING indicates an immediate hazard that could result in severe personal injury or
death.
ý CAUTION
• A CAUTION with the safety alert symbol indicates a hazard or unsafe practice that could
result in minor personal injury or product or property damage.
CAUTION
• A CAUTION without the safety alert symbol indicates a situation that potentially could result
in property damage.

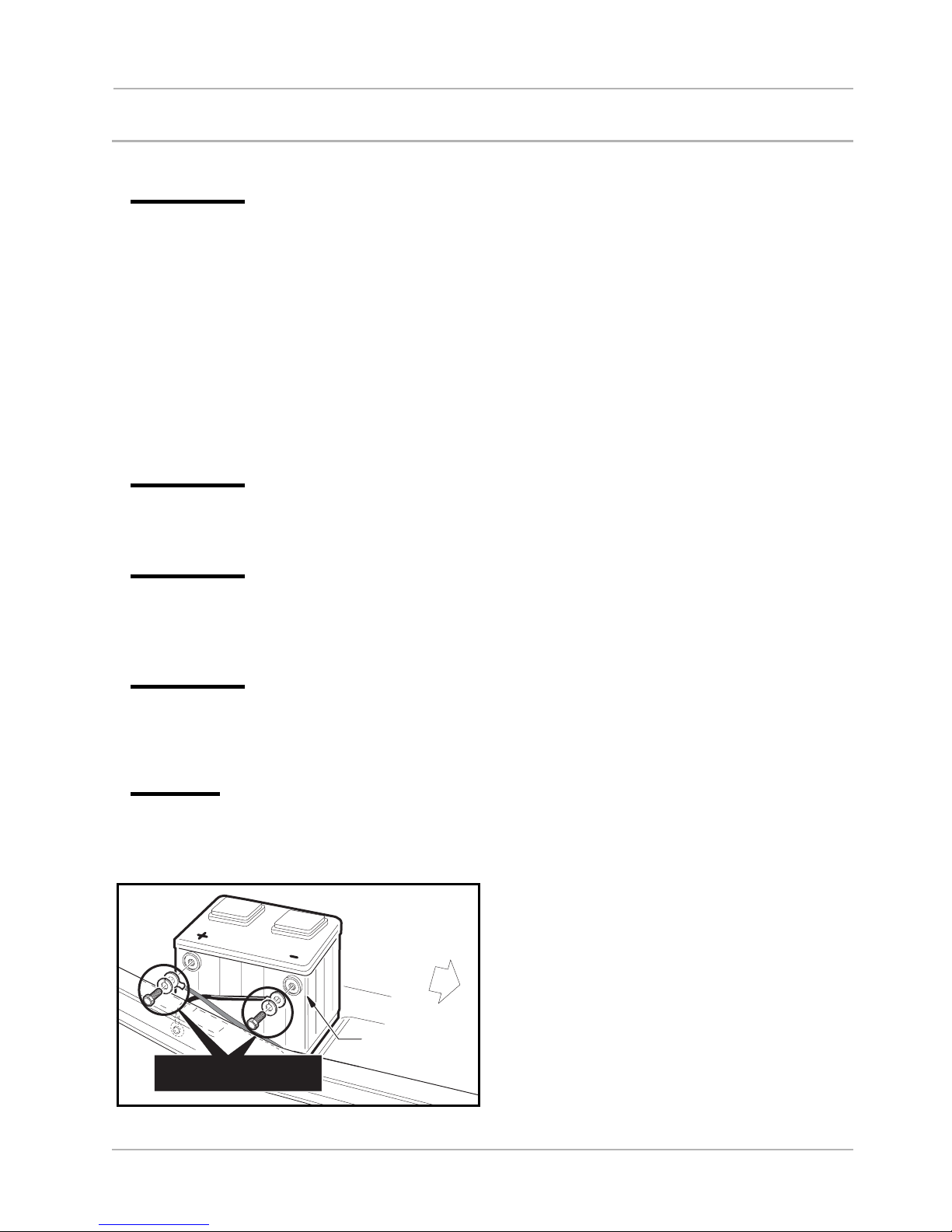

Figure 1 Battery Cable Removal
FRONT
OF VEHICLE
AS SEEN FROM
PASSENGER SIDE
OF VEHICLE
Remove
negative
cable first.
DISCONNECT BATTERY CABLES
BEFORE WORKING ON VEHICLE

General Warnings
Page 8 2005 HUV4213 Gasoline Vehicle Owner’s Manual
GENERAL WARNINGS
The following safety statements must be heeded whenever the vehicle is being operated, repaired, or ser-
viced. Vehicle feature identification information is also included beginning on page 4. Other specific safety
statements appear throughout this manual and on the vehicle.
ý DANGER
• Battery – Explosive gases! Do not smoke. Keep sparks and flames away from the vehicle and
service area. Ventilate when charging or operating vehicle in an enclosed area. Wear a full
face shield and rubber gloves when working on or near batteries.
• Gasoline – Flammable! Explosive! Do not smoke. Keep sparks and flames away from the
vehicle and service area. Service only in a well-ventilated area.
• Do not operate gasoline vehicle in an enclosed area without proper ventilation. The engine
produces carbon monoxide, which is an odorless, deadly poison.
• A Husqvarna vehicle will not provide protection from lightning, flying objects, or other storm-
related hazards. If caught in a storm while driving a Husqvarna vehicle, exit the vehicle and
seek shelter in accordance with applicable safety guidelines for your location.
ý WARNING
• Follow the procedures exactly as stated in this manual, and heed all DANGER, WARNING, and
CAUTION statements in this manual as well as those on the vehicle.
• Do not leave children unattended on vehicle.
• Prior to leaving the vehicle unattended or servicing the vehicle, set the park brake, place the
Forward/Reverse handle in the NEUTRAL position, turn the key switch to the OFF position,
and remove the key. Chock the wheels when servicing the vehicle.
• Improper use of the vehicle or failure to properly maintain it could result in decreased vehicle
performance, severe personal injury, or death.
• Any modification or change to the vehicle that affects the stability or handling of the vehicle,
or increases maximum vehicle speed beyond factory specifications, could result in severe
personal injury or death.
• Check the vehicle for proper location of all vehicle safety and operation decals and make sure
they are in place and are easy to read.
• For vehicles with cargo beds, remove all cargo before raising the bed or servicing the vehicle.
If the vehicle is equipped with a prop rod, ensure that it is securely engaged while bed is
raised. Do not close bed until all persons are clear of cargo bed area. Keep hands clear of all
crush areas. Do not drop cargo bed; lower gently and keep entire body clear. Failure to heed
this warning could result in severe personal injury or death.
• Only trained technicians should service or repair the vehicle. Anyone doing even simple
repairs or service should have knowledge and experience in electrical and mechanical repair.
The appropriate instructions must be used when performing maintenance, service, or
accessory installation.
• To avoid unintentionally starting the vehicle:
- Disconnect battery cables, negative (–) cable first (Figure 1).
- Disconnect the spark plug wire from the spark plug.
WARNING CONTINUED ON NEXT PAGE...

Model Identification
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 9
ý WARNING
• Frame ground – Do not allow tools or other metal objects to contact frame when
disconnecting battery cables or other electrical wiring. Do not allow a positive wire to touch
the vehicle frame, engine, or any other metal component.
• Wear safety glasses or approved eye protection when servicing the vehicle. Wear a full face
shield and rubber gloves when working on or near batteries.
• Do not wear loose clothing or jewelry such as rings, watches, chains, etc., when servicing the
vehicle.
• Use insulated tools when working near batteries or electrical connections. Use extreme
caution to avoid shorting of components or wiring.
MODEL IDENTIFICATION

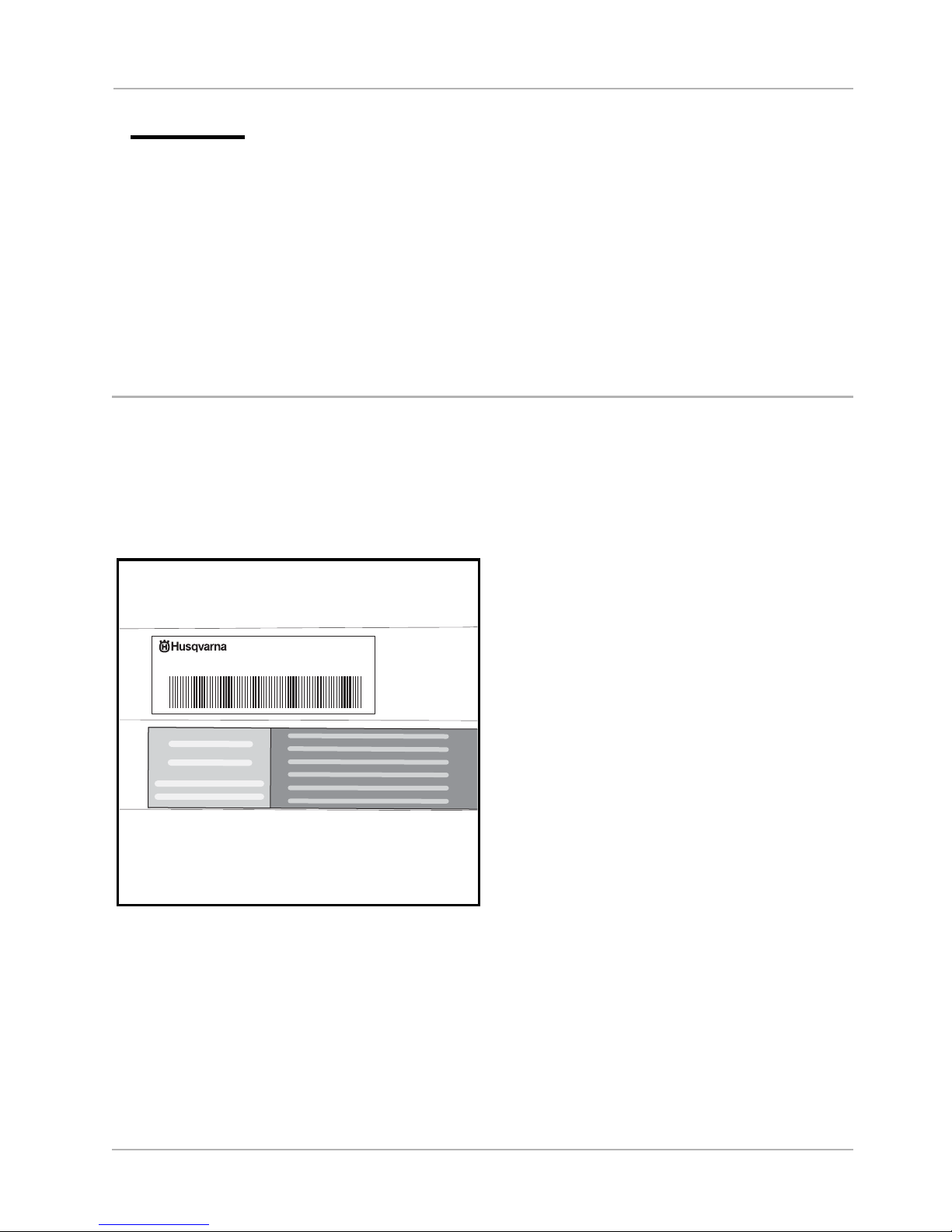

The serial number of each HUV4213 vehicle is printed on a bar code decal mounted on the frame directly
above the accelerator pedal (Example: SH0501-583947) (Figure 2). There is also a second serial number
decal mounted on the front body frame behind the instrument panel. The instrument panel must be removed
to view this decal. See following NOTE.
NOTE: Have the vehicle serial number available when ordering parts or making inquiries.
Figure 2 Serial Number
SERIAL NUMBER
SH0501-583947
7349 STATESVILLE RD.
CHARLOTTE, NC 28269

Controls and Indicators
Page 10 2005 HUV4213 Gasoline Vehicle Owner’s Manual
CONTROLS AND INDICATORS
See General Warnings on page 8.
ý WARNING
• Before allowing anyone to drive the vehicle, make sure the driver is familiar with all controls
and operating procedures.
• Do not tamper with the governor. Doing so will void the warranty, as well as damage the
engine and other components, and could result in property damage, personal injury, or death
due to unsafe speeds.
• Do not shift the Forward/Reverse handle while the vehicle is in motion.
• Engine must be at idle before shifting the Forward/Reverse handle. Failure to do so may result
in injury to inattentive passengers and (or) damage to the vehicle.
• To avoid unintentionally starting or rolling the vehicle, set the park brake, place the Forward/
Reverse handle in the NEUTRAL position, turn the key switch to the OFF position, and remove
the key when leaving the vehicle.
• With the differential lock engaged, vehicle turning functions are greatly reduced. To prevent
loss of vehicle control when differential lock is engaged, do not operate vehicle at speeds
greater than half throttle and use caution when attempting to turn the vehicle.
KEY SWITCH
The key switch is mounted on the instrument panel to the right of the steering column (Figure 3). It has three
positions: OFF, ON, and START. To start the vehicle, place the Forward/Reverse handle in the NEUTRAL
position and turn the key past the ON position to the START position and hold until the engine is running
smoothly. Release the key and it will return to the ON position and the engine should idle.The engine will con-
tinue to idle until the key is turned to the OFF position. See following WARNING, CAUTION and NOTE.
ý WARNING
• Moving parts! Keep clear of the engine compartment while the engine is running.

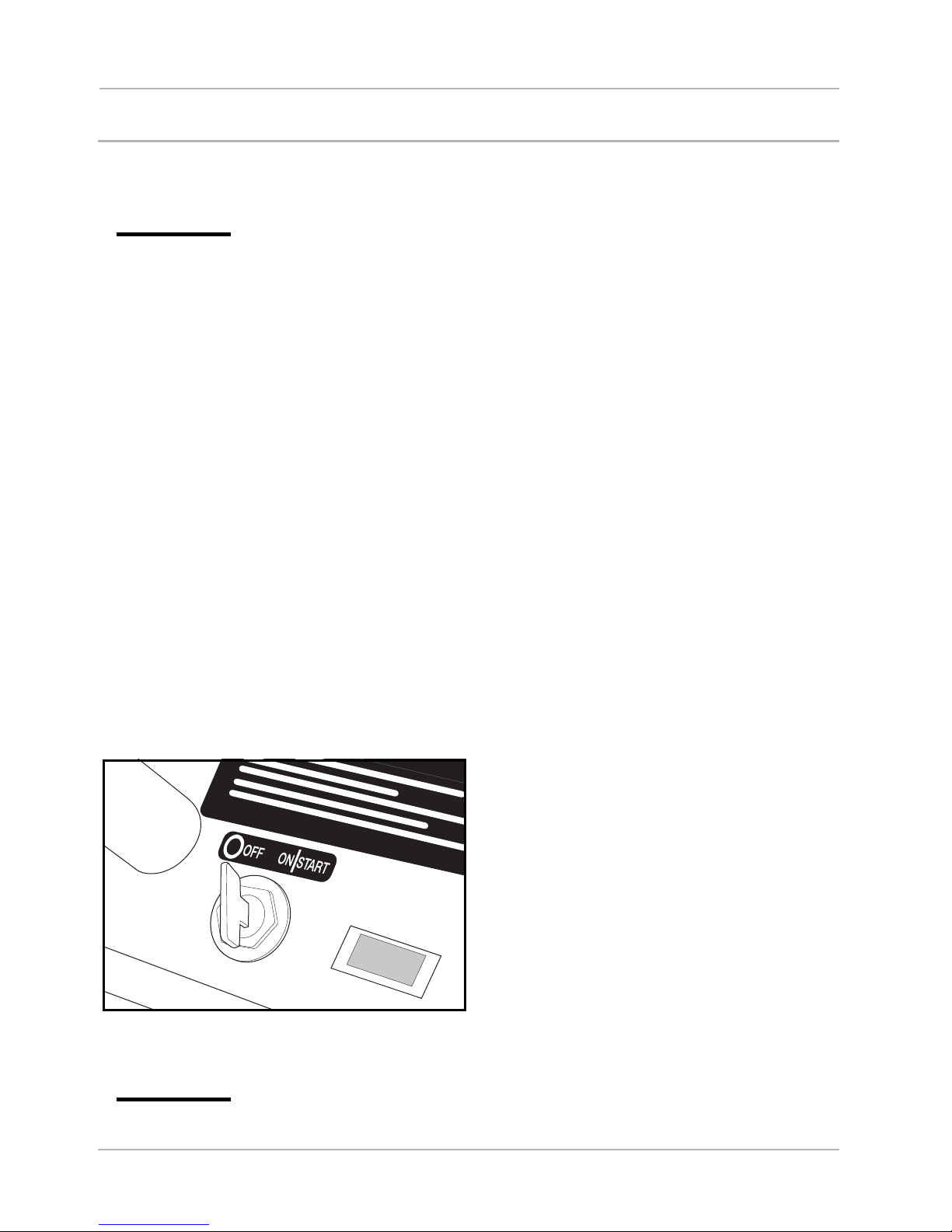

Figure 3 Key Switch

Controls and Indicators
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 11
CAUTION
• Do not “rev” the engine for long periods of time while the Forward/Reverse handle is in the
NEUTRAL position. Failure to heed this caution could result in damage to the unitized
transaxle.
• Do not shift the Forward/Reverse handle while the accelerator pedal is pressed. Shift the
handle only when the vehicle is at a complete stop. Failure to heed this caution could result in
damage to the unitized transaxle.
NOTE: The key can be removed only when the key switch is in the OFF position.
FORWARD/REVERSE CONTROL
The Forward/Reverse handle is located on the seat support panel (Figure 4). The handle has three distinct
positions: F(FORWARD), N(NEUTRAL), and R(REVERSE). Rotate the handle towards the driver (FOR-
WARD) to operate the vehicle in the forward direction, or towards the passenger (REVERSE) to operate the
vehicle in reverse. The engine can be started only when the handle is in the straight up position (NEUTRAL).
The engine must be at idle before shifting the Forward/Reverse handle. See WARNING and CAUTION on
page 10.
Husqvarna vehicles operate at a reduced speed in reverse. The reverse buzzer will sound as a warning when
the Forward/Reverse handle is in the REVERSE position.
ACCELERATOR PEDAL
The accelerator pedal is the pedal on the right, with the word GO molded into it (Figure 5).
With the engine running and the Forward/Reverse handle in the FORWARD or REVERSE position, vehicle
speed will increase as the accelerator pedal is pressed. When the accelerator pedal is released, it will return
to the original position and the engine will idle. See WARNING and CAUTION on page 10.

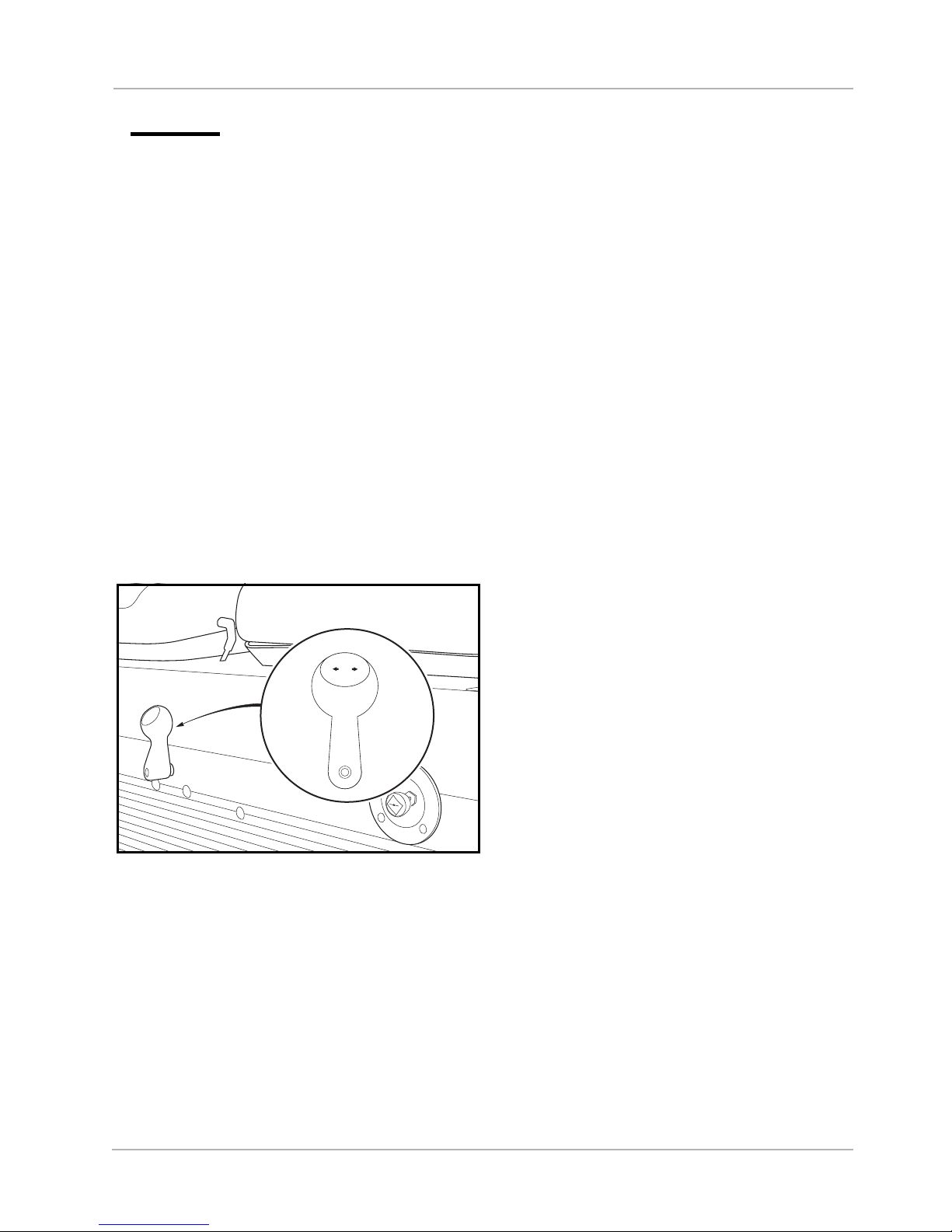

Figure 4 Forward/Reverse Handle
FNR

Controls and Indicators
Page 12 2005 HUV4213 Gasoline Vehicle Owner’s Manual
BRAKE PEDAL
The brake pedal is the large pedal on the left with the word STOP molded into it (Figure 5). To slow or stop
the vehicle, press the brake pedal (Figure 6).
PARK BRAKE
The park brake handle is located between the driver and passenger seats. To engage the park brake, first
apply pressure to the brake pedal, and then pull up on the park brake handle until handle latches into place.
To disengage, pull up on the handle and press the button on the end of the handle. Push handle down. See
following WARNING.
ý WARNING
• The park brake has multiple locking positions and should be firmly locked to prevent the
vehicle from rolling.
CHOKE
The choke is located on the seat support panel below and to the left of the driver’s left knee. If the vehicle is
hard to start in cool or cold temperatures, activate choke: Pull the choke handle out to activate. Release the
handle when the engine begins to run smoothly (Figure 7).
Figure 5 Accelerator and Brake Pedal Figure 6 Brake Pedal
Figure 7 Choke Figure 8 Differential Lock
WARNING

Controls and Indicators
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 13
DIFFERENTIAL LOCK
ý WARNING
• With the differential lock engaged, vehicle turning functions are greatly reduced. To prevent
loss of vehicle control when differential lock is engaged, do not operate vehicle at speeds
greater than half throttle and use caution when attempting to turn the vehicle.
• Disengage differential lock on paved surfaces.
The differential lock is used to provide better traction at the rear wheels when necessary. Engaging the differ-
ential lock will transfer power to both rear wheels simultaneously (Figure 8).
1. To engage the differential lock, slow the vehicle to no more than half throttle and pull differential lock han-
dle toward the back of the vehicle. The differential lock will engage when power to both rear wheels is
required.
2. To disengage the differential lock, come to a complete stop, then push lever toward front of vehicle.
LOW OIL WARNING LIGHT
The vehicle is equipped with a low oil warning light, located on the instrument panel just to the right of the
steering column and key switch (Figure 9). If the warning light comes on, oil should be checked and added to
the engine as necessary before continuing to use the vehicle. The vehicle should never be driven when the
low oil warning light remains on. If the warning light goes on and off, the vehicle may be driven, but oil should
be added at the first opportunity. If the oil level is correct and the warning light stays on, have a trained tech-
nician check the vehicle. See following CAUTION.
CAUTION
• Failure to add oil immediately when the low oil warning light stays on may result in permanent
engine damage.
FUEL GAUGE/HOUR METER
The fuel gauge and hour meter are housed together at the lower left corner of the instrument panel. The fuel
gauge operates when the key switch is in the ON position, and allows the operator to monitor the fuel level in
the vehicle. The hour meter operates only when the engine is running, and should be used by the trained
technician to track vehicle usage and determine when periodic service procedures are required. See Peri-
odic Service Schedule on page 24.
Figure 9 Low Oil Warning Light

Seat Latch and Adjustment
Page 14 2005 HUV4213 Gasoline Vehicle Owner’s Manual
HEADLIGHT CONTROL
The headlight control is located on the instrument panel between the fuel gauge/hour meter and steering col-
umn. Pull the headlight control knob out to turn the headlights on and push the knob in to turn the headlights
off.
NOTE: Using the headlights for extended periods of time without the engine running, or with the engine
idling, will discharge the battery.
LIGHT BAR CONTROL
The light bar control is a toggle switch located on the instrument panel above and slightly left of the headlight
control knob. Place the toggle switch in the upper position to illuminate the light bar lights and in the lower
position to turn the light bar lights off.
SEAT LATCH AND ADJUSTMENT
The seats are hinged to allow easy access to the engine compartment. A latch at the rear of each seat bottom
keeps the seat from moving on its hinges while the vehicle is in operation. To disengage the latch, grasp the
seat back and pull firmly in a forward/upward direction until the latch releases. To engage the seat latch, push
down firmly on the seat back until the seat locks into place. See following WARNING.
The bucket seats are adjustable and can be moved forward or backward to accommodate the driver or pas-
senger. To adjust a seat:
1. Remove the seat from the vehicle.
2. Remove the four bolts and washers from the bottom of the seat mounting plate.
3. Align the mounting plate holes with holes in the seat to achieve the desired seat position.
4. Install washers and bolts and tighten to 96 in-lb (10.8 N·m).
5. Install seat in the vehicle.
ý WARNING
• Make sure seat hinges and latch are securely engaged before operating vehicle.
PRE-OPERATION AND DAILY SAFETY CHECKLIST
Each Husqvarna vehicle has been thoroughly inspected and adjusted at the factory; however, upon receiving
your new vehicle(s), you should become familiar with its controls, indicators, and operation. Carefully inspect
each vehicle to ensure that it is in proper working condition before accepting delivery.
Use the following checklist as a guide to inspect the vehicle. This checklist should be used daily to ensure that
the vehicle is in proper working condition and in conjunction with the Periodic Service Schedule on page 24.
Any problems should be corrected by a Husqvarna distributor/dealer or a trained technician.
• General: All the parts should be in place and properly installed. Be sure that all nuts, bolts, and screws
are tight. Check hose clamps for tight fit and the starter belt for tightness.
• Safety and information decals: Check to ensure that all safety and information decals are in place.
See pages 4 and 5.
• Tires: Check for proper tire pressure. Visually inspect tires for wear, damage, and proper inflation on a
daily basis. See Vehicle Specifications on page 36.
• Battery: Before using vehicle for the first time, check electrolyte to ensure it is at the proper level
(Figure 26, Page 33). Check battery posts. Wires should be tight and free of corrosion and battery
should be fully charged.
• Engine: Check for proper engine oil level. See Engine Oil on page 27.

Pre-Operation and Daily Safety Checklist
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 15
• Fuel: Check fuel level. See Fueling Instructions on page 31. Check fuel tank, lines, fuel cap, pump,
fuel filters, and carburetor for fuel leakage on a daily basis.
• Exhaust system: Check for leaks.
• Hydraulic brakes: Check fluid level. See Master Cylinder on page 27.
PERFORMANCE INSPECTION
After you have familiarized yourself with the vehicle controls and have read and understood the driving
instructions, take the vehicle for a test drive.
Use the following checklist as a guide to inspect the vehicle and check daily for proper operation. Any prob-
lems should be corrected by a Husqvarna distributor/dealer or a trained technician.
• Forward/Reverse shifter: Check for proper operation. See Controls and Indicators on page 10.
• Brakes: Be sure the brakes function properly. When brake pedal is fully pressed under moderate pres-
sure, it should not go more than halfway to the floorboard, and vehicle should come to a smooth,
straight stop. If the brake pedal goes more than halfway to the floorboard, or if the vehicle swerves or
fails to stop, have the brake system checked and adjusted as required. When brake pedal is fully
pressed under heavy pressure, pedal should feel firm and foot pad should be a minimum of 2 inches
(5.1 cm) from floorboard. Brake adjustment must be maintained so the brake pedal cannot be pressed
to the floorboard under any circumstance.
• Park brake: Apply moderate pressure to park brake handle. Tension should increase as the handle is
pulled. When latched, the park brake should lock the wheels and hold the vehicle stationary (on an
incline of 20% or less).
• Reverse buzzer: The reverse buzzer should sound as a warning when the Forward/Reverse handle is
in the REVERSE position.
• Steering: The vehicle should be easy to steer and should not have any play in the steering wheel.
• Accelerator: After starting the engine with the key switch and placing the Forward/Reverse handle in
the FORWARD position, the vehicle should accelerate smoothly to full speed as the accelerator pedal
is pressed. When the pedal is released it should return to the original position and the engine should
idle. Husqvarna vehicles operate at reduced speed in reverse.
• Governor: Check maximum vehicle speed. It should operate in forward at 17-19 mph (27-31 km/h) on
a level surface.
• Differential lock cable: With the wheels at rest, pull the differential lock handle toward the rear of the
vehicle (locked position). The differential lock arm at the other end of the cable should move approxi-
mately one-half inch (12.7 mm) downward. When the differential lock handle is placed back into the
unlocked position, the differential lock arm should move approximately one-half inch (12.7 mm)
upward.
• General: Listen for any unusual noises such as squeaks or rattles. Check the vehicle’s ride and perfor-
mance. Have a Husqvarna dealer or a trained technician investigate anything unusual.

Driving Instructions
Page 16 2005 HUV4213 Gasoline Vehicle Owner’s Manual
DRIVING INSTRUCTIONS
ý WARNING
• Only licensed drivers should be allowed to drive this vehicle.
• Before allowing anyone to drive the vehicle, make sure the driver is familiar with all controls
and operating procedures.
• No one under the age of 16 years should be allowed to drive the vehicle.
• No more than one person per bucket seat at one time, or two persons per bench seat.
• Do not allow riders in the cargo bed.
• For night use, the vehicle must be equipped with headlights, taillights, and reflectors.
• The vehicle is not specially equipped for handicapped persons:
- Be sure all passengers are capable of securing themselves in a moving HUV4213 vehicle
before allowing them to ride in one.
- Be sure all persons can properly operate the vehicle prior to allowing them to drive the
vehicle.
• Stop the vehicle before shifting the Forward/Reverse handle. Engine must be at idle before
shifting the Forward/Reverse handle. Failure to do so may result in injury to inattentive
passengers and (or) damage to the vehicle.
• To help avoid being struck, do not stand in front of or behind the vehicle.
• Do not leave children unattended on vehicle.
• Operate the vehicle from the driver seat only.
• To help prevent falls from the vehicle, remain seated and hold on to seat handles at all times.
Driver should keep both hands on the steering wheel when the vehicle is in motion.
• To help prevent the possibility of serious injury, keep entire body inside the vehicle.
• To help prevent overturning the vehicle, drive slowly in turns.
• To help prevent overturning the vehicle, drive slowly straight up and down slopes. Avoid
driving the vehicle on slopes exceeding 20% incline.
• Avoid stopping a loaded vehicle on a hill. If a loaded vehicle must be stopped on a hill, avoid
sudden starts or rolling backwards and stopping suddenly. Failure to heed this warning could
result in overturning the vehicle.
• To help avoid possible injury to inattentive passengers and (or) damage to the vehicle, avoid
sudden starts, sudden stops, and abrupt turns.
• To help avoid the possibility of losing control of or overturning the vehicle, reduce speed for
adverse driving conditions such as wet grass or rough terrain.
• Do not use the vehicle on public roads. It is neither designed nor intended for street use and
should not be licensed for use on public roads.
• The vehicle should be driven in only specified areas by trained drivers.
• Do not drive while under the influence of alcohol, drugs, or medications.
• Use brakes to reduce speed when coasting downhill.
• Never attempt jumps.
No one should drive the vehicle without first being instructed in the proper operation and use of vehicle con-
trols. An experienced operator should accompany each first-time driver on a test drive before allowing the
driver to operate the vehicle alone.
To ensure safe operation of the vehicle, follow exactly and in order, all of the following procedures. Read and
understand all instructions prior to driving the vehicle.

Driving Instructions
2005 HUV4213 Gasoline Vehicle Owner’s Manual Page 17
STARTING THE VEHICLE
1. Read safety warnings on dash and vehicle loading information located above pedals.
2. Be sure load, if any, is secure.
3. Study and understand controls.
4. Be sure all passengers are seated and holding on to hand holds. Driver should have both hands on the
steering wheel.
5. Make sure wheels are turned in desired direction and nothing is in your path.
6. Make sure the Forward/Reverse handle is in the NEUTRAL position.
7. Press and hold the brake pedal.
8. Turn the key all the way to the START position and hold, activating the choke as necessary, until the
engine is running smoothly. The engine will idle in neutral.
9. Release hand brake.
10. While keeping the brake pedal engaged, select direction of travel by placing shift handle in desired posi-
tion (F = forward or R = reverse). Engine must be at idle before moving shift handle. A buzzer will sound
as a warning when the Forward/Reverse handle is in the REVERSE position.
11. Release the brake pedal completely, and then slowly press the accelerator pedal. As the accelerator
pedal is pressed, the vehicle will begin to move, and speed will increase until full speed is reached. See
following WARNING.
ý WARNING
• Operator must control vehicle speed when going downhill.
• Never shift the vehicle out of the FORWARD position while going downhill. If you do, you will
not be able to shift into the REVERSE position or back into the FORWARD position until
stopped.
• Press the brake pedal as necessary and press the accelerator pedal partially when
descending a hill. With the accelerator pedal partially pressed, the governor will cause the
engine to assist the brakes in controlling downhill speed.
STOPPING THE VEHICLE
To stop the vehicle, release the accelerator pedal and press the brake pedal until the vehicle comes to a com-
plete stop. See following WARNING and CAUTION.
ý WARNING
• Driving through water may affect the brakes. After driving through water, check effectiveness
of the brakes by gently pressing the brake pedal. If the vehicle does not slow down at the
normal rate, continue to press the brake pedal until the brakes dry out and normal
performance returns.
ý CAUTION
• When stopped on a hill, use the brake pedal to hold your position. Do not use the accelerator
pedal to hold position.

Bed Latch and Prop Rod
Page 18 2005 HUV4213 Gasoline Vehicle Owner’s Manual
PARKING AND LEAVING THE VEHICLE
1. After stopping the vehicle, set hand brake until it locks. Make sure it is fully engaged. This will prevent
the vehicle from rolling.
2. Turn the key switch to the OFF position and place the Forward/Reverse handle in the NEUTRAL position.
Remove the key and turn the fuel shut-off valve to the closed (OFF) position when the vehicle is not in
use (Figure 12, Page 22).See also Figure 24 on page 32.
BED LATCH AND PROP ROD
See General Warnings on page 8.
The bed latch (Figure 10) has an automatically engaging prop rod and prop rod track (Figure 11) as standard
features. To lift the bed, pull the bed latch handle toward the rear of the vehicle and lift the bed. The prop rod
will come to rest in one of the notches in the prop rod track. To close the bed, lift the bed so that the prop rod
is no longer supported in one of the track notches. Push the prop rod toward the front of the vehicle to free it
from the track notch and gently lower the bed. DO NOT drop the bed. See following DANGER, WARNING,
and NOTE.
ý DAN GE R
• Use caution when working under bed. Be sure prop rod is secure. Otherwise the bed will fall,
resulting in severe personal injury or death.
ý WARNING
• For vehicles with cargo beds, remove all cargo before raising the bed or servicing the vehicle.
If the vehicle is equipped with a prop rod, ensure that it is securely engaged. Do not close bed
until all persons are clear of cargo bed area. Keep hands clear of all crush areas. Do not drop
cargo bed; lower gently and keep entire body clear. Failure to heed this warning could result
in severe personal injury or death.
NOTE: The HUV4213 vehicle is equipped with an automatically engaging prop rod (Figure 11), unless
equipped with the electric bed lift accessory.
Figure 10 HUV4213 Bed Latch Figure 11 HUV4213 Prop Rod
