LOCATION
These merchandisers are designed for displaying
products in air conditioned stores where tempera-
ture is maintained at or below 75°F (24°C) and
relative humidity is maintained at or below 55%.
Placing refrigerated merchandisers in direct sun-
light, near hot tables or near other heat sources
could impair their efficiency.
Like other merchandisers, these are sensitive to air
disturbances. Air currents passing around mer-
chandisers will seriously impair their operation.
Do NOT allow air conditioning, electric fans,
open doors or windows, etc. to create air currents
around the merchandisers.
Product should always be maintained at proper
temperature. This means that from the time the
product is received, through storage, preparation
and display, the temperature of the product must
be controlled to maximize the life of the product.
P/N 406928 1-1
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
IINNSSTTAALLLLAATTIIOONN

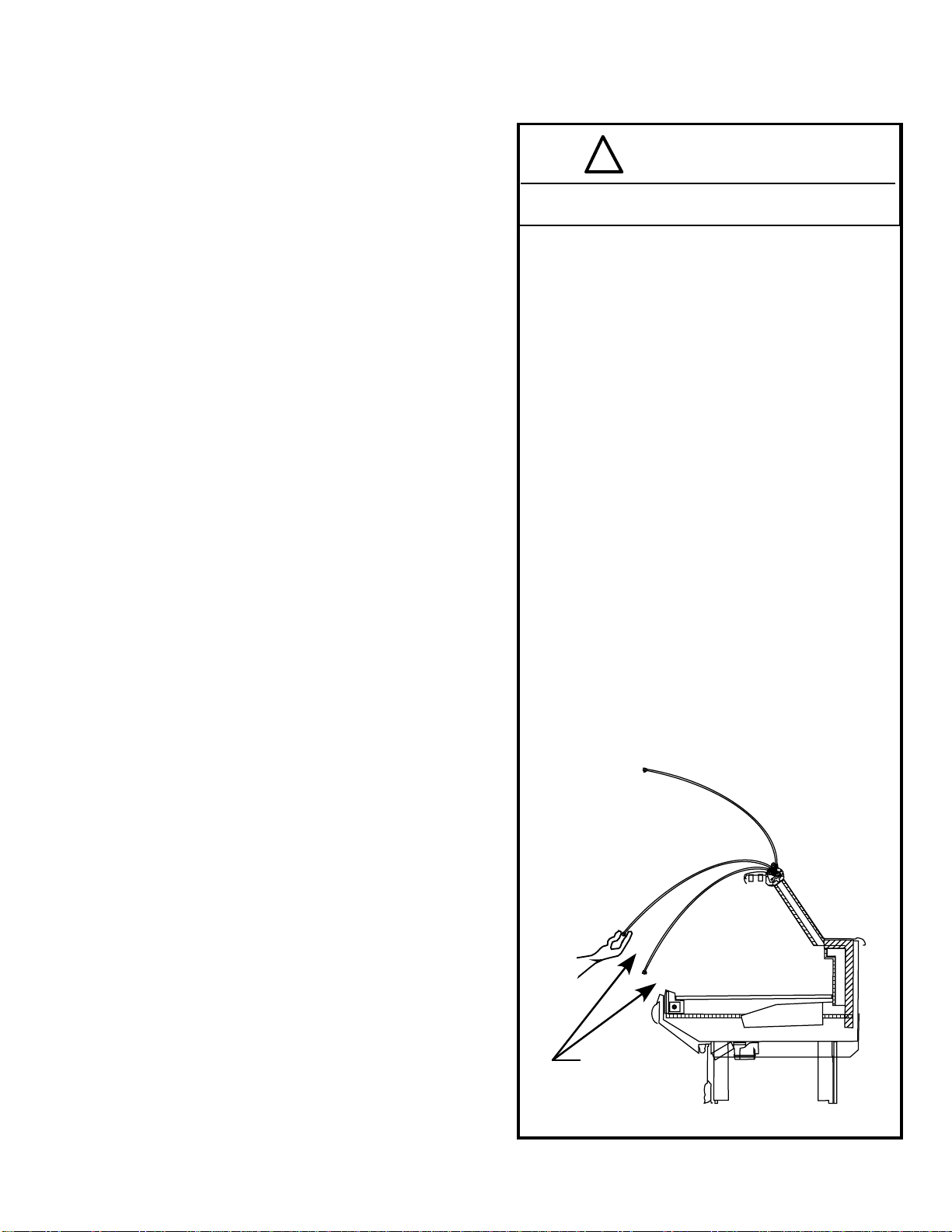

The top cylinders, which allow the raising and
lowering of this glass, have been carefully
installed and tested for the proper tension before
shipment. However, during shipment and storage,
the lubricant inside the cylinders may have settled.
This settling can cause excessive or uneven ten-
sion on the glass to the point of breakage.
To avoid any damage, please do the following
before completely raising the front glass.
1. Slowly raise and lower each glass section
6 times to a height of 6 in. (152 mm).
2. Increase the height to about 12 in. (305
mm) and raise and lower the glass 6 times.
3. Then raise the glass to the full extension
and lower.
This should release any settled lubricant in the
cylinders and prevent any stress on the front
glass.
Read before raising front glass.
CAUTION
!
6 in.
(152 mm)

SHIPPING DAMAGE
All equipment should be thoroughly examined for
shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must be
made to the carrier. The carrier will provide any
necessary inspection reports and/or claim forms.
Apparent Loss Or Damage
If there is an obvious loss or damage, it must be
noted on the freight bill or express receipt and
signed by the carrier’s agent; otherwise, carrier
may refuse claim.
Concealed Loss Or Damage
When loss or damage is not apparent until after
equipment is uncrated, retain all packing materials
and submit a written request to the carrier for
inspection, within 15 days.
EXTERIOR LOADING
Do NOT walk on top of merchandisers or
damage to the merchandisers and serious personal
injury could occur. Merchandisers ARE NOT
STRUCTURALLY DESIGNED TO SUPPORT EXCESSIVE
EXTERNAL LOADING such as the weight of a
person. Do not place heavy objects on the case.
MERCHANDISERS SHIPPED
WITH END INSTALLED
If the case was shipped with the end installed, two
long bolts were used to hold the shipping brace to
the end. If the shipping bolts are reinserted after
removing the brace, they will extend into the
product area. Therefore, be sure to replace these
bolts with the shorter bolts provided. Refer to the
detailed information provided in the separate
End Kit Instruction shipped with each end.
Note: Be careful not to damage the factory
installed end while moving the case. Make sure
that tools are positioned past the end and beneath
the merchandiser’s support bar.
SHIPPING BRACES
Move the fixture as close as possible to its perma-
nent location and then remove all packaging and
shipping braces. Check for damage before dis-
carding packaging. Remove all separately packed
accessories such as kits, and shelves.
Remove all nut retainers used with shipping
braces.
SHIPPING RIDER
Each case is shipped on a rider to protect factory-
installed legs, and to make positioning the case
easier. Remove the rider after the case has been
positioned.
Note: Once the rider is removed, the case must
be lifted –NOT PUSHED– to reposition.
To remove the rider, remove screws attaching
each leg to rider. Remove screws holding rider
cross-members, then slide cross-members out
from between sides. Once cross-members are out,
slide the sides out.
1-2 INSTALLATION
P/N 406928
Do NOT remove shipping braces until
the merchandisers are
positioned for installation.
WARNING
!
Do not walk or put heavy objects on case.
CAUTION
!

LEVELING
Merchandisers must be installed level to
ensure proper operation of the refrigeration
system and to ensure proper drainage of
defrost water.

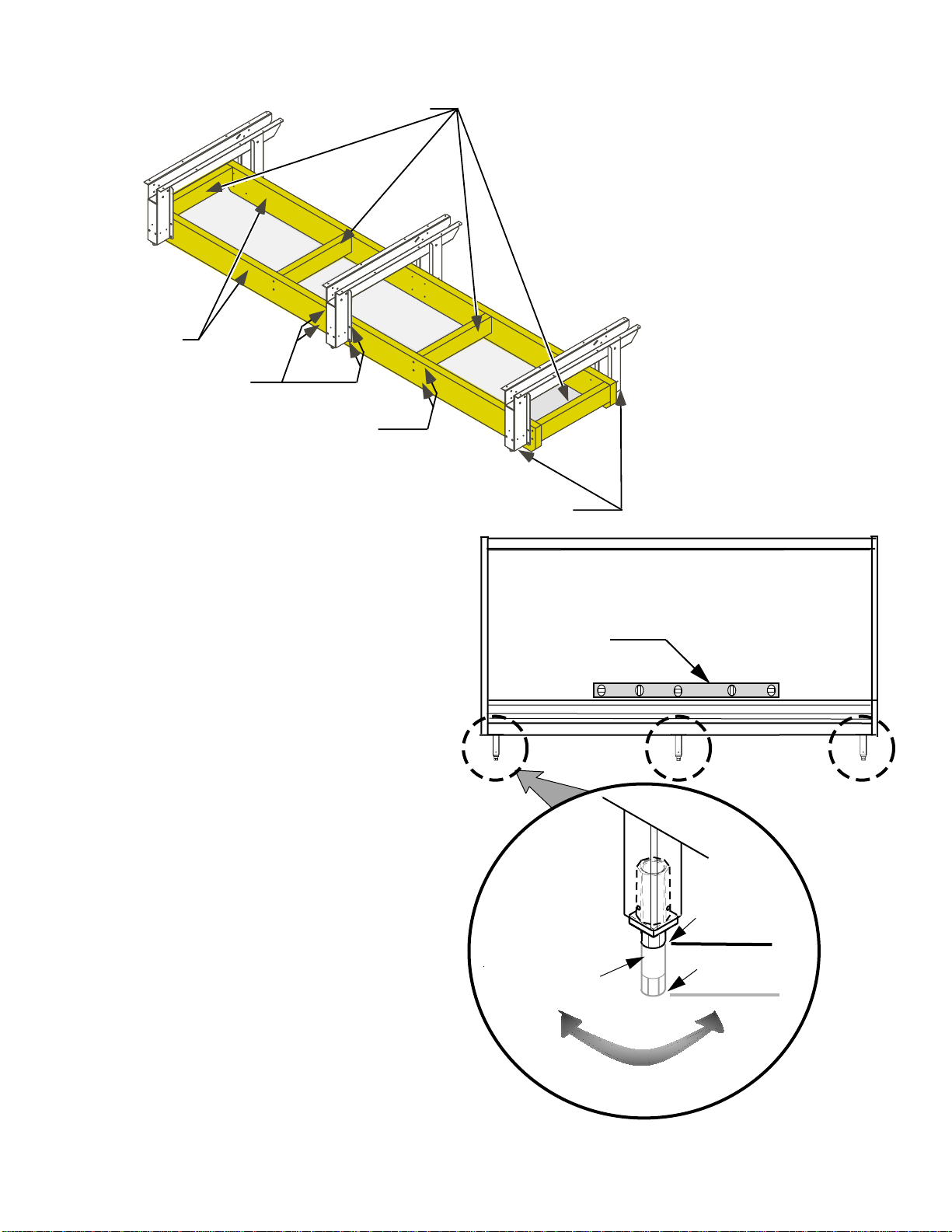

Set a long level (4 ft [1220 mm] or more) on
the upper front panel of the merchandiser.
Use an open-end wrench to turn leg levelers
until the merchandiser is level from end to
end and from front to back. Check all 6 legs
on 8 ft (2438 mm) cases, or 8 legs on 12 ft
(3658 mm) cases.
Note: To avoid removing concrete flooring,
begin lineup leveling from the highest point
of the store floor.
P/N 406928 1-3
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
Cross-Members
Screws
(each leg)
Sides
Leg
Screws
(two each end
of each
cross-member)
Shipping Rider
for 8 ft Case
MINIMUM
HEIGHT
MAXIMUM
HEIGHT
Adjustable
Leg Leveler
Lower
Raise
Level on
Upper Front
Panel
U

JOINING INSTRUCTIONS
Sectional construction means that two or more
merchandisers may be joined in line yielding one
long continuous display requiring only one pair
of ends.
All joints must be air-tight to prevent formation
of ice or condensation.
Refer to the detailed information provided in the
separate Joining Instruction shipped with each
case.
1-4 INSTALLATION
P/N 420057

REFRIGERANT
The correct type of refrigerant will be stamped on
each merchandiser’s serial plate. The case refrig-
eration piping is factory sealed, pressurized and
leak tested. Before making refrigeration hookups,
depress universal line valve to ensure that coils
have maintained pressure during shipment.
REFRIGERANT PIPING
Connection Location
The refrigerant line connections are at the right-
hand end of the merchandiser (as viewed from the
front) beneath the display pans. A sticker marks
the location of the connection “pod.” The installer
must saw a hole through the pod to exit the case.
After connections have been made, seal this outlet
thoroughly. Seal both the inside and the outside.
We recommend using an expanding polyurethane
foam insulation.
Multiplexing
Piping of merchandisers operating on the same
refrigeration system may be run from merchan-
diser to merchandiser. DO NOT RUN REFRIGERANT
LINES THROUGH MERCHANDISERS THAT ARE NOT
ON THE SAME REFRIGERATION SYSTEM BRANCH as
this may result in poor refrigeration control and
compressor failure.
Interconnecting piping inside the merchandiser
must be located as shown below to allow room for
lifting the hinged fan plenums and for clearance
beneath the display pans. The interconnecting
piping may be run outside the case.
Line Sizing
Refrigerant lines should be sized as shown on the
refrigeration legend that is furnished for the store
or according toASHRAE guidelines. Refer to the
information on the next page for branch line
piping of Hussmann Equipment.
Oil Traps
P-traps (oil traps) must be installed at the base of
all suction line vertical risers.
Pressure Drop
Pressure drop can rob the system of capacity. To
keep the pressure drop to a minimum, keep the
refrigerant line run as short as possible using a
minimum number of elbows. Where elbows are
required, USE LONG RADIUS ELBOWS ONLY.
P/N 406928 2-1
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
RREEFFRRIIGGEERRAATTIIOONN//EELLEECCTTRRIICCAALL
Refrigeration lines are under pressure
and should be depressurized before
attempting to make any connections.
WARNING
!

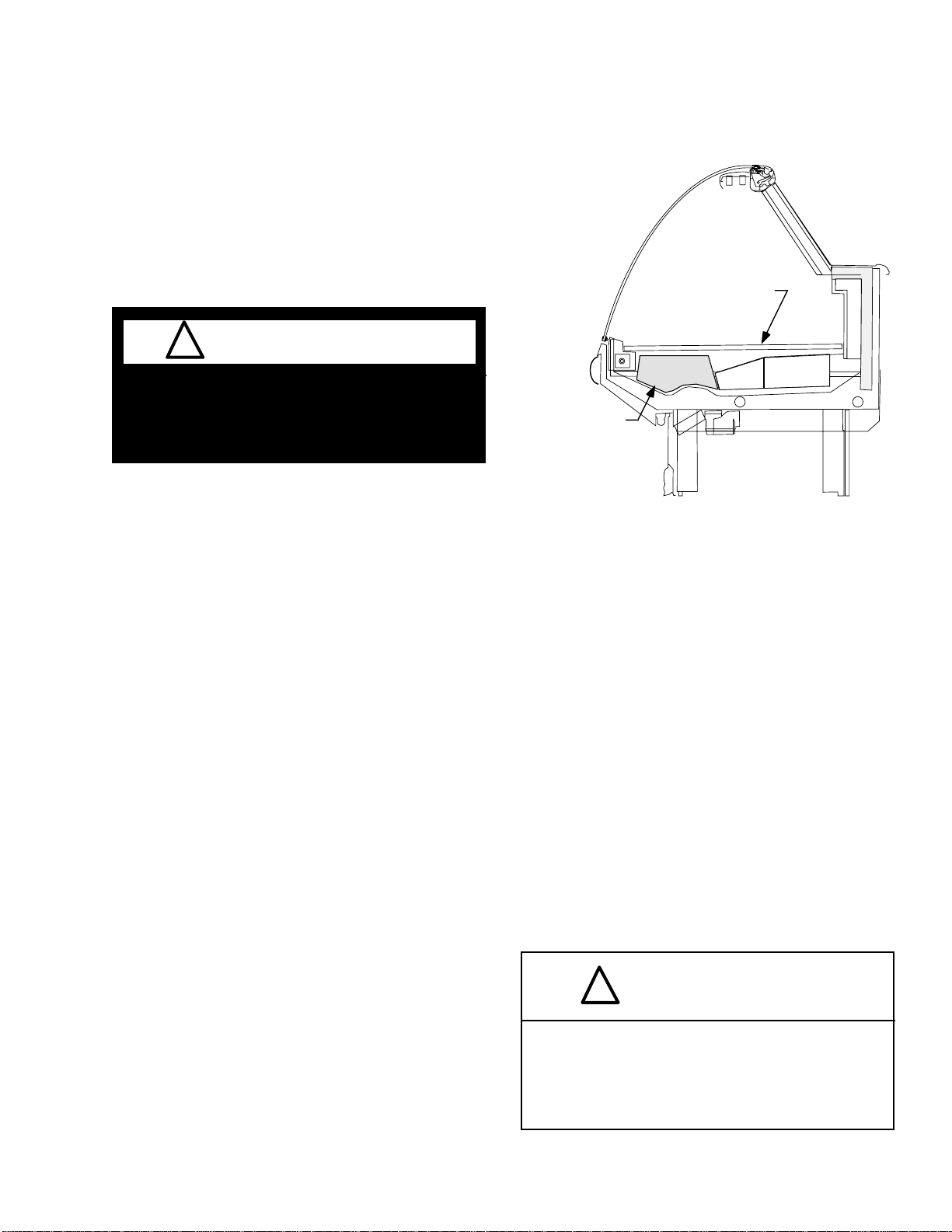

Piping Location
Display Pan
Fan Coil
When brazing pipes be sure to use the
insulation blanket shipped with the
merchandiser to prevent damage to the
plastic case bottom.
CAUTION
!

INSULATION
The suction and liquid lines should be clamped or
taped together and insulated for a minimum of
30 ft (9144 mm) from the merchandiser.
Additional insulation for the balance of the liquid
and suction lines is recommended wherever
condensation drippage is objectionable or lines
are exposed to ambient conditions.
SUCTION LINE
• Pitch in direction of flow.
• May be reduced by one size at one third of
case run load and again after the second third.
Do not reduce below the case suction line
size.
• Case suction lines should enter at the top of
the branch line.
LIQUID LINE
• May be reduced by one size after one half the
case run load. Do not reduce below the case
liquid line connection size.
• Take-offs to case liquid lines should exit the
bottom of the branch liquid line. Provide an
expansion loop for each evaporator take-off.
(Minimum 3 in. [76 mm] loop.)
2-2 REFRIGERATION / ELECTRICAL
P/N 406928
Suction Line Return
Minimum Loop
3-in. (76 mm)
Liquid Line Take Off
Offtime Defrost
Liquid Line
Suction Line
8 Ft Case
(2438 mm) 12 Ft Case (3658 mm) 8 Ft Case (2438 mm) 12 Ft Case (3658 mm)

CONTROL SETTINGS
Merchandiser data sheets are shipped with this
manual. The data sheets provide case control
settings and defrost data.
An evaporator pressure regulator or EPR
(primary control) and a 3 – 5ºF (1.7 – 2.7ºC)
differential thermostat (secondary control) must
control refrigeration temperature. The EPR must
be set to maintain the proper saturated evaporator
temperature as listed in the data sheets. The
thermostat must be set a couple degrees colder
than the discharge air temperature specified in the
data sheets. The thermostat will prevent product
freezing should the EPR temperature drift down-
ward during reduced load periods (lights off,
lower ambient). The thermostat will be wired to
control the compressor motor contactor (single
compressor) or a liquid line solenoid valve
(parallel compressor systems).
Defrost is Off Time. Defrost control settings are
listed in the data sheets. When these merchandis-
ers are connected to parallel compressor systems,
a suction stop valve must be used to isolate the
evaporator during defrost periods.
REFRIGERATION THERMOSTAT
The bulb for the optional refrigeration thermostat
is located in the discharge air of the evaporator.
The optional refrigeration thermostat is located
behind the exterior rear panel.
DEFROST TERMINATION THERMOSTAT
The standard disc type defrost termination
thermostat is not adjustable. This thermostat
is clamped to the inlet of the coil on the left-
hand (facing front) end of the merchandiser.
P/N 406928 2-3
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
Standard Defrost
Termination
Thermostat

MERCHANDISER ELECTRICAL DATA
Merchandiser data sheets are shipped with this
manual. The data sheets provide case electrical
data, electrical schematics, parts lists and
performance data. Refer to the merchandiser data
sheets and case serial plate for electrical informa-
tion.
ELECTRICAL CONNECTIONS
All wiring must be in compliance with NEC and
local codes. All electrical connections are to be
made in the electrical raceway or Handy Box.
FIELD WIRING
Field wiring must be sized for component
amperes stamped on the serial plate. Actual
ampere draw may be less than specified. Field
wiring from the refrigeration control panel to the
merchandisers is required for defrost termination
thermostats and for optional refrigeration thermo-
stats. When multiple merchandisers are on the
same defrost circuit, the defrost termination
thermostats are wired in series. ALWAYS CHECK
THE SERIAL PLATE FOR COMPONENT AMPERES.
IDENTIFICATION OF WIRING
Leads for all electrical circuits are identified by
colored plastic bands. These bands correspond to
the color code sticker (shown below) located
inside the merchandiser’s raceway.
2-4 REFRIGERATION / ELECTRICAL
P/N 406928
WIRING COLOR CODE
Leads for all electrical circuits are identified by a colored plastic band:neutral
wire for each circuit has either White insulation or a White plastic sleeve in
addition to the color band.
PINK ............REFRIG.THERMOSTAT LOW TEMP.ORANGE OR
LIGHT BLUE..REFRIG.THERMOSTAT NORM TEMP.TAN..........LIGHTS
DARK BLUE ..DEFROST TERM.THERMOSTAT MAROON...RECEPTACLES
PURPLE........CONDENSATE HEATERS YELLOW....DEFROST HEATERS 120V
BROWN ........FAN MOTORS RED ........DEFROST HEATERS 208V
GREEN* .......GROUND *EITHER COLORED SLEEVE ORCOLORED INSULATION
ELECTRICIAN NOTE: Use copper conductor wire only.
CASE MUST BE GROUNDED

WASTE OUTLET AND WATER SEAL
The waste outlet is located in front of the fan
plenum 6 ft (1829 mm) from the left-hand of the
merchandiser (facing case front) allowing drip
piping to be run under the fixture lengthwise. A
11/2in. (38 mm) water seal is supplied with each
fixture. The water seal must be installed to
prevent air leakage and insect entrance into the
fixture. A tee, adapter, ell, and plug have been
shipped to allow field installation to determine
direction of drain.
NOTES:
Water seal outlet must clear front skid rail.
PVC–DWV solvent cement is recommended.
Follow the manufacturer’s instructions.
INSTALLING DRIP PIPING
Poorly or improperly installed drip pipes can
seriously interfere with the operation of these
merchandisers, and result in costly maintenance
and product losses. Please follow the recommen-
dations listed below when installing drip pipes to
ensure proper installation.
1. Never use drip piping smaller than the nominal
diameter of the pipe or water seal supplied
with the merchandiser.
2. When connecting drip piping, the water seal
must be used as part of the drip piping to
prevent air leakage or insect entrance. Never
use two water seals in series in any one drip
pipe. Double water seals in series will cause
an air lock and prevent draining.
3. Pitch the drip piping in the direction of flow.
There should be a minimum pitch of 1/8in. per
foot (3 mm per 300 mm).
4. Avoid long runs of drip piping. Long runs
make it impossible to provide the pitch neces-
sary for good drainage.
5. Provide a suitable air break between flood rim
of the floor drain and outlet of drip pipe.
6. Prevent drip pipes from freezing:
A. Do NOT install drip pipes in contact with
uninsulated suction lines. Suction lines should
be insulated with a non-absorbent insulation
material.
B. Where drip pipes are located in dead air
spaces, such as between merchandisers or
between a merchandiser and a store wall, pro-
vide means to prevent freezing.
Note: To prevent condensation problems, the
water seal should be insulated.
P/N 406928 3-1
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
DDRRIIPPPPIIPPIINNGGAANNDDSSPPLLAASSHHGGUUAARRDDSS

INSTALLING SPLASHGUARD AND
LOWER FRONT PANEL
Make certain that the end assemblies, end
splashguards and end panels have been
installed according to the End Kit instruction.
The splashguard and lower front panel are
shipped inside each case. After merchandisers
have been leveled and joined, and all drip pip-
ing, electrical and refrigeration work has been
completed, install the splashguard and lower
front panel.

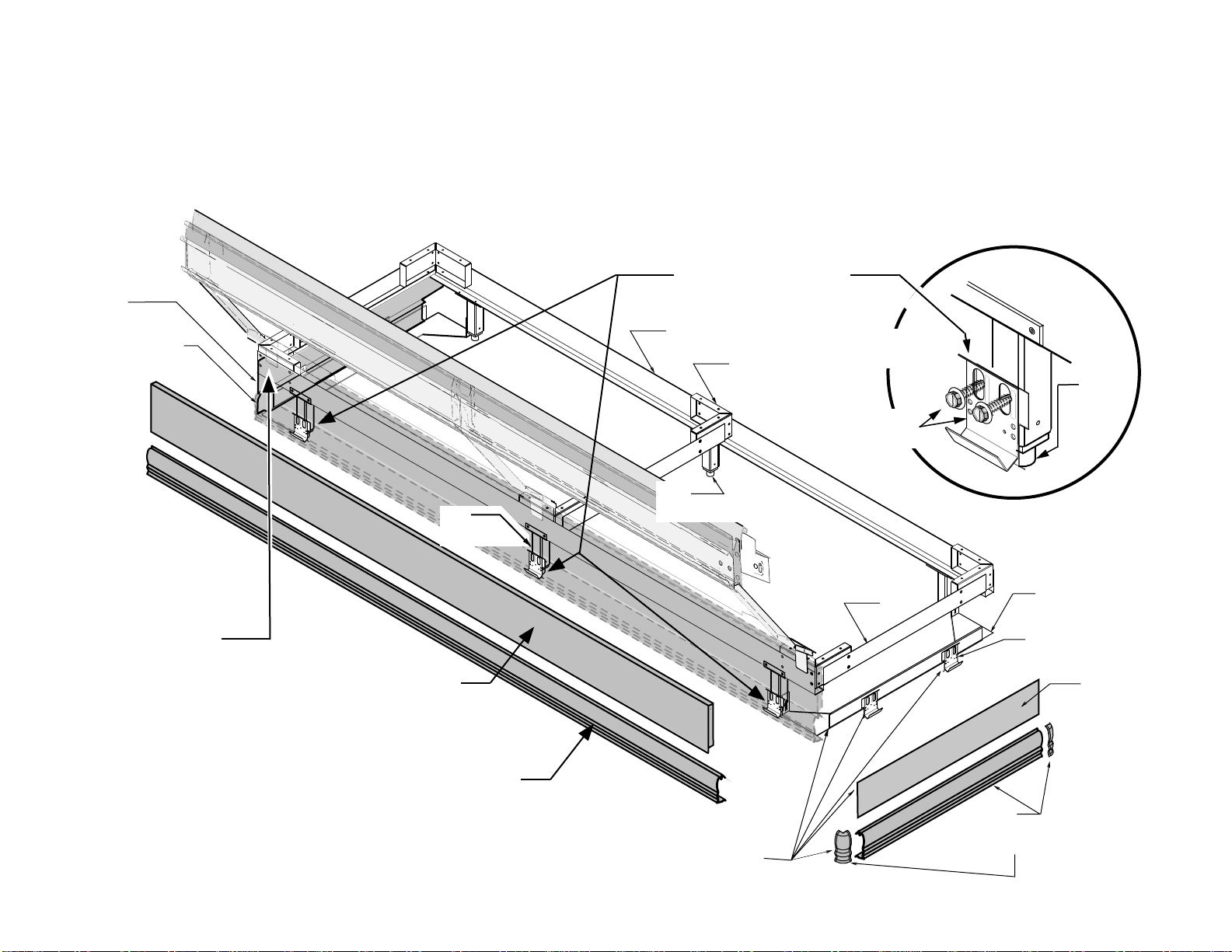

1. At front of merchandiser, attach a splashguard
retainer/bracket to each leg with sheet metal
screws.
2. Position top of splashguard over the top edge of
the retainer/bracket as shown below.
3. Push the lower edge of the splashguard toward
the bottom of hte bracket until it snaps into
place.
To Install Lower Front Panel
1. Position the lower front panel with the top
angled as shown in the illustration. Tabs
extending from the upper front assembly are
designed to fit into the slots on the top of the
lower front panel.
2. Once the top is positioned, lift the panel up and
drop it into the groove at the top of the splash-
guard.
Do not use additional fasteners or sealant to hold
splashguards or panels in place. To meet clean-
ability requirements, splashguards and panels
must be removable without tools.
3-2 DRIP PIPING AND SPLASHGUARDS
P/N 406928
Splashguard
Leg of
Case
2
Leg of
Case
Splashguard
3
Tab
Lower
Front
Panel
Lower Front Panel
Retainer/
Bracket
Leg of
Case
Leg of
Case
1
1
2
Leg of
Case

P/N 406928 3-3
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
Part of
End Kit
Leg
Leveler
Detail
Front
Splashguard
Lower
Front
Panel
RH
End
Panel
RH End
Splashguard
and Corners
Front Splashguard
Retainer / Bracket
3 for 8 ft — 4 for 12 ft
End
Bracket
Base
Skid
End
Rail
End
Retainer
Screws
Lower Front
Panel Tab
3 for 8 ft
4 for 12 ft
Leg
Assembly
LH-End
Splashguard
LH-End
Panel
Leg
Leveler

INSTALLING BOTTOM REAR PANEL
For fixed installation:
1. Align slots in bottom rear panel with center of
legs.
2. Drive a hex head sheetmetal screw through
each slot into each leg.
3-4 DRIP PIPING AND SPLASHGUARDS
P/N 406928

START UP
See the specific merchandiser's Data Sheet Set for
refrigerant settings and defrost requirements.
Bring merchandisers down to the operating
temperatures listed on the data sheet.
Each 4 ft (1219 mm) section has its own evapora-
tor coil and pre-set non-adjustable thermostatic
expansion valve (TEV). No adjustment is
required. DO NOT REMOVE THE CAP ON THE
TEVS.This cap is to be removed only for valve
disassembly.
The TEV has been factory set to provide the
recommended performance settings as specified
on the merchandiser data sheets.
STOCKING
Product should NOT be placed in merchandisers
until case is at proper operating temperature.
Proper rotation of product during stocking is nec-
essary to prevent product loss.
AIR DISCHARGE AND RETURN FLUES MUST REMAIN
OPEN AND FREE OF OBSTRUCTION AT ALL TIMES to
provide proper refrigeration and air curtain
performance. Do not allow product, packages,
signs, etc. to block these grilles. Do not use
non-approved shelving, baskets, display racks, or
any accessory that could hamper air curtain
performance.
LOAD LIMITS
Each merchandiser has a load limit decal.
Recommended load limit profiles are shown on
the next page.
Shelf life of perishables will be short if load limit
is violated. Overstocking will adversely affect
product temperature and merchandiser efficiency.
DO NOT BLOCK AIR GRILLE.
P/N 406928 4-1
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
SSTTAARRTTUUPP//OOPPEERRAATTIIOONN
Removal of the TEV cap will result in
refrigerant loss unless the system is first
isolated and the refrigerant recovered.
CAUTION
!
LOAD LIMIT
At no time should merchandisers be
stocked beyond the load limits indicated.
WARNING
!

LOAD LIMIT PROFILES
4-2 START UP / OPERATION
P/N 406928
Load Limit
ED1
Load Limit
EDS1

CARE AND CLEANING
Long life and satisfactory performance of any
equipment is dependent upon the care it receives.
To ensure long life, proper sanitation and mini-
mum maintenance costs, these merchandisers
should be thoroughly cleaned, all debris removed
and the interiors washed down, at least weekly.
Exterior Surfaces
The exterior surfaces must be cleaned with a mild
detergent and warm water to protect and maintain
their attractive finish. NEVER USE ABRASIVE
CLEANSERS OR SCOURING PADS.
Interior Surfaces
The interior surfaces may be cleaned with most
domestic detergents, ammonia based cleaners and
sanitizing solutions with no harm to the surface.
Removable parts are labeled REMOVE FOR
CLEANING.
Removable stainless steel parts may be cleaned
and sanitized in dishwasher.
See next page for detailed direction.
Do Not Use:
• Abrasive cleansers and scouring pads, as
these will mar the finish.
• A hose on lighted shelves or submerge the
shelves in water.
• Solvent, oil or acidic based cleaners on any
interior surfaces.
Do:
• Remove the product and all loose debris to
avoid clogging the waste outlet.
• Store product in a refrigerated area such as a
cooler. Remove only as much product as can
be taken to the cooler in a timely manner.
•Turn off refrigeration, then disconnect
electrical power.
• Thoroughly clean all surfaces with soap and
hot water. DO NOT USE STEAM OR HIGH WATER
PRESSURE HOSES TO WASH THE INTERIOR.
THESE WILL DESTROY THE MERCHANDISER’S
SEALING CAUSING LEAKS AND POOR PERFORM-
ANCE.
• Lift or remove fan plenum for cleaning. Hook
chain in rear panel to secure plenum during
cleaning. Be sure to reposition the fan plenum
after cleaning merchandiser.
• Take care to minimize direct contact between
fan motors and cleaning or rinse water.
• Rinse with hot water, but do NOT flood.
NEVER INTRODUCE WATER FASTER THAN THE
WASTE OUTLET CAN REMOVE IT.
• Allow merchandisers to dry before resuming
operation.
• After cleaning is completed, turn on power to
the merchandiser.
P/N 406928 5-1
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)
MMAAIINNTTEENNAANNCCEE
ALWAYS SHUT POWER OFF
DURING CLEANING PROCESS.
WARNING
!
Do NOT use HOT water on COLD glass
surfaces. This can cause the glass to
shatter and could result in personal
injury. Allow glass fronts, ends, and
service doors to warm before applying
hot water.
WARNING
!
Do NOT allow product to sit in a
non-refrigerated area.
WARNING
!

INTERIOR CLEANING STEPS
STEP 1 – Remove product to cooler.
STEP 2 – Turn off refrigeration.
STEP 3 – Shut power off.
STEP 4 – Remove display pans.
STEP 5 – Lift out discharge air grille.
STEP 6 – Lift out interior back panel.
5-2 MAINTENANCE
P/N 406928
Do NOT allow product to sit in a
non-refrigerated area.
WARNING
!
41°F
(5°C)
Note that refrigeration controls
and power controls are not in
the merchandiser. Consult the
store legend or facility manager.
ALWAYS SHUT POWER OFF
DURING CLEANING PROCESS.
WARNING
!

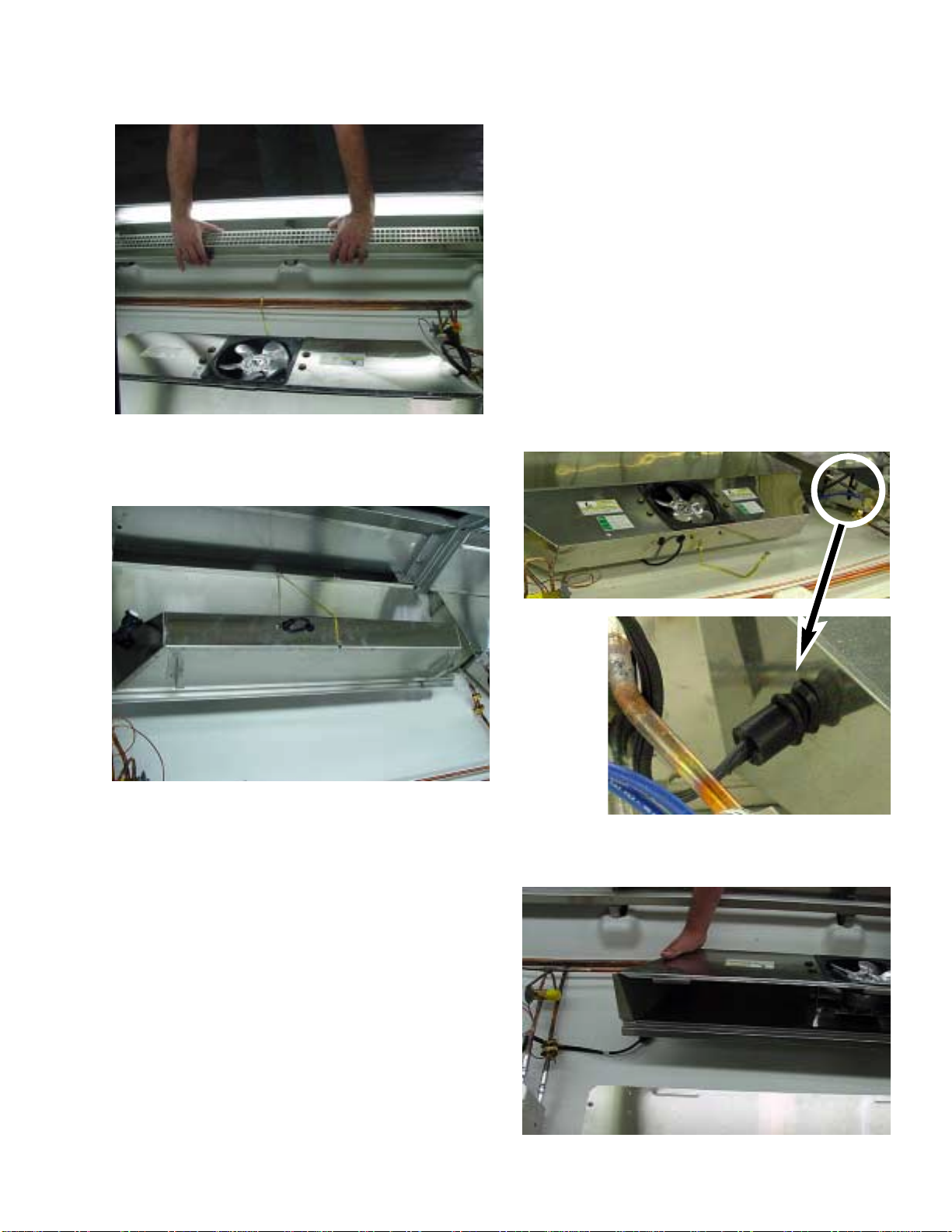

STEP 7 – Lift out return air grille (from front).
STEP 8 – Rotate fan plenum up and back;
hook chain at rear of liner.
OR
Unplug fan harness.
Lift fan plenum up and back to remove.
(view is from the back)
P/N 406928 5-3
EEuurrooDDeelliiMMeerrcchhaannddiisseerrss
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Printed in U.S.A.)

STEP 9 – Clean inside the merchandiser.
Once interior parts have been removed, collect
loose debris for removal. Do not clog waste
outlet.
STEP 10 – Clean and sanitize according to
local requirements.
STEP 11 – Reassemble in reverse order.
Turn on power, then refrigeration. Make certain
merchandiser has cooled to operating temperature
before restocking.
REMOVING SCRATCHES FROM BUMPER
Most scratches and dings can be removed using
the following procedure.
1. Use steel wool to smooth out the surface area
of the bumper.
2. Clean area.
3. Apply vinyl or car wax and polish surface for
a smooth glossy finish.
5-4 MAINTENANCE
P/N 406928
